Brand	Viking
Model	TVDR6606IAW
Product type	Gas range
Number of surface burners	6 (configurations may vary by model)
Power supply	Natural gas or propane (convertible)
Propane conversion	LPKTVDR conversion kit included
Burner types	Rear surface burners (B, C) and front (D), French plate (F)
Typical dimensions (W x D x H)	91.4 cm x 71.1 cm x 91.4 cm (36" x 28" x 36")
Approximate weight	113 kg (250 lb)
Electrical voltage	120 V / 60 Hz (for igniters and lighting)
Surface material	Stainless steel
Safety	Automatic safety shut-off in case of flame extinguishment (depending on model)
Spare parts	Available through Viking Range (orifices, burner heads, regulator)
Repairability	High repairability index (standardized parts, guides available)
Maintenance and cleaning	Removable grates and burner heads, clean with soapy water

Frequently Asked Questions - TVDR6606IAW VIKING

How to convert the range from natural gas to propane?

Use the provided LPKTVDR conversion kit. Follow the instructions: reverse the regulator piston, replace the burner orifices with the appropriate size (refer to the orifice chart), then check for leaks with a soapy water solution. Never use an open flame to detect leaks.

Where is the rating label located?

The rating label is located under the control panel. After propane conversion, affix the provided conversion label next to it.

How to remove the surface burner orifices without dropping them?

Apply adhesive tape inside the socket of the nut driver to hold the orifice. This prevents it from falling into the range during removal.

What types of burners are compatible with this model?

This model can accommodate rear surface burners (sizes B and C), front (size D), and a French plate (size F). The corresponding orifices are included in the conversion kit.

How to know if the propane conversion is correctly performed?

After conversion, verify that the regulator piston shows 'PL' on the bottom. Test each burner: the flame should be blue and stable. Apply a soapy water solution to all connections; no bubbles should form.

Can I use the range without converting to propane if it is supplied with natural gas?

Yes, the range is shipped configured for natural gas. Do not modify the regulator or orifices if using natural gas. Conversion is only necessary for propane.

How to clean the burner heads and grates?

Remove the burner heads and grates. Wash them in warm soapy water, rinse and dry completely. Do not replace them while still damp. Avoid abrasive cleaners.

What to do if a gas odor is detected?

Do not ignite any appliance, do not touch electrical switches, do not use a phone in the building. Leave the premises, call your gas supplier from a neighbor's phone, or the fire department if necessary. Have the installation inspected by a professional.

How to install the French plate?

The French plate mounts on the central area. Remove the corresponding grates and burner heads, place the plate in the recess and secure it with the provided screws. Ensure it is stable before use.

Where to find spare parts for this model?

Spare parts (orifices, burner heads, regulator, etc.) are available through Viking Range or authorized dealers. Contact customer service at 1-888-845-4641 (United States) or visit vikingrange.com.

USER MANUAL TVDR6606IAW VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifi ces may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open f1 ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
• Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP". Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

• Reinstall hex nut onto regulator in configuration desired.

Orifices Locations

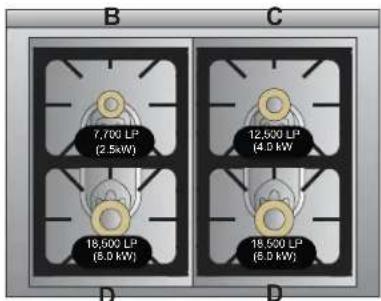

36" W/4 Surface Burners

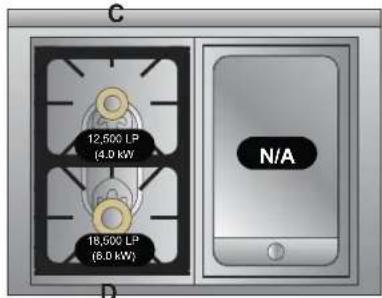

36'' W/2 Surface Burners/Griddle

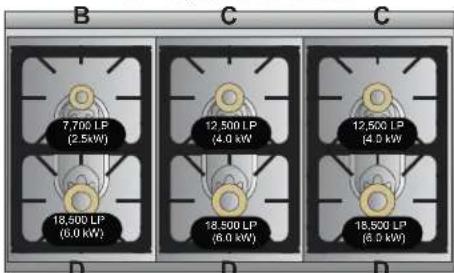

48" W/6 Surface Burners

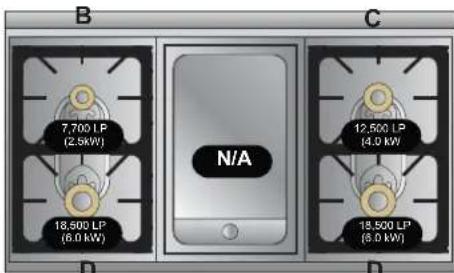

48" W/4 Surface Burners/Griddle

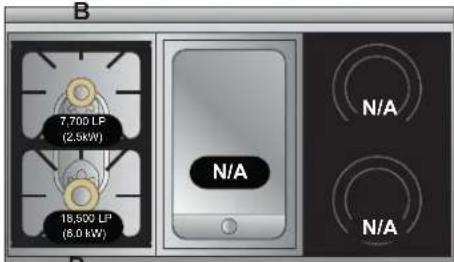

48" W/2 Surface Burners/Griddle/Induction

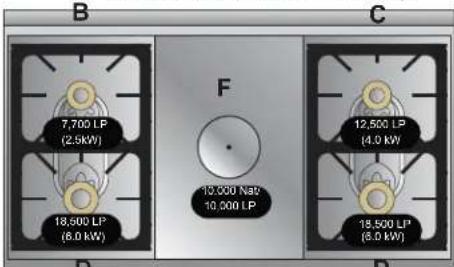

48" W/4 Surface Burners/French Top

D

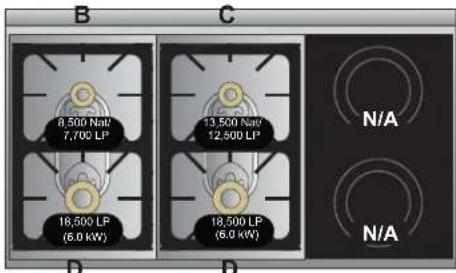

48" W/4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

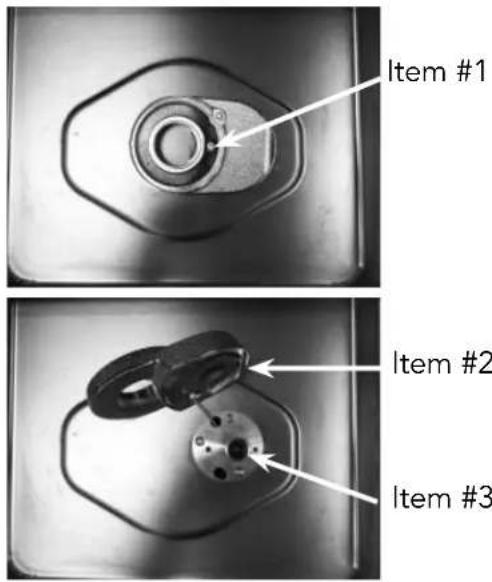

Surface Burner Conversion

-Locate appropriate orificce
-Remove screw (Item #1) fl at-head screwdriver.
- Lay the burner flange to side - do not disconnect the igniter wire. (Item #2).
-Use a nut driver to remove orificce (ltem #3).
-Replace with correct orific e - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, replace Item#2 burner fl ange.
  -Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Frenchtop Burner Conversion

-Remove frenchtop plate.
-Remove screws around burner.
-Remove screws holding burner box.
-Slide burner box forward and lift out.
-Orifice is located under orifice bracket, attached to tubing.
-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, reinstall burner box and frenchtop plate

Orifice bracket

Orifices

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.

or visit our web site at vikingrange.com in the U.S. or brigade.ca in Canada.
