MDB8959SKK - Dishwasher MAYTAG - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Maytag
Model	MDB8959SKK
Dimensions (W x D x H)	60.4 cm x 76.2 cm x 85.1 cm (min)
Weight	Approximately 50 kg
Electrical Supply	120 V, 60 Hz, 15-20 A
Water Connection	Hot water (49 °C recommended), pressure 138-862 kPa
Wash Programs	Sensor, Pots & Pans, Normal, Rinse, Sanitize
Options	High Temp, Heat Dry, Sanitize Rinse, Delay Start
Capacity	14 place settings (approx.)
Noise Level	Varies by cycle (approx. 45-50 dBA)
Tub Material	Stainless Steel
Racks	Adjustable upper rack, lower rack with fold-down tines, cutlery basket
Special Features	Soil sensor, time remaining indicator, interior light (optional)
Maintenance and Cleaning	affresh cleaner recommended monthly, rinse aid required
Safety	Grounding, child safety (lockable door), auto shut-off
Spare Parts	Available from manufacturer (Whirlpool)
Repairability	Error codes displayed, technical support recommended for breakdowns
Installation	Built-in under counter, attach to counter or sides, electrical and plumbing connections
Warranty	Standard limited warranty (see guide)

Frequently Asked Questions - MDB8959SKK MAYTAG

How to install the Maytag MDB8959SKK dishwasher?

Follow the detailed installation instructions in the manual, including electrical connection (120 V, grounded), hot water supply (49 °C) and drain. Secure the appliance to the counter or sides with the provided brackets.

What do the error codes F1E1 or F8E4 mean?

Code F1E1 indicates a water valve problem (shut off water and call service). F8E4 means an overflow (draining active, shut off water and call service).

How to adjust the rinse aid level?

Access the customer settings menu by holding HI TEMP (or Options) for 5 seconds, then press Start. Use the Normal button to navigate to A X, then Start to adjust from 0 to 6 mL.

What is the capacity of this dishwasher?

The standard capacity is about 14 place settings, with adjustable racks to optimize space.

How to clean the interior of the dishwasher?

Use a special dishwasher cleaner (such as affresh) once a month. Place the tablet in the detergent compartment and run a normal cycle.

Can I use standard powder detergent?

Yes, but for best results, use premeasured tablets or packs of high quality, and add rinse aid.

How to load cutlery for optimal washing?

Place knives pointing down, forks pointing up, and alternate spoons. Use the cutlery basket covers to keep items separated.

What to do if the dishwasher does not drain?

Check that the drain hose is not clogged (especially if connected to a disposer). If code F9E1 appears, remove the disposer plug. Otherwise, call service.

How to disable the keypad sound?

In the customer settings menu (hold HI TEMP 5s, then Start), navigate to S X. Press Start to toggle between S1 (sound on) and S0 (sound off).

What are the location requirements for installation?

The opening must be at least 60.4 cm wide, 76.2 cm deep and 85.1 cm high. Provide a hot water supply and a grounded electrical outlet within reach.

USER MANUAL MDB8959SKK MAYTAG

OWNER'S MANUAL MANUEL DE L'UTILISATEUR MANUAL DEL PROPIETARIO

TABLE OF CONTENTS / TABLE DES MATIÈRES / ÍNDICE

DISHWASHER MAINTENANCE .....3

DISHWASHER LOADING TIPS......4

DISHWASHER CARE 5

USER INTERFACE CUSTOMER SETTINGS....6

ERROR CODES......7 Error codes / blinking lights......7

INSTALLATION REQUIREMENTS...8

Tools and parts ....8

Location requirements....10

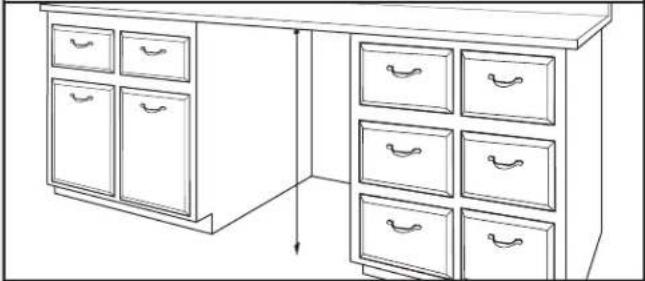

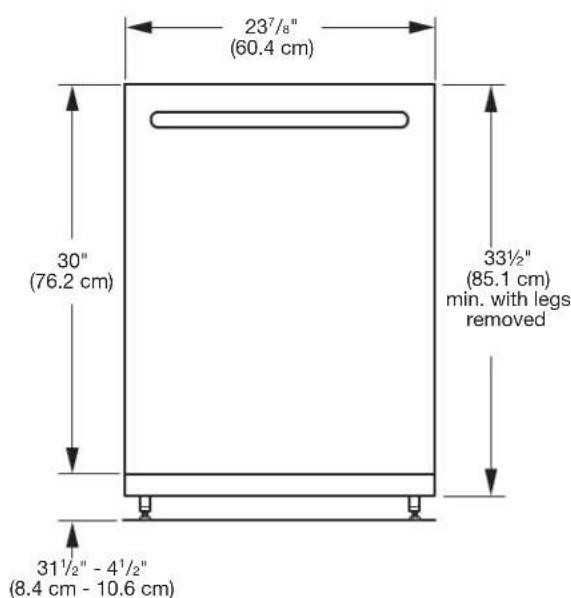

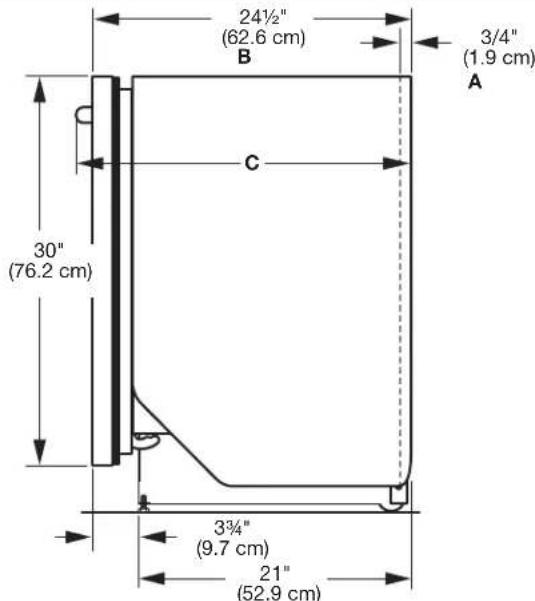

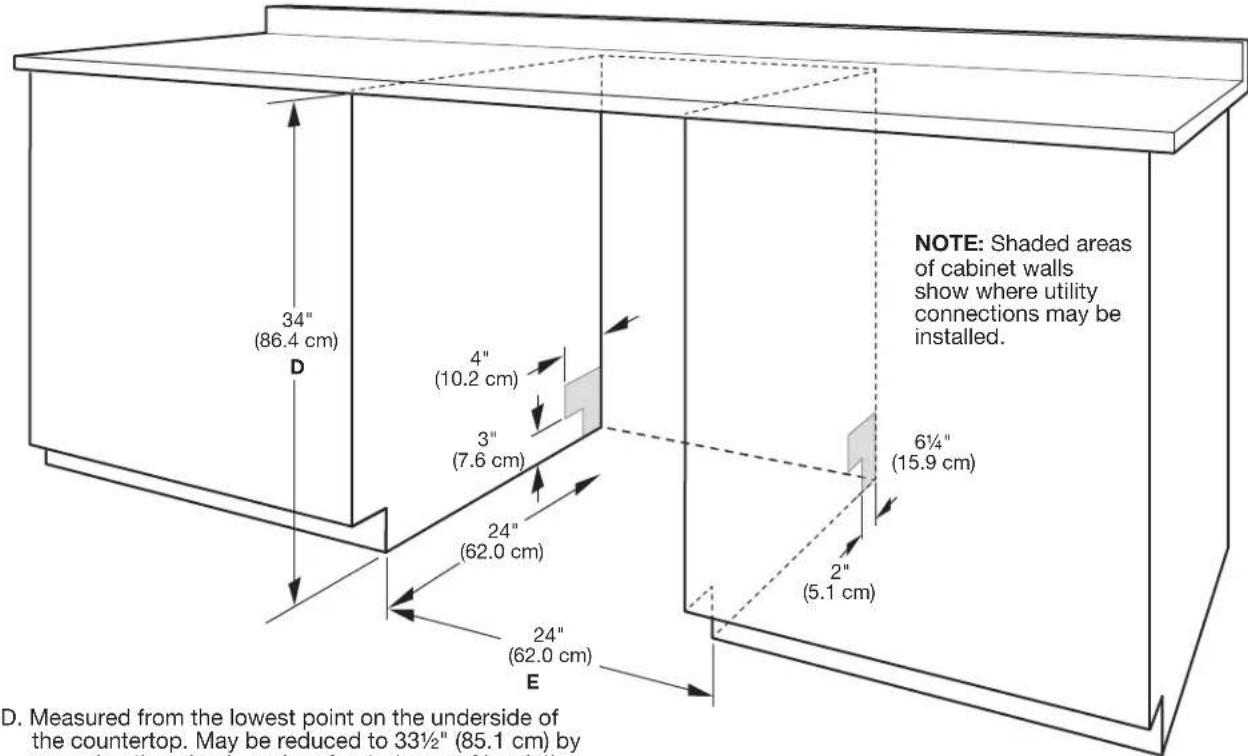

Product and cabinet opening dimensions:....11

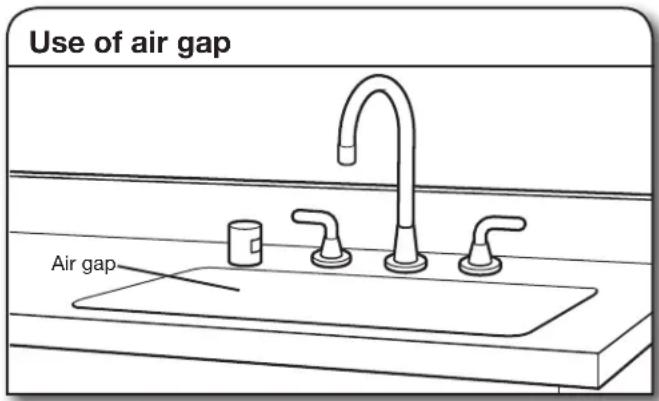

Drain requirements ....12

Water supply requirements......12

Electrical requirements ......12

INSTALLATION INSTRUCTIONS...13

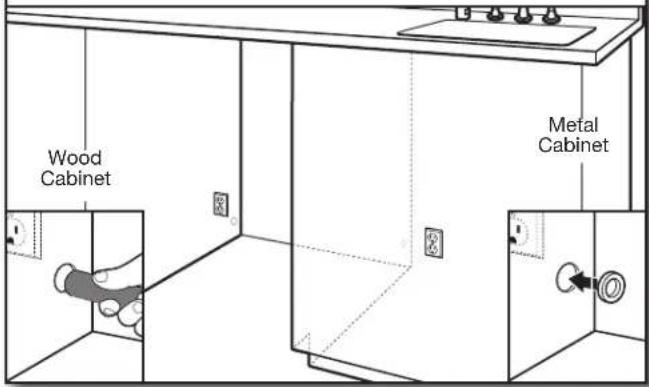

Prepare cabinet opening—new utilities....13

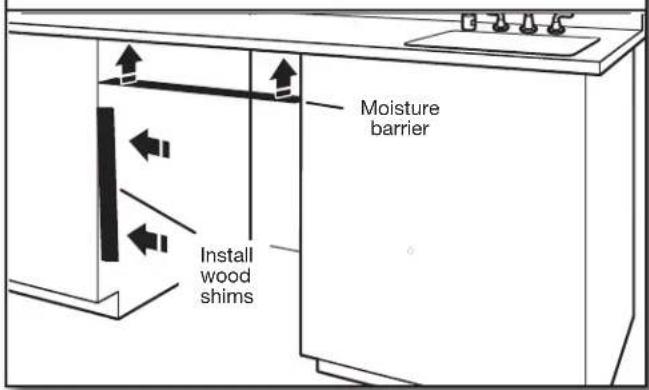

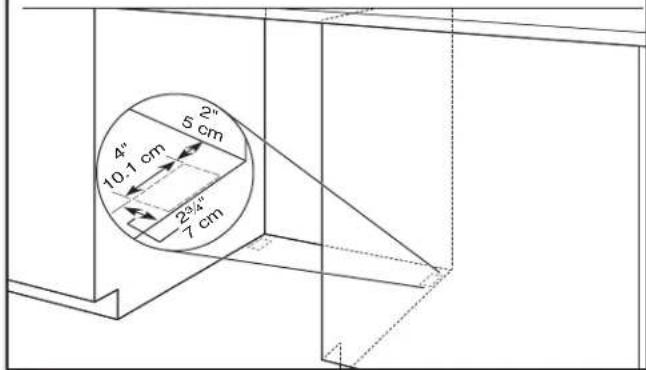

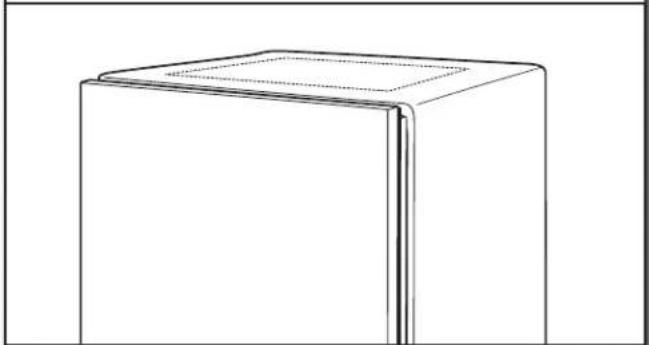

Install optional moisture barrier - recommended for wood countertops ...13

Electrical connection .....14

Prepare dishwasher....15

Remove access panel....15

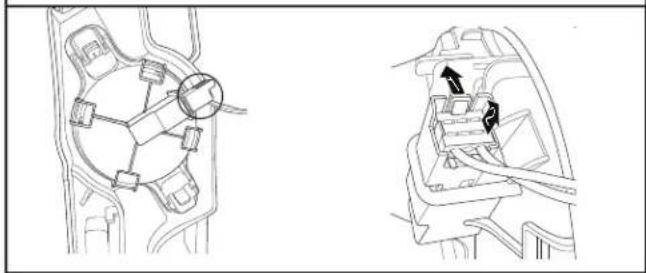

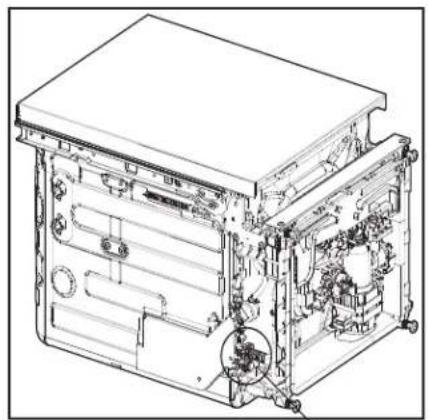

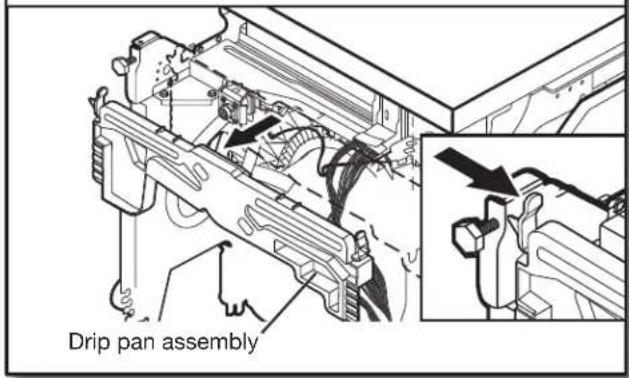

Disconnect and remove drip pan assembly....15

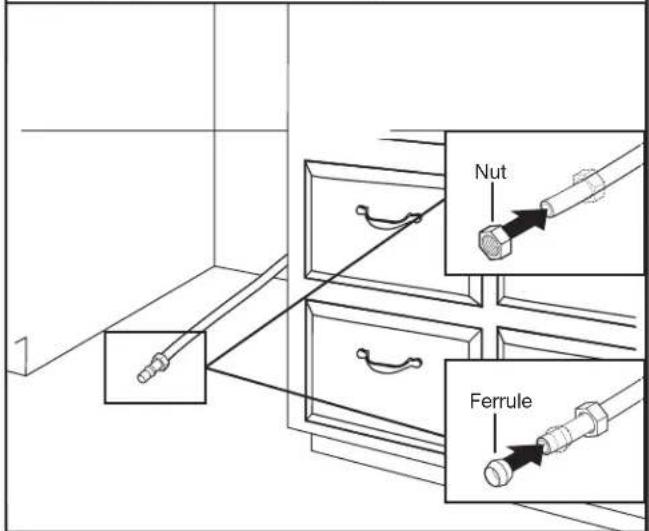

Connect water line to fill valve......16

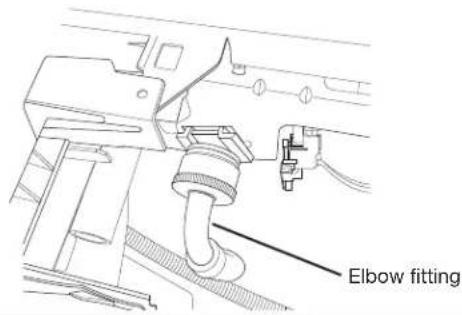

Connect fill hose to fill valve....17

Drain hose connection....18

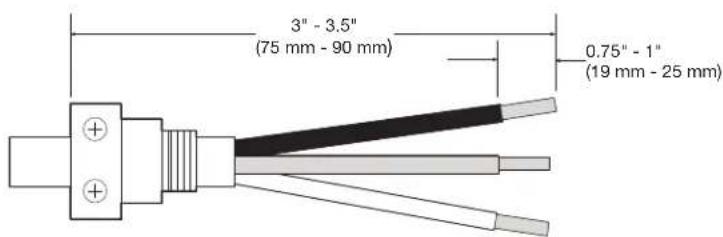

Power cord connection....18

Install door handle (on some models)....20

Place dishwasher in cabinet....20

Custom panel installation (custom panel models only)......21

Choose anchor attachment method...21

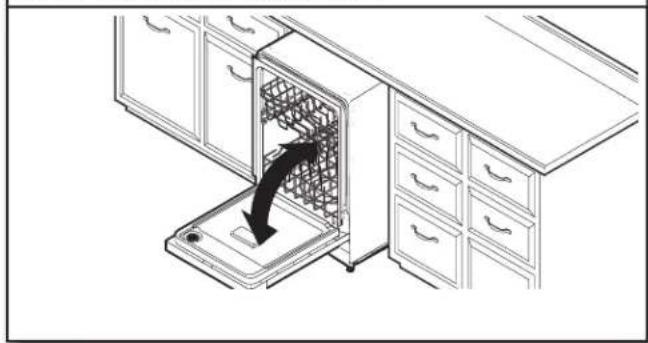

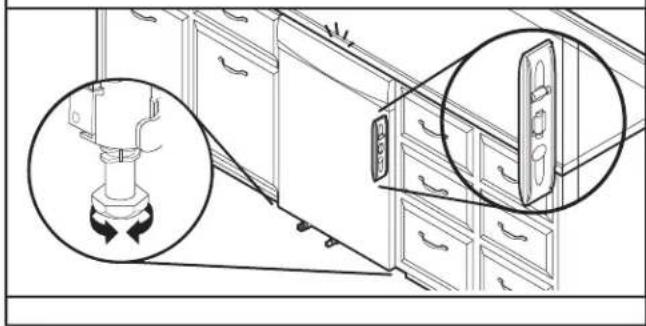

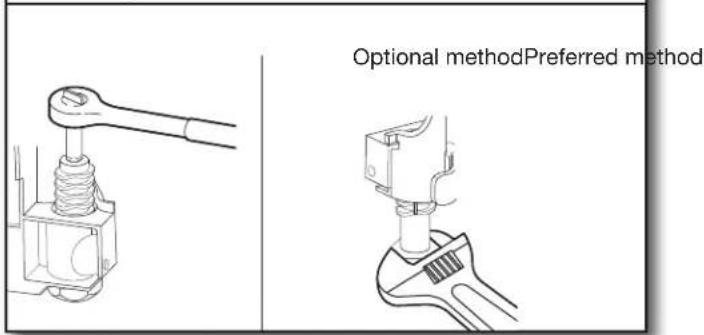

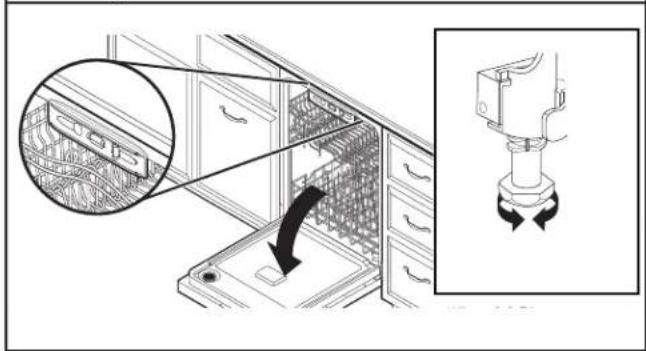

Final installation check....22

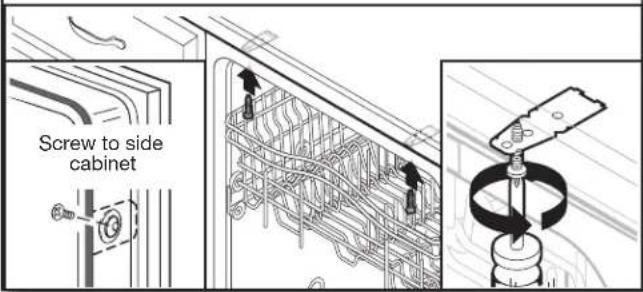

Secure dishwasher in cabinet opening....23

Connect water line to house shut-off valve 24

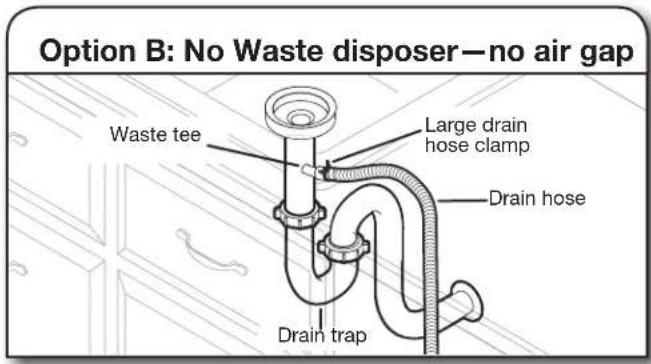

Connect drain hose 24

Complete installation....26

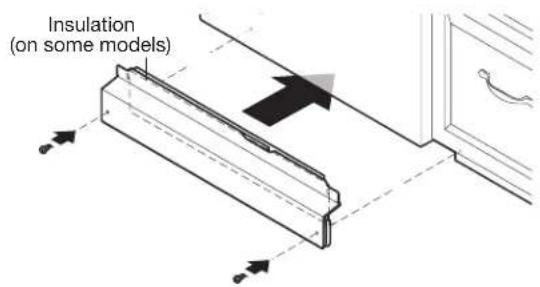

Install access panel 26

Check operation 27

If dishwasher does not operate .....27

ENTRETIEN DU LAVE-VAISSELLE ..29

CONSEILS DE CHARGEMENT DU LAVE-VAISSELLE .... 30

ENTRETIEN DU LAVE-VAISSELLE....31

RÉGLAGES PAR LE CLIENT DE L'INTERFACE UTILISATEUR......32

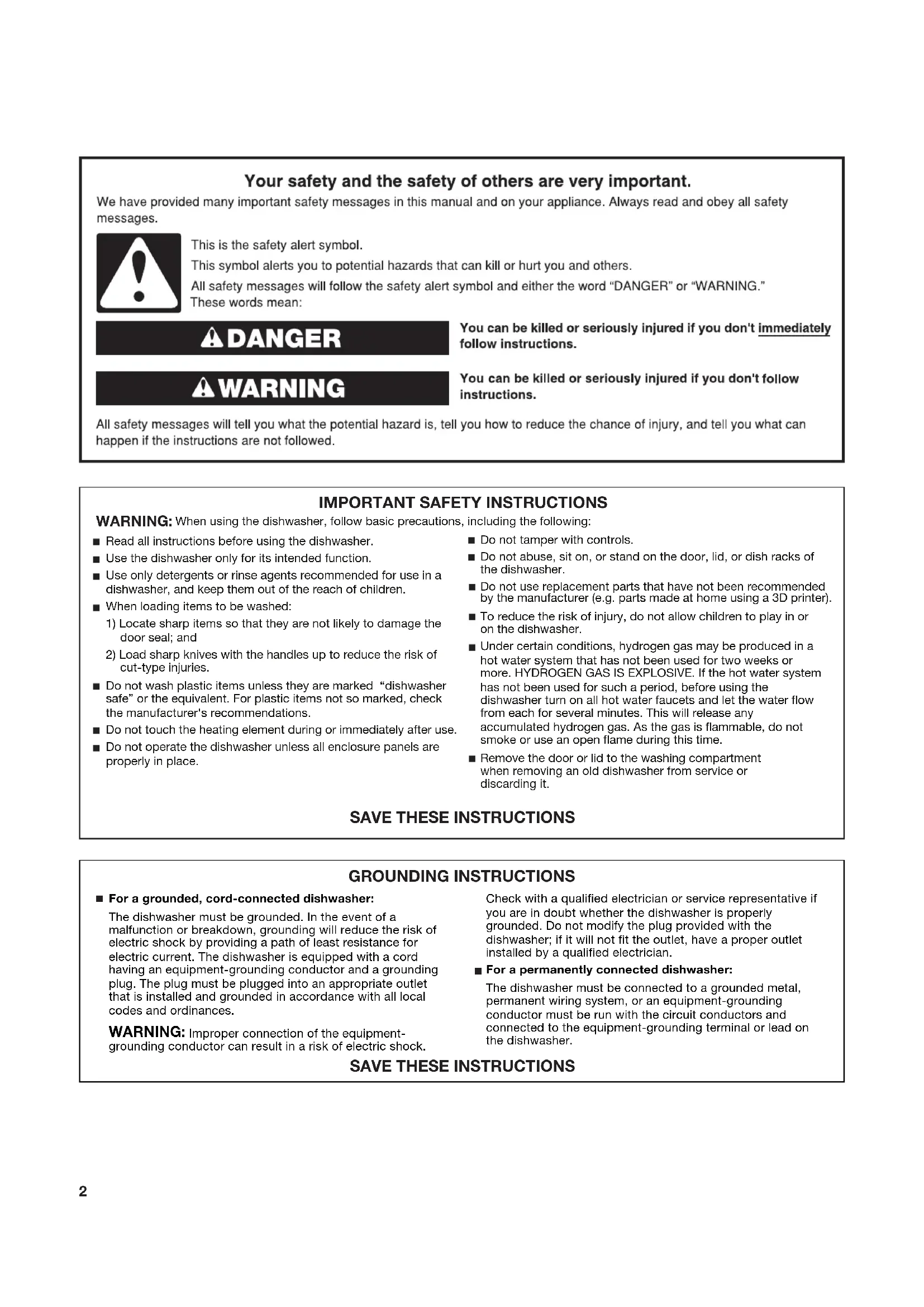

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
  ■ Use the dishwasher only for its intended function.
  ■ Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.
  ■ When loading items to be washed:
• Read all instructions before using the dishwasher.
• Use the dishwasher only for its intended function.
• Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.
• When loading items to be washed:
  1) Locate sharp items so that they are not likely to damage the door seal; and
  2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
  ■ Do not touch the heating element during or immediately after use.
  ■ Do not operate the dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
■ Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).
■ To reduce the risk of injury, do not allow children to play in or on the dishwasher.
■ Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
■ Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

■ For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■ For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

DISHWASHER MAINTENANCE

Detergents

High-quality premeasured tablets and packs are recommended for improved performance.

Quality tablets and packs have been proven better than powder, liquid, or gel detergents at reducing filming on dishes. Using tablets and packs over time will start to reduce or eliminate white film. They are suitable for all water hardness and soil levels. Also, by using a rinse aid, you can minimize repeat buildup of white film (not all packs and tablets contain rinse aid). Always place premeasured detergents in main compartment and close lid.

NOTE: Follow instructions on the package when using other dishwasher detergent types.

■Use automatic dishwasher detergent only. Add detergent just before starting a cycle.
■Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool, dry place.
■Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your dishwasher and make it difficult to achieve good results. A water softener is recommended to avoid damage and achieve good results.
■For more details about powders, liquids, and gels and hard water conditions consult the brand website.

Rinse aid

Using rinse aid will optimize your drying and wash performance. This dishwasher is specifically designed to be used with rinse aid for improved drying performance and controlling buildup of hard water deposits. Rinse aid needs to be added to the product every 1 to 3 months depending on usage.

Refer to the Quick Start Guide or brand website for information about filling the rinse aid dispenser.

Cycle Selection and Energy

Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. Typical cycle time is approximately 2 1/2 hours, but can take less or significantly more time depending on your selections and incoming water temperature and amount of food soils on the dishes. For optimum performance the dishwasher should be connected to a 120 F (49°C) hot water supply.

If you first press the Start button, the main sensor cycle with heated drying will be automatically selected. This cycle senses the soil amount, and toughness of soil, to adjust the cycle for improved cleaning.

Sanitize or Sani

Sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. Only sanitizing cycles have been designed to meet the requirements of the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a NSF/ANSI 184 certified dishwasher meet the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy. The Sani Rinse indicator glows at the end of the cycle if the Sani Rinse option was successfully completed. If the indicator does not activate, it is probably due to the cycle being interrupted.

DISHWASHER LOADING TIPS

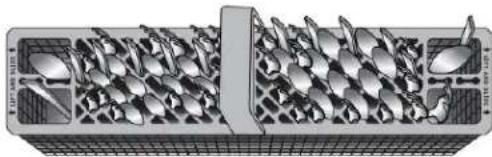

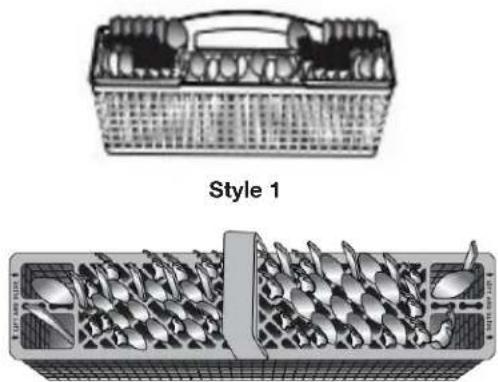

Silverware Baskets

Illustration of a toolbox and its internal components, labeled 'Style 1' (no text or symbols on the diagram itself)

Style 2

Use silverware basket lids to provide optimal spacing and best cleaning performance. NOTE: If your silverware does not fit into the designated slots, open the lids (Style 1) or lift on the ends of the lids and pull to remove (Style 2). Mix silverware types to keep them separated. Load knives down, forks up, and alternate spoons for best cleaning results.

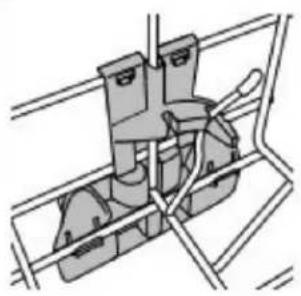

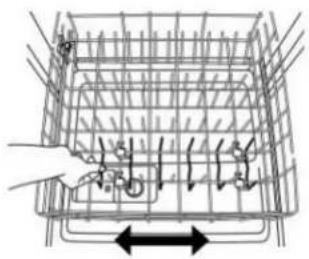

Removing Upper Racks

In order to make space for tall items, your upper racks are removable. The manner in which to remove will depend on whether the rack is mounted with Style 1 or Style 2. Remove dishes prior to removing any racks.

Technical line drawing of a structural frame with arrows indicating direction (no text or symbols)

Style 1

To remove the rack, pull the rack forward about halfway out of the tub. On one side, press the tab on the track in and pull up the front end of the rack, out of the track. Then repeat this step on the other side to completely remove the front end of the rack. Then remove the rack by pulling the back end out using a forward and upward motion.

To replace the rack, Push back of rack into rail first and then push front down.

Track Stop Rack

Style 2

To remove the rack, pull the rack out until it stops. On the left and right side of the rack, push the plastic track stops on the front of the rail sideways to open them. Pull out the rack.

To replace the rack, push the rack back onto the rails. Push the track stops closed.

Sliding Bowl Tines

Diagram of a wire mesh container with internal components and directional arrows (no text or symbols)

The sliding bowl tines allow you to easily load bowls of multiple sizes. Grab the moveable tine row in the lower rack and slide into the desired position.

Fold Down Tines

Technical line drawing of a mechanical assembly with no visible text or symbols

Fold down tines allow you to optimize the spacing in the rack. Fold down tines might be in the lower rack, the second level rack and/or third level rack depending on your model. To fold or unfold the tine, hold the tine nearest the clip at the end of the tine row and gently push it past the stop on the clip and in the direction you want to fold it.

Stemware Holder

Use the stemware holders to support wine glasses and other stemware. Push them up to rotate them out of the way when not needed.

Stemware Holder

Cup Shelf

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Use the cup shelf to hold additional cups or small items. Push up to fold out of the way when not needed.

DISHWASHER CARE

Interior Cleaning

Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh® Dishwasher Cleaner can help to remove the residue. Monthly use of affresh® Dishwasher Cleaner is recommended to help maintain the dishwasher. Follow package directions.

NOTE: We recommend the use of high-quality, premeasured detergent tablets or packs and the use of rinse aid for dishwasher cleaning and daily care.

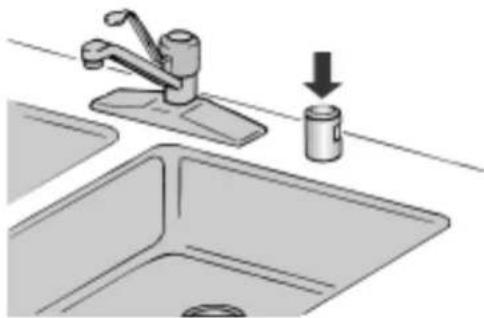

Countertop Air Gap

If you have a drain air gap, check and clean it if the dishwasher isn't draining well.

Illustration of a kitchen sink with a faucet and a bucket being inserted (no text or symbols)

Extended Time Without Use

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use

■When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.
■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home.
■Damage from freezing is not covered by the warranty. ■When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Exterior Cleaning

Clean the exterior of dishwasher with a soft, damp cloth and mild detergent. Avoid using abrasive cleaning products on the exterior of the dishwasher. Abrasive cleaning products can damage the finish.

Troubleshooting

The brand website listed on the Quick Start Guide has detailed information to troubleshoot most problems customers encounter. This information may save you the cost of a service call

Foreign Object Cup

If the Foreign Object Cup is full the Quick Start Guide or the brand website listed on the Quick Start Guide has detailed information about how to empty it.

USER INTERFACE CUSTOMER SETTINGS

Customer Settings

To enter the Customer Settings Menu, press and Hold the HI TEMP key (or "Options" key if there is no HI TEMP key) for 5 seconds, then release. Press the START key within 2 seconds. The HI TEMP light will come on to indicate you are in the Customer Settings Menu mode.

Customer Settings Menu

The Customer Settings Menu consists of a set of Features with Submenus under each of the features.

To scroll through the Features, press the NORMAL (or CYCLE) key.

To enter a Submenu, press the START Key. To scroll through the available submenu options, press the NORMAL (or CYCLE) key.

To exit the settings menu without making any changes, Press the CANCEL key AND hold for 3 seconds or wait 30 seconds without doing anything.

The Menus and Submenus are either represented by numbers and characters in the display window (if present) or by LED light patterns on the HMI (if no other display is present).

Menu	Display Text(if display is present)	LED Pattern (no display)			What this setting does	Default Setting
		SENSOR	POTS AND PANS	NORMAL
Rinse Aid Level A	X Adjust amount of rinse aid dispensed
	A 0 X X	X 0 mL - rinse aid off
	A 1 X 1 mL X
	A 2 X 2 mL
	A 3 X X	3 mL
	A 4 X 4 mL
	A 5 X		X 5 mL
	A 6		X X 6 mL
Sound Level S	X X	Turn sound On and Off
	S 1 X				X
	S 0		X
Light in Tub	L			X	Turn the inner light on and off (if present)
	L 1	X Light in Tub ON			X
	L 0		X		Light in Tub OFF
Kosher Friendly	E	X		X	Turn Kosher Friendly mode ON and OFF
	K 1 X Turn the mode ON
	K 0		X Turn the mode OFF		X
Factory Reset	r	X X X	Factory Reset

ERROR CODES

ERROR CODES / BLINKING LIGHTS

Issue	Code Shown (7 Seg Display) (if present)	Code Shown on Front Panel LED * (# blinks, Pause, # blinks)	What will happen? What to do?
Dishwasher fails to operate fill valve correctly	F1E1	1 Pause 1 Pause - pause, repeat	Drain sequence will begin, machine operation will be prevented	Turn off water to unit (if possible).Turn off power to unit. If the water cannot be turned off, DO NOT turn off power and keep door closed. Press Cancel key one time to silence alarm tone. Call service.
No water present at dishwasher	H2O	8 Pause 1 Pause - pause, repeat	Cycle is paused	Ensure fill hose is connected to product. Ensure water supply is turned ON. Press Start to resume cycle. If alarm still present, call service.
Dishwasher overfills	F8E4	8 Pause 4 Pause - pause, repeat	Drain sequence will begin, machine operation will be prevented	Turn off water to unit (if possible).Turn off power to unit. If the water cannot be turned off, DO NOT turn off power and keep door closed. Press Cancel key one time to silence alarm tone. Call service.
Fill valve stuck on F8E5		8 Pause 5 Pause - pause, repeat	Drain sequence will begin, machine operation will be prevented	Turn off water to unit (if possible).Turn off power to unit. If the water cannot be turned off, DO NOT turn off power and keep door closed. Press Cancel key one time to silence alarm tone. Call service.
Dishwasher will not drain	F9E1	9 Pause 1 Pause - pause, repeat	Cycle ends	If drain hose is connected to a garbage disposal, confirm that drain hose is not clogged and disposal plug has been knocked out. If unit still will not drain, call service.
Water present under dishwasher	FAE5	10 Pause 5 Pause - pause, repeat	Cycle ends Call service.
User interface service communication fault	F6E1	6 Pause 1 Pause - pause, repeat	Product will not able to start or resume cycles	Call service.

INSTALLATION REQUIREMENTS

TOOLS AND PARTS

Gather the recommended tools and parts before starting installation. Read and follow the instructions provided with the tools listed here.

All Installations

Tools Needed:

Two line drawings of pliers, no text or symbols present

Line drawing of a screwdriver with a cylindrical head and threaded shaft (no text or symbols)

Pliers Flat-blade screwdriver

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flat tool with a handle and central slot (no text or symbols)

Phillips screwdriver Utility knife

Simple line drawing of a screwdriver with a cylindrical head and shaft (no text or symbols)

Simple diagram with three circular symbols inside a rectangular box (no text or labels)

5/16" (7.9 mm) and 1/4" (6.4 mm) nut drivers or hex sockets

Simple line drawing of a tape measure (no text or symbols)

Small level

Simple line drawing of a double-ended wrench (no text or symbols)

Measuring tape or ruler 5/8" (15.9 mm) open-end wrench

Line drawing of an adjustable wrench (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

10" adjustable wrench that opens to 1^1/8 " (29 mm)
Torx ^† T20 and, if installing custom front panels, Torx T15 screwdrivers

Other Useful Items You May Need:

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Simple line drawing of a rectangular tray or container (no text or symbols)

Flashlight Shallow pan

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Simple line drawing of a rolled-up tape or tape (no text or symbols)

Bath towel Masking, or duct tape

Parts Supplied:

Two identical rope knot diagrams arranged side by side (no text or symbols)

Coiled cable or hose component with two connectors (no text or symbols visible)

Drain hose clamps (2) (1 large/red and 1 small/silver)

Illustration of a screw with two circular fasteners and a central bolt (no text or symbols)

Drain hose

Two identical mechanical component diagrams with mounting holes, no text or symbols present

8 x 1/2" (12.7 mm) Phillips-head screws (2)

Undercounter mounting brackets (2)

Make sure all parts are included in the literature package.

Simple line drawing of a horizontal pipe or lever (no text or symbols)

Door handle (on some models)

†TORX, T15, and T20 are trademarks of Acument Intellectual Properties, LLC.

Other Parts Needed (not provided):

Line drawing of a pipe fitting with a flanged end (no text or symbols)

3/8" (9.5 mm) Compression x 3/4" (19 mm) Hose Fitting with rubber seal and 90° elbow (required to properly connect household water line to the dishwasher.)

Technical line drawing of a mechanical component with threaded ends and a central circular feature (no text or symbols)

Household Wiring (Metallic) Strain Relief to fit 7/8" (22 mm) hole (required to properly secure household wiring to the dishwasher terminal box.)

NOTE: Use only UL Listed/CSA Approved parts.

Optional Accessory Parts Available:

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Moisture Barrier Tape

NOTE: Moisture barrier tape is an optional, added level of protection if installing a dishwasher under a wooden countertop. Recommended but not required for wooden countertop.

Simple geometric diagram with two concentric squares (no text or symbols)

Side Panel Kit

For enclosing the side of the dishwasher when installing it at the end of your cabinetry (Whirlpool part number varies with color).

Call us at our toll-free number or visit the brand website listed in the Quick Start Guide for accessory and part information.

First-Time Installations

Check local codes. Check existing electrical supply. See the "Electrical Requirements" section. It is recommended that electrical connections be made by a licensed electrical installer.

Additional Tools Needed:

Simple line drawing of a mechanical component with a cylindrical shaft and flanged base (no text or symbols)

Line drawing of a pair of pliers with metal handles (no text or symbols)

Small tubing cutter Wire stripper

Line drawing of a handheld electric drill bit (no text or symbols)

Technical line drawing of a drill bit and drill bit with threaded end (no text or symbols)

Cordless drill 1/2" (12.7 mm), 3/4" (19 mm), and 1½" (38 mm) hole saw bits

Additional Parts Needed (not provided):

Simple line drawing of a coiled spring or rope (no text or symbols)

Copper Tubing (3/8" O.D. suggested) or Flexible Braided Water Supply Line Kit. Kit includes braided hose and 3/8" compression x 3/4" hose fitting.

Two interlocked rings with metal clips attached (no text or symbols)

Screw-Type Clamps 1 ^1/2 " - 2" (38 mm - 50 mm) (3 maximum)

Coiled industrial hose with flanged ends and connectors (no text or symbols visible)

Optional-Longer Drain Hose (Maximum length 12 ft (3.7 m) NOTE: Must meet AHAM/ IAPMO test standards, fit 1" (25 mm) drain connection, and be resistant to heat and detergent.

NOTE: If using a flexible braided hose, replace inlet hose after 5 years to reduce the risk of hose failure. Record hose installation or replacement dates on the hose for future reference.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

For Direct Wire For Power Cord

Simple line drawing of a ring shape with no text or symbols

Simple line drawing of a coiled cable or wire with connectors (no text or symbols)

Cabinet Grommet

For 1^1/2 " (38 mm) hole in cabinet.

NOTE: Required for metal cabinets

Power Cord Kit

Kit typically includes

power cord, metallic strain relief, grommet.

(Whirlpool Part Number

Cord Kit - Straight - W11365011

Cord Kit - Right Angle - W11365014)

Call us at our toll-free number or visit the brand website listed in the Quick Start Guide for accessory and part information.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

LOCATION REQUIREMENTS

Dishwasher must be fully enclosed (top, sides, back, and floor) upon installation. A side panel kit is available from your dealer for installing your dishwasher at the end of your cabinetry.

An optional moisture barrier accessory is also available for installing underneath a wooden countertop.

Check location where dishwasher will be installed. The location must provide:

■Convenient access for loading and unloading dishes. Corner locations require a 2" (5.1 cm) minimum clearance between the side of the dishwasher door and the wall or cabinet.

■Easy access to water, electricity, and drain:

■Grounded electrical supply is required.

■This dishwasher has a water heating feature and also requires a connection to a hot water supply line.

■Make sure pipes, wires and drain hose are within the shaded area shown in the "Product and Cabinet Opening Dimensions" section.

■ Do not run drain lines, water lines, or electrical wiring where they can interfere with or contact dishwasher motor or legs.

■Shelter dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty.

NOTE: If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by authorized service personnel.

If installed in new construction, flush the water supply line of debris before connecting it to the fill valve. If it is not flushed, debris from the water supply could plug the fill valve screen.

■A square opening for proper operation and appearance.

■The cabinet front to be perpendicular to floor.

■Level floor.

Helpful Tip: If floor at front of opening is not level with floor at rear of opening, shims may be used to level dishwasher.

NOTE: To avoid shifting during dishwasher operation, shims must be securely attached to the floor.

■The location where the dishwasher will be installed must provide clearance between motor and flooring. Motor should not touch the floor.

■Do not install dishwasher over carpeted flooring.

PRODUCT AND CABINET OPENING DIMENSIONS:

23 7/8" (60.4 cm) 30" (76.2 cm) 33 1/2" (85.1 cm) min. with legs removed 31 1/2" - 4 1/2" (8.4 cm - 10.6 cm)

24½" (62.6 cm) B 3/4" (1.9 cm) A C 30" (76.2 cm) 3¾" (9.7 cm) 21" (52.9 cm)

A. Insulation may be compressed (not used on all models).

B. For panel-ready models, dishwasher depth is 24" (61.0 cm), not including the 3/4" (1.9 cm) custom door panel.

C. Door handles may protrude forward of the face of the dishwasher, varies by model.

Check that all surfaces have no protrusions that would prohibit dishwasher installation.

NOTE: Shaded areas of cabinet walls show where utility connections may be installed. 34" (86.4 cm) D 4" (10.2 cm) 3" (7.6 cm) 24" (62.0 cm) 2" (5.1 cm) 6½" (15.9 cm) 24" (62.0 cm) E D. Measured from the lowest point on the underside of the countertop. May be reduced to 33½" (85.1 cm) by

D. Measured from the lowest point on the underside of the countertop. May be reduced to 33½" (85.1 cm) by removing the wheels and perforated area of insulation (blanket) on dishwasher.

E. Minimum, measured from narrowest point of opening.

DRAIN REQUIREMENTS

■A new drain hose is supplied with your dishwasher. If drain hose is not long enough, use a new drain hose with a maximum length of 12 ft (3.7 m) that meets all current AHAM/IAPMO test standards, is resistant to heat and detergent, and fits the 1" (2.5 cm) drain connector of the dishwasher.

NOTE: Do not connect multiple drain hoses together.

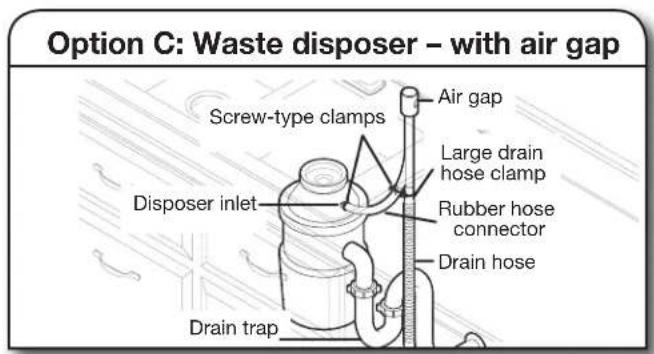

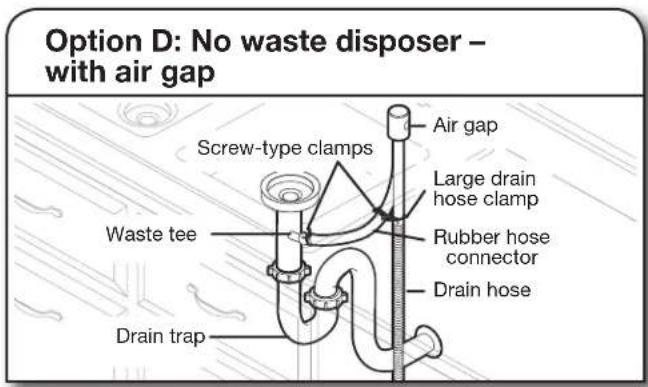

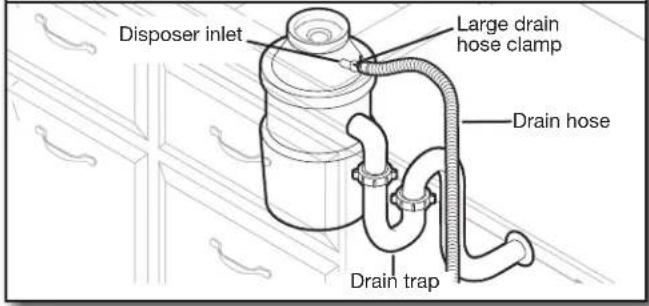

■Make sure to connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20" (50.8 cm) minimum above the floor. It is recommended that the drain hose either be looped up and securely fastened to the underside of the counter or be connected to an air gap.
■Make sure to use an air gap if the drain hose is connected to house plumbing lower than 20" (50.8 cm) above subfloor or floor.

Use of air gap Air gap

If required, the air gap should be installed in accordance with the air gap installation instructions. When you are connecting the air gap, a rubber hose (not provided) will be needed to connect to the waste tee or disposer inlet.
■Use 1/2" (1.3 cm) minimum I.D. drain line fittings.

WATER SUPPLY REQUIREMENTS

■This dishwasher has a water heating feature and also requires a connection to a hot water supply line.
■A hot water line with 20 to 120 psi (138 kPa to 862 kPa) water pressure can be verified by a licensed plumber.
■120°F (49°C) water at dishwasher.
■ 3/8" (0.95 cm) O.D. copper tubing with compression fitting or flexible braided water supply line.

NOTE: 1/2" (1.3 cm) minimum plastic tubing is not recommended.

■ A 90° elbow with 3/4" (0.95 cm) hose connection with rubber washer.
■ Do not solder within 6" (15.2 cm) of the water inlet valve.

■If installed in new construction, make sure the house water supply lines have been flushed prior to connecting the dishwasher to remove any debris that may exist in the supply line.

NOTE: If replacing an existing dishwasher, it is recommended to install a new water line and drain hose (supplied) with the new dishwasher.

ELECTRICAL REQUIREMENTS

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

You Must Have:

■120 V, 60 Hz, AC only, 15 A or 20 A, fused electrical supply
■Copper wire only
■A maximum of 2 field wiring supply conductors (12 AWG largest size) plus 1 grounding conductor are permitted in the terminal box.

We Recommend:

■A time-delay fuse or circuit breaker.

Circuit Requirements:

■The dishwasher may be installed on the same circuit as a garbage disposal providing that the branch circuit cannot exceed rated circuit load and must comply with all governing codes and regulations such as but not limited to National Electrical Code, ANSI/NFPA 70 - latest edition.
■No electrical connections other than the dishwasher power and ground connections can be made inside of the dishwasher terminal box.

If connecting dishwasher with a power supply cord:

■Use UL Listed power cord kit marked for use with dishwasher.

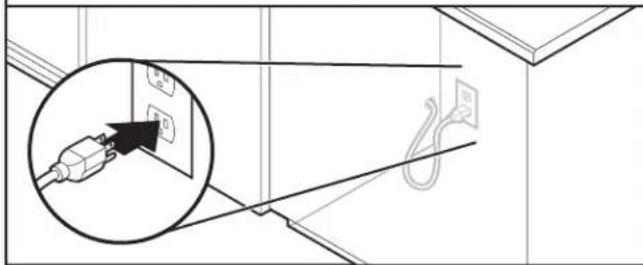

■Plug into a grounded 3 prong outlet. Outlet must meet all local codes and ordinances.

If connecting dishwasher with direct wiring:

■Use flexible, armored, or nonmetallic sheathed copper wire with grounding wire that meets the wiring requirements for your home and local codes and ordinances.
■Use a UL Listed/CSA Approved metallic strain relief.

INSTALLATION INSTRUCTIONS

WARNING

Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

Failure to do so can result in death or electrical shock.

1. Disconnect power

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

2. Shut off water supply

Shut off the water supply to the dishwasher.

PREPARE CABINET OPENING—NEW UTILITIES

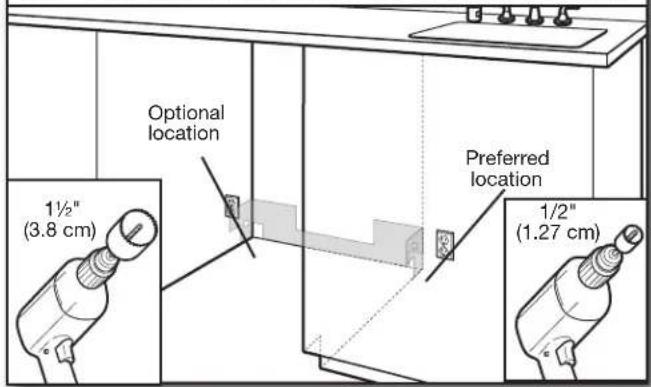

1. Drill hole locations—new construction


Optional location 1½" (3.8 cm) Preferred location 1/2" (1.27 cm)

The power-supply receptacle for the appliance shall be installed in a cabinet or on a wall adjacent to the undercounter space in which the appliance is to be installed.

NOTE: Refer to the "Product and Cabinet Opening Dimensions" section for the correct hole placement and dimensions of the shaded area.

Drill a 1½" (3.8 cm) drain hose hole in the side or rear of cabinet, depending on location of drain hose routing and drain hose connection location.

Drill a 1/2" (1.27 cm) water supply hose hole in the side or rear of cabinet, depending on location of water supply routing and connection location

Drill a 1½" (3.8 cm) electrical conduit hole in the right-hand side or rear of cabinet.

1. Sand holes smooth


Wood Cabinet Metal Cabinet

Wood cabinet: Sand the hole until smooth.

Metal cabinet: Cover edges of hole with grommet included with power cord kit.

Helpful Tip: Wiring the dishwasher will be easier if you route the cable into the cabinet opening from the right-hand side.

INSTALL OPTIONAL MOISTURE BARRIER - RECOMMENDED FOR WOOD COUNTERTOPS

Moisture barrier/wood shims

Moisture barrier Install wood shims

Make sure the area under the cabinet is clean and dry for installation of the moisture barrier. Remove the backing of the moisture barrier, and apply to underside of the countertop along the front edge of the counter.

NOTE: The use of this moisture barrier is recommended but not required.

NOTE: Install wood shims if side anchoring and the gap between the sides of the cabinet and sides of the dishwasher are greater than 1/2" (1.27 cm) on each side or are greater than the length of the side anchor screws.

1. Built-up floors – add shims as needed


2" 5 cm 4" 10.1 cm 2" 4" 7 cm

Built-up floors: If the kitchen floor is higher than the cabinet opening's floor - for example, the kitchen floor tile does not extend into the cabinet opening - add shims, as needed, in the area shown to bring the dishwasher up to 34" (86.4 cm) below the countertop.

NOTE: Shims must be securely attached to floor to avoid movement when the dishwasher is in use.

1. If installing into a 33 ^1/2 " (85.1 cm) opening


Simple line drawing of a rectangular box with a dotted lid (no text or symbols)

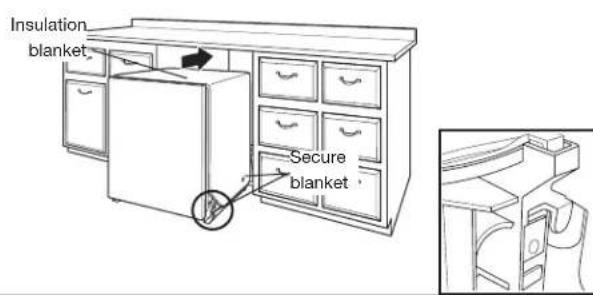

Cut insulation blanket along perforation for cabinet opening height of 33½" (85.1 cm). For other cabinet opening heights, do not cut the insulation blanket.

ELECTRICAL CONNECTION

• For Direct Wire, begin with Step 7

• For Power Cord, wait until Step 18

• Direct wire - route cable


6° (15,2 cm)

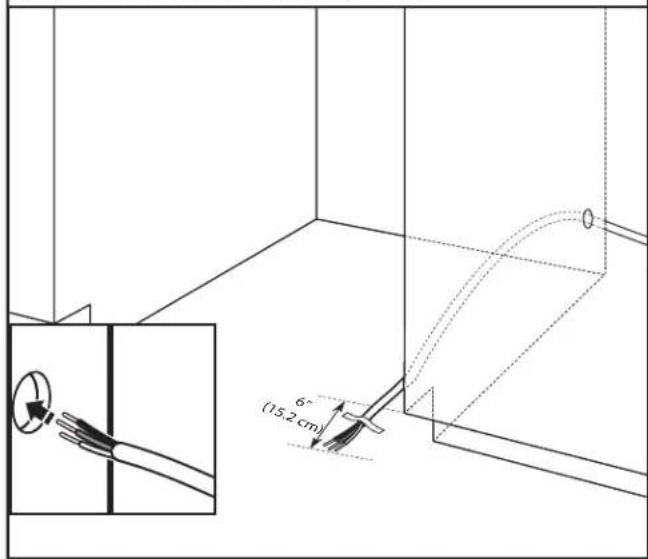

If installing with direct wire, route the cable as shown. Do not connect the wire to the product at this time. This connection will be made later, after the unit is installed into the cabinet opening. Route cable from power supply through cabinet hole. (Cable must extend to the right front side of cabinet opening.) Tape cable to the floor in area shown. This will prohibit cable from moving when dishwasher is moved into cabinet opening.

PREPARE DISHWASHER

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

WARNING

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

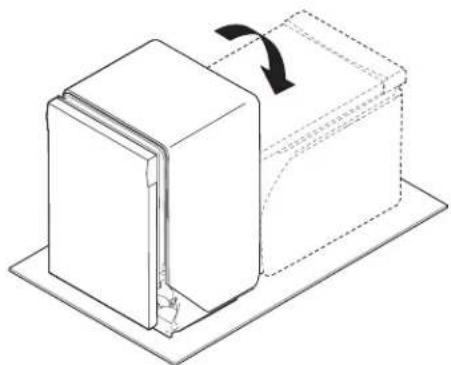

8. Put the dishwasher on its back

Diagram of a mechanical assembly with a rectangular block and a curved arrow indicating rotation (no text or symbols)

Helpful Tip: Place cardboard under dishwasher until installed in cabinet opening to avoid damaging floor covering.

Using two or more people, grasp sides of dishwasher door frame, and place the dishwasher on its back.

Do not use the door panel as a worktable without first covering it with a towel to avoid scratching the door panel.

REMOVE ACCESS PANEL

1. Remove access panel


Technical diagram showing mechanical assembly with arrows indicating direction and a close-up of a screw being inserted into a base (no text or symbols present)

Using a 5/16" (7.9 mm) nut driver or Phillips screwdriver, remove the two screws attaching access panel to dishwasher. Once the screws are removed push the access panel toward the top of the project to unhook it and then remove it.

DISCONNECT AND REMOVE DRIP PAN ASSEMBLY

10a. Remove drip pan assembly

Drip pan assembly

To remove the drip pan assembly, press the snap at each side of the plastic tray in toward the center of the product and pull toward yourself. Take caution not to pull too far or too hard as the float switch wire is still connected at this time.

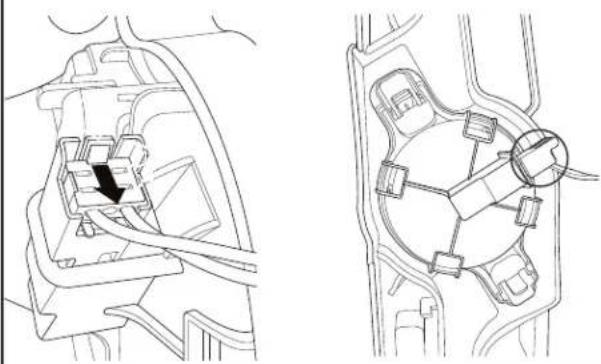

10b. Remove float switch wire

Technical line drawing of a mechanical component with internal parts and directional arrows (no text or symbols)

To remove the float switch wire, gently depress the connector latch tab (1) and then pull the connector (2) out of the housing. The float itself should not be removed from the tray.

1. Measure cabinet opening


Line drawing of a cabinet with multiple drawers and drawers, no text or symbols present

Measure the height of cabinet opening from the underside of the countertop to the floor where the dishwasher will be installed. Be sure to measure the lowest point on the underside of the countertop and the highest point on the floor.

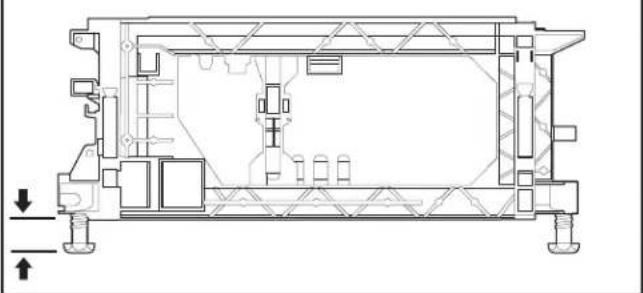

Leveling leg adjustment

Technical cross-section diagram of a mechanical assembly with no visible text or symbols

Use wrench to initially loosen leveling legs if needed.

Adjust all four leveling legs to the same height by rotating each foot clockwise or counterclockwise as needed.

The unit comes with the legs set for a 33½" (85.1 cm) height installation. If your opening height is 34½" (87.6 cm), you would therefore need to lower all four legs by 1" (2.54 cm).

Legs can be remove if necessary for tight installations.

CONNECT WATER LINE TO FILL VALVE

- For Copper line, begin with Step 12

- For Flexible line, begin with Step 14

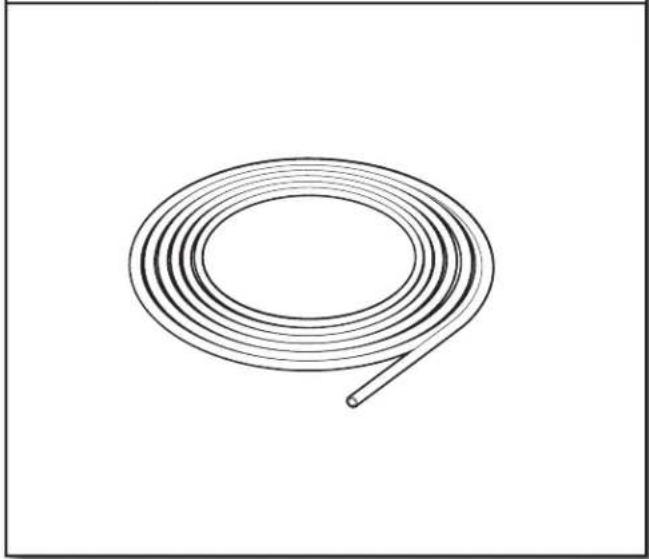

1. Copper Water Line


Simple line drawing of a coiled wire or tube, no text or symbols present

If using copper tubing, measure overall length of copper tubing required to reach the water supply, cut to length, and attach with compression fittings.

1. Slide nut and ferrule onto tubing (copper tubing only)


Nut Ferrule

Copper tubing only: Put the tubing into the 90° elbow fitting as far as it will go. (The copper tubing bends and kinks easily.) Push the nut and ferrule forward and tighten it, so that it sits right up against elbow threads.

NOTE: To avoid vibration during operation, route the water supply line so that it does not touch the dishwasher base, frame, or motor. If using copper tubing, skip step 14 and go to 15.

14. Flexible line

Line drawing of a coiled pipe with two hexagonal connectors (no text or symbols)

Flexible braided line: Confirm the flexible braided line is long enough.

15. Add 90° elbow fitting to the water supply line

Line drawing of a flexible hose with a flanged end and bulbous cap (no text or symbols)

Get 3/8" compression x 3/4" hose fitting with 90° elbow. Connect the 3/8" compression fitting of the 90° elbow fitting to the water supply line. Attach such that the 3/4" connection is facing upward as shown above.

CONNECT FILL HOSE TO FILL VALVE

16. Tighten 90° elbow fitting to valve

Elbow fitting

Be sure rubber washer is properly seated in fitting. Slide the 3/4" (19 mm) fitting of the 90° elbow up to the valve and hand tighten it to avoid cross-threading. Hand tighten until the coupling is tight.

Using pliers, check the tightness of the coupling. An additional 1/4 to 1/2 turn may be required to seal the rubber gasket. Route fill hose out the rear left side of unit.

NOTES:

■Do not use tape with compression fittings.
■Do not over-tighten. Damage to the coupling can result.

DRAIN HOSE CONNECTION

1. Connect drain hose


Technical line drawing of an internal electronic device casing with visible internal components and mounting holes (no text or symbols)

Drain Hose Location

Technical line drawing of a mechanical assembly with hoses and connectors (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Put provided silver clamp over elbow end of drain hose. Then push the hose onto the drain port with the hose facing underneath the dishwasher. Using pliers squeeze, open the drain hose clamp and slide it over the elbow to ensure those hose is attached in place. Route the hose out of the back of the product.

NOTE: If the hose is installed with the rubber elbow facing out, the drain hose may become kinked causing slow or incomplete draining in tight cabinet installations.

If installing product using a Power Cord, proceed to Step 18. If installing a product with direct wiring, wait until after Step 44 when the unit has been installed in the cabinet opening.

POWER CORD CONNECTION

WARNING

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

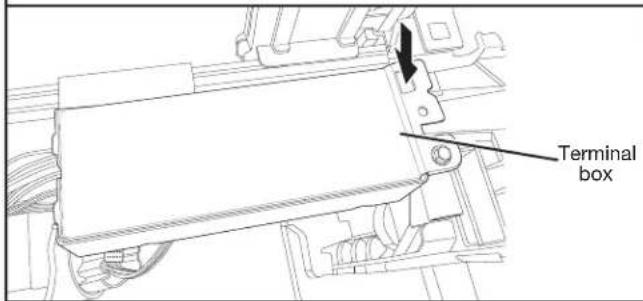

1. Remove terminal box


Terminal box

To remove the terminal box, depress the plastic latch, slide the box toward the left of the unit along the metal tube and rotate the left side of the box forward. Make sure that the product wiring will still be attached within the terminal box.

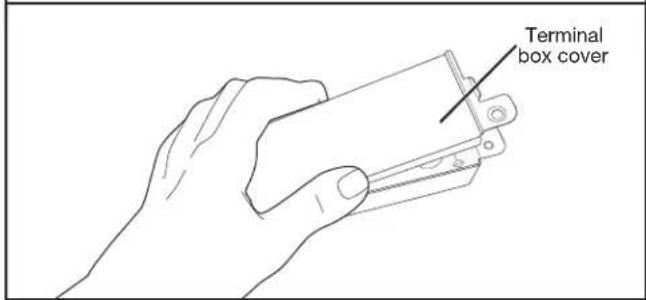

1. Remove terminal box cover


Terminal box cover

Using 1/4" (6.4 mm) nut driver remove the screw holding the terminal box cover. Remove the cover by lifting it out of the box. Keep the cover for later use.

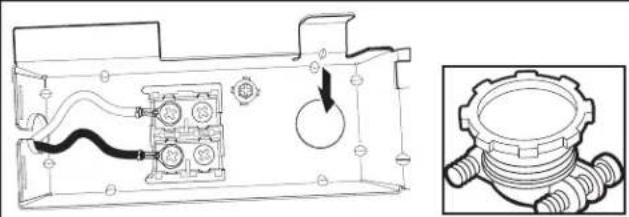

1. Install strain relief


Technical line drawing of a mechanical device with internal components and a close-up inset showing a gear assembly (no text or symbols)

Install a UL Listed/CSA Approved metallic strain relief. Make sure screw heads are facing up when tightening conduit nut. Strain relief is provided with the power cord kit.

Suggested wire length relative to strain relief

3" - 3.5" (75 mm - 90 mm) 0.75" - 1" (19 mm - 25 mm)

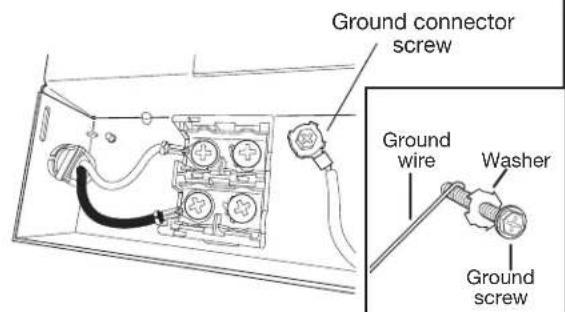

21. Connect ground wire

Ground connector screw Ground wire Washer Ground screw

Route power cord through strain relief in the back of the terminal box. Remove the ground connector screw on the raised floor inside the box and place it through the ring terminal of the green ground wire of power cord. Reattach and tighten the ground connector screw to the raised floor of the box.

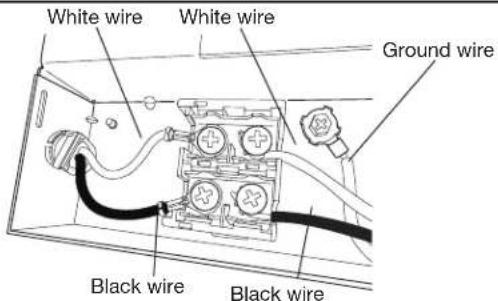

22. Connect remaining wires

White wire White wire Ground wire Black wire Black wire

Select UL Listed/CSA Approved power cord for the Dishwasher. Power Cord Kit

Kit typically includes power cord, metallic strain relief, grommet. (Whirlpool Part Number Cord Kit - Straight - W11365011

Cord Kit - Right Angle - W11365014)

To connect wires with ring terminals, remove the screws from the terminal block, place the screw through the ring terminals, and reattach screws back into the terminal block.

To connect wires without ring terminals, remove the screws from the terminal block, push the wire ends under the screw heads, and tighten the screws.

NOTE: Pre-tinned wires should not be used when connecting to the terminal block.

Wiring configuration

Power supply wire: white ←→ white black ←→ black ground wire ←→ ground connector Terminal box wire:

23. Secure cord or wire on strain relief

Technical line drawing of a mechanical housing or enclosure with internal components and a circular component (no text or symbols)

Tighten strain relief screws to secure cord.

24. Reinstall terminal box cover and wires

Line drawing of a hand holding a smartphone (no text or symbols)

Place wires inside terminal box. Replace the cover by inserting the hooks of the terminal cover into the slots in the floor of the terminal box and sliding the cover tight against the back wall where wires come in. Make sure wires are tucked inside the box and not pinched by the cover.

Put the terminal box back on the crossbar and push to the right so terminal box snaps into the plastic side member.

NOTES:

■Once the terminal box has been remounted on the dishwasher, tuck any excess length or slack over nearby components to help keep them off the floor.
■Route cord out the rear of the dishwasher so that it does not touch dishwasher motor or lower part of dishwasher tub.
■Do not plug cord into an outlet until instructed to do so.
■A maximum of 2 power cord supply conductors (12 AWG largest size) plus 1 grounding conductor are permitted in the terminal box.

IMPORTANT: NO ADDITIONAL CONNECTIONS OTHER THAN DISHWASHER POWER CONNECTION ARE TO BE MADE INSIDE THE DISHWASHER TERMINAL BOX.

INSTALL DOOR HANDLE (ON SOME MODELS)

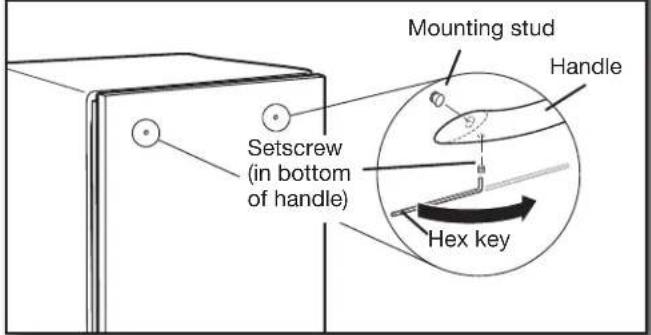

1. Install door handle


Mounting stud Handle Setscrew (in bottom of handle) Hex key

IMPORTANT: Do not scratch the front panel during this procedure. If door panel has a protective film, peel film back past the point of the handle studs before installing handle. Handle is easiest to install while unit is on its back.

Remove the door handle and hex key from the packaging. Setscrews are already installed in the handle. Place handle on mounting studs with the setscrews facing down. Push the door handle tightly against the door. Insert the short end of the hex key into the setscrews. Tighten the setscrews 1/4 turn past snug.

Retain hex key with Installation Instructions.

PLACE DISHWASHER IN CABINET

WARNING

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

1. Stand dishwasher upright


Diagram of a mechanical device with a rotating component and base plate (no text or symbols)

Using two or more people, stand the dishwasher up.

NOTE: Do not install kick plate until instructed to do so.

Dishwasher may fit tightly into cabinet opening. Do not remove insulation blanket—the blanket reduces the sound level.

IMPORTANT: Slowly move dishwasher completely into cabinet opening. Do not kink or pinch water line, drain hose, power cord, or direct wire between dishwasher and cabinet. Remove cardboard from under dishwasher (if used).

NOTE: Route water supply, drain hose, and power cord out the rear of the dishwasher. If your product has insulation around the bottom, route these lines through the slits in that insulation in the rear of the product.

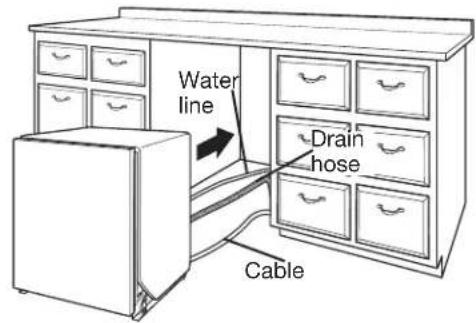

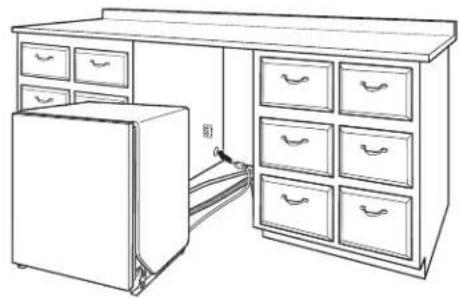

1. Move dishwasher close to cabinet opening


Water line Drain hose Cable

Route the utilities through the holes in the cabinet, and pull the slack out at the same time as the dishwasher is pushed into the cabinet.

1. Route power cord


Line drawing of a refrigerator with drawers and an open refrigerator (no text or symbols)

If using a power cord, make sure to route the end through hole in cutout before sliding dishwasher into the cabinet opening.

1. Secure insulation blanket


Insulation blanket Secure blanket

NOTE: Make sure insulation blanket is secured at both left and right rear corners before pushing into cabinet opening to keep the blanket from bunching up in a tight fitting cabinet. The blanket can be secured by pulling the insulation down toward the bottom of the product and ensuring the hooks on the side members grab onto the slots in the insulation blanket.

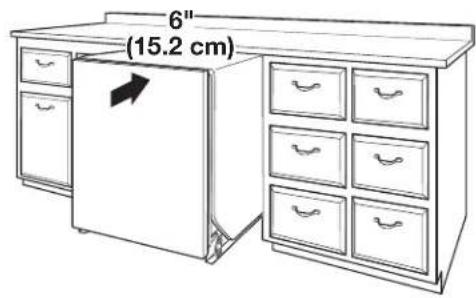

30. Move dishwasher all but 6" (15.2 cm) into cabinet opening

6" (15.2 cm)

NOTE: Leave unit about 6" (15.2 cm) out from cabinet in order to install anchor brackets and adjust door tension if needed.

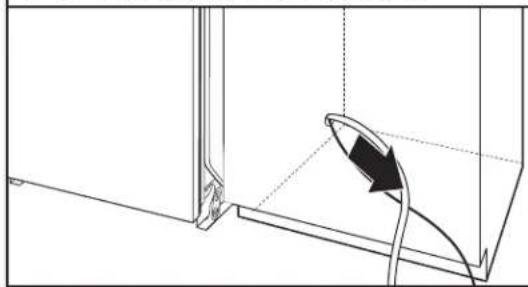

31. Pull slack from utilities

Line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

NOTE: Pull slack out of utilities at the same time the dishwasher is pushed into the cabinet opening to avoid any kinks.

CUSTOM PANEL INSTALLATION (CUSTOM PANEL MODELS ONLY)

For custom panel installation, refer to the Custom Panel Installation Instruction Sheet included in the literature package. Complete custom panel installation before proceeding to the "Choose Anchor Attachment Method" section.

CHOOSE ANCHOR ATTACHMENT METHOD

IMPORTANT: The dishwasher must be secured to the cabinet as one of the final steps. Prepare the dishwasher for this by attaching the 2 brackets found in the parts bag to the dishwasher.

- For countertops that are wood, laminate or another similar surface, use Countertop Attachment: go to Step 32.

- For countertops that are marble, granite, or another hard surface, use Side Attachment: go to Step 33.

NOTE: If the gap between the top of the door and the underside of the counter top is tight (less than 1/4" [6.35 mm]), we suggest using Side Attachment to keep from scratching the User Interface or console with the anchor screws.

Countertop Attachment:

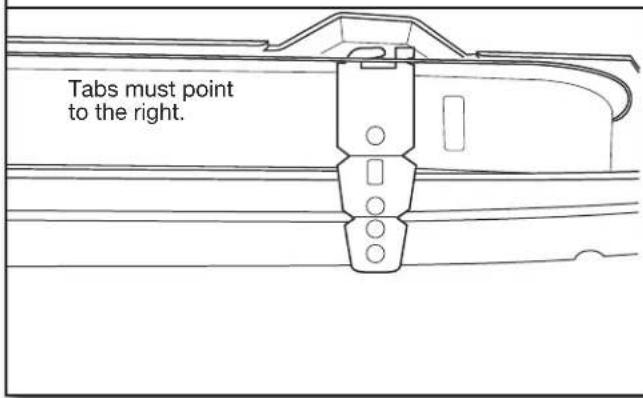

32. Insert bracket

Tabs must point to the right.

Remove the brackets from the package, and insert into the open slots on the left- and right-hand top of the dishwasher collar as shown. Go to Step 35.

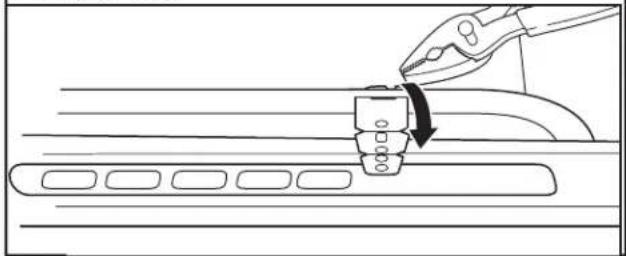

Bend tab

Line drawing of a tool applying force to a mechanical component (no text or symbols)

Using pliers, bend/twist tab to lock the brackets in place.

Side Attachment:

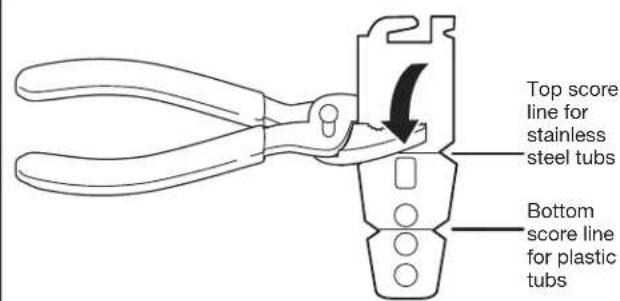

33. Break end of bracket

Top score line for stainless steel tubs Bottom score line for plastic tubs

Break off the end of the bracket along the scored line using pliers.

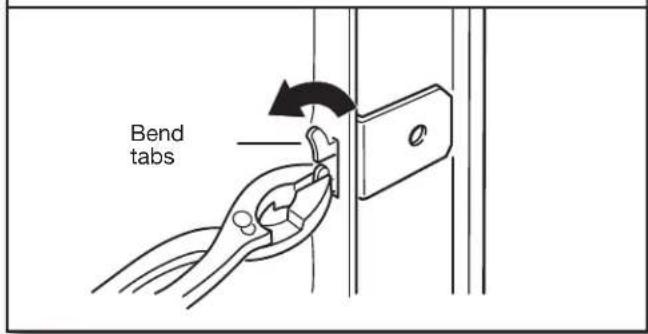

1. Install bracket


Bend tabs

Push bracket into slot on the side of dishwasher, and bend tab in toward the side of the dishwasher so that it keeps the bracket in place. Repeat this step for the other side of the dishwasher.

NOTE: Install wood shims to the inside of the cabinets if the gap between the sides of the cabinet and the sides of the dishwasher are greater than 1/2" (1.3 cm) on each side.

NOTE: Do not attach the dishwasher. This will be done later.

FINAL INSTALLATION CHECK

1. Open and close door


Line drawing of a kitchen appliance with a hand inserting into a drawer (no text or symbols)

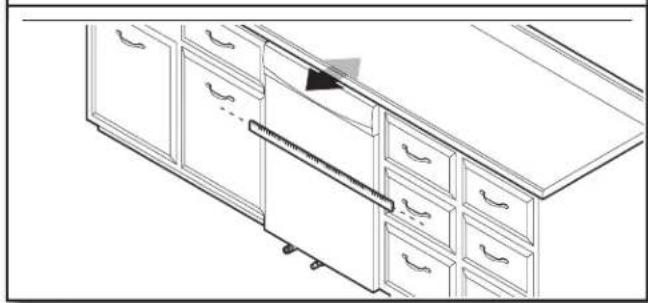

1. Align front of dishwasher with front of cabinet doors


Line drawing of a cabinet with drawers and a scroll, no text or symbols present

Align front of dishwasher door panel with front of cabinet doors. You may need to adjust alignment to be even with your cabinets.

1. Check for plumb and adjust legs if needed


Line drawing of a kitchen appliance cabinet with an inset showing a hand holding a tool (no text or symbols present)

■Check that leveling legs are firmly against the floor. Close and latch the door and place level against the front panel. Check that dishwasher is centered from front to back in the opening. If needed, adjust leveling leg until dishwasher is plumb. Repeat for other side of dishwasher.

■With dishwasher plum check that racks do not roll out on their own when you open the door. Adjust front level legs until racks no longer roll unless you pull them.

Helpful Tip: Push up on front of dishwasher to raise dishwasher off the ground to adjust front legs. With some installations, it may be easier to adjust the front leg using a 1/4" (6.4 mm) hex head socket or adjustable wrench. If the gap between the top of the door and the underside of the counter top is tight (less than 1/4" [6 mm]), we suggest side anchoring to keep from scratching the User Interface or console.

Level legs

Optional methodPreferred method

1. Check level side to side and adjust legs if needed


Diagram showing a device being inserted into a rack, with an inset close-up highlighting internal components (no text or symbols present)

Place level against top front opening of tub. Check that dishwasher is level from side to side. If dishwasher is not level, adjust front legs up or down until dishwasher is level.

SECURE DISHWASHER IN CABINET OPENING

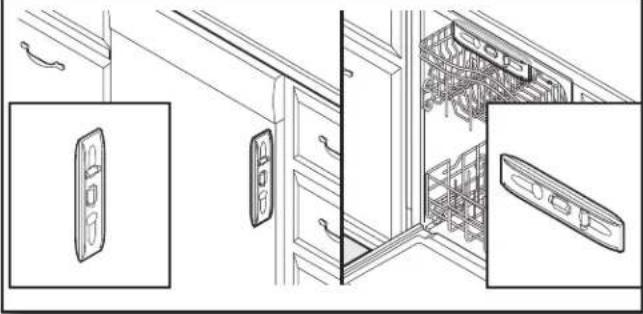

39. Double-check dishwasher alignment in cabinet opening

Line drawing of a refrigerator interior showing front and side views with no text or symbols

Check that dishwasher is still level front to back and side-to-side in the cabinet opening.

Open dishwasher door and place towel over pump assembly and spray arm of dishwasher. This will keep screws from falling into pump area when you are securing dishwasher to cabinet.

40. Secure dishwasher

Screw to side cabinet

Open dishwasher door to prepare for securing the dishwasher to the countertop or side cabinet.

NOTES:

■The dishwasher must be secured to keep it from shifting when the door is opened or closed.
■Do not drop screws into bottom of dishwasher.
■Locate brackets installed in the "Choose Anchor Attachment Method" section, either on top or on the sides of the dishwasher.
■ If countertop anchoring: Secure dishwasher to the countertop with two Phillips-head screws (included).
■ If side anchoring: Drill pilot holes in cabinet to avoid splitting the wood. Secure dishwasher to cabinet with two Philips-head screws (included). Remove upper rack for easier access. See the Quick Start Guide for instructions on how to remove the upper rack if needed.

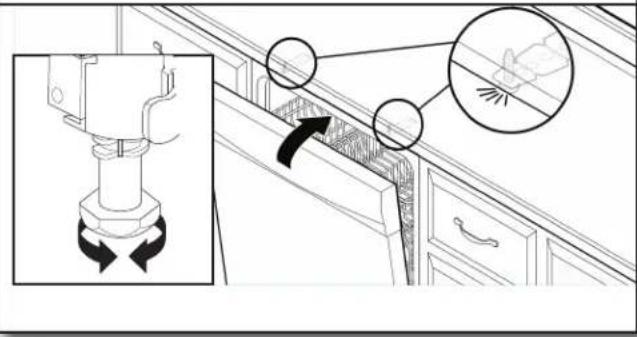

41. Check door clearance

Diagram illustrating kitchen appliance repair steps with labeled components and directional arrows indicating movement

IMPORTANT: Check that top of door does not contact screws, brackets, or countertop. If it does, adjust leveling legs or use the side attachment option.

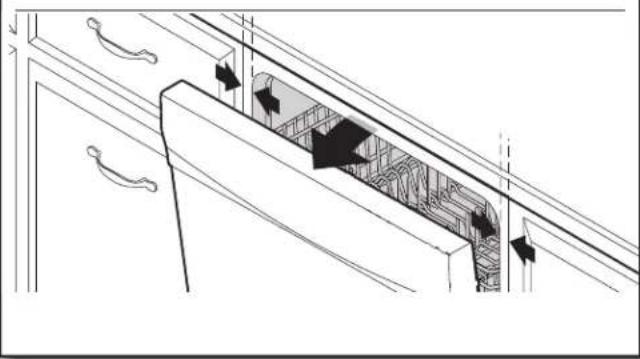

42. Check inner spacing

Architectural line drawing of a cabinet with drawers and doorways, showing structural details (no text or symbols)

Open door and check that space between dishwasher cabinet opening and tub is equal on both sides. If spacing is not equal, loosen bracket screws and shift tub. Tighten bracket screws.

43. Direct Wire Connection

To complete direct wire connection. Complete Steps 18 to 24 in this installation guide.

Once complete, return here to Step 44 to complete Product Installation.

CONNECT WATER LINE TO HOUSE SHUT-OFF VALVE

NOTE: If using a flexible braided hose, replace inlet hose after 5 years to reduce the risk of hose failure. Record hose installation or replacement dates on the hose for future reference.

44. Attach water supply line

Line drawing of a pipe fitting with a valve and tubing (no text or symbols)

Attach the water supply line (copper tubing or flexible braided line) to the hot water line using a connection configuration that is in compliance with local codes and ordinances. The water supply to the dishwasher should have a manual shut-off valve located under the sink.

CONNECT DRAIN HOSE

45. Connect drain hose

Connect drain hose to waste tee or waste disposer using one of the following options:

■Option A: Waste disposer – no air gap
■Option B: No waste disposer – no air gap
■Option C: Waste disposer – with air gap
■Option D: No waste disposer – with air gap

IMPORTANT: The drain hose connection of the disposer or a waste tee must be made before the drain trap and at least 20" (50.8 cm) above the floor where the dishwasher will be installed.

Helpful Tip: To reduce vibration of the hose, keep the hose away from the floor.

NOTE: Use the red clamp provided to connect the drain hose to the customer connection - plumbing or garbage disposal.

Option A: Waste disposer—no air gap

Disposer inlet Large drain hose clamp Drain hose Drain trap

Helpful Tip: Remove disposer knockout plug.

1. Using a hammer and screwdriver, knock plug into disposer.

1. Use needle-nose pliers to remove plug.

1. Attach drain hose to disposer inlet with large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position.

Option B: No Waste disposer—no air gap Waste tee Large drain hose clamp Drain hose Drain trap

1. Fit rubber end of drain hose to waste tee.

1. Attach rubber end of drain hose to waste tee with a large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use a 1½" to 2" (3.8 cm to 5.0 cm) screw-type clamp (not provided).

Option C: Waste disposer – with air gap Screw-type clamps Air gap Large drain hose clamp Disposer inlet Rubber hose connector Drain hose Drain trap

Helpful Tip: Remove disposer knockout plug.

1. Using a hammer and screwdriver, knock plug into disposer.

1. Use needle-nose pliers to remove plug.

1. Connect rubber end of drain hose to air gap.

NOTE: Do not cut ribbed section.

1. Attach drain hose to air gap with large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use a 1½" to 2" (3.8 cm to 5.0 cm) screw-type clamp (not provided).

1. Use a rubber hose (not provided) with screw-type clamps to connect from air gap to disposer inlet.

Option D: No waste disposer – with air gap Screw-type clamps Air gap Large drain hose clamp Waste tee Rubber hose connector Drain hose Drain trap

1. Connect rubber end of drain hose to air gap.

NOTE: Do not cut ribbed section.

1. Attach drain hose to air gap with large drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use a 1½" to 2" (3.8 cm to 5.0 cm) screw-type clamp (not provided)..

1. Use a rubber hose (not provided) with screw-type clamps (not provided) to connect from waste tee to air gap.

COMPLETE INSTALLATION

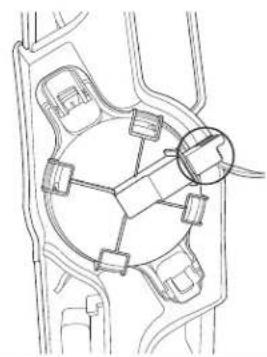

46. Reconnect float switch

Technical line drawing of a mechanical component with internal parts and a highlighted section (no text or symbols)

Check that the power supply wire or cord does not touch dishwasher motor or the lower part of the dishwasher tub.

Reconnect float switch by aligning connector removed in Step 10 with the connector housing and pushing in until the locking tab is visible over the back of the connector.

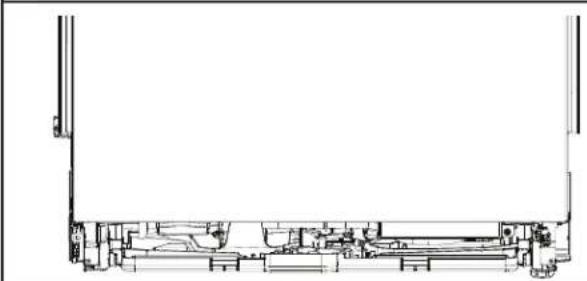

47. Replace drip tray

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTE: Before replacing the dip tray, ensure that there is no water present in the tray.

To replace drip tray, align with snaps in side members and push in toward unit. It is important that the black hoses are above the drip tray on both ends once it is pushed all of the way in.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

48. Power supply cord—Plug into a grounded 3 prong outlet

Diagram showing electrical installation with a plug inserted into a wall socket, highlighting a component with 'B' and 'U'.

Plug into a grounded 3 prong outlet.

49. Reconnect power

Reconnect electrical power at the fuse box or circuit breaker box.

NOTE: With the access panel off, start the dishwasher and allow it to complete the shortest Installation Cycle. See instructions on this manual under Check Operations section.

INSTALL ACCESS PANEL

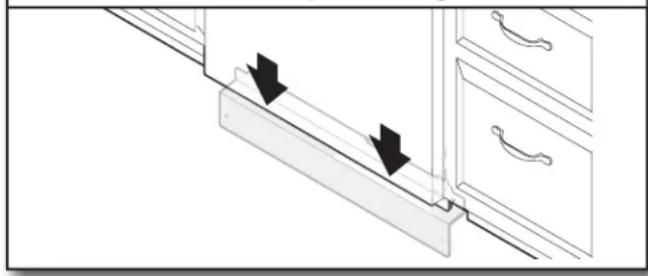

50. Reinstall toe and access panel and fasteners

Insulation (on some models)

Place the toe panel behind the access panel against the dishwasher leg. If insulation is included on this model, make sure insulation does not interfere with the float assembly. Push the access panel up toward the top of the product so that it hangs on the hooks on the plastic side members.

1. Check access panel edge


Diagram of a kitchen drawer with arrows indicating direction of movement or force (no text or symbols present)

Check that the lower edge of the access panel touches the floor. Adjust if necessary.

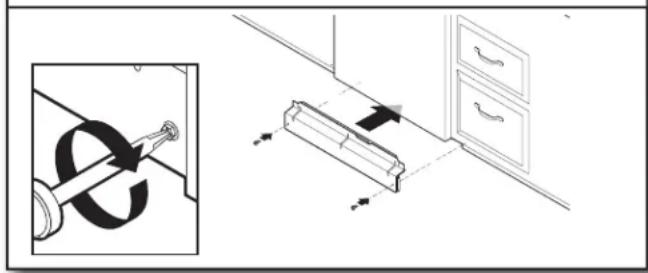

1. Reinstall access panel


Diagram illustrating door lock mechanism with labeled components and directional arrows indicating movement

Use a 5/16" nut driver to reinstall the screws through the holes in the access panel.

CHECK OPERATION

• Read the dishwasher Quick Start Guide that came with your dishwasher.
  ■Check that all parts have been installed and no steps were skipped. Check that you have used all tools.
  ■Run the Installation Cycles as follows (Note that it can be beneficial to run this with the access panel removed in order to look for presence of water under the unit. If running in this state, the float switch wire MUST still be connected to the float switch.)
  ■If the dishwasher is not working properly, disconnect power or unplug dishwasher and refer to the “If Dishwasher Does Not Operate” section.
  ■Press any 3 keys in the sequence 1-2-3-1-2-3-1-2-3 with no more than 1 second between key presses to enter the Installation Cycle.
  ■The cycle will start when the door is closed.
  ■All LEDs turn on immediately upon receiving entry sequence.
  ■A tone may play depending on the model.
  ■The cycle will pause when the door is opened and resume when closed. No Start/Resume key press required to resume.
  ■The installation cycle may last several minutes.
  ■Press Cancel key to exit service diagnostic mode. The product will exit this mode after 10 minutes or if power is removed from the appliance.

IF DISHWASHER DOES NOT OPERATE

First try the solutions suggested here to possibly avoid the cost of a service call.

■Has the circuit breaker tripped or the house fuse blown?

■Is the door closed tightly and latched?

■Has the cycle been set correctly to start the dishwasher?

■Is the water turned on?

■ Is the float switch wire under the product connected to the float switch?

If none of these possible solutions work, please see the Quick Start Guide for service contact information.

Sanitize ou Sani (assainissement)

Illustration of a toolbox and drawer with labeled 'Style 1' (no text or symbols on the diagram itself)

Style 2

Technical line drawing of a structural frame with arrows indicating forces or points (no text or symbols present)

Style 1

Diagram of a wireframe basket with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Illustration of a kitchen sink with a faucet and a cylindrical sink, showing a downward arrow indicating a drop (no text or symbols present)

Two identical line drawings of pliers, no text or symbols present

Line drawing of a screwdriver with a cylindrical head and threaded shaft (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flat tool with a handle and central slot (no text or symbols)

Simple line drawing of a screwdriver with a cylindrical head and shaft (no text or symbols)

Simple diagram with three circular symbols inside a rectangular box (no text or labels)

Simple line drawing of a tape measure (no text or symbols)

Petit niveau

Simple line drawing of a double-ended wrench (no text or symbols)

Line drawing of an adjustable wrench (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flashlight with a handle and bulb (no text or symbols)

Simple line drawing of a rectangular tray or container (no text or symbols)

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Simple line drawing of a rolled-up tape or tape (no text or symbols)

Two coiled rope-like shapes with no text or symbols

Coiled cable or hose with two connectors, no text or symbols visible

Line drawing of a screw with two circular heads and threaded shaft (no text or symbols)

Tuyau d'évacuation

Two identical mechanical component diagrams with circular holes, no text or symbols present

Simple line drawing of a horizontal pipe or lever (no text or symbols)

Line drawing of a pipe fitting with a flanged end (no text or symbols)

Technical line drawing of a mechanical component with threaded ends and a central circular feature (no text or symbols)

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Simple geometric diagram with a square inside a larger rectangle (no text or symbols)

Simple line drawing of a mechanical component with a cylindrical shaft and curved base (no text or symbols)

Line drawing of a pair of pliers (no text or symbols)

Line drawing of a handheld electric drill (no text or symbols)

Technical line drawing of a drill bit and screwdriver (no text or symbols)

Perceuse sans fil Scie-cloche de 1/2 po (12,7 mm), 3/4 po (19 mm) et 1 ½ po (38 mm)

Simple line drawing of a coiled spring or rope (no text or symbols)

Two interlocked circular rings with metal clips attached (no text or symbols)

Coiled industrial hose with flanged ends and connectors (no text or symbols visible)

Simple line drawing of a ring shape with no text or symbols

Simple line drawing of a cord tied with a plug, no text or symbols present

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

Il vous faut :

Simple line drawing of a 3D rectangular block with a dashed top surface (no text or symbols)

Diagram of a mechanical assembly with a block and directional arrow indicating motion (no text or symbols)

Technical diagram showing mechanical assembly with arrows indicating direction and a magnified view of a screw being inserted (no text or symbols present)

Technical diagram of a mechanical assembly with an inset showing a close-up of a component detail (no text or symbols present)

Technical line drawing of a mechanical component with internal parts and directional arrows (no text or symbols)

Line drawing of a cabinet with multiple drawers and drawers, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a coiled cable or tube (no text or symbols)

Line drawing of a coiled pipe with two hexagonal connectors (no text or symbols)

Line drawing of a flexible hose with a flanged end and bulbous cap (no text or symbols)

Raccord coudé

Technical line drawing of an internal electronic device casing with visible internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and connectors (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Technical line drawing of a mechanical or electrical component with internal components and a circular element (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and mounting holes (no text or symbols)

Line drawing of a hand holding a smartphone (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a vintage office setup with a refrigerator, cabinet, and drawer (no text or symbols)

6po (15.2 cm)

Diagram showing a cable being inserted into a container with an arrow indicating direction (no text or symbols present)

Line drawing of a tool applying force to a mechanical component (no text or symbols)

Line drawing of a kitchen appliance with a hand inserting into a rack, showing internal components and a black arrow indicating motion (no text or symbols)

Line drawing of a cabinet interior with drawers and a scroll, no text or symbols present

Line drawing of a kitchen appliance cabinet with a close-up inset showing a hand holding a tool (no text or symbols)

Technical illustration of a mechanical assembly with an inset showing a disassembly view of internal components (no text or symbols present)

Line drawing of a cabinet interior with two views: one showing front and side views, the other showing exterior view (no text or symbols)

Technical diagram showing a kitchen fixture with labeled components and directional arrows indicating motion or assembly.

Architectural cross-section diagram of a cabinet or wardrobe with drawers and doorways (no text or symbols)

Line drawing of a pipe fitting with a valve and tubing (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly or enclosure (no text or symbols visible)

Diagram showing electrical connections with labeled components and a magnified inset highlighting a plug-in socket.

Diagram of a kitchen drawer with arrows indicating movement or force (no text or symbols)

Diagram illustrating door lock mechanism with labeled components and directional arrows indicating movement

Illustration of a woven basket with handles and circular components (no text or symbols)

Estilo 1

Cross-sectional diagram of a mechanical component with multiple gears and blades (no text or labels)

Estilo 2

Technical line drawing of a structural frame with two arrows indicating connection points (no text or symbols present)

Estilo 1

Diagram of a construction or rebar system with labeled components and directional arrows indicating movement or force.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and frame structure (no text or symbols)

Illustration of a kitchen sink with a faucet and a cylindrical sink, showing a downward arrow indicating a drop (no text or symbols present)

Two identical line drawings of pliers, no text or symbols present

Line drawing of a screwdriver with a cylindrical head and threaded shaft (no text or symbols)

Alicate Destornillador de hoja plana

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flat tool with a handle and central slot (no text or symbols)

Destornillador Phillips Cuchillo para uso general

Simple line drawing of a screwdriver with a cylindrical head and shaft (no text or symbols)

Simple diagram with three circular symbols inside a rectangular box (no text or labels)

Llave de cubo hexagonal o llave de tuercas de 5/16" (7,9 cm) y 1/4" (6,4 mm)

Simple line drawing of a measuring tape (no text or symbols)

Nivel pequeño

Simple line drawing of a double-ended wrench (no text or symbols)

Line drawing of an adjustable wrench (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Llave ajustable de 10" que se abra hasta 1 ^1/8 " (29 mm)
Destornilladores Torx ^† T20 y, si se instalan paneles frontales a la medida, Torx T15

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Simple line drawing of a rectangular tray or container (no text or symbols)

Linterna Bandeja Ilana

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Simple line drawing of a rolled-up tape or tape (no text or symbols)

Two identical rope knot diagrams arranged side by side (no text or symbols)

Coiled cable or hose with two connectors, no text or symbols visible

Line drawing of a screw with two circular heads and threaded shaft (no text or symbols)

Manguera de desagüe

Two identical mechanical component diagrams with circular holes, no text or symbols present

Simple line drawing of a horizontal tool or rod with a circular end (no text or symbols)

Line drawing of a pipe fitting with a flanged end (no text or symbols)

Technical line drawing of a mechanical component with threaded ends and a central circular feature (no text or symbols)

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Simple geometric diagram with a square inside a larger rectangle (no text or symbols)

Kit de panel lateral

Simple line drawing of a mechanical component with a cylindrical shaft and curved base (no text or symbols)

Line drawing of a pair of pliers (no text or symbols)

Line drawing of a handheld electric drill (no text or symbols)

Technical line drawing of two mechanical components: a cylindrical saw and a threaded screw (no text or symbols)

Taladro inalámbrico Sierras perforadoras de 1/2" (12,7 mm), 3/4" (19 mm), and 1½" (38 mm)

Simple line drawing of a coiled spring or rope (no text or symbols)

Two interlocked rings with metal clips attached (no text or symbols)

Coiled industrial hose with flanged ends and connectors (no text or symbols visible)

Simple line drawing of a ring shape with no text or symbols

Simple line drawing of a bundled cable with wires (no text or symbols)

Pasacables de gabinete

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

Usted debe tener:

2" 5 cm 4" 10.1 cm 2¾" 7 cm

Simple line drawing of a rectangular box with a flat top and bottom edge (no text or symbols)

Diagram of a mechanical assembly with a rectangular block and a curved component, showing no text or symbols.

Mechanical assembly diagram showing a lever mechanism and a close-up of a screw with a rotating head (no text or symbols)

Technical diagram of a mechanical assembly with internal components and an inset view showing a close-up of a component (no text or labels present)

Technical line drawing of a mechanical component with internal parts and directional arrows (no text or symbols)

Line drawing of a cabinet with multiple drawers and drawers arranged in a row (no text or symbols)

Technical cross-section diagram of a mechanical assembly with no visible text or symbols

Simple line drawing of a coiled wire or tube, no text or symbols present

Line drawing of a flexible hose with threaded ends and hexagonal connectors (no text or symbols)

Line drawing of a flexible hose with a flanged end and bulbous cap (no text or symbols)

Technical line drawing of an internal device housing with visible components and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure mechanical diagram showing hoses and connectors without any text, numbers, or symbols

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Technical line drawing of a mechanical housing or enclosure with internal components and a circular component (no text or symbols)

Line drawing of a hand holding a rectangular device (no text or symbols)

Isometric line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a kitchen appliance setup with refrigerator, drawer, and cabinet (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

Line drawing of a tool applying force to a mechanical component (no text or symbols)

Isometric line drawing of a kitchen appliance with a hand inserting into a sink (no text or symbols)

Line drawing of a kitchen drawer with drawers and a scroll rack (no text or symbols)

Line drawing of a kitchen appliance with a close-up inset showing a component being inserted (no text or symbols)

Technical diagram showing a device's internal structure and its assembly with a magnified inset view of the component.

Line drawing of a cabinet interior with door lockers and rack-mounted unit (no text or symbols)

Technical diagram showing a kitchen fixture with labeled parts and directional arrows indicating motion or assembly.

Architectural diagram showing ceiling grilles and doorways with directional arrows (no text or labels)

Line drawing of a pipe fitting with a valve and tubing (no text or symbols)

Technical line drawing of a mechanical component with internal parts and a circular inset detail (no text or symbols)

Technical line drawing of a mechanical assembly or enclosure with no visible text or symbols

Diagram showing electrical connection with a plug inserted into a wall socket, highlighting a component with power supply and grounding.

Diagram of a kitchen drawer with arrows indicating movement or force direction (no text or symbols)

Diagram illustrating door lock mechanism with labeled components and directional arrows indicating movement
