Product type	Gas range
Brand	Viking
Model	TVDR4804IGB
Dimensions (W x D x H)	122 cm x 69 cm x 91 cm
Weight	113 kg
Power source	Natural gas (convertible to propane)
Number of surface burners	4
French top (griddle)	Yes
Ignition	Electronic
Oven type	Gas oven
Oven capacity	5.2 cu ft (approx.)
Surface material	Stainless steel
Safety	Gas shut-off valve, flame detection
Maintenance and cleaning	Regular cleaning of burners and grates
Spare parts and repairability	Parts available from Viking
Warranty	2 years
Manufacturing	United States
Gas/propane conversion	Kit included (LPKTVDR)
Number of grates	4
Certifications	ANSI Z21.1, CSA 1.1

Frequently Asked Questions - TVDR4804IGB VIKING

How to convert the Viking TVDR4804IGB range from natural gas to propane?

Use the LPKTVDR conversion kit included. Follow the instructions: replace the surface burner orifices and the french top orifice, invert the gas regulator piston, then affix the conversion label near the rating plate. Check for leaks with soapy water.

Where can I find the complete user manual for the TVDR4804IGB model?

The manual is available free of charge as a PDF on notice-facile.com. You can also download it directly from Viking's website (vikingrange.com) or contact customer service at 1-888-845-4641.

How to clean the surface burners of the range?

Remove the grates and burner caps. Wash them in warm soapy water, rinse and dry completely. Do not use abrasive cleaners. Ensure the orifices are not clogged before reassembling.

What to do in case of gas odor?

Do not light any appliance, do not touch any electrical switches. Leave the building and immediately call your gas supplier or the fire department. Follow the safety instructions provided in the manual.

How to light the oven on the TVDR4804IGB?

Turn the oven knob to the Ignite position (usually with a spark symbol). The electronic igniter activates. If the gas does not ignite after 5 seconds, turn off the gas and wait 5 minutes before trying again.

Can I use an induction cooktop with this range?

No, the TVDR4804IGB is a gas range. It does not include an induction zone. For a mixed version, check models combining gas and induction in the same series.

What are the exact dimensions of the range?

Width: 122 cm (48 in), Depth: 69 cm (27 in), Height: 91 cm (36 in). Allow at least 2.5 cm of clearance on the sides for ventilation.

How to install the french top (griddle)?

Place the french top on the supports provided in the center. Ensure the burner heads are correctly aligned and that the griddle is stable. Refer to the installation guide for detailed steps.

Can I use cast iron cookware on the french top?

Yes, the steel french top is compatible with cast iron. However, avoid violent impacts that could damage the enamel. Use utensils with flat bases for even heat distribution.

How to contact Viking after-sales service?

Call 1-888-845-4641 (Canada/US) or visit vikingrange.com. For spare parts, have the model number TVDR4804IGB and the serial number located under the control panel ready.

USER MANUAL TVDR4804IGB VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifi ces may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open f1 ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
• Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP". Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

• Reinstall hex nut onto regulator in configuration desired.

Orifices Locations

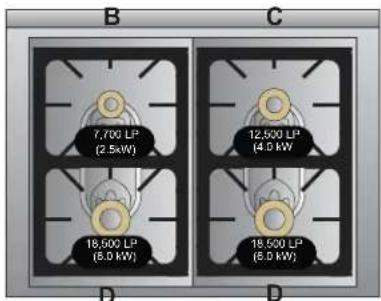

36" W/4 Surface Burners

36'' W/2 Surface Burners/Griddle

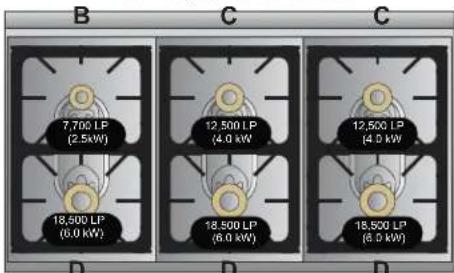

48" W/6 Surface Burners

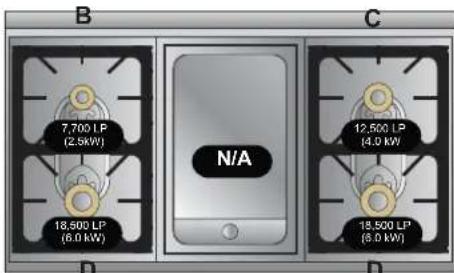

48" W/4 Surface Burners/Griddle

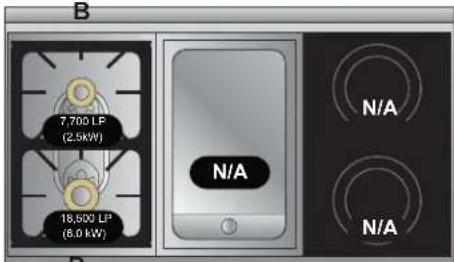

48" W/2 Surface Burners/Griddle/Induction

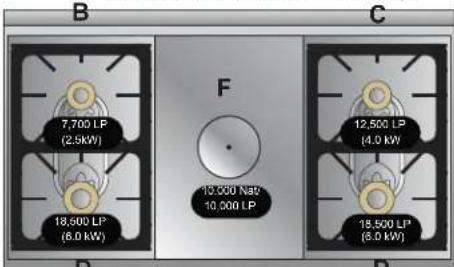

48" W/4 Surface Burners/French Top

D

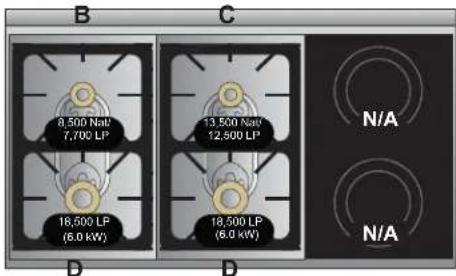

48" W/4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

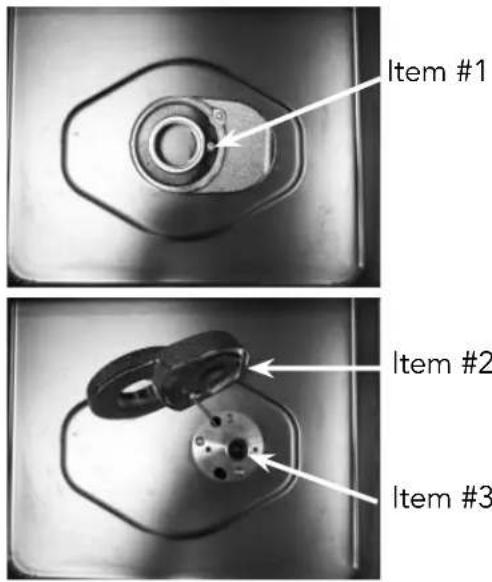

Surface Burner Conversion

-Locate appropriate orificce
-Remove screw (Item #1) fl at-head screwdriver.
- Lay the burner flange to side - do not disconnect the igniter wire. (Item #2).
-Use a nut driver to remove orificce (ltem #3).
-Replace with correct orifice - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, replace Item#2 burner fl ange.
  -Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Frenchtop Burner Conversion

-Remove frenchtop plate.
-Remove screws around burner.
-Remove screws holding burner box.
-Slide burner box forward and lift out.

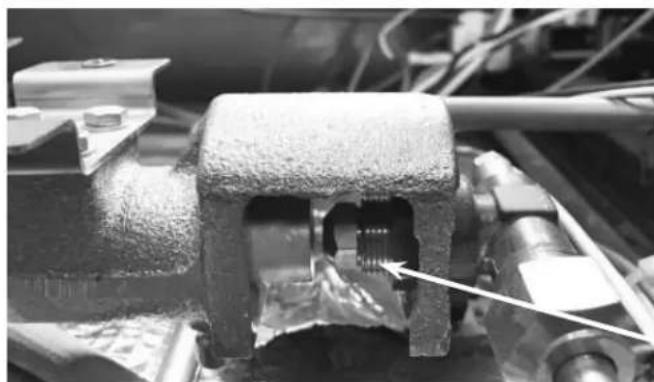

-Orifice is located under orifice bracket, attached to tubing.
-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, reinstall burner box and frenchtop plate

Orifice bracket

Orificce

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.
