Product type	Gas range
Brand	Viking
Model	TVDR4802GIDB
Dimensions (W x D x H)	121.9 cm x 71.1 cm x 91.4 cm
Weight	Approximately 180 kg
Fuel type	Natural gas (convertible to propane with included kit)
Number of surface burners	6 (possible configurations: 4 burners, 2 burners + griddle, etc.)
Burner type	Sealed flame burners with removable heads
French top	Included (model with French top)
Ignition	Electronic with standing pilot
Oven	Gas oven with broiler (according to model)
Safety	Safety valve, automatic shut-off if flame goes out
Maintenance and cleaning	Removable grates and burner heads for easy cleaning
Gas conversion	LP (propane) conversion kit included: orifices, regulator, label
Spare parts	Replacement burner orifices available: #78, #105, #120, #90
Repairability	Technical support and parts available from Viking Range, LLC
Warranty	Manufacturer's warranty (refer to the manual)
General information	Manufacturer: Viking Range, LLC, 111 Front Street, Greenwood, MS 38930, USA

Frequently Asked Questions - TVDR4802GIDB VIKING

How to convert the range from natural gas to propane?

Follow the instructions of the included LPKTVDR conversion kit. Disconnect the power supply, reverse the regulator piston (marked 'NAT' or 'LP') and replace the burner orifices with those from the kit. Use a soapy solution to check for leaks. Never use a flame to detect a leak.

What to do in case of gas smell?

Do not light any appliance, do not operate any switch, do not use a phone in the building. Leave the premises and immediately call your gas supplier from a neighbor's phone. If you cannot reach the supplier, call the fire department. Do not attempt to locate the leak yourself.

How to clean the surface burners?

Remove the grates and burner heads. Clean them with soapy water and a soft brush. Rinse and dry completely before reassembling. Ensure the orifices are not clogged. Do not clean burners in the dishwasher.

Where is the rating label located?

The rating label is located under the control panel. After a propane conversion, affix the provided conversion label next to this label.

What tools are needed for the propane conversion?

You will need a flat-head screwdriver, a nut driver (socket), and possibly tape to aid in removing the orifices. The conversion kit contains all necessary orifices and the label.

Can I use the range with propane gas without conversion?

No, the range is factory-set for natural gas. A conversion is mandatory to use propane; otherwise, you risk improper operation, excessive flame, or explosion. Use the provided LPKTVDR kit.

How to reverse the regulator piston?

Remove the hex nut of the regulator, take out the plastic piston, turn it so that the marking 'LP' (for propane) appears at the bottom, then firmly reinsert it into the nut. Reinstall the nut on the regulator. Ensure the piston is properly engaged.

What to do if a burner does not ignite?

Check that the gas supply is open and the burner is properly assembled. Clean the burner head and orifice. If the electronic ignition does not work, check the igniter cable or contact after-sales service. Do not force the ignition.

Are the grates and burner heads dishwasher safe?

It is recommended to wash them by hand with soapy water. The dishwasher may damage the finishes. Dry them thoroughly before replacing to avoid rust.

Where to download the complete user manual for the range?

The complete manual is available for free in PDF format on the site notice-facile.com. You can also request a translation into your language by providing your email address. The site also offers AI assistance.

USER MANUAL TVDR4802GIDB VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifi ces may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open f1 ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
• Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP". Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

• Reinstall hex nut onto regulator in configuration desired.

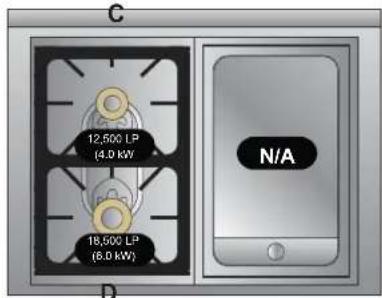

Orifices Locations

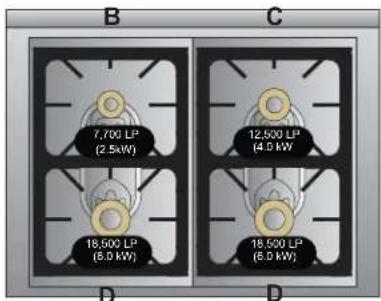

36" W/4 Surface Burners

36'' W/2 Surface Burners/Griddle

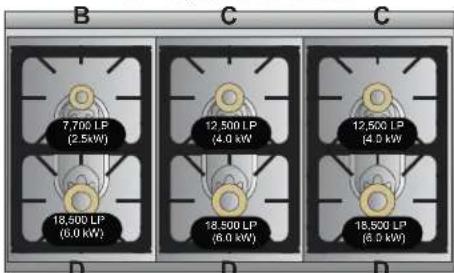

48" W/6 Surface Burners

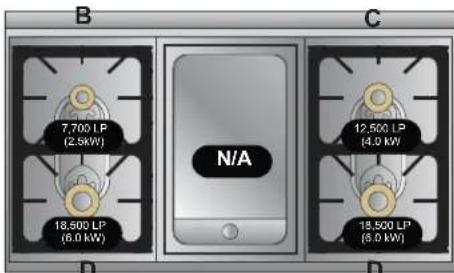

48" W/4 Surface Burners/Griddle

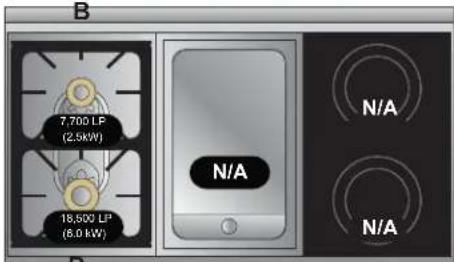

48" W/2 Surface Burners/Griddle/Induction

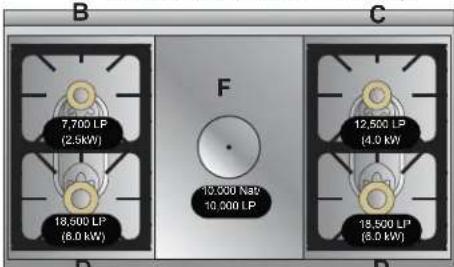

48" W/4 Surface Burners/French Top

D

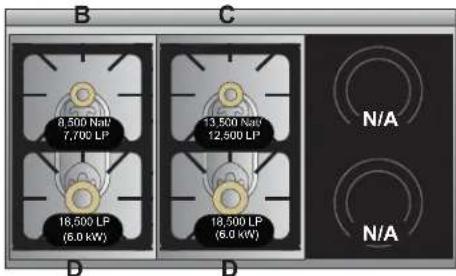

48" W/4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

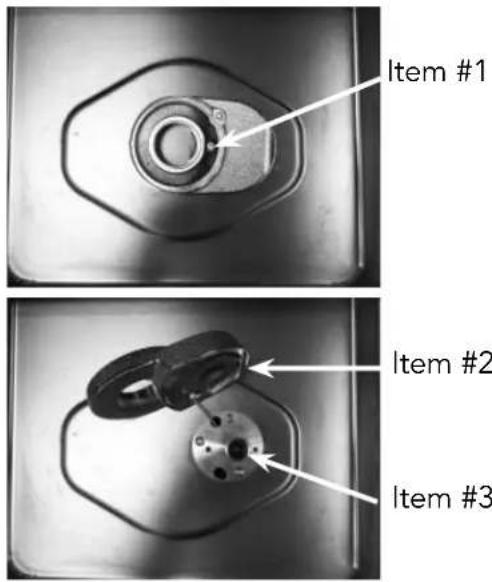

Surface Burner Conversion

-Locate appropriate orificce
-Remove screw (Item #1) fl at-head screwdriver.
- Lay the burner flange to side - do not disconnect the igniter wire. (Item #2).
-Use a nut driver to remove orificce (ltem #3).
-Replace with correct orific e - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, replace Item#2 burner fl ange.
  -Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Frenchtop Burner Conversion

-Remove frenchtop plate.
-Remove screws around burner.
-Remove screws holding burner box.
-Slide burner box forward and lift out.

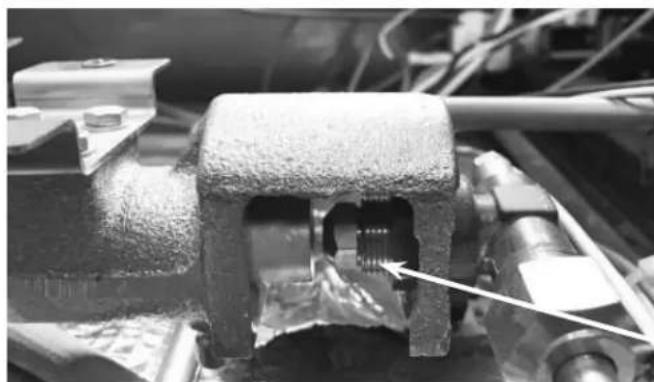

-Orifice is located under orifice bracket, attached to tubing.
-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, reinstall burner box and frenchtop plate

Orifice bracket

Orificce

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.
