Product Type	Gas Range
Brand	Viking
Model	TVDR4804FGB
Width	48 inches (122 cm)
Depth	28 inches (71 cm)
Height (cooking surface)	36 inches (91 cm)
Approximate Weight	180 kg
Power Supply	Natural gas (convertible to propane, kit included)
Number of Surface Burners	4 burners + French top plate
Burner Power	Up to 15,000 BTU per burner (estimated)
French top plate	Yes, stainless steel
Oven	5.5 cu ft capacity, convection cooking
Grill	Yes, built-in
Controls	Rotary knobs
Material	Stainless steel
Safety	Gas safety shut-off, electronic ignition
Cleaning	Removable grates, manual cleaning recommended
Replacement Parts Available	Orifices, regulator, burner heads, LP conversion kit
Warranty	2 years (estimated)
Manufacturer	Viking Range, LLC, USA
Certifications	CSA, UL

Frequently Asked Questions - TVDR4804FGB VIKING

How to convert the range from natural gas to propane?

To convert to propane, reverse the regulator piston (marked NAT or PL) and replace all burner orifices with those provided in the LP conversion kit. Follow the detailed instructions in the manual, especially for replacing the orifices and checking for leaks.

Where is the rating label located?

The rating label is located under the control panel. After conversion, affix the provided conversion label next to it.

How to check for gas leaks after conversion?

Use a soapy water solution or an approved method to detect leaks. Never use an open flame. Apply the solution to the fittings; bubbles indicate a leak.

Which orifices to use for propane?

Refer to the table in the manual: for rear burners use orifice #78 (B) or #105 (C), for front burners #120 (D), and for the French top plate #90 (F). The numbers are indicated in the LPKTVDR conversion kit.

How to clean the French top plate?

Allow the plate to cool, then clean it with a soft sponge and soapy water. Avoid abrasive cleaners that may scratch the surface. Dry thoroughly.

What to do if a gas odor is detected?

Do not attempt to light any appliance. Do not touch any electrical switches. Leave the area and immediately call your gas supplier from an outside phone. If not possible, call the fire department.

How to remove the burner heads for cleaning?

Remove the grates, then lift the burner heads. To reinstall, align the groove and turn until they click. Be careful not to damage the igniter.

Is the range delivered with a conversion kit?

Yes, the TVDR4804FGB model is delivered with an LP conversion kit (ref. LPKTVDR) containing the necessary orifices, piston, and label.

What are the exact dimensions of the appliance?

The range measures 48 inches wide (122 cm), 28 inches deep (71 cm), and 36 inches high (91 cm) at the cooking surface.

Can I use propane gas without conversion?

No, the appliance is factory-set for natural gas. Using propane without conversion is dangerous and may cause a fire or explosion. Follow the conversion procedure described in the manual.

USER MANUAL TVDR4804FGB VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifi ces may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open f1 ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
• Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP". Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

• Reinstall hex nut onto regulator in configuration desired.

Orifices Locations

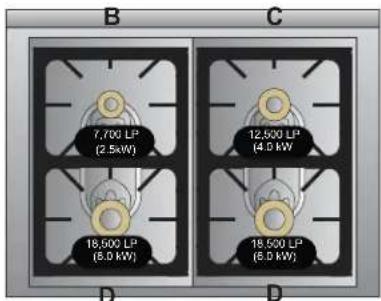

36" W/4 Surface Burners

36'' W/2 Surface Burners/Griddle

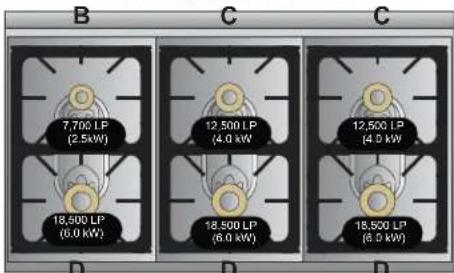

48" W/6 Surface Burners

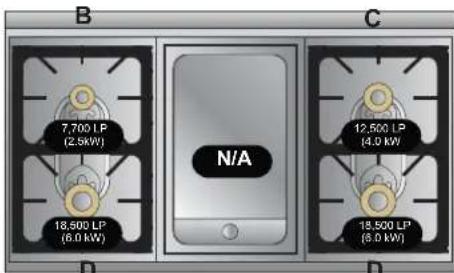

48" W/4 Surface Burners/Griddle

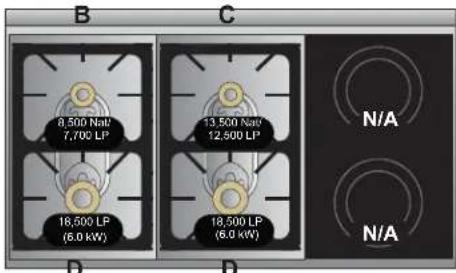

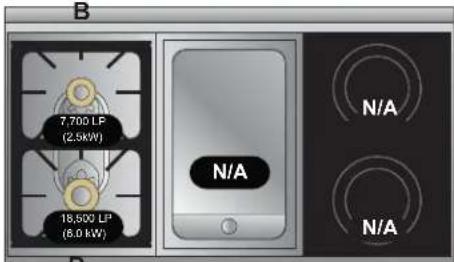

48" W/2 Surface Burners/Griddle/Induction

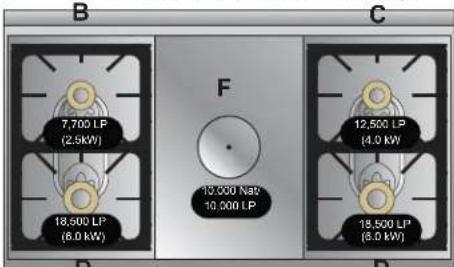

48" W/4 Surface Burners/French Top

D
48" W/4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

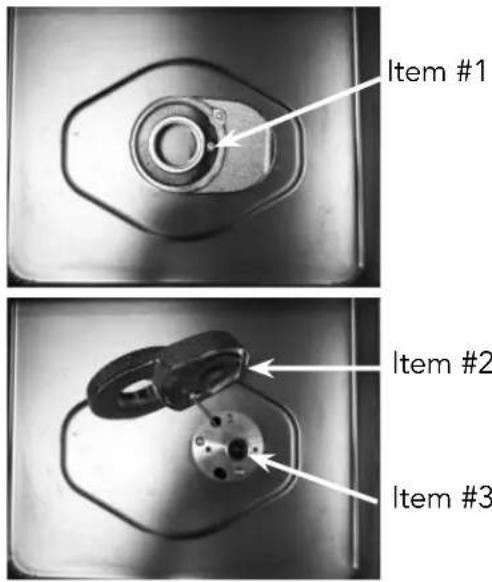

Surface Burner Conversion

-Locate appropriate orificce
-Remove screw (Item #1) fl at-head screwdriver.
- Lay the burner flange to side - do not disconnect the igniter wire. (Item #2).
-Use a nut driver to remove orificce (ltem #3).
-Replace with correct orific e - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, replace Item#2 burner fl ange.
  -Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Frenchtop Burner Conversion

-Remove frenchtop plate.
-Remove screws around burner.
-Remove screws holding burner box.
-Slide burner box forward and lift out.

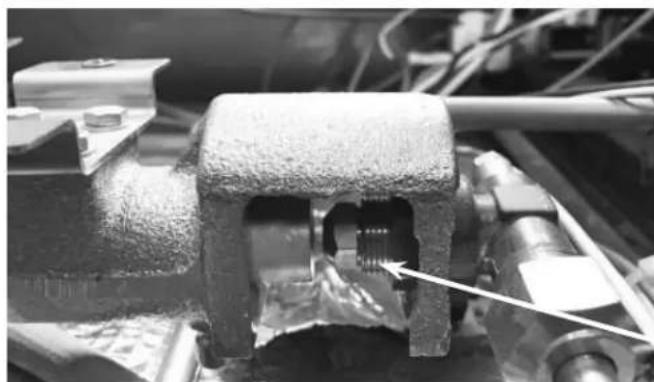

-Orifice is located under orifice bracket, attached to tubing.
-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, reinstall burner box and frenchtop plate

Orifice bracket

Orificce

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.
