TVDR3604BDB - Cooker VIKING - Free user manual and instructions

Product type	Gas range
Brand	Viking
Model	TVDR3604BDB
Width	91.4 cm (36 in)
Depth	71.1 cm (28 in)
Height	91.4 cm (36 in)
Weight	Approximately 113 kg (250 lb)
Power supply	Natural gas (convertible to propane with included LP kit)
Number of surface burners	4
Burner power	Front burner: 18,500 BTU/h (LP), rear: 12,500 BTU/h (LP), etc.
Oven type	Convection oven
Ignition	Electronic
Safety	Thermocouple, automatic gas shut-off
Maintenance	Regular cleaning of burners, grates, and griddle
LP conversion kit	Included (reference LPKTVDR)
Color	Stainless steel
Control type	Front knobs
Spare parts	Available from Viking and authorized dealers
General information	User manual and conversion guide included

Frequently Asked Questions - TVDR3604BDB VIKING

How do I convert my Viking TVDR3604BDB range from natural gas to propane?

Use the included LP conversion kit (LPKTVDR). Follow the provided instructions: reverse the regulator piston from 'NAT' to 'LP', replace the burner orifices with those from the kit (refer to the orifice chart), then check for leaks with soapy water. Do not use an open flame.

Where is the rating label located on my range?

The rating label is located under the control panel. After conversion, affix the included conversion label next to it.

What should I do if I smell gas?

Do not light any appliance, do not touch any electrical switches, leave the building. Call your gas supplier from a phone outside. If you cannot reach them, call the fire department.

How do I clean the surface burners?

Remove the grates and burner caps. Clean them with warm soapy water. Dry thoroughly before reassembling. For the orifices, use a soft brush. Do not clean in a self-cleaning oven.

Can I use a griddle on this range?

Yes, the TVDR3604BDB model can be equipped with a griddle. The LP conversion kit includes a specific orifice for the griddle (ref. #90). Follow the griddle burner conversion instructions.

Which orifices should I use for propane?

Refer to the chart in the manual: rear burner B: #78 (7,700 BTU/h LP), rear C: #105 (12,500 BTU/h LP), front D: #120 (18,500 BTU/h LP), griddle F: #90 (13,000 BTU/h LP). Use a nut driver to replace them.

How do I remove the burner caps to access the orifices?

Remove the grates, then remove the burner caps by turning to release. Remove the burner bracket (flat head screw) without disconnecting the igniter wire. Use a nut driver to unscrew the orifice. Tip: apply tape inside the socket to prevent the orifice from falling.

Does the range come with an LP conversion kit?

Yes, the TVDR3604BDB model comes with the LPKTVDR conversion kit including orifices, regulator piston, and conversion label. Keep this kit for later installation.

Where can I find replacement parts?

Spare parts are available from Viking (call 1-888-845-4641 in the US, or visit vikingrange.com) and authorized dealers.

How do I adjust the burner flame?

Adjustment is typically done at the factory. If the flame is uneven, check that the burner caps are correctly positioned (notch aligned) and that the orifices are not clogged. For fine adjustment, call a qualified installer.

USER MANUAL TVDR3604BDB VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifices may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

• DO NOT try to light any appliance.
  •DO NOT touch any electrical switch.
  •DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open fl ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
  •Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP".

Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

Apply sideways finger pressure to remove pin from cap.

- Reinstall hex nut onto regulator in configuration desired.

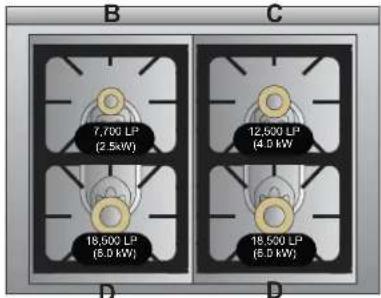

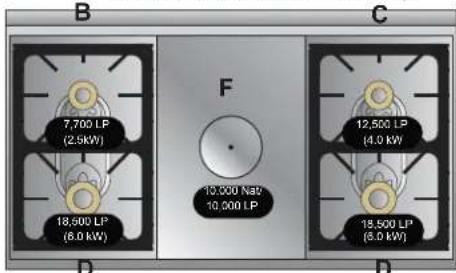

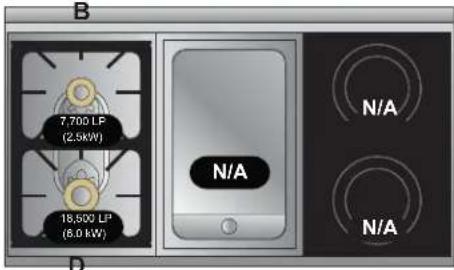

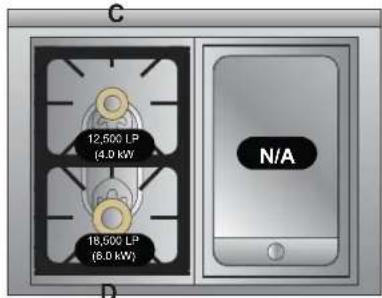

Orifi ce Locations

36" W /4 Surface Burners

36" W /2 Surface Burners/Griddle

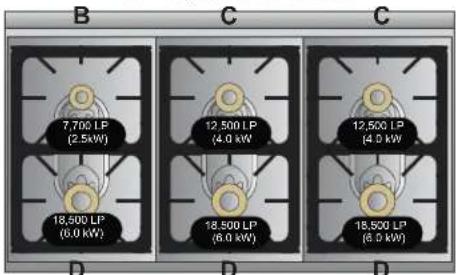

48" W /6 Surface Burners

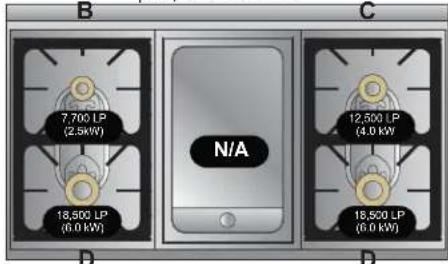

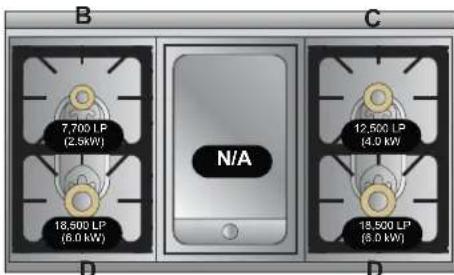

48" W /4 Surface Burners/Griddle

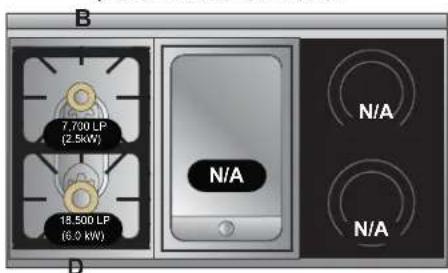

48" W /2 Surface Burners/Griddle/Induction

48" W /4 Surface Burners/French Top

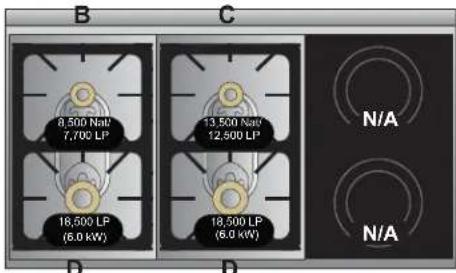

48" W /4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

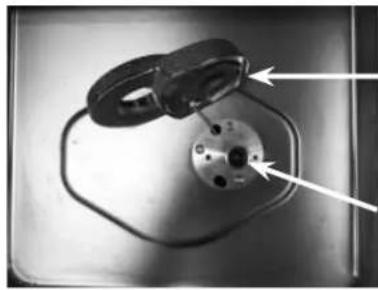

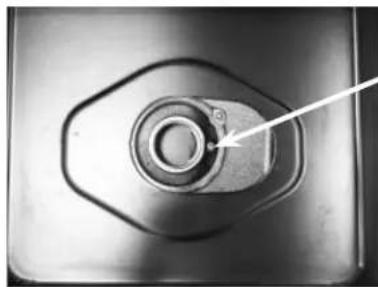

Surface Burner Conversion

-Locate appropriate orifi ce

-Remove screw (Item #1) fl at-head screwdriver.

- Lay the burner fl ange to side - do not disconnect the igniter wire. (Item #2).

-Use a nut driver to remove orifi ce (Item #3).

-Replace with correct orifi ce - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

- After replacing the orifice, replace Item#2 burner fl ange.

-Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Close-up of a mechanical component with a central bore and flange, no visible text or symbols

Item #1

Close-up of a mechanical component with a metallic housing and circular base, marked by arrows (no visible text or symbols)

Item #2
Item #3

Frenchtop Burner Conversion

-Remove frenchtop plate.

-Remove screws around burner.

-Remove screws holding burner box.

-Slide burner box forward and lift out.

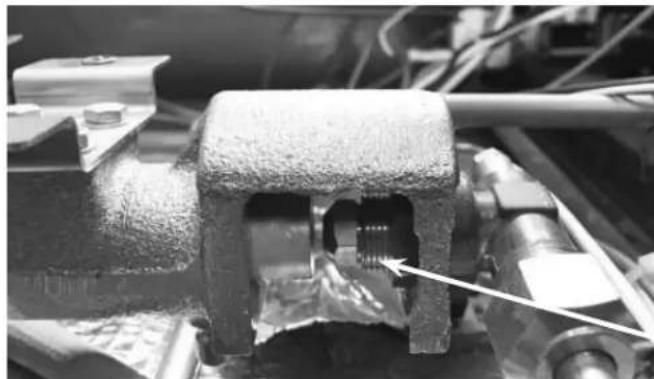

-Orifi ce is located under orifi ce bracket, attached to tubing.

-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

- After replacing the orifice, reinstall burner box and frenchtop plate

Mechanical testing setup with a perforated cylindrical component mounted on a metal frame, surrounded by wires and a white arrow pointing to a component (no visible text or symbols)

Orifi ce bracket

Close-up of a mechanical component with a highlighted internal section and an arrow pointing to it (no visible text or symbols)

Orifi ce

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.

Diagram of a kitchen appliance interior showing a door, shelves, and decorative panels (no text or symbols)

48 po W /2 Brûleurs de surface/ plaque chauffante/Induction

36 po W /2 Brûleurs de surface/ plaque chauffante

48 po W /4 Brûleurs de surface/ plaque chauffante

Surface Burner Conversion

Mechanical testing setup with a perforated circular component mounted on a metal frame, surrounded by wires and components (no visible text or symbols)

Close-up of a mechanical component with a highlighted internal section and an arrow pointing to it (no visible text or symbols)

l'orifi ce

Architectural detail drawing of a cabinet or elevator shaft with decorative patterns and a dashed oval highlighting a section (no text or symbols)
