Product Type	2-way car speaker kit
Brand	Rockford Fosgate
Model	Punch P152S
Category	Car speaker
Diameter	165 mm (6.5 inches)
Impedance	4 ohms
Nominal Power (RMS)	60 W
Maximum Power	120 W
Frequency Response	60 Hz - 20 kHz
Sensitivity	91 dB
Mounting Depth	45 mm
Cone Material	Polypropylene
Tweeter Material	Silk dome
Power Supply	Via external amplifier (not included)
Main Functions	High-fidelity audio reproduction, frequency separation via passive crossover
Maintenance and Cleaning	Clean with a dry, soft cloth. Avoid water and abrasive products.
Safety	Disconnect the battery before installation. Observe polarity.
Spare Parts and Repairability	Contact a Rockford Fosgate authorized installer for repairs.
General Information	Limited 1-year warranty for the speakers.

Frequently Asked Questions - Punch P152S Rockford Fosgate

What is the diameter of the Punch P152S speaker?

The speaker has a diameter of 165 mm (6.5 inches).

What is the recommended amplifier power?

The RMS power is 60 W, with a maximum power of 120 W. Use an amplifier delivering between 30 and 120 W RMS per channel for best results.

How to install the passive crossover?

Mount the crossover near the amplifier on a flat surface, away from heat and moisture sources. Ensure connections respect polarity.

What to do if no sound comes out of the speakers?

Check cable connections, amplifier status, and look for a short circuit between cables or with the chassis. Test with another working speaker.

Why do tweeters blow easily?

This can be due to excessive amplifier power or an equalizer pushing the highs too much. Adjust gains and equalizer settings.

How to avoid engine noise in the speakers?

Keep audio cables away from power cables and noise sources. Check for ground loops. Move the crossovers if necessary.

What is the required mounting depth?

The mounting depth is approximately 45 mm. Before drilling, check clearance (windows, mechanisms) to avoid obstructions.

Can I install the tweeter less than 5 cm from the midrange?

Yes, it's ideal for good integration. Otherwise, place it more than 18 cm away to avoid negative interference.

How to clean the speakers?

Use a dry, soft cloth to remove dust. Never use water or chemicals.

Where to find the serial number?

The serial number is on the outside of the packaging. Write it down for warranty and in case of theft.

USER MANUAL Punch P152S Rockford Fosgate

Installation & Operation

Installation et fonctionnement
Instalacion y funciona bajo
Einbau und Betrieb
Installazione e funzionamento

Punch Series

Component Systems

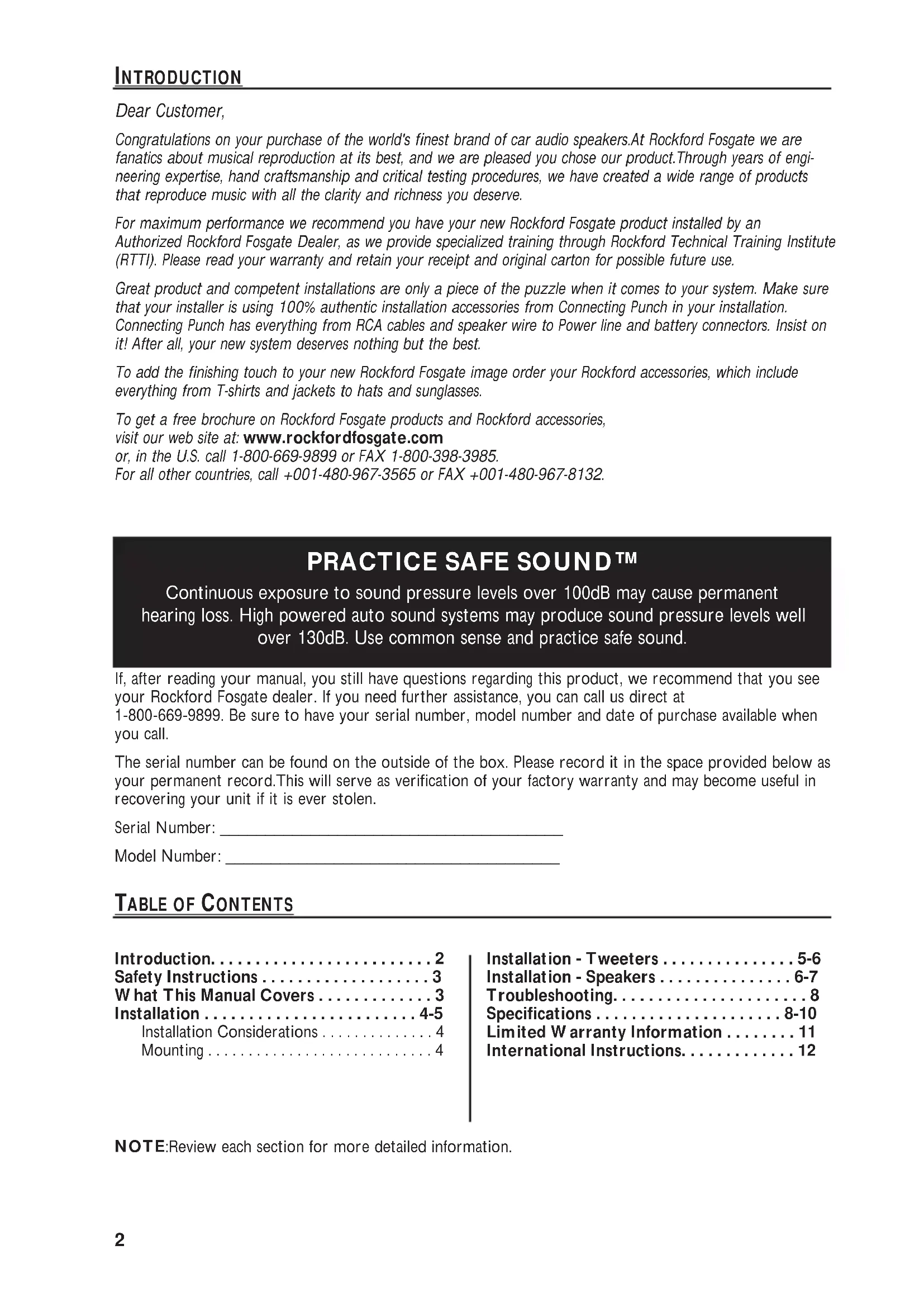

Dear Customer,

Congratulations on your purchase of the world's finest brand of car audio speakers. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Connecting Punch in your installation. Connecting Punch has everything from RCA cables and speaker wire to Power line and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts and jackets to hats and sunglasses.

To get a free brochure on Rockford Fosgate products and Rockford accessories, visit our web site at: www.rockfordfosgate.com or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

The serial number can be found on the outside of the box. Please record it in the space provided below as your permanent record. This will serve as verification of your factory warranty and may become useful in recovering your unit if it is ever stolen.

Serial Number:
Model Number:

TABLE OF CONTENTS

Introduction. 2

Safety Instructions 3

What This Manual Covers 3

Installation 4-5

Installation Considerations 4

Mounting 4

Installation - Tweeters 5-6

Installation - Speakers 6-7

Troubleshooting. 8

Specifications 8-10

Limited Warranty Information 11

International Instructions. 12

NOTE: Review each section for more detailed information.

GETTING STARTED

Welcome to Rockford Fosgate! This manual is designed to provide information for the owner, salesperson and installer. For those of you who want quick information on how to install this product, please turn to the Installation Section of this manual. Other information can be located by using the Table of Contents. We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice.

SAFETY INSTRUCTIONS

WARNING

This symbol with "WARNING" is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

CAUTION

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

CAUTION:To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.
CAUTION If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.
CAUTION Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

INSTALLATION CONSIDERATIONS

The following is a list of tools needed for installation:

Volt/Ohm Meter

2 Phillips screwdriver

Battery post wrench

Hand held drill w/assorted bits

1/8" diameter heatshrink tubing

Wire strippers

Wire crimpers

Wire cutters

CAUTION: If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Before beginning any installation, follow these simple rules:

1. Be sure to carefully read and understand the instructions before attempting to install the Unit.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your unit in place.
4. Use high quality connectors for a reliable installation and to minimize signal or power loss.
5. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.
6. Never run wires underneath the vehicle. Running the wires inside the vehicle provides the best protection.
7. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.
8. Mount the speakers/crossovers away from electrical sources (other than the amplifier) i.e., power cables, electronic fuel pumps, vehicle computers, and other potential noise sources.
9. Mount the speakers/crossovers away from areas of extreme heat or moisture.

MOUNTING

Speakers/Tweeters

1. Determine where the speakers will be mounted. Ensure an area large enough for the speaker to mount evenly. Be sure that the mounting location is deep enough for the speaker to fit; if mounting in a door, operate all functions (windows, locks, etc.) through their entire operating range to ensure there is no obstruction.
2. When mounting the speaker(s) on the rear deck of the vehicle, check the operation of the rear hatch or trunk lid. Make sure the torsion bars and other moving parts are not obstructed by the speaker(s) installation.
3. Refer to the specification chart to determine the proper diameter hole to cut for your speaker model.

Crossovers

1. Make sure there is a flat area large enough for the crossover to mount.
2. For best results, mount the crossover(s) next to the amplifier for a decorative finish to the installation and provide an easy upgrade (no new wires to run) for a bi-amp Rockford Fosgate system in the future.

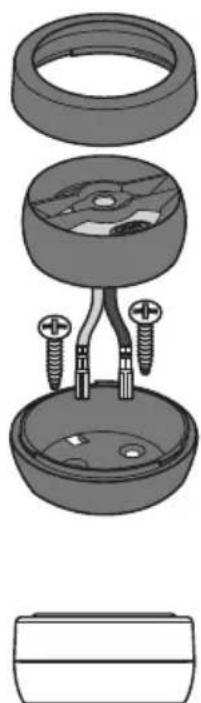

Use this section when installing Tweeters or Systems

A solid front stage with a good image is one of the most difficult tasks to achieve in a vehicle. No car has the optimum listening environment. This makes proper sound staging very difficult to accomplish. Most speakers tend to be placed where they will fit easily, as opposed to where they can perform the best. The mounting location of your speakers will have a great effect on the sound quality of your stereo system. The special care taken to place the speakers will yield many hours of listening enjoyment in return. Several important recommendations should be followed.

• Place the speakers where they have a direct path to the listening area.
• For the best integration between the midrange and tweeter, the tweeter should be placed less than 2^ from the midrange (Figure 1).

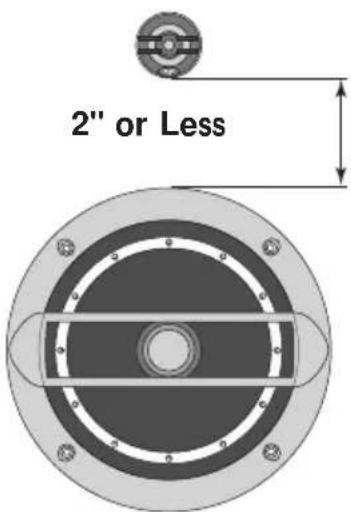

• If you cannot place the tweeter less than 2'' from the midrange, then place the tweeter more than 7'' from the midrange. Placing the tweeter 2'' - 7'' from the midrange can cause destructive interference (frequency response problems) which will affect the speaker's ability to reproduce the frequency range around the crossover frequency of the system.
• Whenever possible, place the tweeter directly above or below the midrange as this maximizes the imaging (point source) capability of the speakers (Figure 1).
• Sound radiated from a "point source" provides the best stereo imaging because the separation of the acoustical centers between the midrange and tweeter for each channel is at the optimum distance. In a closed environment such as an automobile, horizontal speaker

alignment (Figure 2) can cause amplitude and phase differences which will degrade not only the imaging, but also the frequency response. This is due to the path length differences between the midrange and tweeter. Mounting the speaker with minimum path length difference will ensure the best staging and imaging possible from your audio system.

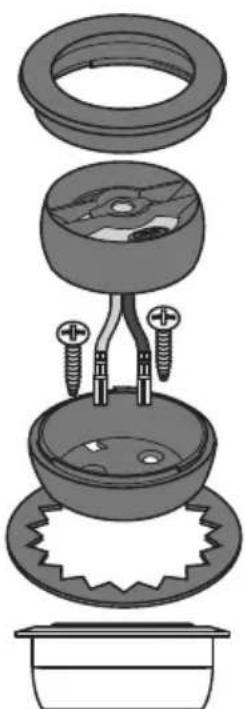

Figure 1

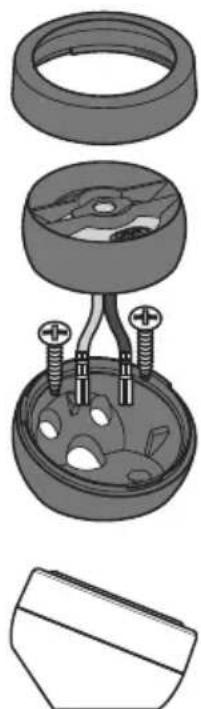

Flush Mount
Top Housing
Tweeter
Bottom Housing
Clip

Surface Mount

Top Housing
Tweeter
Bottom Housing
Wedge Mount

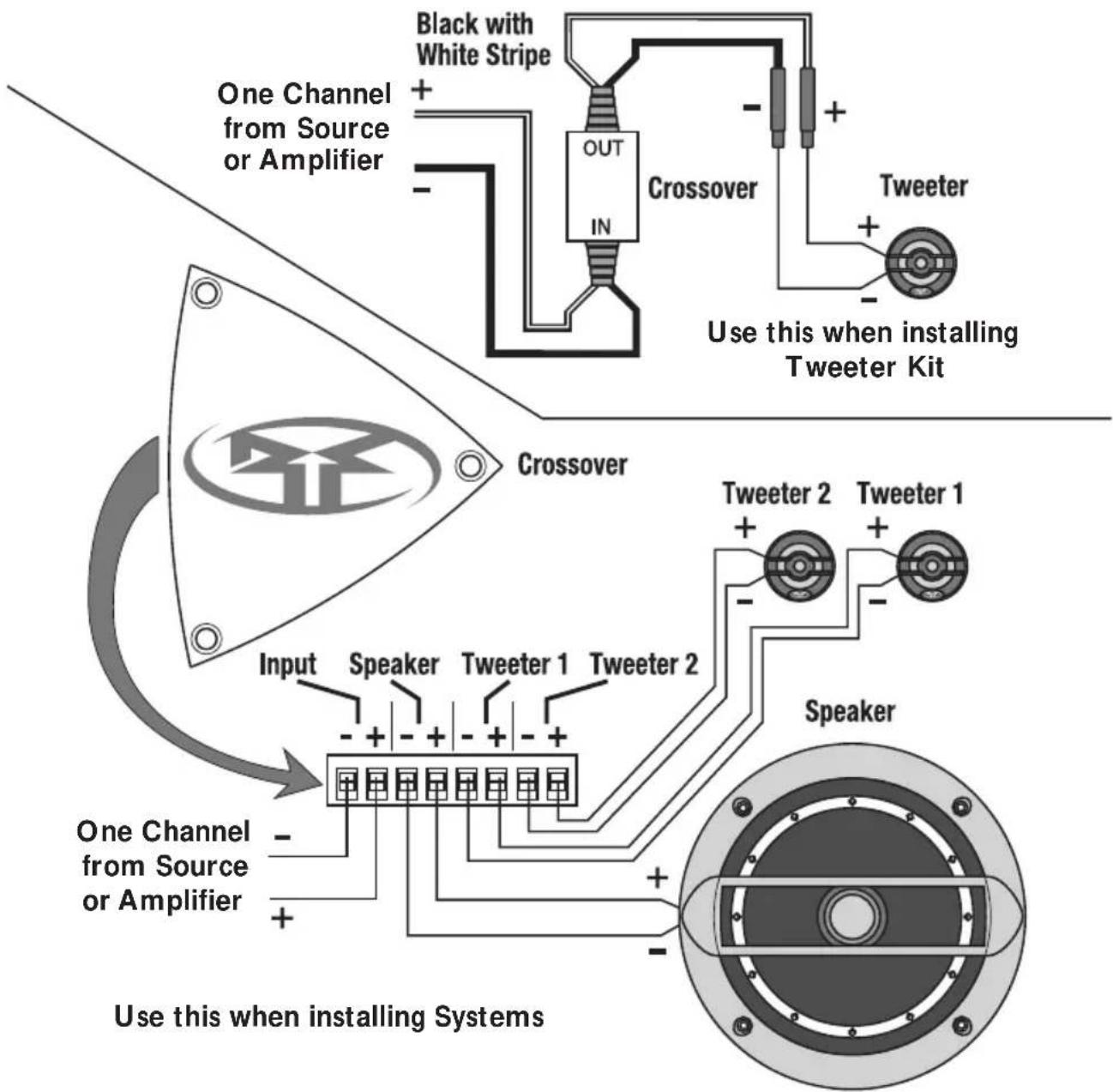

Wiring Tweeter to Crossover

1. Use illustrations for proper connection.
2. Be sure to maintain speaker polarity

1. Cut the proper size hole for the speaker.
   NOTE: See Specifications for proper hole size.
2. Place the mounting ring over the mounting hole and mark the location of the screw mounting holes.
3. Remove the ring. Drill the holes for the screws using a 1/8 drill bit.
4. Route the wire through the mounting hole cut-out.
5. Attach the wires. Observe proper speaker polarity.
6. Place the mounting ring over the speaker.
7. Place the speaker into the hole and screw the speaker into place.

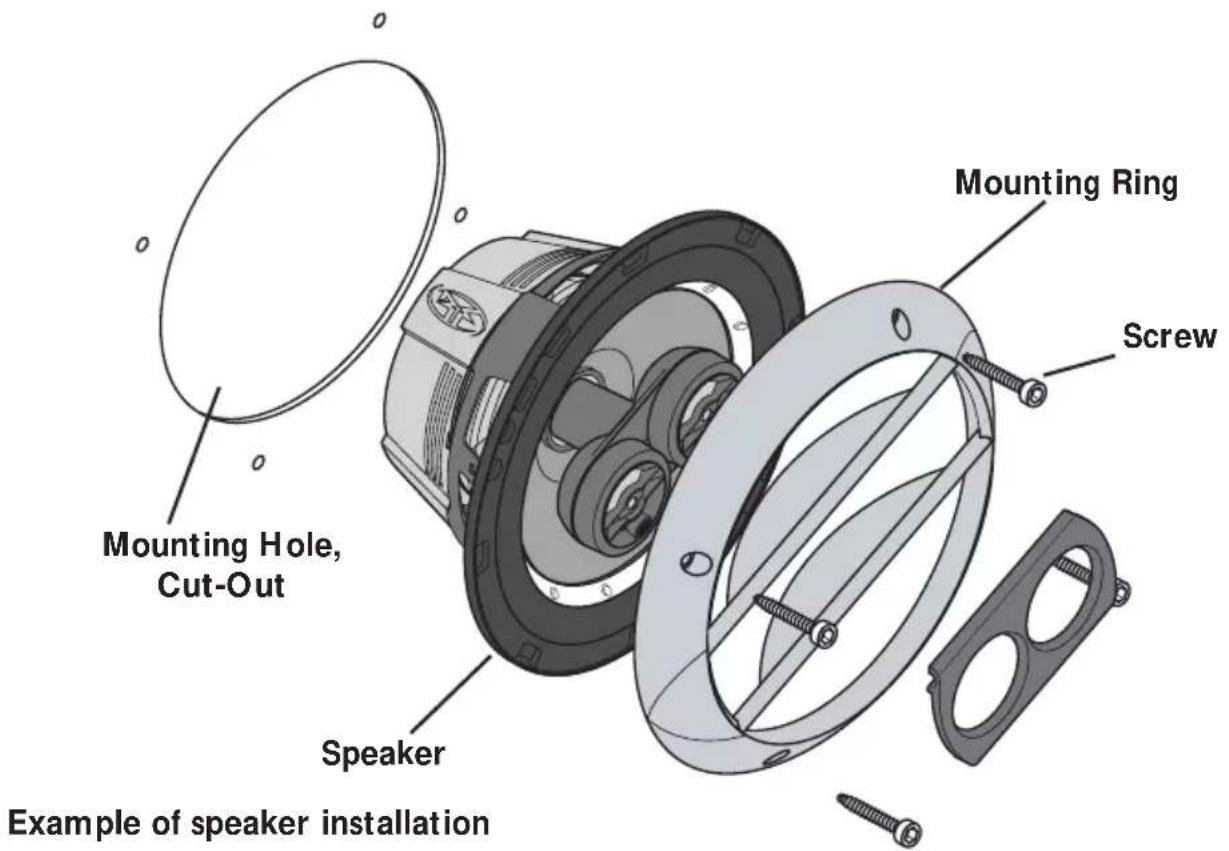

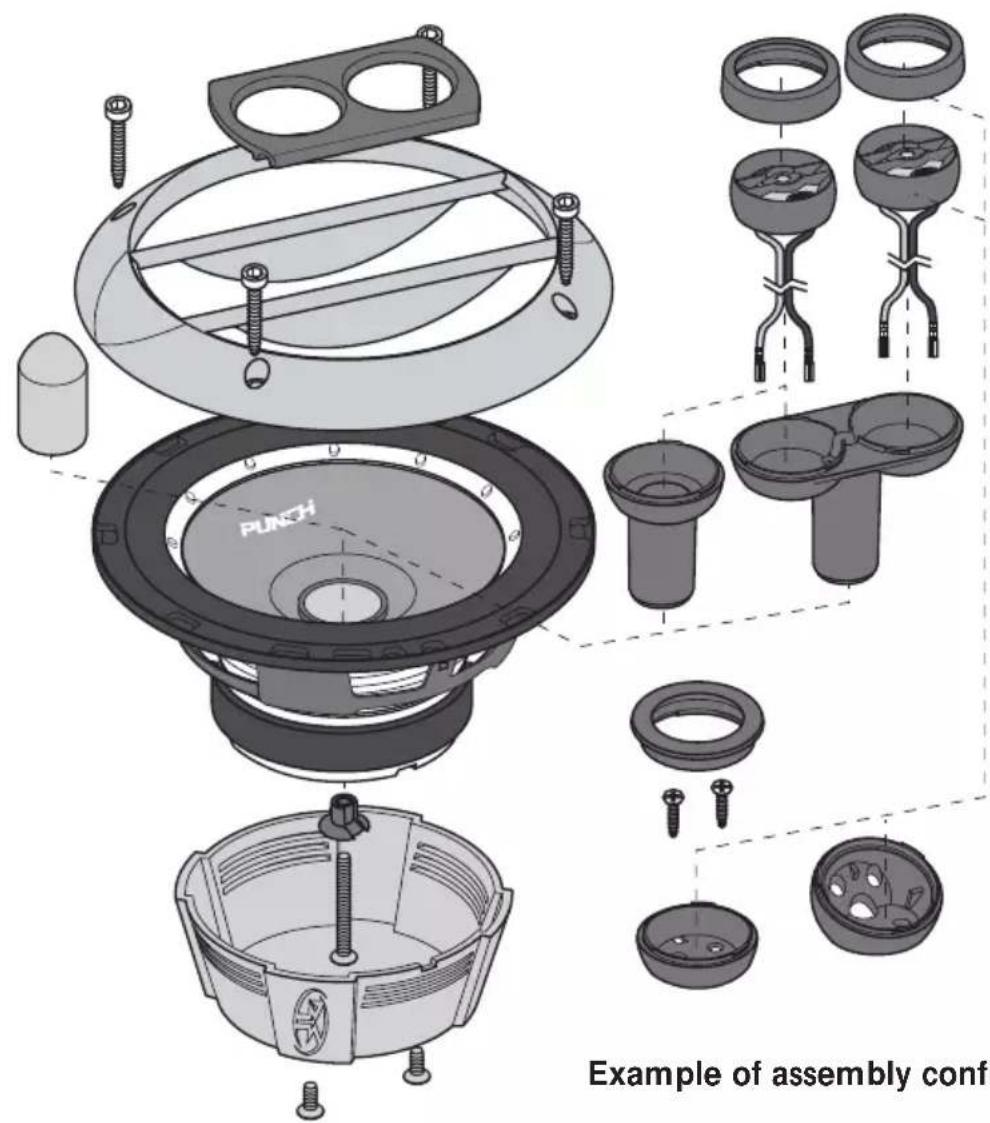

Example of assembly configurations

Symptom Diagnosis No sound from speakers	Remedy Wires not connected properly. Amplifier has no output. Speaker wires are shorted to each other or to the chassis of vehicle. Speakers are blown.	Check wiring, repair or replace. Check with working amplifier and re- pair or replace as needed. Check wiring with a volt/ohm meter and repair or replace as needed Check with working speaker and repair or replace as needed.
Distorted sound from speakers	Incorrect wiring between crossover and speakers	Check wiring, repair or replace.
Tweeters "burn up" easily	Excessive power from amplifier Equalizer (if available) has excessive boost in the high frequency range	Check gain settings on amplifier and readjust as necessary Check settings on equalizer and readjust as necessary
Engine noise from one or more speakers	Wires shorted to chassis of vehicle. Speaker wires are routed near high power source. (Power cables, vehicle computers, etc.) Crossover is mounted near high power source.	Check wiring with a volt/ohm meter and repair or replace as needed Re-route speaker wiring away from noise sources. Move crossovers away from noise sources.

SPECIFICATIONS

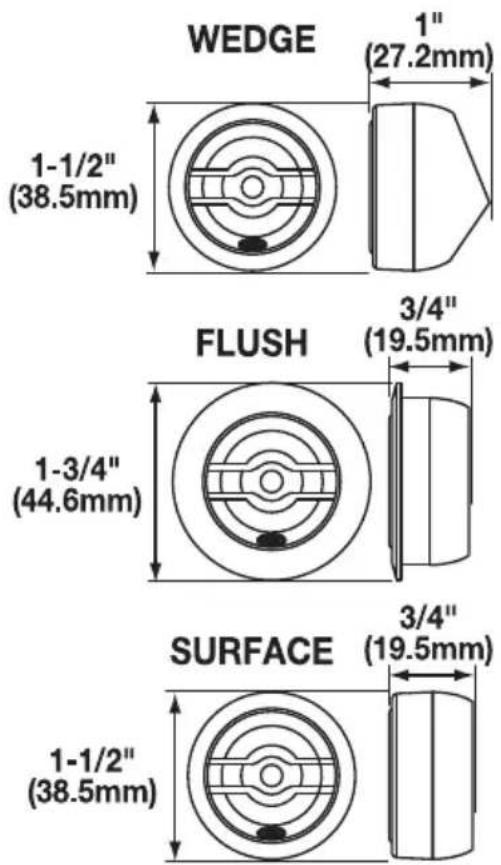

FEATURES - Tweeters

• Inverted Aluminum Dome
• Multiple Mounting Applications

Nominal Diameter - inch (mm) 3/4 (19mm)

Nominal Impedance (ohms) 4

Frequency Response 4kHz-24kHz

Sensitivity (SPL@1w/1m) 90dB

Power Handling (Watts RMS/Peak) 60 / 120

(with supplied crossover)

Specifications subject to change without notice

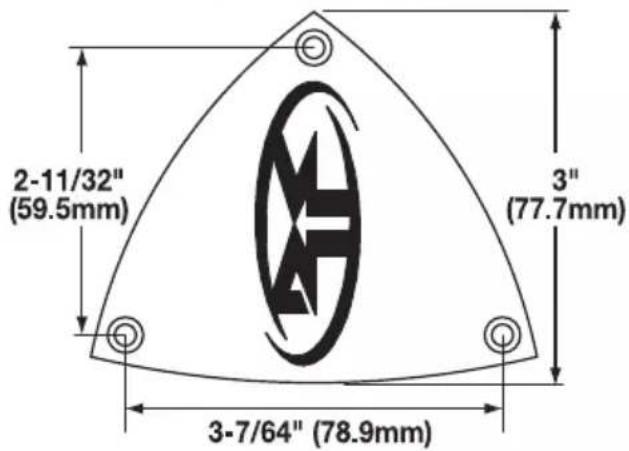

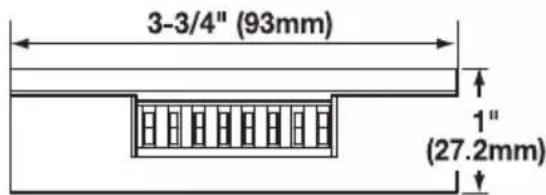

System Crossover DimensionsFEATURES

Crossover Frequency 3200Hz @ 4 Ω
Crossover Slope 12dB/octave High-Pass
12dB/octave Low-Pass

Filter Q Butterworth Tweeter Protection Optical Compression

FEATURES

• Mica Injected Polypropylene Cone
  Cold Rolled Vented Steel Frame
• Polyurethane Surround
• Multiple Tweeter Mounting Configurations

CROSSOVER

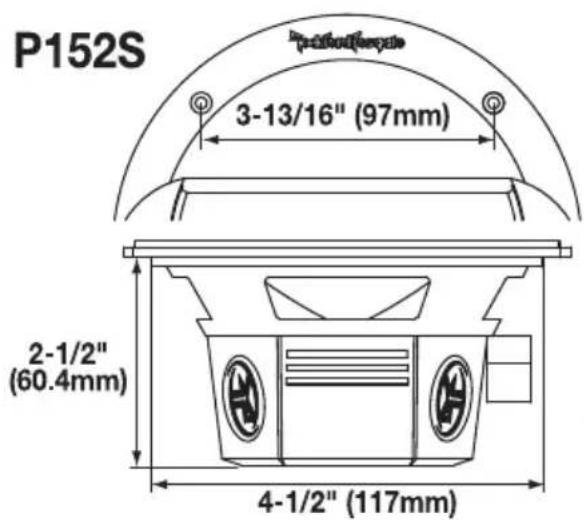

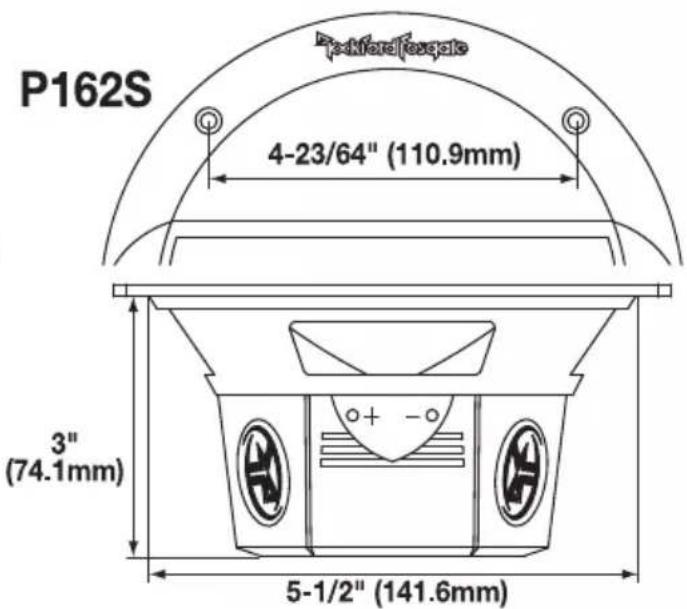

System Model P152S P162S

Nominal Diameter - inch (mm) 5-1/4 (133) 6-1/2 (165)

Nominal Impedance (ohms) 4 4

Frequency Response 70Hz-22kHz

Sensitivity (SPL@1w/1m) 86dB

Power Handling(Watts RMS/Peak)

Mounting Diameter - inch (mm) 4-1/2 (117)

Mounting Depth - inch (mm) 2-1/2 (50.4)

Ω 60Hz-22kHz 88dB

60/120 60/120

4-1/2 (117) 5-1/2 (141.6)

2-1/2 (50.4) 3 (74.1)

Specifications subject to change without notice

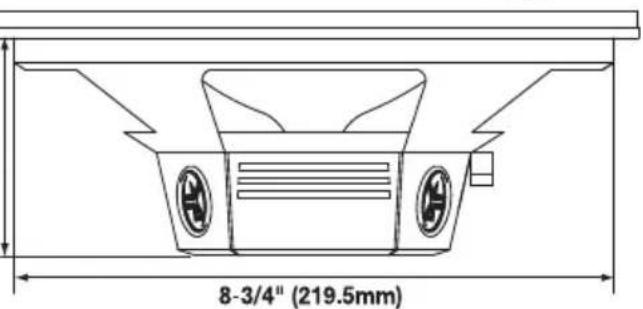

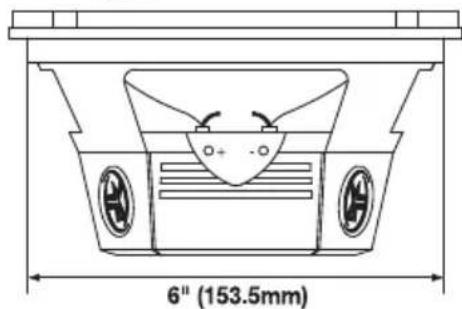

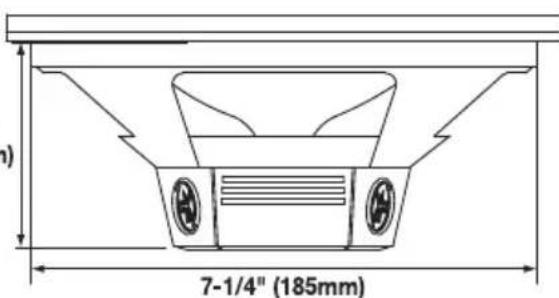

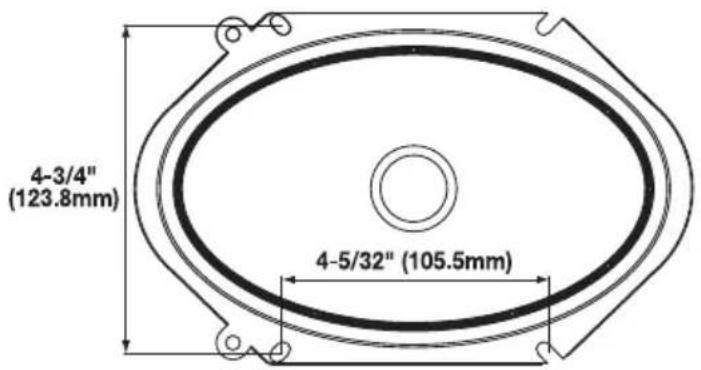

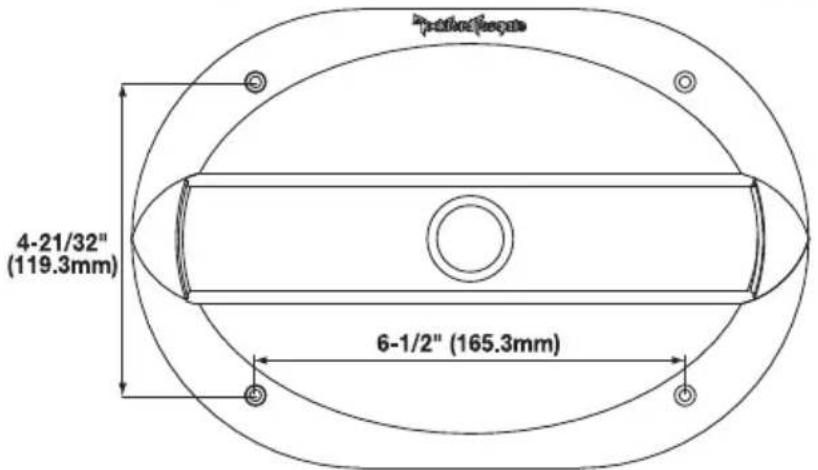

System Model P1682S P1692S

Nominal Diameter - inch (mm) 6 × 8 (152.4 x 203.2) 6 × 9 (152.4 x 228.6)

Nominal Impedance (ohms) 4 4

Frequency Response 60Hz-22kHz

Sensitivity (SPL@1w/1m) 88dB 90dB

Power Handling(Watts RMS/Peak) 60 / 120 60 / 120

Mounting Diameter - inch 5 x 7-1/4

$$ 6 \times 8 - 3 / 4 $$

Mounting Diameter - mm 128.5 x 185

$$ 1 5 3. 5 \times 2 1 9. 5 $$

Mounting Depth - inch (mm)

2-3/4 (72.7) 3 (76)

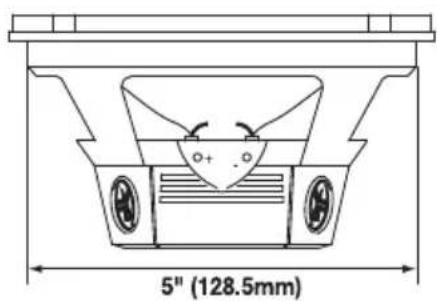

P1682S
