USER MANUAL SPW 180 C3 SILVERCREST
Operating instructions
FR CH
PESE-PERSONNE
Mode d'emploi
NL
PERSONENWEEGSCHAAL
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Table des matieres
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Indice
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Inhoud
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Contents
Introduction. 34
Proper use. 34
Package contents 34
Appliance description. 34
Technical data. 34
Safety instructions 35
Initial operation 37
Using the scales 37
Warnings. 38
Replacing the battery. 38
Usage and safekeeping 38
Cleaning. 38
In case of faults. 39
Warranty and service 39
Disposal. 40
Importer 40

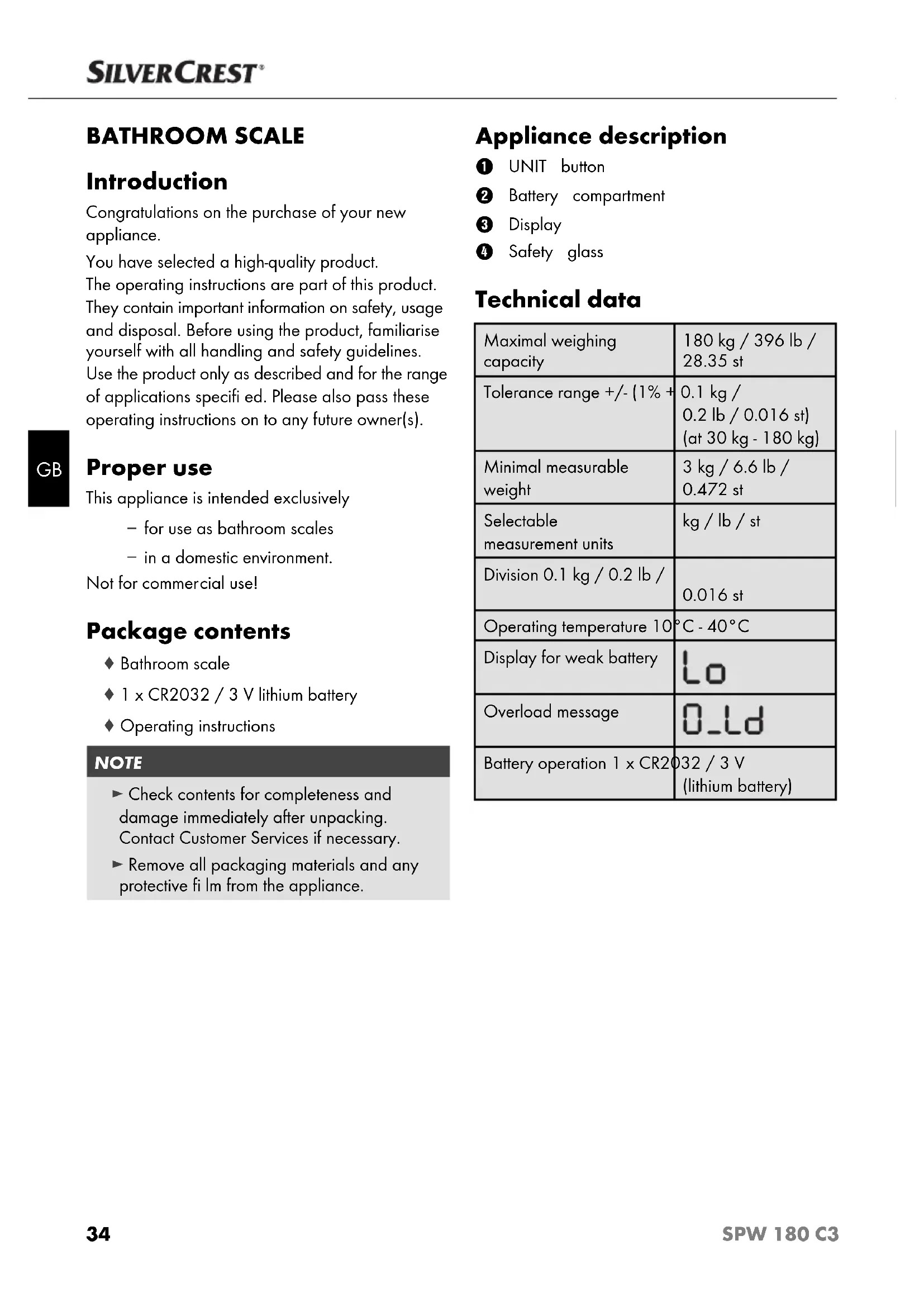

BATHROOM SCALE
Introduction
Congratulations on the purchase of your new appliance.
You have selected a high-quality product.
The operating instructions are part of this product.
They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines.
Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).
Proper use
This appliance is intended exclusively
- for use as bathroom scales
- in a domestic environment.
Not for commercial use!
Package contents
Bathroom scale
1×CR2032/3V lithium battery
Operating instructions
NOTE
Check contents for completeness and damage immediately after unpacking.
Contact Customer Services if necessary.
- Remove all packaging materials and any protective film from the appliance.
Appliance description
1 UNIT button
2 Battery compartment
3 Display
4 Safety glass
Technical data
| Maximal weighing capacity | 180 kg / 396 lb / 28.35 st |
| Tolerance range +/- (1% + | 0.1 kg / 0.2 lb / 0.016 st) (at 30 kg - 180 kg) |
| Minimal measurable weight | 3 kg / 6.6 lb / 0.472 st |
| Selectable measurement units | kg / lb / st |
| Division 0.1 kg / 0.2 lb / | 0.016 st |
| Operating temperature 10 | °C - 40°C |
| Display for weak battery | Lo |
| Overload message | O_Ld |
| Battery operation 1 x CR20 | 32 / 3 V (lithium battery) |
Safety instructions
WARNING! RISK OF INJURY!
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
CAUTION - PROPERTY DAMAGE!
Ensure that no liquids can get into the scales or into the display.
- Do not place the scales in the immediate vicinity of heat sources. The scales and the display may only be operated at temperatures between 10^ and 40^ . Higher or lower temperatures can lead to malfunctions or to permanent damage.
- Do not place any weight of more than 180kg / 396 lb / 28.35 st on the scales! This could irreparably damage the scales.
- Avoid electrostatic charging and discharging. These can cause erroneous displays and/or the sudden deactivation of the scales.
For damage caused by ...
- opening the scales housing
- repairs attempted by non-qualified personnel and
- improper usage of the scales
... no liability/warranty will be accepted by the manufacturer!
INFORMATION ON USING BATTERIES
This appliance uses a battery. When handling batteries, please observe the following:
- Do not throw batteries into a fire. Do not recharge batteries. Risk of explosion!
- Never open batteries and never solder or weld batteries. Risk of explosions and injuries!
- Check the condition of the battery regularly. Leaking batteries can cause damage to the appliance.
- Remove the battery if you do not intend to use the appliance for an extended period of time.
- If the batteries have leaked, use protective gloves. Clean the battery compartment and the battery contacts with a dry cloth.
In the event of skin contact with spilled battery acid, immediately wash the affected area with plenty of water. - Keep batteries out of the reach of children. Children can put batteries into their mouth and swallow them. If a battery is swallowed, medical assistance must be sought immediately.
Initial operation
1) Open the battery compartment 2 by sliding the cover in the direction of the arrow and then removing it.
2) Insert the battery into the battery compartment ② according to its polarity.
3) Slide the cover back on to the battery compartment until it clicks into place.
4) Place the scales on a flat, firm surface and tap the centre of the scales with your foot to switch it on.
5) Pick up the scales and set the desired unit of measurement (kg, lb or st) by pressing the UNIT button 1 on the rear of the scales
NOTE
The unit of measurement must only be set on first use.
6) Place the scales on a fl at and stable surface. Ensure that neither the floor at the location of the scales nor the upper surface of the scales are wet, otherwise there is a risk of slipping!
NOTE
These scales contain sensitive electronic components and should therefore NOT be located:
- close to sources of heat
- in environments with extreme air humidity.
The scales are now ready for use.
Using the scales
WARNING! RISK OF INJURY!
Never use the scales if they are wet or moist. Never step onto the scales with wet or moist feet. There would be a serious risk of slipping and personal injury!
Never put weight onto only one side of the scales. Always step onto the scales in the middle and with both feet. Otherwise, the scales could tip and become irreparably damaged. There is also a risk of falling over!
ATTENTION! DAMAGE TO PROPERTY!
- Never jump onto glass scales! This could irreparably damage them.
1) Tap your foot on the middle of the scales to switch them on.
2) Stand with both feet on the scales. Stand as still as possible and without displacing your weight.
3) During the weighing process, the indicated weight increases until your weight is shown.
4) Once your weight has been determined, the result blinks three times on the display 3.
NOTE
If the display ③ switches off during weighing, the scales cannot measure the weight correctly. In this case, step down from the scales, wait a few seconds and then try again. Make sure you stand still and do not interrupt the weighing procedure.
Warnings
If the weight exceeds the maximum weighing capacity of 180kg / 396lb / 28.35st, "O_Ld" is shown in the display 3.You should immediately step down from the scales, otherwise they could be damaged.
If "Lo" appears in the display 3 you need to replace the battery.
Replacing the battery
1) Open the battery compartment 2 by sliding the cover in the direction of the arrow and then removing it.
2) Press the battery against the small spring in the battery compartment 2 and remove the old battery.
3) Insert a new 3 V battery, type CR 2032, into the battery compartment ②. Ensure the polarity is correct. This is indicated in the battery compartment ②.
4) Slide the cover back on to the battery compartment until it clicks into place.
Usage and safekeeping
Note that the weighing results from different scales can vary slightly from each other.
- Avoid unnecessary battery discharge. Therefore, do not place objects on the scales when they are not being used.
Remove the battery if you do not intend to use the scales for an extended period.
- Keep the scales in a clean and dry location.
Avoid electrostatic charging.
Your scales are sensitive electronic devices. As such, they can be temporarily disturbed by other high-frequency appliances being operated in the immediate vicinity (e.g. mobile telephones, CB radio stations, radio remote controls and microwave ovens).
If errors occur, such as irregular or erratic readings on the display 3, either remove the scales from the source of the disturbance or switch the source of the disturbance off whilst you are using the appliance.
Cleaning
ATTENTION! DAMAGE TO PROPERTY!
Never immerse the appliance in water or other liquids to clean it.
Clean your scales exclusively with a neutral detergent and a soft cloth.
In case of faults
ATTENTION! DAMAGE TO PROPERTY!
Do not attempt to dismantle the scales or to carry out repairs yourself. You could potentially damage the sensitive electronic components.
Repairs to your scales may only be carried out by qualifi ed service personnel!
No liability will be accepted for damage resulting from improper use and/or the opening of the appliance!
In the event of faulty operation or if the display is incorrect, please check the following conditions:
Has the battery been inserted into the battery compartment 2 with the correct polarity?
■ Is the correct unit of measurement set?
Perform a reset on the scales:
To do this, remove the battery from the battery compartment 2.
Wait a few seconds, then insert the battery back into the battery compartment 2.
If these measures do not correct the problem, please contact the appropriate service partner.
Warranty and service
You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.
The warranty only covers claims for material and manufacturing defects, not for transport damage, wearing parts or for damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes.
The warranty shall be deemed void in the instance of misuse or improper handling, use of force and interventions which were not carried out by one of our authorised Service centres.
Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs effected after expiry of the warranty period shall be subject to charge.
GB
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk
IAN38248
Hotline availability:
Monday to Friday 08:00 - 20:00 (CET)
Disposal
Disposal of the appliance
circumstance should the appliance be disposed of as standard domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.
Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations. Please contact your waste disposal centre if you are in any doubt.
Disposal of batteries
Used batteries must not be disposed of in the household waste.
All consumers are statutorily obliged to dispose of batteries at a collection site of his community/city district or at a retail store.
The purpose of this obligation is to ensure that batteries are disposed of in a non-polluting manner. Only dispose of batteries when they are fully discharged.
The packaging for this product is made from environmentally friendly material and can be disposed of at your local recycling plant.
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND/GERMANY
www.kompernass.com
Stand der Informationen · Version des informations · Versione delle informazioni
Stand van de informatie - Last Information Update:
06/2014-Ident.-No.:SPW180C3-012014-1
