Product Type	Cordless Vacuum Cleaner
Brand	AEG
Model	CX8280TM
Power Supply	Rechargeable lithium-ion battery (28.8 V - 32.4 V depending on version)
Charger	Mains charger included, full charge time: approx. 5 hours (24 hours for first use)
Runtime	Up to 75 minutes in long duration mode, 28 minutes in normal mode, 16 minutes in max power mode (depending on model)
Power Modes	3 levels: max power, normal, long duration
Special Function	BRUSHROLLCLEAN: automatic cleaning of the rotating brush by cutting hair and fibers
Lighting	Front LED lighting for cleaning under furniture
Filtration System	Inner fine filter and outer pre-filter, washable with water
Rotating Brush	Motorized rotating brush with access flap and BRUSHROLLCLEAN function
Wall Mounting	Wall bracket supplied for storage and charging (selected models)
Filter Maintenance	Clean with warm water without detergent, dry at least 12 hours
Spare Parts	Filter (ref. EF142, PNC 900 167 024), rotating brush, etc.
Safety	Use from 8 years old with supervision, do not vacuum liquids or sharp objects, avoid extreme temperatures
Warranty	Manufacturer's warranty (excluding loss of runtime due to age/use)
Recycling	Battery removable by approved center, product to be recycled at disposal point

Frequently Asked Questions - CX8280TM AEG

How to charge the CX8280TM vacuum cleaner?

Connect the charger to the back of the vacuum cleaner or to the charging bracket depending on the model. Plug the charger into a mains socket. The charging indicator lights up. Full charge takes about 5 hours. For first use, charge 24 hours to optimize the battery.

How to empty the dust container?

Press the dust container release button (I) to remove the container. Take out the filters by pressing the release buttons. Empty the contents into a trash can. Never wash the container or filters in a dishwasher.

How to clean the filters?

Remove the filters from the dust container. Separate the inner filter from the outer filter. Rinse them thoroughly with warm water without detergent. Shake off excess water and leave to dry for at least 12 hours before replacing.

What to do if the rotating brush is blocked?

If the rotating brush is blocked, the vacuum cleaner stops. Open the protective grille and the brush trap cover. Remove the brush and use a pair of scissors to cut any tangled threads or fibers. Make sure the brush turns freely before reassembling.

How to use the BRUSHROLLCLEAN function?

Place the vacuum cleaner on a hard, flat surface (not carpet). Turn on the appliance and press the BRUSHROLLCLEAN pedal (N) with your foot for 5 seconds. Keep pressing: you will hear a normal cutting noise. If hair remains, repeat the operation.

What is the vacuum cleaner's runtime?

The runtime depends on the power mode and model. For the CX8280TM, in max power mode about 16 minutes, in normal mode about 28 minutes, and in long duration mode up to 75 minutes. Actual runtime varies depending on usage.

Can I use the vacuum cleaner on liquids?

No, use on liquids is strictly prohibited. This can seriously damage the appliance and poses a risk of electric shock. Never vacuum liquids, hot ashes, or sharp objects.

How to maintain the battery?

To maximize battery life, charge it to 50% if storing the appliance for a long time. Avoid temperatures below 5°C or above 35°C. The warranty does not cover loss of runtime due to age or use.

Where to find spare parts?

You can buy accessories and consumables on www.aeg.com/shop. The replacement filter is part number EF142 (PNC 900 167 024). For other parts, contact an AEG authorized service center.

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a collection point or an AEG authorized service center for recycling of batteries and electronic components. Batteries must be discharged before removal. Follow local regulations.

USER MANUAL CX8280TM AEG

Cordless vacuum cleaner

2018/03/26 Saturday

2017/06/10

1023 ()

1400

10127

10

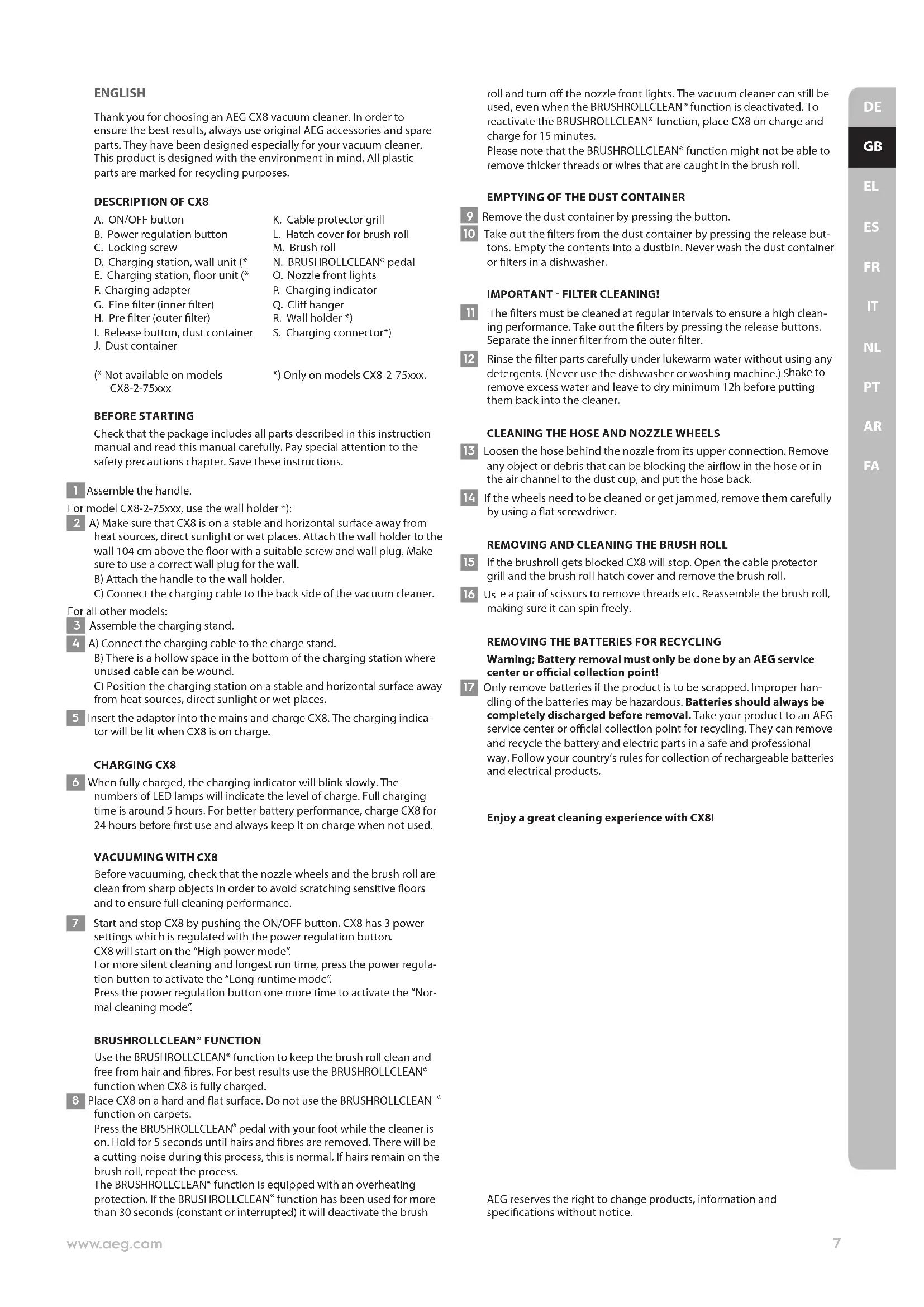

Thank you for choosing an AEG CX8 vacuum cleaner. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your vacuum cleaner. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

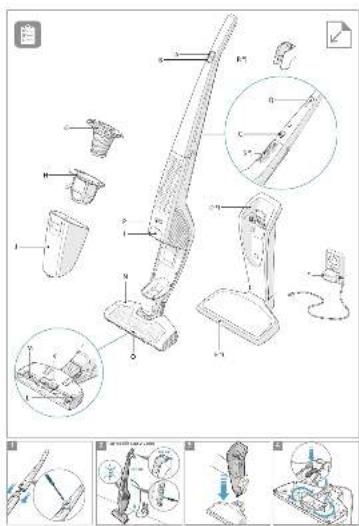

DESCRIPTION OF CX8

A. ON/OFF button

K. Cable protector grill

B. Power regulation button

L. Hatch cover for brush roll

C. Locking screw

M. Brush roll

D. Charging station, wall unit (*

N. BRUSHROLLCLEAN* pedal

E. Charging station, floor unit (*

O. Nozzle front lights

F. Charging adapter

P. Charging indicator

G. Fine filter (inner filter)

Q. Cliff hanger

H. Pre filter (outer filter)

R. Wall holder *

I. Release button, dust container

S. Charging connector*)

J. Dust container

*) Only on models CX8-2-75xxx.

CX8-2-75xxx

BEFORE STARTING

Check that the package includes all parts described in this instruction manual and read this manual carefully. Pay special attention to the safety precautions chapter. Save these instructions.

1 Assemble the handle.

For model CX8-2-75xxx, use the wall holder *:

2 A) Make sure that CX8 is on a stable and horizontal surface away from heat sources, direct sunlight or wet places. Attach the wall holder to the wall 104cm above the floor with a suitable screw and wall plug. Make sure to use a correct wall plug for the wall.

B) Attach the handle to the wall holder.

C) Connect the charging cable to the back side of the vacuum cleaner.

For all other models:

3 Assemble the charging stand.

4 A) Connect the charging cable to the charge stand.

B) There is a hollow space in the bottom of the charging station where unused cable can be wound.

C) Position the charging station on a stable and horizontal surface away from heat sources, direct sunlight or wet places.

5 Insert the adaptor into the mains and charge CX8. The charging indicator will be lit when CX8 is on charge.

CHARGING CX8

6 When fully charged, the charging indicator will blink slowly. The number of LED lamps will indicate the level of charge. Full charging time is around 5 hours. For better battery performance, charge CX8 for 24 hours before first use and always keep it on charge when not used.

VACUUMING WITH CX8

Before vacuuming, check that the nozzle wheels and the brush roll are clean from sharp objects in order to avoid scratching sensitive floors and to ensure full cleaning performance.

7 Start and stop CX8 by pushing the ON/OFF button. CX8 has 3 power settings which is regulated with the power regulation button.

CX8 will start on the "High power mode".

For more silent cleaning and longest run time, press the power regulation button to activate the "Long runtime mode".

Press the power regulation button one more time to activate the "Normal cleaning mode".

BRUSHROLLCLEAN* FUNCTION

Use the BRUSHROLLCLEAN function to keep the brush roll clean and free from hair and fibres. For best results use the BRUSHROLLCLEAN function when CX8 is fully charged.

8 Place CX8 on a hard and flat surface. Do not use the BRUSHROLLCLEAN function on carpets.

Press the BRUSHROLLCLEAN® pedal with your foot while the cleaner is on. Hold for 5 seconds until hairs and fibres are removed. There will be a cutting noise during this process, this is normal. If hairs remain on the brush roll, repeat the process.

The BRUSHROLLCLEAN® function is equipped with an overheating protection. If the BRUSHROLLCLEAN® function has been used for more than 30 seconds (constant or interrupted) it will deactivate the brush

roll and turn off the nozzle front lights. The vacuum cleaner can still be used, even when the BRUSHROLLCLEAN function is deactivated. To reactivate the BRUSHROLLCLEAN function, place CX8 on charge and charge for 15 minutes.

Please note that the BRUSHROLLCLEAN® function might not be able to remove thicker threads or wires that are caught in the brush roll.

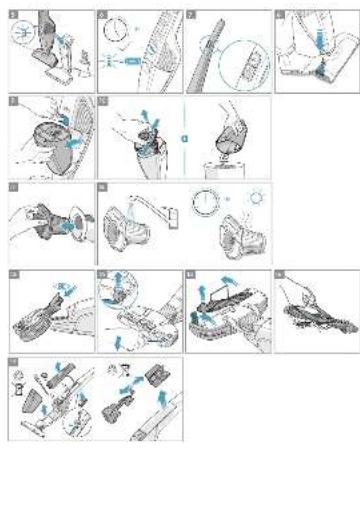

EMPTYING OF THE DUST CONTAINER

9 Remove the dust container by pressing the button. Take out the filters from the dust container by pressing the release buttons. Empty the contents into a dustbin. Never wash the dust container or filters in a dishwasher.

IMPORTANT - FILTER CLEANING!

11 The filters must be cleaned at regular intervals to ensure a high cleaning performance. Take out the filters by pressing the release buttons. Separate the inner filter from the outer filter. 12 Rinse the filter parts carefully under lukewarm water without using any detergents. (Never use the dishwasher or washing machine.) Shake to remove excess water and leave to dry minimum 12h before putting them back into the cleaner.

CLEANING THE HOSE AND NOZZLE WHEELS

13 Loosen the hose behind the nozzle from its upper connection. Remove any object or debris that can be blocking the airflow in the hose or in the air channel to the dust cup, and put the hose back. 14 If the wheels need to be cleaned or get jammed, remove them carefully by using a flat screwdriver.

REMOVING AND CLEANING THE BRUSH ROLL

15 If the brushroll gets blocked CX8 will stop. Open the cable protector grill and the brush roll hatch cover and remove the brush roll. 16 Use a pair of scissors to remove threads etc. Reassemble the brush roll, making sure it can spin freely.

REMOVING THE BATTERIES FOR RECYCLING

Warning; Battery removal must only be done by an AEG service center or official collection point!

17 Only remove batteries if the product is to be scrapped. Improper handling of the batteries may be hazardous. Batteries should always be completely discharged before removal. Take your product to an AEG service center or official collection point for recycling. They can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for collection of rechargeable batteries and electrical products.

Enjoy a great cleaning experience with CX8!

AEG reserves the right to change products, information and specifications without notice.

SAFETY PRECAUTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

Batteries must be removed from the appliance before it is scrapped.

The battery is to be disposed of safely.

For the purposes of recharging the battery, only use the charging adapter provided with the product.

CX8 should only be used for normal vacuuming indoors and in a domestic environment. Make sure it is stored in a dry place. Packaging material, e.g. plastic bags should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

In wet areas. - Close to flammable gases, etc. - When the product shows visible signs of damage. - On sharp objects or liquids. - On hot or cold cinders, lighted cigarette butts, etc. - On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Caution:

• Do not leave the vacuum cleaner in direct sunlight.
• Avoid exposing the vacuum cleaner to strong heat.
• The battery cells within must not be dismantled, short circuited or placed against a metal surface.
• Never use the vacuum cleaner without its filters.
• Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.
• Mind your fingers if cleaning the inside of the floor nozzle. The metal blade of the BRUSHROLLCLEAN® function is sharp and could cause injury.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by AEG.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized AEG service centre.

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

To protect the motor, battery and electronics the product should not be stored or operated in:

• An ambient temperature below 5°C or exceeding 35°C. If the product is stored in a temperature below 5°C or exceeding 35°C, let the product cool down or warm up and dry for a few hours before usage.
• A humidity level below 20% or exceeding 80% (non-condensing).

If the product is stored for an extended time period (without usage or continuous charging), we recommend to store the product in normal room temperature with the batteries charged at 50% capacity or more. This will maintain the performance of the product.

Attention! Dew condensation may form inside the product if the unit is moved from a cold to a warm environment or after heating up the storage room. Wait a few hours for the internal components to warm up and dry before usage.

INDICATION LAMPS

CHARGING	WHAT DOES IT MEAN?	DURING USAGE	WHAT DOES IT MEAN?
	Blink slowly = 100 % fully charged 75 - 100 % capacity
	50 - 95 % charged 50- 75 % capacity remaining
	0 - 50 % charged 25 - 50 % capacity remaining
			CX8 needs to be recharged.

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service: www.aeg.com/productregistration

Buy Accessories and Consumables for your appliance: www.aeg.com/shop

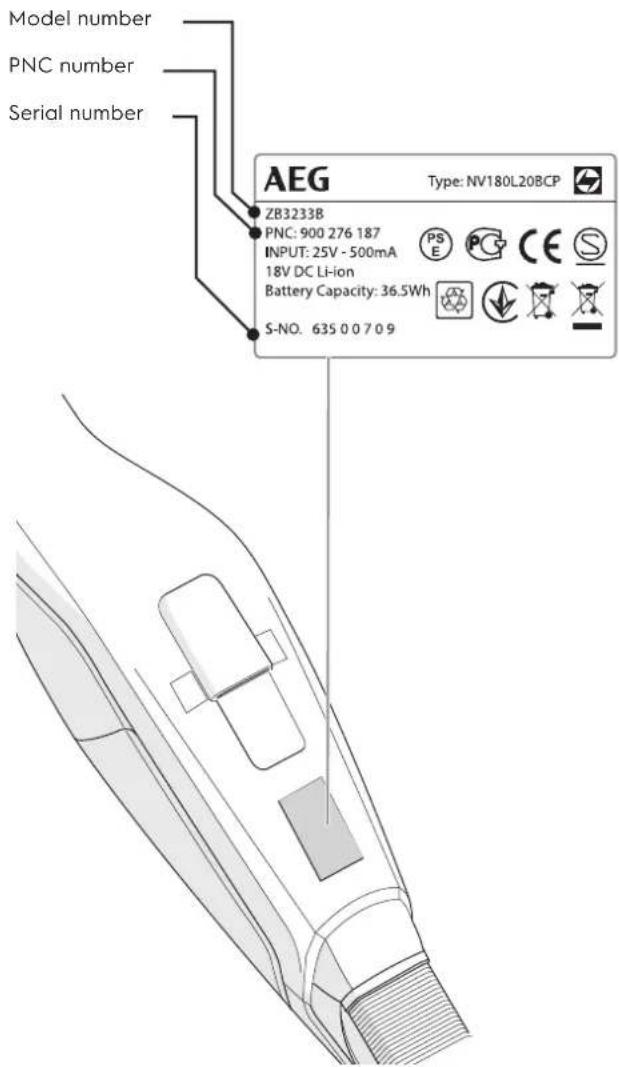

CUSTOMER CARE AND SERVICE

When contacting the AEG service center, ensure that you have following data available:

• Model number,
• PNC number
• Serial number

The information can be found on the rating plate.

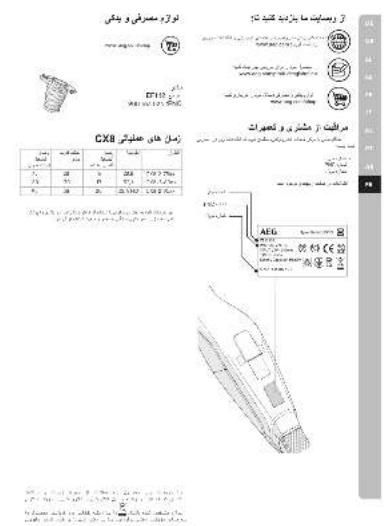

CONSUMABLES & ACCESSORIES

www.aeg.com/shop

Filter

Ref: EF142

PNC:900167024

RUNNING TIMES FOR CX8

Model Volt		High power mode	Normal power mode	Long runtime mode
CX8-2-75xx 28	8 16 28	75
CX8-2-80xx	32,4	17	30	80
CX8-2-95xx	32,4 HD	20 38 95

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

The battery should be removed from the product before disposal. Dispose of or recycle the battery in accordance with local regulations. The symbol

on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
