Brand / Model	Klarstein UW60BL
Product Reference	10011484
Type of Hood	Built-in under-cabinet hood (drawer)
Color	Matte black
Width	60 cm
Dimensions (W x H x D)	60 x 8.4 x 47 cm
Weight	4.3 kg
Max Airflow	317 m³/h
Speed Levels	3 levels
Max Motor Power	115 W
Voltage / Frequency	220-240 V / 50 Hz
Lighting	1 E14 bulb 40 W
Grease Filter Included	Removable washable acrylic filter
Charcoal Filter (optional)	Available separately (ref. 10027529)
Exhaust Duct Diameter	12 cm
Noise Level (max speed)	71 dB
Energy Class	E
Operating Modes	External exhaust or recirculation (with charcoal filter)

Frequently Asked Questions - 10011484 Klarstein

How to install the Klarstein UW60BL hood (ref. 10011484)?

It can be mounted on the wall or under a kitchen cabinet, depending on your configuration. The mounting kit is provided in the box. Drill at the locations indicated in the manual, screw in the supports, then connect the exhaust duct of 12 cm in diameter to the top outlet of the unit.

What filters equip this Klarstein hood?

A removable acrylic grease filter is provided as standard. For use in recirculation mode (without ducting to the outside), an additional activated carbon filter is required, sold separately under the Klarstein reference 10027529.

Can this hood operate in recirculation mode (without external venting)?

Yes, provided the optional activated carbon filter (ref. 10027529) is installed. Without this filter, the air must be vented to the outside through the 12 cm diameter duct provided at the top outlet.

What is the suction power of the UW60BL hood?

The maximum air flow rate is 317 m³/h. The speed is adjustable on 3 levels, allowing you to adjust the suction to the intensity of odors or steam in the kitchen.

What is the noise level of this hood?

At maximum speed, the noise level is approximately 71 dB. At lower speeds, the noise is significantly reduced for more comfort in everyday use.

What type of bulb is needed for the hood's lighting?

The lighting is provided by 1 bulb of 40 W (standard E14 socket). A bulb is included with the purchase. When replacing, do not exceed 40 W to avoid damaging the light cover.

How to clean the grease filter?

The acrylic filter can be easily detached without tools. It can be washed by hand or in the dishwasher. It is recommended to clean it every 4 to 6 weeks depending on the frequency of use to maintain suction performance.

What are the exact dimensions of this hood?

The hood measures 60 cm wide, 8.4 cm high, and 47 cm deep. Its very low height (only 8.4 cm) makes it ideal for discreet integration under a standard kitchen cabinet.

Is the exhaust duct included with the hood?

No, the exhaust duct (12 cm diameter) is not included. The delivery includes the mounting kit, a non-return valve, and the installation manual. The duct and fittings need to be provided separately according to your setup.

How to access the bulb for replacement?

Start by unplugging the hood from the power supply. Remove the grease filter to access the lighting. Unscrew or remove the cover, replace the bulb with a maximum 40 W E14 model, then reassemble in reverse order.

Is the hood compatible with a standard 60 cm kitchen cabinet?

Yes, the 60 cm width corresponds to European kitchen cabinet standards. Its depth of 47 cm and height of only 8.4 cm allow integration under a wall cabinet without losing usable space.

USER MANUAL 10011484 Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

5 225mm 350mm 475mm

Hinweise

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 22

Installation Instructions 24

Installation (10011484) 25

Installation (10011462 & 10011483) 27

Cleaning and Maintenance 29

Troubleshooting 30

Product Data Sheet 31

Notes on Environmental Protection 35

Disposal Considerations 36

Manufacturer & Importer (UK) 36

TECHNICAL DATA

Item number 10011462, 10011483, 10011484
Power supply 220-240 V ~ 50/60 Hz
Note: You can purchase an activated carbon filter separately for this cooker hood under item number 10027528. Please visit our website: www.hifi-tower.co.uk

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
• Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open fl ue appliance when there is not adequate airfl ow guaranteed.

Open fl ue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction fl ue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

INSTALLATION INSTRUCTIONS

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa ( 4 × 10^-5 Bar).

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "Installation (Vent outside)".

Important Information for the Installation of Exhaust Air Ducts

The following rules must be strictly observed to ensure optimum air extraction. Failure to follow these instructions will reduce performance and increase the noise level of the cooker hood.

• Lay the exhaust pipe as short and straight as possible.
• Do not use a smaller exhaust duct and do not confine it.
• If flexible ducts are used, the duct must always be mounted tightly in order to minimise pressure loss.
• All installation work may only be carried out by a qualified electrician or a qualified person.
• Do not connect the exhaust duct of the cooker hood to an existing ventilation system used for another appliance, such as a chimney.
• The angle of the exhaust pipe bend should not be less than 120^ . Align the pipe horizontally. Alternatively, the duct should go up from the starting point and be led to an outer wall.
• After installation, make sure that the cooker hood is level to prevent grease from accumulating on one side.
• Make sure that the exhaust duct selected for the installation complies with the relevant standards and is fire-resistant.

INSTALLATION (10011484)

Variant 1

1. The distance between the cooking surface and the lowest edge of the cooker hood must be at least 65 cm (see picture 1).

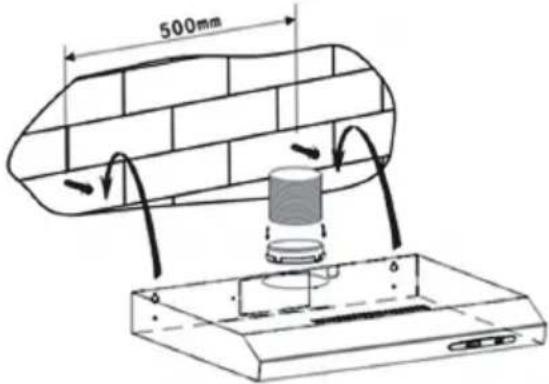

2. Drill two holes with a diameter of 8 mm at an appropriate distance.
3. Insert the dowels into the holes and tighten the screws. Then attach the hood (see picture 2).

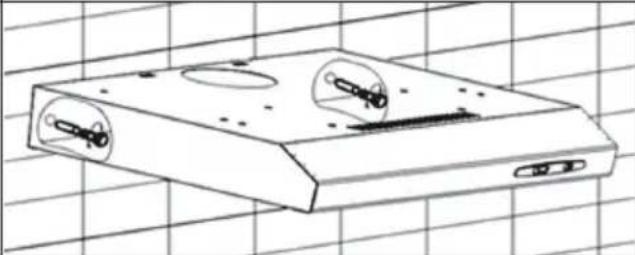

4. Secure the hood with the enclosed safety screws (see picture 4).
5. Afterwards, attach the flap.

1	2
3	4

Variant 2

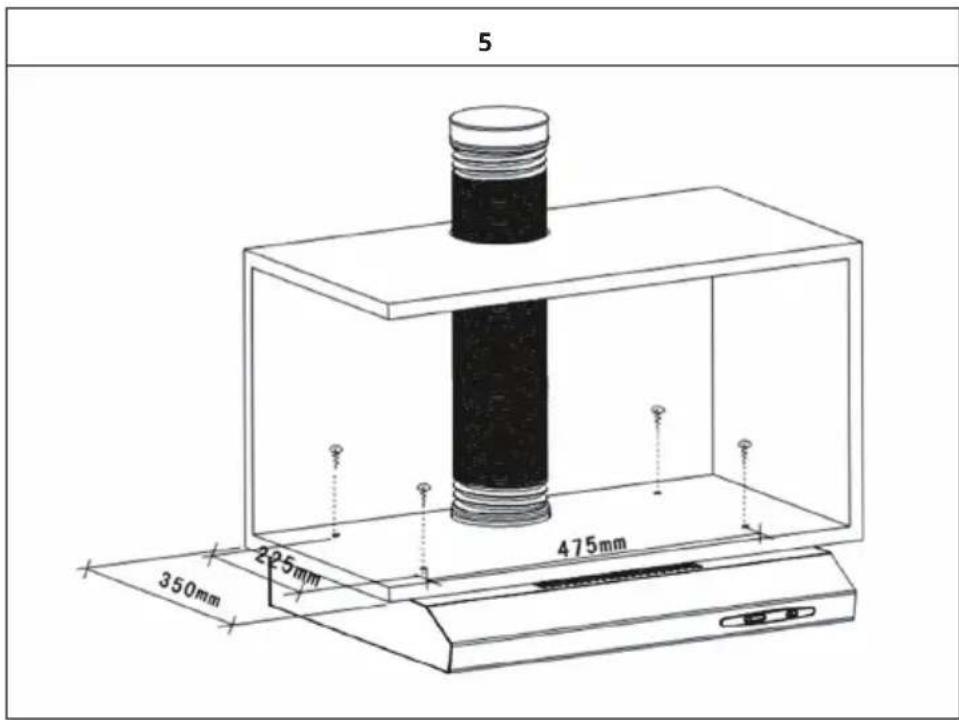

1. Drill four holes with a diameter of 6 mm on the underside of the kitchen cabinet. If you have ordered a pipe extension, saw/drill the corresponding openings for the exhaust pipe (see Fig. 5). 2.

2. First pass the exhaust pipe through and then attach the hood.

5 350mm 225mm 475mm

Notes

- The tube extension shown is an optional part and not included.

- Please remove the protective film before you start the installation.

- There are two options for ventilation (horizontal and vertical).

- Depending on which option you choose, you will need to remove/insert one of the covers (see Figure 6).

6
A	B

INSTALLATION (10011462 & 10011483)

Variant 1

1. The distance between the cooking surface and the lowest edge of the cooker hood must be at least 65 cm.

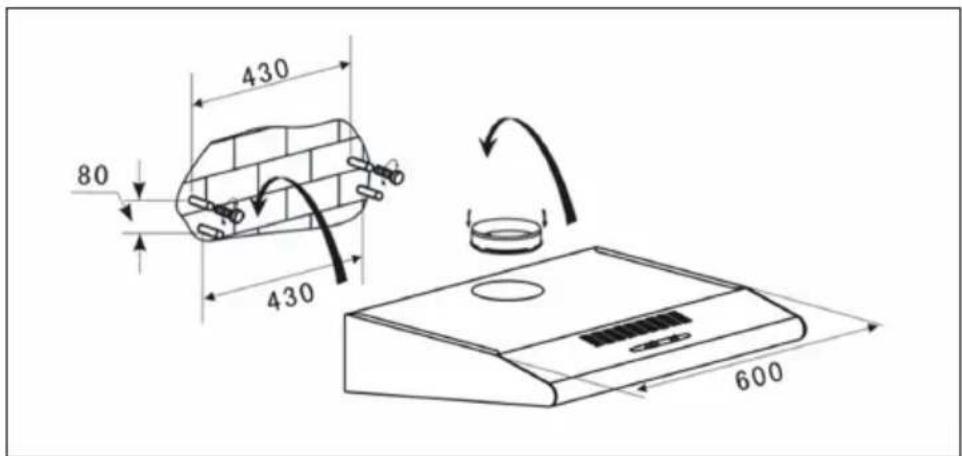

2. To install the hood, please drill 4 holes with a diameter of 8 mm. Please refer to the following figure for the distances:

80 430 430 600

1. Insert the dowels into the holes and tighten the screws. Then attach the hood.
2. Secure the hood with the enclosed safety screws. To tighten the internal screws, please use the enclosed tool.
3. Then attach the flap.

Variant 2

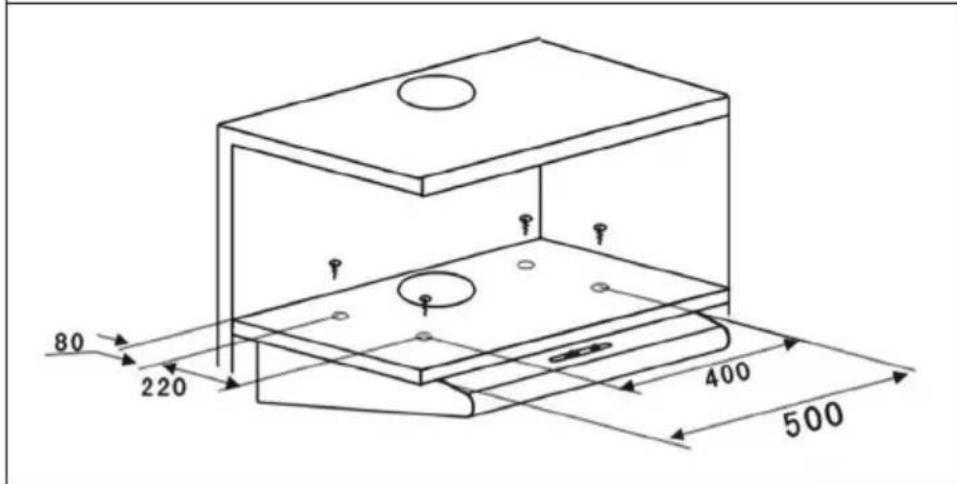

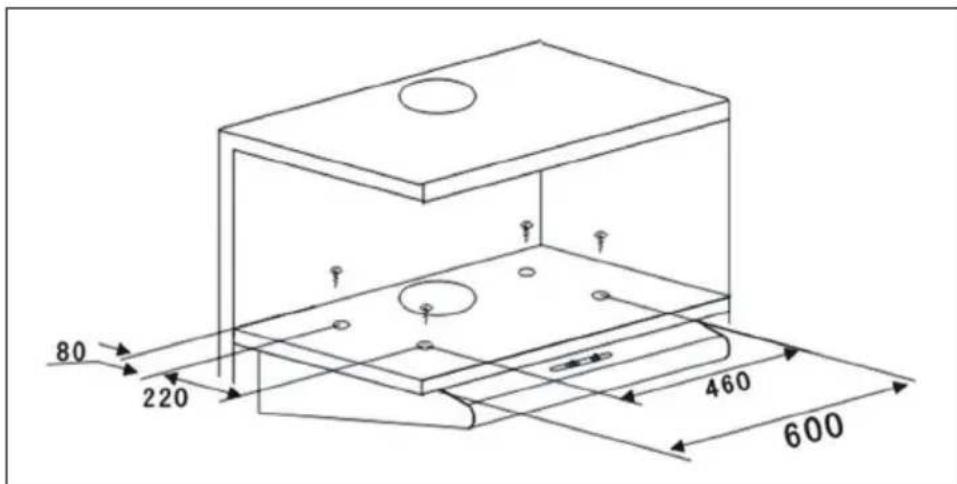

1. Drill four holes with a diameter of 6 mm on the underside of the kitchen cabinet. If you have ordered a pipe extension, saw/drill the corresponding openings for the exhaust pipe.

2. First pass the exhaust pipe through and then attach the hood.

80 220 460 600

80 220 400 500

CLEANING AND MAINTENANCE

Turn off the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.

Stainless Steel Surfaces

The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.

Control Panel

The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.

Monthly Cleaning for Grease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work.	The leaf blocked. Get rid of the blocking.
	The capacitor damaged. Replace capacitor.
	The motor jammed bearing damaged.	Replace motor.
	The internal with of motor off or a bad smell from the motor.	Replace motor.
Light does not work, motor does not work.	Light damaged. Replace lights.
	Power cord looses. Connect the wires as per the electric diagram.
Shake of the body. The leaf	damaged and causes shaking.	Replace the leaf.
	The motor is not tightly hanged.	Lock the motor tightly.
	The body is not tightly hanged.	Fixed the body tightly.
Insufficient suction. The distance between the body and the gas top too long.		Readjust the distance.
		Too much ventilation from open doors or windows. Choose a new place and resemble the machine.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10011462, 10011483
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	41,3 kWh/Jahr
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	9,2
Fluid Dynamic Efficiency class E
Lighting Efficiency LE	hood	37,5 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency GFE	hood	69,6 %
Grease Filtering Efficiency class D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		119,9 / 204,9 m3/h
air flow at intensive or boost setting		- m3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		60 / 71	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10011462, 10011483
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	41,3 kWh/Jahr
Time increase factor f 1,7
Fluid Dynamic Efficiency FDE	hood	9,2
Energy Efficiency Index EEI	hood	79,9
Measured air flow rate at best efficiency point	QBEP	108,8 m3/h
Measured air pressure at best efficiency point	PBEP	195 Pa
Maximum air flow Q	max	204,9 m3/h
Measured electric power input at best efficiency point	WBEP	64,2 W
Nominal power of the lighting system	WL	2	W
Average illumination of the lighting system on the cooking surface	Emiddle	75 Lux
Measured power consumption in standby mode	Po	--	W
Measured power consumption off mode	Ps	0	W
Sound power level L	WA	71 dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10011484
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	43,7 kWh/Jahr
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	9,5
Fluid Dynamic Efficiency class E
Lighting Efficiency LE	hood	50,5 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency GFE	hood	80,8 %
Grease Filtering Efficiency class C
air flow at minimum and maximum speed in normal use, intensive or boost excluded		99,6 / 209,7 m3/h
air flow at intensive or boost setting		- m3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		55 / 71 dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10011484
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	43,7 kWh/Jahr
Time increase factor f 1,7
Fluid Dynamic Efficiency FDE	hood	9,5
Energy Efficiency Index EEI	hood	81,2
Measured air flow rate at best efficiency point	QBEP	88,4 m3/h
Measured air pressure at best efficiency point	PBEP	262 Pa
Maximum air flow Q	max	209,7 m3/h
Measured electric power input at best efficiency point	WBEP	67,9 W
Nominal power of the lighting system	WL	2,1 W
Average illumination of the lighting system on the cooking surface	Emiddle	106 Lux
Measured power consumption in standby mode	Po	--	W
Measured power consumption off mode	Ps	0	W
Sound power level L	WA	71	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente,

QR code image containing encoded data, no visible human-readable text

ÍNDICE DE CONTENIDOS

5 350mm 225mm 475mm

Notas

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

5 350mm 225mm 475mm

Remarques

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

5 350mm 225mm 475mm

Note

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
