10029855 - Humidifier Klarstein - Free user manual and instructions

Product type	Humidifier
Brand	Klarstein
Model	10029855
Power supply	100 - 240 V AC, 50/60 Hz
Power	25 W
Tank capacity	5,5 L
Humidification rate	≥ 300 ml/h
Dimensions (approx.)	20 x 20 x 30 cm
Weight (approx.)	1,5 kg
Main functions	Humidification, intensity adjustment, automatic shut-off when tank empty, essential oil diffuser
Control	Rotary knob
Indicator light	Empty tank indicator
Maintenance and cleaning	Clean the tank and diffuser weekly with hot water and dish soap; do not use abrasive products
Safety	Automatic shut-off if tank empty; shut-off if lid removed; grounded plug; do not expose to water
Spare parts and repairability	Tank and diffuser available; repair by specialized workshop only
General information	Household use; do not drink the water; do not use near heat sources
Package contents	Device, user manual

Frequently Asked Questions - 10029855 Klarstein

How to fill the water tank?

Remove the tank cover, take out the tank and fill it with tap water. Replace the tank and cover before plugging in the device.

How to turn on and adjust the humidifier?

Plug in the device and turn the adjustment knob clockwise to increase intensity. To turn off, turn the knob counterclockwise until it clicks.

What to do if the indicator light comes on?

The light indicates that the tank is empty. Add water, then briefly turn off the device before turning it on again.

How to clean the humidifier?

Unplug the device. Clean the exterior surfaces with a damp cloth and a little dish soap. For the tank, use hot water and dish soap to remove limescale deposits. Never use steel wool or abrasive products.

Can I use essential oils?

Yes, the device is equipped with an aroma pad. Place a few drops of essential oil on the pad before replacing the diffuser. Be sure to follow safety instructions.

The humidifier stops by itself, is that normal?

Yes, the device automatically stops if the tank is empty or the lid is removed. Once water is added or the lid is replaced, it will restart.

What is the tank capacity?

The tank capacity is 5.5 liters. It allows continuous operation for several hours depending on the setting.

What is the power consumption?

The power is 25 W, which corresponds to moderate power consumption. The device can operate on a standard household outlet.

Where to install the humidifier?

Place the device on a dry, flat, waterproof and heat-resistant surface. Avoid direct sunlight, high temperatures and confined spaces. Ensure good ventilation.

What to do in case of a breakdown?

Do not attempt to repair the device yourself. Unplug it and contact a qualified repairer or specialized workshop. Any unauthorized opening voids the warranty.

USER MANUAL 10029855 Klarstein

Row of white icons representing kitchen appliances including blender, refrigerator, keyboard, air conditioner, and microwave (no text or symbols)

Modern white and black air fryer with a handle, no visible text or symbols

Luftbefeuchter

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Safety Instructions

• Do not expose this device to rain.
• Do not playe objects on the unit filled with liquids, such as vases.
• Use recommended accessories only.
• Do not repair this device yourself. Refer repairs to qualified service personnel.
• Do not drop any metal objects into this unit.

• Do not place heavy objects on top of this unit.

• Make sure that the power supply voltage corresponds to the specifications on this unit.

• Plug the power cord into the outlet securely.
• Do not pull the cable, do not bend it and do not place heavy objects on it.
• Do not handle the plug with wet hands.
• Grasp the plug when pulling out of the electrical outlet.

• Do not use a damaged power plug or a damaged electrical outlet.
  • Install this unit so that the power cord can be unplugged immediately when a problem occurs.

• Set the appliance on a dry, flat, waterproof and heat-resistant surface.
  • The socket must be readily accessible to disconnect the unit quickly in an emergency from the electrical circuit.

• Do not install or position this unit in a bookcase, built-in wardrobe or any other confined space. Ensure good ventilation of the unit.
• Do not place near to an amplifier or other equipment that may be hot. The heat can damage the unit.

• Do not expose this unit to direct sunlight, high temperatures, excessive moisture and excessive vibration.

• Repairs to the appliance should only be carried out by an authorized service center.

• A remodeling or modification of the affected product safety. Risk of injury!
• Open the product never arbitrarily and perform repairs never yourself!
• Incorrect reassembly may result in malfunction or total failure.
• Open in no case the unit. We assume no liability for consequential damages. The warranty expires at foreign interference with the device.

Small objects / Packaging Parts: Store small objects (eg screws and other mounting hardware, memory cards) and packaging parts out of the reach of children. Do not let you play with the film. Risk of suffocation!

Transport: Please keep the original packaging. To an adequate protection during transport of the device, pack the unit in its original packaging.

Cleansing: Do not use volatile liquids, such as insecticide spray. Dont clean the surface with strong pressure otherwise it could get damaged. Rubber or plastic should not be in contact with the devive over a longer period. Clean the appliance and the floor using a soft cloth and warm water, if necessary, a soap solution. Never submerge the base in water or any other liquid.

• Do never insert your fingers nor any other objects into air intakes or outlets.
• Do not use the device after the use of incense (for insect protection) or in places where oil residues or chemical vapors might be present.
• Do not use near any gas powered equipment or open fire places.
• Disconnect the mains plug after each use and before cleaning the device.
  • After not using the device for a while, bacteria or mold might have formed on the outlet or in the tank. Check the nozzle and the tank before using it again. Wash thoroughly in case mold have formed.
• Do not wash any parts in the washing machine or in the dishwasher.
• This device is suitable for domestic use only.
• Clean the water tank and the nozzle regularly, to maintain optimal hygiene.
• When moving the appliance, first disconnect from the mains socket, and empty the water tank. Hold horizontally.

Intended use

This device is used for humidifying the room air. It is exclusively meant for this purpose and must only be used for this purpose. It may only be used in the manner as described in this manual.

This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety.

Technical Data

Item #	10029854, 10029855
Power supply	100 - 240V AC 50/60Hz
Power consumption	25W
Water tank capacity	3.5l
Rated max. moisture capacity	≥300ml/h
Scope of delivery	Device, instruction manual

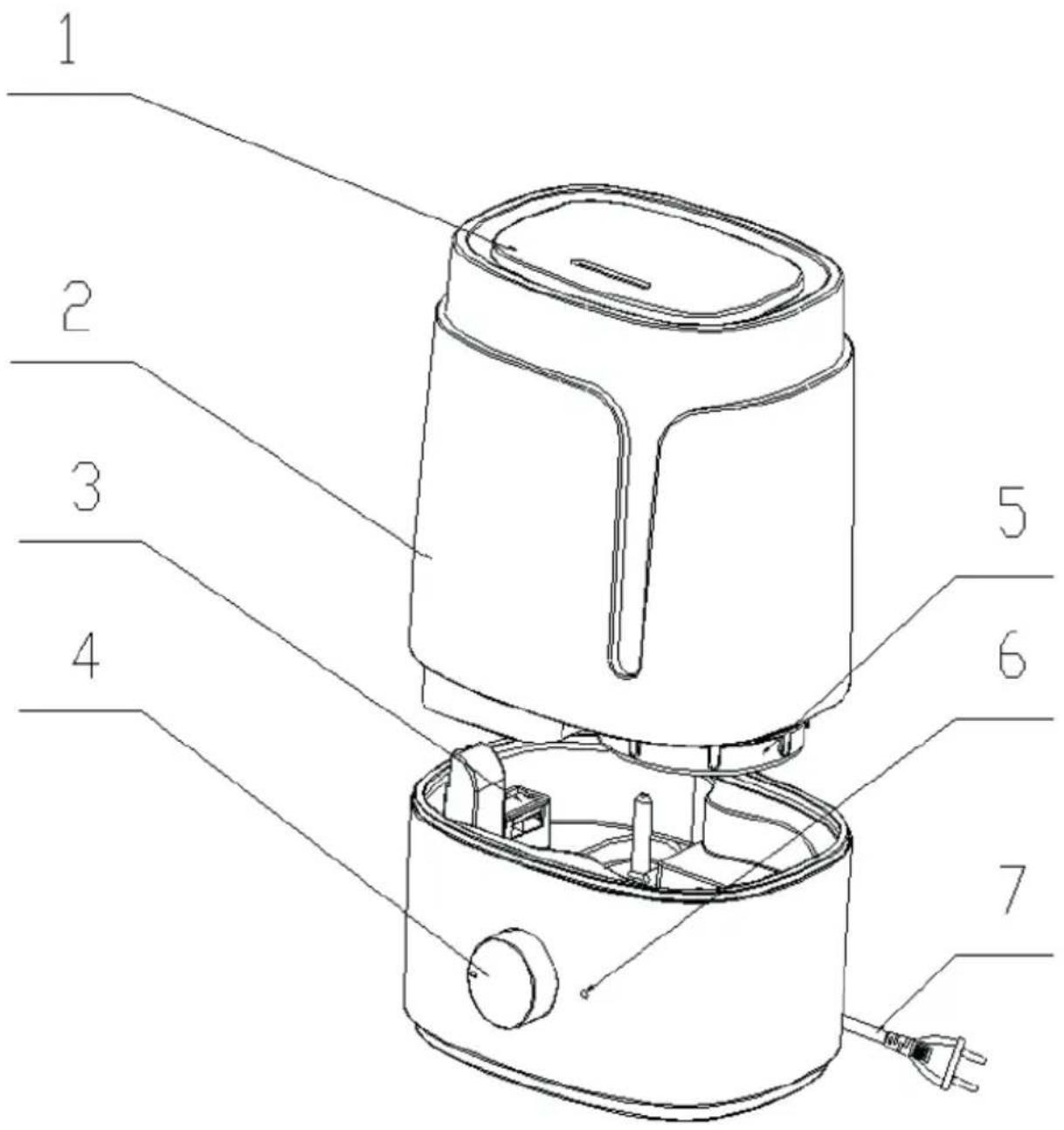

Overview

1 Nozzle
2 Water tank
3 Aroma pad
4 Knob
5 Water tank cover
6 Indicating light
7 Power cord

Operation

• Take the water tank cover off and remove the water tank. Fill with tap water. Put the tank back in and reassemble the cover.
- Assure the correct fit of the cover and the nozzle.
- Connect to a household mains socket and rotate the knob on the device front to adjust the desired efficiency level. Turn anti-clockwise until until stop, to switch the device off.
- When the water tank is empty, the indicating light lights up and the device stops working. Refill with water and switch the device off and on again.
- The humidifier automatically switches off, when you remove the tank cover. It resumes working as soon you reattach it.

Cleansing and Maintenance

• Always disconnect from the mains socket before cleaning the humidifier.
- Use a damp cloth with little detergent to clean the outer surface. Use lukewarm water and little detergent for the water tank and the nozzle.
- Do never use scratching or corrosive detergents or materials to clean any parts of the device.
- Store the humidifier in a dry place after emptying the tank and letting it dry off.

Environment Concerns

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will hep prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

CE
