10029852 - Humidifier Klarstein - Free user manual and instructions

Product type	Humidifier
Brand	Klarstein
Model	10029852, 10029853
Power supply	220-240 V ~ 50/60 Hz
Power	105 W
Tank capacity	5.6 L
Humidification rate	400 ml/h
Maximum room volume	100 m³
Ionization	Yes (switchable on/off)
UV lamp	Yes (switchable on/off)
Timer	1 to 12 hours
Auto mode	Maintains humidity between 55% and 68%
Night mode	Yes
Adjustable hygrostat	40% to 80% relative humidity
Heating function	Yes (warm steam)
Diffusion levels	3 (1, 2, 3)
Aromatic pad	Yes
Package contents	Unit, instruction manual
Maintenance	Weekly cleaning of tank and diffuser
Safety	Automatic shut-off at target humidity via hygrostat

Frequently Asked Questions - 10029852 Klarstein

How to clean the Klarstein 10029852 humidifier?

Turn off and unplug the appliance. Clean the surfaces with a damp cloth and dish soap. For the tank, use hot water and a little dish soap to remove limescale deposits. Never use steel wool or abrasive products. Clean the tank and diffuser weekly for optimal hygiene.

How to use the aroma function?

Remove the aroma pad and pour a few drops of the desired aromatic solution. Replace the pad. The humidifier will then emit scented steam.

What to do if the humidifier does not produce steam?

Check that the tank has enough water and that the diffuser is correctly positioned. Make sure the appliance is plugged in and turned on. If the problem persists, clean the tank and diffuser to remove any limescale deposits that might block the steam outlet.

How to set the timer?

Press the Timer button repeatedly to program the shut-off after 1 to 12 hours of operation (1 press per hour). For example, press 5 times for 5 hours.

How to activate night mode?

Press and hold the Night mode button for 3 seconds to activate night mode. To deactivate, press the button again for 3 seconds.

What is the UV lamp for?

The UV lamp disinfects the water and reduces bacteria in the tank. You can activate or deactivate it via the dedicated button on the control panel.

Can I use essential oils in the humidifier?

Yes, but only through the aroma pad provided for this purpose. Never pour essential oils directly into the water tank, as this could damage the appliance.

Why is the water in the tank not drinkable?

The water in the tank is not intended for drinking as it may contain bacteria or residues. Do not drink this water and do not use it for pets or plants. Dispose of used water in the sink.

How to store the humidifier if not used for a long time?

Store the appliance in a dry place. Before storing, empty the tank and clean it thoroughly. Unplug the appliance and keep it protected from dust.

What room volume can this humidifier cover?

The recommended maximum volume is 100 m³. For optimal efficiency, place the appliance in a suitably sized room on a flat, waterproof surface.

USER MANUAL 10029852 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Safety Instructions

• Do not expose this device to rain.
• Do not playe objects on the unit filled with liquids, such as vases.
• Use recommended accessories only.
• Do not repair this device yourself. Refer repairs to qualified service personnel.
• Do not drop any metal objects into this unit.

• Do not place heavy objects on top of this unit.

• Make sure that the power supply voltage corresponds to the specifications on this unit.

• Plug the power cord into the outlet securely.
• Do not pull the cable, do not bend it and do not place heavy objects on it.
• Do not handle the plug with wet hands.
• Grasp the plug when pulling out of the electrical outlet.
• Do not use a damaged power plug or a damaged electrical outlet.

• Install this unit so that the power cord can be unplugged immediately when a problem occurs.

• Set the appliance on a dry, flat, waterproof and heat-resistant surface.
  The socket must be readily accessible to disconnect the unit quickly in an emergency from the electrical circuit.

• Do not install or position this unit in a bookcase, built-in wardrobe or any other confined space. Ensure good ventilation of the unit.
• Do not place near to an amplifier or other equipment that may be hot. The heat can damage the unit.

• Do not expose this unit to direct sunlight, high temperatures, excessive moisture and excessive vibration.

• Repairs to the appliance should only be carried out by an authorized service center.

• A remodeling or modification of the affected product safety. Risk of injury!
• Open the product never arbitrarily and perform repairs never yourself!
• Incorrect reassembly may result in malfunction or total failure.
• Open in no case the unit. We assume no liability for consequential damages. The warranty expires at foreign interference with the device.

Small objects / Packaging Parts: Store small objects (eg screws and other mounting hardware, memory cards) and packaging parts out of the reach of children. Do not let you play with the film. Risk of suffocation!

Transport: Please keep the original packaging. To an adequate protection during transport of the device, pack the unit in its original packaging.

Cleansing: Do not use volatile liquids, such as insecticide spray. Dont clean the surface with strong pressure otherwise it could get damaged. Rubber or plastic should not be in contact with the devive over a longer period. Clean the appliance and the floor using a soft cloth and warm water, if necessary, a soap solution. Never submerge the base in water or any other liquid.

• Do never insert your fingers nor any other objects into air intakes or outlets.
• Do not use the device after the use of incense (for insect protection) or in places where oil residues or chemical vapors might be present.
• Do not use near any gas powered equipment or open fire places.
• Disconnect the mains plug after each use and before cleaning the device.
  After not using the device for a while, bacteria or mold might have formed on the outlet or in the tank. Check the nozzle and the tank before using it again. Wash thoroughly in case mold have formed.
• Do not wash any parts in the washing machine or in the dishwasher.
• This device is suitable for domestic use only.
• Clean the water tank and the nozzle regularly, to maintain optimal hygiene.
• When moving the appliance, first disconnect from the mains socket, and empty the water tank. Hold horizontally.

Intended use

This device is used for humidifying the room air. It is exclusively meant for this purpose and must only be used for this purpose. It may only be used in the manner as described in this manual.

This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety.

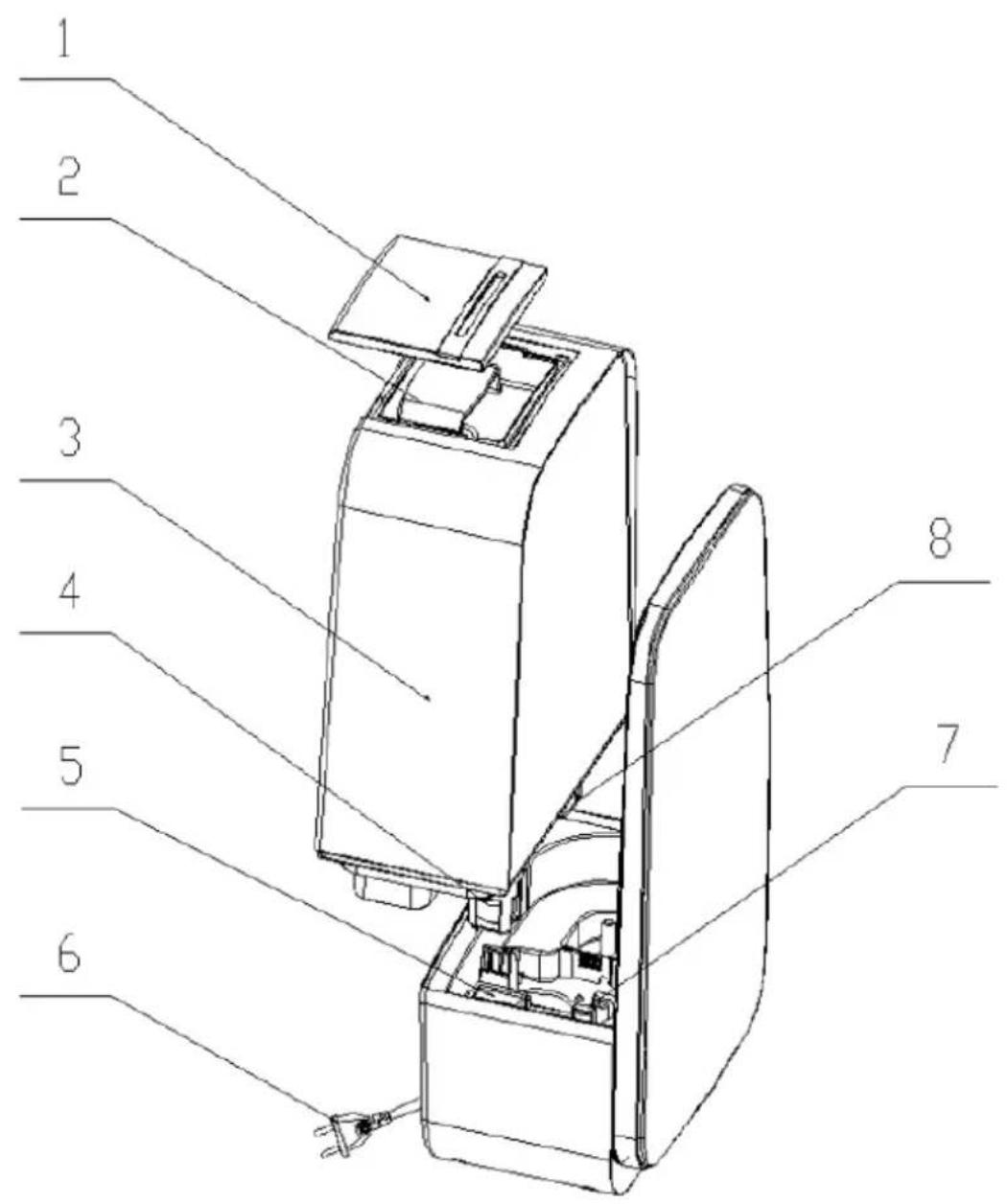

Overview

1 Mist Nozzle
2 Handle
3 Water tank
4 Float
5 Aroma pad
6 Power cord
7 PTC heating element
8 Tank cover

Operation

Take the water tank cover off and remove the water tank. Fill with tap water. Put the tank back in and reassemble the cover.
To add some scent to the mist, take out the aroma box and drip a little water soluble scented oil onto the sponge. Put the aroma box back in.
Assure the correct fit of the cover and the nozzle.
- Connect to a household mains socket.
The humidifier automatically switches off, when you remove the tank cover. It resumes working as soon you reattach it.

• Control panel:

On/Standby

Ionization on/off

AUTO MODE: Press for automatic mode. The humidifier automatically measures the air humidity and readjusts autonomously.

Timer: Press repeatedly for auto-off after 1h (press 1x) up to 12h (press 12x).

Night Mode: Press and hold to activate / de-activate the night mode.

UV light on/off

Mist level: Press repeatedly to adjust the mist level (3 levels)

Humidistat: Adjust the desired humidity within a range from 40% to 80% . The device automatically switches off on reaching the entered humidity level.

Heating: Switch on the internal heating element to create warm mist.

Cleansing and Maintenance

• Always disconnect from the mains socket before cleaning the humidifier.
  Use a damp cloth with little detergent to clean the outer surface. Use lukewarm water and little detergent for the water tank and the nozzle.
• Do never use scratching or corrosive detergents or materials to clean any parts of the device.
• Store the humidifier in a dry place after emptying the tank and letting it dry off.

Environment Concerns

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will hep prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Manufacturer: CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European directives:

2014/30/EU (EMC)

2011/65/EU (RoHS)

2014/35/EU (LVD)

CE
