Product type	Air dehumidifier
Brand	Klarstein
Model	10030042
Power supply	Mains adapter 9 V DC, 2.5 A
Power consumption	22 W
Dehumidification capacity	220 ml in 24 hours
Maximum recommended area	40 m²
Operating temperature range	15 – 35 °C
Dimensions (approx.)	20 x 15 x 30 cm
Weight (approx.)	2 kg
Indicator light	Blue (on), red (tank full)
Automatic shut-off	Yes, when the tank is full
Tank type	Removable, with float
Recommended locations	Cabinets, shelves, storage boxes, toilets, kitchens
Cleaning	Damp cloth, without abrasive products
Safety instructions	Do not block air outlet, horizontal surface, empty tank if not used for extended period

Frequently Asked Questions - 10030042 Klarstein

How to use the Klarstein 10030042 dehumidifier?

Plug the mains adapter into the DC socket of the device, then plug the other end into a power outlet. Press the on/off switch. The blue indicator lights up and the fan starts.

What does the red light on the device mean?

The red light indicates that the water tank is full. The device automatically stops. Empty the tank and replace it correctly.

Why is my dehumidifier not working?

Check that the mains adapter is properly connected. Ensure the switch is in the ON position. Make sure the air outlet is not blocked (leave at least 10 cm around the device).

How to clean the dehumidifier?

Before cleaning, unplug the device. Wipe the external surfaces with a damp cloth. Never use abrasive products or solvents.

Where to place the dehumidifier?

Place it on a horizontal surface in a room up to 40 m². Do not store the device in a humid place. It can be used in cabinets, shelves, toilets, or kitchens.

What is the dehumidification capacity?

The Klarstein 10030042 can extract up to 220 ml of water in 24 hours, under suitable temperature and humidity conditions.

Can I use the device below 15°C?

No, the operating temperature range is 15 to 35°C. Below that, relative humidity is often low and the device would be ineffective.

What to do if the float is stuck?

Gently press the float to release it, then replace the water tank. If the problem persists, check for any obstruction.

How to store the device when not in use for a long time?

Empty the water tank, turn off the device and unplug it. Store it in a dry, well-ventilated place. Do not store it in a humid place.

What are the important safety instructions?

Do not block the air outlet, do not insert objects into the slots, use on a horizontal surface, do not tilt the device to avoid leaks, and keep out of reach of children without supervision.

USER MANUAL 10030042 Klarstein

Row of white icons representing kitchen appliances including blender, kettle, refrigerator, oven, and TV (no text or symbols)

Luftentfeuchter

Dehumidifier

Symbol of a trash bin with no text or labels, crossed by two diagonal lines and a solid black rectangle below (no text or symbols present)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Technical Data

Item number 10030042 10030043
Power supply Adapter 9 V DC, 2,5 A
Power consumption 22 W
Dehumidifying Capability 220 ml in 24 Stunden
Operating temperature range 15-35 °C

Safety Instructions

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance
• Cleaning and user maintenance shall not be made by children without supervision.
• Use this dehumidifier only in the specified temperature and humidity conditions; because the low temperature humidity is small, there is no need for dehumidification.
• Do not block the front air inlet and the air outlet of the dehumidifier; do not insert any foreign objects into the air outlet, as this will lead to damage.
• Dehumidifier should be placed on a level surface; otherwise the water will overflow.
• When this dehumidifier is not being used for an extended period of time, please make sure that the water tank is drained.
• Remove the dehumidifier water box, do not tilt, to avoid water poured out.
• When this dehumidifier is not being used for an extended period of time, please make sure that the water tank is drained.
• Please don't store the transformer in moist places; it shall be kept in dry and well ventilated place.
  • After each use, please shutdown the dehumidifier and unplug it to end the operation.

Intended use

This dehumidifier can be used in wardrobes, bookcases, storage boxes, rest rooms, kitchens and similar small spaces, which have an area of about 40m^2 . The dehumidifier reduces the level of humidity in the air. Only for household use. The ideal environment for use: Temperature: >15^ ; Humidity: >45% .

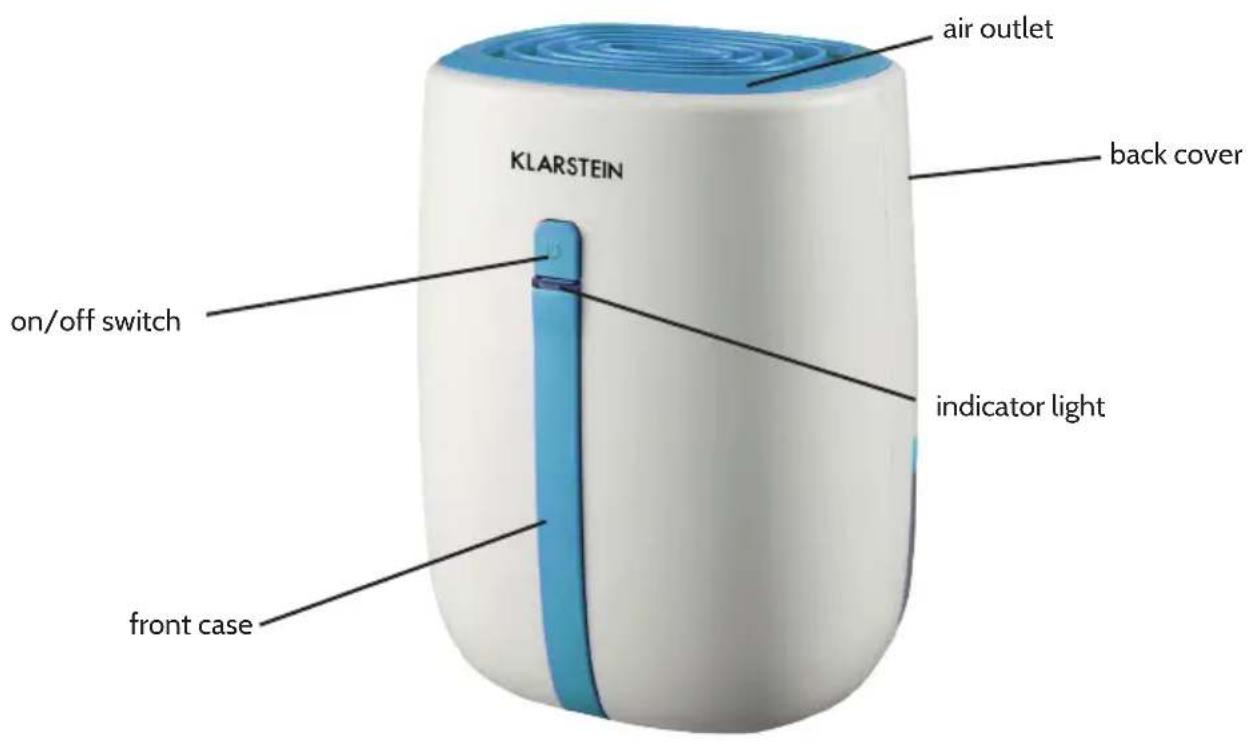

Product Description

Operation

1. Plug the DC male port into the female port on the dehumidifier. Plug the AC adapter into the socket.
2. Press the ON/OFF button. When it is on, the indicator light is blue and the fan will keep running.
3. 1. If the water level is reach to the maximum level, the float will hit the switch and the indicator will turn into red. In the meanwhile, the dehumidifier will not keep dehumidifying.
4. Wipe and dry the water tank and the dehumidifier.

Troubleshooting

Problem Possible Cause Solution
After connecting, the red indicator lights up	The water tank is full	Empty the water tank and replace it in correct position
	The float gets jammed	Press the float and replace the water tank
The dehumidifier does not work	The power supply is cut off Check if	the adaptor is plugged in
	DC switch is OFF Turn the switch on
	The air outlet is blocked	Maintain the minimum clearance at least 10cm around the dehumidifier when the unit is operating

Maintenance and Cleaning

Before cleaning and maintenance please pull out the plug out of the socket outlet. Wipe the shell of the appliance with a soft damp cloth; never use abrasive agent and resolvent, as these will damage this appliance.

Disposal Considerations

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
