DO2014G - Microwave Oven DOMO - Free user manual and instructions

USER MANUAL DO2014G DOMO

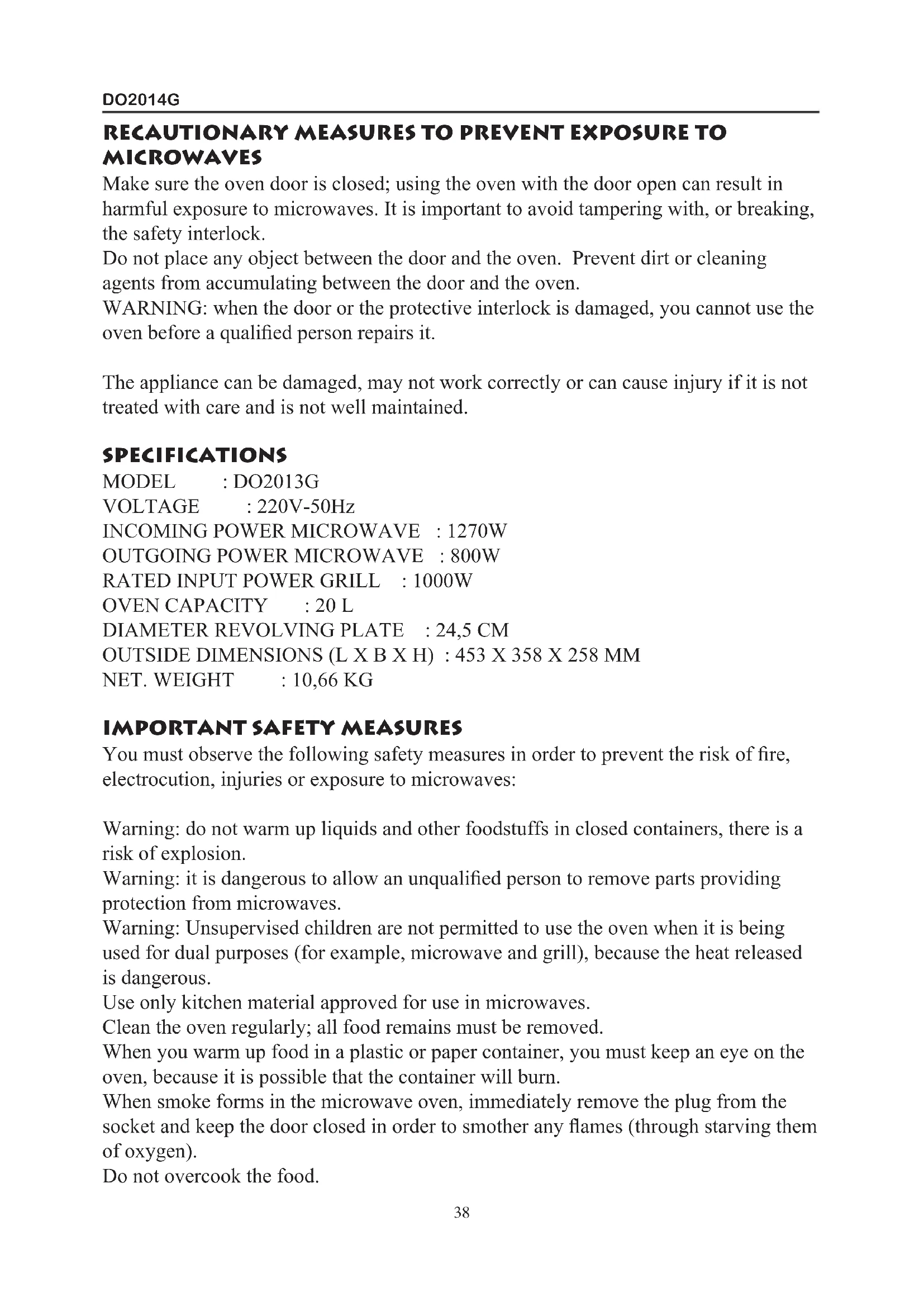

RECAUTIONARY MEASURES TO PREVENT EXPOSURE TO

MICROWAVES Make sure the oven door is closed; using the oven with the door open can result in harmful exposure to microwaves. It is important to avoid tampering with, or breaking, the safety interlock. Do not place any object between the door and the oven. Prevent dirt or cleaning agents from accumulating between the door and the oven.

WARNING: when the door or the protective interlock is damaged, you cannot use the

oven before a qualied person repairs it. The appliance can be damaged, may not work correctly or can cause injury if it is not treated with care and is not well maintained. SPECIFICATIONS

IMPORTANT SAFETY MEASURES

You must observe the following safety measures in order to prevent the risk of re, electrocution, injuries or exposure to microwaves:

Warning: do not warm up liquids and other foodstuffs in closed containers, there is a

Warning: it is dangerous to allow an unqualied person to remove parts providing

protection from microwaves.

Warning: Unsupervised children are not permitted to use the oven when it is being

used for dual purposes (for example, microwave and grill), because the heat released is dangerous. Use only kitchen material approved for use in microwaves. Clean the oven regularly; all food remains must be removed. When you warm up food in a plastic or paper container, you must keep an eye on the oven, because it is possible that the container will burn. When smoke forms in the microwave oven, immediately remove the plug from the socket and keep the door closed in order to smother any ames (through starving them of oxygen). Do not overcook the food. 38DO2014G Do not use the oven to store things. Do not store bread, biscuits, etc, in the oven. Remove wire fasteners and metal handles from packaging before placing a product in the oven. Assemble the oven solely according to the ofcial instructions. Eggs in their shells or whole hard-boiled eggs should not be warmed up in the microwave oven. These could explode, even after the oven is switched off. Use the appliance strictly according to the directions in the instruction manual. Do not use harmful chemicals or noxious fumes in this appliance. This oven is to be used only for heating. The appliance is not suitable for industrial or laboratory use. When the electric lead is damaged it must be replaced by the manufacturer, by its after sales service centre or by a qualied person in order to prevent accidents or damage. Never keep the appliance outdoors. Do not use the oven near water, in a damp space or near a swimming pool. The oven may become warm during use. Keep the electric lead well away from hot parts and do not cover the oven. Do not let the lead hang over the edge of a table or counter. If you fail to keep the oven clean it may result in damage to the appliance and possibly lead to dangerous situations. The content of baby bottles and baby food must always be shaken or stirred. In order to prevent burns the temperature of foodstuffs must be checked before use. The warming up of liquids can result in a delayed cooking reaction of the liquid. For this reason, always be careful when you remove the container from the oven. This appliance is not for use by persons, including children, with any kind of impairment, such as, physical, sensorial or mental capacity. These persons are not permitted to use the appliance if they have limited experience or insufcient knowledge, unless they have received the necessary instructions for use or are otherwise being supervised by people ensuring their safety. Make sure that children cannot play with the appliance. Do not place this appliance in a cupboard. This appliance is not permitted for use with an external timer or separate remote control. Do not use a steam cleaner to clean the appliance. Do not use aggressive detergents or sharp objects to clean the glass in the door, this can lead to cracks or damage to the glass The door of the appliance may become warm during use. This appliance is only for household use or environments of a similar character such as : - kitchens that are used by personnel of shops, ofce or other similar professional environments. - Farms - Hotel rooms and motel rooms and other similar environments with a residential character. 39DO2014G - Bed and breakfast or similar. KEEP THIS LIST OF WARNINGS FOR LATER REFERENCE IN ORDER TO AVOID THE RISK OF INJURIES Attention: Do not touch any (electrical) parts in the appliance’s interior. This can result in serious injury or death. Do not dismantle the appliance. Incorrect use of the appliance and the earthed plug can lead to electrocution. Do not switch the appliance on before it has been correctly assembled and connected to an earthed socket. This appliance must be connected to an earthed socket. When the appliance short- circuits, the earthed socket ensures that the electricity is safely conducted and diverted. If you are not absolutely certain about your electrical system at home, contact a qualied electrician. In the event you need to make use of wiring for an extension, always use a lead with 3 wires. Your appliance is provided with a short electric lead to prevent tangling or accidents from tripping over it. In the event you use an extension lead you must make sure that the lead has at least the same capacity as that of the oven. The extension lead must be placed so that nobody will trip over it or get caught in it. CLEANING Always make sure that the plug has been removed from the socket before you clean the appliance. After use, clean the inside of the oven with a damp cloth. Clean the parts, such as grill, glass turntable/revolving plate, in warm water, using a mild detergent. If dirty, you can clean the door, the interlock and the control panel, with a lightly dampened cloth. MATERIALS PERMITTED FOR USE IN THE MICROWAVE OVEN Here below is a list of objects that can or cannot be used in the appliance. In the event you cannot nd the object you wish to use in the list below, you can apply the following method to check whether the object is suitable for microwave use. Fill a microwave-safe container with 250 ml of cold water and place this, together with the object to be tested, in the microwave oven. Adjust the microwave to maximum power for 1 min and switch on. Feel the object carefully to test whether or not it is warm, if it is, it means it is not suitable for use in the microwave oven. TAKE CARE: never cook the object for longer than 1 min in the microwave. Materials not permitted for use in the microwave oven Aluminium foil: Only for covering food. Small pieces of foil can be used to lay on 40DO2014G top of food to prevent it from overcooking. Sparks can develop if the foil is placed too close to the microwave’s sides. The foil must be at least 2,5 cm from the sides. Grill grid: according to the instructions of this manual. The underside of the grill grid must be placed at least 5 mm above the revolving glass plate. Incorrect use can cause the revolving glass plate to crack. Crockery: Only microwave-safe crockery. Do not use any crockery that displays cracks or chips. Glass jug/can: only use without lids. Only to use for lightly warming. Most glasses are not heat-resistant and can break. Glassware: heat-resistant oven glassware is permitted. Take care that the glass does not contain metal decorations or metal parts. Do not use any cracked or damaged glass. Oven cooking bags: follow the manufacturer’s instructions. Do not close the bag with a metal fastener. Make holes in the bag so that the steam can escape. Plastic: only plastic suitable for the microwave. Follow the manufacturer’s instructions. The words “microwave safe” must always be clearly visible on the plastic. Some plastic containers become soft if food is heated in them. Cooking bags and closed bags need to be pricked to allow steam to escape. Plastic packaging: Only plastic that is microwave approved. It can be used for covering the food so that it does not dry out. Always make sure that the food does not touch the plastic. Thermometer: only microwave-safe thermometers. Materials permitted for use in the microwave oven Aluminium dish: this can cause sparks. Lay the food on a microwave-safe dish. Food container with metal handle(s): can cause sparks. Lay the food on a microwave- safe dish. Kitchen material made from metal or with metal nish. Metal shields the food from microwave energy. Metal nishes can cause sparks. Metal fasteners: can lead to sparks and can cause re in the oven. Paper bags: can cause re in the oven. Plastic foam: when exposed to high temperatures it can melt or contaminate the food inside the plastic foam container. Wood: wood dries out in the microwave and through this can burst or split. 41DO2014G PARTS A. Control panel B. Revolving plate C. Revolving plate ring D. Glass revolving plate E. Display window (for viewing inside) F. Door G. Safety lock H. Microwave guide

First place the revolving plate ring in the middle of your microwave oven. Place the revolving plate on the ring; make sure that the middle of the revolving ring ts in the revolving plate support. Never place the revolving plate upside down. Always make sure that the revolving plate can turn freely steeds, without obstruction. The revolving plate and ring must be used at all times during cooking. All food and containers must, at all times, be placed on the glass plate during cooking. When the glass plate or the ring display any cracks, you should immediately get in touch with your nearest service centre. ASSEMBLY Remove all packaging material and the accessories. Examine the oven for any possible damage such as dents or damaged door. Do not use the oven if it is damaged.

1. Choose a spot to place your microwave where there is sufcient space to allow for

the free circulation of air. Make sure that a minimum distance of 10 cm is kept, at the rear and on the left and right-hand sides, from the wall and any cupboard. One side of the microwave must be left completely open. An open space of at least 30 cm must be allowed above the microwave oven.

2. Never remove the legs underneath your oven.

3. Blocking the air intake and outlet can lead to damage to your appliance.

4. Keep the oven as far as away as possible from radio and TV.

5. Plug your oven into the socket, always check whether the voltage in your home

corresponds to the voltage stated on your appliance.

Warning: Do not place the oven above a cooking stove or other heat producing

appliance(s), this can damage the appliance and your guarantee will not be valid. The accessible part of your appliance may become warm during use.

When you plug the microwave into the socket, “0:00” will appear on the display. Press on the “clock/pre-set” button; the hour will begin to ash. Turn the round dial to set the hour between 0 – 23. Press on the “clock-pre-set” button; the minutes will begin to ash. Turn the round dial to set the minutes between 0 – 59. Press on the “clock/pre-set” button to conrm the hour set.

COOKING WITH THE MICROWAVE

Press on the “micro/grill/combi” button to adjust the microwave power. Press; 1x: P100, 2x: P80, 3x P50, 4x P30 or 5x P10. You can also adjust the microwave power by turning the round dial. Press on the “start/+30sec./conrm” button, to conrm the chosen microwave setting. Turn the round dial to adjust the desired length of time. Press on the “start/+30sec/conrm” button to start the cooking process. The microwave power is divided as follows: P100: 100% microwave power P80: 80% microwave power P50: 50% microwave power P30: 30% microwave power P10: 10% microwave power

Press on the “micro/grill/combi” button; “P100” will appear on the display, turn the round dial to select the grill, “G” will appear on the display. Press on “start/+30sec/conrm” to conrm the grill setting. Turn the round dial to adjust to the desired grilling time. Press on “start/+30sec/conrm” to start the grill. Note: the oven will give halfway through the set time a signal during the grilling process, this is normal. For a better result with grilling, it is best to turn the food product over. Close the door and, once again, press the “start/+30sec/conrm” button, in order to carry on the grilling process after turning the product over. If you do not want to turn the food over then you do not need to do anything else, the grilling process will proceed automatically. 43DO2014G COMBINED COOKING Press on the “micro/grill/combi” button; “P100” will appear on the display. Turn the round dial in order to select the desired combi cooking setting: C-1: 55% microwave – 45% grill C-2: 36% microwave – 64% grill Press on the “start/+30sec/ conrm button, to conrm the selection. Turn the round dial to adjust the timer. Press on the “start/+30sec/conrm” button to start cooking. FAST COOKING When the microwave oven is on the pause setting, you press once on the “start/+30sec/ conrm” button. The microwave will now heat at full power for 30 seconds. Each time you repress the “start/+30sec/conrm” button the time duration of heating will be increased by 30 seconds. In this way you can adjust the length of time to max. 95 minutes. You can also use the “start/+30sec/conrm” button during the use of the grill, the combined cooking or defrosting functions in order to lengthen the cooking time. The cooking time can also be adjusted if you turn the round dial counterclockwise when the microwave is on the pause setting. When you press the “start/+30sec/ conrm” button the microwave will heat at 100% during the time set. Note: the time settings cannot be adjusted with the “start/+30sec/conrm” button during the automatic cooking programmes or during the defrosting by weight process.

DEFROSTING BY WEIGHT

Press once on the “W.T./time defrost” button; “dEF1”will appear on the display. Turn the round dial to select the weight of the foodstuff. The weight range selections are from 100 to 2000g. Press on the “start/+30sec/conrm” button to start defrosting.

Press twice on the “W.T./ time defrost” button; “dEF2” will appear on the display. Turn the round dial to set the defrosting time. Press op de “start/+30sec/conrm” button to start defrosting.

COOKING IN DIFFERENT STEPS

You can adjust to a maximum of 2 steps. If one of the two steps is defrosting, you must set this as the rst step. After each completed step you will hear a signal. The automatic cooking programmes cannot be selected when using the function “cooking in different steps”. For example: if you wish rst to defrost food for 5 minutes and then to prepare it for 7 minutes using the microwave power of 80%, you must carry out the following 44DO2014G selection: Press twice on the “W.T./time defrost” button; “dEF2” will appear on the display. Turn the round dial to set the time to 5 minutes. Press on the “micro/grill/combi” button. Turn the round dial to adjust the microwave power to 80%; “P80” will appear on the display. Press on the start/+30sec/conrm” button to conrm the selection. Turn the round dial to adjust the microwave so that it is set to heat for 7 minutes. Press on the “start/+30sec/conrm” button to start the cooking process.

First set the clock of your microwave oven to the present hour. Select the desired cooking programme. You can select max. 2 steps. Do not set a defrost function when you are cooking with the timer. For example, you wish to cook for 7 minutes using 80% microwave power. Press on the “micro/grill/combi” button. Turn the round dial to set the microwave power to “P80”. Press on the “start/+30sec/conrm” button to conrm the selection. Turn the round dial to set the time to 7 minutes. Do NOT press now on the “start/+30sec/conrm” button. But carry out the following instructions. Press “clock/pre-set” button, the hour will begin to ash. Turn the round dial to set the hour at which you want the microwave oven to start working. Press on the “clock/pre-set” button; the minutes will begin to ash. Set the minutes now. Press NOW on the “start/+30sec/conrm” button to conrm the selection. When the set time has been reached you will hear a signal, after which the cooking process selected will start running. Note: take care to adjust the present time rst, before using the timer.
