USER MANUAL HIM 50 K.A IX INDESIT

Electrical connections

Français, 13

Nederlands, 25English;

Data plate

DE GR

Deutsch, 37 EAnvika, 49

ES

Espanol, 61

Description of the appliance, 5

Overall view

Control panel

RS

Pycckn,73

HIM 50 K.A

HIM 50 K.A IX

HIM 53 K.A

HIM 53 K.A IX

Start-up and use, 6

Starting the oven

Using the cooking timer

Cooking modes, 7-8

Cooking modes

Practical cooking advice

Cooking advice table

Hob, 9

Type of hob

Switching on the glass ceramic hob

Practical advice on using the glass ceramic hob

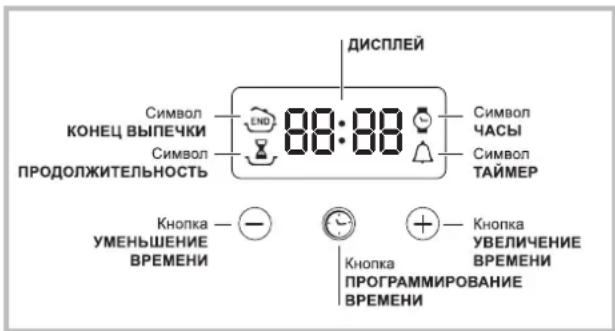

The electronic cooking programmer, 10

Precautions and tips, 11

General safety

Disposal

Respecting and conserving the environment

Maintenance and care, 12

Switching the appliance off

Cleaning the appliance

Cleaning the oven door

Replacing the light bulb

Assistance

INDESIT

GB

GB

Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).
The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property.

Fitting the appliance

Use the appropriate cabinet to ensure that the appliance functions properly.

The panels adjacent to the oven must be made of heat-resistant material.
Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100^ .

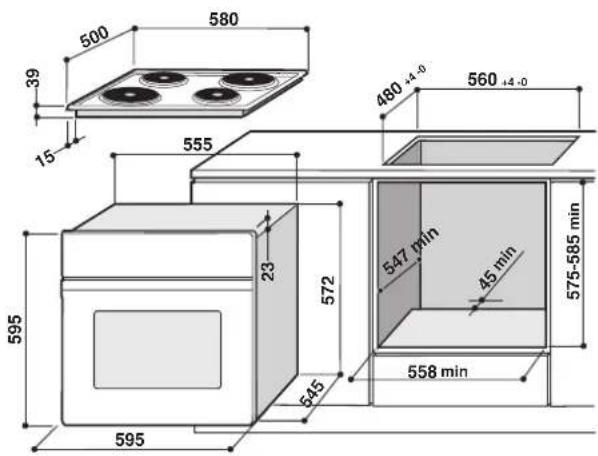

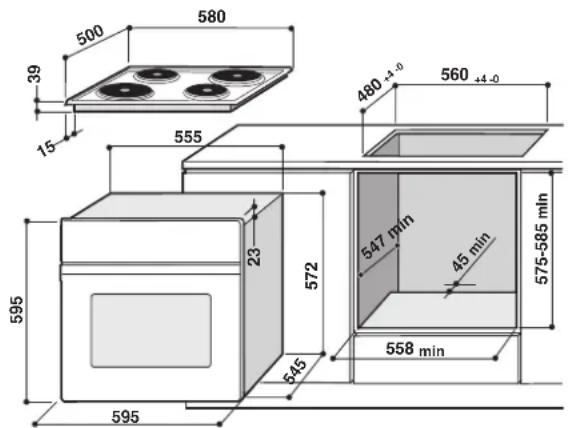

- To install the oven under the counter (see diagram) and in a kitchen unit, the cabinet must have the following dimensions:

The appliance must not come into contact with electrical parts once it has been installed. The consumption indications on the data plate have been calculated for this type of installation.

Ventilation

To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 × 560 mm (see diagrams).

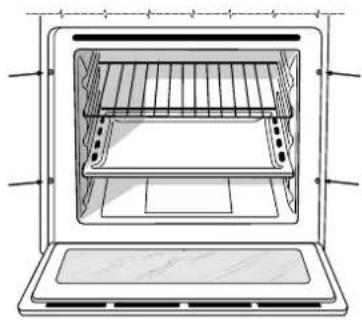

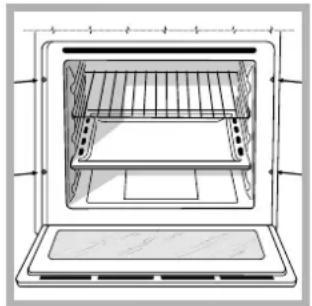

Centring and fastening

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame.

All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

Electrical connections

The cooker must be connected to the mains electricity supply. It is designed to operate with alternating current at the voltage and frequency indicated on the data plate (see the following page).

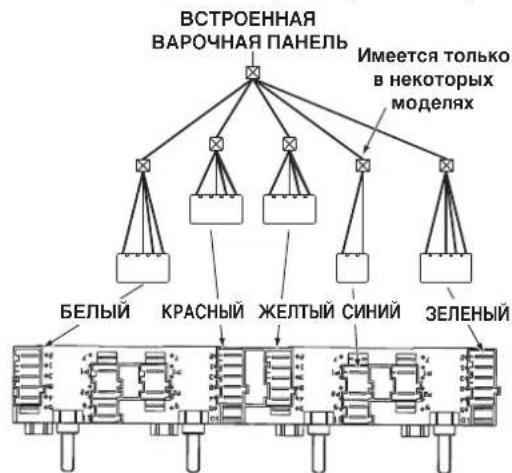

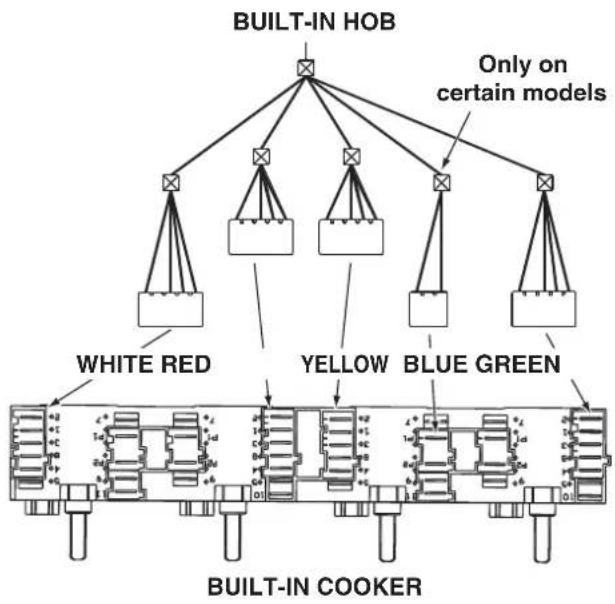

The hob is connected to the cooker using a special connector.

Replace the metal protection after performing all the necessary hob connections. If the hob is removed from its position, the red cap which was originally protecting the red connector must be replaced.

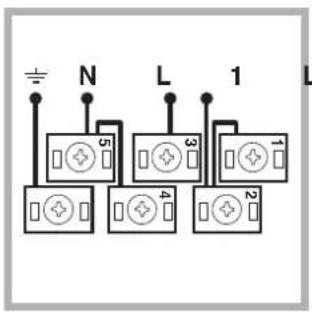

Fitting the power supply cable

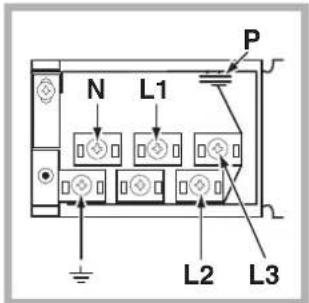

1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

2. Install the power supply cable by loosening the cable clamp screw and the wire contact screws L-N- Connect the wires to the corresponding terminals: the Blue wire to the terminal marked (N), the Brown wire to the terminal marked (L) and the Yellow Green wire to the terminal marked

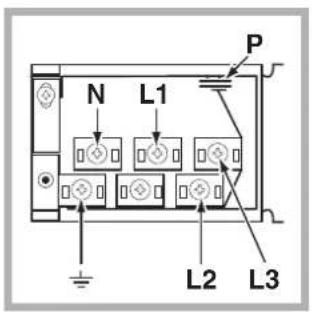

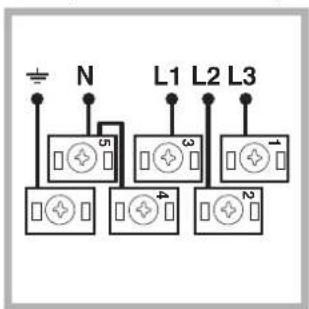

The terminal board is designed for a 400V three-phase connection (see diagrams below).

400V 3N~H05RR-F
5x2.5 CEI-UNEL 35363
3 L 2

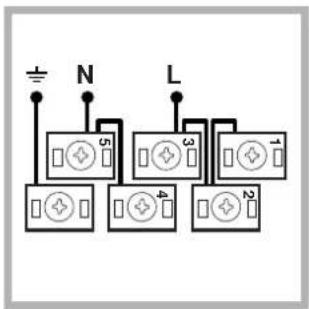

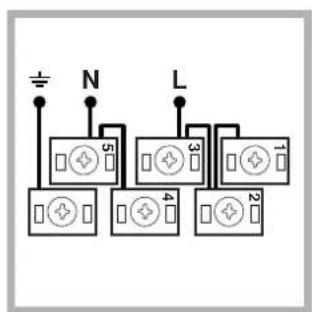

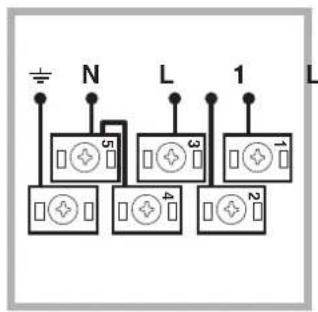

If the electrical system has other characteristics (see diagrams below), carry out the electrical connection using the connection supports provided in the box P.

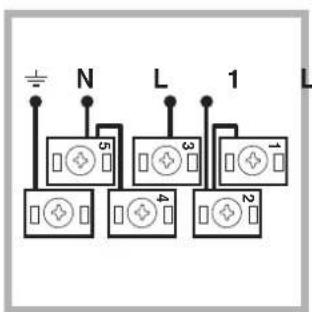

230V ~H05RR-F 3x4 CEI-UNEL 35363

400V 2N~H05RR-F 4x4 CEI-UNEL 35363 2

1. Secure the power supply cable by fastening the clamp screw.

2. Close the cover of the terminal board.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate (see side).

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50^ .

The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

The appliance is earthed and the plug is compliant with the law.
- The socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below).
The voltage must be in the range between the values indicated on the data plate (see below).
- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

DATA PLATE

width 43.5 cm

Dimensions height 32 cm

depth 40 cm

Volume It. 56

Electrical connections

voltage: 230V / 400V 3N50 / 60Hz maximum power absorbed 8450W

Directive 2002/40/EC on the label of electric ovens.
Standard EN 50304

ENERGY LABEL

Energy consumption for Forced convection heating mode: Multi-cooking Declared energy consumption for Natural convection Class heating mode: Convection

This appliance conforms to the following European Economic Community directives: -2006/95/EEC of 12/12/06 (Low Voltage) and subsequent amendments; -2004/108/EEC of 15/12/04 (Electromagnetic Compatibility) and subsequent amendments; -93/68/EEC of 22/07/93 and subsequent amendments. -2002/96/EC and subsequent amendments.

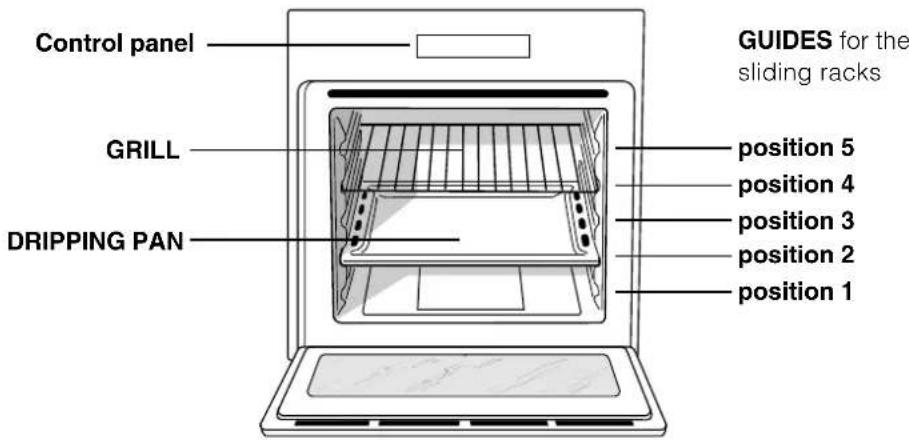

Overall view

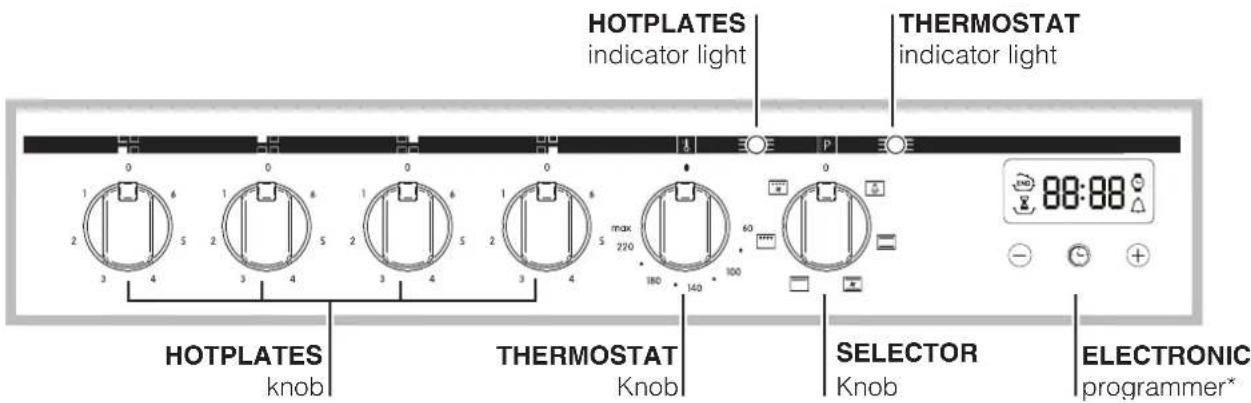

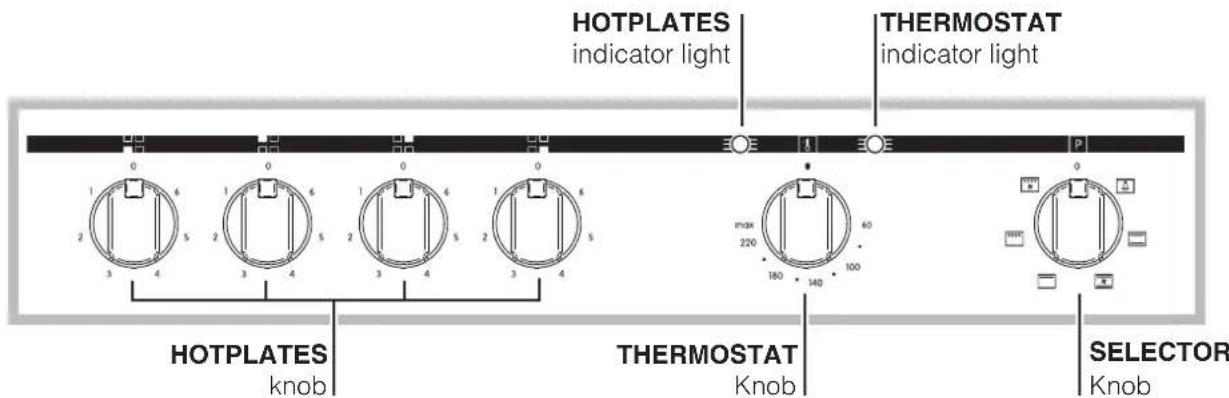

Control panel

* Only on certain models

! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may produce a slightly unpleasant odour caused by the burning away of protective substances used during the manufacturing process.

Starting the oven

1. Select the desired cooking mode by turning the SELECTOR knob.
2. Select the desired temperature with the THERMOSTAT knob. See the Cooking advice table for cooking modes and the suggested cooking temperatures (see Cooking Modes).
3. When preheating is finished, the THERMOSTAT indicator light will stay on: place the food in the oven.
4. You may do the following during cooking:
5. change the cooking mode by turning the SELECTOR knob.
6. change the temperature by turning the THERMOSTAT knob.
7. stop cooking by turning the SELECTOR knob to the "0" position.

! Never put objects directly on the oven bottom to avoid damaging the enamel coating.

! Always place cookware on the rack(s) provided.

Cooling ventilation

In order to cool down the external temperature of the oven, some models are fitted with a cooling fan that blows out air between the control panel and the oven door.

Once the cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently.

Oven light

It goes on when selecting with the SELECTOR knob. It stays on when a cooking mode is selected.

Cooking modes

! A temperature value can be set for all cooking modes between 60^ and Max, except for
- GRILL (recommended: set only to MAX power level);
- GRATIN (recommended: do not exceed 200^ ).

CONVECTION OVEN mode

Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only; if more than one rack is used, the heat will be distributed unevenly.

MULTI-COOKING mode

All the heating elements (top and bottom), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time.

TOP OVEN mode

The top heating element comes on. This mode can be used to brown food at the end of cooking.

GRILL mode

The top heating element comes on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking in the juices to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface: such as beef steaks, veal, rib steak, filets, hamburgers etc... Some grilling examples are included in the "Practical Cooking Advice" paragraph. Always cook in this mode with the oven door closed.

GRATIN mode

The top heating element, as well as the fan, will come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed.

Practical cooking advice

! Do not place racks in position 1 and 5 during fan-assisted cooking. Excessive direct heat can burn temperature sensitive foods.
! In the GRILL and GRATIN cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease).

MULTI-COOKING

• Use position 2 and 4, placing the food that requires more heat on 2.
• Place the dripping pan on the bottom and the rack on top.

GRILL

• Insert the rack in position 3 or 4. Place the food in the centre of the rack.
  We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on.

PIZZA

• For best results when cooking pizza, use the MULTI-COOKING mode.
• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time).
• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

Cooking advice table

Cooking modes	Foods	Weight (in kg)	Rack position	Pre-heating time (min)	Recommended temperature	Cooking time (minutes)
Convection Oven	Duck	1	3	15	200	65-75
	Roast veal or beef	1	3	15	200	70-75
	Pork roast	1	3	15	200	70-80
	Biscuits (short pastry)	-	3	15	180	15-20
	Tarts	1	3	15	180	30-35
Multi-cooking	Pizza (on 2 racks)	1	2 and 4	15	230	15-20
	Lasagne	1	3	10	180	30-35
	Lamb	1	2	10	180	40-45
	Roast chicken + potatoes	1+1	2 and 4	15	200	60-70
	Mackerel	1	2	10	180	30-35
	Plum cake	1	2	10	170	40-50
	Cream puffs (on 2 racks)	0.5	2 and 4	10	190	20-25
	Biscuits (on 2 racks)	0.5	2 and 4	10	180	10-15
	Sponge cake (on 1 rack)	0.5	2	10	170	15-20
	Sponge cake (on 2 racks)	1	2 and 4	10	170	20-25
	Savoury pies	1.5	3	15	200	25-30
Top oven	Browning food to perfect cooking	- 3/4 15 220 -
Grill	Soles and cuttlefish	1	4	5	Max	8-10
	Squid and prawn kebabs	1	4	5	Max	6-8
	Cod filet	1	4	5	Max	10
	Grilled vegetables	1	3 or 4	5	Max	10-15
	Veal steak	1	4	5	Max	15-20
	Cutlets	1	4	5	Max	15-20
	Hamburgers	1	4	5	Max	7-10
	Mackerels	1	4	5	Max	15-20
	Toasts	4	4	5	Max	2-3
Gratin	Grilled chicken	1.5	2	5	200	55-60
	Cuttlefish	1.5	2	5	200	30-35

Type of hob

The oven is combined with a hob that can be made up of two types of heating elements: cast-iron electric plates (see diagram 1) or glass ceramic hobs (see diagram 2).

Switching on the glass ceramic hob

Traditional cooking zones

Traditional cooking zones are made up of circular heating elements. They turn red approximately ten seconds after they have been turned on. Each cooking zone is fitted with a control knob allowing you to select from 6 different temperature settings from a minimum of 1 to a maximum of 6.

Residual heat indicator lights*

The indicator lights (C) indicate that the temperature of the corresponding cooking zones have exceeded 60^ , even after the heating element has been switched off.

Recommended power levels for various types of cooking:

Setting	Setting
0	Off
1	Cooking vegetables, fish
2	Cooking potatoes (using steam) soups, chickpeas, beans.
3	Continuing the cooking of large quantities of food, minestrone.
4	For roasting (average)
5	For roasting (above average)
6	For browning and reaching a boil in a short time

Practical advice on using the glass ceramic hob

! The glue that is applied on the gaskets leaves some traces of grease on the glass. Before using the appliance, we recommend you eliminate these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.

To obtain the best results with your hob:
- Use flat-bottomed pans to ensure that they adhere to the cooking zone perfectly.

Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the available heat.

• Make sure that the bottom of the cookware is always dry and clean to guarantee correct adherence and long life, not only for the cooking zones but also for the cookware itself.
• Avoid using the same cookware that is used on gas burners: the heat concentration on gas burners may deform the base of the pan, causing it not to adhere correctly.
• Never leave a cooking zone on without cookware on it because as it heats up and rapidly reaches the maximum level, it could damage the heating elements.

GB

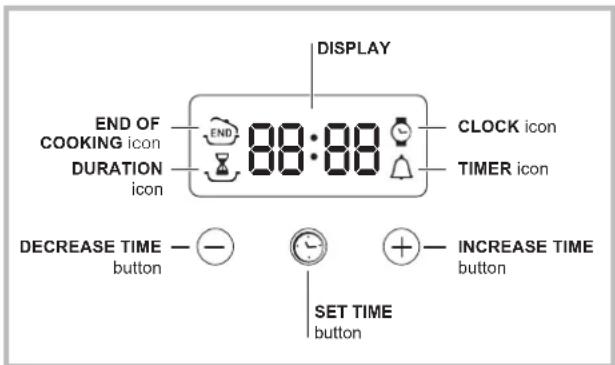

Setting the clock

The clock may be set when the oven is switched off or when it is switched on, provided that a the end time of a cooking cycle has not been programmed previously.

After the appliance has been connected to the

mains, or after a blackout, the icon and the four numerical digits on the DISPLAY will begin to flash.

1. Press the button several times until the icon and the four digits on the display begin to flash.
2. Use the "+" and "-" buttons to adjust the time; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the desired value.
3. Wait for 10 seconds or press the button again to finalise the setting.

Setting the timer

This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when the set amount of time has elapsed.

1. Press the button several times until the icon and the three digits on the display begin to flash.
2. Use the "+" and "-" buttons to set the desired time; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the value.
3. Wait for 10 seconds or press the button again to finalise the setting.

The display will then show the time as it counts down. When this period of time has elapsed the buzzer will be activated.

Programming cooking

! A cooking mode must be selected before programming can take place.

Programming the cooking duration

1. Press the button several times until the Z icon and the three digits on the DISPLAY begin to flash.
2. Use the "+" and "-" buttons to set the desired duration; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the value.
3. Wait for 10 seconds or press the button again to finalise the setting.
4. When the set time has elapsed, the text END appears on the DISPLAY, the oven will stop cooking and a buzzer sounds.
5. For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m.

Setting the end time for a cooking mode

! A cooking duration must be set before the cooking end time can be scheduled.

1. Follow steps 1 to 3 to set the duration as detailed above.
2. Next, press the button until the icon and the four digits on the DISPLAY begin to flash.
3. use the "+" and "-" buttons to adjust the cooking end time; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the desired value.
4. Wait for 10 seconds or press the button again to finalise the setting.
5. When the set time has elapsed, the text END appears on the DISPLAY, the oven will stop cooking and a buzzer sounds.

Programming has been set when the and buttons are illuminated. The DISPLAY shows the cooking end time and the cooking duration alternately.

Cancelling a programme

To cancel a programme:

• press the button until the icon corresponding to the setting you wish to cancel and the digits on the display are no longer flashing. Press the "-" button until the digits 00:00 appear on the display.
• Press and hold the "+" and "-" buttons; this will cancel all the settings selected previously, including timer settings.

The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• When handling the appliance, always use the handles provided on the sides of the oven.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
• When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away.
• Ensure that the power supply cable of other electrical appliances does not come into contact with the hot parts of the oven.
• The openings used for ventilation and dispersion of heat must never be covered.
• Always grip the oven door handle in the centre: the ends may be hot.
  Always use oven gloves to place cookware in the oven or when removing it.
• Do not use aluminium foil to line the bottom of the oven.
• Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire.
  Always make sure the knobs are in the "●"/"○" position when the appliance is not in use.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Never carry out any cleaning or maintenance work without having unplugged the plug from the mains.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).

• Do not rest heavy objects on the open oven door.

• The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre.

• Remember that the temperature of the cooking zones remains relatively high for at least thirty minutes after they have been switched off.
• Keep any object that could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Keep plastic or aluminium objects away from the hob: if you forget them on surfaces that are still hot, they may cause serious damage to the hob.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
• Do not let children play with the appliance.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes. Observe existing legislation when disposing of the old appliance.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• By using the appliance in the hours between late afternoon and early morning, you can help reduce the work load placed on electrical companies.
  Always keep the oven door closed when using the GRILL mode to attain best results and to save energy (approximately 10% ).
• Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse.

GB

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

• The stainless-steel or enamel-coated external parts as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. If these stains are difficult to remove, use only specialised products. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.
• Ideally, the inside of the oven should be cleaned after each use, when it is still lukewarm. Use hot water and detergent, rinse and dry with a soft cloth. Do not use abrasive products.
• The accessories can be washed like everyday crockery (even in your dishwasher).

! Never use steam cleaners or pressure cleaners on the appliance.

Cleaning the oven door

Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. To clean more thoroughly, you can remove the oven door.

1. Open the oven door fully (see diagram).

1. lift up and turn the small levers situated on the two hinges; (see diagram).

1. Grip the door on the two external sides and close it approximately half way. Unlock the door by pressing on the clamps F, then pull the door towards you lifting it out of its seat (see diagram).

To replace the door, reverse this sequence.

Inspecting the seals

Check the door seals around the oven periodically. If the seals are damaged, please contact your nearest After-sales Service Centre (see Assistance). We recommend not using the oven until the seals have been replaced.

Replacing the light bulb

To replace the oven light bulb:

1. Remove the glass cover of the lamp-holder.
2. Remove the light bulb and replace it with a similar one: Wattage 25 W, cap E 14.
3. Replace the glass cover (see diagram).

Assistance

Communicating:

• appliance model (Mod.)
• serial number (S/N)

This information is found on the data plate located on the appliance and/or on the packaging.

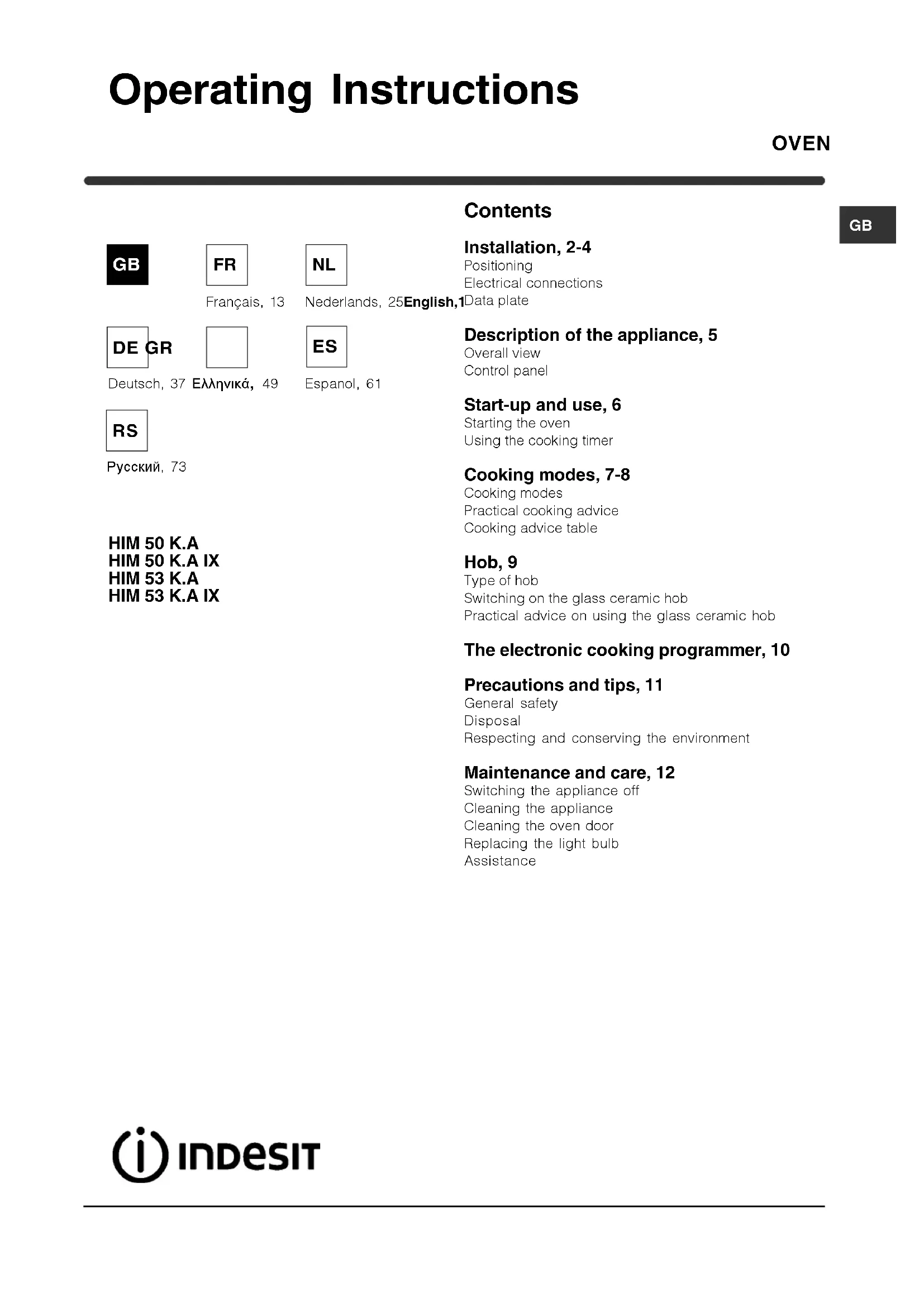

Sommaire

GB

NL

Installation, 14-16

Positionnement

Raccordement electrique

Français, 13

Nederlands, 25English,

Nederlands, 25 English,

Iivakia xaapaktnpiTikov

GR

DE

GR

ES

Deutsch, 37 EAnviKa, 49

Espanol, 61

Nepiypaqn Tns oukeunc, 53

EuvoAikn aTouyn

IivakacελeYxou

RS

Pycckn,73

Ekkivnon kai xphon, 54

EkkivnTouΦoupvou

HIM 50 K.A

HIM 50 K.A IX

HIM 53 K.A

HIM 53 K.A IX

PoypaTa,55-56

Ppoypaeta maayepaato

PporpaMMbl npnroTOBneHn

PpakTnueckne coBebI no npuroToBneHIO

Ta6nua npuroToBneHna

HIM 50 K.A

HIM 50 K.A IX

HIM 53 K.A

HIM 53 K.A IX

Bapouhna naneIb, 81

MoJeN BapOuHoi nAHeJI

BkIIOUeHne cTeKIOKepaMueecko BapOuHOI paHeJI

IpaKaTnueckne peKoMeHdaCUN No NcNoJIb3OBAHIO

CTeKIOkepaMueecko BapOuHoi NaHeJI

3JIeKToHHbI TaMep

nporpaMMnpoBaHnBbIneueKn,82

IpeoctopoxKHOCTn npekomeHdaun, 83

Obne Tpe6oBaHnK 6e3oNaChOCTN

Ytun3aun

3KoHOMNn 3JIeKtpO3Heprn n OxpaHa OkpyKaIOuIeN

cpebl

Texnueckoe 6cnyxnbHne uyo,84

OTKJIIOUeHHe 3NEKTPoPNTaHn

UncTka n3dennr

UncTa DBePbI

3aMeHa nAMnOuKN

CepBnCHe o6cnyKuBaHne

！BaxHo coxpaHnTb daHHoe pykoBOcTBo dIra erO nocJeDyUoNIX KOHCyNbTauM. B cIyuae npodaxn, nepeDaun 3dEInna nn npn peee3de Ha HOBoe MeTo XHTeJIbCTBa Heo6XoDnMo IPOBepNTb, yTO6bl pyKOBOcTBO OCTaBaNoCb BMeCTe C u3dEnneM, Jnro TOrO yTO6bl erHOBBn BNaDeNeuC MOR O3HaKOMNTbcn CpabUNAm 3KcPnyaTaLm N C COOTBeTCTByIOUMn PpeDynpeXkDeHnAMN.

！BnMaTeIbHo npOuHTaIe HNCTpyKUIN: B HIX coepKaTcBaxHbIe CBeDeHn8 o6 yTaHOBKe, 3KcnNyataUIn 6e30NaChocTn n3dEInr.

PacnoonoxeHne

!He pa3pewaTe DeTmIrpaTb C ynaKOBouHbIMMaTePnAaMn. YnaKOBouHbIe MaTePnAbl DoJXHbI6bItb YnHTOKeHbIB COOTBeTCTBnC npabuamPa3deJIbHoro c6opa Mycopa (cm. PpedocmopoxHoocmu peKomeHaauu).

！YcTaHOBKa n3dEInn npOn3BODnTcB COOTBeTCTBm C daHHbIMn HnCTpyKUmaN KBAJINΦnUPoBaHHbIMn CneLnaIncTaMn. HenpaBnIbHa yctAHOBKa n3dEInn MOKeT cTaTb npuHoi NIOBpeXeHn NMyueCTBa n npuHHTb yuep6 IIOJAM N DOMaWHIM XNBOThbIM.

BctpoeHHbIMoHTax

IЯ obecneueHnIcnpaBHorO yHKUHOHPOBaHnI3JeJNRAKxOHbI 3JIeMeHT DOJIKeH IMeTb COOTBeTCTByIOUne xapaKTepNCtMK:

• NaHeI K KyXOHbIX 3JeMeHToB, npIneRaIOuix K DyXOBOMy IkaFy,doJxHbI 6bITb BblIOJIHeHbI N3 TepMOCToIKORo MaTePnAna.
  KNe KxOHHbIX 3JMeHToB 3JMeHToB N3 faHepoBaHHoro DepeBa DOJKeH 6bITb yCToUHBIM K TemnepaType 100^
  ДЯ BCTpAnBaHnIyXOBOrO WkaPAnoK KyxOHhbIM TOnOM (CM.PUCYHOK) NII IN B KOJIOHHy HnIa KyxOHHO 3NeMeHTa DoJkHa IMeTb CneIyUOuIpe pa3Mepbl:

！Iocne BCtpaBnHnN 3deJnB KkyoHHbI 3JeMeHT D0JXHa 6bITb NCKJIOUeHa BO3MOKHOCTb KacaHnK 3JIeKTPuYeCKMn YacTmN. PacxOJ 3NeKTPo3Heprn, Yka3aHHb Ha nacnpTHoT TaJIuYKe N3deJnN, 6bl 3aMepeH dJaAHHO TnNa MOHTaKa.

BeHTnJIaLna

IЯ obecneueHnaJIeKaUe BeHTnIaUN Heo6xOIMO CHrTb 3aHIOU NaHeJIb HmIu KxyOHHO 3IeMeHtA. PekomeHdyTeY cTaHOBtB dYXOBou WkaΦ Ha IBa DepeBraHbIX 6pycKa NnHa CnNoWHOe OCHOBAHHe C OTBepCTNeM DnAmETpOM He MeHee 45 x 560 MM (cm Yepmexku).

UeHTpObKa u KpeJIeHne

IgKpennnHn3JeNn K KyxOHHomy 3JemeHTy: OTKpoTe DBypUy dYXOBOrO uKaPn 3aBHTnTe 4 Wypyna IJIpeBraHHbIX NaHeEe B 4 OTBepCTnB pame.

！Bce3aunThbIe 3nEmHeTbI dONKHbI 6bITb 3akpenneHbI TaKIM 06pa3OM, yTO6bI IN MX MOKHO 6bINO CHrTB TOJbKO npn NMOUc ncluaNBHorO HNCTpyMeHTa.

3JIeKtpnueckoe noCoeHHeHne

3NeKtpuuecko noCoeHHeHne u3denn BbIIOHHReTbC KxOHHo PnTOn, paCHTaHHo Ha nepemehhBtOK, C HApJKeHEm N AcToTO, yKa3aHHbIMHa nacnopTHo TaBmUKe (CM. cNeyouycmpaHuCy). BapouHra naHJIb coeHNHreTcR c KxOHHo PnTOn npn NOMOu CneuaNbHoro pa3beMa.

BCTPOEHHbI JYXOBOJUKAΦ

YcTaHOBnTe Ha MeTo 3aUHTyIO MetaJIINueCKyIO 3aRnyuKy Nocne 3JeKtpnueckoro NOdKnHoueHnBaPouHoi NaHei. B cNyuae demoHTaxa BapOuHoi NaHei Heo6xOIMMo yCtAHOBnTb Ha CBOe MeTo KpacHyO 3aRnyuKy Ha KpacHbI pa3beM.

POncoeHHeHne ceTeBOro shHypa

1. OTkpoIe 3axmHyo Kopo6ky, Haxab npn NOMOUI OTBepTKn Ha BbICTynb C 60KOB KpbIuKN: NotAHnte n OTkpoIe KpbIuKy (CM. pucyHOK).
   2.OTBnHTTe BnHT KaBeJbHOrO CaJbHnKa N BbIHbTe erO, NOdEe OBepTKoI (CM.CxEmy).
   3.OTBnHTNe BnHTbI KOHTaKToB L-N- n 3aTeM npHKpeNITe npoBoa nO rOIOBkAMn BnHTOB, co6JIIOdaA CBeTOByIO MapKnPOBky CnHn (N) KopuHeBbI (L) XKeIto- 3eHeh (）

3aKMMH a Kopo6ka pacuHTaHa Ha TpexΦa3H 3JIeKTpONrTaHne 400 B (cm. pucyHKu Hxke)

400B 3N~H05RR-F
5x2.5 CEI-UNEL 35363

Ecnn 3neKtpoPobOka mMeet dpyrn eXapakTepncTkn (cm. pucyHKU Hxke), nJr3neKtpnueckoro noDCoeDnHeHn HCNoJIb3ynte coeDnHTeJbHbIe nepembluKn, pacnoIOKeHHbIe BHyTpN Kopo6Kn P.

230B 1N-H07RN-F 3x4 CEI-UNEL 35364

400B 2N~H05RR-F
4x2.5 CEI-UNEL 35363
2

1. 3akpenTe ceTeBoH uHyp B cneuaJbHOM Ka6eJbHom caJbHKe.
2. 3aKpOHTe KpbIuKy 3aXIMHOn Kopo6Kn.

IopcoeHHeHne ceTeBOrO uHypa K cetu 3JeKTPoNTaHH

YcTaHOBnTe Ha CeTeBoi ShHyp HopMaJIIN3OBAHHyU
WTeNceIbHyIO BUNKy, pacuTaNHHyIO Ha Harpy3KY,
yKa3aHNyIO Ha nacnopTHo Ta6nueKe (cm. c60ky).
B Cny4ae nprMoro NODKnIOHeHry K CetNI 3NEkTpOniTahH
MeKdy KyxOHNo IITTOH IN CeTbHO HeOBxOJIMMO YCTaHOBnTB MyTINIOJARpHBm BBIKIOHaTeNB C MInHMmaIbHBIM
pacCToRHaEM MeKdy KOHTAKTM 3 MM, paCHTuHaHbHa
DaHHyIO HArpy3KY IN COOTBeTCTByIOUzMI DeIcTBIOUzIM
HopMaTINBaAM (BbIKIOHaTEb HE DOtKeH pa3MbkaTb PPOBOd
3a3emNeHry). CTeBOI WUnP DoJKeH 6bIb paCIOJIOKe TAKIM
O6pa3OM, Yo6bln B ODNHO Toke erO TempePaTyPe He
IpeBbIaJa TEmpePaTyPiomeJeHry BoJee cH Ma 50°C.

13neKtpoMOHTep Hecet OTBeTCTBeeHHocTb 3a npabnIbHoe NOkKnOueHne N3dEnN K 3JeKtpuuecko ceTN n 3a co6JIOeHne npabUN 6e3OnacHOCTN.

Ipepe nOcOeHHeHem cTeBOro uHypa npOBepbTe cneDyUooee:

• p03eTka DOnJXHa 6bItb CoeUHeHa C 3a3eMJIeHHeM COOTBETCTBOBaTb HOpMaTnBAM;
  ceTeBa p03eTka DOnKHa 6bItb paccuTaHa Ha MaKcImaJIbHyIO NOTpe6JIReMyIO MOUHOCt bN3dEINr, yKa3aHHyIO Ha nacnopTHo Ta6nue (CM. Hxke);
• HanpЯЖeHne cETn 3JIeKTpONITAHN DAJIXHO HaxoINTBcB B ppeJenAX 3HaueHnY, yKa3aHHbIX Ha nacnopTHo T6JIuYe (CM. HuKe);
• ceTeBa p03eTKa DOJxKHa 6bITb COBMeCTMa co WTeNCeBHO BnIKoN3dEINr. B npOTuBHOM Cnyae 3aMeHInTe p03eTKy INN BnIKy; He NcNoJIb3yIte YdINHInTeIN NIN TpOHNKn.

！H3dJIeNnEObITb yCTaHOBNEHO TaKMMo6pa3OM, 4TO6bl 3JIeKTPnueCKn npoBOJ n ceTeBa r po3eTKa 6blIJIeKO DOCTyINHbl.

13neKtpueckn npoBOD n3deJnH He doJIKeH 6bITb coHT NnCkAeT.

!PeryIpaHIO npOBepaHTe coCToHHe ceTeBOrO shypa n B cnyae Heo6xoDmocTn NopyuHTe ero 3aMeHy TOJbKO yNoJIHOMOeHHbIM TexHnKam (CM. TexHuueckoe o6cIyXuehaHe).

！Pon3BOUnteH He Hecet OTBeTCTBHeHHocTH3a nocneCTBnHecO6JIoDeHnIpeueHCnEHHbIX Tpe6oBaHn.

PpOrpaMmbI npuroTOBJIeHnA

！IINBcex nporpaMM MoKHO 3aDaTb TemnepaTy pO T 60^ do MAKC Kpome:

• PUNJB (peKoMeHnyeTc yCTaHaBJIbBaTb ToJIbKO MAKC. TempepaTyPy);
• IOДРУМЯНВАHNE (pekOMeHnyeTcH npeBbIwA Tb TemnepaTpy 200°C).

*IMeetcTOnbkoBHeKoToPbIXMoJeJx

3JIeKtpoHbI TaMep npOprpaMMnpoBaHna BbIneUKN

RS

PporpamMnpoBaHne yacOB

！YacbIMoKHOHaCTpOHTbKaK pN BByIKIOueHHOM DxyXOBOMUkaFy，TakN pN BkIIOueHHOM，pN yCIOBNN UTO He 6blIO 3aDaHO BpeMg OKOHuaHnBBineKn. Pocne NODKIOueHnK 3NEKTPuuecko CeTNnn NocJe OTKIOueHn 3NeKTPo3HePmH，HaHET MMRtB NKoHa n YteBipe LcΦpbl Ha DCNPIEE.

1. HaxmTe HeckoBko pa3 KhoNky u ydepXnBaIte Do Tex nop, noka Ha DNICPJIEE He 3aMnraeT NKOHa N YeTbipe LcΦpOBbIX 3HaueHn;
2. npn nomoun " + " n -" perynpyeTcBpeM; npn nx ydepknBaHmU LnpbMeHrOTo 6bictpee, yTo o6neryaeYctaHOky.
3. NOdoKdnte 10 cek. HnH aXmTe cHOBa Ha KhoNky DnIa fNKcnpoBaHn yCTaHOBKn.

NPOOJXHTeJIbHOCTN BbINEyKN

1. Haxmnte HeckoIbko pa3 KhoNky Do Tex nop, noka Ha INCPIEe He 3aMuraet CnMBoN u TpuuPpOBBle 3HaueHnra;
2. npn nomoosn " + " n -" perynnpyetcBpeM; npn

nx ydepknBaHm ncpbMeHaOTc8 bictpee,TO 06nneryaeT yctaHOBky.

1. NOdoKdnte 10 cek. Hn HaKMnTe cHOBa Ha KhoNky DnA qKcnpoBaHn yCTaHOBKn.
2. no nCTeHm 3aHaHHoro BpeMeHn Ha dncnnee noka3bBaetc Hndncb END (KOHELI), n dyxoboi kkaΦ 3aBepwaet npiroTOBHeHne co 3BykoBbIM cnHaJOM. Ira ee octahOBKn HaxMnte JIO6yIO KHOKNK.
   -Примет:В9.00 Bbl nporpamMpyeTe Bblneky,Ha KOTopyIO nOtpe6yEtc1 yac 15 MmHyT. PnroTOBJIeHHe ABtOMaTHueckn 3aBepWNTcR B 10:15.

Iopraok nporpaMMnpOBaHn OOKHaHN BbIneKN

！3anporpammmipoBaTbOKOHuaHne BblneKMOxHO TOJbKO NocHe HAcTpOuKN ee IpoDoJXknteJbHOCTN.

1. BbINOHNHe ONEpaCn CnyHKTa 1 no nyHKT 3, B KOtOpbIX ONNCbIAeTc npraDOK nporpamMnpoBaHn npoDoJknteHbHocTu;
2. 3aTeM HaxMMTe HeCKoJIbKO pa3 KHOJky Do Tex nop, Noka Ha INCPIEe He 3aMURAeT CmBOJn N YeTbIpe UcΦPOBbIX 3HaueHn;
3. npn nOmoi "+" n -" perynnpyTeCBApeMOKOHuaHnroTOBKn; npn nx ydepXnBaHNuΦpblMeHApTc6bIcTpee, yTo oBnerVaet yCTaHOBky.
4. NOOxKdTe 10 cek. Hn HaKMnTe cHOBa Ha KhoNky DnA qKcnpoBaHn yTaHoBKn.
5. no nCTeHn 3aHaHHoro BpeMeHn Ha dncnnee noka3bBaetc Hndncb END (KOHEL), u dyxoboi WkaΦ 3aBepwaet npiroTOBHeHne co 3ByKOBbIM cHrHaIOM.ДЯ ee ocTaHOBKn HaxMnte IIO6yIO KHOIIky.

BknHueHHbI cMBOJbI nNkKa3bIBaHO, YTO npOn3BeDeHo npOrpAMMPOBaHHe. Ha INCJIEE nonepemEHNOka3bIBaEtc BpeMa OKOHaHn I npOdoKNTeJIbHOCTb BblneKn.

-Примет:В9:00 Bby nporpaMMpyeTe npoJOnKInTeIbHocTb 1 yac.B 12:30 nlaHpyeTc3aBepWHTb cIKn.ПрорpaMa aBTOMaTnHeckn 3aynyckaetcB 11:30.

OTMeHa IporpaMmpoBaHn

Popraok OTMeHb3aIporpamMPOBaHHoro 3HaueHnA:

HaKIMaTb Ha KHOKy Do Tex nop, noka Ha dncJIee He HauHET MraTb CmBOJ yCTaHOBKN, KOToPbI HxKHO OTMeHNrB, nUΦpbl. HaKIMaTb Ha KHOky "-" Do Tex nop, noka Ha dncJIee He noBaTcra UΦpbl 00:00.
- ODHOBpeMeHHo HaKaTb N yDepeKuBaTb KHOPIKn " ^+ "N -" TAKIM 6pa30M OTmeHryOTc Bce 3aDaHHbIe ycTaHOBKn, BKIOUyAra TaMep.

！N3dJIne cnpoekTnpoBaHO nI3roToBnEHO B COOTBeTCTBm C MExdyHapOHyBMHN HOpMaTNBaMn IIO 6e3OnacHocTn. Heo6xoIMMo BHMaTeJbHo npouHTaTb NaactOraUe npdeynpeKDeHnA, CoCTaBNeHHbIe BcJIax BaWei 6e3OnacHocTn.

06uhe npabnla 6e3onacnoctn

JaHHe n3dJeIne npedHa3HaayaeTc JnHepnoeccnOHaIbHOro IcNoIb30BaHnB DOMaHnxycIOBnX.
3anpeaaetc yctahabnBaTb n3JeIne Ha yuNue, daKe noi Habecom, TAK KaK Bo3eIeCTBne Ha Hero Doxknd np03blraBnEeTc4ype3BbUaHNo onachbIM.
Дляпелемшенииндениьсегдаберпесьзсецальные руки,pacnoonoхнысбokовduyxoboroшkaф.
He npikacatbcK n3deJIOBnAkhbIMn pykam, 6ocNKOMnnCmOKpbIMnHoramn.
-3dJIHe npEHa3HauYeHO IINpIroTOBJeHnI HsBbIX PPOyKTOB,MOXeT6bITbHCNoJIb3OBAHO TObKO B3PocJIbIMI NlUaMn B COOTBeTCTBmC INCTpyKUnA M, pNIBeDEHHbIMN B DaHHOM TexHueCKOM pykoBoDcTBe.JIIObe OpyRo ero HCNoJIb3OBAHne (HaNPmep: OTOnJIeHnE NOMEeHnE) CHTaETcRe HeHaNDexKaUIM N cIeJIOBaTeJIbHO ONaCHbIM.PoIN3BOInTeJIb He HeCet OTBETCTBeHHOCTH 3a BO3MOxHbI yUep6,Bb13BaHHbI HeHaNDexKaUIM, HEPpaBnIbHBiM IN Hepa3ymHbIM NCNOJIb3OBAHnEM N3dJIInr.
Bnpocecce 3Kcnnyataunn H3deJnHaRpeBaTeIbHbIe 3JeMeHTb I HeKOToPbIe YacTn DBepuI dyXOBKn NOBepraIoTc CnIbHOMy HarpeBy. Heo6xOIMO npoRBJIbTb OCTpOxHOCTb BO n36ExKaHne KOHTaKTOBc 3TmMn Yactamn H he pa3peuTaTb DeTm npn6JInxKaTbc K dyXOBKe.
-ИЗбетаиткakаняпpoBOIOB элКТрОПТАнHЯДpyrnx6bITOBbIX элКТрОПРБОВ K rOрЯчМЧаСТМ ДухОВOrOшkaфa.
He 3akpbBaTe BeHTnJIaIOHbIe peWetKn IOBepCTNa paccenBaHnTena.
- Bepntecb 3a pyky DBepuB B UeHTpe: C 60KOB OHa MOKeT 6blrTopyue.
BcerdaHaedeBaTe KxOHHbIe BapeKKn, KOrDa cTaNTE nnBbIHMaete 6nOda n3 dYXOBKn.
-He noKpbBaIe IHO duXOBoro uKaΦaΦoJbRoI.
-He xpaHnTe B dyXOBom uKaΦy Bo3ropaEmbIX npedMeTOB. npi CnyaHOM BKIOueHm N3deJIINr TaKne MaTePnAbI MOrY T 3arOpetbcra.
Bcerda npoBepaIte, yTo6bl pyKoRTkn HaxOdiNlncb B noIOKeHH " 一 ^ 一 / 一 ^ 一 , KOrda n3DeJIne He NcNoJIb3yETcA.
- He TaHnTe 3a CeTeBOu WHyp IJN OTOCoEInHeHHa BUNIK N3JeINr H3 CeTeBOu PO3eTKU, BO3bMUTecb 3a BUNKy pyKoI.
- NpeJn Hauanom YncTkN nn TexHueckoro 06cnykBaHnur n3dennBcerDa BbHmMaTe WTeNCeIbHyU Bnky n3 CeTeBoi po3eTKn.
Bcnyae HncnpabHocn KaTeOpnueckn 3anpeaaeTc0TKpbIBaTB BHYtpEHnE MexAHN3MbI N3dennC cJeIbIOx camoCTOReIbHorO peMOHTa.ObpaauTecb LcHtp

TexnueckoorOobnykubHnA (m.TexobnyxueaHue).

He cTabe Te TaKeIbe IpeMeTbHa OTKpbTyIO DBepuy LyXOBORO uKaΦa
CTeKIOkepAMuecka BapOHaY naHeJIy yCTOnuBa K MExAHueCKIM yIapAM,TeM He MeHee OHa MoKeT TpeCHyTB (NJIN DaJKe pa36ntbC) npU yIape oCtpBIM npEMeTOM NnN HcTpymeHTOM. B 3tOM cNyae He3aMeJInTeJIbHO OTCoeDHNHTe N3dJeNte OTCeTN 3JIekTPoPNTAHn I o6paITneCB B LcHtp texHnueckoro 06cnykuaHna.
- TomHHTe, yTo TemnepaTpa KOHΦopOK OCTaETcOueHb BbICOKoB TteEHe TpuUcaTN MmHyT NocJe Hx BbIKJIOUeHn.
-ДеркиTe Ha 6e3oNaChOMpacToHmOT BapOuHoI naHEnIIO6bIe npEdMeTbI, KOToPbIE MOryT pacNnABnTbcR, HApnpMep, PnAcTMacca, AnOMnHm NnN3dEInrN3 caxapa.ObpaaJte ocO6oe BHMaHne Ha yNaKOBouHbIe MaTePnaJIbI, NOIN3TNHeHOByIO nNn aIIOMHnEByIO INeHKy:ecnOCTaBnTb 3TN MaTePnaJIbI Ha eue ropayen nn TepNo NobepxHoCTN, OH MoTy CepBe3HO IOBepDnTb BapOuyIO NaHeJIb.

YTNn3aun

• YHnTuKeHne yNaKOBouhBix MaTePnaIaOB: co6nIOdaIte MeCTHbIe HopMaTnBbI NO yTNJIu3aUu yNaKOBouhBix MaTePnaIaOB.
  CorgnacHo EbponeckoI NipeKtne 2002/96/CE KacaTeNbHO yTNIN3aunn 3JIeKtpOnHbIX n 3JIeKTPnuecknx 3JIeKTPonpnpOboB 3JIeKTPonpnp6Opbl He DOJIKHb BbIbpaCbBaTbc BMeCTe C 06bUHbIM rOpOcKIM Mycopom. BbIbeHeHHbIe n3 CTPO np6Opbl DOJIKHbI CObnapTbc OTDJeNBHO IIN OITMMN3aunn IN x yTNIN3aunn IN pekyepaunn cocTabnaIOx IN MaTePnAIOB, a TAKKe IJIA 6e3ONaCHOCTN OKpykaIOseI cpebl 3DopOBb. CmBOJ 3auepkHytaR MycOPHa J KOp3NHKA, IMeOuINcRA Ha BCex pnp6opax, CnykNT HAnOMnHAHNEM 0b IN OTDeJBHOyTNIN3aunn. 3a 6Oone NoDPo6HO IHΦOpMaUNe O npabINbHOyTNIN3aunn 5bITOBbX 3JIeKTPonpnpOboB NOlb3OBaTeJI MoYr To6paTnTBcRI B CNEuaNbHyIO roCydapCTBeHHyO opraHn3aunIO INB Maar3HN.

3KoHOMn 3JekTpo3Heprn n OxpaHa OKpykaOuien Cpebl

• EcIn Bbl 6ydeTe NoJIb3OBAbTcBd yXOBbIM WkaΦom BeuepOM Ndo paHrero Ytpa, 3To NOMoKET COKpaNTb Harpy3Ky Notpe6JIeHnI 3JIeKTPo3HeprnN 3JIeKTPocTaHcIyMn.
• PekomeHnyetcBcerda roTOBtB BpeKmme TPNb c 3akpyTo nDBepuee: 3TO Heo6xOdmo dna 3HaHTeJbHOn 3KOHOOMN 3NeKtpo3Heprn (npMepHo 10%), a TaKke IyUnx pe3yIbTaTob npiroTOBneHn.
  CoepKTe yIIOHTHeHn B NcnpabHOM nYCTOM COCTOHN, npOBepaIte, YTObI OHN IIOTHo pPJIeRaN K DBepe H He npOnyckaIy Yeuek TeIIa.

OTKIIoueHne 3JeKTpOHTaHHa

Ipeed hauanom kakoi-Jno opepaunn no 06cnykuaHIO nnu YNCTKe oTcoeHNHTe N3deJIne OT cTeIN 3JIeKTPoNTAHn.

UncTka n3dennia

！He nCnoB3yIe npoBbIe YnCTTne arpeTaI IN arpeTaI NOB BbICOKIM DaBHeHEm DnA YnCTKn N3dEINr.
HapyKbIe 3MaJIupOBaHHbIe 3JIeMeHTbI ININ DeTaJIN n3 HEPKaBeOuIe CTAJIN, a TAKKe pe3NHOBbIE yNJIOTHEHn MOXHO IpOTnPaTb r6KOJ, CMoUeHHoB B TeJIOB BoDE uIN B PAcTBOpE HeITpAIBHOro MOIOUero cpeCTBa. JIny UdaJeHn OOCo TPyDhIX PATeH McNOJb3yIte CneuHaNbHbIe YICTaUHe cpeCTBa, IMeOuIeCeB IpoDaJke. IocNe YIcTKn peKOMeHN dyETc TuaTeNbHO yJaNTb OCtTKM MOIOUero cpeCTBa BNaxHo TprAnKo IN BbICyWHTb dYxOBky. He NcNoJIb3yIte abpa3NHBIe npoUKN INN Koppo3NHBle BeIecTBA.
CneDyET npOn3BOOHTB BHYtpEnHHIO YnCTky DxyoBOrO uKaΦa NocNe KaKDoRo erO nNoJIb3OBaHnR, He DoXuJaCb erO nNoHoro oxJaXeHnR. nCnoJb3yIte TepnyHO BDOY N MoIoUee cpeIcTB, ONoIOChnTe I npOTpITe MmKoTprnKoN. N36eraIte nCnoJb3OBaHnA 6pa3nHBbIX CpeIcTB.
CbeMHbIe DeTaNMOKHOJIENKO BbIMbITb KAK JIO6yIDpyryIO Nocdy, TaKe B NocyDoMoEchOn MaunHe.

！Hikorda He nCnoJb3yIe npoBbIe uCCTaIe arperaTbI nn arperaTbI NOd BbICOKM daBHeHem dJa YnCTKn N3JeNIA.

YnctKa DBepubl

IJa YnCTKn CTeKna DBePbIy NcNoJIb3yJTe
Hea6pa3NBHbIe ry6kn N UcTcTbA, 3aTEM
BbITpInTe Hacyxo MAnKo TprkKn. He NcNoJIb3yJTe
TBepDbe a6pa3NBHbIe MaTePnAbIuN OcTpBiE
MeTaIIINueckne CKepe6Kn, KOToPbIe MoYr NOApanaTb
NOBepXHOCTb N pa36NtB CTeKIO.
IJa 6Oone TuaTeIbHOu NcCTKn MOxHO CHrTb DBePcy
dyXOBKn.

1. NOJHOCtBIO OTKpOHTe DBepy DxyOBKn (CM.CXEmy); 2. npn NOMOUI OTBepTKN NODHIMNTe N NOBepHNTe

HnHa DByx WapHnpax (CM. cxeMy);

3.Bo3bMntecb 3a DBepy pyKaMM C DByX CTOpOH, PnabH0 3akpoTte ee, Ho He NOnHOCTbIO. 3aTeM NotAHTE DBepy Ha Ce6ra, ChImar ee c neTeB (CM.Cxemy).Dna YcTaHOBKn DBePbI Ha MeCTo BblONHHTe BblweOncaHHbIe OepaUM B o6paTHOM

nopraKe.

PpOBepka ynnotHeHn

Perynnapno npOBepnTe cocToHne yNIOtheHnBOKpyr DBepuI dyXoBOro uKapa.B cnlyae NobpejdeHnryNIOtheHnO6paauTecb B6nnkaiuui LHeTp TexHuueckoro ObcnyKnbAHnCm.TexHuueckoe 06cnyKueaHue).He peKomeHdyETcnoJIb3oBaTbcra dYxOBko n NobpejdeHHbIM yNJIOtheHnEM.

3aMeHa JIaMNoUcK

3aMeHa NaMnOuKN B duXOBOM uKaΦy:

1.OTBnHTnTe
CTeKnHHyo KpbIiKy nlafoHa JAmNoUkN;
2. BbIKpyTnTe NaMNoKy n 3aMeHnTe ee Ha HOByo TaKOrO Je Tnna: MoUHocTb 25 BT, pe3b6a E 14.
3. BoccaTaHOBnte KpbIkwy Ha MeCTO (CM

cxemy).

CepBnchoe 06cnyxNbaHne

！HnKOrda He o6paaTecb K HeynoJHMOeHHbIM TexHnKaM.

Pn 6paueHm B LcHTp CepBnchoro 06cnjNBAHH Heo6xoDnMo coo6uNTb:

TIN HENCnpaBHOCTN;
- Moelb u3denna (Mo.)
- HomepTex.nacnopTa (cepHbI Ng)

3Tn daHHbIe Bbl HaJeTe Ha nacnopTHoN Ta6mNKe, pacnoJIOXKeHHoH Ha 3dEJIIN.
