USER MANUAL HOD 7X86 S HOOVER

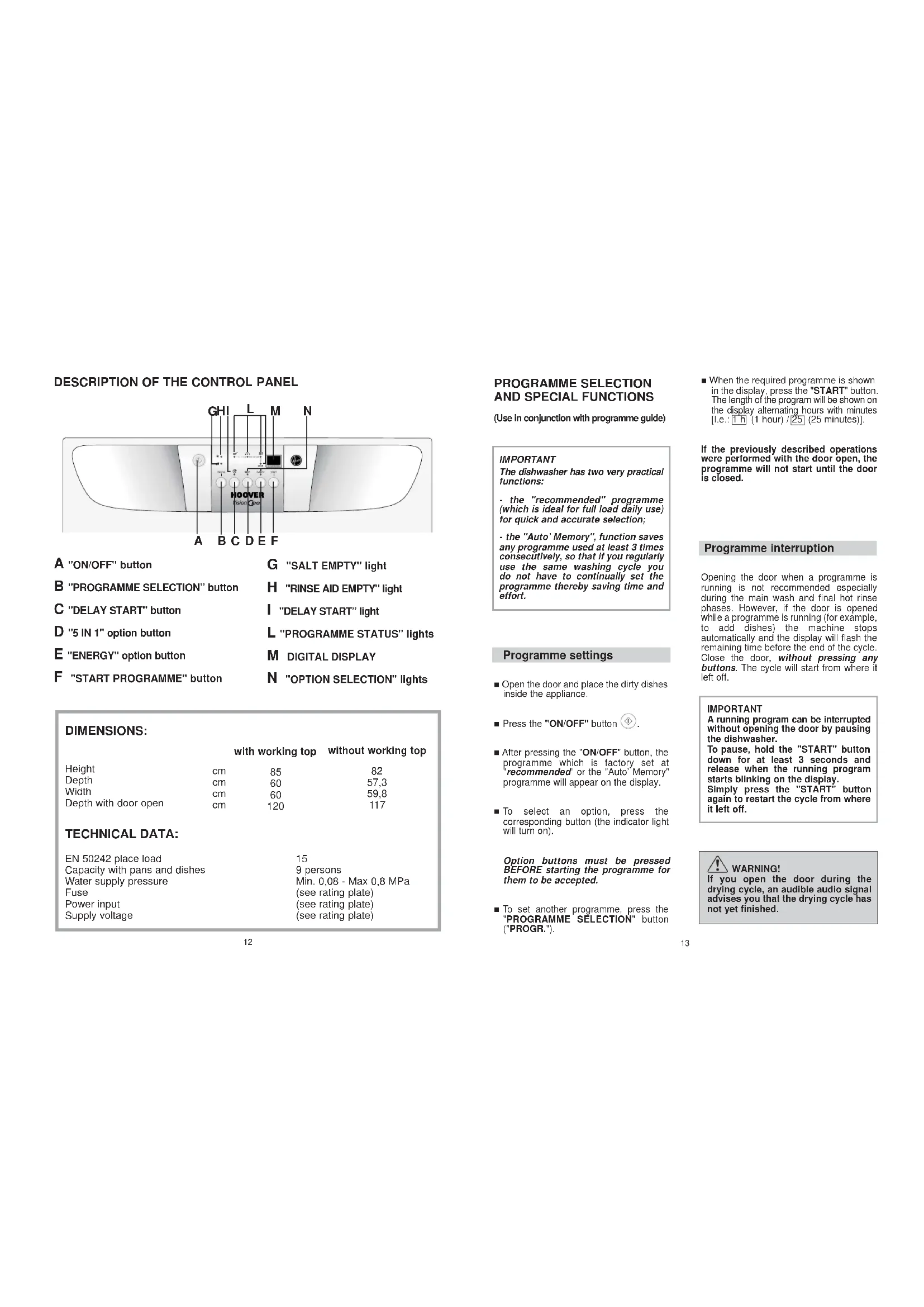

(Use in conjunction with programme guide) IMPORTANT The dishwasher has two very practical functions: - the "recommended" programme (which is ideal for full load daily use) for quick and accurate selection; - the "Auto’ Memory", function saves any programme used at least 3 times consecutively, so that if you regularly use the same washing cycle you do not have to continually set the programme thereby saving time and effort. Programme settings ■ Open the door and place the dirty dishes inside the appliance. ■ Press the "ON/OFF" button . ■ After pressing the "ON/OFF" button, the programme which is factory set at "recommended” or the "Auto’ Memory" programme will appear on the display. ■ To select an option, press the corresponding button (the indicator light will turn on). Option buttons must be pressed BEFORE starting the programme for them to be accepted. ■ To set another programme, press the "PROGRAMME SELECTION" button ("PROGR."). ■ When the required programme is shown in the display, press the "START" button. The length of the program will be shown on the display alternating hours with minutes [I.e.: 1 h (1 hour) / 25 (25 minutes)]. If the previously described operations were performed with the door open, the programme will not start until the door is closed. Programme interruption Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door, without pressing any buttons. The cycle will start from where it left off. IMPORTANT A running program can be interrupted without opening the door by pausing the dishwasher. To pause, hold the "START" button down for at least 3 seconds and release when the running program starts blinking on the display. Simply press the "START" button again to restart the cycle from where it left off. WARNING! If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished. ABCD EF M N

HI G14 Changing a running programme Proceed as follows to change or cancel a running programme: ■ Hold the "START" button down for at least 5 seconds (the running programme will be cancelled). ■ At this point a new programme can be set. WARNING! Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser. If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off. Programme operations When a programme is running, the time until the end of the cycle will be displayed and the 4 “PROGRAM STATUS” indicator lights: = "WASH" = "RINSE" = "DRY" STOP = "END" will light singularly and in sequence to indicate the current phase Programme end A5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended. The programme end indicator light will light up and the display will go blank. Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for a new cycle. Option buttons IMPORTANT All options MUST be turned on or off, BEFORE pressing “START” button. “5 IN 1” button This option optimises the use of “3 in 1”/ “4 in 1”/“5 in 1” combined detergents. By pressing this button, the selected washing programme is modified to get the best performance from combined detergents; furthermore, the salt and rinse aid shortage lights are de-activated. WARNING! Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again. IMPORTANT When this option is selected, the "RAPID" cycle is 10 minutes longer. "ENERGY" button The "ENERGY" button provides over 20% time and energy savings by reducing the final water heating and drying times during the last rinse cycle. This option is recommended for light soil washes, and for when the dishes are not required perfectly dry straight away. If you want to get better drying, we advise to leave the dishwasher door slightly ajar at the end of the cycle, to allow for a natural circulation of air inside the dishwasher.

"DELAY START" button Dishwasher start time can be set with this button, delaying start from 1 to 23 hours. Proceed as follows to set a delayed start: ■ Press the "DELAY START" button ("00" will appear on the display). ■ Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23). The “DELAY START” indicator light will turn on. ■ To start the countdown press the "START" button (the “DELAY START” indicator light will start to flash). At the end of the countdown, the programme will automatically start (the “DELAY START” indicator light will turn off). If you wish to see which programme has been selected, press the "PROGRAMME SELECTION" button. Proceed as follows to cancel a delayed start: ■ Hold the "START" button down for at least 5 seconds. ■ At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section. Alarm mute for the PROGRAMME END The alarm for the programme end may be muted as follows: ■ With the dishwasher off, hold down the "PROGRAMME SELECTION" button for few seconds while simultaneously pushing the "ON/OFF" button. ■ "b1" will appear on the display to indicate that the alarm is on. ■ Press the "PROGRAMME SELECTION" button again ("b0" will appear on the display to indicate that the alarm is off). ■ Wait for the alarm to sound to indicate that the settings were saved. ■ To turn the alarm on again, follow the same procedure ("b1" will appear on the display to indicate that the alarm is on). IMPORTANT This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur. WARNING! To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.AUTOMATIC FAULT SIGNALS

Turn off the dishwasher, open the inlet hose and reset the cycle. Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. Contact Customer Service. Contact Customer Service. Clean the filter plate. If the problem persists, contact Customer Service.

FAULTS CAUSE SOLUTION

E2 appears on the display and the alarm sounds. E3 appears on the display and the alarm sounds. E4 appears on the display and the alarm sounds. E5 appears on the display and the alarm sounds. E6 appears on the display and the alarm sounds. E8 or Ei appear on the display and the alarm sounds. No water (inlet hose closed). The machine cannot drain water. Water leak Electronic temperature control fault. Electronic control fault. The water heating element is not working correctly or the filter plate is clogged. The dishwasher is able to signal a series of faults in the display.

The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose. In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine. This fault is shown by a red sector on the window «A». Would this occur, please refer to your Service Agent. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent. WATERCONTROL-SYSTEM Red button blocked valve indicator Safety antitwist device (press and twist to remove the washer) A19 65°C

Programme Description PROGRAMME GUIDE (“RECOMMENDED” PROGRAMME)Once a day - for normal soiled pans andany other items that have been left allday for washing. Once a day - for heavily soiled pans andany other items that have been left allday for washing.Suitable for heavily soiled items that areto be washed straight after a meal (Max8 place load).- WASHING CLASS A-Energy Saving Programme suitable fornormal soiled items. Using detergentswith enzyme.Programme standardised to EN50242.Suitable for delicate crockery andglassware. Also for less soiled itemsexcluding pans.Quick wash for dishes which are to bewashed immediately after the meal.Wash load of 4/6 persons.Short cold pre-wash for items that arestored in the dishwasher until you areready to wash a full load. YES N/A N/A

YES YES YES YES YES YES YES YES*The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users. Regulate the setting of your water softener unit according to the degree of hardness of your water as follows:

1. Keep the "DELAY START" button

pressed in and at the same time press the "ON/OFF" button . The factory setting "d4" will appear on the display.

2. To change the setting, press the

"DELAY START" button. Each time you press that button the setting will increase by one level. When you have reached "d7", the display will go back to "d1".

3. When the required setting appears on

the display, wait for an audible signal to confirm that the new setting has been stored in memory.

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company. Regulating the water softener with electronic programmer The water softener can treat water with a hardness level of up to 90°fH (French grading) or 50°dH (German grading) through 8 settings. The settings are listed in the table below: Level

YES YES YES YES YES YES YES Water softener setting
