USER MANUAL HI 6B2S3PSTA80 HOOVER

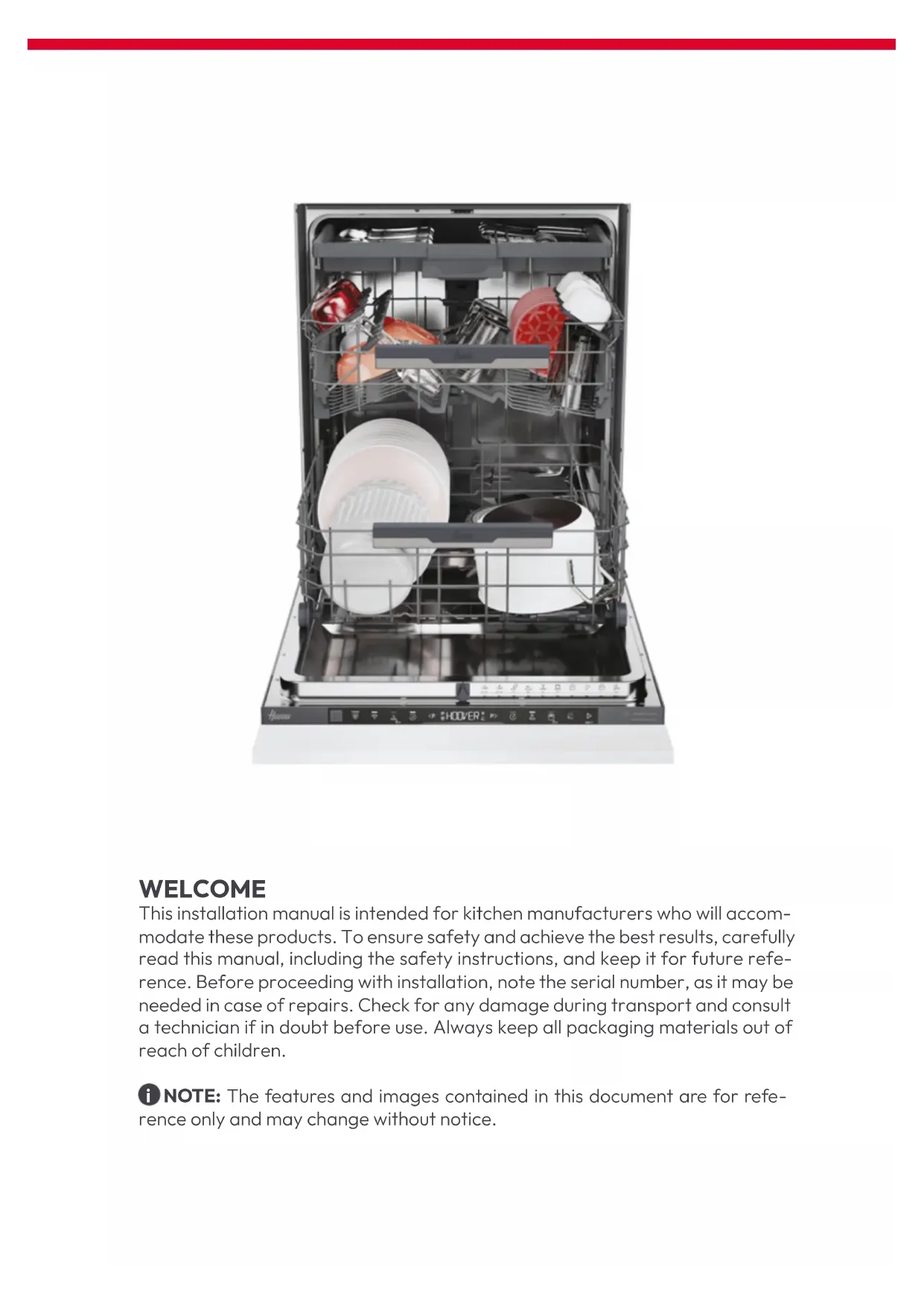

DISHWASHER Installation Manual DOUBLE MOVEMENT HINGESEN | IT | FR | DE | ES | GR | NL | PT | SK | PL | CZ | RO | HU SL | SR | LT | EE | LV | BG | HR | DA | FI | NO | SV | UA | TRWELCOME This installation manual is intended for kitchen manufacturers who will accom- modate these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future refe- rence. Before proceeding with installation, note the serial number, as it may be needed in case of repairs. Check for any damage during transport and consult a technician if in doubt before use. Always keep all packaging materials out of reach of children. NOTE: The features and images contained in this document are for refe- rence only and may change without notice.

7.1 Installation of the anti-steam strip

7.2 Height adjustment

7.3 Adjustment of the rear foot

7.4 Adjustment of the front feet height

7.6 Insertion into the built-in compartment

7.7 Fixing the front feet

7.8 Preparation of the panel

7.9 Installation of the panel

7.10 Fixing the machine to the kitchen

8 Connection to water and electrical network p.18 - 19

8.1 Connection diagram

9 Delivery to the user p.19 10 Dishwasher disassembly p.192 Safety warnings for installation Observe these directions before beginning the installation of the product. Your safety is very important to us. Please read this information carefully before using the product.

• The installation must be carried out by a qualied technician who must be awa- re of and comply with the laws in force in the country of installation and the manufacturer’s instructions;

• If manufacturer service is required to eliminate faults resulting from improper installation, such service is not covered by the x;

• Remove the packaging material before operating the appliance;

• After unpacking the product, check that it is not damaged and, in case of pro- blems, contact the service center before proceeding with installation and do not connect it to the power supply;

• A damaged product can cause a short circuit, electric shock, re hazard, and other dangers;

• Check the packaging for accessories or accompanying materials (envelopes with screws, documents, brochures, etc.) and, if so, remove and store them;

• Incorrect installation may cause harm or injury to people, animals or belongin-gs. The manufacturer cannot be held responsible for such harm or injury;

• Safe use is only guaranteed if installation has been carried out properly accor- ding to these instructions. In case of damage due to improper installation, the responsibility lies with the person who installed the product;

• During installation, the appliance must not be connected to the power supply;

• It is recommended to wear protective gloves during installation to avoid cut injuries;

• In case of incorrect installation, tampering with the device and improper con- nection, the validity of the product warranty will expire;

• Make sure that when the product’s power supply cable is completed, it is not accessible;

• After assembly, the power cord must not come into contact with moving parts of kitchen components (such as a drawer) and must not be exposed to mecha- nical stresses;

• When delivering the product to the end user, the technician must ensure that it has been installed correctly;

• Do not connect the product to the electrical network until the front panel has been fully installed. Otherwise, there may be an electrical hazard;

• Take care during transport, the product is heavy;

Where to install the dishwasher

• Install and use this product in a closed, covered, dry, and well-ventilated environment;

• Do not install the product in open environments exposed to atmospheric agents;

• Install the product near an electrical outlet;

• Use the product only when placed in a recessed compartment, otherwise you risk injury and burns;

• Do not install the dishwasher under a cooktop;

• Do not install the product near heat sources (radiators, stoves, etc.);

• Do not place the product on carpets or similar surfaces;

• Place the product on a clean, level, and stable surface.

• Before starting the installation, check all the dimensions of the built-in com- partment by comparing them with the instructions contained in this manual. Note that it is possible to align the door with the doors of other furniture, even if it exceeds the control panel in height;

• Make sure the installation area is stable and solid;

• Apply the protective lm, supplied in the installation kit, under the worktop and on surrounding furniture. This lm protects the furniture from humidity;

• Be careful when opening and closing the product;

• Incorrect installation can cause the product to tip over;

• The product must be level to function correctly, otherwise the door will not close properly, leading to the escape of hot steam.4

Front axonometric view of the product Front axonometric view with kitchen door Dishwasher dimensions Dimensions in mm

WARNING: if the kitchen panel weighs more than 9 kg contact customer

Back view Power supply Water inlet hose Water drain hose Dimensions in mm Side view Dishwasher dimensions6

link Tools provided with the product Required tools Step-by-step installation video Installation tools or by clicking this You can watch the product installation video by scanning the QR Code:7

WARNING: The minimum height of the dishwasher is 818 mm; in this case,

the distance between the kitchen door and the oor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the door-to-oor distance must also increase proportionally, up to a maximum between 170 and 200 mm. Built-in dimensions Axonometric view Dimensions in mm8

Apply the sticker band under the worktop and to the sides of the adjacent furniture; Steam band installation Instructions for dishwasher installation9

Height adjustment Rear foot adjustment Instructions for dishwasher installation Incline the dishwasher by raising the back about 10 cm. Adjust the rear foot height by operating from the front of the machine as indicated below.10

Front feet adjustment Tilt adjustment Instructions for dishwasher installation Level the dishwasher by the vertical and horizontal planes. Adjust the front feet directly. If necessary, lift the dishwasher slightly.11

Fixing the front feet Insertion into the built-in compartment Instructions for dishwasher installation Insert the dishwasher into the built-in compartment and check measurements and tolerances. After checking all measurements, permanently x the front feet to prevent them from loosening over time. This operation can also be done after installing the kitchen panel.12

Transfer the measurement onto the kitchen panel and locate the center;

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Apply the drilling template anfd follow the structions provided. Instructions for dishwasher installation13

Remove the drilling template and apply the accessories. Panel preparation Instructions for dishwasher installation

WARNING: Ensure screw heads don’t protrude from the panel’s rear surface,

especially if you install the handle.14

Fix the panel to the upper part of the dishwasher; Installation of the panel7.9

Aach the panel to the dishwasher;

Fix the panel to the lower part of the dishwasher; Instructions for dishwasher installation15

7.9 Installation of the panel

Open the dishwasher door while holding the lower part of the kitchen panel, then unscrew the lower screws;

Make sure the panel is fully inserted; x the kitchen panel to the dishwasher using the supplied screws. Instructions for dishwasher installation16

Fixing the machine to the kitchen

WARNING: Connect the dishwasher now to the water and

electrical network, following the instructions in chapter 8. Instructions for xing the dishwasher laterally to the adjacent cabinets. Instructions for dishwasher installation17

WARNING: If it is not possible to x the dishwa-

sher laterally, use the supplied brackets and x it to the worktop; pay aention if the laer is not made of wood. Instructions for dishwasher installation18 Column installation diagram

WARNING: Ensure that the water pressure in between 0.08 Mpa and 1 Mpa.

8 Drain water and electricity connection

Connection diagram Standard installation diagram19 Drain water and electricity connection Delivery to the user Dishwasher disassembly

Safety devices All dishwashers are equipped with an anti-overow safety device which, in the event that the water exceeds the normal level due to a malfunction, automatically blocks the water ow and/or drains the excess water. See the User Manual for more details. At the end of installation:

• Inform the user about essential functions;

• Inform the user about all aspects relevant to safe use and handling;

• Deliver accessories and instructions for use and assembly to the user to be kept with care. After installation is complete, remove the protective lm, tape, and all other packing materials and remove the supplied accessories from inside the product.

• Disconnect the product from the electrical and water supply;

• Unscrew the fastening screws;

• Slightly lift the product and pull it out completely;
