USER MANUAL DDY 062L3 HOOVER

Touche "DEPART DIFFERE"

H "PROGRAMME SELECTION" lights
"Salt Empty" light
L "PROGRAMME STATUS" lights/ "DELAY START" time lights
M "OPTION SELECTION" lights
N "ACTION PRO" lights
O Programme guide

G "ACTION PRO" button

DIMENSIONS
	With working top Without working top
Width x Height x Depth (cm) 60 x 85 x 60		59,8 x 82 x 57,3
Depth with door open (cm) 120		117
TECHNICAL DATA
EN 50242 place load		12
Capacity with pans and dishes		8 persons
Water supply pressure (MPa)		Min. 0,08 - Max. 0,8
Fuse / Power input / Supply voltage		See rating plate
CONSUMPTION (main programmes)*
Programme Energy (kWh) Water (L)
INTENSIVE	2,04	21
UNIVERSAL	1,50	15
ECO	1,01	12
RAPID 29'	0,73	9
Power consumption of the off-mode and of the left-on mode: 0,10 W / 0,60 W
*Values are measured in a laboratory according to European Standard EN 50242 (consumption may vary according to conditions of usage).

PROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide)

"ACTION PRO" button

ActionPRO

This button allows you to modify the wash intensity, according to how dirty your dishes are, by modifying the wash time and temperature.

Press the button to increase the intensity of wash cycle ( indicator light) or to reduce the intensity of wash, this also allows you to decrease the wash length time ( indicator light).

The combination of the button with the 4 main wash programmes enables to have 8 additional wash cycles (achieving a total of 12 programmes of washing).

IMPORTANT

When the dishwasher is switched on, the setting last used will be indicated.

Programme settings

• Open the door and place the dirty dishes inside the appliance.
  Press the "ON/OFF" button ① All the programme indicator lights will flash.
  Choose a programme by pressing the "PROGRAMME SELECTION" button.
  If you wish, press the "ACTION PRO" button.
  If you wish to select an option, press the corresponding button (the indicator light will turn on).

The option buttons can be selected or deselected WHITIN one minute of the programme commencing.

Press the "START" button (the selected programme indicator light will stop flashing and remain on.
- When the door is shut, after an audible signal has sounded, the programme will start automatically.

WITHIN one minute of the programme commencing, another programme can be selected, simply by pressing the "PROGRAMME SELECTION" button (it is also possible to change the "ACTION PRO" button setting).

Programme interruption

Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically.

Close the door, without pressing any buttons. The cycle will start from where it left off.

IMPORTANT

A running program can be interrupted without opening the door by pressing the "ON/OFF" button. In this case, simply press the "ON/OFF" button again to restart the cycle from where it left off.

WARNING!

If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.

Changing a running programme

Proceed as follows to change or cancel a running program:

Hold the "RESET" button down for at least 5 seconds.
The programme indicator lights will turn on and off individually and sequentially and some audible signals will sound.
The running programme will be cancelled and all the programme indicator lights will flash.
At this point a new programme can be set.

WARNING!

Before starting a new programme, you should check that there is still detergent in the dispenser.

If necessary, top up the dispenser.

Programme operations

When a programme is running the relevant indicator light will remain on and the 3 "PROGRAMME STATUS" indicator lights ("WASH", "DRY", and "END" stop) will light singularly and in sequence to indicate the current phase.

If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

Programme end

A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended.

The programme end indicator light will turn on, while all the others indicator lights will turn off.

Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for new cycle.

Option buttons

"SUPER ECO" button

This button provides an energy and time saving of 25% on average (according to the select cycle) reducing the wash water temperature and the drying time during the final rinse.

This programme is recommended for light soil washes, and for slightly wet dishes that are not fully dry, & improved drying results. We advise you to leave the door of the Dishwasher half-open at the end of the cycle, to allow for a natural circulation of air inside the dishwasher.

"All in 1" button

This option optimises the use of "ALL in 1" ("3 in 1"/4 in 1"/5 in 1", ecc.) combined detergents.

By pressing this button, the selected washing programme is modified to get best performance from combined detergents (furthermore, the salt aid shortage light is de-activated).

WARNING!

Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again.

IMPORTANT

When this option is selected, the "RAPID" cycle is 10 minutes longer.

"DELAY START" button

The dishwasher start time can be set with this button, delaying the start by 3, 6 or 9 hours.

Proceed as follows to set a delayed start:

Press the "DELAY START" button (each time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding time indicator light will illuminate).
To start the countdown, press the "START" button (the selected programme indicator light will come on, while the set time indicator light will start to flash).

If a 9 hour delay is set, countdown will be displayed by the 6h indicator light after 3 hours and the 3h indicator light after 6 hours.

At the end of the last 3 hours (at the end of countdown) the 3h indicator light will stop flashing and remain on to indicate the washing phase and the programme will start automatically.

If countdown has not ended, whereby the programme has not yet started, it is possible to change or cancel the delayed start and select another programme or to select/deselect the option button, proceeding as follows:

Hold the "RESET" button down for at least 5 seconds. The programme indicator lights will turn on and off individually and sequentially and some audible signals will sound.
The delayed start and the selected programme will be cancelled. The programme indicator lights will flash.
Press the "DELAY START" button to set another delayed start time (the corresponding indicator light will turn on).
A new programme can be set after a delayed time has been changed or cancelled or an option button can be selected or deselected.

Alarm mute for the PROGRAMME END

The alarm for the programme end may be muted as follows:

IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 15 seconds (during this time, 2 audible signals will sound).
3. Release the button when the second audible signal sounds (3 "PROGRAMME SELECTION" indicator lights will come on).
4. Press the same button again: the 3 indicator lights (which indicate that the alarm is activated) will start flashing (to indicate that the alarm is off).
5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To turn the alarm on again, follow the same procedure.

Memorization of the last programme used

The last programme used can be memorized by following the below:

IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 30 seconds (during this time, 3 audible signals will sound).
3. Release the button when the THIRD audible signal sounds (all the indicator lights will flash).
4. Press the same button again: the flashing indicator light (memorization off) will stop flashing and remain on (memorization on).
5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To disable the memorization, follow the same procedure.

Fault signals

If malfunctions or faults occur when a programme is running the indicator light that corresponds to the selected cycle will flash rapidly and the alarm sounds.

In this event, turn the dishwasher off by pressing the "ON/OFF" button.

After checking to make sure the water inlet hose tap is open, that the drain hose is not bent and that the siphon or filters are not clogged, set the selected programme again.

If the anomaly persists, contact Customer Service Department.

IMPORTANT

This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur.

WARNING!

To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

PROGRAMME GUIDE

Wash with prewash

For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine.

Programme			Description
P1		Hygiene+75°C	An antibacterial cycle, intended for washing and sterilising dishes (even heavily stained ones) babies' bottles etc.
P1		INTENSIVE75°C	Once a day - for heavily soiled pans and any other items that have been left all day for washing.
P1	CHEF	Chef65°C	Intended for rapid washing of very dirty dishes.
P2		Family70°C	Intended for everyday dishwashing. Two final rinses ensure a high level of hygiene and cleanliness.
P2		UNIVERSAL60°C	Once a day - for normal soiled pans and any other items that have been left all day for washing.
P2		Daily55°C	Fast cycle, for "normally" dirty dishes - intended for frequent washes and normal loads.
P3		ECO plus55°C	A medium temperature programme, intended for washing pans and dishes that are "normally" dirty, using detergents which contain enzymes.
P3	eco	ECO45°C	Programme for normally soiled tableware (the most efficient in terms of its combined energy and water consumption for that type of tableware). Programme standardised to EN 50242.
P3	Z	Cristal45°C	Suitable for delicate crockery and glassware. Also for less soiled items excluding pans.
P4	A wash59°	A Wash 59'65°C	Suitable for heavily soiled items that are to be washed straight after a meal (Max 8 place load). - WASHING CLASS A-
P4	R 29°	RAPID 29'50°C	Quick wash for dishes which are to be washed immediately after the meal. Wash load of 4/6 persons.
P4	5°	Pre-wash	Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.

Check list

Programme contents

Avaragedurationin minutes

Special functionbuttonsavailable

Detergent for soaking(Prewash)

Detergent for washing

Clean filter

Check rinse aiddispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

First cold rinse

Second cold rinse

Hot rinse with rinse aid

With cold water (15°C)-Tolerance ± 10%-

"DELAY START" button

"SUPER ECO" button

"All in 1" button

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

yes

YES

YES

YES

YES

YES

YES

WATER SOFTENER UNIT

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company.

Regulating the water softener

The softener unit can treat water with a hardness of up to 90^ (French grading) or 50^ (German grading) through 6 different settings.

The table below lists different degrees of water hardness with the corresponding setting for the softener unit.

Level	Water hardness		Use of regenerating salt	Water softener setting
	°dH (French grading)	°dH (German grading)
0	0-5	0-3	NO	No indicator lights
1	6-15	4-9	YES	Indicator light 1
2	16-30	10-16	YES	Indicator lights 1,2
*3	31-45	17-25	YES	Indicator lights 1,2,3
4	46-60	26-33	YES	Indicator lights 1,2,3,4
5	61-90	34-50	YES	Indicator lights 1,2,3,4 flashing

• The water softener unit is set in the factory at level 3, as this is suitable for the majority of users.

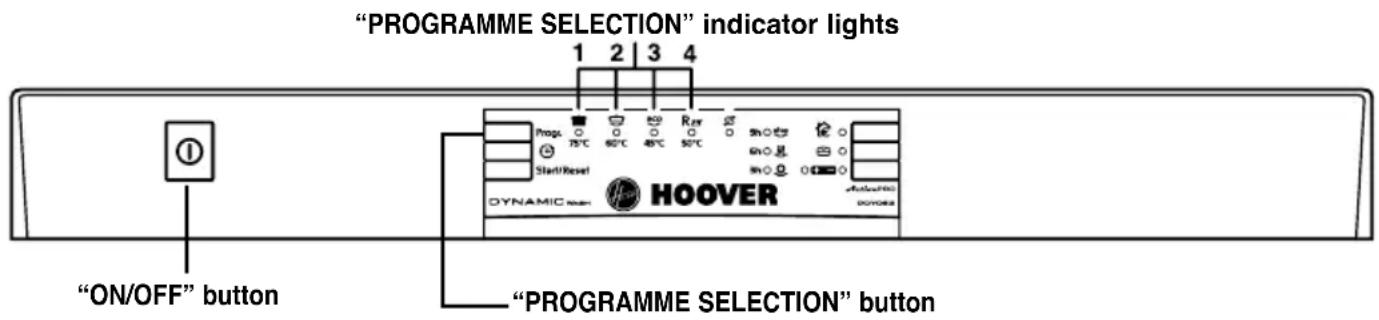

According to the degree of hardness of your water, regulate the softener unit in the following way:

IMPORTANT

The dishwasher must be ALWAYS off before start this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 5 seconds, UNTIL an audible signal sounds. Some "PROGRAMME SELECTION" indicator lights will come on to indicate the current water softener setting level.
3. Press the same button again to select the required water softener level: each time the button is pressed, one indicator light will come on (the water softener level is indicated by the number of lights on). For level 5, 4 lights will flash, for level 0 all lights will be off.
4. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
