USER MANUAL HNWF 616784M HOOVER

Unpacking the Product 5

Installation....7

Choose a location 7

Electricity supply 8

Water supply 8

Connecting to the cold water supply 9

Connection of the machine to the drain 10

Moving the machine into position 11

Adjusting the feet 11

Testing the installation 12

Washing and Drying advice....13

Loading your washing machine. 13

Sorting the laundry 13

Drying 14

The Dispenser 15

Detergent dosage 15

Dispensing instructions....16

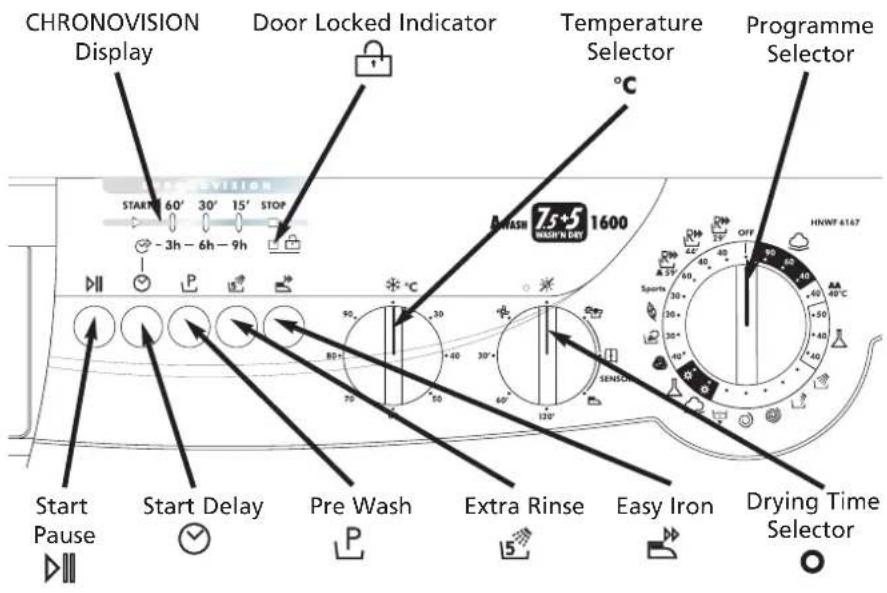

The Control Panel 17

Wash and Dry Options 20

Automatic Features 24

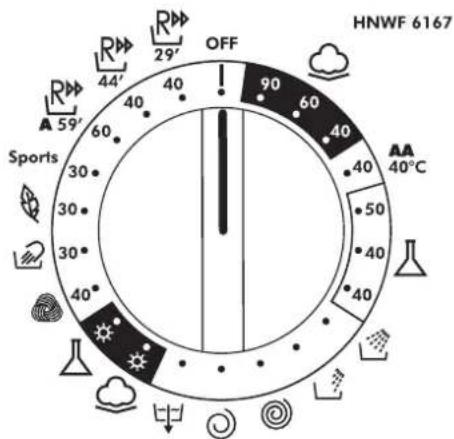

Programme Selector 25

Special Programmes....26

Time Saving Programmes....27

Programme Guide....28

A Typical Wash and Dry Cycle 30

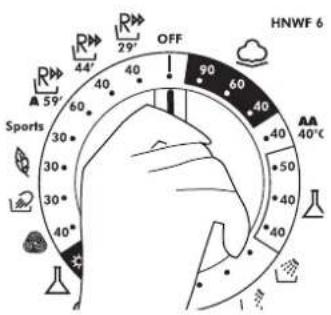

Selecting the programme 31

Starting the cycle 31

Cleaning and Routine Maintenance....33

Troubleshooting....35

Power Failure 38

Introduction

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery information

Please check that the following items are delivered with the appliance:

●Instruction manual
●Guarantee card
●Blanking plug
●Inlet hose & hooked end support (see Unpacking and Installation Instructions)
●Base panel & x2 push clips
●Energy Label

Do's

●All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
●To ensure safety when disposing of an old washing machine disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.
●This machine is solely for domestic use, i.e. to wash, rinse and spin dry household textiles and garments.

Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS.

If the appliance is not running properly or breaks down, switch it off, disconnect the plug from the socket, turn off the water supply and do not tamper with the appliance. Consult GIAS Service for possible repair.

Don'ts

●Do not touch the appliance when hands or feet are damp or wet.
●Do not lean on the door when loading the machine or use the door to lift or move the machine.
- Do not use adapters, multiple connectors and/or extensions.
- Do not allow children to play with the machine or its controls.
- Do not try to open the door when water is visible in the drum or the 🔍 indicator is on.

Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

Unpacking the product

Remove the machine from its packaging close to the final location of the machine.

1. Cut carefully around the base of the packaging.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

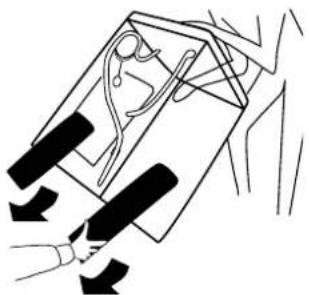

1. Lay the machine on its back and remove the base and the two polystyrene spacers on each side of the machine. We recommend that a second person assist in the lifting and manoeuvring of the machine.

Line drawing of a hand holding a device with arrows indicating motion or force (no text or symbols)

Dispose of the packaging safely. Make sure it is out of the reach of children, it is a potential source of danger.

Technical line drawing of a mechanical lever or bracket with bolts and a central fulcrum (no text or symbols)

1. Return the machine to the upright position, remove the remainder of the packaging and the central screw in the transit bar.

Technical line drawing of a mechanical bracket with bolts and a central dot (no text or symbols)

1. Remove the four retaining screws in the transit bar and pull out the transit bracket.

We recommend you keep the transit bracket and screws to protect the machine for future transit. The manufacturers will not be responsible for any damage to the machine caused by not following the instructions relating to releasing the transit protection. The user is responsible for all installation costs.

Pure technical diagram showing a circular component with a diagonal line and a pointed tip, no text or symbols present.

1. Take the base panel provided and fit the two self adhesive strips by removing the backing paper on one side and locating the strips on each side of the base panel.

Technical line drawing of a mechanical component with no visible text or symbols

1. Tilt the machine forward and locate the base panel under the front of the machine. Remove the remaining backing paper from the self-adhesive strips and offer up the base panel to the bottom of the cabinet.

Technical line drawing of a mechanical component with an inset magnified detail showing a detail with arrows and symbols (no readable text or labels)

1. Take the two plastic fixing clips and fix the base panel to the base of the machine. Bring the machine back to the upright position.

2. Cover the central hole in the rear of the machine with the cap enclosed in the instruction bag.

European directive 2002/96/EC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Simple line drawing of a door with a knob and a circular button, no text or symbols present

Installation

Choose a location

●After the machine has been installed, ensure that the mains plug and water supply valves are easily accessible.

●Make sure there is enough space for the machine. Select a space at least 600mm wide and 850mm high. Also leave enough space to open the door fully so you can load and unload it easily.

- Keep the area underneath and around the machine free of combustible materials such as lint, paper, rags, chemicals etc.

Do not plug the machine in and switch it on at the mains until the installation is completed.

You may be charged for a service call if a problem with your machine is caused by incorrect installation.

If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the GIAS spares service. It must be installed by a competent person.

Electricity supply

Washing machines are supplied to operate at a voltage of 230V, 50 Hz single phase. Check that the supply circuit is rated to at least 16A.

Electricity can be extremely dangerous.

This washing machine must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads.

The wires in the mains lead are coloured in accordance with the following codes:

Blue NEUTRAL

Brown LIVE

Green and Yellow EARTH

CE Appliance complies with European Directive 89/336/EEC, 73/23/EEC and subsequent amendments.

Water supply

●The cold water pressure should be between 0.05-0.8 Mpa.

●Do not connect the machine to a single outlet instantaneous water heater.

●The water supply tap should be accessible when the machine is installed.

●Before connecting the fill hose, check that the water is running from the water supply tap to be used.

Connecting to the cold water supply

This machine has an inlet hose with a 19mm (3/4") threaded ferrule fitted to the end, to attach between the threaded connector on the appliance and the water supply.

Only use the new hose supplied to connect the machine and ensure that the sealing washers are in place inside the hose connectors.

Do not re-use old hoses which are attached to existing installations.

Do not over-tighten the connections. Hand tight is sufficient.

Do not trap or kink the hose.

1. Connect the elbow end of the hose provided to the threaded inlet on the back of the machine.

Grey pipe to the white threaded inlet on the machine.

1. Hand tighten the connector.

2. Connect the straight ends of the pipes to the water supply; ensure that there are no kinks.

3. Turn on the water supply and check for leaks. If there is a leak, turn off the water supply, disconnect the hose and check the sealing washers are in place. Refit the hose and turn on the water supply.

Aqua-stop

Certain models will be supplied with special hose that has a double skin and incorporates a water valve (A). If the inner hose bursts the valve will automatically shut off the water supply to prevent flooding. The indicator turns red (B). Should this happen, turn off the water supply immediately and obtain a replacement hose from GIAS Service.

The installation is the same as a conventional hose with the valve end of the aqua-stop hose fitted to the water supply.

Line drawing of a hand adjusting a pipe fitting with circular components (no text or symbols)

Illustration of a hand holding a coiled cable with a valve and connector (no text or symbols)

Connection of the machine to the drain

This machine must be connected in accordance with the water supply regulations. Water byelaws prohibit connection to a surface water drain.

Decide which plumbing option suits you best then follow the instructions below.

All machines are tested with water prior to leaving the factory so a small amount of water may remain in the drum and drain hose.

Flooding could occur if any part of the installation is not completed correctly.

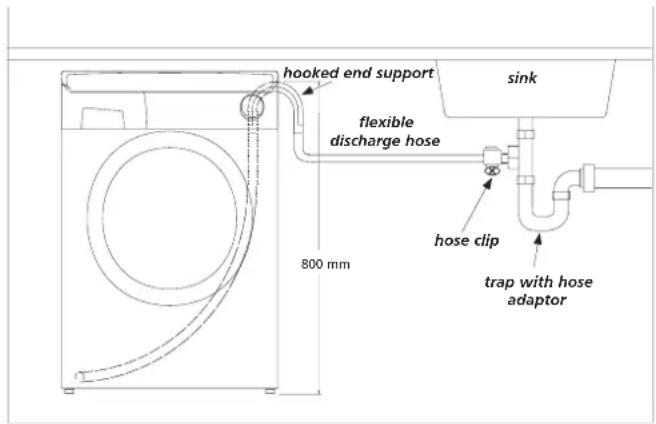

Option 1

Waste pipe connection (waste trap)

Fit the hooked end support to the outlet pipe. Position at least 800mm off the floor.

After removing the blanking plug or cutting the membrane from the waste system securely fix the outlet pipe to the drainage system, using a hose clip.

Secure the hooked end support up to at least 800mm to avoid water being drawn back into the machine.

hooked end support flexible discharge hose 800 mm sink hose clip trap with hose adaptor

Option 2

Into a standpipe

Ensure that the standpipe is not located near an electrical socket.

Fit the hooked end support to the outlet pipe. Install the hose into the standpipe ensuring that the pipe is at least 500mm from the floor.

Insert the outlet pipe approximately 100mm into the standpipe.

100 mm 500 mm min

Moving the machine into position

Your machine is heavy so care must be taken when moving it. We recommend that two people move the machine to avoid strain and possible injury.

●Take care not to damage flooring when moving the machine.
- When moving the machine to its final position take care not to kink or damage the hose at the back of the machine.

Do not drag or lift the machine by its door.

Adjusting the feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level. If the machine is not level it may become noisy or move.

Adjust the feet on the front corners of the machine until the machine is firm and level. When the machine is firm and level, tighten the locking nuts on the two feet.

Hand holding a small mechanical component with directional arrows indicating motion (no text or symbols)

Testing the installation

Refer to the programme guide for details of how to select programmes.

1. Turn on the water supply and check for leaks from the fill hose.
2. Switch on the electricity supply.
3. Select the spin programme 📄 and then press the ▶ button to start the machine. Allow the programme to continue for one minute and then cancel the programme by returning the selector to the OFF position. This will remove any water remaining in the machine from factory testing.
4. To check for cold water filling to the machine:

Select the rinse programme 📋/ 📋 and press the ▶ button to start the machine.

Allow the tumble action to continue until the water has pumped out. Check that the drain outlet is not leaking or overflowing.

1. Switch off the machine at the end of the cycle by turning the programme knob to the OFF position.
2. Select the spin programme 📄 and press the ▶ button to start the machine. If the machine takes longer than one minute to empty check the drain hose for kinks.

Installation testing is now complete.

This programme will take approximately 2 hours to complete.

Now you have successfully installed the machine we advise that you run the machine to ensure the drum is thoroughly clean after testing and storage. Select the 90 programme and run the machine for a complete cycle using only wash detergent and water. Ensure that the drying timer is in the OFF position.

Washing and Drying advice

The following tips are designed to assist in getting the best results from your machine whilst utilising it in the most environmentally-friendly and economical way. It is also important to understand the items to avoid in your laundry, to ensure the continued safe and reliable operation of your machine.

Loading your washing machine

To make further reductions of energy, water and detergent consumption, we recommend that you put a full load into your machine. Energy savings of up to 50% can be achieved by washing one full load compared to two half loads. Do not overload the machine as this will reduce the quality of the wash and may cause damage to the machine and your laundry.

When is prewashing really needed?

Only with particularly dirty loads! Energy savings of 5 to 15% are made by not selecting the prewash option for less dirty laundry. Pre-treat awkward stains with a washable stain remover.

Which wash temperature should you choose?

Using stain removers before machine washing reduces the need to wash at temperatures over 60^ C.

Using a 40°C wash temperature can make energy savings of up to 50%.

Heavily soiled laundry

To ensure the best performance when washing a particularly dirty load, we recommend that you reduce the amount of items to be put into the machine. Allowing more space in the drum the items can circulate more freely and will wash cleaner.

Sorting the laundry

Items to avoid

We recommend that you do not wash underwired bras in the machine. Should the wires become detached it could cause damage to your clothes and the machine. If the washcare label states that the bra is machine washable then we advise placing it in a wash bag.

Recommendations

Always follow the wash care labelling on the garments.

Fasten zips, tie strings and close press studs to prevent tangling. Ensure that pockets are emptied of loose change and other small items.

Check that there are no metal objects in the laundry as these may damage the laundry and the machine. Place small items in a wash bag.

Drying

In addition to the above advice the guidelines below must be followed when drying the clothes.

Sort the load for drying:

●By care symbols:

These can be found on the collar or inside seam:

Suitable for tumble drying. Tumble drying at high temperature.

Tumble drying at low temperature only. Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

●By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

●By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

Things to avoid

●Do not tumble dry woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

●Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

●Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Foam plastic, foam rubber and rubber-like material are not suitable for tumble drying. Articles made from these materials MUST NOT be placed in the dryer.

●Do not try to dry items that are dripping wet, this may damage the appliance. Spin these items first.

Do not use the machine to wash and dry items that do not have a wash label.

Do not wash and dry items previously treated with solvents.

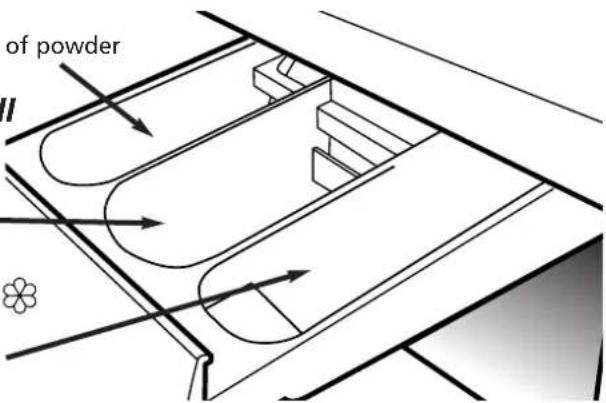

The Dispenser

COMPARTMENT I

Prewash detergent

Maximum dosage 100ml of powder

COMPARTMENT II

Mainwash detergent

Maximum dosage 200ml of powder

COMPARTMENT

Fabric Conditioner

Maximum dosage 100ml

of powder

Detergent dosage

Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products, and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.

The amount of detergent to use depends on:

●Water hardness.

Depending on the hardness of the water and the type of detergent used, it is possible to reduce the amount of detergent.

The softer the water supply, the less detergent is required.

●The degree of soiling.

It is possible to reduce the amount of detergent used depending on the degree of soiling.

Use less detergent for less soiled items.

●Amount of laundry.

It is possible to reduce the amount of detergent when washing only a small amount of laundry.

For smaller loads use less detergent.

The dosages shown on the packaging of detergents for washing delicates often already refer to a reduced wash size. Always follow the dosage instructions on the detergent packaging.

DO NOT exceed the maximum detergent dosage

Do not put any items into the drawer other than detergents that are designed to be dispensed from the drawer as they may cause blockage or damage.

Dispensing instructions

The detergent drawer is split into 3 compartments:

●the first, labelled "I", is for detergent utilised during Prewash.
●the second, labelled "II", is for detergent utilised during the main wash.
●the third, labelled 🌿 for special additives such as fabric softeners, fragrances, starch, brighteners etc.

Dispensing in the drum

Liquid detergents and some tablets are dispensed via the machine drum using the recommended dispensing device which is placed upright on top of the washload towards the back of the drum. Some tablets are designed to be placed in the dispenser drawer, check the detergent pack for details.

The Control Panel

CHRONOVISION Display Door Locked Indicator Temperature Selector Programme Selector START 60° 30° 15' STOP -3h - 6h - 9h A WASH 75+5 WASH N DRY 1600 Start Pause Start Delay Pre Wash Extra Rinse Easy Iron Drying Time Selector

The programme selector must be returned to the OFF position to reset the controls between each wash cycle.

Turning the machine On

The machine is turned on by selecting a programme via the programme selector. This status will be indicated by the STOP indicator light flashing, this light will continue to flash until the machine has started or the machine is returned to the OFF position.

Start/Pause (▶)

Start

After selecting the programme and the required options press the ▷ button once to start the machine. The STOP light will stop flashing and START light will illuminate and there will be a short time delay to the start of the programme while the machine sets the wash parameters for the selected programme and options. If the duration of the programme you have selected

When starting a subsequent wash cycle the programme selector must be returned to OFF prior to the next programme being selected and started.

is shorter than 60 minutes, then the time remaining indicator will illuminate accordingly. The 🔊 indicator light will also illuminate a few seconds after pressing the ▶ button.

Pause

The programme may be paused at any time during the wash cycle by holding down the ▶ button for about two seconds. When the machine is in the paused mode, the time remaining for the programme in the CHRONOVISION indicator and option buttons will flash. The 🔊 indicator light will remain illuminated for approximately 2 minutes. The door can be opened when this indicator goes out. To restart the programme, press the ▶ button once again.

Cancelling and changing the programme

To cancel the programme the programme selector should be rotated to the OFF position.

Select a new programme and start as detailed above.

Door Locked indicator (☐)

The ⏻ indicator light is illuminated when the door is fully closed and the machine is ON. When ▶ is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate. If the door is not closed the indicator will continue to flash.

A special safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the light has gone out before opening the door. As a safety measure, check that there is no water evident in the drum. At the end of the cycle turn the programme selector to OFF. If the programme is paused, the indicator will go out after 2 minutes and the door can be opened. Check there is no water evident in the drum before opening the door.

ISION 15' STOP - 9h

CHRONOVISION

In order to better manage your time, this washing machine features an indicator light system that keeps you constantly informed on the remaining cycle time and the status of the √ function.

When Ⓧ is selected the countdown display will indicate the time remaining before the programme starts and will then indicate the time remaining when the washing cycle has started. (for further details on the Ⓧ function see page 20).

When a drying time or sensor drying programme is selected the CHRONOVISION display will display the time remaining on the washing programme when the washing is taking place and an indication of the time remaining in the drying phase when drying is taking place.

The indication in the drying phase is based on an average load and will therefore vary dependent on the load size, moisture content and temperature.

The times shown during the drying stage are approximate and should only be used as a guide.

CHRONOVISION START 60' 30' 15' STOP ✓ - 3h - 6h - 9h

CHRONOVISION DISPLAY
WASH PROGRESS		START DELAY
START	Remaining time above 60 minutes	3h	3 hours or less remaining before the programme commences
60'	Remaining time less than 60 minutes
30'	Remaining time less than 30 minutes	6h	6 hours or less remaining before the programme commences
15'	Remaining time less than 15 minutes	9h	9 hours or less remaining before the programme commences
STOP	End of the programme

Wash and Dry Options

The options should be selected BEFORE pressing the ▶ button

Start Delay (💡)

This option is available to delay the start of the wash cycle by up to 9 hours. The selection of the time is completed by pressing the ⏻ button, the CHRONOVISION display will indicate the time selected. When the correct delay is selected press the ▶ button to start the cycle.

Prewash (P)

This option is available on the cottons and synthetics programmes. P is automatic on the Sports programme. This option is particularly useful for heavily soiled loads and can be used before selecting the main wash programme. Detergent for this programme should be added to the first compartment of the soap drawer labelled "I" (Please refer to Detergent Drawer section of manual). We recommend you only use 20% of the main wash detergent quantity.

Extra Rinse (5)

This option is available on the cottons programmes. The option increases the number of rinses to five (including the final conditioned rinse). This can help prevent skin irritation from detergent residue for people with particularly sensitive skin. Selecting the 📋 button is also recommended when washing heavily soiled fabrics which need a lot of detergent, or when the wash load contains towelling fabrics that have a greater tendency to retain detergent.

C 90 30 80 40 70 50 60

Temperature Selector (°C)

The washing machine is equipped with a temperature selector knob to set the temperature you require. Bigger energy savings can be achieved by using the lower temperature settings around the dial between ✗ and 40°C. By selecting the ✗ position, the wash temperature

is limited to the water inlet temperature, thus reducing energy consumption further. We recommend that the temperature shown on wash care garments should never be exceeded.

In the case where the temperature has been accidentally set higher than that of the chosen programme, (see Programme Guide table), the machine will lower the temperature automatically to protect the fabrics.

Easy Iron (☐)

This option is only available on synthetics, acrylics, woolmark and silk programmes.

Programme	Fast Iron Function	Action to complete the cycle
Synthetics	Programme is completed by a short, very low spin speed.	If a spin cycle is required please select the appropriate spin (see Programme Guide).
Acrylics	The machine stops in the final rinse stage and the option indicators blink. The load is held in the water in the drum, thus reducing creasing and enabling easier ironing.	Press the ➕ button to continue with the programme. The machine will then pump out the remaining water and the programme will conclude with a short spin. Finally, the programme carries out a brief tumbling action to loosen the items in the load.
Woolmark ( 🔺 )	The machine stops in the final rinse stage and the option indicators blink. The load is held in the water in the drum, thus reducing creasing and enabling easier ironing.	Press the ➕ button and the machine will pump out the water and complete the cycle with a short spin cycle.
an and	The machine stops in the final rinse stage and the option indicators blink. The load is held in the water in the drum, thus reducing creasing and enabling easier ironing.	Press the ➕ button and the machine will pump out the water to complete the cycle. The clothes load will not be spun and will therefore be very wet.

30' 60' 120' SENSOR

Drying Selector (○)

The Hoover Sensor Washer Dryer gives many options for drying the laundry to suit all circumstances. The table below lists the programmes and the function of each programme. For tumble drying select the appropriate drying programme via the Programme Selector. For drying cotton fabrics select the option and for synthetic fabrics select the option. Turn the drying time selector until the indicator aligns with the drying programme or desired time. Do not mix cottons and synthetics to avoid damage to the laundry.

Note: If the drying time is selected before the wash cycle is completed the machine will automatically commence the drying programme. Refer to the Programme Guide to identify which drying programme will be automatically selected after the wash programme. To protect your laundry certain programmes (eg) cannot be followed automatically by a drying programme. The drying time can be reduced at any time during the cycle but cannot be increased.

Note: If you do not need to dry after the wash cycle ensure the drying selector is switched OFF (-/-)

	Programme	Description
Sensor Drying Programmes		Select the degree of dryness that you require. This ranges from Extra Dry for bath towels and bathrobes, through Cupboard Dry for items that will be put away without ironing, to iron dry that leaves the laundry suitable for ironing.
Timed Drying programmes	120'	120 minutes of drying
	60'	60 minutes of drying
	30'	30 minutes of drying
		Tumbling of the laundry in cool air
		No drying programme selected

Drying Time Guide

The times given below are indicative and will vary with the exact level of dryness required (eg for ironing or ready to hang) and the size and composition of the load.

Only a maximum of 5kg of dry laundry can be loaded.

		Spin SpeedDRYING TIME GU
Fabric	Load Size	1200/1300 rpm	1500/1600 rpm
Cottons, linen	5kg	210 minutes	190 minutes
	2kg	80 minutes	70 minutes
Synthetics and mixed fabrics	2kg	70 minutes	60 minutes
	1kg	50 minutes	40 minutes

Automatic Features

Automatic Variable Capacity (Half Load)

The washing machine is fitted with a self adjusting water level system. This system enables the machine to use the optimum amount of water needed to wash and rinse the laundry in relation to the particular load. This results in a reduction of the water and electricity used without in any way compromising the washing and rinsing performance. The amount of water and electricity used will always be appropriate for the clothes load.

The washing machine automatically ensures excellent washing results at minimum cost whilst respecting the environment.

Out of Balance protection

This model is fitted with an electronic sensor device that checks if the load is balanced correctly. If the load is slightly unbalanced the machine will re-balance it automatically to then carry out the normal spin.

If, after several attempts, balance is not restored a reduced spin speed will be used.

If loads are seriously unbalanced the spin stage will be cancelled. This helps limit vibration, reduce noise and improve the washing machine's reliability and life.

Programme Selector

HNWF 6167 OFF 90 60 40 AA 40°C 30 30 30 30 40 40 Sports A 59' 44' 29' 40' 40 30 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 30 40 3

For handling the various types of fabric and their level of soiling in your laundry the washing machine has different programme groups according to type of wash, temperature, spin speeds and duration (see Programme Guide).

Cottons (💡)

The Cottons programmes are designed for maximum washing and rinsing. With spin cycles in between, they guarantee the laundry is rinsed perfectly. The final spin cycle ensures laundry is spun dry as much as possible up to the maximum speed.

The 90°C programme includes a Prewash cycle. This option is particularly useful for heavily soiled loads and can be used independently of the main wash programme. Detergent for this programme should be added to the first compartment of the soap drawer labelled "I" (please refer to the section of this manual entitled "The Dispenser"). We recommend you use only 20% of the quantity used for the main wash programme.

AA 40°C

This special programme has been created to allow you to obtain the best washing performance with a full load, as the 60°C Colourfast, but with the advantage of the cycle being at 40°C. This gives energy savings by reducing the temperature from 60°C to 40°C. The final spin speed is 1000rpm.

Synthetics and mixed fabrics ( )

Washing and rinsing performance is optimised through drum rotation speeds and water levels. The delicate spin action minimises creasing. The 50°C programme includes a prewash cycle. The final spin speed for the synthetics programme is 800rpm and for the Acrylics 400rpm.

Delicates

This is a new concept in washing, with a cycle that consists of alternate periods of activity and pauses, particularly suitable for washing very delicate fabrics. Washing and rinsing are carried out using a high water level to provide the best results.

Special Programmes

Rinse, Spin and Drain

Individual programmes are available for spinning, at the maximum spin speed or less if selected using the Spin Speed Selector; Draining the water from the machine and Rinsing, (including the opportunity to add fabric conditioner).

Drying

Note: Dispensers used for concentrated powders and liquid detergents must be removed from the drum before commencing the tumble drying programmes.

The load is dried in thermostatically controlled warm air. The drum changes direction during the drying cycle to prevent the laundry from tangling and hence produce even drying. Cool air is used during the last ten minutes of the drying cycle to minimise creasing.

High Dry (💡 \*)

High temperature drying programme for Cottons and linen items, always refer to the care label

Low Dry (△\*)

Low temperature drying programme for synthetics and mixed fibres, always refer to the care label.

Woolmark (💡)

This is a programme dedicated to washing fabrics labelled with the woolmark symbol 📄. The cycle consists of alternate periods of activity and pauses. Washing and rinsing are carried out using a high water level to provide the best results. The programme has a maximum temperature of 30^ C and concludes with 3 rinses, one for fabric conditioner, and a short spin at 800rpm.

Handwash/Delicate (☐)

This programme allows a complete washing cycle for delicate garments or those specified as 'Hand Wash only'. The programme has a maximum temperature of 30^ C and concludes with 3 rinses, one for fabric conditioner, and a short spin.

Silk ( )

This washing machine also has a gentle Silk and Hand Wash programme. This programme allows a complete washing cycle for garments specified as "Hand Wash only" and laundry items made from silk or specified "Wash as silk" on the fabric label. The programme has a maximum temperature of 30^ C and concludes with 3 rinses, one for fabric conditioner, and no final spin.

Sports

This washing machine has a unique Sportswear programme. It is specially designed to wash mixed sportswear fabrics that cannot be washed on hotter programmes and is designed to remove the soiling and staining created by participation in sports activities.

This programme starts with a cold prewash that breaks down and loosens any excess dirt and then washes at a cool 30°C, rinses twice (one is for fabric conditioner) and spins at 800rpm for the best care of your heavily soiled, delicate garments.

Detergent for the prewash part of the programme should be added to compartment I and detergent for the mainwash should be added to compartment II. Follow the instructions given in 'The Dispenser' section.

Time Saving Programmes

A 59' (R)

This specially designed programme maintains the high quality wash performance identified with the "A" rating whilst greatly reducing the wash time. The programme is designed for a maximum load of 3 kg and is intended for cotton fabrics and items colourfast to 60°C. The programme concludes with 2 rinses and a high speed spin sequence.

Daily Programmes

By maintaining exceptional washing performance, these programmes allow you to know in advance the necessary time for your everyday laundry. In fact, this washing machine is equipped with two daily rapid programmes at 40^ C, that were designed for lightly soiled fabrics and medium or small loads. These daily programmes finish with a final spin at 800rpm.

Daily 44' ( 44' )

A complete washing cycle (wash, rinse and spin), able to wash in approximately 44 minutes suitable for:

●a maximum load of 3 kgs

●lightly soiled fabrics (cotton and mixed fabrics)

With this programme we recommend that you reduce the detergent loading dose (compared to the normal one), in order to avoid detergent waste.

Daily 29' (R) _29'

A complete washing cycle (wash, rinse and spin), able to wash in approximately 29 minutes suitable for:

●a maximum load of 2 kgs

●lightly soiled fabrics (cotton and mixed fabrics)

With this programme we recommend that you reduce the detergent loading dose (compared to the normal one), in order to avoid detergent waste.

Programme Guide

Programme			Fabric Type	Max. Load Size (kg)	Max. Water Temp (°C)	Max. Drying Load	Auto Drying Cycle
							High Dry	Low Dry	Not Available
CottonSynthetics Mixed		90	Cottons, linen & Prewash	7.5	90	5	√	-	-
	[1436]	60	Cotton, colourfast mixed fibres	7.5	60	5	√	-	-
	[1564]	40	Cottons, mixed fabrics, Coloureds Non-fast	7.5	40	5	√	-	-
Fabrics	[1417]	AA 40°C	Cottons, mixed fabrics and synthetics	7.5	40	2	-	√	-
	[1436]P	50	Mixed fabrics and synthetics & Prewash	3	50	2	-	√	-
	[1564]	40	Coloured mixed fabrics and synthetics	3	40	2	-	√	-
Acrylics	[1564]	40	Delicates and acrylics	3	40	-	-	-	√
Rinses and Spin	[1436]	Rinse	Cottons, linens	-	-	5	√	-	-
	[1564]	Final Rinse	Mixed Fabrics	-	-	2	-	√	-
	[1564]	Spin	Cottons, linens. Maximum spin speed	-	-	5	√	-	-

Energy label data based on 📋 60 programme tested in accordance with CENELEC EN60456

Programme			Fabric Type	Max. Load Size (kg)	Max. Water Temp (°C)	Max. Drying Load	Auto Drying Cycle
							High Dry	Low Dry	Not Available
Spin and Drain		Spin	Mixed Fabrics. Spin speed of 800 rpm max.	-	-	2	-	√	-
		Drain	Mixed Fabrics	-	-	-	-	-	√
Special Programmes		High Dry	Cottons and linen	5	-	5	√	-	-
		Low Dry	Synthetics	2	-	2	-	√	-
			Machine washable wool	1.5	40	-	-	-	√
			Delicates and 'Hand Wash only' items	1.5	30	-	-	-	√
			Silks	1.5	30	-	-	-	√
		Sports	Mixed fabrics	3	30	2	-	√	-
			Cottons, colourfast mixed fabrics	3.5	60	3	√	-	-
			Lightly soiled cottons and mixed fabrics	3.5	40	2	-	√	-
			Lightly soiled cottons and mixed fabrics	2.5	40	2	-	√	-

A Typical Wash and Dry Cycle

Liquid detergents and some concentrated powders and tablets that are to be placed directly into the drum should use the recommended dispensing device.

Do not use such powders and dispensing devices if you are completing a continuous wash and dry cycle.

This section summarises the main points when completing a wash and dry cycle. For detailed explanations of features, options and details of the machine refer to the relevant section in the instruction manual.

Preparing the laundry

Select and sort the laundry according to the wash care labels found on each garment. Always check the care labels.

Loading the laundry

Open the door.

Put the laundry in the washing machine. Close the door by pushing it until it clicks, ensuring that no items of laundry are obstructing the lock or door seal.

Putting detergent in machine

Open the drawer, choose the detergent and put in the recommended amount.

Do not exceed the dosage stated below

Close the drawer again.

Compartment	Wash	Maximum quantity of powder/liquid
I	Prewash (option)	100ml
II	Main Wash (all programmes)	200ml
	Fabric Conditioner	100ml

Selecting the programme

Refer to the Programme Guide or the programme descriptions on the front of the machine to select the most suitable programme.

The programme is selected by turning the programme selector and aligning the programme name with the indicator.

Check that the STOP indicator is flashing, if not check that the door is properly closed.

Check that the tap is turned on and that the discharge hose is positioned correctly.

Select the required wash options

Select the appropriate drying time based on the table to be found on page 23.

44' 29' OFF HNWF 6 59' 60' 30' 30' 30' 40' 40' 50' 40' 40' AA 40°C Sports 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Starting the cycle

Press the ▶ button. The 🔒 indicator and the START light illuminate, within a few seconds the programme will begin.

Do not try to open the door when the indicator is on.

Do not open the dispenser drawer during the wash programme.

If you wish to pause the programme press the button and after 2 minutes the door can be opened. To cancel the programme the programme selector should be turned to the OFF position. A new programme can be selected after cancelling the programme.

START 60' 30' - 3h - 6h - III ✓ P

To test the laundry for dryness

When completing the drying phase it is possible to check the load for dryness.

Press the ▷ button, the machine will go into pause mode indicated by the CHRONOVISION display time and the option buttons flashing.

After 2 minutes the 🔒 light will go out indicating that the door can be opened and the load checked.

Be very careful as the load and door glass may be very hot.

To continue close the door and press the ▷□ button. The programme will restart and continue for the remaining time.

When the programme has finished

Wait for the door lock to be released. The indicator will go out after approximately 2 minutes and then the door can be opened.

Switch off the machine by turning the programme selector to the OFF position before selecting the next programme (this action resets the memory in the machine).

Open the door.

Remove the laundry.

Disconnect the plug from the mains power supply and turn off the water supply after every use.

Cleaning and Routine Maintenance

The washing machine needs very little maintenance, but regular attention to a few small details will ensure the continued performance of your washing machine.

Do not use abrasive cleaners, scouring pads, solvent based cleaners or polishes; wiping the outside of the machine with a damp cloth will suffice.

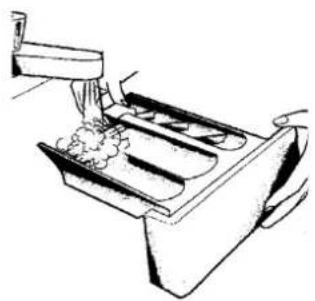

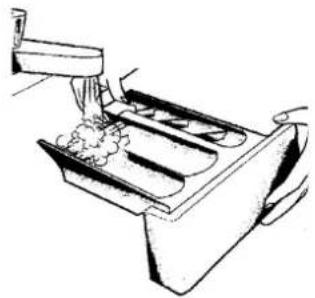

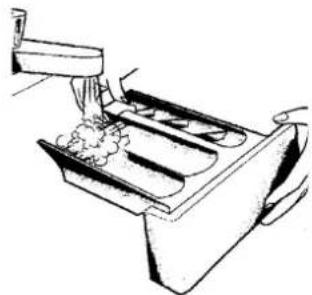

Cleaning the soap dispenser

1. Clean the compartments occasionally to remove detergents and additives.

2. To do this you just need to pull the drawer out firmly from the machine, but without forcing it.

3. Clean the compartments and the syphon cap and cover under warm running water.

4. Clean the soap dispenser housing to remove any residue of soap powder
5. Replace the drawer.

Simple line drawing of a hand gripping a piece of paper (no text or symbols)

Line drawing of a kitchen appliance with a drain and drawer (no text or symbols)

Cleaning the door glass

Regularly clean the door glass with a damp cloth. A build up of soiling and residues from the water may result in water leaking from the door.

Do not use abrasive cleaners as they can scratch the surface.

Simple line drawing of a hand holding a cloth or towel, with no text or symbols present.

Line drawing of a hand adjusting a wooden beam with a vertical support (no text or symbols)

Cleaning the filter

The washing machine is fitted with a special filter to prevent items such as coins, buttons, etc. blocking the discharge hose. These may be retrieved by:

1. Removing the kickplate by gently pulling it from the bottom in an outwards and upwards direction.
2. Use the kickplate to collect the water still in the filter.
3. Use a screwdriver to loosen the screw holding the filter, turn the filter anticlockwise until it stops, remove it and clean it. After cleaning it, reassemble following the above instructions in reverse order.

Replace the kickplate.

We recommend that the filter be cleaned frequently, at least once a month.

Diagram of a hand holding a tool with a mechanical component, no text or symbols present

Simple line drawing of a mechanical component with no text or symbols

Maintenance wash

Using small quantities of detergent and low temperature wash programmes can cause the gradual build up of grease, dirt and scale. Over time these deposits can damage your laundry and your machine. They can also cause your machine to smell. We recommend that you carry out a maintenance wash a couple of times per year to keep your machine and pipe work clean and free of these deposits. Simply run the 90 programme without a load and with the normal quantity of detergent.

This wash will take approximately 2 hours to complete.

Troubleshooting

What might be the cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call the GIAS Service, they may be able to assist you over the telephone.

The machine will not start...

- Close the door. Check that there is power to the machine. Select a programme and press ▷. Check if the door locked light (☐) is illuminated.

If it is not, check the following:

1. Is the machine connected to the electrical supply?
2. Is the electrical supply OK, check another socket?
3. Has the fuse on the machine blown? If so, replace it.

- If the door locked light ( ) is illuminated and the machine does not start this means that the machine cannot fill with water, check the following:

1. Check the programme dial is correctly aligned with the programme.
2. Is the water supply to the machine switched on?
3. Are the pipes kinked or restricted in any way?

Water does not drain away...

●Ensure that there is not a blockage in the drain hose or the hose is not kinked.
●Is the drain hose installed correctly? If connected to the sink waste make sure you have cut the membrane or removed the bung from the under sink drainage unit.
- Check for foreign bodies in the filter. If present, clean the filter.

If you have found any of the above problems correct them and run the machine through a spin cycle to drain the water.

Water on the floor around the washing machine...

●Is the fill hose tightened? If so, replace the rubber washers and re-tighten.
●Is the standpipe or the household drain blocked? If so, clear the blockage yourself or call a plumber.
●Is there clothing or dirt between the door gasket and the door glass?

Ensure that the door glass and gasket are kept clean and free of laundry when loading the machine.

The machine does not spin...

●Water has not drained from the machine? Check the points highlighted above.
●Have you selected an option that changes the spin profile? Check the feature in the description of the controls.
- Is the load unbalanced? To reduce noise and vibration and improve the machine's reliability and life, the machine is fitted with an electronic sensor that detects if the load is unbalanced. To improve the spin performance the load can be re-distributed by hand at the end of the cycle and then re-spun.

The machine is noisy or vibrates a lot during the cycle...

●Has the transit system been fully removed? Check that the bracket and the polystyrene packing have been taken off the machine.
●Are there any loose items in the pockets of clothing that can rattle in the drum and cause damage?
●Is the load unbalanced? Stop the programme, re-distribute the load and restart.

The programme takes a long time...

●Some programmes do take a long time (over 2 hours). Low water pressure can increase the length of the programme.

The door will not open...

●Has the programme finished? Is the STOP light illuminated? If not the programme is not complete. Has the 🔒 light gone out? If not wait a further couple of minutes and the light will go out and you will be able to open the door.

●Has the programme finished but the door remains locked? The START and P light will flash intermittently indicating that the water supply has been interrupted during the wash cycle. Turn the machine to OFF to reset the machine and this will allow the door to open.

- If water remains in the drum refer to 'Water does not drain away...' above.

Problem with the dispenser...

●Not all the detergent has been flushed away.
1. Check the water supply tap is fully turned on.
2. Check the inlet hose is not kinked.

●The dispenser drawer will not close properly.

1. Check the drawer is aligned properly
2. Check the drawer is not clogged with detergent (see Cleaning and Routine Maintenance)

●Steam is coming from the dispenser.

The machine is designed to vent through the drawer, this is nothing to worry about.

The clothes load is not dry...

●Was sufficient time selected to dry the clothes load? (Refer to Drying Time Guide page 23.)
●Is the wash programme selected followed automatically by a drying programme? (Refer to Programme Guide page 28/29.)
●Was the laundry correctly spun prior to drying? Select a spin programme to remove the excess water.
●Has the correct drying programme been selected? Refer to the laundry care label for guidance.

Remember, you may be charged for the service call if incorrect installation or misuse causes a problem with your machine.

Note:

The use of environmentally-friendly, phosphate-free detergents (check detergent information on pack) can have the following effects:

●Waste water from rinsing may be cloudier because of the presence of a white powder (zeolites) held in suspension, without the rinse performance being adversely affected.
●Presence of white powder on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.
●The presence of foam in the final rinsing water is not necessarily an indication of poor rinsing. Carrying out more rinse cycles does not serve any purpose in such cases.

Power Failure

If there is a power failure the wash cycle will be interrupted, and the wash programme and functions will be suspended. When the power is restored, the wash programme and functions will re-start from the same point and complete the programme.

During a power failure the water can be drained and the load can be removed from the machine as follows:

1. Switch off the machine both via the programme knob and the mains power supply. Remove the plug from the mains power supply socket.
2. Carefully move the machine so the rear of the machine is accessible. Please follow the safety precautions which we recommend under the Safety Notes section of this manual.
3. Unclip the drain hose from the rear panel of the machine and lower the hose into a bowl on the floor. When the bowl is full raise the end of the drain pipe to a height higher than the top of the appliance to stop the flow of water. Empty and replace the bowl and continue draining the machine until empty.
4. Once the machine is fully drained of water, clip the hose to the rear of the machine. Open the door and remove the load.

The door can be opened approximately 2 minutes after the power failure.

Do not force open the door.

—
—
—
—
—

Einführung 41

Lieferinformationen....41

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand holding a device with arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical lever or bracket with bolts and a central fulcrum (no text or symbols)

Technical line drawing of a mechanical bracket with bolts and a central dot (no text or symbols)

Simple line drawing of a tool tip interacting with a circular object (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with an inset magnified view showing a detail (no text or symbols)

Simple line drawing of a door with a knob and a circular button, no text or symbols present

Line drawing of a hand adjusting a pipe fitting with a circular inset showing the angle (no text or symbols)

Illustration of a hand holding a coiled cable with a valve, no text or symbols present

Hand holding a small mechanical component with directional arrows indicating motion (no text or symbols)

15' STOP - 9h

CHRONOVISION

CHRONOVISION START 60' 30' 15' STOP ✓ - 3h - 6h - 9h

30' 60' 120' SENSOR

Diagram of a car interior showing a pipe pouring liquid into a storage tray (no text or symbols)

START 60' 30' -3h-6h- III ✓ P

Simple line drawing of a hand gripping a piece of paper (no text or symbols)

Line drawing of a kitchen grater with a hand pouring liquid into a bowl (no text or symbols)

Simple line drawing of a hand holding a cloth or towel, with no text or symbols present.

Line drawing of a hand adjusting a wooden beam with a vertical support (no text or symbols)

Diagram of a mechanical assembly with rotating components and a handle (no text or symbols)

Line drawing of a hand gripping a coiled cable or wire (no text or symbols)

Wartungswäsche

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand holding a device with arrows indicating motion (no text or symbols)

Line drawing of a mechanical lever with a spring and nut (no text or symbols)

Technical line drawing of a mechanical bracket with bolts and a central dot (no text or symbols)

Pure technical diagram showing a circular component with a diagonal line and a pointed tip, no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with an inset showing a magnified detail (no text or symbols)

Simple line drawing of a door with a knob and a circular button, no text or symbols present

Line drawing of a hand adjusting a pipe fitting with circular motion indicators (no text or symbols)

Illustration of a hand holding a coiled cable with a valve, no text or symbols present

Hand holding a small mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with directional arrows and a flower symbol (no text or labels)

15' STOP - 9h

CHRONOVISION

CHRONOVISION START 60' 30' 15' STOP ✓ - 3h - 6h - 9h

30' 60' 120' SENSOR

START 60' 30' -3h-6h- P

Simple line drawing of a hand gripping a piece of paper or tape (no text or symbols)

Line drawing of a kitchen grater with a hand pouring liquid into a bowl (no text or symbols)

Simple line drawing of a hand holding a cloth or object, with no text or symbols present.

Line drawing of a hand adjusting a wooden beam with a vertical support (no text or symbols)

Pulizia del filtro

Diagram of a mechanical assembly with a tool and rotating components (no text or symbols)

Line drawing of a hand gripping a coiled cable or wire (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand holding a device with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical lever with spring and nut (no text or symbols)

Technical line drawing of a mechanical bracket with bolts and a central dot (no text or symbols)

Pure technical diagram showing a circular component with a diagonal line and a pointed tip, no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with an inset magnified view showing a detail (no text or symbols)

Simple line drawing of a door with a knob and a circular button, no text or symbols present

Line drawing of a hand adjusting a pipe fitting with circular motion indicators (no text or symbols)

Illustration of a hand holding a coiled cable with a valve and connector (no text or symbols)

Hand holding a small mechanical component with directional arrows indicating rotation (no text or symbols)

ISION 15' STOP - 9h

CHRONOVISION

CHRONOVISION START 60' 30' 15' STOP ✓ - 3h - 6h - 9h

30' 60' 120' SENSOR

HNWF 6 OFF 44° 29° 40° 90° 60° 40° 30° 59° Sports 30° 30° 30° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 30° 1

START 60' 30' - 3h - 6h - III ✓ P

Line drawing of a hand gripping a piece of paper (no text or symbols)

Line drawing of a kitchen appliance with a hand pouring liquid into a tray (no text or symbols)

Simple line drawing of a hand holding a cloth or towel, with no text or symbols present.

Line drawing of a hand adjusting a wooden beam with a vertical support (no text or symbols)

Nettoyage du filtre

Diagram of a mechanical assembly with a tool and rotating components (no text or symbols)

Line drawing of a hand gripping a mechanical component (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand holding a device with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical lever or bracket with a screw and nut (no text or symbols)

Technical line drawing of a mechanical bracket with bolts and a central dot (no text or symbols)

Simple line drawing of a tool tip interacting with a circular object (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an inset magnified view showing a detail (no text or symbols)

Simple line drawing of a door with a knob and a circular button, no text or symbols present

Installatie

Kies een plaats

Line drawing of a hand holding a pipe fitting with circular components nearby (no text or symbols)

Illustration of a hand holding a coiled pipe fitting with a valve (no text or symbols)

Hand holding a small mechanical component with directional arrows indicating rotation (no text or symbols)

De machine is nu getest.

●Hoe vuil de was is.

ISION 15' STOP - 9h

Deurslotindicator ( 🔒 )

CHRONOVISION START 60' 30' 15' STOP ✓ - 3h - 6h - 9h

30' 60' 120' SENSOR

Droogkeuzeschakelaar (○)

Programmakeuzeschakelaar

HNWF 6167 OFF 90 60 40 AA 40°C 30 Sports 59' 44' 29' 30' 40' 40' 30' 30' 40' Weather Light Bulb Air Air

Handwas/Fijne was (☐)

De was in de machine laden

Open de deur.

Simple line drawing of a hand gripping a piece of paper or tape (no text or symbols)

Line drawing of a kitchen grater with a hand pouring liquid from a bowl into a tray (no text or symbols)

Simple line drawing of a hand holding a cloth or towel, with no text or symbols present.

Line drawing of a hand adjusting a wooden beam with a vertical support (no text or symbols)

Diagram of a mechanical assembly with a tool and rotating components (no text or symbols)

Simple line drawing of a hand gripping a coiled cable or wire (no text or symbols)

Onderhoudswas

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand holding a device with arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical lever or bracket with bolts and a central fulcrum (no text or symbols)

Technical line drawing of a mechanical bracket with bolts and a central dot (no text or symbols)

Simple line drawing of a tool tip interacting with a circular object (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an inset magnified detail showing a detail (no text or symbols)

Simple line drawing of a door with a knob and a circular button, no text or symbols present

Line drawing of a hand adjusting a pipe fitting with circular motion indicators (no text or symbols)

Illustration of a hand holding a coiled cable with a valve and connector (no text or symbols)

Hand holding a small mechanical component with directional arrows indicating motion (no text or symbols)

15' STOP - 9h

CHRONOVISION START 60' 30' 15' STOP ✓ - 3h - 6h - 9h

30' 60' 120' SENSOR

HNWF 6167 OFF 90° 60° 40° AA 40°C 30° 30° 30° 40° Sports A 59' 44' 29' 40' 40' 50' 40' 40' 30' 30' 30' 40' 40' Weather Light Bulb Light Bulb Light Bulb Light Bulb Light Bulb Light Bulb Light Bulb Light Bulb

44' 29' OFF HNWF 6 59' Sports 30° 30° 30° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 40° 1

Έναρξη του κύκλου

START 60' 30' - 3h - 6h - III ✓ P

Line drawing of a hand pressing down on a piece of paper (no text or symbols)

Line drawing of a kitchen appliance with a hand pouring liquid into a tray (no text or symbols)

Simple line drawing of a hand holding a cloth or object, with no text or symbols present.

Line drawing of a hand adjusting a wooden beam with a vertical support (no text or symbols)

Diagram of a hand holding a mechanical component with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Πλύση συντήρησης

Pure geometric lines and markers without any text, numbers, or symbols

Pure geometric lines and markers without any text, numbers, or symbols
