15266 - Watch Lotus - Free user manual and instructions

Product Type	Quartz Watch
Brand	Lotus
Model	15266
Display	Analog with hands: hours, minutes, seconds, 24 hours, chronograph (seconds and minutes)
Main Functions	Chronograph (1/1 second, max 1 hour), tachymeter, calendar (date)
Power Source	SR626SW battery, estimated battery life 2 years (based on 1 hour/day chronograph use)
Movement	Quartz, frequency 32.768 Hz
Accuracy	±20 seconds per month (normal conditions)
Caliber	FS00 or FS01
Buttons	Button A (chronograph start/stop), Button B (reset)
Crown	3 positions: normal, first notch (date adjustment), second notch (time setting with seconds stop)
Calendar	Date, do not set between 9 PM and 1 AM
Maintenance	Clean with a soft, dry cloth; avoid moisture, shocks, and magnetic fields
Battery Replacement	Take to a watchmaker; after replacement, check the chronograph zero position
Repairability	Spare parts available through authorized after-sales service
Recycling	Selective collection at end of life (WEEE)
Number of manual pages	33 pages

Frequently Asked Questions - 15266 Lotus

How to set the time on my Lotus 15266 watch?

Pull the crown to position 2 (second notch). The second hand stops. Turn the crown to set the hour and minute hands. Push the crown back to normal position.

How to set the date on my Lotus 15266 watch?

Pull the crown to position 1 (first notch). Turn the crown clockwise to set the date. Avoid setting the date between 9 PM and 1 AM.

How to use the chronograph?

Press button A to start the chronograph. Press A again to stop it. Press button B to reset the chronograph hands to zero.

What to do if the chronograph hand does not return to zero?

Pull the crown to position 2. Press button A to move the chronograph second hand to the 12 o'clock (0) position. Long press for fast movement. Once set, push the crown back.

How to use the tachymeter?

Start the chronograph at the beginning of a 1 km distance. Stop it after exactly 1 km. The chronograph second hand indicates the average speed on the tachymeter scale (e.g., 45 seconds = 80 km/h).

What battery does my Lotus 15266 watch use?

The battery is a SR626SW. Its lifespan is about 2 years (based on 1 hour of chronograph use per day).

Is my Lotus 15266 watch water-resistant?

The manual does not specify a water resistance level. As a precaution, avoid any contact with water and moisture.

How to maintain my Lotus 15266 watch?

Clean it with a soft, dry cloth. Avoid shocks, magnetic fields, and chemicals. Have the water resistance checked and battery replaced by a watchmaker.

What to do if the watch battery is discharged?

Have the battery replaced by a watchmaker. After changing the battery, make sure the chronograph hands return to zero (12 o'clock). If necessary, perform the reset procedure described in the manual.

Where to find the complete manual for the Lotus 15266 watch?

The complete manual in PDF format (33 pages) is available for free download on notice-facile.com. You can also request a translation.

USER MANUAL 15266 Lotus

Empty white rectangle with black rounded corners (no text or symbols)

CHRONOGRAPH

CALENDAR

ILMFS01

MANUAL DE INSTRUCCIONES
INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
BETRIEBSANLEITUNG
MANUALE DI FUNZIONAMENTO

ILMFSO1

CRONOGRAPH

CALENDAR

■ MANUAL DE INSTRUCCIONES ____ 3
■ INSTRUCTION MANUAL ____ 15
■ MANUEL D'INSTRUCTION ____ 27
■ BETRIEBSANLEITUNG ____ 39
■ MANUALE DI FUNZIONAMENTO ____ 51

LOTUS

LOTUS

ILMFS01

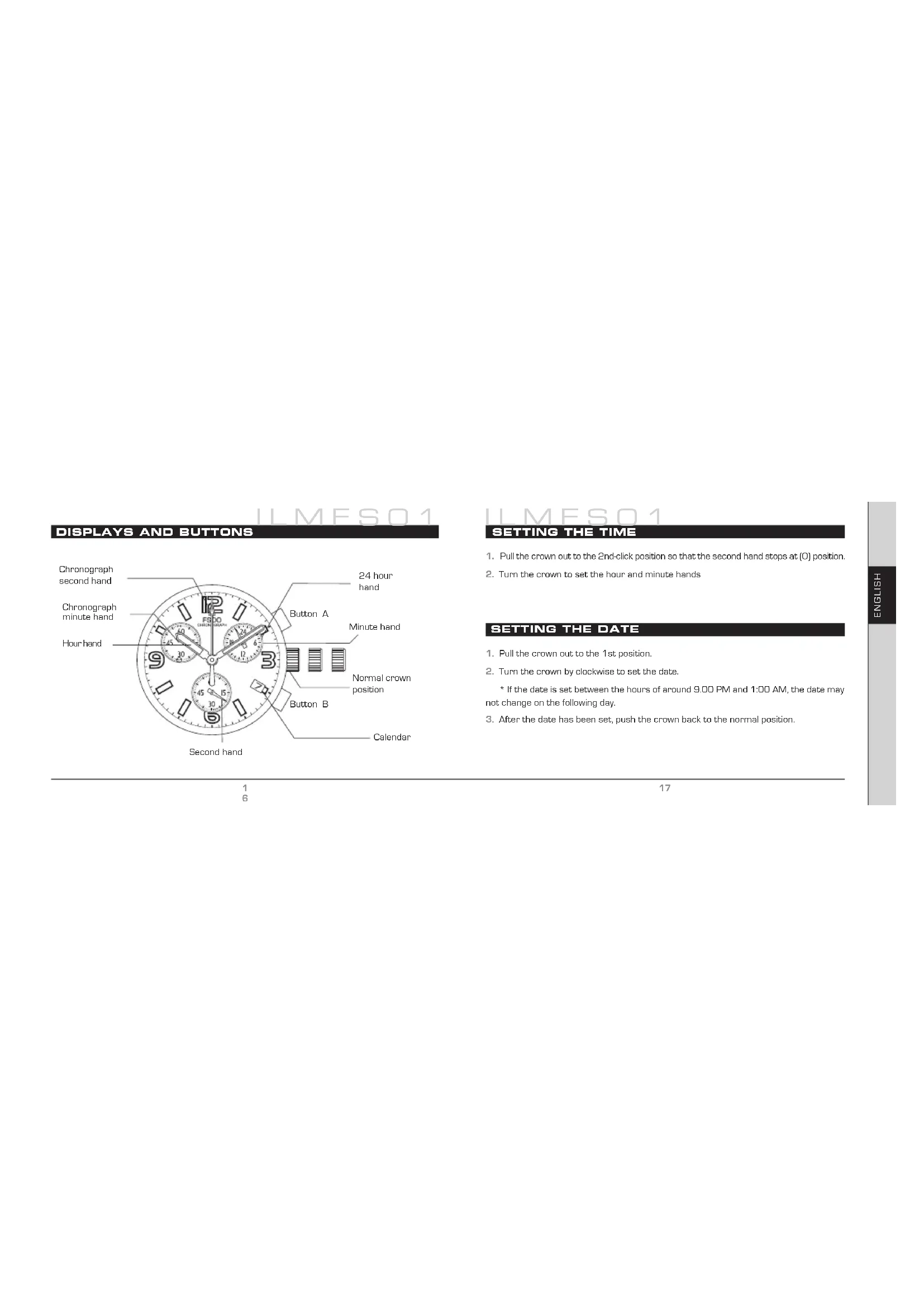

Displays and buttons 16

Setting the time 17

Setting the date ____ 17

Using the chronograph ____ 18

Tachymeter 22

Basic specifications 24

DISPLAYS AND BUTTONS

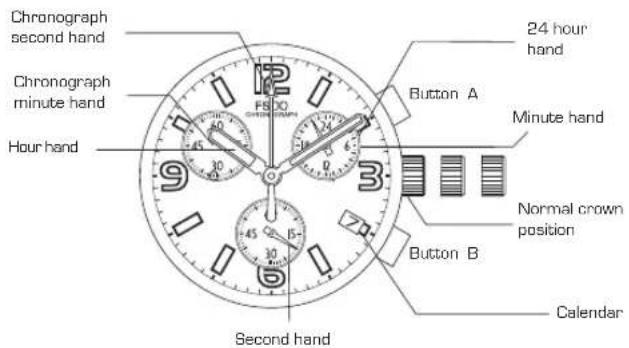

Chronograph second hand Chronograph minute hand Hour hand 24 hour hand Button A Minute hand Normal crown position Button B Second hand Calendar

ILMFS01

SETTING THE TIME

1. Pull the crown out to the 2nd-click position so that the second hand stops at (0) position.
2. Turn the crown to set the hour and minute hands

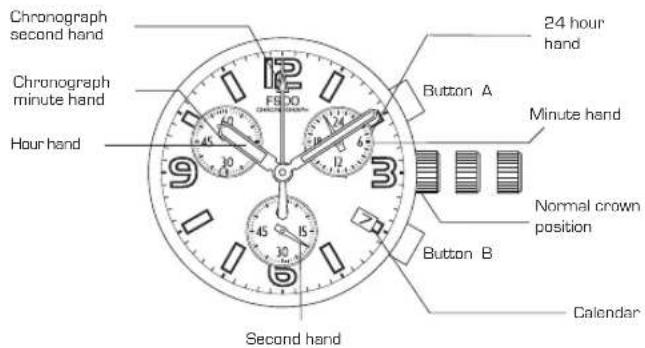

SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown by clockwise to set the date.

* If the date is set between the hours of around 9.00 PM and 1:00 AM, the date may not change on the following day.

1. After the date has been set, push the crown back to the normal position.

USING THE CHRONOGRAPH

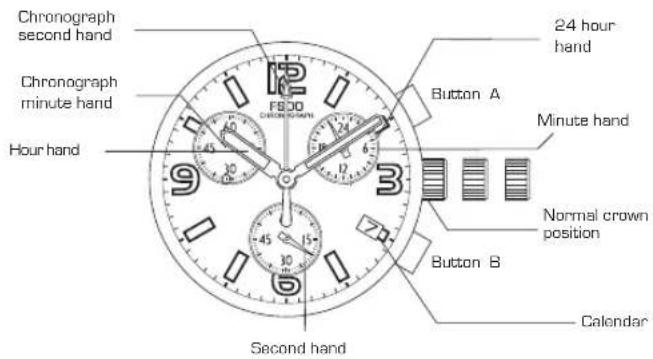

Chronograph second hand Chronograph minute hand Hour hand 24 hour hand Button A Minute hand Normal crown position Button B Second hand Calendar

ILMFSO1

USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 1 hour.

(Measuring time with the chronograph)

1. The chronograph can be started and stopped each time button [A] is pressed.
2. To reset, press button (B) and the chronograph second & minute hands return to their (O) positions.

[Chronograph reset, incl. after replacing battery]

USING THE CHRONOGRAPH

This procedure should be performed when the chronograph second hand do not return to the [0] second position after the chronograph has been reset, and including after battery has been replaced.

1. Pull the crown out to the 2nd. position.
2. Press button (A) to set the chronograph second hand to the [O] position.
3. The chronograph hands can be advanced rapidly by continuously pressing button (A).
4. Once the hands have been zeroed, reset the time and return the crown to its normal position. *Do not return crown to normal position while chronograph second hand return to 12:00 [Zero] position.

Hand stops on the way when crown are returned to normal position and these positions are recognized as 12:00 [zero] position.

ILMFS01

USING THE CHRONOGRAPH

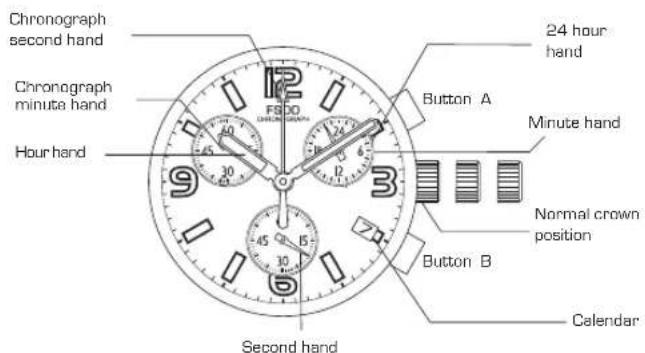

Chronograph second hand 24 hour hand Chronograph minute hand Button A Minute hand Hour hand Normal crown position Button B Second hand Calendar

TACHYMETER

Chronograph second hand Chronograph minute hand Hour hand 24 hour hand Button A Minute hand Normal crown position Button B Second hand Calendar

ILMFS01

TACHYMETER

• The tachymeter is the device which measures the speed of an automobile. Knowing is how many seconds the car covers a distance of 1 Km, the meter can measure the approximate average speed per hour during a journey [up to the maximum measurable range of tachymeter is 60 seconds].
• If the chronograph is started at the same time as measurement, and stopped after 1 Km, the average speed per hour can be determined according to the position of the second hand.
• If the car covers the distance of 1 Km in 45 seconds, the average hourly speed during the journey will be about 80 Km.

BASIC SPECIFICATIONS

Calibre FS00 FS01
Pusher	Slanted Parallel
Ligne Size* mm	10-1/2ø 23,7 x 22 mm (3H-9H)
Date	0
Total height	4.13 mm 4.28 mm
Figure[push button placed angle]
Power cell and life SR626SW 2 years*

* Based on the chronograph being used 1 hour per day

ILMES01

BASIC SPECIFICATIONS

[Time standard]

Type of quartz: Tuning fork type quartz crystal

Frequency: 32.768 Hz.

Accuracy: ± 20 s/month worn under normal circumstances

[Balanceable weight of hand]

Minute hand: Max. 0,4 × N.m

Second hand: Max. 0,035 ∝ N.m

Other small hands: Max. 0,02 ≈ N.m

[Function]

CAL. IFMFS00/01: Chronograph 1/1 sec. basis (Up to 59 min. 59 sec.)

Powercell Saving Reset Mechanism (PSRM)

Over-loading Compensation Device (OLCD)

Digital Frequency Control (DFC) for time adjustment

ILMFS01

MANUEL D'INSTRUCTION

CHRONOGRAPHE

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products are selectively collected for processing. You may therefore dispose of your quartz watching products at any of our retail outlets or any other authorized collection point. The we collection, processing, rating and recycling of these products helps contribute to regarding the environment and protecting our health.
