USER MANUAL FL3225FSMART Finlux

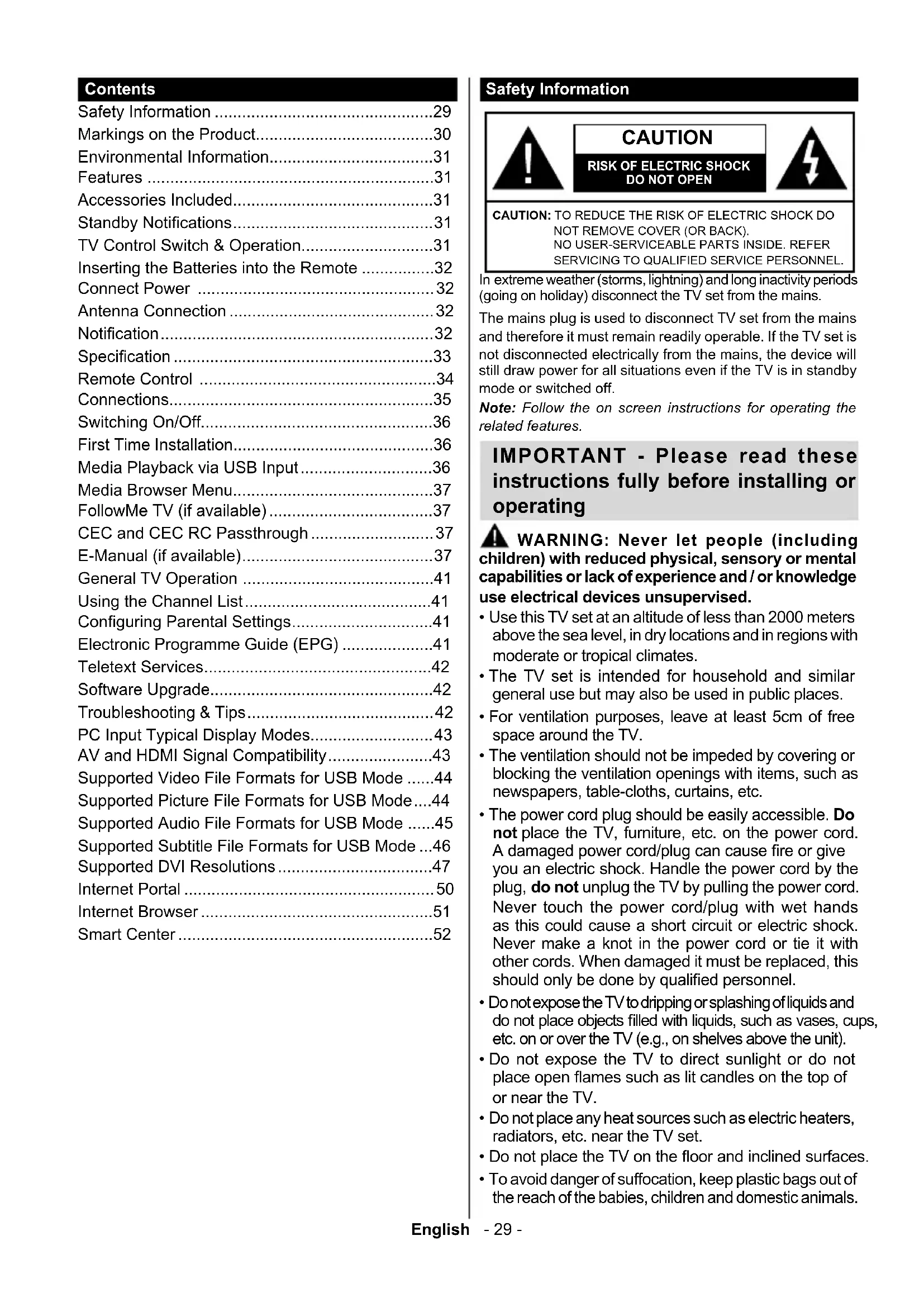

Markings on the Product 30

Environmental Information. 31

Features 31

Accessories Included 31

Standby Notifications 31

TV Control Switch & Operation. 31

Inserting the Batteries into the Remote 32

Connect Power 32

Antenna Connection 32

Notification 32

Specification 33

Remote Control 34

Connections. 35

Switching On/Off 36

First Time Installation. 36

MediaPlayback via USB Input. 36

Media Browser Menu 37

FollowMe TV (if available) 37

CEC and CEC RC Passthrough 37

E-Manual (if available). 37

General TV Operation 41

Using the Channel List. 41

Configuring Parental Settings. 41

Electronic Programme Guide (EPG) 41

Teletext Services. 42

Software Upgrade 42

Troubleshooting & Tips 42

PC Input Typical Display Modes. 43

AV and HDMI Signal Compatibility. 43

Supported Video File Formats for USB Mode ....44

Supported Picture File Formats for USB Mode....44

Supported Audio File Formats for USB Mode ....45

Supported Subtitle File Formats for USB Mode...46

Supported DVI Resolutions. 47

Internet Portal 50

Internet Browser 51

Smart Center 52

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge use electrical devices unsupervised.

• Use this TV set at an altitude of less than 2000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.
• The TV set is intended for household and similar general use but may also be used in public places.
• For ventilation purposes, leave at least 5cm of free space around the TV.
• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.
• Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).
• Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.
• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.
• Do not place the TV on the floor and inclined surfaces.

• To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.

• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.

• Do not dispose of the batteries in fire or with hazardous or flammable materials.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
! Maintenance	Important maintenance component

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Class II Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety connection to electrical

earth, the earth connection is used for functional purposes.

Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with the wiring.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
• Do notinstall the TV on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

WARNING

Never place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as;

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not standing the television set on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

WARNING

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Environmental Information

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:

If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending on the selected Mode in the System>Picture menu.

The Energy Saving settings can be found in the System>Picture menu. Note that some picture settings will be unavailable to be changed.

If pressed Right button while Auto option is selected or Left button while Custom option is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.

Note: Screen Off option is not available if the Mode is set to Game.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Features

• Remote controlled colour TV
• Fully integrated digital terrestrial/cable TV (DVB-T-C)
• HDMI inputs to connect other devices with HDMI sockets
• USB input
• OSD menu system
• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)
• Stereo sound system
• Teletext
• Headphone connection
  Automatic programming system
• Manual tuning
  Automatic power down after up to eight hours.
• Sleep timer
• Child lock
  Automatic sound mute when no transmission.
• NTSC playback
  AVL (Automatic Volume Limiting)
• PLL (Frequency Search)
  PC input

Game Mode (Optional)
- Picture off function
- Ethernet (LAN) for Internet connectivity and service
802.11 a/b/a/n built in WIFI Support
Audio Video Sharing

Accessories Included

Remote Control
- Batteries: 2 x AAA
- Instruction Book

Standby Notifications

If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, it will go into standby. When you next switch-on, the following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.

If the TV is on and it isn't being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because no operation was made for a long time." Press OK to continue.

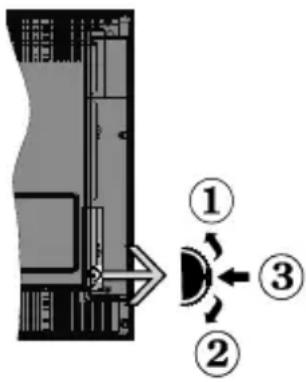

TV Control Switch & Operation

1. Up direction
2. Down direction
3. Volume / Info / Sources List selection and Standby-On switch

The Control button allows you to control the Volume / Programme / Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.

To change source: Press the middle of the button twice (for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

Notes:

• If you turn the TV off, this circle starts again beginning with the volume setting.

• Main menu OSD cannot be displayed via control button.

Operation with the Remote Control

Press the Menu button on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Volume + / - and Programme + / - buttons on the remote.

Inserting the Batteries into the Remote

Lift the cover on the back of the remote gently. Insert two AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Place the cover back on.

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket located on the back of the TV.

Notification

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY DIGITAL PLUS

YouTube and the YouTube logo are trademarks of Google Inc.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

Equipment bearing these symbols should not be disposed as general household waste.

You should look for appropriate recycling facilities and systems for the disposal of these products.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Specification

TV Broadcasting	PAL BG/DK/II' SECAM BG/DK
Receiving Channels	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Digital Reception	Fully integrated digital terrestrial-cable TV (DVB-T-C)
Number of Preset Channels	1000
Channel Indicator On Screen	Green Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Audio Output Power (WRMS.) (10% THD)	2 x 6
Power Consumption (W)	65
Weight (Kg)	6,55
TV Dimensions DxLxH (with foot) (mm)	185 x 735 x 478
TV Dimensions DxLxH (without foot) (mm)	77/97 x 735 x 438
Display	32"
Operation temperature and operation humidity	0°C up to 40°C, 85% humidity max

Wireless LAN Transmitter Specifications

Frequency Ranges	Max Output Power
2400 - 2483,5 MHz (CH1-CH13) < 100 mW
5150 - 5250 MHz (CH36 - CH48) < 200 mW
5250 - 5350 MHz (CH52 - CH64) < 200 mW
5470 - 5725 MHz (CH100 - CH140) < 200 mW

Country Restrictions

This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below.

Country Restriction
Bulgaria	General authorization required for outdoor use and public service
France In-door	use only for 2454-2483.5 MHz
Italy	If used outside of own premises, general authorization is required
Greece	In-door use only for 5470 MHz to 5725 MHz band
Luxembourg	General authorization required for network and service supply(not for spectrum)
Norway	Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Alesund
Russian Fed- eration	In-door use only

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LAN's.

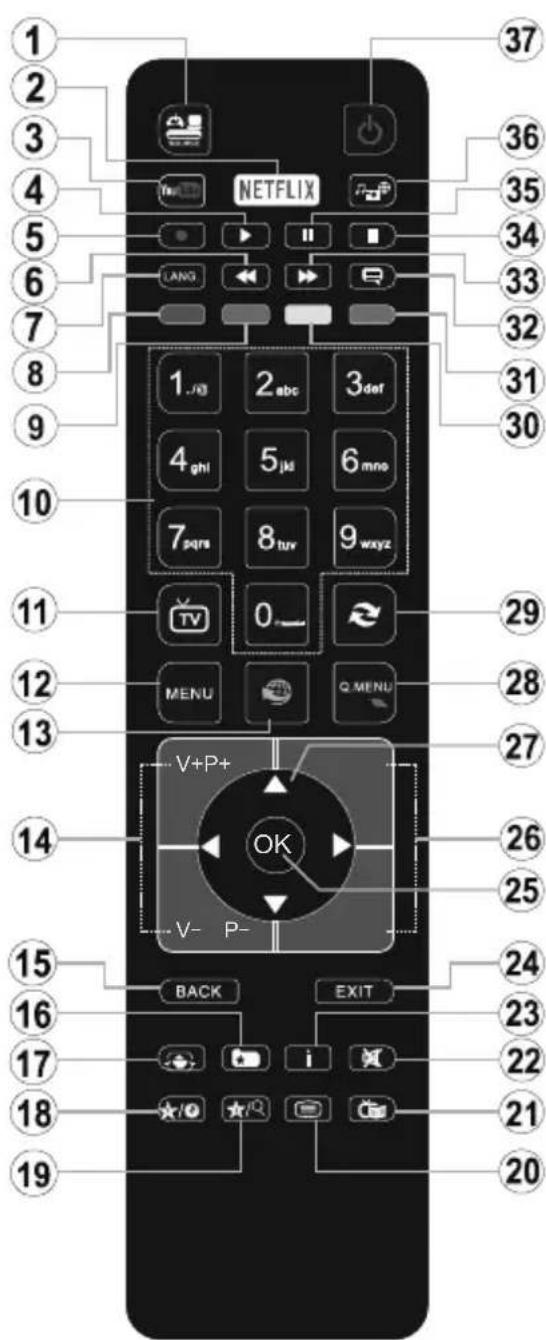

Remote Control

(*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on desired source or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function.

Note that if you perform First Time Installation, MY BUTTON 1&2 will return to their default function.

1. Source: Shows all available broadcast and content sources
2. Netflix: Launches the Netflix application.
3. YouTube: Launches the YouTube application.
4. Play: Starts to play selected media
5. No function
6. Rapid reverse: Moves frames backwards in media such as movies
7. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available)
8. Red button
9. Green button
10. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.
11. TV: Displays channel list / Switches to TV Source
12. Menu: Displays TV menu
13. Internet: Opens the portal page, where you can reach many web based applications
14. Volume +/-
15. Back/Return: Returns to previous screen, opens index page (in TXT mode)
16. Favourites: Displays user specified favourite channels
17. Screen: Changes the aspect ratio of the screen
18. My button 1 ()
19. My button 2 ()
20. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)
21. EPG (Electronic programme guide): Displays the electronic programme guide
22. Mute: Completely turns off the volume of the TV
23. Info: Displays information about on-screen content
24. Exit: Closes and exits from displayed menus or returns to previous screen
25. OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)
26. Programme + / -
27. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left
28. Quick Menu: Displays a list of menus for quick access
29. Swap: Quickly cycles between previous and current channels or sources
30. Yellow button
31. Blue button
32. Subtitles: Turns subtitles on and off (where available)
33. Rapid advance: Moves frames forward in media such as movies
34. Stop: Stops the media being played
35. Pause: Pauses the media being played
36. Media browser: Opens the media browsing screen
37. Standby: Switches On / Off the TV

Connections

Connector Type Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	YPbPr/PC Audio Cable
	HDMI Connection (back)
SPDIF	SPDIF (Coaxial Out) Connection (back)
SIDE AV	Side AV (Audio/Video) Connection (side)	AV Cable
HEADPHONE	Headphone Connection (side)
YPBPR	YPbPr Video Connection (back)	PC to YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)

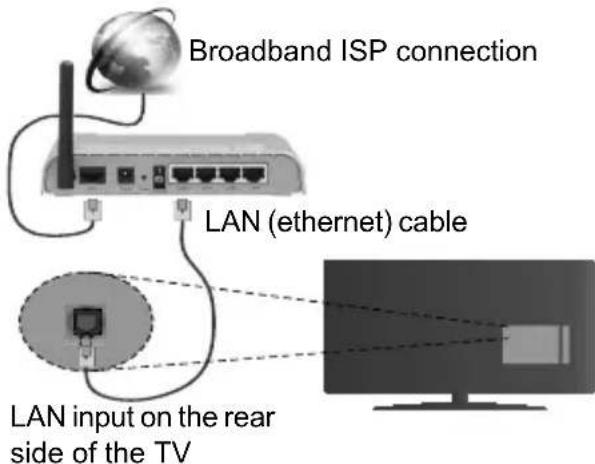

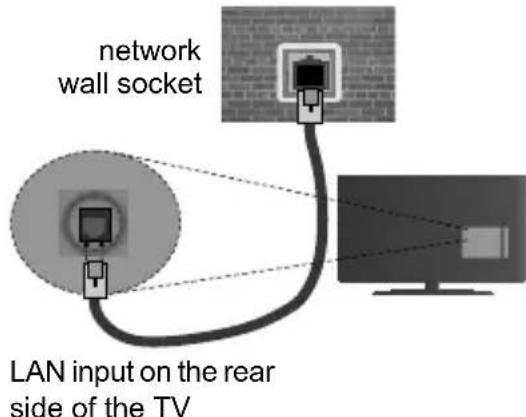

LAN	Ethernet Connection (back)	LAN / Ethernet Cable

NOTE: When connecting a device via the YPbPr or Side AV input, you must use the connection cables to enable connection. See the illustrations on the left side. | You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. | You cannot use VGA and YPbPr at the same time. | To enable PC/YPbPr audio, you will need to use the side audio inputs with a YPbPr/PC audio cable for audio connection. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (available from third party in the market, if not supplied), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. | The/Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. | By connecting an HDMI cable to your TV, you have to use only a shielded HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

Switching On/Off

To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

• Press the Standby button, Programme +/- or a numeric button on the remote control.
• Press the side function switch on the TV until the TV comes on from standby.

To Switch the TV Off

Press the Standby button on the remote control or press the side function switch on the TV until the TV switches into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

On the next screen, set your preferences using the directional buttons.

Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.

About Selecting Broadcast Type

Digital Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.

Digital Cable: If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.

Note: Searching duration will change depending on the selected Search Step.

Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.

Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the

channels of it will be listed on the top of the Channel List. When finished, press OK to continue.

You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned off/on later.

Press OK button on the remote control to continue and the Network/Internet Settings menu will be displayed, if you confirm the previously displayed message asking whether you want to do the network settings. Please refer to Connectivity section to configure a wired or a wireless connection. After the settings are completed press OK button to continue. To skip to the next step without doing anything select No and press the OK button when the message is displayed asking whether you want to do the network settings.

After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.

While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*) . Select Yes and press OK to confirm.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).

Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

Media Playback via USB Input

You can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.

Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.

You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.

It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.

Note: When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.

Media Browser Menu

You can play photo, music and movie files stored on USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings menu.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate	All files in the list will be continuously played in original order
Start playback with the OK button and activate	The same file will be played continuously (repeat)
Start playback with the Play button and activate	All files in the list will be played once in random order
Start playback with the Play button and activate	All files in the list will be continuously played in the same random order.

FollowMe TV (if available)

With your mobile device you can stream the current broadcast from your smart TV using the FollowMe TV feature. Install the appropriate Smart Center application to your mobile device. Start the application. For further information on using this feature refer to the instructions of the application you use.

Note: This application may not be compatible with all mobile devices. HD channels are not supported and both of the devices must be connected to the same network.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.

The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (AV receiver or speaker system).

When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

Note: ARC is supported only via the HDMI1 input.

System Audio Control

Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

E-Manual (if available)

You can find instructions for your TV's features in the E-Manual.

To use E-Manual, press to the Info button while main menu is displayed on the screen or press Quick Menu button, select Information Booklet and press OK.

By using the directional buttons select a desired category. Every category includes different topics. Select a topic and press OK to read instructions.

To close the E-Manual screen press the Exit or Menu button.

Note: The contents of the E-Manual may vary according to the model.

TV Menu Contents
System - Picture Menu Contents
Mode		You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast		Adjusts the light and dark values on the screen.
Brightness		Adjusts the brightness values on the screen.
Sharpness		Sets the sharpness value for the objects displayed on the screen.
Colour		Sets the colour value, adjusting the colours.
Energy Saving		For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off. Note: Available options may differ depending on the selected Mode.
Backlight		This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other than Custom.
Advanced Settings
	Dynamic Contrast	You can change the dynamic contrast ratio to desired value.
	Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
	Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
	White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
	Picture Zoom	Sets the desired image size format.
	Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
	Skin Tone	Skin tone can be changed between -5 and 5.
	Colour Shift	Adjust the desired colour tone.
	HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position		Appears only when the input source is set to VGA/PC.
	Autoposition	Automatically optimizes the display. Press OK to optimize.
	H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
	V Position	This item shifts the image vertically towards the top or bottom of the screen.
	Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
	Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset		Reset the picture settings to factory default settings (except Game mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
System - Sound Menu Contents
Volume	Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance	Adjusts whether the sound comes from the left or right speaker.
Headphone	Sets headphone volume. Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode	You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone. Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass	Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed as On or Off.
Digital Out	Sets digital out audio type.

System - Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language	You may set a different language depending on the broadcaster and the country.
Parental	Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options. Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time	Sets date and time.
Sources	Enables or disables selected source options.
Network/Internet Settings	Displays network/internet settings.
Accessibility	Displays accessibility options of the TV.
Hard of Hearing	Enables any special feature sent from the broadcaster.
Audio Description	A narration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.
Netflix	You can view your ESN(*) number and deactivate Netflix. (*) ESN number is an unique ID number for Netflix, created especially to identify your TV.
More	Displays other setting options of the TV.
Menu Timeout	Changes timeout duration for menu screens.
Software Upgrade	Ensures that your TV has the latest firmware. Press OK to see the menu options.
Application Version	Displays current software version.
Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated.
Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Audio Video Sharing	Audio Video Sharing feature allows you to share files stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. Audio Video Sharing mode will not be available with internet portal feature.
Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
CEC Auto Power On	This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.

Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations.
Manual channel scan	This feature can be used for direct broadcast entry.
Network channel scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.
Analogue fine tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Installation Settings (Optional)	Displays installation settings menu. Standby Search: Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First time installation	Deletes all stored channels and settings, resets TV to factory settings.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the OK/TV button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.

Managing the Favourite Lists

You can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.

You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.

Configuring Parental Settings

The Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.

To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.

Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.

Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.

Internet Lock: If this option is set to ON, the open browser application in the portal will be disabled. Set to OFF to release the application again.

Set PIN: Defines a new PIN number.

Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.

Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.

Some options may not be available depending on the country selection in the First Time Installation.

Electronic Programme Guide (EPG)

Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.

There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.

Timeline Schedule

Zoom (Yellow button): Press the Yellow button to see events in a wider time interval.

Filter (Blue button): Views filtering options.

Select Genre (Subtitles button): Displays Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.

Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Search (Text button): Displays Guide Search menu.

Now (Swap button): Displays current event of the highlighted channel.

List Schedule(*)

(*) In this layout option, only the events of the highlighted channel will be listed.

Prev. Time Slice (Red button): Displays the events of previous time slice.

Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Event Details (Info button): Displays detailed information about selected events.

Filter (Text button): Views filtering options.

Next Time Slice (Green button): Displays the events of next time slice.

Options (OK button): Displays event options.

Now/Next Schedule

Navigate (Directional buttons): Press the Directional buttons to navigate through the channels and events.

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.

Filter (Blue button): Views filtering options.

Event Options

Use the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.

Select Channel: Using this option, you can switch to the selected channel.

Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the

OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events.

To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.

Notes: You cannot switch to any other channel or source while there is an active timer on the current channel.

It is not possible to set timer for two or more individual events at the same time interval.

Teletext Services

Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.

Digital Teletext

Press the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen.

When the Text button is pressed again, the TV returns to television broadcast.

Software Upgrade

Your TV is capable of finding and updating the firmware automatically via the broadcast signal or via Internet.

Software upgrade search via user interface

On the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.

If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the

TV by pressing the OK to continue with the reboot operation.

3 AM search and upgrade mode

Your TV will search for new upgrades at 3:00 o'clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on.

Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.

Poor picture

• Check if you have selected the correct TV system.
• Low signal level can cause picture distortion. Please check antenna access.
• Check if you have entered the correct channel frequency if you have done manual tuning.
• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• This means your TV is not receiving any transmission.
  Make sure the correct source has been selected.
• Is the antenna connected properly?
• Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
  If you are in doubt, consult your dealer.

No sound

• Check if the TV is muted. Press the Mute button or increase the volume to check.
  Sound may be coming from only one speaker. Check the balance settings from Sound menu.

Remote control - no operation

• The batteries may be exhausted. Replace the batteries.

Input sources - can not be selected

• If you cannot select an input source, it is possible that no device is connected. If not;
• Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

Index Resolution Frequency
1	0x350 85Hz
2	0x400 70Hz
3	0x480 60Hz
4	0x480 66Hz
5	0x480 72Hz
6	0x480 75Hz
7	0x480 85Hz
8	0x600 56Hz
9	0x600 60Hz
10	0x600 70Hz
11	0x600 72Hz
12	0x600 75Hz
13	0x600 85Hz
14	32x624 75Hz
15	24x768 60Hz
16	24x768 66Hz
17	24x768 70Hz
18	24x768 72Hz
19	24x768 75Hz
20	24x768 85Hz
21	52x864 60Hz
22	52x864 70Hz
23	52x864 75Hz
24	52x864 85Hz
25	52x870 75Hz
26	80x768 60Hz
27	60x768 60Hz
28	80x768 75Hz
29	80x768 85Hz
30	80x960 60Hz
31	80x960 75Hz
32	80x960 85Hz
33	80x1024 60Hz
34	80x1024 75Hz
35	80x1024 85Hz
36	00x1050 60Hz
37	00x1050 75Hz
38	00x1050 85Hz
39	40x900 60Hz
40	40x900 75Hz
41	600x1200 60Hz
42	680x1050 60Hz
43	920x1080 60Hz
44	920x1200	60Hz

AV and HDMI Signal Compatibility

Source	Supported Signals		Available
EXT(SCART)	PAL O
	SECAM O
	NTSC4.43 O
	NTSC3.58 O
	RGB 50/60		O
Side AV	PAL O
	SECAM O
	NTSC4.43 O
	NTSC3.58 O
YPbPr	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i	50Hz,60Hz	O
HDMI	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i	50Hz,60Hz	O
	1080p	24Hz,25Hz,30Hz,50Hz,60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported Video File Formats for USB Mode

Extension Video	Codec SPEC (Resolution) & Bit Rate
.dat, vob MPEG1/2		1080P@30fps - 40 Mbps
.mpg, .mpeg	MPEG1/2,MPEG4
.ts, .trp, .tp	MPEG1/2, H.264,AVS, MVC	H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC:1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps
.mp4, .mov, .3gpp, .3gp	MPEG1/2,MPEG4, H.263,H.264, MotionJPEG	H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps Motion JPEG:640x480@30fps - 10 Mbps Other: 1080P@30fps - 40 Mbps
.avi MPEG1/2,	MPEG4,Sorenson H.263,H.263, H.264,WMV3, MotionJPEG
.mkv MPEG1/2,	MPEG4, H.263,H.264, WMV3, Motion JPEG
.asf Sorenson H.263,H.264, WMV3, Motion JPEG
.flv WMV3 1080P@30fps - 40 Mbps
.swf RV30/RV40 1080P@30fps - 40 Mbps
.wmv
.mp4, .mov, .3gpp, .3gp, MPEGtransport stream, .ts, .trp, .tp, .mkv	HEVC/H.265 1080P@60fps - 50Mbps

Supported Picture File Formats for USB Mode

Image Photo Resolution (width x height) Remark
JPEG	Base-line 15360x8640
	Progressive	1024x768
PNG	non-interlace	9600x6400
	interlace 1200x800
BMP		9600x6400

Supported Audio File Formats for USB Mode

Extension	Audio Codec Bit Rate	Sample rate
.mp3,	MPEG1/2 Layer1 32Kbps	s ~ 448Kbps	16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps
	MPEG1/2 Layer3 8Kbps	~ 320Kbps
.avi	MPEG1/2 Layer1 32Kbps	s ~ 448Kbps	16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps
	MPEG1/2 Layer3 8Kbps	~ 320Kbps
	AC3 32Kbps ~ 640Kbps	32KHz, 44.1KHz, 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
	WMA 128bps ~ 320Kbps	8KHz ~ 48KHz
	WMA 10 Pro M0 < 192k	ops 48KHz
	WMA 10 Pro M1 < 384k	ops 48KHz
	WMA 10 Pro M2 < 768k	ops 96KHz
	LPCM 64Kbps ~ 1.5Mbps	8KHz ~ 48KHz
	IMA-ADPCM, MS-ADPCM	384Kbps 8KHz ~ 48KHz
	G711 A/mu-law 64Kbps	~ 128Kbps 8KHz
.asf	MPEG1/2 Layer1 32Kbps	s ~ 448Kbps	16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps
	MPEG1/2 Layer3 8Kbps	~ 320Kbps
	WMA 128bps ~ 320Kbps	8KHz ~ 48KHz
	WMA 10 Pro M0 < 192k	ops 48KHz
	WMA 10 Pro M1 < 384k	ops 48KHz
	WMA 10 Pro M2 < 768k
.mkv, .mka	MPEG1/2 Layer1 32Kbps	s ~ 448Kbps	16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps
	MPEG1/2 Layer3 8Kbps	~ 320Kbps
	AC3 32Kbps ~ 640Kbps
	AAC, HEAAC 8KHz ~ 48KHz
	WMA 128bps ~ 320Kbps	8KHz ~ 48KHz
	WMA 10 Pro M0 < 192k	ops 48KHz
	WMA 10 Pro M1 < 384k	ops 48 KHz
	WMA 10 Pro M2 < 768k	ops 96KHz
	VORBIS Up to 48KHz
	LPCM 64Kbps ~ 1.5Mbps	8KHz ~ 48KHz
	IMA-ADPCM,MS-ADPCM	384Kbps 8KHz ~ 48KHz
	G711 A/mu-law 64Kbps	~ 128Kbps 8KHz
	FLAC	< 1.6Mbps 8KHz ~ 96KHz
.ts, .trp, .tp, .dat, .vob, .mpg, .mpeg	MPEG1/2 Layer1 32Kbps	s ~ 448Kbps	16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps
	MPEG1/2 Layer3 8Kbps	~ 320Kbps
	AC3 32Kbps ~ 640Kbps)	32KHz, 44.1KHz, 48KHz
	EAC3	32Kbps ~ 6Mbps	32KHz, 44.1KHz, 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
	LPCM 64Kbps ~ 1.5Mbps	8KHz ~ 48KHz
.wav	MPEG1/2 Layer1 32Kbps	~ 448Kbps	16KHz ~ 48KHzMPEG1/2 Layerer2 8Kbps ~ 384Kbps
	MPEG1/2 Layer3 8Kbps	~ 320Kbps
	LPCM 64Kbps ~ 1.5Mbps	8KHz ~ 48KHz
	IMA-ADPCM,MS-ADPCM	384Kbps 8KHz ~ 48KHz
	G711 A/mu-law 64Kbps	~ 128Kbps 8KHz
.3gpp, .3gp,.mp4, .mov,.m4a	MPEG1/2 Layer3 8Kbps	~ 320Kbps 16KHz ~ 48KHz
	AC3 32Kbps ~ 640Kbps	32KHz, 44.1KHz, 48KHz
	EAC3 32Kbps ~ 6Mbps	32KHz, 44.1KHz, 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
	VORBIS Up to 48KHz
	LPCM 64Kbps ~ 1.5Mbps	8KHz ~ 48KHz
	IMA-ADPCM,MS-ADPCM	384Kbps 8KHz ~ 48KHz
	G711 A/mu-law 64Kbps	~ 128Kbps 8KHz
.flv	MPEG1/2 Layer3 8Kbps	~ 320Kbps 16KHz ~ 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
.ac3	AC3 32Kbps ~ 640Kbps	32KHz, 44.1KHz, 48KHz
	AAC, HEAAC 8KHz ~ 48KHz
.swf	MPEG1/2 Layer3 8Kbps	~ 320Kbps 16KHz ~ 48KHz
.ec3	EAC3 32Kbps ~ 6Mbps	32KHz, 44.1KHz, 48KHz
.rm, .rmvb, .ra	AAC, HEAAC 8KHz ~ 48KHz
	LBR (cook)	6Kbps ~ 128Kbps	8KHz, 11.025KHz,22.05KHz, 44.1KHz
.wma, .wmv	WMA	128bps ~ 320Kbps 8KHz ~	48KHz
	WMA 10 Pro M0 < 192kbps	48KHz
	WMA 10 Pro M1 < 384kbps	48KHz
	WMA 10 Pro M2 < 768kbps	96KHz
.webm	VORBIS Up to 48KHz

Supported Subtitle File Formats for USB Mode

Internal Subtitles
Extension Container	Subtitle Code
dat, mpg,mpeg, hob	MPG, MPEG	DVD Subtitle
ts, trp, tp	TS	DVB Subtitle
mp4	MP4	DVD Subtitle UTF-8 Plain Text
mkv	MKV	ASS SSA UTF-8 Plain Text VobSub DVD Subtitle

External Subtitles

Extension	Subtitle Parser	Remark
.srt	Subrip
.ssa/.ass	SubStation Alpha
.smí	SAMI
.sub	Subscriber MicroDVD DVDSusbtitleSystem SubIdx (VobSub)	Subscriber 1.0 & 2.0 Only
.txt	TMPlayer

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz 60Hz 66Hz		70Hz 72Hz		75Hz
640x400				☑
640x480		☑ ☐ ☑	☑
800x600	☑ ☐ ☑	☑ ☐
832x624							☑
1024x768		☑ ☐ ☑	☑ ☐
1152x864		☑ ☐ ☑
1152x870							☑
1280x768		☑					☑
1360x768		☑
1280x960		☑					☑
1280x1024		☑					☑
1400x1050		☑					☑
1440x900		☑					☑
1600x1200		☑
1680x1050		☑
1920x1080		☑

Connectivity

Wired Connectivity

To Connect to a Wired Network

• You must have a modem/router connected to an active broadband connection.
• Connect your PC to your modem/rodter. This can be a wired or wireless connection.
• Connect your TV to your modem/rodter via an ethernet cable. There is a LAN port at the rear (back) of your TV.

To configure wired settings please refer to the Network/Internet Settings section in the System>Settings Menu.

• You might be able to connect your TV to your LAN depending on your network's configuration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet.

Configuring Wired Device Settings

Network Type

The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an ethernet.

Internet Speed Test

Highlight Internet Speed Test and press the OK button. TV will check the internet connection bandwidth

and display the result when complete.

Advanced Settings

Highlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS settings of the TV. Highlight the desired one and press Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Press the OK button to save settings when complete.

Wireless Connectivity

To Connect to a Wireless Network

The TV cannot connect to the networks with a hidden SSID. To make your modem's SSID visible, you should change your SSID settings via the modem's software.

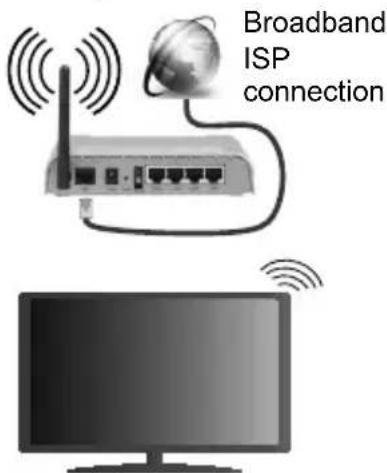

To Connect to a wireless LAN, you should perform the following steps:

• To configure your wireless settings please refer to the Network/Internet Settings section in the System>Settings Menu.

A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers and wireless gaming.

The frequency and channel differ depending on the area.
- The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.

• The location where the transmission is most effective differs depending on the usage environment.
• The Wireless feature of the TV supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.
• You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.

Configuring Wireless Device Settings

Open the Network/Internet Settings menu and select Network Type as Wireless Device to start connection process.

The TV will scan the wireless networks automatically. A list of available networks will be displayed. Please select your desired network from the list.

Note: If the modem supports N mode, you should set mode settings.

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control.

Wait until the IP address is shown on the screen.

This means that the connection is now established. To disconnect from a wireless network, highlight Network Type and press Left or Right buttons to set as Disabled.

Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highlight Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Press the OK button to save settings when complete.

Other Information

The status of the connection will be displayed as Connected or Not Connected and the current IP address, if a connection is established.

Connecting to your mobile device via WiFi

• If your mobile device has WiFi feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software.
• Connect to your router following the steps stated above in the Wireless Connectivity section.

• Afterwards, engage your mobile device with the router and then activate the sharing software on your mobile device. Then, select files that you want to share with your TV.

• If the connection is established correctly, you will be able to access the shared files from your mobile device via the Media Browser of your TV.

• Enter the Media Browser menu and the playback device selection OSD will be displayed. Select your mobile device and press the OK button to continue.
• If available, you can download a virtual remote controller application from the server of your mobile device application provider.

Note: This feature may not be supported on all mobile devices.

Connectivity Troubleshooting

Wireless Network Not Available

• Ensure that any firewalls of your network allow the TV wireless connection.
• Try searching for wireless networks again, using the Network/Internet Settings menu screen.

If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connectivity section for more information on the process.

If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case:

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

Internet Connection Not Available / Audio Video Sharing Not Working

If the MAC address (a unique identifier number) of your PC or modem has been permanently registered, it is possible that your TV might not connect to the internet. In such a case, the MAC address is authenticated each time when you connect to the internet. This is a precaution against unauthorized access. Since your TV has its own MAC address, your internet service provider cannot validate the MAC address of your TV. For this reason, your TV cannot connect to the internet. Contact your internet service provider and request information on how to connect a different device, such as your TV, to the internet.

It is also possible that the connection may not be available due to a firewall problem. If you think

this causes your problem, contact your internet service provider. A firewall might be the reason of a connectivity and discovery problem while using the TV in Audio Video Sharing mode or while browsing via Audio Video Sharing feature.

Invalid Domain

Ensure that you have already logged on to your PC with an authorized username/password and also ensure that your domain is active, prior to sharing any files in your media server program on your PC. If the domain is invalid, this might cause problems while browsing files in Audio Video Sharing mode.

Using Audio Video Sharing Network Service

Audio Video Sharing feature uses a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network.

This standard allows you to view and play photos, music and videos stored in the media server connected to your home network.

1. Server Software Installation

The Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC or if the required media server software is not installed onto the companion device. Please prepare your PC with a proper server programme.

2. Connect to a Wired or Wireless Network

See the Wired/Wireless Connectivity chapters for detailed configuration information.

3. Play Shared Files via Media Browser

Select Media Browser by using the directional buttons from the main menu and press OK. The media browser will then be displayed.

Audio Video Sharing

Select the desired media type on the main media browser menu and press OK. If sharing configurations are set properly, Device Selection screen will be displayed after selecting the desired media type. If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the Up or Down buttons and press OK. If you want to refresh the device list, press the Green button. You can press Menu to exit.

If you select the media type as Videos and choose a device from the selection menu. Then select the folder with video files in it on the next screen and all the available video files will be listed.

To play other media types from this screen, you can go back to main Media Browser screen and select the media type as desired and then perform the network selection again. Or press the Blue button to switch to next media type quickly without changing the network. Refer to the Media Browser menu section for further information on file playback.

If a problem occurs with the network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the Audio Video Sharing feature.

PC/HDD/Media Player or any other devices that are compatible should be used with a wired connection for higher playback quality.

Use a LAN connection for quicker file sharing between other devices like computers.

Note: There may be some PC's which may not be able to utilize the Audio Video Sharing feature due to administrator and security settings (such as business PC's).

Internet Portal

HINT: A broadband internet connection is required for high quality viewing. You must set the country option accordingly in the First Time Installation for proper operation of the internet portal.

Portal feature adds your TV a feature that allows you to connect a server on the Internet and view the content provided by this server over your Internet connection. Portal feature allows you to view the music, video, clip or web content with defined short-cuts. Whether you can view this content without interruption depends on the connection speed provided by your internet service provider.

Press the Internet button on your remote control to open internet portal page. You will see icons of the available applications and services on the portal screen. Use the directional buttons on your remote to select the desired one. You may view the desired content by pressing OK after selecting. Press Back/ Return button to return back to the previous screen.

Moreover, you can access some features using the short-cut feature defined for the coloured or numeric buttons of your remote.

Press the Exit button to quit the Internet portal mode.

PIP Window (depending on portal service)

Current source content will be displayed in the PIP window, if you switch to portal mode while on any active source.

If you switch to portal mode while watching TV channels, current programme will be displayed in the PIP window.

Notes:

Possible application dependent problems may be caused by the content service provider.

Portal service content and the interface may be changed at any time without prior notice.

Third party internet services may change, be discontinued or restricted at any time.

Internet Browser

To use the internet browser, enter the portal first. Then launch the Internet application on the portal.

(*) The appearance of the internet browser logo may change

In the initial screen of the browser, the thumbnails of the predefined (if any) links to web sites available will be displayed as Speed Dial options along with the Edit Speed Dial and the Add to Speed Dial options.

To navigate the web browser, use the directional buttons on the remote or a connected mouse. To see the browser options bar, move the cursor to the top of the page or press the Back/Return button. History, Tabs and Bookmarks options and the browser bar which contains previous/next buttons, the refresh button, the adress/search bar, the Speed Dial and the Opera buttons are available.

To add a desired website to the Speed Dial list for quick access, move the cursor to the top of the page or press the Back/Return button. The browser bar will appear. Highlight the Speed Dial - button and press the OK button. Then select Add to Speed Dial option and press the OK button. Fill in the blanks for Name and Address, highlight OK and press the OK button to add. Whilst you are on the site you wish to add to the Speed Dial list, highlight the Opera-0 button and press the OK button. Then highlight Add to Speed Dial option in the submenu and press the OK button again. Name and Address will be filled automatically according to the site you are visiting. Highlight OK and press the OK button to add.

You can also use the Opera menu options to manage the browser. Highlight the Opera- 0 button and press the OK button to see available page specific and general options.

There are various ways to search or visit websites using the web browser.

Enter the address of a website(URL) into the search/ address bar and highlight the Submit button on the virtual keyboard and press the OK button to visit the site.

Enter keyword/s into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to start a search for the related websites.

Highlight a Speed Dial thumbnail and press the OK button to visit the related website.

Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor into the USB input of your TV for easier and quicker navigation.

Some web pages include flash content. These are not supported by the browser.

Your TV does not support any download processes from the internet via the browser.

All sites on the internet might not be supported. According to the site; content problems may occur. In some circumstances video contents might not be able to be played.

Smart Center

Smart Center is a mobile application running on iOS and Android platforms. With your tablet or phone, you can easily stream your favourite live shows and programmes from your smart TV. Also; you can launch your portal applications, use your tablet as a remote control for your TV and share media files.

Note: Being able to use all functions of this application depends on the features of your TV.

Getting Started

To use Smart Center features, connections have to be done properly. To get connected to your network wirelessly, plug in the Wi-Fi dongle to one of the USB ports if your TV doesn't have internal wifi feature. To be able to use internet based features, your modem/ router must be connected to the internet.

IMPORTANT: Make sure the TV and mobile device are connected to the same network.

For media sharing feature Audio Video Sharing option should be enabled(if available). Press the Menu button on the remote, select System>Settings>More menu and press OK. Highlight Audio Video Sharing and change as Enabled. Your TV is ready to connect to your mobile device now.

Install the Smart Center application onto your mobile device.

Start the smart center application. If all connections are configured properly, you will see your TV's name on your mobile device. If your TV's name doesn't appear on the list, wait a while and tap on the Refresh widget. Select your TV from the list.

Mobile Device screen

On the main screen you can find tabs to access various features.

The application retrieves actual channel list from TV first when it starts.

MY CHANNELS: The programmes of first four channels from the channel list retrieved from the TV are shown. You can change the listed channels. Press on the channel thumbnail and hold. A list of channels will be displayed and you can choose your desired channel to be replaced.

TV: You can watch content through the TV tab. In this mode you can navigate through the channel list retrieved from your TV and click on thumbnails to view the detail pages.

RECORDINGS: You can view your active recordings(if available) and reminders through this tab. To delete any item, simply press on the delete icon found on each row.

EPG: You can view the broadcast schedules of selected channel lists through this tab. You can also navigate through channels by pressing on the selected channel on the EPG grid. Please note that updating

/ refreshing the EPG information may take a while depending on your network and web service quality.

Note: Internet connection is required for WEB based EPG informations.

PORTAL: This tab displays the Portal applications in scrollable view. Unless FollowMeTV (if available) is active, the selected application will be displayed on your TV screen.

Note: Internet connection is required. This tab is enabled if a portal page is in use.

SETTINS: Configure the application to your liking. You can change;

Auto-lock (Only in IOS): The screen of the device automatically turns off after a certain amount of time. Default is off, which means the screen will always stay on.

Auto-enable FollowMeTV: FollowMeTV function (if available) will start automatically when this setting is enabled. Default is disabled.

Auto-connection to TV: When enabled, your mobile device will automatically connect to last connected TV and skips the TV search screen.

Change TV (Only in IOS): Shows the currently connected TV. You can press on this setting to go to the "TV search" screen and change to a different TV.

Edit custom channel list: You can edit your custom channel list using this setting.

Choose channel list source: You can choose the channel list source to be used in the application. The options are "TV List" and "Custom List". Additionally you can activate "Remember my choice" option to set the selected channel list source as a constant choice. In this case if the selected source is available it will be used in the application.

Version No: Displays the current version of the application.

Detail Page

To open detail page tap on a programme. On the detail page screen you can get detailed information of the programmes you select. There are "Details", "Cast&Crew" and "Videos" tabs to find on this page.

DETAILS: This tab provides summary and information about the selected programme. Also there are links to facebook and twitter pages of the programme selected.

CAST&CREW: Shows all the people contributed to the current programme.

VIDEOS: Provides videos on Youtube related to the selected programme.

Note: For some functions an internet connection may be required.

FollowMe TV Feature (if available)

Tap on the FOLLOW ME TV widget located at the bottom left of the screen of your mobile device to change the layout for FollowMe TV feature.

Tap the play icon to start streaming of the content from the TV to your mobile device. Available if your device is in your routers operation range.

Notes:

Note that only digital(DVB-T/C/S) SD channels are supported.

Multilanguage audio support and subtitle on/off features are not functional.

The streaming performance may change depending on the quality of your connection.

Media Share Page

To access the Media Share widget tap on the Uparrow on the bottom left side of the screen.

If the Media Share widget is pressed, a screen is displayed where you can select the media file type to share with your TV.

Note: Not all image file formats are supported. This function will not work if Audio Video Sharing feature is not supported.

Portal Launcher

To access the Portal Launcher widget tap on the Up-arrow on the bottom left side of the screen.

You can access the portal page by tapping on the Portal Launcher widget.

Note: Internet connection is required. This function will not work if a portal page is not in use.

Smart Remote Feature

You can use your mobile device as a remote control for your TV once it has connected to the TV. To use smart remote's full features tap on the Up-arrow on the bottom left side of the screen.

Voice Recognition

You can tap on the Microphone( ) widget and manage your application, giving voice commands such as "Portal!", "Volume Up/Down!", "Programme Up/Down!".

Note: This feature is only for android based devices available.

Keyboard Page

The keyboard page can be opened in two ways; by pressing the Keyboard( ) widget on the application screen or automatically by receiving a command from the TV.

Requirements

1. Smart TV
2. Network connection
3. Mobile Device based on Android or iOS platform (Android OS 4.0 or higher; IOS 6 or higher version)

4. Smart Center app.(to be found on online application stores based on Android and iOS platforms)

5. Routermodem

6. USB storage device in FAT32 format (required for PVR feature, if available)

Notes:

For Android devices, Normal Mdpi), Large(hdpi) and Extra Large(xhpi) screen sizes are supported. Devices with 3^ or smaller screen sizes are not supported.

For iOS devices, all screen sizes are supported.

User interface of the Smart Center application is subject to change according to version installed on your device.

Table des matieres

MISE EN GARDE
RISQUE D'LECTROCUTION NE PAS OUVRIR

MISE EN GARDE : POUR ÉVITER TOUT RISQUE DE CHOC ÉLECTRIQUE, NE RETIREZ PAS LE COUVERCLE (OU L'ARRÊRE).

AUCUNE PIECE REPARABLE PAR L'UTILISATEUR.
VEUILLEZ CONFIER L'ENTRETIEN À UN PERSONNEL QUALIFIÉ.

Restrictions relatives aux pays

Smart Remote-Function

Resoluciones DVI admitting. .51

Portal Internet. 54

Explorador Web 55

Smart Center 56

(*) MIN KNAP 1 & MIN KNAP 2:

trykke pa OK, for at soge after en ny softwareopgrading.

A	Product Fiche
B	Commercial Brand:FINLUX
C	Product No.	10113225
D	Model No.	FL3225FSMART
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	32 inches	81 cm
G	On mode average power consumption (Watt)	31
H	Annual energy consumption (kWh/annum)	45
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1920x1080

	A	B	C	D	E	F	Visible screen size (diagonal, approx.) (inch/cm)
English	Product Fiche Commercial Brand Product No		Model No. Energy efficiency class
Deutsch	Produkt-Datenblatt	Markenzeichen	Produkt-Ne.	Model-Nr.	Energieeffizienzklasse	Sichtbare Bldtschirmgroße (diagonal, ca.) (Zoll /cm)
Бъларски	Справочen пост с тенинескite данини	Тьравская марka	Проб Kentucky	Мodel №	Клас на/Eнерийсяфektivно	Бадим размр на ekрANA (дialogонал, рпсл.) (инча /cm)
Čestina	Produktový list	Značka výrobce	Čislo produktu	Model ě.	Energetická trida	Viděteña veilostobrazovky (úhlorťčka, príbl.) (palcú /cm)
Dansk	Produktoplysningsskema	Varemaerkle	Produktnr.	Model nr.	Energieeffektivitetsklage	Synig skærmstørrelse (diagonal,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyvan kuvaruudun koko (diagonalainen,n.) (tuimaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille de cren van visible (diagonale,approx. (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidžjva velicina ekrana (diagonala,príblžno) (inca/cm)
Nederlands	Productfiche	Commercieel merk.	Productnr.	Modelnr.	Energie efficientre klasse	Zichtbare schemgrotte (diagonal,ca.) (inches/cm)
Espanol	Ficha del Produkt	Marca Comercial	N° de Produkt	N° de Modelo	Clasificación Energética	Tamaño de pantana visible (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke	Produktnr.	Modellnr.	Energiklass	Synig skármstorlek (diagonal, ungefärll) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di efficienza energetica	Dimensioni visibili dello schermo (diagonal,circa) (pollici/cm)
Polski	KARTA PRODUKTU Marka produkte Nr Produktur Nr modelu				Klasa efektywnošci energetycznej	Widoczný obraz ekrani (przekťna,okoto)(cali/cm)
Magyar	Termékismertő adatlap	Kereskedelmi marka	Termékszám	Modellszám	Energiahatékonysági osztály	Lathato keptartomany (diagonals,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Model nr.	Energieeffektivitet klasse	Synig skjernstørrelse (diagonal,ca.) (tommer/cm)
Português	Ficha do produits	Marca Comercial	Produto N°	Modolo N°	Classificação eficiência energetica	Tammano ecra visiter (diagonal,approx. (pulgadas/cm)
Romānă	Fișă produs	Marcă commercială	Nr. Produs	Nr. Model	Clasa de eficientă energetica	Dimensiune ercantiutul visibilit (diagonala,approx.) (inch/cm)
Русский	Справочny пustotek Тechнiques Данныkh Истелегia	Topròba MAPA	Homep nozzelenia	Homep nozzelenia	Knacc 3neproneotpebólney	Вадимкий разmр ekrana (no daugorauno, priobinierteileho) (daimob/ cm)
беларская	Справочny пustotek Тechнiques Дariahhi Истелегia	Topròba MAPA	Homep nozzelenia	Homep nozzelenia	Knacc 3neproneotpebólney	Вадимкий разmр ekrana (no daugorauno, okoto)(daimob/ cm)
maşedeонск	Тechнiques Podatoцni	Корецц�лна марka	Пробзовдр.	Modelбр.	Knacc na bo ehepretcxa effikkaskoct	Одемпка на видахе ekран (diagona,napoly),okony) (inna-c/m)
ураійський	Тechнiques Dani	Корецц�на марka	Aprinkyn	Modelь	Knacc eheprocnokuzbanna	Бадимкий розмр ekрana (diagona,napoly),прибимно) (daimob/ cm)
Srpski	Tehnicke odike	Kormecijalna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Velicina vidljνog ekrana (diagonala, tokom) (inca/cm)
Slovenčina	Produktový list	Značka výrobcu	Čislo produktu	Model ě.	Energetická trieda	Viděteña veilostobrazovky (úhlorťčka, zhruba) (palcov/cm)
Slovenskīna	Opis izdelka	Kormecijalna zamaka	St. Izdelka	St. Modela	Razred energetske učinkovitosti	Vidna veliktost zaslona (diagonala, prbjl.) (palcov/cm)
Еλλυκ	Дέλτι προίντος	БутPORÍO σημα	Ap. По́йόντος	Ap. Mottelau	Katnyopia evapyräikáncs attóðöngs	Otropo lyveboč odovičn (diayovivoč, tep.) (ivtrac/cm)
Bosanski	Tehnicki podaci	Kormecijalna marka	Produktbr.	Model br.	Klasa energetske efikasnosti	Vidžlva veilchina ekrana (diagonala prbjlžno) (inca/cm)
Я́ц	Yashny ONU	Yashny ONU	Yashny ONU	Yashny ONU	Yashny Yashny ONU	(Vary) (davon,duvala) (davon) (davon)
Türkce	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimiligi sinifi	Göridenekran boyuto (capraz; yaktık.) (ingc/cm)
Shqlp	Té dhēnat e produkt lit	Marka tregtare	Nr. i Produktit.	Nr. i modelit.	Klasa e eficiencës se energjisë	Madhesia e ekrant te duikshem (diagonal, afersishit) (inc/cm)
Lietuvić	Gaminio etiketé	Gamintojas	Gaminio Nr.	Modello Nr.	Energetinio efektvyumo klasë	Matomas ekran doydis (strizajme,approx.) (coliu/cm)
Latviešu	Produkte aprakssts	Marka	Produktur nr.	Modela nr.	Energoefektivitätes klase	Ekranja izmërs (pa diognali,apmcram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja fima	Toote nr.	Mudeli nr.	Energiaklass	Vaatatava ekraani suurus (diagonaal, umbes) (tolli/cm)
Ф�SETS	Ф�SETS CHINA	Ф�SETS CHINA	Ф�SETS CHINA	Ф�SETS CHINA	Ф�SETS CHINA	Ф�SETS CHINA	Ф�SETS CHINA

	G	H	I	J	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	(Watt)	Stromverbrauch im ausgeschalten Zustand (Watt) Display-Auflösung (px)
S#	(2x1)###	(###)###	(###)###	(###)###	(###)###
БлларкSM	С replenishment Кonsolidierung на的同时е вklendду STROFBALE	Толушка с**:эгостая на的同时е вklendду STROFBALE	(###)###	(###)###	(###)###
Бeшиla	Русma spofofte lektriké energia v zaputém režimu (Watt)	Rochni spofofte lektriké energia (kWh/Rochni)	Spofofte elektriké energie v pohotovostím režimu (Watt)	Spofofte elektriké energie v yprunutěm režimu (Watt) Rozljeni disp	Pazdenite na coocobocne na dinçilene (ninkceña)
Dansk	Gennensnitzigt stromforbrug ialandt tilstand (Watt)	Arligt eneriforbrug (kWh/Arligt)	Stromforbrug (standby)(Watt)	Stremforbrug i skukket tilstand (Watt)	Skaermoplesning (px)
Suomi	Päälla-tian keskimaäräinen virrankulatus (Wattia)	Vuositainen sähkönkulutu (kWh/Vuosittainen)	Vakivirran kalutus (Wattia)	Pois-tilan virrankulatus (Wattia)	Näytön erotteluky (pikselia)
Francais	Consummation energetique moyenne en mode "marche" (Watt)	Consummation energetique annuelle (kWh/annuel)	Consummation d'énergie en veille (Watt)	Consummation d'énergie en mode arelé" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošna je enerjde kada je proizvod uključen (Watta)	Godsniqa potrošna je Energije (kWh/Godsijsa)	Potrošna je enerjde u modu priopravnosli (Watta)	Potrošna je enerjde kada je proizvod sklujeni (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruk (Watt)	Jaarilks energiesverbruk(kWh/Jaarilks)	Stand-by stroomverbruk (Watt)	Uit-modus stroomverbruk (Watt)	Schemresolutie (px)
Espanoi	Consumo electrico medio, en funconimiento (Vatio)	Consumo electrico anual (kWh/annual) Consumo en modulo en espera (Vatio)	Consumo electrico medio apagado (Vatio)	Consumo electrico modo agapado (Vatio)	Resolución de pantalla (px)
Svenska	Strömconsumption i PÁ-läge (Watt)	Energikonsumption per ar (kWh/Arig)	Strömconsumption i village (Watt)	Strömconsumption i AV-läge (Watt)	Skarmuplośnsing (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Srednie zuzycne energji w trybie wączonym (Wataw)	Rozne zuzycie energii (kWh/Rozne)	Srednie zuzycie energii w trybie czekiwania (Wataw)	Zuzycie energii w trybie wączonym (Wataw)	Rozdzielczość obrazu (pikseli)
Magyar	Eneriagofasyztás bekapcsolva hagyott üzemmodban (Watt) Éves energiagofasyztás	(###/Eves)	Eneriagofasyztás standby izemmodban (Watt)	Eneriagofasyztás kikapcsolt izemmodban (Watt)	Këpernyöbelontáss (px)
Norsk	Pamodus glennonsnítig stromforbruk (Watt)	Arlig stromforbruk (kWh/Arlig)	Hvilemodus stromforbruk (Watt)	Av-modus stromforbruk (Watt)	Skjermoplośnsing (piksel)
Portugues	Consumo energia em modo medio (Watt)	Consumo annual energia (kWh/annual) Consumo energia em seand-by (Watt)	Consumo electric in stare de repaus (Watt)	Consumo energia em modo alimentación (Watt)	Resolução do visor (pixel)
Română	Consume electric mediu in modu porrit (Watt)	Consum unal de energia (kWh/annual)	Consum electric in stare de repaus (Watt)	Consum electric In modu oprit (Watt)	Rezoluțua ecranului (pixel)
Pусский	Crdnni paasoiodenergoи в рекime вrelочни (Batt)	Exeogodni paasoiodenergoи (BbTcFod)	Pacxoed 3neprin b pekmime okhudanai (Batt)	Pacxoed 3neprin b pekmime bokhochodny (Batt)	Pazreшени океане ninkceony
Беларczyns	Crdnni paasoiodenergoи в рекime вrelочни (Batt)	Exeogodni paasoiodenergoи (kWh/Radaboe)	Pacxoed 3neprin b pekmime okhudanai (Batt)	Pacxoed 3neprin b pekmime bokhochodny (Batt)	Pazreшени океане ninkceony
Makdoöncki	Посесна посторуванду кога вrelчуен	Todimiuna noptoúshacka na enerjka (kWh/Todimiha)	Посесна noptoúshacka bo mmpuyache (Batu)	Посесна noptoúshacka koga вrelчуuten (Batu)	Pezolunnyja na ekpan ninkceony
Ukrainchenk	Ceregne chnoiokobana no torykintb y poobochу рекime (Bt)	Cerenbóhrupnca no torykintb y enerkhimba na torykintb (kWh/Priyne)	Cnoxbiaba no torykintb y pekmimi pruhychanai (Bt)	Cnoxbiaba no torykintb y bimikhonomy strani (Bt)	Pozidniha zdatnichtb ekpana ninkceiny
Srpski	Prosečna potrošna kada je uključeni (Wati)	Godsniya potrošna energia (kWh/Godsijsa)	Potrošna tokom minovanja (Vati)	Potrošna kada je isklučeni (Vati)	Rezolucija dispejá (piks.)
Slovencina	Piemerna spotebra electrické energia v zaputornu rezime (Wattov)	Ročna spotreba energia (kWh/Ročna)	Spotreba electrické energia v pohotovostnom rezime (Wattov)	Spotreba electrické energia vo yypnutom rezime (Wattov)	Rozilisenie dispejá (pix.)
Slovencina	Poraba electrické energia v pavrpecnem načinu (Wattov)	Letna poraba energia (kWh/Letna)	Poraba energia v stanju pripravjenosti (Wattov)	Poraba energia načinu izkiopa (Wattov)	Resolucija zaskona (piks.)
Elaanvnik	Meşon katováðun opejatoc okeoupyioc (Watt)	Étrojá katováðun opejatoc okeoupyioc (kWh/Etrojoi)	Katováðun opejatoc okeoupyioc (Watt)	Katováðun opejatoc okeoupyioc (Watt)	Avóvalon obovýn (TILgελ)
Bosanski	Posječna potrošna kada je uključen(Bwt)	Godsniya potrošna energia (kWh/Godsijsa)	Potrošna tokom minovanja (Wati)	Potrošna kada je isklučeni (Wati)	Rezolucija ekraṇa (piks.)
nau	(###)###	(###)###	(###)###	(###)###	(###)###
Türke	Açik moddaki ortaliama güç tüketimi (Wati)	Yllik erjü tüketimi (kWh/Yllik)	Bekleme durumnda enerjü tüketimi (Wati)	Kapali moddaki Güç tüketimi (Wati)	Ekran çözünuriğü (piks.)
Shqip	Konsumi mesatar i enerjissé si ndezur (Wati)	Konsumi yeteri energisé (kWh/Yvjter)	Konsumi i enerjissé si né gatishmérí (Wati)	Konsumi i enerjissé si i fikur (Wati)	Rezolucioni i ekranit (piks.)
Lietuviu	Vidutinés energios sānaudos jungus (Vatai)	Metinés energios sānaudos (kWh/Metinés)	Enerjlos sānaudos budéjmo režimu (Vatai)	Enerjlos sānaudos ijsjungus (Vatai)	Ekranovi shiamaj geba pikešiu
Latvišeu	Enerijas patērīngs aktiv' režimä (Vati)	Gada energias patērīngs (kWh/gada)	Enerjias patērīngs gadiīsanas režimä (Vati)	Enerjias patērīngs izsīglāt sävoklī (Vati)	Displeja rezolcija (pisksiemi)
Eesti	Keskmine energiakulu tõbrežimil (Vati)	Aastane energiakulu (kWh/aastane)	Eneriakulu oterežimiil (Vati)	Eneriakulu vãiljalūltadut olekus (Vati)	Ekraani resolutsoon (piksilt)
###	(###)###	(###)###	(###)###	(###)###	(###)###

TR: Isbu belgede; VESTEL Elektronik Sanayi ve Ticaret A.Ş., telsiz ekipmani tipi TFT IDTV'nin 2014/53/AB sayili direktife uygun olduğunu bylan eder. AB uygunluk beyanin tam metni internet adresinde mevcuttur: doc.vosshub.com
EN: Hereby, VESTEL Elektronik Sanayi ve Ticaret A.S., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com
BG: C hactoio VESTEL Elektronik Sanayi ve Ticaret A.S. DeKnapa, Ye To3n TIN paNocbOpBXeHne TFT IDTV e B cBOTBeTCTBne C DnpeKTHBa 2014/53/EC. LAnocTHnA r TekCT Ha EC DeKnapaunraTa 3a cBOTBeTCTBne MOKe da ce Hamepn Ha CJIeHNr INHTepHET aDPEC: doc.vosshub.com
CZ: Timto VESTEL Elektronik Sanayi ve Ticaret A.Ş., prohlăşüje,Že typárdovićho zařizení TFT IDTV je v souladu se směrnici 2014/53/EU. Üplné zněni EU prohlăşeni o shodě je k dispozici na tétoto internetové adrese: doc.vosshub.com
DA: Hermed erklærer VESTEL Elektronik Sanayi ve Ticaret A.Ş., at radioudstyristypen TFT IDTV er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: doc.vosshub.com
DE: Hiermit erklart VESTEL Elektronik Sanayi ve Ticaret A.Ş., dass der Funkanlagentyp TFT IDTV der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserkläragung ist unter der folgenden Internetadresse verfügbar: doc.vosshub.com
EL: Me tny napouca o/n VESTEL Elektronik Sanayi ve Ticaret A.S., dNawvei otio paoEgoTIAOc TFT IDTV nI npoi Tnv odynia 2014/53/EE. To nIpeC keIevo tsn dNawong oumuopwpwnc EE diatieTai otnv akolouoI IOTOElaOa STO diaikTuO.doc.voshub.com
ES: Por la presente, VESTEL Elektronik Sanayi ve Ticaret A.S., declara que el tipo de equipo radioeléctrico TFT IDTV es conforme con la Directiva 2014/53/UE. El texto Completeo de la交代ación UE de conformidad está disponible en la direction Internet信箱: doc.vosshub.com
ET: Käesolevaga deklareerib VESTEL Elektronik Sanayi ve Ticaret A.Ş., et käesolev raadioseadmeTÜp TFT IDTV vastab direktivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni tãielik tekst on kättesaadav järgmisel internetaaressil: doc.vosshub.com
FI: VESTEL Elektronik Sanayi ve Ticaret A.S., vakuuttaa, etc radiolaitetyppi TFT IDTV on direktivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen taysimittainen teksti on saatavilla seuraavassa internetosoitteessa: doc.voshub.com
FR: Le soussigné, VESTEL Elektronik Sanayi ve Ticaret A.S., déclare que l'équipement radioélectrique du type TFT IDTV est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: doc.vosshub.com
HR: VESTEL Elektronik Sanayi ve Ticaret A.S., ovime izjavluje da je radija ska oprema tipa TFT IDTV u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedecoj internetskoj adresi doc.vosshub.com

HU: VESTEL Elektronik Sanayi ve Ticaret A.Ş., igazolja, hogy a TFT IDTV típusú rádióberendezs megfelel a 2014/53/EU irányelvnek. Az EU-megfeleloségi nyilatkozat teljes szövege elerhető a kõvetkező internetes cimen: doc.vosshub.com
IT: Il fabbricante, VESTEL Elektronik Sanayi ve Ticaret A.S., dichiara che il tipo di apparecchiatura radio TFT IDTV è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: doc.vosshub.com
LT: Aš, VESTEL Elektronik Sanayi ve TicaretA.§., patvirtinu, kad radijo jrenginiu tipas TFT IDTV atitinka Direktyva 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: doc.vosshub.com
LV: Ar šo VESTEL Elektronik Sanayi ve Ticaret A.Ş., deklare, ka radioiekârta TFT IDTV atbilst Direktivai 2014/53/ES. Pilns ES atbilstibas deklarácijas teksts ir pieejams šadā interneta vietne: doc.vosshub.com
MT: B'dan, VESTEL Elektronik Sanayi ve Ticaret A.Ş., niddikjara li dan it-tip ta' taghmir tar-radju TFT IDTV huwa konformi mad-Direttva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformita tal-UE huwa disponibbli f'dan I-indirizz tal-Internet li gej: doc.voshub.com
NL: Hierbij verklaar ik, VESTEL Elektronik Sanayi ve Ticaret A.S., dat het type radioapparatuur TFT IDTV conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: doc.vosshub.com
PL: VESTEL Elektronik Sanayi ve Ticaret A.S., niniejszym oswiadcza, ze typ urzadzenia radiowego TFT IDTV jest zgodny z dyrektywa 2014/53/UE. Peiny tekst deklaraci zgodnosci UE jest dostepny pod nastepujacym adresem internetwym: doc.vosshub.com
PT: O(a) abaixo assinado(a) VESTEL Elektronik Sanayi ve Ticaret A.S., declara que o presente tipo de equipoamento de radio TFT IDTV está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponible no segunte endereço de Internet: doc.vosshub.com
RO: Prin preventa, VESTEL Elektronik Sanayi ve Ticaret A.S., declară că tipul de echipamente radio TFT IDTV este în conformitate cu Direcita 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: doc.vosshub.com
SK: VESTEL Elektronik Sanayi ve Ticaret A.S., tymto vyhlasuje, ze radiové zariadenie typu TFT IDTV je v sulade so smernicou 2014/53/EU. Üplné EU vyhlasenie o zhode je k dispozicii na tejto internetovej adrese: doc.vosshub.com
SL: VESTEL Elektronik Sanayi ve Ticaret A.S., potruje, da je tip radijske opreme TFT IDTV skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: doc.vosshub.com
SV: Harmed forsakrar VESTEL Elektronik Sanayi ve Ticaret A.S., attenna typ av radioutrustning TFT IDTV overensstammer med direktiv 2014/53/EU. Den fullstandiga texten till EU-forsakran om overensstammelse finns på foljande webbadress: doc.vosshub.com
