Product type	Electric kettle
Brand	Korona
Model	20232
Maximum capacity	1.7 liters
Minimum capacity	0.5 liters
Supply voltage	220-240 V ~ 50/60 Hz
Rated power	1850-2200 W
Automatic shut-off	Yes, when boiling
Dry boil protection	Yes
Limescale filter	Removable, integrated in the spout
Water level indicator	Yes
Base	With cord storage
Body material	Plastic
Interior material	Stainless steel
Dimensions (approx.)	25 x 20 x 15 cm
Weight (approx.)	1 kg
Cord length (approx.)	70 cm
Warranty	2 years
Maintenance	Damp cloth, regular descaling
Intended use	Boil water only

Frequently Asked Questions - 20232 KORONA

How to use the Korona 20232 kettle?

Fill with water between 0.5 and 1.7 liters, close the lid, place on the base, plug in and press the switch. Automatic shut-off activates when boiling.

Can I heat other liquids than water?

No, the kettle is designed only for boiling water. Never heat other liquids.

What to do if the kettle stops before boiling?

Check the water level (minimum 0.5 L), make sure the lid is properly closed. If the problem persists, unplug and let cool for 10 minutes.

How to clean and descale the kettle?

Clean the exterior with a damp cloth. For descaling, use a mild descaling agent every 3 to 6 months, then boil clean water 4-5 times.

Can I immerse the kettle in water?

No, never immerse the kettle, cord or plug in water. Risk of electric shock.

Why does the indicator not light up?

Check that the kettle is properly placed on the base and that the switch is pressed. If still off, check the wall outlet.

How to replace the limescale filter?

The filter is removable and located inside the spout. Gently remove it, clean it or replace it if necessary.

Is the kettle safe for children?

The appliance can be used by children from 8 years old under supervision. Keep the kettle and cord out of reach of children under 8.

What to do in case of malfunction?

Unplug immediately and contact Korona customer service at 02933 90284-80 or by email at [e-mail]. Do not attempt to repair yourself.

What is the warranty for this product?

The kettle has a 2-year warranty against material and manufacturing defects. Keep the receipt as proof of purchase.

USER MANUAL 20232 KORONA

Black and white illustration of a glass teacup with tea leaves and a saucer (no text or symbols)

Black KORONA-style water heater with digital display and control buttons (no visible text or symbols on body)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

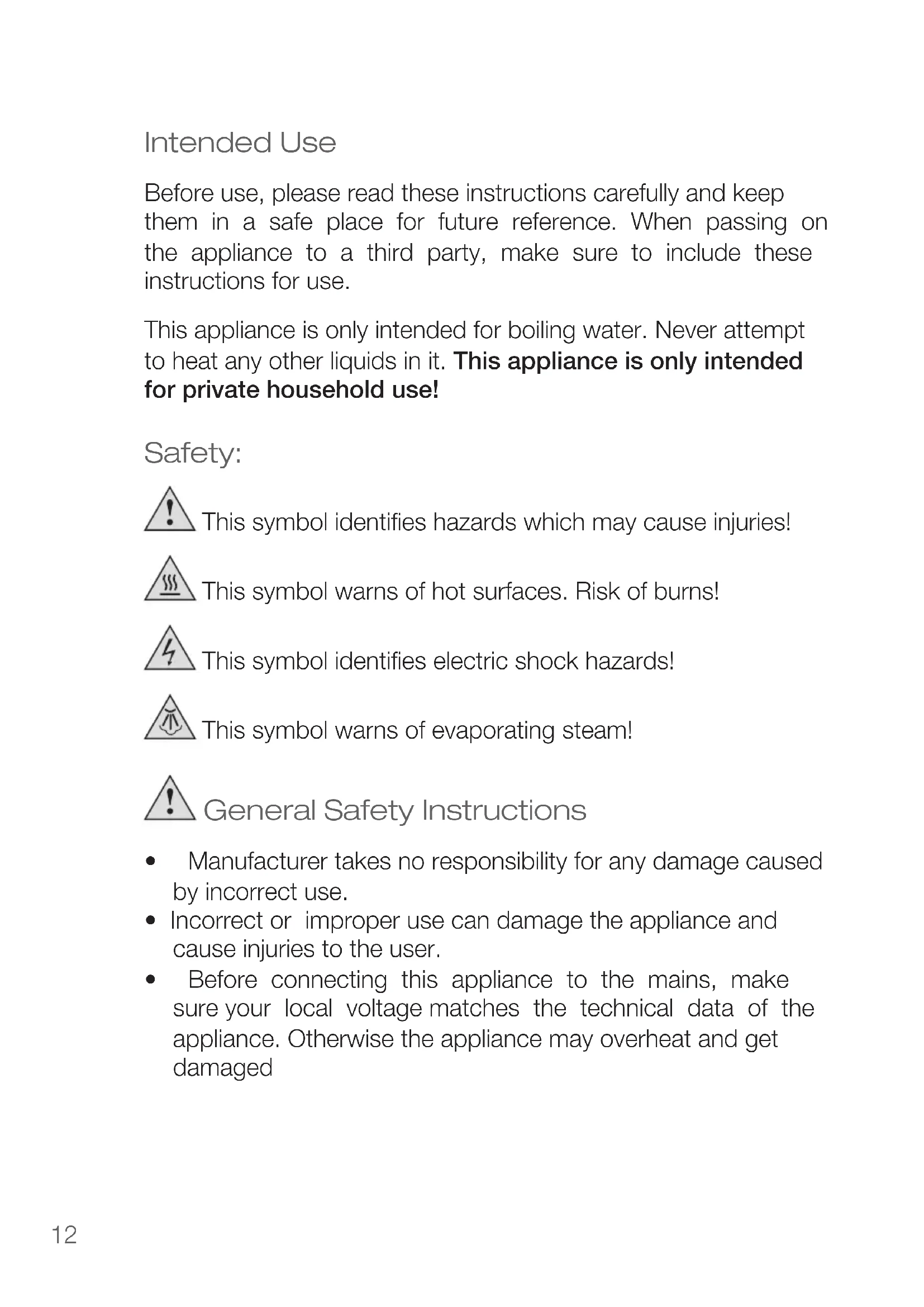

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for boiling water. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

This symbol warns of evaporating steam!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
  • Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

• Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of burns.

• Your kettle is only intended for boiling water. Never attempt to heat any other liquids in it.
• Place the appliance on an even and heat-resistant surface.
• Do not place the kettle near any inflammable objects.
• Never exceed the maximum filling level (1.7 L) to avoid any boiling water from spilling from the kettle. Danger of serious burns!

- Never open the lid during operation.

- Always remove the kettle from the power base when filling it with water.

- To prevent the kettle from boiling dry, make sure the water level is never below minimum filling (0.5 L).

- The automatic switch-off function will automatically switch off the appliance as soon as the boiling temperature has been reached, provided that you have thoroughly closed the lid. Otherwise boiling water could spill.

- Your kettle also features a boil-dry cut-out, which will switch off the kettle, should it accidentally be operated without water. In the event of such a safety cut-out unpl appliance immediately and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

- Only use the appliance with the base provided.

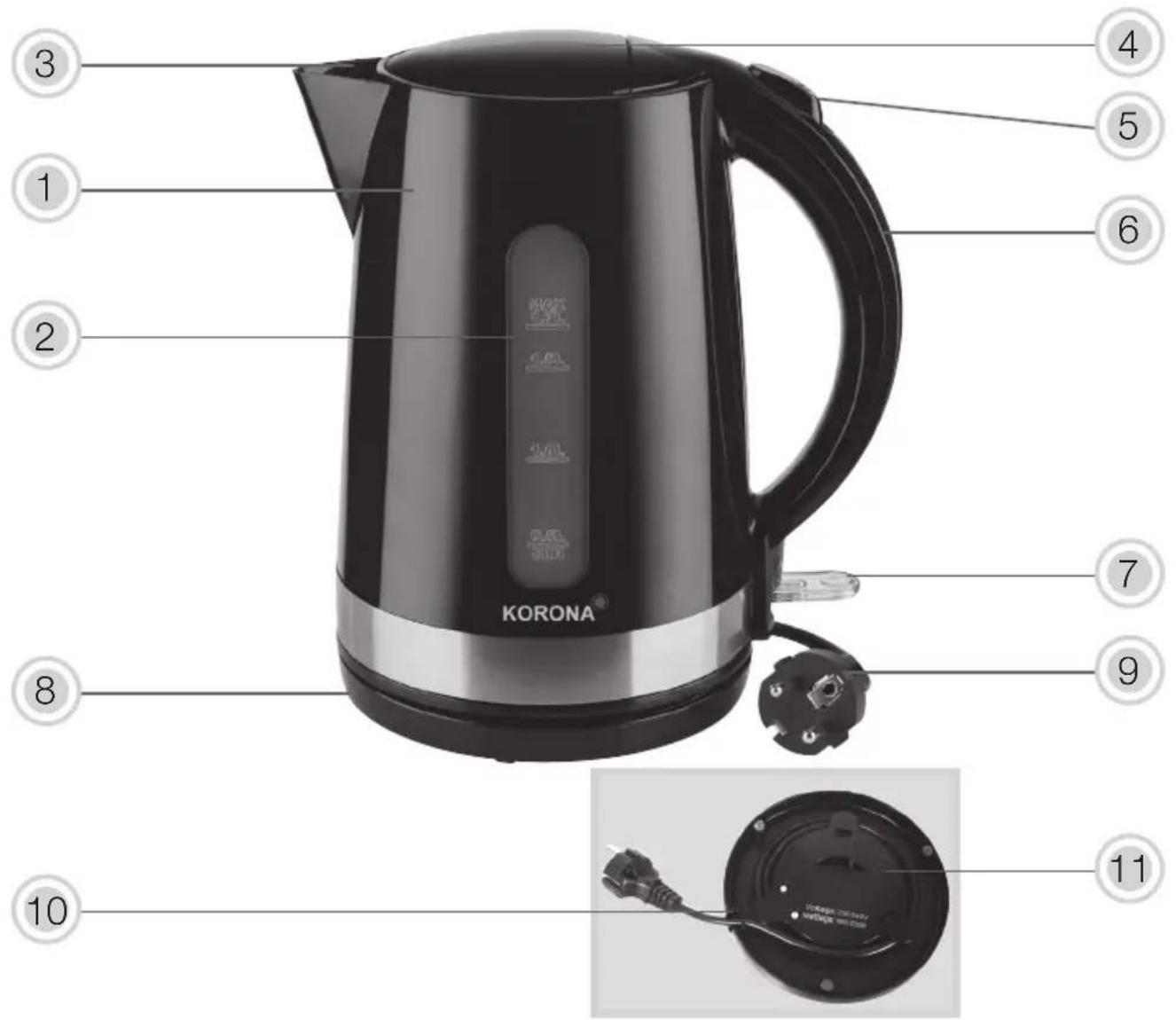

KORONA 1 2 3 4 5 6 7 8 9 10 11

Product Description

1. Kettle
2. Water level indication
3. Spout
4. Lid
5. Lid opening button
6. Handle
7. On/Off button with indicator light
8. Base
9. Power cord and plug
10. Cable guide (rear side)
11. Cable storage (rear side)

Before First Use

• Remove all packaging material and check whether appliance is complete.
• Fully unwind the power cord (9) and make sure 1 power cord (9) is clamped into the cable guide (10 side).
• Place the appliance on an even and heat resistant surface. Do not place it on top of a metal surface.
• Connect the appliance to a properly installed wall s and boil 4-5 kettles of water using fresh water w boiling cycle. Do not use this water but pour it away.

Warning: Plastic bags are a danger to toddlers and s, therefore keep them away to avoid suffocation.

Operation

Your appliance is fitted (inside the spout) with a removable scale filter that prevents scale particles ending up in your beverage.

1. Open the lid (4) by pressing onto the lid opening button (5). Hold the kettle (1) in an upright position to fill it with water. Make sure to fill in the MIN amount of water (0.5L) to avoid overheating.

Info: The kettle (1) can also be filled with water when the lid is closed by filling it through the spout (3).

1. Close the lid (4) and make sure it is properly closed.

2. Place the kettle (1) onto the base (8) and make sure it properly fits onto the contact unit.

3. Connect it to the mains and switch on the water kettle by pressing the On/Off button (7), which is located at the lower end of the handle (6). The indicator light lights up.

4. As soon as the water boils the appliance switches off automatically provided that you have thoroughly closed the lid (4). Otherwise boiling water could spill. The indicator light switches off as well.

5. Lift the kettle (1) off the base (8). The water is now ready for use.

You can stop the boiling process any time by pushing the On/Off button (7) upward or by removing the kettle from the base.

Water left over from a previous boiling cycle can be re-used in the next boiling cycle. However, always make sure that the water level is not too low.

Always unplug the appliance after use.

Dry-boil cut-out

Your kettle is equipped with a boil-dry cut-out, which will switch off the kettle automatically, should it accidentally be operated without water or by not observing the minimum water level.

In the event of such a safety cut-out, unplug the ap immediately and let it cool down for approx. 10 minut Afterwards, your kettle is ready for use again.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Cleaning and user maintenance shall not be made by ren without supervision.

DESCALING

Descale your appliance in regular intervals (approx. every 3 – 6 months), depending on the frequency of use and the local water quality.

Never use any sharp, pointed or metal objects to re limescale built up in the kettle.

To remove limescale, use a common gentle descaler, which is suitable for your appliance.

After descaling, always boil 4-5 kettles of water, which you do not use but pour away. Use fresh water with each boiling cycle. This procedure is necessary to remove any descaler residues in the kettle.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

After use and after the appliance has completely cooled down wind the power cable (9) around the cord storage (11).

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Water Kettle 20232 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 / 60 Hz

Rated Power: 1850 - 2200 W

Rated Power: 1.7 Litre

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights guarantee case) are not given to the customer.
