BM451710 - Oven GAGGENAU - Free user manual and instructions

Product Type	Built-in Microwave
Brand	Gaggenau
Model	BM451710
Dimensions (W x H x D)	535 x 455 x 590 mm
Weight	66.2 kg
Electrical Supply	208/240 V, 20 A, 60 Hz
Connection Type	4-wire cable (L1, L2, N, Ground)
Cavity Material	Stainless steel
Main Functions	Microwave cooking
Safety	Door lock, automatic stop, leak detection
Care and Cleaning	Clean with a soft damp cloth; do not use abrasive cleaners
Spare parts and repairability	Original parts available from Gaggenau after-sales service
General Information	User manual of 36 pages available in PDF
Door Opening	Non-reversible
Front Overhang	47 mm
Ventilation Space	5 mm between appliance and adjacent cabinets
Permissible Cabinet Temperature	Up to 90 °C
Certifications	CAN/CSA C22.2 No. 150, UL 923
Error Code	E300: L1/L2 supply fault
After-Sales Service	CA 877 442 4436 (toll-free)
Included Accessories	2 Torx screws

Frequently Asked Questions - BM451710 GAGGENAU

How to install the Gaggenau BM451710 microwave oven?

Installation must be carried out by a qualified electrician. Before installation, turn off the power at the service panel. Ensure that the cabinet can support the weight of the appliance (66.2 kg). Follow the cutout dimensions and electrical connection instructions provided in the manual.

What are the required cutout dimensions for the BM451710 model?

For a 24-inch built-in installation, the cutout dimensions are: width 560 mm, height 450 mm, minimum depth 550 mm. A 5 mm air gap must be maintained between the appliance and adjacent cabinets.

What type of electrical connection is required?

The appliance requires a dedicated protected circuit of 208/240 V, 20 A, 60 Hz. It is supplied with a 4-wire cable (red, black, white, green). Connection must be carried out by a qualified electrician in accordance with local codes.

What does the error code E300 displayed on the oven mean?

Error code E300 indicates that both L1 and L2 electrical supplies are not energized. Check that the circuit breaker is properly installed to supply both phases simultaneously.

How to clean the interior of the microwave oven?

Clean the interior with a soft damp cloth. Do not use abrasive cleaners or harsh chemicals. For stubborn stains, use a mild soap solution.

Can I use metal utensils in this microwave oven?

No, the use of metal containers or utensils is prohibited in a microwave oven as they can cause arcing and damage the appliance. Use only microwave-safe containers.

How to access the serial number of the appliance?

The rating plate containing the product number (E no.) and serial number (FD no.) is located on the underside of the appliance. Record this information for any after-sales service requests.

Can the oven be installed in a kitchen corner?

Yes, corner installation is possible. Ensure that the door can open at least 90° to allow access and use. Take into account the front overhang of the handle.

What to do if the oven door is damaged?

Do not attempt to repair the door yourself. Contact a qualified technician. Before any intervention, the oven must be unplugged. Safety checks must be carried out, including for microwave leakage.

What is the warranty of the Gaggenau BM451710 oven?

The manual does not specify the warranty period. Contact Gaggenau after-sales service at 877 442 4436 (toll-free) for warranty information specific to your country.

USER MANUAL BM451710 GAGGENAU

Installation instructions....2

Instructions d'installation....13

Combi-microwave oven

Four combi-micro-ondes

Horno-microondas

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE.

CONSERVEZ CETTE NOTICE

D'UTILISATION POUR

RÉFÉRENCE ULTÉRIEURE.

GUARDE ESTAS

INSTRUCCIONES PARA

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

Protective earth (ground)

To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.

Heavy load

Requires 2 people to carry

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

IMPORTANT: SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.

INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE AFTER INSTALLATION IS COMPLETE.

WARNING

If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury.

WARNING

Do not repair, replace or remove any part of the appliance unless specifically recommended in the manuals. Improper installation, service or maintenance can cause injury or property damage. Refer to this manual for guidance. All non-user serviceable functions should be done by a qualified technician.

CONSERVEZ CETTE NOTICE D'UTILISATION POUR RÉFÉRENCE ULTÉRIEURE.

IMPORTANT : CONSERVER CES INSTRUCTIONS POUR L'USAGE DE L'INSPECTEUR ÉLECTRIQUE LOCAL.

INSTALLATEUR : LAISSEZ CES INSTRUCTIONS AVEC L'APPAREIL APRÈS UNE FOIS L'INSTALLATION TERMINÉE.

AVERTISSEMENT

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

⚠ CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

Microwave Safety

PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not operate or allow the oven to be operated with the door open.
• Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary:

1 Interlock operation

2 Proper door closing

3 Seal and sealing surfaces (arcing, wear, and other damage)

4 Damage to or loosening of hinges and latches

5 Evidence of dropping or abuse

• Before turning on microwave power for any service test or inspection within the microwave generating compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment, integrity, and connection.
• Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual before the oven is released to the owner.
• A microwave leakage check to verify compliance with the Federal Performance Standard should be performed on each oven prior to release to the owner.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

Appliance Handling Safety

CAUTION

- Unit is heavy and requires at least two people or proper equipment to move.

• Do not lift appliance by door handle.
• Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.

Electric Safety

WARNING

Before installing, turn power OFF at the service panel. Lock service panel to prevent power from being turned ON accidentally.

If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit.

Installer – show the owner the location of the circuit breaker or fuse. Mark it for easy reference.

Before installing, turn power OFF at the service panel. Lock service panel to prevent power from being turned ON accidentally.

Be sure your appliance is properly installed and grounded by a qualified technician. Installation, electrical connections and grounding must comply with all local and regional codes.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electric shock by providing a safe pathway for electric current in the event of a short circuit.

The appliance must be connected to a grounded, metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit conductors and connected to the equipment grounding terminal or lead on the appliance.

WARNING

Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Related Equipment Safety

Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material.

Never modify or alter the construction of the appliance. For example, do not remove leveling legs, panels, wire covers or anti-tip brackets/screws.

Centre the appliance. There must be an air gap of Cen ^3/_16 " (5 mm) between the appliance and adjacent cabinets.

Safety Codes and Standards

This appliance complies with the latest version of one or more of the following standards:

● CAN/CSA C22.2 No. 150 - Microwave Ovens
- UL 923 - Microwave Cooking Appliances

It is the responsibility of the installer to determine if additional requirements and/or standards apply to specific installations.

SAVE THESE INSTRUCTIONS.

INSTRUCTIONS DE MISE À LA RE

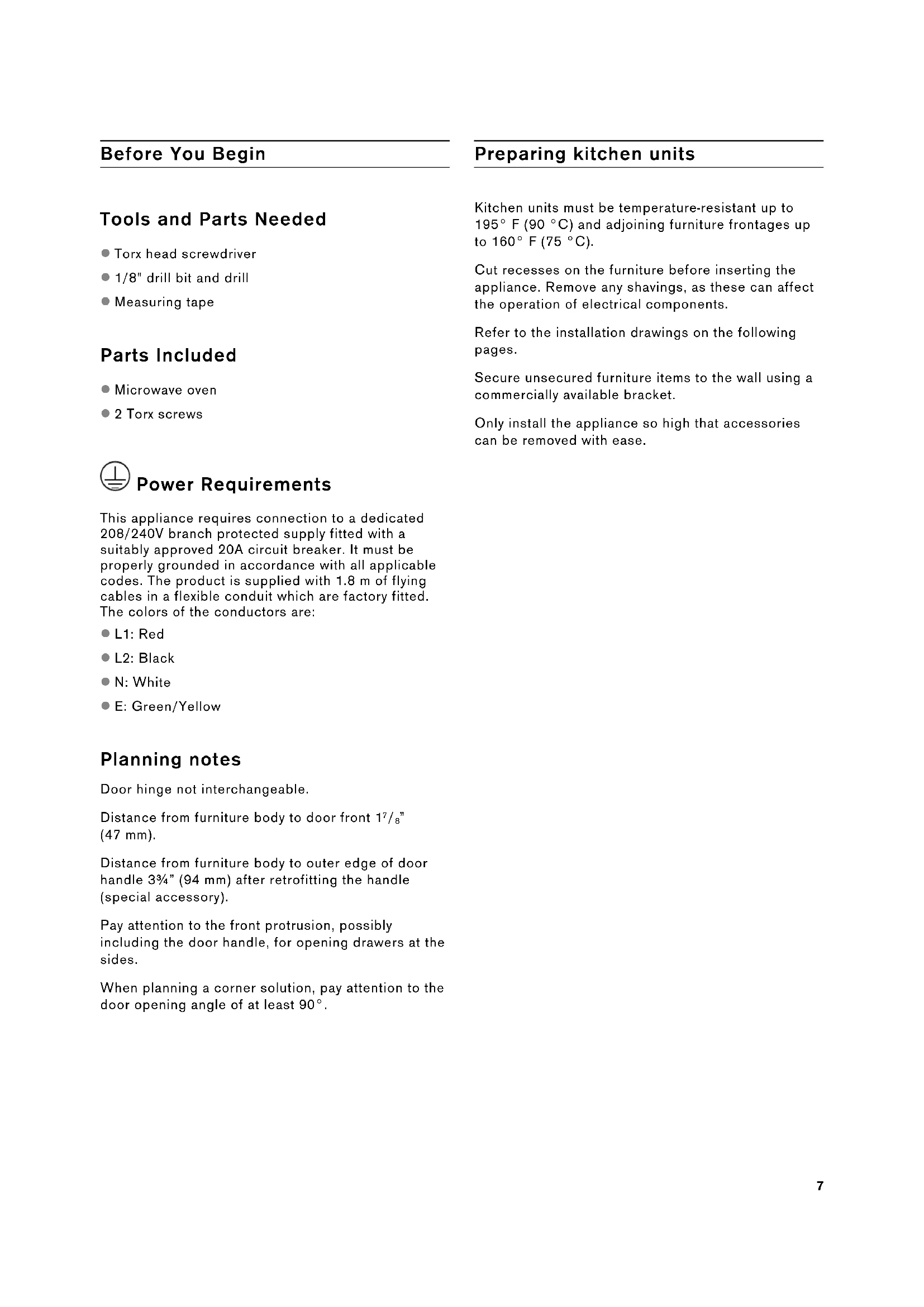

Tools and Parts Needed

• Torx head screwdriver
• 1/8" drill bit and drill
• Measuring tape

Parts Included

• Microwave oven
• 2 Torx screws

Power Requirements

This appliance requires connection to a dedicated 208/240V branch protected supply fitted with a suitably approved 20A circuit breaker. It must be properly grounded in accordance with all applicable codes. The product is supplied with 1.8 m of flying cables in a flexible conduit which are factory fitted. The colors of the conductors are:

L1: Red
L2: Black
N: White
E: Green/Yellow

Planning notes

Door hinge not interchangeable.

Distance from furniture body to door front 1^7/_8 " (47 mm).

Distance from furniture body to outer edge of door handle 3 ^3/4 " (94 mm) after retrofitting the handle (special accessory).

Pay attention to the front protrusion, possibly including the door handle, for opening drawers at the sides.

When planning a corner solution, pay attention to the door opening angle of at least 90^ .

Preparing kitchen units

Kitchen units must be temperature-resistant up to 195^ F ( 90^ C) and adjoining furniture frontages up to 160^ F ( 75^ C).

Cut recesses on the furniture before inserting the appliance. Remove any shavings, as these can affect the operation of electrical components.

Refer to the installation drawings on the following pages.

Secure unsecured furniture items to the wall using a commercially available bracket.

Only install the appliance so high that accessories can be removed with ease.

Dimensions and Cabinet Requirements

General Cabinet Requirements

Cabinet requirements vary depending on the model to be installed. Please consult the section Dimensions for the details pertaining to your particular model.

All models require:

• 14'' (6.4 mm) space between the side of the appliance and a cabinet door when installed at the end of a cabinet run.
• The cabinet base must be flat and capable of supporting the weight of your appliance when in use. See the appropriate weight for your model in the Dimensions section pertaining to your particular model.

Dimensions for 24" Wall-Inserted Units

BM 450/451-710

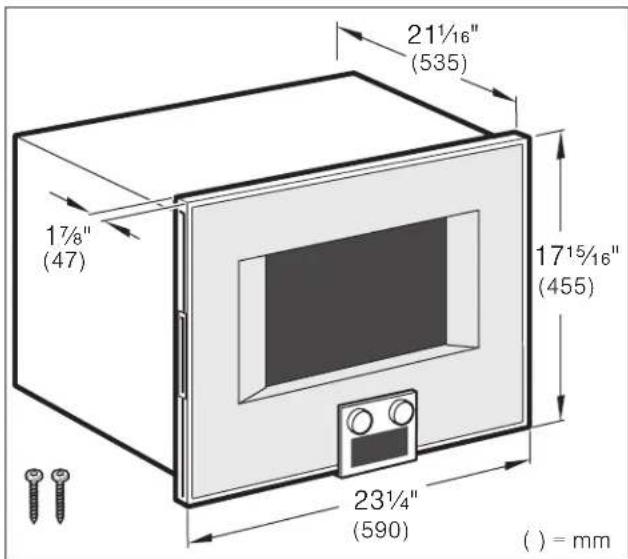

Appliance Dimensions

21½″ (535) 17½″ (47) 17¹⁵/₁₆″ (455) 23½″ (590) ( ) = mm

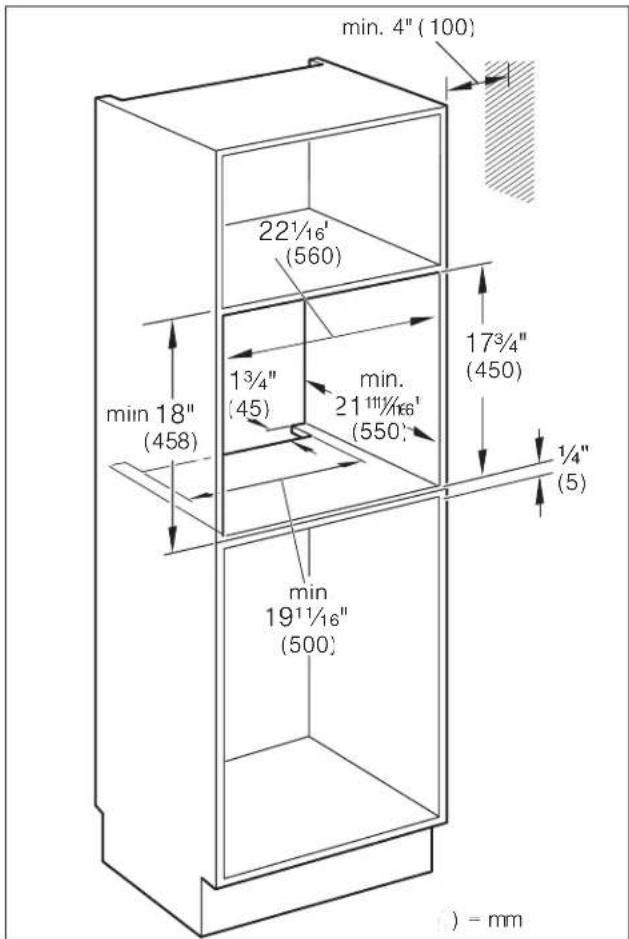

Cabinet Dimensions

min. 4" (100) 22½₁₆' (560) 1¾" (45) min. 21¼¼¼₆' (550) 17¾" (450) 1/4" (5) min 18" (458) min 19½₁₆" (500) )= mm

NOTICE: The cabinet base must be flat and capable of supporting a weight of at least 146 lbs (66.2 kg).

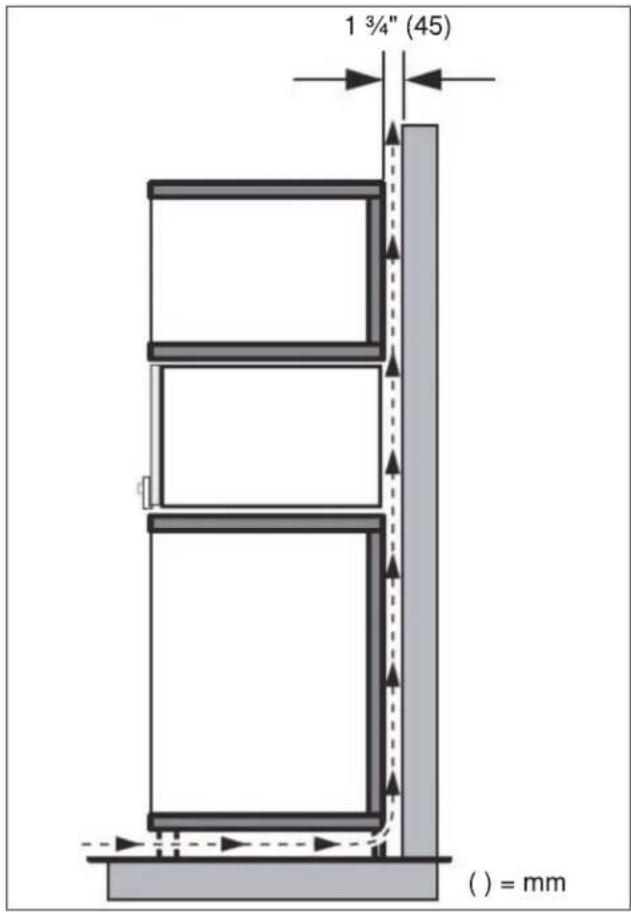

Ventilation requirements

• Ventilation cut-out in the built-in cupboard's intermediate shelf: at least 1 34 in to 1.65 ft (45 x 500 mm).
• Ensure that air can circulate behind the appliance by maintaining a minimum distance of 1 34 in (45 mm) between the furniture's backwall and the wall.

1 ¾" (45) ( ) = mm

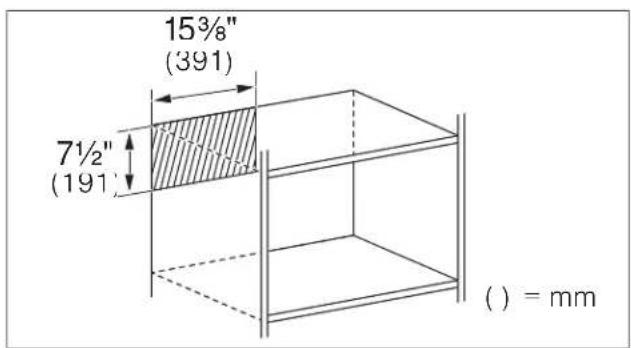

Outlet Area

The outlet can be located anywhere within the shaded area. Anywhere within the shaded area the minimal distance between the appliance and the wall is 134 in (45 mm).

15¾" (391) 7½" (191) ( ) = mm

Dimensions for 30" Wall-Inserted Units

BM 484/485-710

Appliance Dimensions

21½″ (535) 17½″ (47) 17¹⁵/₁₆″ (455) 29½″ (752) ( ) = mm

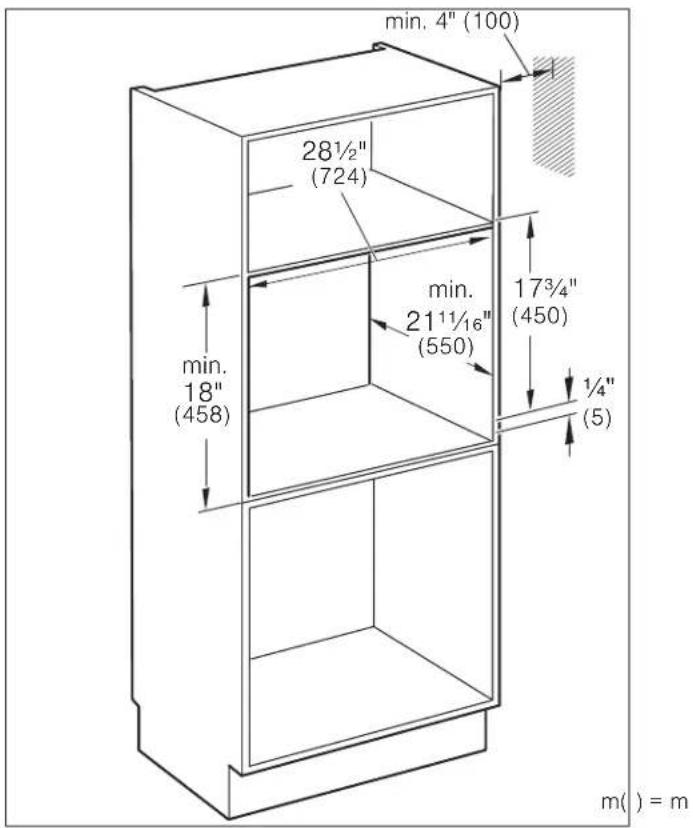

Cabinet Dimensions

min. 4" (100) 28½" (724) min. 18" (458) min. 21¼/₁₆" (550) 17¾" (450) ½" (5) m() = m

NOTICE: The cabinet base must be flat and capable of supporting a weight of at least 159 lbs (72 kg).

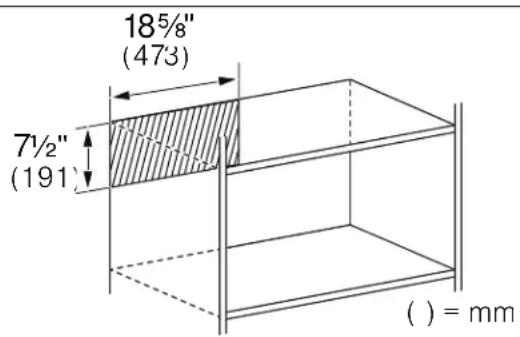

Outlet Area

The outlet can be located anywhere within the shaded area. Anywhere within the shaded area the minimal distance between the appliance and the wall is 134 in (45 mm).

185/8" (473) 7½" (191) ( ) = mm

Removing Packaging

NOTICE: To prevent damage to your floor keep the unit in its packaging base until ready to be placed in the cabinet opening. Do not slide the unit across the flooring.

Different models use different packaging materials. Actual brackets may look differently. Bracket remains in packaging base.

1 Cut straps on outside of box.
2 Remove cardboard box.
3 Remove all top and side cardboard and Styrofoam braces.
4 Place microwave oven in front of cabinets where it is to be installed.

Install Appliance

Note: The appliance is heavy. It is advisable to install it with a second person.

NOTICE: Before installing the appliance, be sure to verify the cabinet dimensions and electrical connections.

Electrical Installation

WARNING

The electrical connection of the appliance must be carried out by a qualified electrician in accordance with local and regional safety codes.

WARNING

This product will only operate when L1 and L2 are powered up simultaneously. If this does not occur, then an E300 error will be displayed. This appliance should be installed with a branch circuit breaker to allow L1 and L2 to be powered up simultaneously.

Model Connection Circuit

		Requirements
BM 450 710	4 wire conduit	208 V,	20 Amps
BM 451 710	cable	60 Hz
BM 484 710		or
BM 485 710		240 V,	20 Amps
		60 Hz

Install a suitable conduit box (not included). The conduit connector must be used to correctly attach the conduit to the junction box.

All 4 wires must be connected, regardless if a 3 or 4 wire connection is used.

WARNING

Local codes may vary; installation, electrical connections and grounding must comply with all applicable local codes.

If local codes permit grounding through the electrical supply neutral, connect both the white neutral wire and the green ground wire from the oven to the neutral electrical supply wire.

The four-wire connection is preferred, but where local codes permit, the three wire connection is also acceptable.

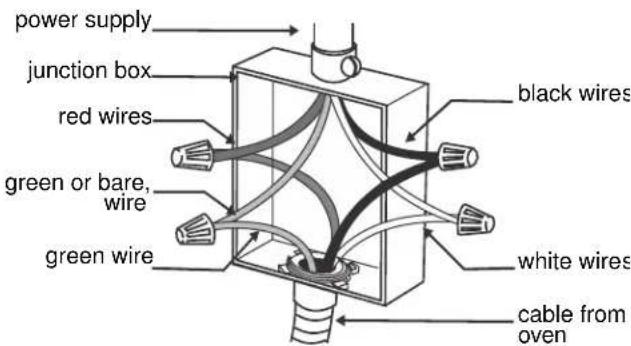

Four-wire Connection

Ungrounded Neutral

power supply junction box red wires green or bare, wire green wire black wires white wires cable from oven

• Connect the red oven wire to the red electrical supply wire (hot wire).
• Connect the black oven wire to the black electrical supply wire (hot wire).
• Connect the white neutral oven wire to the white neutral (not bare or green ground) electrical supply wire.
• Connect the green ground oven wire to the bare or green ground electrical supply wire.

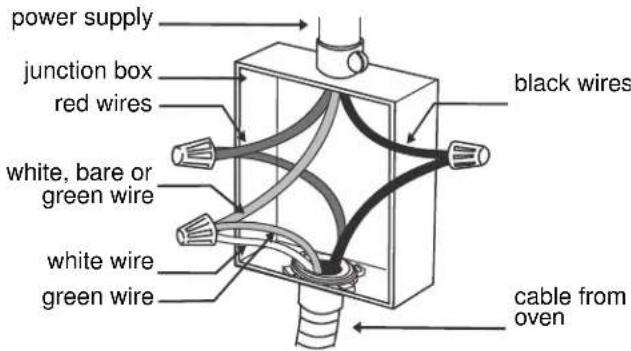

Three-wire Connection

Grounded Neutral

power supply junction box red wires white, bare or green wire white wire green wire black wires cable from oven

• Connect red wire from oven to red wire in junction box.
• Connect black wire from oven to black wire in junction box.
• Connect both green ground wire and white wire from oven to white, green or bare neutral wire in junction box.

The conduit cable, where connected at the oven, swivels.

To maintain serviceability, the flex conduit must not be shortened and should be routed to permit temporary removal of the oven.

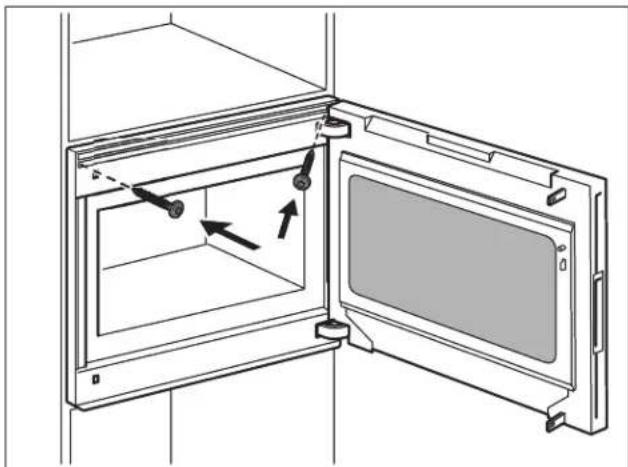

Mount to Cabinet

If there is no fitted shelf above the appliance, secure the appliance against tipping over when the door is opened.

1 Do not kink or trap the connecting cable, or route it over sharp edges.

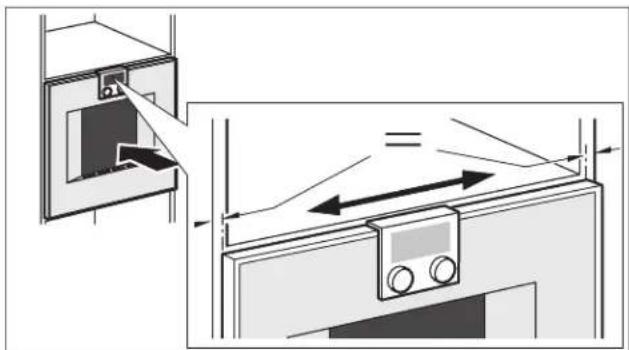

2 Centre the appliance. There must be an air gap of 316 " (5 mm) between the appliance and adjacent cabinets.

Diagram showing airflow or ventilation system between a cabinet and a microwave oven, with directional arrows indicating airflow direction.

3 Using a spirit level, adjust the appliance so that it is perfectly level.

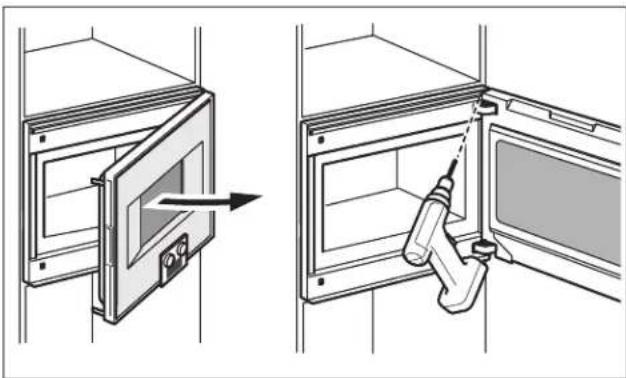

4 Open the appliance door and predrill the holes for the screws.

Diagram showing two steps of a door opening operation: one with an arrow indicating direction, the other with a tool inserted into a window (no text or symbols present)

5 Screw the appliance into place.

Diagram of an open microwave oven with internal components and directional arrows indicating movement (no text or symbols)

Check the Installation

WARNING

Before you connect an electrical cord for permanent connection or turn on power supply, make sure all controls are in the OFF position.

Switch on the circuit breaker.

Verify that elements function properly.

Removal

1 Disconnect the appliance from the power supply.
2 Undo the fastening screws.
3 Raise the appliance slightly and pull it out completely.

Customer service

If your appliance needs repairs, our customer service is there for you. We work hard to help solve problems quickly and without unnecessary service calls, getting your appliance back up and running correctly in the least amount of time possible.

When you call, please indicate the product number (E-Nr.) and serial number (FD-Nr.) so that we can support you in a qualified manner. You will find the type plate with these numbers on the bottom of the appliance. To avoid having to search for a long time when you need it, you can enter your appliance data and the customer support telephone number here.

E-Nr. FD-Nr.

Customer Service

Please read the use and care instructions provided with your appliance. Failure to do so may result in an error in using the appliance. This could result in a service call that instead of fixing a mechanical issue is only needed for customer education. Such calls are not covered by the appliance warranty.

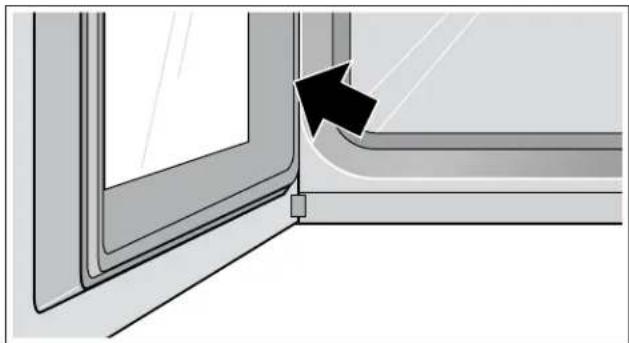

Diagram of a window corner with a black arrow pointing to the edge, showing no text or symbols.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

USA 877 442 4436

toll-free

CANADA 877 442 4436

toll-free

You can rely on the manufacturer's expertise. Rest assured that the repair will be handled by trained service technicians who have the original replacement parts for your appliance.

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

Protective earth (ground)

To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.

Heavy load

Requires 2 people to carry

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

CONSERVEZ CETTE NOTICE D'UTILISATION POUR RÉFÉRENCE ULTÉRIEURE.

IMPORTANT : CONSERVER CES INSTRUCTIONS POUR L'USAGE DE L'INSPECTEUR ÉLECTRIQUE LOCAL.

INSTALLATEUR : LAISSEZ CES INSTRUCTIONS AVEC L'APPAREIL APRÈS UNE FOIS L'INSTALLATION TERMINÉE.

AVERTISSEMENT

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

IMPORTANT: SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE. INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE AFTER INSTALLATION IS COMPLETE.

WARNING

If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury.

WARNING

Do not repair, replace or remove any part of the appliance unless specifically recommended in the manuals. Improper installation, service or maintenance can cause injury or property damage. Refer to this manual for guidance. All non-user serviceable functions should be done by a qualified technician.

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

• Do not operate or allow the oven to be operated with the door open.
• Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary:

1 Interlock operation

2 Proper door closing

3 Seal and sealing surfaces (arcing, wear, and other damage)

4 Damage to or loosening of hinges and latches

5 Evidence of dropping or abuse

- Before turning on microwave power for any service test or inspection within the microwave generating compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment, integrity, and connection.

- Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual before the oven is released to the owner.

- A microwave leakage check to verify compliance with the Federal Performance Standard should be performed on each oven prior to release to the owner.

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

• Unit is heavy and requires at least two people or proper equipment to move.
• Do not lift appliance by door handle.
• Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.

Electric Safety

WARNING

Before installing, turn power OFF at the service panel. Lock service panel to prevent power from being turned ON accidentally.

If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit.

Installer – show the owner the location of the circuit breaker or fuse. Mark it for easy reference.

Before installing, turn power OFF at the service panel. Lock service panel to prevent power from being turned ON accidentally.

Be sure your appliance is properly installed and grounded by a qualified technician. Installation, electrical connections and grounding must comply with all local and regional codes.

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

INSTRUCTIONS DE MISE À LA RRE

This appliance must be grounded. Grounding reduces the risk of electric shock by providing a safe pathway for electric current in the event of a short circuit.

The appliance must be connected to a grounded, metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit conductors and connected to the equipment grounding terminal or lead on the appliance.

WARNING

Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Related Equipment Safety

Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material.

Never modify or alter the construction of the appliance. For example, do not remove leveling legs, panels, wire covers or anti-tip brackets/screws.

Cen Centre the appliance. There must be an air gap of 316 " (5 mm) between the appliance and adjacent cabinets.

Safety Codes and Standards

This appliance complies with the latest version of one or more of the following standards:

• CAN/CSA C22.2 No. 150 - Microwave Ovens
- UL 923 - Microwave Cooking Appliances

It is the responsibility of the installer to determine if additional requirements and/or standards apply to specific installations.

SAVE THESE INSTRUCTIONS.

Avant de commencer

1 3/4" (45) ( ) = mm

185/8" (473) 7½" (191) ( ) = mm

Diagram showing airflow or heat transfer between a cabinet and a control panel (no text or symbols)

Diagram showing two views of a door frame installation with a tool inserted into the opening (no text or symbols present)

Diagram of an open microwave oven with internal panel and door, showing directional arrows indicating movement (no text or symbols)

Diagram of a window corner with a curved arrow indicating direction (no text or symbols present)

1 ¾" (45) ( ) = mm

185/8" (473) 7½" (191) ( ) = mm

Quitar el embalaje

Diagram illustrating airflow or ventilation system between a cabinet and a microwave oven, with directional arrows indicating airflow direction.

Diagram showing two views of a window with a tool inserted, no text or symbols present

Diagram of an open microwave oven with internal panel and door, showing directional arrows indicating movement (no text or symbols)

Diagram of a window corner with a black arrow pointing to the edge, showing no text or symbols.

1901 Main Street, Suite 600

Irvine, CA 92614

+1.877.442.4436

USA

www.gaggenau-usa.com
