USER MANUAL LC95KA670 SIEMENS

Extractor hood Hotte LC.5KA.70T.

User manual and installation instructions

Register your product on My Siemens and discover exclusive ser- vices and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home Appliancesen Safety

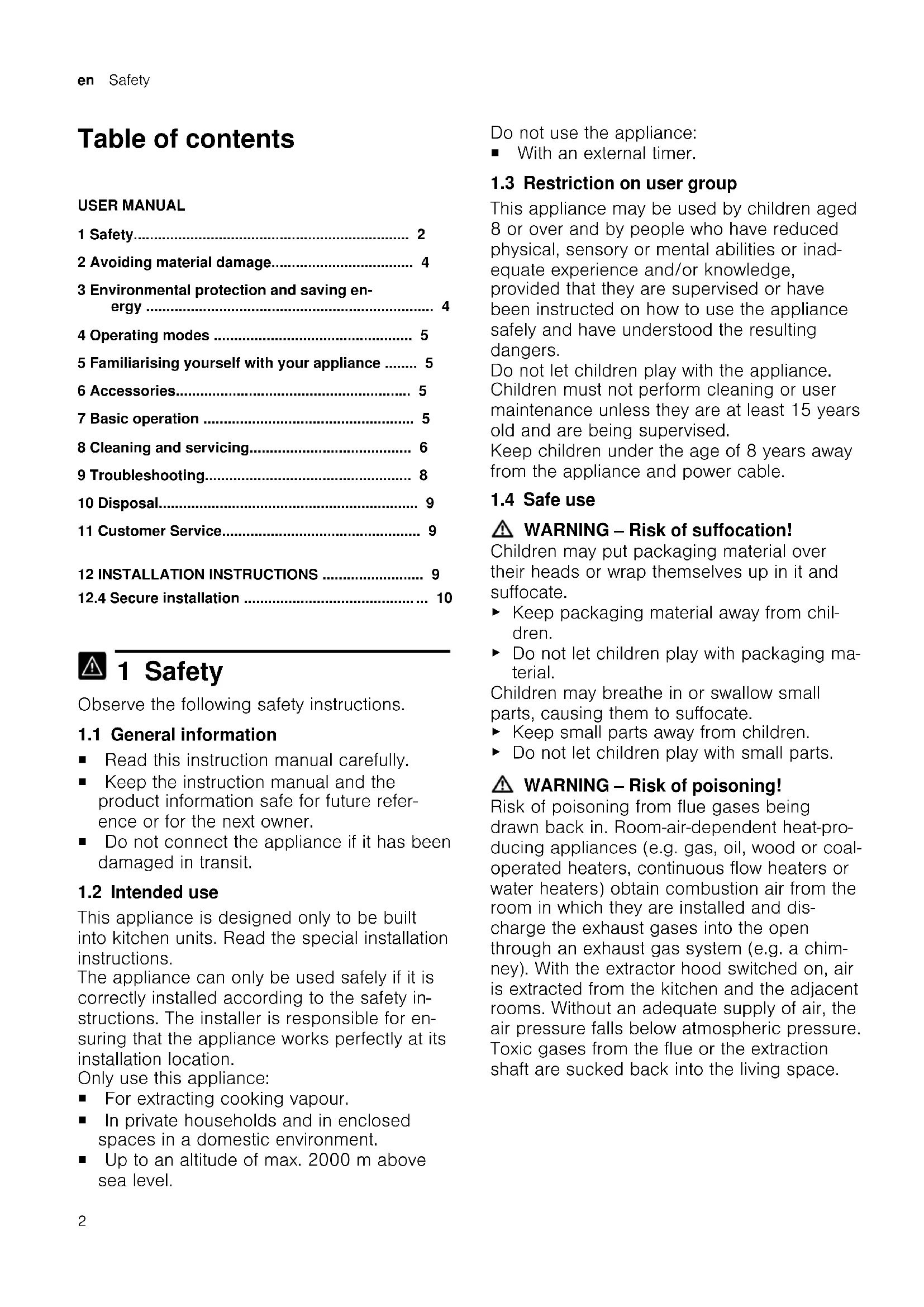

1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future refer- ence or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use This appliance is designed only to be built into kitchen units. Read the special installation instructions. The appliance can only be used safely if it is correctly installed according to the safety in- structions. The installer is responsible for en- suring that the appliance works perfectly at its installation location. Only use this appliance: ¡ For extracting cooking vapour. ¡ In private households and in enclosed spaces in a domestic environment. ¡ Up to an altitude of max. 2000m above sea level. Do not use the appliance: ¡ With an external timer. 1.3 Restriction on user group This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inad- equate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Do not let children play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable. 1.4 Safe use WARNING‒Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate.

Keep packaging material away from chil- dren.

Do not let children play with packaging ma- terial. Children may breathe in or swallow small parts, causing them to suffocate.

Keep small parts away from children.

Do not let children play with small parts. WARNING‒Risk of poisoning! Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-pro- ducing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and dis- charge the exhaust gases into the open through an exhaust gas system (e.g. a chim- ney). With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure. Toxic gases from the flue or the extraction shaft are sucked back into the living space.Safety en

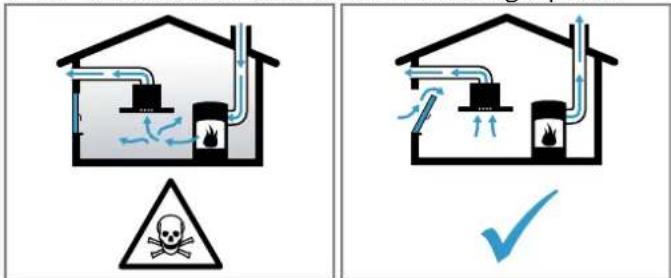

Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as a room-air-dependent heat-producing appli- ance is being operated.

It is only possible to safely operate the ap- pliance if the pressure in the room in which the heating appliance is installed does not drop more than 4Pa(0.04mbar) below at- mospheric pressure. This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means. An incoming/ex- haust air wall box alone does not ensure compliance with the limit.

In any case, consult your responsible chim- ney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.

Unrestricted operation is possible if the ap- pliance is operated exclusively in circulat- ing-air mode. WARNING‒Risk of fire! Fatty deposits in the grease filters may catch fire.

Never operate the appliance without a grease filter.

Clean the grease filters regularly.

Never work with naked flames close to the appliance (e.g. flambéing).

Do not install the appliance near a solid fuel heating appliance (e.g. wood- or coal- burning) unless the heating appliance has a sealed, non-removable cover. There must be no flying sparks. Hot oil or grease ignites very quickly.

Always supervise hot oil and fat.

Never extinguish burning oil or fat with wa- ter. Switch off the cooking zone. Extinguish flames carefully using a lid, fire blanket or something similar. When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance in- stalled above the cooker may become dam- aged or catch fire.

Only operate the gas burners with cook- ware on them. Operating multiple gas hobs at the same time generates a great deal of heat. A ventilation appliance installed above the cooker may be- come damaged or catch fire.

Only operate the gas hobs with cookware on them.

Select the highest fan setting.

Never operate two gas hobs simultan- eously on the highest flame for longer than 15 minutes. Two gas hobs correspond to one large burner.

Never operate large burners of more than 5kW with the highest flame for longer than 15minutes, e.g. a wok. WARNING‒Risk of burns! The accessible parts of the appliance become hot during operation.

Never touch these hot parts.

Keep children at a safe distance. The appliance becomes hot during operation.

Allow the appliance to cool down before cleaning. WARNING‒Risk of injury! Components inside the appliance may have sharp edges.

Carefully clean the appliance interior. Items placed on the appliance may fall off.

Do not place any objects on the appliance. Changes to the electrical or mechanical as- sembly are dangerous and may lead to mal- functions.

Do not make any changes to the electrical or mechanical assembly. The filter cover may swing out.

Open the filter cover slowly.

Take hold of the filter cover after opening until it no longer swings out.

Close the filter cover slowly. Risk of injury when opening and closing the hinges.

Keep your hands away from the hinges.en Avoiding material damage

The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1).

Do not look directly into the switched-on LED lights for longer than 100seconds. WARNING‒Risk of electric shock! An ingress of moisture can cause an electric shock.

Before cleaning, pull out the mains plug or switch off the fuse in the fuse box.

Do not use steam- or high-pressure clean- ers to clean the appliance. WARNING‒Risk of explosion! Highly caustic alkaline or highly acidic clean- ing agents in conjunction with aluminium parts in the interior of the appliance may cause ex- plosions.

Never use highly caustic alkaline or highly acidic cleaning agents. In particular, do not use commercial or industrial cleaning agents in conjunction with aluminium parts, e.g. grease filter on extractor hoods. 2  Avoiding material damage ATTENTION! Condensate may cause corrosion damage.

To prevent condensation from building up, switch on the appliance during cooking. If moisture gets into the controls, this may result in damage.

Never clean controls with a wet cloth. Incorrect cleaning damages the surfaces.

Follow the cleaning instructions.

Do not use harsh or abrasive detergents.

Clean stainless steel surfaces in the direction of the finish only.

Never clean controls with stainless steel cleaners. Condensation that flows back in may damage the ap- pliance.

The air extraction duct must be installed with a gradient of at least 1° from the appliance. If you put incorrect stress on the design elements, they may break off.

Do not pull design elements.

Do not place objects on the design elements or hang objects from them. There is a risk of surface damage if you do not peel off the protective film.

Remove the protective film from all parts of the ap- pliance before using for the first time. If one lamp is defective, this may overload the remain- ing lamps.

Replace any defective lamps. Painted surfaces are easily damaged.

Follow the cleaning instructions.

Ensure that the painted surfaces are not scratched. 3  Environmental protection and saving energy 3.1 Disposing of packaging The packaging materials are environmentally compat- ible and can be recycled.

Sort the individual components by type and dispose of them separately. 3.2 Saving energy If you follow these instructions, your appliance will use less power. Adjust the fan speed to the amount of steam pro- duced during cooking.

The lower the fan speed, the less energy is con- sumed. If cooking produces large amounts of steam, select a higher fan speed in good time.

The odours are distributed around the room less. Switch off the lighting if it is no longer required.

When the lighting is switched off, it does not con- sume any energy. Clean or replace the filters at regular intervals.

The effectiveness of the filter is retained. Put the cooking lid on.

The cooking vapours and condensation are re- duced. Only use the additional functions if required.

Switching off additional functions reduces power consumption.Operating modes en

4  Operating modes You can use your appliance in air extraction mode or circulating-air mode. 4.1 Air extraction mode The air which is drawn in is cleaned by the grease fil- ters and conveyed to the exterior by a pipe system. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). ¡ If the exhaust air is to be conveyed into a non-functioning smoke or ex- haust gas flue, you must obtain the consent of the heating engineer re- sponsible. ¡ If the exhaust air is conveyed through the external wall, a tele- scopic duct should be used. 4.2 Air recirculation mode The air which is drawn in is cleaned by the grease fil- ters and an odour filter, and conveyed back into the room. To bind odours in circulating-air mode, you must install an odour filter. The dif- ferent options for operating the appli- ance in circulating-air mode can be found in our catalogue. Alternatively, ask your dealer. The required accessor- ies are available from specialist retail- ers, from customer service or from the Online Shop. 5  Familiarising yourself with your appliance 5.1 Controls The controls are used to configure all functions of your appliance and to obtain information about the operat- ing status. Switches on fan setting1. Switches fan setting 2 on. Switches on fan setting3. Switch the lighting on or off. 6  Accessories You can buy accessories from the after-sales service, from specialist retailers or online. Only use original ac- cessories, as these have been specifically designed for your appliance. Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance. →Page9 You can find out which accessories are available for your appliance in our catalogue, in the online shop or from our after-sales service. www.siemens-home.bsh-group.com Accessories Order number Standard odor filter LA10LKA6 7  Basic operation 7.1 Switching on the appliance

Press or to set the corresponding fan level. 7.3 Switching off the appliance

Press the button for the selected fan level again.en Cleaning and servicing

7.4 Switching on the fan run-on During the fan run-on, the appliance continues to run for a short time and then switches off automatically.

Press and hold , or . a The appliance switches off automatically after ap- prox. 15minutes. 7.5 Switching off the fan run-on

Press , or . a The fan run-on ends before the remaining run-on time has elapsed. a The ventilation system continues at the selected fan setting and does not switch off automatically. 7.6 Switching on the lighting The lighting can be switched on and off independently of the ventilation system.

Press . 7.7 Switching off the lighting

Press . 8  Cleaning and servicing To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. 8.1 Cleaning products You can obtain suitable cleaning products from after- sales service or the online shop. ATTENTION! Unsuitable cleaning products may damage the sur- faces of the appliance.

Do not use harsh or abrasive detergents.

Do not use cleaning products with a high alcohol content.

Do not use hard scouring pads or cleaning sponges.

Only use glass cleaners, glass scrapers or stainless steel care products if recommended in the cleaning instructions for the relevant part.

Wash sponge cloths thoroughly before use. 8.2 Cleaning the appliance Clean the appliance as specified. This will ensure that the different parts and surfaces of the appliance are not damaged by incorrect cleaning or unsuitable clean- ing products. WARNING‒Risk of explosion! Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions.

Never use highly caustic alkaline or highly acidic cleaning agents. In particular, do not use commer- cial or industrial cleaning agents in conjunction with aluminium parts, e.g. grease filter on extractor hoods. WARNING‒Risk of electric shock! An ingress of moisture can cause an electric shock.

Before cleaning, pull out the mains plug or switch off the fuse in the fuse box.

Do not use steam- or high-pressure cleaners to clean the appliance. WARNING‒Risk of burns! The appliance becomes hot during operation.

Allow the appliance to cool down before cleaning. WARNING‒Risk of injury! Components inside the appliance may have sharp edges.

Carefully clean the appliance interior.

Observe the information regarding the cleaning agents.

Clean as follows, depending on the surface: ‒ Clean stainless steel surfaces in the direction of the finish using a sponge cloth and hot soapy water. ‒ Clean painted surfaces using a damp sponge cloth and hot soapy water. ‒ Clean aluminium using a soft cloth and glass cleaner. ‒ Clean plastic using a soft cloth and glass cleaner. ‒ Clean glass using a soft cloth and glass cleaner.

Dry with a soft cloth.

Apply a thin layer of the stainless steel cleaning product to stainless steel surfaces using a soft cloth. You can obtain stainless steel cleaning products from the after-sales service or the online shop. 8.3 Cleaning controls WARNING‒Risk of electric shock! Penetrating moisture may cause an electric shock.

Do not use wet sponge cloths.

Observe the information regarding the cleaning agents.

Clean using a damp sponge cloth and hot soapy water.

Dry with a soft cloth. 8.4 Removing the grease filter WARNING‒Risk of injury! The filter cover may swing out.

Open the filter cover slowly.

Take hold of the filter cover after opening until it no longer swings out.

Close the filter cover slowly.Cleaning and servicing en

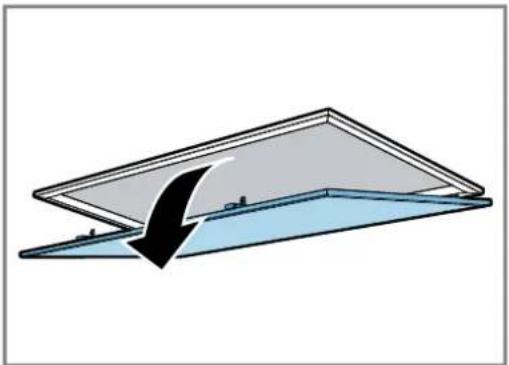

Open the filter cover by pulling it downwards.

ATTENTION! Falling grease filters may damage the hob below.

Grip below the grease filter with one hand. Open the locks on the grease filters.

Remove the grease filters from the holders. To prevent grease from dripping, hold the grease fil- ter horizontally. 8.5 Cleaning grease filters manually The grease filters filter the grease from the cooking va- pour. Regularly cleaned grease filters guarantee a high level of grease removal. We recommend cleaning the grease filters every two months. WARNING‒Risk of fire! Fatty deposits in the grease filters may catch fire.

Clean the grease filters regularly. Requirement:The grease filters have been removed.

• "Removing the grease filter", Page6

Observe the information regarding the cleaning agents.

Soak the grease filter in hot soapy water. Use special grease solvent for stubborn dirt. You can obtain grease solvents from after-sales service or the online shop.

Use a brush to clean the grease filters.

Rinse the grease filters thoroughly.

Allow the grease filters to drain. 8.6 Cleaning grease filters in the dishwasher The grease filters filter the grease from the cooking va- pour. Regularly cleaned grease filters guarantee a high level of grease removal. We recommend cleaning the grease filters every two months. WARNING‒Risk of fire! Fatty deposits in the grease filters may catch fire.

Clean the grease filters regularly. ATTENTION! The grease filters may become damaged if they are squeezed.

Do not squeeze the grease filters. Note:When cleaning the grease filter in the dish- washer, light discolouration may occur. This discoloura- tion has no effect on the performance of the metal grease filters. Requirement:The grease filters have been removed.

• "Removing the grease filter", Page6

Observe the information regarding the cleaning agents.

Place the grease filters loosely into the dishwasher. Do not clean heavily soiled grease filters with utensils. Use special grease solvent for stubborn dirt. You can obtain grease solvents from after-sales service or the online shop.

Start the dishwasher. Select a temperature of no more than 70°C.

Allow the grease filters to drain. 8.7 Fitting grease filters ATTENTION! Falling grease filters may damage the hob below.

Grip below the grease filter with one hand.

Fit the grease filters.

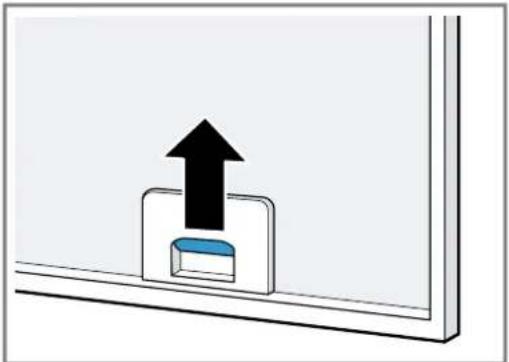

Fold the grease filters upwards and engage the locks.

Make sure that the locks engage.

Close the filter cover. 8.8 Odour filter for recirculating air mode Odour filters bind odorous substances in air recircula- tion mode. Regularly replaced odour filters guarantee a high level of odour removal. With normal use (approx.onehour a day), the odour fil- ter must be replaced every 3-5 months. The odour fil- ter cannot be cleaned or regenerated. You can obtain odour filters from the after-sales service or the online shop. Only use original odour filters.

• "Accessories", Page5 Removing odour filter Requirement:The grease filters have been removed.en Troubleshooting

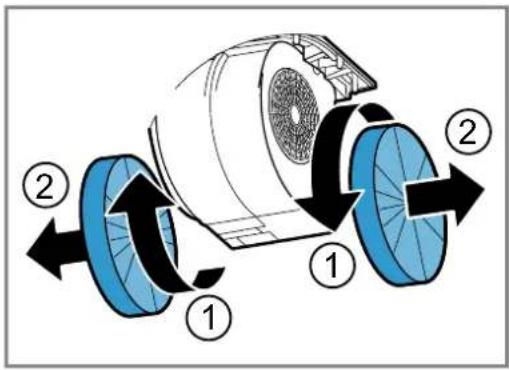

Rotate the old odour filters and remove them from the holder .

Fitting odour filters

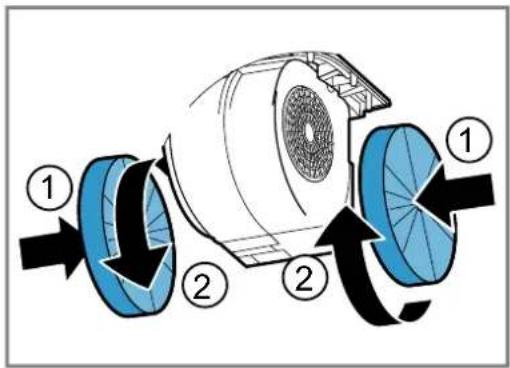

Push the new odour filters onto the holder and rotate .

Install the grease filters.

• "Fitting grease filters", Page7 9  Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after- sales service. This will avoid unnecessary costs. WARNING‒Risk of injury! Improper repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

If the appliance is defective, call Customer Service. 9.1 Malfunctions Fault Cause and troubleshooting The appliance is not working. The mains plug of the power cord is not plugged in.

Connect the appliance to the power supply. The circuit breaker is faulty.

Check the circuit breaker in the fuse box. There has been a power cut.

Check whether the lighting in your kitchen or other appliances are working. The LED lighting does not work. The LED lamp is defective.

• "Replacing the LED lights", Page8 9.2 Replacing the LED lights WARNING‒Risk of electric shock! When changing the bulb, the bulb socket contacts are live.

Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. WARNING‒Risk of injury! The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1).

Do not look directly into the switched-on LED lights for longer than 100seconds. Note: Only use bulbs of the same type and wattage.

Disconnect the appliance from the power supply.

Remove the grease filters.

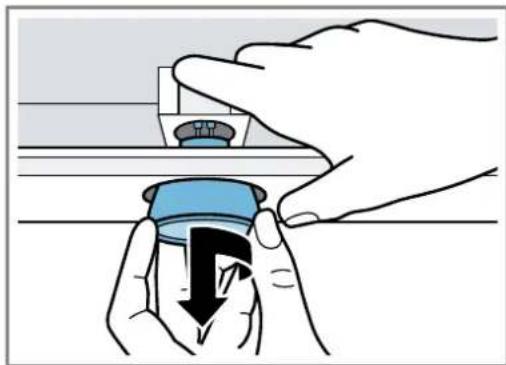

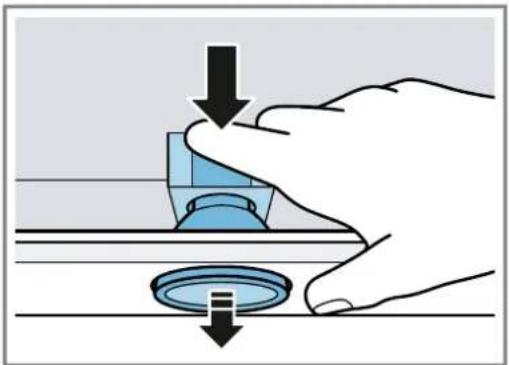

Push the lamp out of the appliance from the rear.

Turn the lamp a quarter turn anti-clockwise and re- move it.

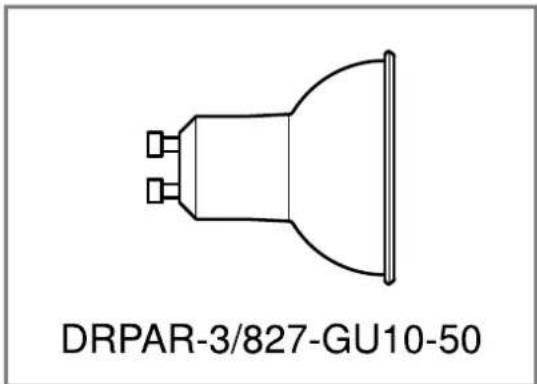

Replace the lamp with one of the same type.

Install the grease filters.

Insert the mains plug and switch on the fuse again. 10  Disposal Find out here how to dispose of old appliances cor- rectly. 10.1 Disposing of old appliance Valuable raw materials can be reused by recycling.

Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local author- ity. This appliance is labelled in accord- ance with European Directive 2012/19/EU concerning used elec- trical and electronic appliances (waste electrical and electronic equip- ment - WEEE). The guideline determines the frame- work for the return and recycling of used appliances as applicable throughout the EU. 11  Customer Service If you have any queries on use, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website. 11.1 Product number (E-Nr.) and production number (FD) You can find the product number (E-Nr.) and the pro- duction number (FD) on the appliance's rating plate. Depending on the model, the rating plate can be found: ¡ Inside the appliance (remove grease filters for ac- cess). ¡ On top of the appliance. Make a note of your appliance's details and the Cus- tomer Service telephone number to find them again quickly. 12  Installation instructions Observe this information when installing the appliance.en Installation instructions

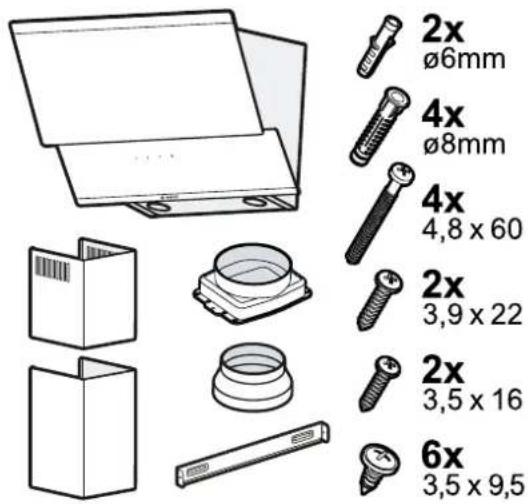

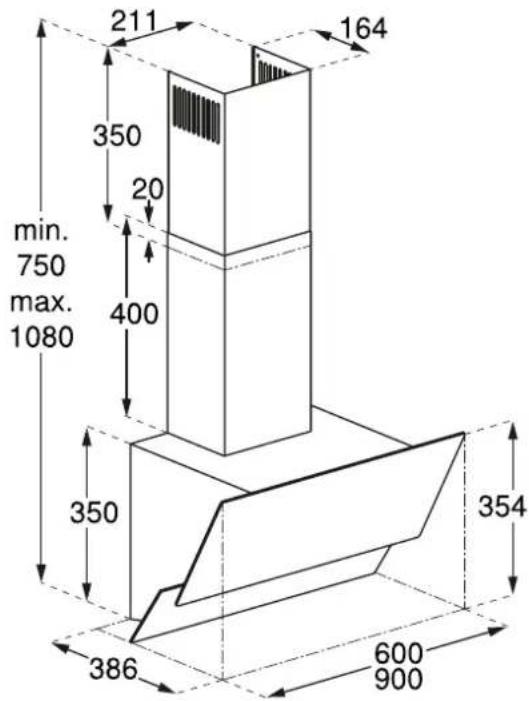

12.1 Scope of delivery After unpacking all parts, check for any damage in transit and completeness of the delivery. 12.2 Appliance dimensions You will find the dimensions of the appliance here 12.3 Safety clearances Comply with the safety clearances for the appliance.  12.4 Secure installation Follow these safety instructions when in- stalling the appliance. WARNING‒Risk of poisoning! Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-pro- ducing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and dis- charge the exhaust gases into the open through an exhaust gas system (e.g. a chim- ney). With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure. Toxic gases from the flue or the extraction shaft are sucked back into the living space.

Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as a room-air-dependent heat-producing appli- ance is being operated.

It is only possible to safely operate the ap- pliance if the pressure in the room in which the heating appliance is installed does not drop more than 4Pa(0.04mbar) below at- mospheric pressure. This can be achieved whenever the air needed for combustion is able to enter through openings that cannotInstallation instructions en

be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means. An incoming/ex- haust air wall box alone does not ensure compliance with the limit.

In any case, consult your responsible chim- ney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.

Unrestricted operation is possible if the ap- pliance is operated exclusively in circulat- ing-air mode. Risk of poisoning from flue gases being drawn back in.

If an extractor hood with an open-flued heat production source is installed, the power supply for the extractor hood must be provided with a suitable safety switch. Risk of poisoning from flue gases being drawn back in.

Do not emit the exhaust air into a smoke or exhaust gas flue that is in operation.

Do not emit the exhaust air into a shaft that is used to ventilate installation rooms for heat-producing appliances.

If the exhaust air is to be conveyed into a smoke or exhaust gas flue, you must obtain the consent of the heating engineer re- sponsible. WARNING‒Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate.

Keep packaging material away from chil- dren.

Do not let children play with packaging ma- terial. WARNING‒Risk of fire! Grease deposits in the grease filter may catch fire.

The specified safety clearances must be complied with in order to prevent a build-up of heat.

Observe the specifications for your cooking appliances. If the installation instructions for the cooking appliances specify a different clearance, the larger of the two must al- ways be provided for. If gas hobs and elec- tric hobs are operated together, the largest specified clearance applies.

The appliance must be installed with no more than one side directly next to a high- sided unit or a wall. The distance between the appliance and wall or high-sided unit must be at least 50mm. Grease deposits in the grease filter may catch fire.

Never work with naked flames close to the appliance (e.g. flambéing).

Do not install the appliance near a heat- producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-remov- able cover is available. There must be no flying sparks. WARNING‒Risk of injury! Components inside the appliance may have sharp edges.

Wear protective gloves. The appliance may fall down if it has not been properly fastened in place.

All fastening components must be fixed firmly and securely in place. Risk of injury from glass splinters.

Protect the filter cover against impact.

Do not drop the filter cover.

Wear protective goggles during installation. The appliance is heavy.

To move the appliance, twopeople are re- quired.

Use only suitable tools and equipment. The appliance is heavy.

The appliance must not be fitted directly onto plasterboard or similar lightweight ma- terials.

To ensure correct installation, you must use a material which is sufficiently stable and suitable for both the structural conditions and the weight of the appliance. Changes to the electrical or mechanical as- sembly are dangerous and may lead to mal- functions.

Do not make any changes to the electrical or mechanical assembly. The filter cover may swing out.

Open the filter cover slowly.

Take hold of the filter cover after opening until it no longer swings out.

Close the filter cover slowly. Risk of injury when opening and closing the hinges.

Keep your hands away from the hinges.en Installation instructions

WARNING‒Risk of electric shock! Sharp-edged components inside the appli- ance may damage the connecting cable.

Do not kink or trap the connecting cable. Incorrect installation is dangerous.

Connect and operate the appliance only in accordance with the specifications on the rating plate.

Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.

The protective conductor system of the do- mestic electrical installation must be prop- erly installed.

When the appliance is installed, the mains plug of the power cord must be freely ac- cessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation accord- ing to the conditions of Overvoltage Cat- egory III and according to the installation regulations.

When installing the appliance, check that the power cable is not trapped or dam- aged. 12.5 General information Follow these general instructions during the installation. ¡ For the installation, observe the currently valid build- ing regulations and the regulations of the local elec- tricity and gas suppliers. ¡ When discharging the exhaust air, the official and legal regulations, such as the regional building code., must be observed. ¡ In order to freely access the appliance for servicing, select an easy-to-reach installation site. ¡ The surfaces of the appliance are sensitive. Avoid damaging them during installation. 12.6 Instructions for the electrical connection In order to safely connect the appliance to the elec- trical system, follow these instructions. WARNING‒Risk of electric shock! It must always be possible to disconnect the appliance from the electricity supply. The appliance must only be connected to a protective contact socket that has been correctly installed.

The mains plug for the mains power cable must be easily accessible after the appliance is installed.

If this is not possible, an all-pole isolating switch must be integrated into the permanent electrical in- stallation according to the conditions of overvoltage category III and according to the installation regula- tions.

The permanent electrical installation must only be wired by a professional electrician. We recommend installing a residual-current circuit breaker (RCCB) in the appliance's power supply circuit. Sharp-edged components inside the appliance may damage the connecting cable.

Do not kink or trap the connecting cable. ¡ The connection data can be found on the rating plate. →Page9 ¡ The connecting cable is approx.1.30m long. ¡ This appliance complies with the EC interference suppression regulations. ¡ The appliance corresponds to protection class 1. You should therefore only use the appliance with a protective earth connection. ¡ Do not connect the appliance to the power supply during installation. ¡ Ensure that the protection against contact is guaran- teed during installation. 12.7 Information on the installation situation ¡ Install this appliance on the kitchen wall. ¡ To install additional special accessory parts, ob- serve the enclosed installation instructions. ¡ The appliance must be installed with no more than one side directly next to a high-sided unit or a wall. The distance between the appliance and wall or high-sided unit must be at least 50mm. ¡ The width of the extractor hood must correspond at least with the width of the hob. ¡ To optimally detect the cooking vapours, install the appliance in the middle of the hob. 12.8 Instructions for the exhaust air pipe The appliance manufacturer does not provide any war- ranty for faults attributable to the pipeline. ¡ Use a short, straight exhaust air pipe with as large a pipe diameter as possible. ¡ Long, rough exhaust air pipes, many pipe bends or small pipe diameters reduce the suction power and increase the fan noise. ¡ Use an exhaust pipe that is made of non-combust- ible material. ¡ To prevent condensate from returning, fit the ex- haust pipe with a 1° gradient from the appliance. Flat ducts Use flat ducts with an inner cross-section that corres- ponds to the diameter of the round pipes: ¡ Diameter of 150mm corresponds to ap- prox.177cm². ¡ Diameter of 120mm corresponds to ap- prox.113cm². ¡ Use sealing strips for different pipe diameters. ¡ Do not use any flat ducts with sharp bends. Round pipes Use round pipes with an inner diameter of 150mm (re- commended) or at least 120mm.Installation instructions en

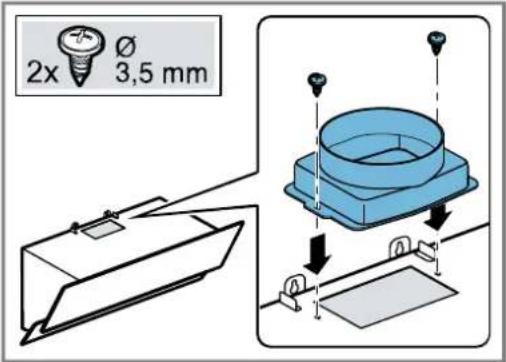

12.9 Instructions for the air extraction mode For air extraction mode, a one-way flap should be in- stalled. Notes ¡ If a one-way flap is not included with the appliance, one can be ordered from a specialist retailer. ¡ If the exhaust air is conveyed through the external wall, a telescopic duct should be used. 12.10 Information about circulating-air mode The appliance must only be operated when it is se- curely installed and the pipework is connected. 12.11 Installation Checking the wall

Check whether the wall is vertical and has sufficient load-bearing capacity. The maximum weight of the appliance is 16kg.

Drill the hole depth in accordance with the length of the screws. The wall plugs must have a secure grip. The enclosed screws and wall plugs are suitable for solid brickwork. Suitable fasteners must be used for other structures (e.g. plasterboard, porous concrete, poroton bricks). Preparing the wall

Ensure that there are no electrical wires, gas pipes or water pipes in the area where holes are to be drilled.

Cover the hob to prevent damage.

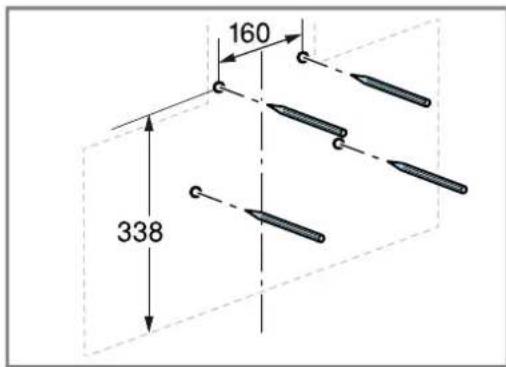

Mark a vertical centre line on the wall from the ceil- ing to the lower edge of the appliance.

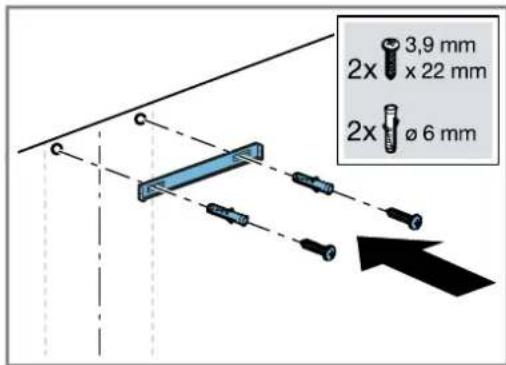

Centre the angle brackets using the centre line. The centre of the angle brackets is marked with a notch.

Align the angle brackets horizontally.

Mark the holes for the angle brackets in the flue.

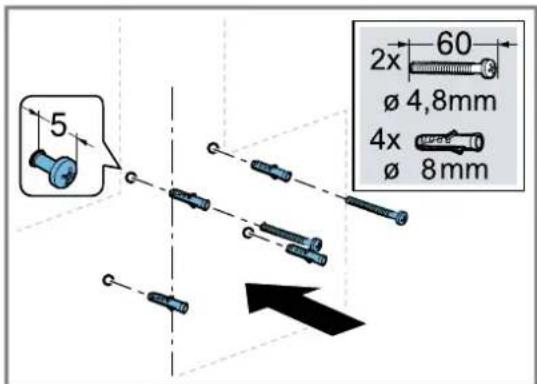

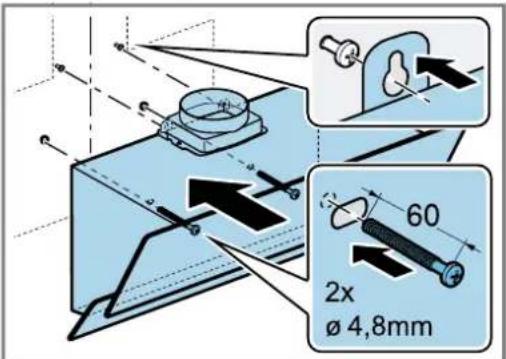

Mark the holes for the appliance bracket.

Insert the wall plugs flush with the wall.

Screw on the angle bracket for the flue duct.

Screw in the screws for the appliance bracket loosely; do not tighten them fully. Preparing the appliance

Open the filter cover if required.

Remove the grease filters.en Installation instructions

To avoid causing damage, do not bend the grease filters.

Secure the air pipe connector to the appliance. Installing the appliance WARNING‒Risk of injury! Components inside the appliance may have sharp edges.

Remove the protective film from the rear. ‒ Once the appliance is installed, fully remove the protective film.

Hook on the appliance.

Align the appliance horizontally using screws.

Fit the grease filters. To avoid causing damage, do not bend the grease filters. Establishing the exhaust air connection (exhaust pipe, 150mm diameter)

Secure the exhaust pipe to the air pipe connector.

Establish the connection to the exhaust air opening.

Seal the joints. Establishing the exhaust air connection (exhaust pipe, 120mm diameter)

Secure the reducing connector to the air-pipe con- nector.

Secure the exhaust pipe to the air pipe connector.

Establish the connection to the exhaust air opening.

Seal the joints. Connecting to the power supply

Insert the mains plug into the protective contact socket.

If a fixed connection is required, follow the instruc- tions in the section

• "Instructions for the electrical connection", Page12. Fitting the flue duct WARNING‒Risk of injury! Components inside the appliance may have sharp edges.

Remove the protective foil from both flue duct sec- tions.

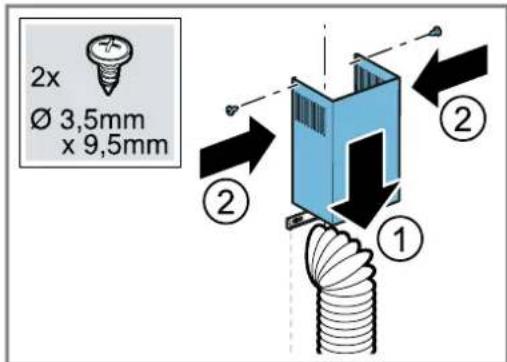

Fit the upper flue duct section. ‒ Gently push the two side panels apart, and then hook them into the angle bracket on the left and right. ‒ Screw the upper flue duct section onto the sides of both angle brackets. If air extraction is required, fit the flue duct section with its slots facing downwards.

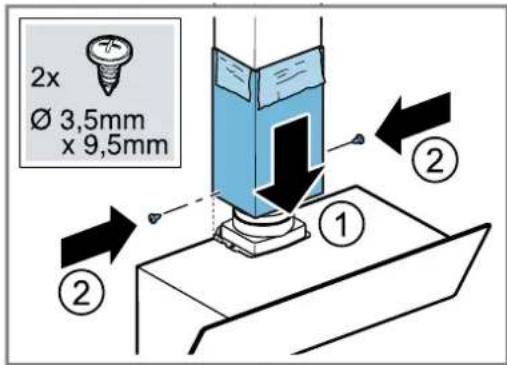

Install the lower flue duct section. ‒ Gently push the two side panels apart, hook them in behind the upper flue duct section and then push them back together as far as they will go. ‒ Place the flue duct sections onto the appliance and screw them to the sides of the angle bracket. To prevent scratches, lay paper over the edges of the lower flue duct section to protect the surface. Removing the appliance

Remove the flue duct.

Disconnect the appliance from the power supply.

Take hold of the filter cover with two hands and open it.

Remove the grease filters. To avoid causing damage, do not bend the grease filters.

Loosen the screws for the appliance bracket slightly but do not undo them fully.

Remove the appliance.Installation instructions en
