USER MANUAL T30IR901SP THERMADOR

Important safety instructions .... 3

Definitions 3

About these instructions .... 3

Introduction 3

Risk of explosion....3

Risk of electric shock 3

Risk of injury 4

Risk of fire 4

Avoiding placing children and vulnerable people at risk 4

Damage 4

Weight 4

State of California Proposition 65 Warnings ..... 4

Intended use 5

Environmental protection .... 5

Packaging 5

Old appliances 5

Installation and connection .... 5

Contents of package....5

Technical data. 5

Installing the appliance 5

Check built-in cut-out. 5

Side-by-side installation 5

Saving energy 6

Before using for the first time ..... 7

Electrical connection 7

Getting to know your appliance ....8

Appliance 8

Operating controls....9

Interior fittings 9

Operating the appliance 11

Switching the appliance on....11

Switching off and disconnecting the appliance. 11

Setting the language 11

Setting the temperature unit .....11

Setting the temperature....11

Super cooling....12

Clean lock 12

Eco mode 12

Self-test 12

Setting the brightness of the control panel .....12

Switching key press sound on or off ..... 13

Setting the key volume .....13

Setting the signal tone volume 13

Automatic clean lock....13

Automatic door opening 13

Theater mode 14

Resetting to the factory settings ..... 14

Switching demo mode on or off 14

Sabbath mode 14

Home network 14

Alarm.... 14

Door alarm 14

Home Connect.... 15

Setting up Home Connect 15

Connecting the refrigerator to the Home Connect app 16

Installing updates for the Home Connect software....16

Customer Service access....16

Deleting network settings 16

Switch on or off the connection to the home WLAN network (Wi-Fi). 16

Information on data protection ..... 17

Refrigerator compartment. 17

Note when storing food 17

Note the chill zones in the refrigerator compartment 17

Vegetable container 18

Vegetable container with humidity controller .... 18

Chill compartment 18

Cleaning 18

Cleaning the display 18

Cleaning the appliance interior....18

Cleaning the fittings 18

Care instructions for stainless steel surfaces .... 18

Odors.... 19

Changing the odor filter 19

Noises 19

Normal noises 19

Preventing noises 19

Lighting.... 19

Faults – what to do? 20

Appliance 20

Customer service.... 21

Appliance self-test 21

Repair order and advice on faults 21

Important safety instructions

READ INSTRUCTIONS - DO NOT DISCARD!

Definitions

WARNING

Non-observance of this warning could result in death or serious injuries.

CAUTION

Non-observance of this warning could result in slight or moderately serious injuries.

NOTICE: Non-observance of this information could damage the appliance.

Note: This indicates important information and/or tips.

About these instructions

• Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance.
  ■ The manufacturer is not liable if you disregard the instructions and warnings in the operating and installation instructions.
  ■ Retain all documents for subsequent use or for the next owner.

Introduction

■ This appliance complies with the relevant safety regulations for electrical appliances.
■ The refrigeration circuit has been checked for leaks.

Risk of explosion

■ Never use electric devices inside the appliance (e.g. heaters or electric ice makers).
- Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.
■ Only store high-proof alcohol tightly closed and standing up.
- Do not use other means to accelerate the defrosting process other than those recommended by the manufacturer.

Risk of electric shock

Improper installations or repairs may put the user at considerable risk.

• When installing the appliance, make sure that the power cord does not get jammed or is not damaged.
  ■ If the power cord is damaged, immediately disconnect appliance from the power supply.
• Do not use multiple outlets, extension leads, or adapters.
  ■ Before servicing or modifying the appliance, pull out the power plug or switch off the circuit breaker. Before cleaning the appliance, press main On/Off switch to switch the appliance off.
  Glass shelves or other fittings can be safely moved while the appliance is switched on.
  ■ Never cut through or remove the power cord's third conductor (earthing conductor).
• Never defrost or clean the appliance with a steam cleaner. The steam may penetrate electrical parts and cause a short circuit.
  ■ The appliance, cable and accessories should only be repaired or replaced by the manufacturer, customer services, or a similarly qualified person.
  ■ Only use original parts supplied by the manufacturer.

Important safety instructions

READ INSTRUCTIONS - DO NOT DISCARD!

Risk of injury

Containers which contain carbonated drinks may burst.

Risk of fire

Portable multi-outlet power strips and portable power supplies may overheat, causing a fire.

Never leave portable multi-outlet power strips or portable power supplies behind the appliance.

Avoiding placing children and vulnerable people at risk

At risk are:

Children,
■ People who have limited physical, mental or sensory abilities,
■ People who have inadequate knowledge concerning safe operation of the appliance.

Measures:

■ Never allow children to play with the appliance.
■ Ensure that children and vulnerable people have understood the hazards.
■ Supervise children who are cleaning and maintaining the appliance.

Risk of suffocation

■ If the appliance features a door lock: keep the key out of the reach of children.
- Keep children away from the packaging and its parts.

Damage

To avoid damage:

• Do not stand or support yourself on the base, runners or doors.
• Keep plastic parts and door seals free of oil and grease.
• Pull the power plug – not the power cord.

Weight

The appliance is very heavy. The appliance should always be transported and set up by at least 2 people.

→ "Installing the appliance" on page 5

State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING: / AVERTISSEMENT ISSUE DE LA PROPOSITION 65 DE L'ÉTAT DE LA CALIFORNIE:

WARNING / AVERTISSEMENT

Cancer and Reproductive Harm / Cancer et dommages à la reproduction - www.P65Warnings.ca.gov.

Intended use

Use this appliance

■ Only for refrigerating food.
■ only in the home and in the home environment.
■ only according to these operating instructions.

This appliance is intended for use at an elevation of no more than 2000 meters above sea level.

Environmental protection

Packaging

All materials are environmentally safe and recyclable:

■ Dispose of packaging in an environmentally responsible manner.
- Please ask your dealer or inquire at your local authority about current means of disposal.

Old appliances

Valuable raw materials can be reclaimed by recycling old appliances.

WARNING

CHILDREN MAY BECOME LOCKED IN THE APPLIANCE AND SUFFOCATE!

Before disposing of your old appliance:

■ Remove the door.
■ Leave shelves and containers in the appliance to prevent children from climbing in.
- Keep children away from the redundant appliance.

CAUTION

REFRIGERANT AND HARMFUL GASES MAY ESCAPE.

Do not damage the tubes of the refrigeration circuit or insulation.

1. Pull out the power plug.
2. Cut through the power cord.
3. Have the appliance disposed of properly.

Installation and connection

Contents of package

After unpacking all parts, check for any damage during transport.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

→ "Customer service" on page 21

The delivery consists of the following parts:

■ Built-in appliance
■ Interior fittings (depending on model)
■ Installation material
■ Instruction manual
■ Installation instructions
■ Customer service booklet
■ Warranty enclosure
■ Information on the energy consumption and noises

Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate. → "Getting to know your appliance" on page 8

Installing the appliance

Installation location

The weight of the appliance may be up to 500 kg depending on the model. The base must be sufficiently stable and should not give. If necessary, reinforce the floor.

Check built-in cut-out

The cut-out must fulfill these criteria:

■ Anti-tilt bracket must be fitted
- Cut-out depth min. 24" (610 mm), for flush installation 25" (635 mm)
- rectangular
■ stable – the side panels and the top must be min. 5/8" (16 mm) thick and securely attached to the floor or wall
■ Depth of shortest side panels min. 4" (100 mm)

Side-by-side installation

Observe the specifications in the installation instructions for a side-by-side installation.

If a partition wall is required between the appliances it must be at least 5/8" (16 mm) wide.

Saving energy

If you follow the instructions below, your appliance will use less power.

Note: The arrangement of the fittings does not affect the energy consumption of the appliance.

Installing the appliance
Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient temperatures and therefore consumes less power.
Install the appliance as far away as possible from heating elements, cooker and other heat sources:At least 11⁄4" (3 cm) from electric or gas cookers.At least 113⁄4" (30 cm) from oil or solid-fuel cookers.
Select an installation location at a room temperature of approx. 68 °F (20 °C).
Do not cover or block the ventilation openings. The appliance needs to cool less frequently if the warm air can
Ventilate the room daily.	escape and therefore consumes less power.
Using the appliance
Open the appliance door only briefly.	The air in the appliance does not warm up so intensely. The appliance needs to cool less frequently and therefore consumes less power.
Transport purchased food in a cool bag and place in the appliance quickly.
Allow warm food and drink to cool down before placing in the appliance.
Thaw frozen food in the refrigerator compartment to utilize the low temperature of the frozen food.
Always leave a space between the food and the back panel.	The air can circulate and the humidity will remain constant. The appliance needs to cool less frequently and therefore consumes less power.
Pack food airtight.
Do not cover or block the ventilation openings. The appliance consumes less power if the warm air can escape.
Vacuum the ventilation openings once a year.

Before using for the first time

1. Remove information material, adhesive tape and protective foil.
2. Clean the appliance.

→ "Cleaning" on page 18

Electrical connection

CAUTION

Do not connect the appliance to electronic energy saver plugs.

Note: You can connect the appliance to mains-controlled and sine-controlled inverters.

Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, are not directly connected to the national grid.

1. After installing the appliance, wait at least 1 hour before connecting it to prevent damaging the compressor.
2. Check that the outlet was installed according to the regulations and complies with the requirements.

Requirements for outlets

Outlet with 110 V ... 120 V

Protective conductor 60 Hz

Fuse 10 A ... 16 A

Maximum simultaneous load

Appliance 6 A

1. Connect the appliance to an outlet near the appliance.

The outlet must also be freely accessible following installation of the appliance.

WARNING

RISK OF ELECTRIC SHOCK!

Never use multiple outlets, extension leads or adapters.

The appliance must be grounded correctly. Never cut through or remove the power cord's third conductor (grounding conductor).

WARNING

RISK OF ELECTRIC SHOCK!

If the power cord is too short, never use multiple outlets or extension leads. Instead, please contact Customer Service.

Getting to know your appliance

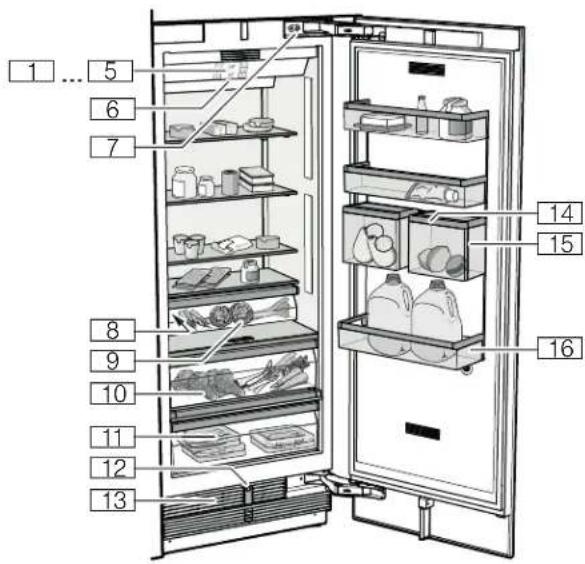

1 ... 5 6 7 8 9 10 11 12 13 14 15 16

Appliance

1 ... 5 Operating controls
6 Main On/Off switch
7 Door damper
8 Rating plate
9 Vegetable container
10 Vegetable container with humidity controller
11 Cool-fresh container
12 Automatic door opening
13 Ventilation opening
14 Rail for suspending the Produce Bin
15 Produce Bin

16 Shelf for large bottles

Operating controls

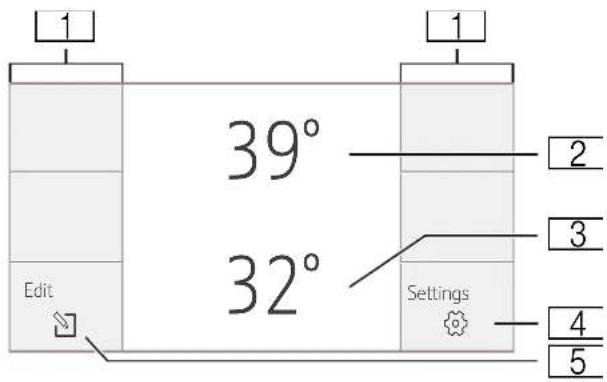

1 39° 32° Edit Settings 1 2 3 4 5

1 Touch fields

There are sensors under the touch fields.

Touching the symbol calls up the

respective function.

2 Refrigerator compartment temperature display

Indicates the set temperature in °C/°F.

3 Cool-fresh compartment temperature display

Indicates the set temperature in °C/°F.

4 button

Opens the Settings menu.

→ "Settings menu" on page 9

5 button

Opens the menu for changing the

temperature.

Settings menu

Press ⚙ button to open the menu.

In the Settings menu you will find:

■ Appliance settings
- Cleaning mode
Eco mode
Self-test
■ Sabbath mode (if activated)

→ "Operating the appliance" on page 11

Appliance settings menu

This is how to navigate to the Appliance settings menu:

1. Press ⚙ button.
2. Use < button to move to the Appliance settings menu.
3. Open the menu using ☑ button.

In the Appliance settings menu you will find the following sub-menus and setting options:

Brightness
■ Key press sound
Key volume
■ Signal tone volume
■ Automatic clean lock
■ Automatic door opening
■ Theater mode
■ Temperature unit
Home network

Language
■ Factory settings
Demo mode
Sabbath mode

→ "Operating the appliance" on page 11

Interior fittings

(not all models)

Storage compartment

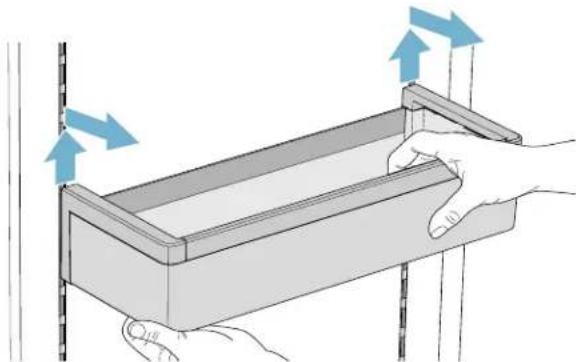

You can remove and adjust the height of the storage compartments:

1. Lift up the storage compartment and remove.

Illustration of a hand holding a rectangular object with blue arrows indicating upward motion (no text or symbols)

1. When re-inserting, insert hooks on back of storage compartment at same height to make it level.

Note: Insert the storage compartment carefully to avoid scratching the appliance.

Shelf

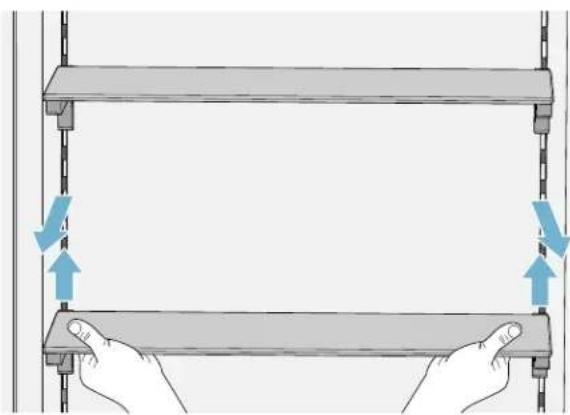

You can remove and adjust the shelf:

Illustration of two hands holding a rectangular shelf with blue directional arrows indicating movement or force (no text or symbols)

1. Lift shelf and remove.
2. When re-inserting, insert hooks on back of shelf at same height to make it level.

Note: Insert shelf carefully to avoid scratching the appliance.

en-us Getting to know your appliance

Container

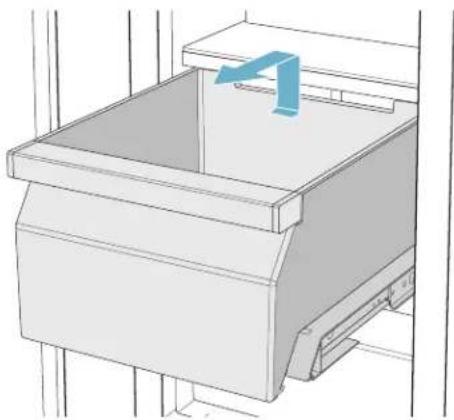

You can remove the container:

■ Press container to the rear,
■ lift the container at the rear and remove.

3D line drawing of a mechanical drawer with a blue arrow indicating a directional component (no text or symbols)

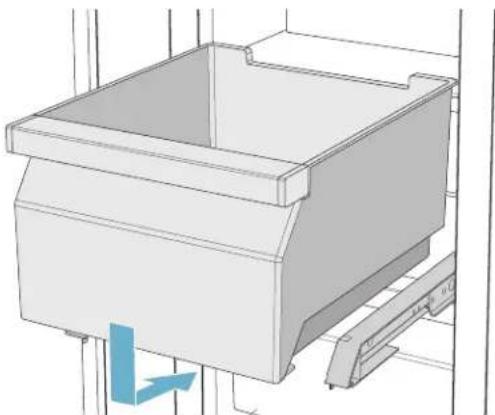

You can insert the container:

■ Pull out the telescopic rails all the way
- Place the container on the telescopic rails and push into the appliance until it engages.

3D technical illustration of a mechanical housing or enclosure with internal components and a blue directional arrow indicating motion (no text or symbols)

Produce Bin

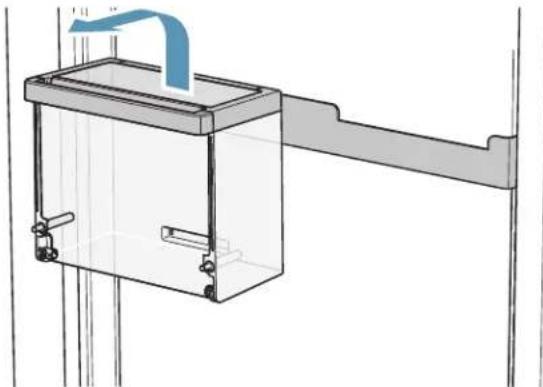

You can remove the inner container:

■ Open the inner container just a gap.
■ Lift the inner container and remove it.

Diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

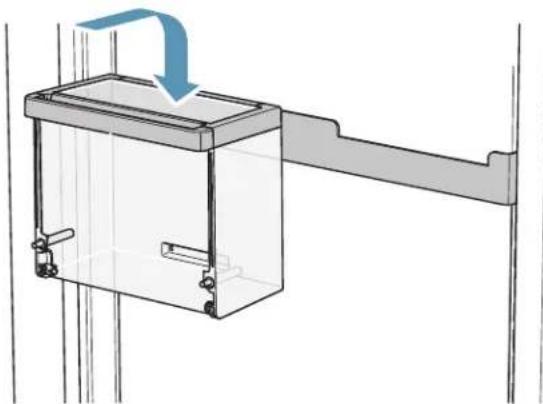

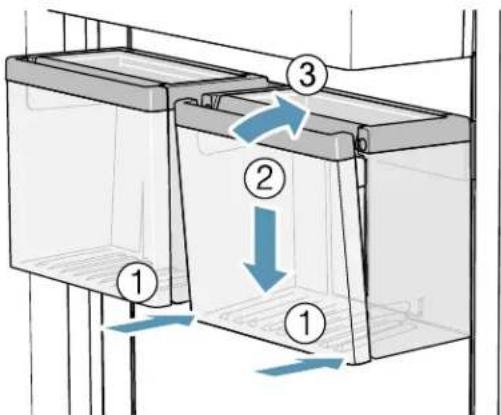

You can insert the inner container:

■ Guide the suspension of the inner container into the openings of the outer container.
- Fold the inner container shut.

Diagram of a refrigerator interior with numbered compartments and directional arrows indicating flow or movement.

You can remove the Produce Bin:

■ Lift the Produce Bin.
■ Lift the rail for suspending the Produce Bin and remove it.

Technical line drawing of a mechanical device with a blue airflow path and support structure (no text or symbols)

You can insert the Produce Bin:

• Insert the rail for suspending the Produce Bin in the desired position.
  Note: Insert the rail carefully to avoid scratches to the appliance.
• Insert the Produce Bin into the rail recesses provided for this purpose.

Diagram of a mechanical device with a blue arrow indicating direction, no text or symbols present

1 Operating the appliance

Switching the appliance on

1. Press the main On/Off switch.
   The appliance starts cooling and the light is switched on when the door is open.
2. Set the required temperature.
   → "Setting the temperature" on page 11

Operating tips

■ After the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put in any food until the selected temperature has been reached.
The front sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal.

Switching off and disconnecting the appliance

Switching off the appliance

■ Press the main On/Off switch.
The appliance is no longer cooling.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Remove groceries.
2. Press main On/Off switch.
   The appliance is no longer cooling.
3. Pull out mains plug or switch off fuse.
4. Leave appliance open.

Setting the language

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Press < button to move to the menu item Language.
5. Press 📋 button.
6. Use <> buttons to move to the required language.
7. Press ☑ button.
   The display restarts, and the start screen is displayed.

Setting the temperature unit

You can choose between the unit °C and °F.

1 ° means 1 °F
1 °C means 1 °C

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Use < button to move to the menu item Temperature unit.
5. Press ↩ button.
6. Use buttons to move to the required unit.
7. Press ☑ button. The unit will be changed.
8. Press ↻ button to exit the menu.

Setting the temperature

Recommended temperature

Cooling compartment: +4 °C/+39 °F

Chill compartment: +1 °C/+34 °F

Refrigerator compartment

1. To open the menu for setting the temperature, press the button ⚙️.
2. Use the ☐ button to select the required compartment.
3. Keep pressing the button +/- until the display indicates the required temperature.
4. Confirm the selection by pressing the ☑ button. If the button is not pressed, the appliance stores the setting and automatically returns to the main screen after a few seconds.

Cool-fresh container

1. To open the menu for setting the temperature, press the ⚙ button.
2. Use the ☐ button to select the desired compartment.
3. Keep pressing the +/- button until the display indicates the required temperature.
4. Confirm the selection by pressing the ☑ button. If the button is not pressed, the appliance stores the setting and automatically returns to the main screen after a few seconds.

Super cooling

Super cooling cools the refrigerator compartment as cold as possible.

Switch on super cooling, e.g.:

■ Before placing large quantities of food into the compartment
■ For cooling drinks quickly

Note: When super cooling is switched on, increased operating noises may occur.

After approx. 6 hours, the appliance switches to normal operation.

Switch on super cooling:

1. To open the menu for setting the temperature, press ↙ button.
2. Press 🔊 button.
   When super cooling is switched on, the symbol appears on the display.
3. Confirm the selection by pressing ☑ button. If the button is not pressed, the appliance stores the setting and automatically returns to the main screen after a few seconds.

Switch off super cooling:

1. To open the menu for setting the temperature, press ↩ button.
2. Press 13 button.
   When super cooling is switched off, the symbol disappears from the display.
3. Confirm the selection by pressing ☑ button. If the button is not pressed, the appliance stores the setting and automatically returns to the main screen after a few seconds.

Clean lock

You can use this function to switch off the touch function of the controls for 10 seconds. During this time you can clean the display.

→ "Cleaning the display" on page 18

1. Press ⚙ button to open the Settings menu.

2. Press ▷ button.

The cleaning display appears, and the countdown starts.

10s

Automatic clean lock

You can use this function to select whether the automatic clean lock is switched on automatically when the door is opened.

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Press > button to move to the menu item Automatic clean lock.
5. To change the setting, press ↗ button.

Eco mode

Eco mode switches the appliance to energy-saving operation.

The appliance automatically sets the following temperatures:

■ Refrigerator compartment: +43°F (6°C)
Cool-fresh container: +35° F (2° C)

Switching Eco mode on or off

1. Press the ⚙ button to open the Settings menu.

2. Use > button to move to the menu item Eco mode.

3. Press ▷/□ button.

The temperature is changed, and the display shows the new temperature. When Eco mode is switched off, the recommended temperature is set.

Note: You can also switch Eco mode on or off by adjusting the temperature with the +/- buttons.

Self-test

This function can be used to start fault analysis on your appliance.

→ "Appliance self-test" on page 21

Setting the brightness of the control panel

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Press 📋 button to open the menu item Brightness.
5. Press ( ) buttons to set the required brightness.
6. Press ☑ button.
   The setting is saved.
7. Press ↻ button to exit the menu.

Switching key press sound on or off

You can switch the sounds generated when pressing keys off and back on again.

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button to open the menu item.
4. Press > button to move to the menu item Key press sound.
5. Press ↗ button to open the menu item.
6. Use buttons to select the required setting.
7. Press ☑ button.
   The setting is saved.
8. Press ↻ button to exit the menu.

Setting the key volume

You can adjust the volume level of the sounds generated when pressing keys.

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button to open the menu item.
4. Use > button to move to the menu item Key volume.
5. Press ↩ button to open the menu item.
6. Use buttons to select the required setting.
7. Press ☑ button.
   The setting is saved.
8. Press ☐ button to exit the menu.

Setting the signal tone volume

You can adjust the volume level of the signal tones generated e.g. with alarms.

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button to open the menu item.
4. Use > button to move to the menu item Signal tone volume.
5. Press 📋 button to open the menu item.
6. Use <> buttons to select the required setting.
7. Press ☑ button.
   The setting is saved.
8. Press ↻ button to exit the menu.

Automatic clean lock

You can use this function to select whether the automatic clean lock is switched on automatically when the door is opened.

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Press > button to move to the menu item Automatic clean lock.
5. To change the setting, press ↻ button.

Automatic door opening

The automatic door opening function supports you in opening the door.

As soon as you activate this function, automatic door opening moves out and supports you in opening the door.

CAUTION

Repeatedly closing the door too early will cause automatic door opening to fail or wear out. Do not close the door as long as automatic door opening is still moved out. If you have nevertheless closed the door, leave it closed for 5 minutes. Automatic door opening will re-adjust itself.

Switching on Push-to-open system

In an installation situation without handles you can select the Push-to-open system. Your appliance will then open a crack if you press lightly on the door.

Note: Please note that automatic door opening is disabled if Sabbath mode is activated.

1. Open menu item Auto door opening.
2. Select menu item Push-to-open system.
3. Press ☑ button to open the menu item.
4. Select Opening force. Here you can select the level of force required to activate automatic door opening.
5. Select Opening duration. Here you can select how long the door should remain open a crack before it closes again automatically.

Note: If the door only remains open a crack, the appliance checks once a second whether the door is still ajar. After the selected opening duration elapses, the appliance will close the door automatically.

Switching on Pull-to-open system

In an installation situation with handles you can select the Pull-to-open system. Your appliance will support you in opening the door as soon as you pull on the handle.

1. Open menu item Auto door opening.
2. Select menu item Pull-to-open system.
3. Press ☑ button to open the menu item.
4. Select Opening force. Here you can select the level of force required to activate automatic door opening.

Switching off automatic door opening

1. Open menu item Auto door opening.
2. Select menu item Off.

Theater mode

If Theater mode is switched on, the light will slowly become brighter when the appliance is opened, and then slowly darker when it is closed.

Switching Theater mode on or off

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button to open the menu item.
4. Use > button to move to the menu item Theater mode.
5. Press ↩ button to open the menu item.
6. Use > button to move to the menu item On or Off.
7. Press ☑ button.
   The setting is saved.
8. Press ↻ button to exit the menu.

Resetting to the factory settings

1. Press ⚙ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Use < button to move to the menu item Factory settings.
5. Press 📋 button.
   A signal tone sounds, and a prompt to confirm reset appears.
6. Press ☑ button.
   All settings are reset to the factory settings.
7. Press ↻ button to exit the menu.

Switching demo mode on or off

The cooling function of the appliance is switched off. All other functions can be used.

Note: Do not store any food items in demo mode as the appliance remains at room temperature.

1. Press ✿ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Use < button to move to the menu item Demo mode.
5. Press 📋 button.
6. Use buttons to select the setting On or Off
7. Press ☑ button.
   The setting is saved.
8. Press ↻ button to exit the menu.

Sabbath mode

All non-essential functions are switched off so you can also use the appliance on the Sabbath.

The appliance switches off the following:

■ Automatic door opening

Note: With handle-free installation, please note that you will not be supported when opening the door during this time. To open the door in this case, reach from below under the bottom panel of the unit.

Ice maker
Audible signals
- Interior light
■ Messages on the display
■ Background illumination of display is reduced

Switching Sabbath mode on or off

Displaying Sabbath mode in the Settings menu

To use Sabbath mode, you first have to display the function in the Settings menu:

1. Press ⚙ button to open the Settings menu.

2. Use < button to move to the Appliance settings menu.

3. Press ☑ button.

4. Use < button to move to the menu item Sabbath mode. Press ↩ button.

5. Use < button to move to the menu item Available. Confirm by pressing ☑ button.

6. Press ↻ button to exit the menu.

The function is added to the Settings menu.

Switching on Sabbath mode

1. Press ⚙ button to open the Settings menu.
2. Press ⏻ button to open the view Duration Sabbath mode.
3. Select one of the presettings, or change the duration with +/- buttons.
4. Press ▷ button to start.
   The appliance switches all listed functions off.

Switching Sabbath mode off

■ After the selected time elapses, the appliance switches over to normal operation.
■ To end Sabbath mode before the selected time elapses, press □ button.

Home network

You can use this function to establish a connection between the refrigerator and your mobile device.

→ "Home Connect" on page 15

Alarm

Door alarm

If the appliance door is open for a long time, the door alarm (continuous audible signal) switches on.

- Close door.

The audible warning signal is switched off.

Home Connect

This appliance is Wi-Fi-capable and can be controlled remotely using a mobile device.

Note: Wi-Fi is a registered trade mark of the Wi-Fi Alliance.

In the following cases, the appliance functions like a refrigerator without a network connection and can still be operated manually via the controls:

■ The appliance is not connected to a home network.
The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on www.home-connect.com.

Note: Please observe the safety information in this instruction manual. Ensure that this is also observed if you operate the appliance via the Home Connect app and are not at home when doing so. → "Important safety instructions" on page 3

Follow the instructions in the Home Connect app as well.

Setting up Home Connect

Notes

• Wait at least 2 minutes after switching on the appliance before setting up Home Connect. Only then is internal appliance initialization complete.
  Take note of the Home Connect supplementary sheet, which is supplied with the appliance or is available for download at www.thermador.com together with the instructions. Enter the E-number of your appliance in the search field.

You can connect your appliance to the home WLAN network (Wi-Fi) in 3 basic steps.

1. Install the app.
2. Connect your refrigerator to the home WLAN network (Wi-Fi).
3. Connect the refrigerator to the Home Connect app.

The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel. For further information, please also see the following chapters.

The following sub-menus can be found in the Home network menu:

Connection
■ Connect to app
■ Software update
■ Delete network settings

Open WiFi menu

1. To open the Settings menu, press the ⏻ button.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Press < button to move to the menu item WiFi.
5. Press 📋 button.

Note: The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.

Setting up the connection to the home network

The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.

1. Install the Home Connect app on your mobile device.
2. Open the Home network menu on your refrigerator.
3. Open the app on your mobile device.
4. Log in or register with the app if access is not yet available.
5. Check the router of your home network to see if a WPS function is available for automatic connection.
6. If this function is available, start automatic network connection with ☑ button. Follow the instructions on the control panel.
7. Start manual network connection if this function is not available, if you're not sure whether the function is available, or if automatic network connection failed. The refrigerator temporarily generates its own network for connecting the mobile device.
8. Start manual network connection in the app of your mobile device.

As soon as the refrigerator is connected to the mobile device, a connection between the refrigerator and your home network is established.

Note: If the connection cannot be established, check whether there is sufficient reception.

→ "Verifying signal strength" on page 15

Verifying signal strength

The signal strength is displayed in the start window of the Home network menu. The signal strength should be at least 50 %. If the signal strength is too weak, the connection may be interrupted.

Improving signal strength

• Place the router closer to the refrigerator.
• Check that screening walls do not interfere with the connection.
  ■ Install a repeater to make the signal stronger.

Connecting the refrigerator to the Home Connect app

Use this menu to connect your refrigerator to mobile devices.

1. Install the Home Connect app on your mobile device and log in or register.
2. Open the Home network menu on your refrigerator.
3. Press > button to move to the menu item Connect to app.
4. Press ☐ button to open the menu item.
5. Confirm the message to display the refrigerator in the app.
6. Open the app and wait until the refrigerator is displayed.

Press Add to confirm the connection between the app and the refrigerator.

If the refrigerator is not automatically displayed, click on Add appliance in the app and follow the instructions. As soon as your refrigerator is displayed, add it with +.

1. Follow the instructions in the app until the process is complete.

Installing updates for the Home Connect software

The refrigerator checks at regular intervals whether updates are available for the Home Connect software.

The Info ⚠ button is visible when an update is available.

Installing the update:

1. Press Ⓐ button. A note window with the necessary steps for installing the new software appears.
2. Press ☑ button to close the note.
3. Open the Home network menu on your refrigerator.
4. Press > button to move to the menu item Software update.
5. Press ↩ button to open the menu item.

Note: The ☑ button is only visible if an update is available.

The software is installed.

1. A note appears when installation is complete.
2. Press ☑ button to close the note.

Customer Service access

If you contact Customer Service, they can access your appliance and view its status after you have given your consent. You need to have your appliance connected to your home network for this.

Further information about Customer Service access and its availability in your country is available under www.home-connect.com in the Help & Support area.

1. Contact Customer Service. → "Customer service" on page 21
2. Confirm the start of Customer Service access in the app. During Customer Service access the symbol 📋 appears on the control panel.
3. As soon as Customer Service has obtained the necessary data, they end access.

Note: You can interrupt remote diagnosis early by switching off Customer Service access in the Home Connect app.

Deleting network settings

If there is a problem when trying to establish a connection, or if you would like to register the appliance in a different home network (WLAN), the Home Connect settings can be reset.

1. Open the Home network menu on your refrigerator.

2. Press > button to move to the menu item Delete network settings.

3. Press ↗ button to open the menu item.

4. Confirm the message to delete the network settings.

To then reconnect the appliance to the home network, perform initial setup again.

→ Page 15

Switch on or off the connection to the home WLAN network (Wi-Fi)

1. Open the WiFi menu on your refrigerator. → "Open WiFi menu" on page 15

Note: The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.

1. To open the menu item, press Connection ↩ button.
2. Use 〈〉 buttons to select the required setting.
3. To select the setting, press ☑ button.

Note: If you switch off the Home Connect connection, you will no longer be able to operate the appliance with your mobile device.

Information on data protection

The first time your Home Connect appliance is registered on a WLAN home network connected to the Internet (Wi-Fi), your appliance will transmit the following types of data to the Home Connect server (initial registration):

■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
■ The current software and hardware version of your domestic appliance.
■ Status of any previous resetting to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time.

Note: Please note that the Home Connect functions can be utilized only in conjunction with the Home Connect app. Information on data protection can be called up in the Home Connect app.

Refrigerator compartment

The refrigerator compartment is suitable for storing meat, sausages, fish, dairy products, eggs, ready meals and pastries.

The temperature can be set from +36 °F (+2 °C)... +46 °F (+8 °C).

The refrigerator compartment can also be used to store highly perishable groceries in the short to medium term. The lower the selected temperature, the slower the enzymatic and chemical processes and deterioration by microorganisms. A temperature of +39 °F (+4 °C) or lower ensures optimum freshness and safety of the stored groceries.

Note when storing food

Note: Avoid contact between food and the back panel.

Otherwise, the air circulation will be impaired and food or packaging may freeze to the back panel.

■ Store fresh, undamaged food. The quality and freshness will then be retained for longer.
In the case of ready products and bottled goods, do not exceed the minimum sell-by date or use-by date indicated by the manufacturer.
■ To retain aroma, color and freshness, pack or cover food well before placing it into the appliance.
This will prevent flavors being transferred between foods and the plastic parts from becoming discolored.
■ Leave warm food and drinks to cool down before placing them into the refrigerator compartment.

Note the chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones.

Coldest zone

The coldest zone is in the interior at the back panel and in the chill compartment.

Note: Store delicate food (e.g. fish, sausages and meat) in the coldest zone.

Warmest zone

The warmest zone is at the very top of the door.

Note: Store e.g. hard cheese and butter in the warmest zone. Cheese can continue to release its aroma and the butter will still be easy to spread.

Vegetable container

The vegetable container is the optimum storage location for fresh fruit and vegetables. A high air humidity keeps leafy vegetables fresh for longer. Fruit and vegetables should be stored at a slightly lower air humidity.

Notes

• Fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. eggplant, cucumbers, zucchini, peppers, tomatoes and potatoes) should be stored outside of the appliance at temperatures of approx. +8 °C/+36 °F ... +12 °C/+46 °F for optimum preservation of quality and aroma.
• Condensation may form in the vegetable container depending on the type and quantity of products stored. Remove condensation with a dry cloth.

Vegetable container with humidity controller

The vegetable container is the optimum storage location for fresh fruit and vegetables. You can adjust the humidity in the vegetable container via the humidity controller and a special seal. This allows fresh fruit and vegetables to be stored up to twice as long as with conventional storage.

The humidity in the vegetable container can be set according to the type and quantity of products to be stored:

■ Mainly fruit as well as for a large load – set lower humidity with controller position FRUIT
- Mainly vegetables as well as for a mixed or small load – set higher humidity with controller position VEGETABLES

Notes

For optimum preservation of quality and flavor store fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. eggplant, cucumbers, zucchini, peppers, tomatoes and potatoes) outside of the appliance at temperatures of approx. +46 °F (+8 °C) ... +54 °F (+12 °C).

- Condensation may form in the vegetable container depending on the type and quantity of products stored. Remove condensation with a dry cloth and adjust the humidity in the vegetable container with the humidity controller.

Chill compartment

The chill compartment has lower temperatures than the refrigerator compartment. Temperatures below +32 °F (0 °C) may occur.

Ideal for storing fish, meat and sausage. Not suitable for salads, vegetables and groceries sensitive to cold.

The temperature in the chill compartment can be adjusted.

Cleaning

CAUTION

AVOID DAMAGING THE APPLIANCE AND THE FITTINGS.

• Do not use abrasive, chloride-based or acidic cleaning agents or solvents.
• Do not use scouring or abrasive sponges. The metallic surfaces may corrode.
• Never clean the shelves or containers in the dishwasher. The parts may become deformed.

Cleaning the display

The change in temperature and humidity can cause the controls to steam up.

Switch the clean lock on before cleaning.

→ "Clean lock" on page 12

Use a clean micro-fiber cloth for cleaning.

Cleaning the appliance interior

Proceed as follows:

1. Press the main On/Off switch.
2. Take out food and store in a cool location. Place ice pack (if available) on the food.
3. Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.

CAUTION

The rinsing water must not run into the light or through the drainage hole into the evaporation area.

1. Wipe door seal with clear water and dry thoroughly with a cloth.
2. Switch appliance back on and put in food.

Cleaning the fittings

To clean, take the variable parts out of the appliance.

→ "Interior fittings" on page 9

Care instructions for stainless steel surfaces

When taking care of and cleaning stainless steel surfaces, use only cleaning agents suitable for stainless steel and a stainless steel cleaning cloth.

You can purchase a suitable stainless steel cleaning cloth from customer service.

To prevent visible scratches, clean the stainless steel surface in the direction of the structure.

Odors

If you experience unpleasant odors:

1. Pull out mains plug or switch off fuse.
2. Take all food out of the appliance.
3. Clean the inside.

→ "Cleaning" on page 18

1. Clean all packaging.
2. Seal strong-smelling food in order to prevent odors from forming.
3. Switch the appliance on again.
4. Arrange food in the appliance.
5. After 24 hours, check whether odors are building up again.
6. Change the odor filter.

→ "Changing the odor filter" on page 19

Changing the odor filter

Replacement filters are available from your customer service.

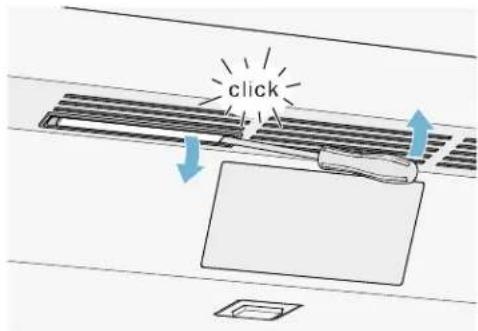

1. Open the filter holder with a slotted screwdriver.

click

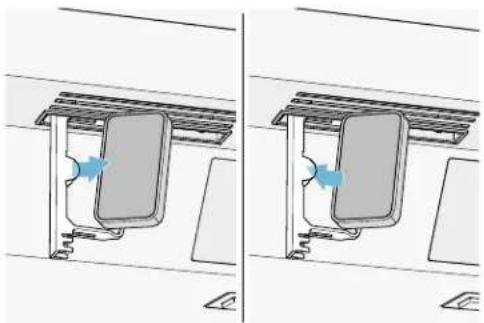

1. Remove the used odor filter and replace with a new odor filter.

Diagram showing two identical views of a mechanical device with a blue arrow indicating direction (no text or symbols)

1. Close the filter holder.

click

Noises

Normal noises

Droning: A motor is running, e.g. refrigerating unit, ventilator.

Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes.

Clicking: Motor, switches or solenoid valves are switching on or off.

Cracking: Automatic defrosting is running.

Preventing noises

Appliance is not level: Align appliance using a water level. If required, place a little packing underneath.

Containers, shelves or storage compartments wobble or stick: Check the removable fittings and re-insert if required.

Lighting

Your appliance features a maintenance-free LED light.

Only customer service or authorized technicians may repair the light.

Faults – what to do?

Before you call customer service, use this table to check whether you can rectify the fault yourself.

Appliance

Temperature differs greatly from the set value.
	Switch off appliance for 5 minutes.→ "Switching off and disconnecting the appliance" on page 11If the temperature is too warm, check temperature again after a couple of hours.If the temperature is too cold, check temperature again on the following day.
Displays do not illuminate.
The power plug has not been inserted properly. Connect the power plug.
The fuse has tripped. Check the fuses.
The power has failed. Check whether the power is on.
The refrigeration unit is switching on more frequently and for longer.
The appliance was opened frequently. Do not open the appliance unnecessarily.
The ventilation openings are covered up. Remove obstacles.
Large quantities of fresh food have been put in. Switch on super cooling promptly in advance.
Appliance is not cooling, display and lighting are lit.
Demo mode is switched on. Switch demo mode off. → "Switching demo mode on or off" on page 14
The door does not open when pressed.
A special mode has switched off automatic door opening.	To open the door, reach from below underneath the bottom panel of the unit or switch off special mode.→ "Switching Sabbath mode on or off" on page 14
Pull-to-open is switched on.	Switch the appliance to Push-to-open.→ "Automatic door opening" on page 13
The opening force is set too high.	Select a lower setting for the opening force.→ "Automatic door opening" on page 13
The fuse has tripped. Check the fuses.
The power has failed. Check whether the power is on.

Customer service

If you are unable to rectify the fault, please contact our customer service. We will always find an appropriate solution in order to avoid unnecessary visits by engineers.

The contact information for your nearest customer service can be found here or on the enclosed customer service list.

When calling, please state the product number (E-Nr.) and the production number (FD), which can be found on the rating plate.

→ "Getting to know your appliance" on page 8

Trust the expertise of the manufacturer. You can therefore be sure that the repair is carried out by trained service engineers who carry original spare parts for your home appliances.

Appliance self-test

Your appliance features a self-test program which displays the fault your customer service can rectify.

1. Press ⚙ button to open the Settings menu.
2. Use > button to move to the menu item Self-test.
3. Press ☑ button to start the self-test. The self-test starts.
4. If faults are present, they will be displayed. In this case follow the instructions.
5. The appliance restarts.
6. A message that the self-test has finished is displayed for 10 seconds.

When the self-test has ended, the appliance switches to normal operation.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

USA 1-800-735-4328 Toll-free in the USA

CA 1-800-735-4328

Illustration of hands holding a rectangular object with blue arrows indicating upward motion (no text or symbols)

Illustration of two hands holding a rectangular shelf with blue directional arrows indicating movement or force (no text or symbols)

3D line drawing of a mechanical drawer with a blue arrow indicating direction (no text or symbols)

3D technical illustration of a mechanical component with a blue arrow indicating force or direction (no text or symbols)

Diagram of a refrigerant or cooling unit with labeled components and airflow indicators

Diagram showing three labeled components (①, ②, ③) with directional arrows indicating flow or movement between them.

Technical line drawing of a mechanical device with a blue airflow arrow and support structure (no text or symbols)

Diagram of a mechanical device with a blue arrow indicating direction, no text or symbols present

Utiliser l'appareil

Allumer l'appareil

Configurer Home Connect

Remarques

Diagram showing two identical views of a shared air conditioner unit with airflow arrows (no text or symbols)

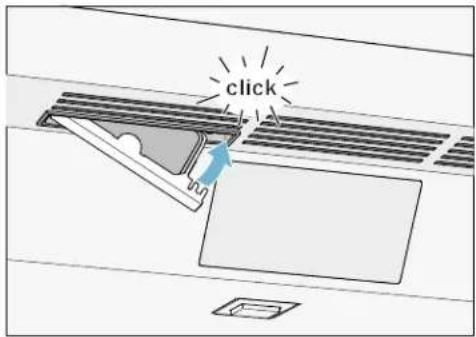

1. Fermez le compartiment de filtre.

click

Bruits

Bruits normaux

Illustration of hands holding a rectangular object with blue arrows indicating upward motion (no text or symbols)

Illustration of two hands holding a rectangular shelf with blue directional arrows indicating movement or force (no text or symbols)

3D line drawing of a mechanical drawer with a blue arrow indicating a directional component (no text or symbols)

Para colocar el recipiente:

3D technical illustration of a mechanical housing or enclosure with a blue arrow indicating direction (no text or symbols present)

Produce Bin

Diagram of a refrigerator interior with numbered parts and directional arrows indicating flow or movement

Diagram showing three labeled components (1, 2, 3) with directional arrows indicating flow or movement between them.

Para retirar Produce Bin:

Technical line drawing of a mechanical device with a blue airflow arrow and support structure (no text or symbols)

Diagram of a mechanical device with a blue arrow indicating direction, no text or symbols present

Diagram showing two identical views of a shared storage unit with a blue arrow indicating flow direction (no text or symbols present)
