Product type	Projector
Brand	Optoma
Model	4K550
Display technology	DLP
Native resolution	3840 x 2160 (4K UHD)
Lens	Manual zoom, manual focus, vertical lens shift
Image size (diagonal)	26.45" to 302.2" (standard); 28.89" to 300.46" (short throw lens)
Throw distance	1.3 m to 9.3 m (standard); 0.5 m to 5.2 m (short throw lens)
Built-in speaker	Yes, 5 W
Connectivity	2x HDMI (1.4a, 2.0), VGA, USB (5V 1.5A), 3.5 mm audio input, 3.5 mm audio output, SPDIF, 12V trigger, RJ-45, RS232, HDBaseT (optional)
3D functions	DLP-Link and IR, 120 Hz support
Power supply	100-240 V ±10%, 50/60 Hz
Power consumption	3.8 A ~ 1.0 A
Dimensions (W x D x H)	392 x 281.6 x 118.4 mm (without feet); 392 x 281.6 x 129.0 mm (with feet)
Weight	5.3 kg ± 0.5 kg
Security	Kensington lock, password, security timer
Maintenance	Lamp replacement (detailed procedure in manual)
Cleaning	Dust filter to be cleaned every 3 months
Repairability	Repair by qualified personnel only
Included accessories	Power cord, remote control (batteries included), VGA cable, documentation

Frequently Asked Questions - 4K550 OPTOMA

How to turn the projector on and off?

Plug in the power cord. Press the Power On/Off button (⏻) on the control panel or remote. To turn off, press once, then confirm by pressing again within 15 seconds. The projector cools for approximately 10 seconds before entering standby mode.

How to select the input source?

Press the Source button on the control panel or remote to cycle through inputs (HDMI, VGA, etc.). You can also use the numeric keys (HDMI=4, VGA=5, Video=6) on the remote.

How to adjust focus and zoom?

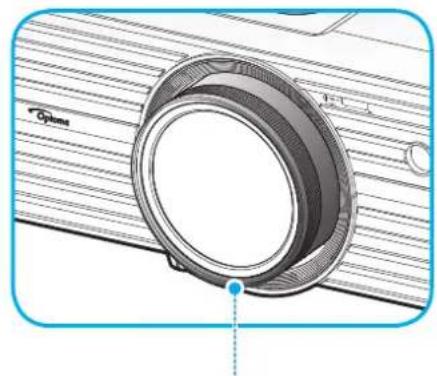

Turn the focus ring for sharpness, and the zoom lever to adjust image size. Use the lens shift button to move the image vertically.

How to activate 3D mode?

Ensure the source is outputting a 120 Hz signal. In the OSD menu, go to Display > Three Dimensions and select DLP Link or IR depending on your glasses. Wear compatible 3D glasses.

How to clean or replace the dust filter?

Turn off and unplug the projector. Pull the filter compartment downward to remove it. Clean or replace the filter. Reinsert. It is recommended to clean the filter every 3 months.

How to replace the lamp?

Turn off the projector and wait 30 minutes for cooling. Unplug the power. Remove the top cover (2 screws), unscrew the lamp module, carefully remove it. Install the new lamp, reassemble, then reset the counter in the menu Settings > Lamp Settings > Lamp Reset.

How to connect the projector to a network?

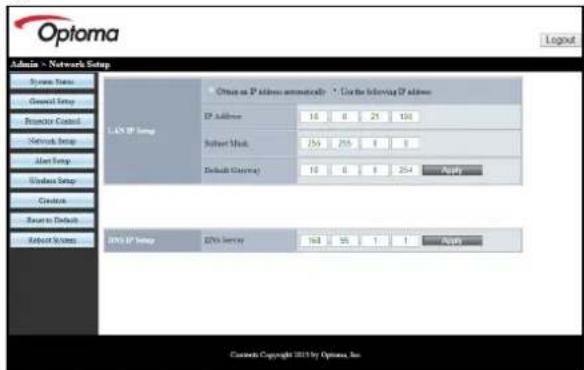

Plug an RJ-45 cable into the projectors RJ-45 port. In the OSD menu, go to Network > LAN. Enable DHCP for automatic IP assignment, or manually enter IP address, subnet mask, gateway, and DNS. You can then control the projector via a web browser.

What to do if the image is blurry?

Adjust the focus ring on the lens. Check the throw distance (refer to the table on pages 55-57). Clean the lens with a soft, dry cloth. Ensure the source resolution is compatible.

How to use the remote control?

Insert two AAA batteries into the remote. Point it at the front or top IR sensor of the projector (max distance 7 m, angle ±30°). Some buttons have secondary functions (e.g., numbers to directly select a source).

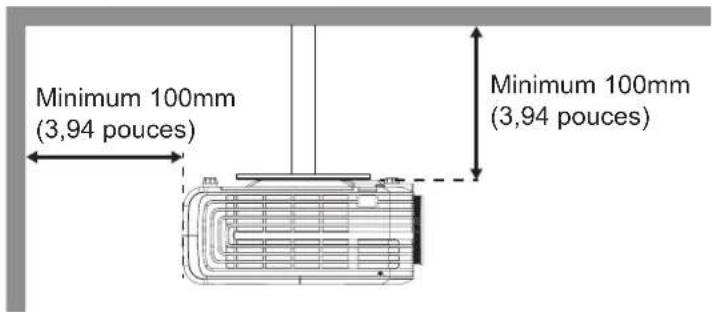

How to mount the projector on the ceiling?

Use a recommended Optoma ceiling mount kit. The fixing screws should be M4 type with a minimum length of 10 mm. Refer to the dimension diagram on page 58 for positioning. Any damage due to improper installation voids the warranty.

USER MANUAL 4K550 OPTOMA

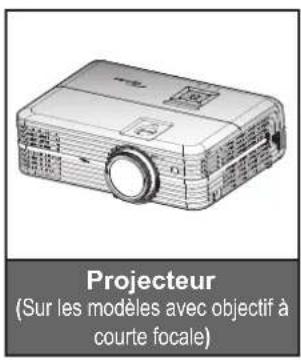

Line drawing of a projector with visible lens and screen (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

This Class B digital apparatus complies with Canadian ICES-003.

Illustration of a projector with visible lens and screen (no text or symbols)

Coiled cable with two connectors, labeled 'Câble HDMI CD du' at bottom (no other text or symbols)

Simple line drawing of a ring with a small protrusion, no text or symbols present.

Line drawing of a person sitting in a chair watching a projector on a table (no text or symbols)

pport de plafond

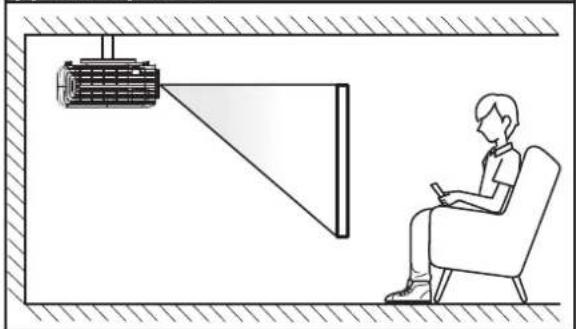

Illustration of a person sitting in a chair facing a projector mounted on a wall, with no visible text or symbols.

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

upport de plafond

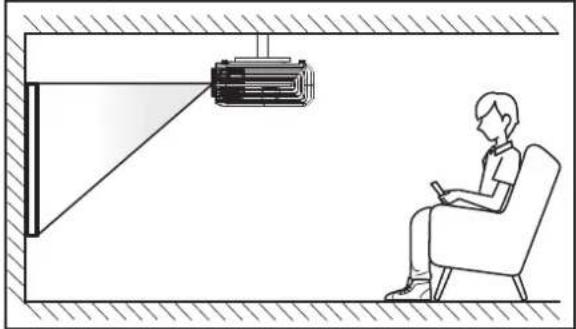

Illustration of a person sitting in a chair viewing a projector mounted on a wall, with no text or symbols present.

Line drawing of a person sitting in a chair watching a vintage computer setup (no text or symbols present)

Simple line drawing of a person sitting in a chair facing a wall-mounted device (no text or symbols)

Line drawing of a person sitting in a chair watching a projector on a desk (no text or symbols)

Illustration of a person sitting in a chair viewing a projector mounted on a wall, with no visible text or symbols.

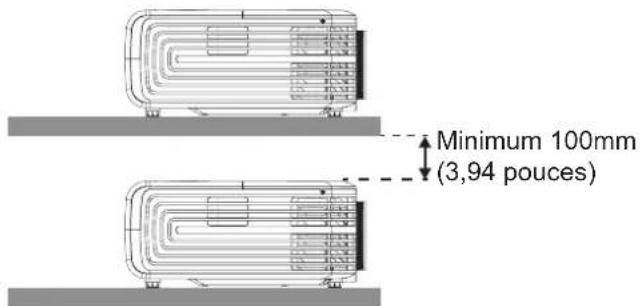

CONFIGURATION ET INSTALLATION

Technical illustration of a mechanical component with concentric rings and a labeled dimension line (no text or symbols beyond 'Optima')

Marche

UTILISER LE PROJECTEUR

Table d'étirement UHD 4K:

UTILISER LE PROJECTEUR

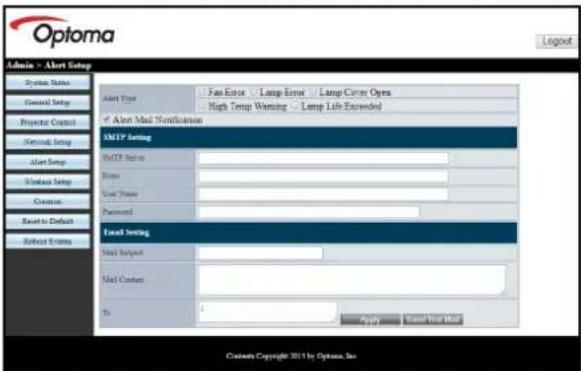

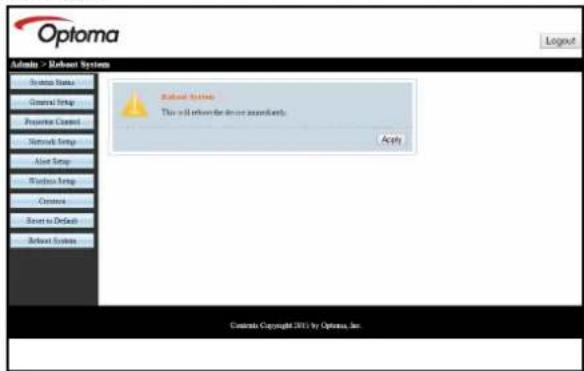

Page Configuration des alertes Page Redémarrage
