Product type	Refrigerator and freezer thermometer
Brand	ADE
Model	WS 1832
Power supply	1 CR2032 3 V battery
Rated current	20 mA
Measurement range	-20 °C to 50 °C (-4 °F to 122 °F)
Resolution	1 °C / 1 °F
Display	Digital display
Functions	MAX/MIN value display, °C/°F unit selection, on/off
Optimal temperature indicator	Range 4 °C to 8 °C (39.2 °F to 46.4 °F)
Installation	On stand (vertical placement), magnet or suction cup
Cleaning	Soft dry cloth, do not immerse
Safety	Keep batteries out of reach of children, do not expose to moisture
Package contents	Thermometer, CR2032 battery (inserted), user manual
Warranty	2 years
Compliance	Directives 2014/30/EU and 2011/65/EU
Use	Private use only, not professional

Frequently Asked Questions - WS 1832 ADE

How to change the battery of the WS 1832 thermometer?

Open the battery compartment cover by turning it counterclockwise with a coin. Remove the used battery and insert a new CR2032 battery, respecting the polarity (+ side up). Close the cover by turning clockwise.

How to switch from Celsius to Fahrenheit?

Press the °F/°C button to toggle between measurement units. The display changes immediately.

What do the MAX and MIN values mean?

The MAX and MIN values record the highest and lowest temperatures since the last reset. Press MAX/MIN once to see MAX, twice for MIN, three times for current temperature. To clear, hold for about 2 seconds.

How to reset the MAX/MIN values?

Hold the MAX/MIN button for about 2 seconds. The recorded values will be cleared and the memory resets to zero.

Where to place the thermometer in the refrigerator or freezer?

You can place it vertically on a surface by folding the stand, or attach it to a wall using the magnet or suction cup (moisten the suction cup if needed). Avoid sliding it on surfaces to prevent scratches.

What to do if the screen shows nothing?

Check that the battery is inserted correctly (polarity) and that it is not discharged. If necessary, remove the insulating tab (during first use) or replace the battery. If the problem persists, remove the battery and reinsert it after a few seconds.

Is the thermometer waterproof?

No, it is not waterproof. Never immerse the thermometer in water or any other liquid. Clean it only with a soft, dry or slightly damp cloth.

Can I use this thermometer outdoors?

This thermometer is designed for indoor use in a refrigerator or freezer. It is not intended for outdoor use and could be damaged by moisture or extreme temperatures outside its measurement range.

What is the battery life?

The CR2032 battery can last several months, depending on usage. When the display becomes dim or disappears, replace it promptly to avoid leaks.

How to clean the thermometer?

Wipe it with a soft, dry or slightly damp cloth. Do not use corrosive or abrasive cleaning products. Never immerse it in water.

USER MANUAL WS 1832 ADE

5.0°C ADE

Bedienungsanleitung

WS 1832

Operating Manual | Manual de instrucciones | Mode d'emploi | Istruzioni per l'uso | Instrukcja obsługi

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Simple black lowercase 'i' inside a circle, no text or symbols present

1 2 3 5.0°C ADE

Black snowflake symbol on white background (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

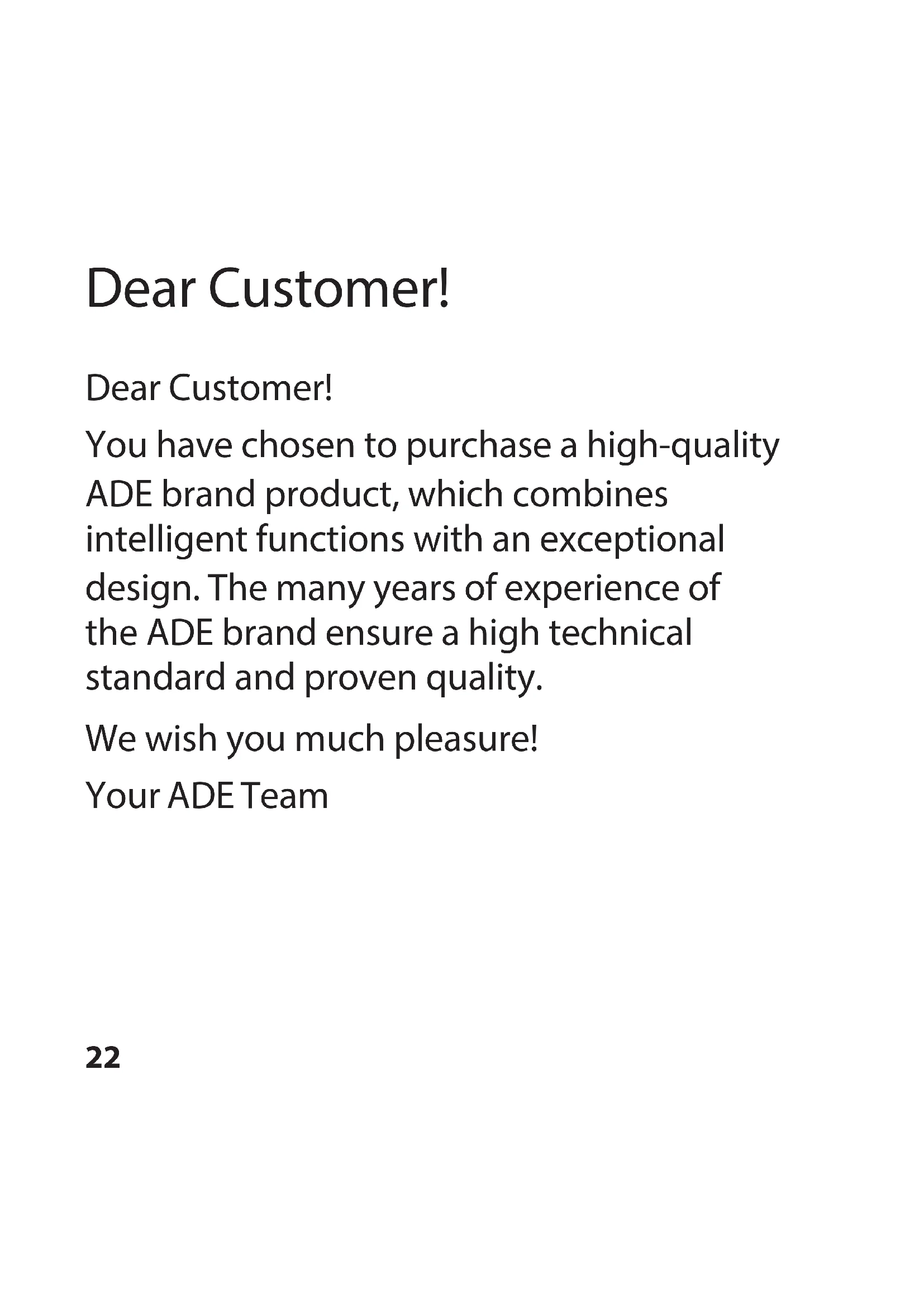

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. The many years of experience of the ADE brand ensure a high technical standard and proven quality.

We wish you much pleasure!

Your ADE Team

General Information

About this operating manual

Simple icon of a person using a laptop inside a circle (no text or symbols)

This operating manual describes how to operate and maintain your product safely.

Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well. Failure to observe this operating manual may result in injuries or damage to your product.

Pull the protective film off the display.

Explanation of symbols

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol combined with the word DANGER warns of serious injuries.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol combined with the word WARNING warns of moderate and mild injuries.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol combined with the word NOTE warns of material damage.

Simple black information icon inside a circle (no text or symbols)

This symbol indicates additional information and general notes.

Table of Contents

General Information ......23

Intended use....26

Safety....26

Scope of Delivery....29

Overview....30

Starting up....32

Use....34

Cleaning....36

Fault and remedy....37

Technical data 37

Declaration of Conformity......38

Warranty....39

Disposal 40

Intended use

This fridge and freezer thermometer is designed for private use. It is not suitable for commercial use.

Safety

- This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.

• Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.

- Batteries can be life-threatening. Therefore, keep batteries out of reach of small children. If a battery has been swallowed or has entered the body in any other way, seek medical help immediately. Failure to do so within 2 hours may result in severe internal burns that could cause death.

DANGER for children

- Keep children away from packaging material. There is a risk of choking if swallowed.

RISK of fire/burning and/or explosion

• There is a risk of explosion if the battery is replaced improperly. Replace batteries only with the same or equivalent battery type. Observe the “Technical data”.
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited.

Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape!

- Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor.

BEWARE of material damage

• Protect the thermometer from strong shocks, vibrations and moisture.

• Remove the batteries from the device when they are depleted or when the Item clock will not be used for a longer period of time. This prevents damage that may be caused by leakage.

• When inserting and changing batteries, pay attention to the correct polarity (+/-).

• Do not expose batteries to extreme conditions, for example, by storing them on radiators or under direct sunlight. Increased risk of leakage!
• Clean the battery and device contacts, as needed, before inserting the battery.
• Do not make any changes to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user.

Scope of Delivery

• Fridge and freezer thermometer
• Battery type CR2032, 3 V
• Operating Manual

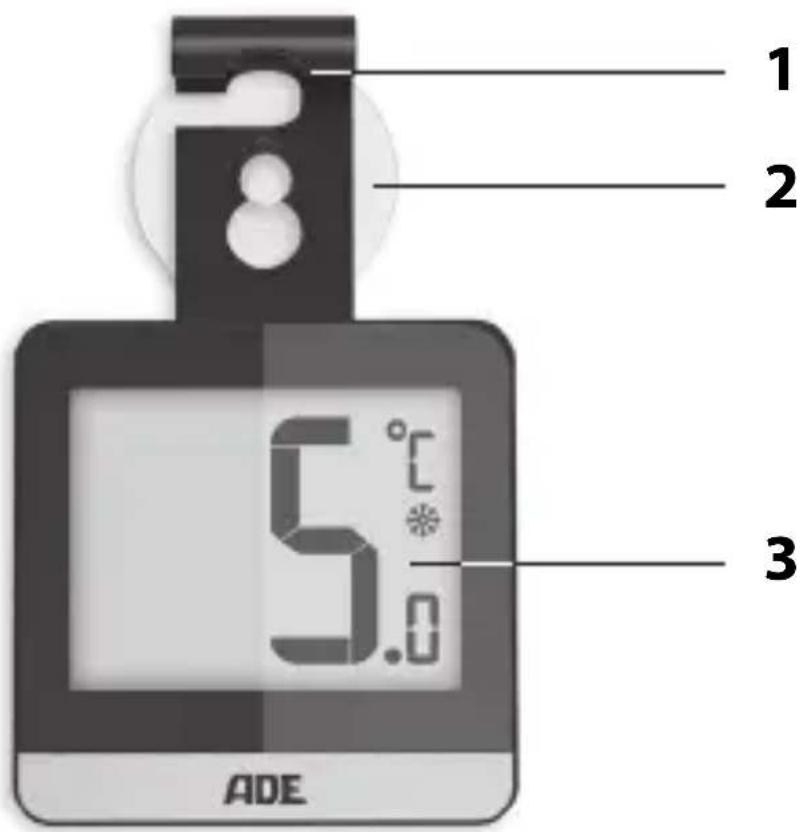

Overview

1 2 3 5.0°C ADE

1 Fold-out foot
2 Removable suction cup
3 Display

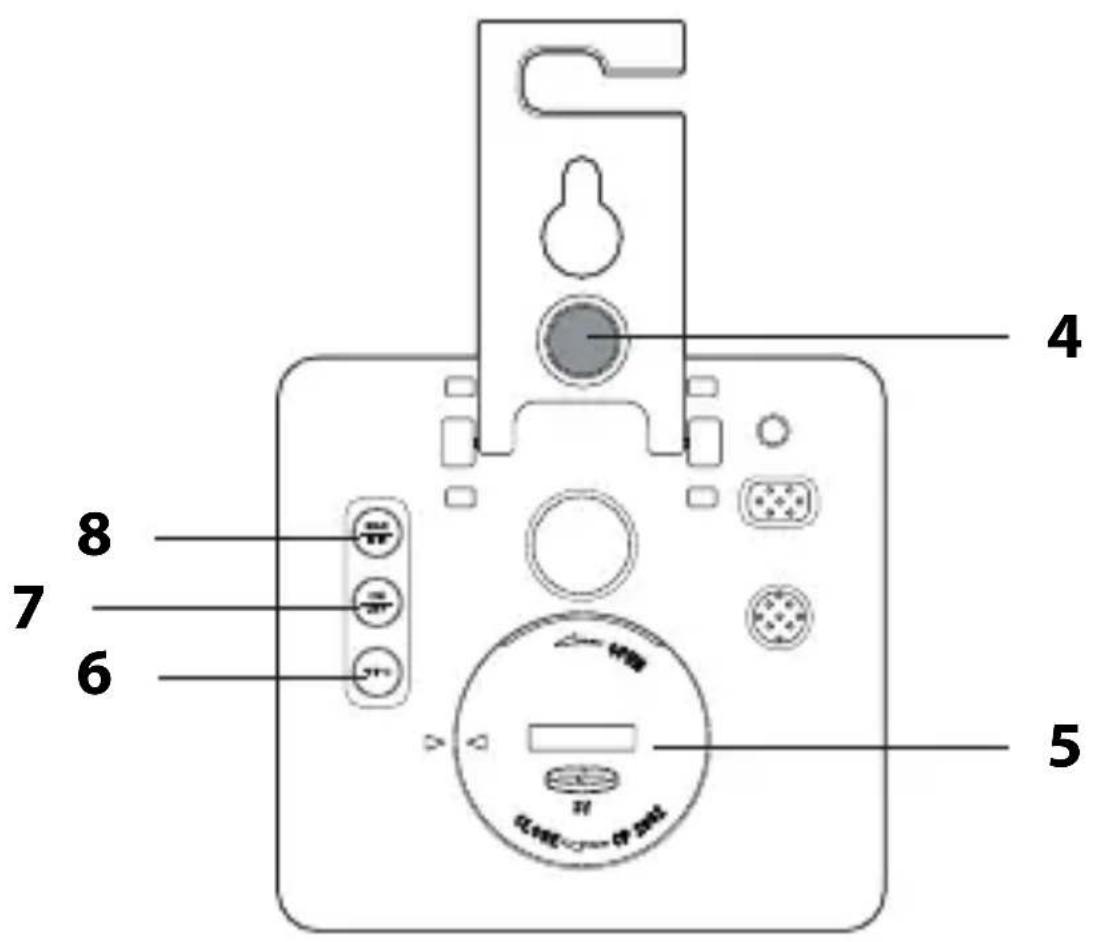

4 8 7 6 5

Z

4 Magnet
5 Battery compartment CR2032 / 3 V
6 °F/°C button
7 ON/OFF button
8 MAX/MIN button

Starting up

Removing iso-strips

When the scales are delivered, the battery is already inserted and fitted with iso-strips to prevent it from discharging ahead of time. To put the thermometer into operation, you must remove the iso-strip.

1. Use a coin or equivalent to turn the battery compartment cover counter-clockwise as far as it will go and remove it.
2. Remove the iso-strip, replace the battery compartment cover and turn it clockwise as far as it will go.

Shortly after the thermometer is powered, the display will show the measured temperature.

Changing the battery

For use, you need a CR2032, 3V battery.

1. Remove the battery compartment cover and then remove the old battery.
2. Slide the new battery against the contact spring under the square retaining tabs and press them down.

Observe the correct polarity (+/-). The plus pole (+) must point upwards.

1. Replace the battery compartment cover. Notes on changing the battery:

2. The batteries must be changed when nothing is shown on the display.

3. Only use the battery type specified in the "Technical Data".
4. Dispose of old batteries in an environmentally friendly manner, see "Disposal".

NOTE on material damage

For magnetic attachment: Do not slide the Thermometer over the surface as this could cause scratches.

Setting upright

The thermometer is suitable for use in the fridge or freezer.

• When you fold the foot all the way down, you can place the thermometer upright.
• When you fold the foot all the way up, you can hang up the thermometer or attach it to a wall with the magnet or suction cup (depending on the surface). Moisten the suction cup slightly in advance, if necessary.

Black snowflake symbol on white background (no text or symbols)

When the temperature is in the range of approx. 4 °C to 8 °C (39.2 °F to 36.4 °F), the display shows the adjacent symbol. Generally, this is the optimum temperature range for a fridge.

Power on/off

Once the thermometer is powered, it will be enabled and the measured temperature will be displayed.

- Press the ON/OFF button to turn the device off and on again.

Calling up MAX and MIN values

- Repeatedly press the MAX/MIN button: Press 1x: MAX values are displayed Press 2x: MIN values are displayed Press 3x: Currently measured temperature values are displayed.

To delete stored MAX/MIN values:

-Press and hold down the MAX/MIN button for approx. 2 seconds.

Choosing the unit of measurement

-Press the °F/°C button to toggle between degrees Fahrenheit and degrees Celsius (default).

Cleaning

NOTE on material damage

Do not immerse the Thermometer in water or other liquids. Do not use rough, scratching or abrasive cleaning agents.

-If necessary, wipe the thermometer with a soft, dry cloth, or with a slightly damp cloth.

Fault and remedy

No function.

- Is the battery empty or inserted the wrong way around?

The display shows obviously wrong values, display or function is unclear.

- Remove the battery and replace shortly thereafter.

Technical data

Model: Fridge and freezer

thermometer WS 1832

Battery:

1x CR2032, 3 V

Rated current: 20 mA

Measuring range: -20°C to 50°C

(-4 °F to 122 °F)

Resolution: 1 °C / 1 °F

Distributor (no service address): Waagen-Schmitt GmbH Hammer Steindamm 27-29 22089 Hamburg, Germany

Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the fridge and freezer thermometer WS 1832 complies with EU directives 2014/30/EU and 2011/65/EU.

The declaration will lose its validity if any modification is made to the device without our consent.

Hamburg, May 2018

Waagen-Schmitt GmbH

Warranty

Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Disposing of the packaging

Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way.

In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to

a collection point for electronic waste or to a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Standard and rechargeable batteries should not be disposed of along with household waste

All standard and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such standard and rechargeable batteries can thus be disposed of in an environmentally friendly way.
