Product Type	Canister vacuum cleaner
Brand	ECG
Model	VP 3149 S
Weight	4.5 kg
Power Supply	230 V ~ 50/60 Hz
Nominal Power	1200 W
Maximum Power	1400 W
Suction Power	200 W
Dust Bag Volume	3.5 L
Operating Radius	7.5 m
Hose Length	1.5 m
Tube	Telescopic metal
Wheels	Rubberized
Noise Level	< 82 dB
Filters	Motor filter and outlet filter
Included Accessories	Floor brush (carpet/hard floor), narrow combination nozzle
Bag Full Indicator	Yes, red light
Automatic Cord Rewind	Yes, with button
Power Adjustment	Yes, control on device
Thermal Safety	Yes, anti-overheating
Maintenance	Bag replacement, cleaning motor and outlet filters
Compatible Replacement Bags	KOMA ECG VP 3163 S, Swirl Y12 MicroPor Plus, BASE BA 4090
Usage	Domestic, hard floors and carpets

Frequently Asked Questions - VP 3149 S ECG

How to start the ECG VP 3149 S vacuum cleaner?

Plug the power cord into a suitable socket (230 V), then press the on/off button on the device. Adjust the desired power using the regulator.

When should the dust bag be replaced?

Replace the bag when the fill indicator turns red. Open the front cover, remove the full bag, and insert a new bag. Preferably use recommended bags: KOMA ECG VP 3163 S, Swirl Y12 MicroPor Plus, or BASE BA 4090.

How to clean the motor filter?

The motor filter should be cleaned twice a year. Open the front cover, remove the filter, wash it with warm water, and dry it thoroughly before reinserting. Replace it if damaged.

What to do if suction power decreases?

Check if the dust bag is full, if the hose or tube is clogged, or if the filters are dirty. Clean or replace the affected parts. If the problem persists, consult an authorized service.

How to use the combination nozzle?

The combination nozzle is ideal for narrow surfaces and hard-to-reach places like corners or between furniture. It can be used with or without the built-in brush depending on the surface.

What types of floors can be vacuumed with the supplied brush?

The floor brush is designed for carpets and hard floors. Switch the brush according to the floor type: carpet position or hard floor position.

How to rewind the power cord?

After use, unplug the cord from the socket, then press the rewind button on the device. The cord rewinds automatically. Do not exceed the red mark when unwinding.

Can the vacuum cleaner pick up liquids?

No, never vacuum liquids, burning objects, or small sharp objects. This could damage the appliance or cause an accident.

Where to find replacement bags for the VP 3149 S?

You can use KOMA ECG VP 3163 S, Swirl Y12 MicroPor Plus, or BASE BA 4090 bags. They are available in appliance stores or online.

What to do in case of breakdown or malfunction?

First consult the troubleshooting guide in the manual. If the problem persists, contact an authorized after-sales service. Do not attempt to repair the device yourself.

USER MANUAL VP 3149 S ECG

Black and red compact vacuum cleaner with coiled hose and control panel (no visible text or symbols)

VP 3149 S

CZ

PODLAHOVÝ VYSAVAČ

NÁVOD K OBSLUZE

SK

PODLAHOVÝ VYSÁVAČ

NÁVOD NA OBSLUHU

PL

ODKURZACZ PODŁOGOWY

INSTRUKCJA OBSŁUGI

HU

PADLÓPORSZÍVÓ

HASZNÁLATI ÚTMUTATÓ

DE

BODENSTAUBSAUGER

BEDIENUNGSANLEITUNG

GB

VACUUM CLEANER

INSTRUCTION MANUAL

HR/BIH

USISAVAČ

UPUTE ZA UPORABU

SI

TALNI SESALNIK

NAVODILA

FR

ASPIRATEUR DE SOL

MODE D'EMPLOI

IT

ASPIRAPOLVERE

Seznam součástí

Illustration of a hand pressing down on a car interior with arrows indicating motion (no text or symbols)

Diagram of a mechanical device interior showing internal components and directional arrows (no text or symbols)

SK

Zoznam súčastí

Illustration of a hand pressing down on a car interior with arrows indicating motion (no text or symbols)

Diagram of a mechanical device interior showing internal components and directional arrows (no text or symbols)

Lista elementów

Illustration of a hand pressing down on a car interior with arrows indicating motion (no text or symbols)

Diagram of a mechanical device interior with arrows indicating movement or force (no text or symbols)

A készülék részei

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and directional arrows (no text or symbols)

Stückliste

Illustration of a hand pressing down on a car interior with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device interior showing internal components and directional arrows (no text or symbols)

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damage caused during transportation, improper use, voltage fluctuation or any change or modification of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without inserted dust bag, motor filter and exhaust filter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to performing maintenance. When unplugging, grasp the plug, never pull the power cord.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Do not allow children to play with the vacuum cleaner. A vacuum cleaner is not a toy. Be more attentive if you are using the vacuum cleaner near children.
9. Use only attachments and accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly, if it fell (e.g. into water), if it is damaged or if it was forgotten outdoors, have it inspected professionally at an authorized service center.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not touch the power cord or the vacuum cleaner with wet hands.
13. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any dirt residue, which can reduce the suction power of the vacuum cleaner.
14. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.
15. Never vacuum the following objects, it could result in damage to the appliance or cause an injury:
16. sharp objects like glass, screws, coins, nails, etc.
17. hot or smouldering objects like embers, cigarettes or flammable and volatile liquids
18. wet surfaces, water and other liquids.
19. Use extra care when cleaning stairs.
20. Use the vacuum cleaner only in accordance with the instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for damages caused by the improper use of this appliance.
21. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

DESCRIPTION OF THE VACUUM CLEANER

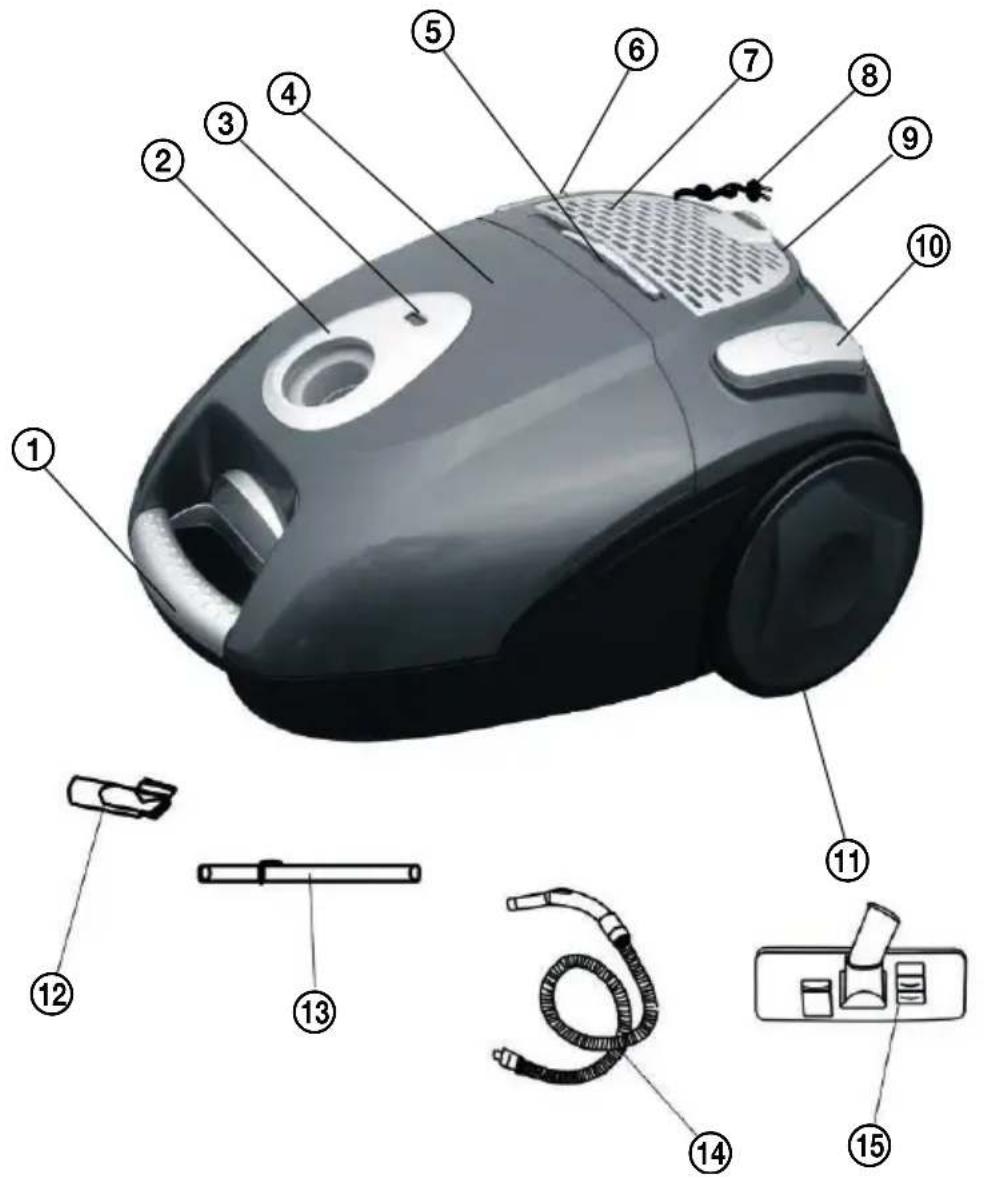

List of parts

1. Carrying handle
2. Opening for inserting the hose
3. The full dust bag indicator
4. Front cover
5. Power control
6. Cable rewind button
7. Rear filter cover

8. Power cable

9. Holder to park the nozzle

10. ON/OFF button
11. Wheels
12. Combined nozzle
13. Tube
14. Hose
15. Brush nozzle

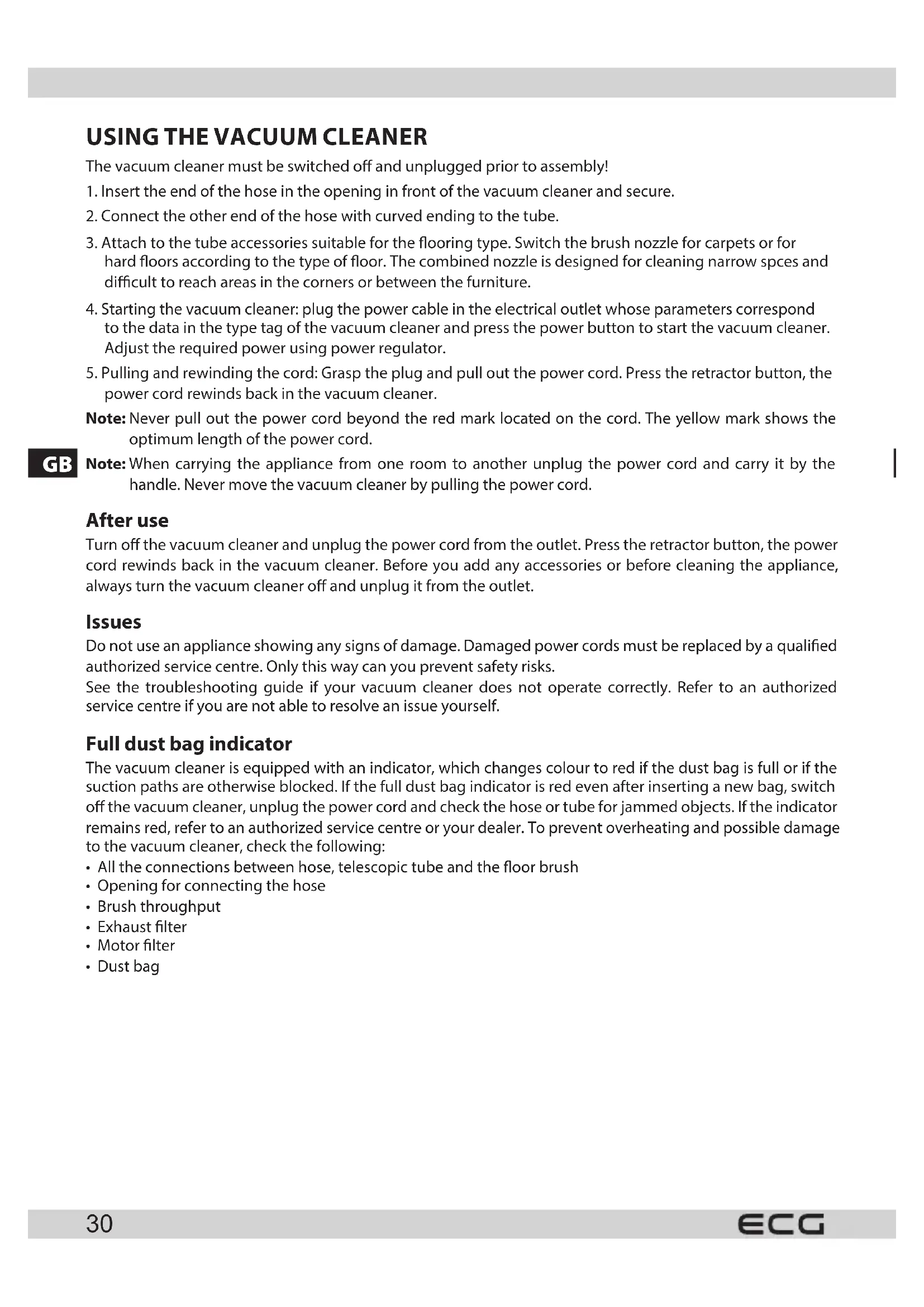

USING THE VACUUM CLEANER

The vacuum cleaner must be switched off and unplugged prior to assembly!

1. Insert the end of the hose in the opening in front of the vacuum cleaner and secure.
2. Connect the other end of the hose with curved ending to the tube.
3. Attach to the tube accessories suitable for the flooring type. Switch the brush nozzle for carpets or for hard floors according to the type of floor. The combined nozzle is designed for cleaning narrow spces and difficult to reach areas in the corners or between the furniture.
4. Starting the vacuum cleaner: plug the power cable in the electrical outlet whose parameters correspond to the data in the type tag of the vacuum cleaner and press the power button to start the vacuum cleaner. Adjust the required power using power regulator.
5. Pulling and rewinding the cord: Grasp the plug and pull out the power cord. Press the retractor button, the power cord rewinds back in the vacuum cleaner.

Note: Never pull out the power cord beyond the red mark located on the cord. The yellow mark shows the optimum length of the power cord.

GB

Note: When carrying the appliance from one room to another unplug the power cord and carry it by the handle. Never move the vacuum cleaner by pulling the power cord.

After use

Turn off the vacuum cleaner and unplug the power cord from the outlet. Press the retractor button, the power cord rewinds back in the vacuum cleaner. Before you add any accessories or before cleaning the appliance, always turn the vacuum cleaner off and unplug it from the outlet.

Issues

Do not use an appliance showing any signs of damage. Damaged power cords must be replaced by a qualified authorized service centre. Only this way can you prevent safety risks.

See the troubleshooting guide if your vacuum cleaner does not operate correctly. Refer to an authorized service centre if you are not able to resolve an issue yourself.

Full dust bag indicator

The vacuum cleaner is equipped with an indicator, which changes colour to red if the dust bag is full or if the suction paths are otherwise blocked. If the full dust bag indicator is red even after inserting a new bag, switch off the vacuum cleaner, unplug the power cord and check the hose or tube for jammed objects. If the indicator remains red, refer to an authorized service centre or your dealer. To prevent overheating and possible damage to the vacuum cleaner, check the following:

• All the connections between hose, telescopic tube and the floor brush
• Opening for connecting the hose
• Brush throughput
• Exhaust filter
• Motor filter
• Dust bag

MAINTENANCE AND CLEANING

Attention:

Always unplug the power cord from the outlet before any maintenance and cleaning.

1. Changing the dust bag: When the colour of the dust bag indicator changes to red, it is time to change or empty the dust bag.

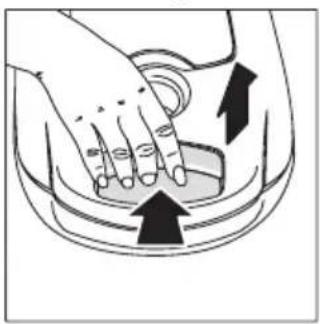

2. Press the lock in front to open the front cover.

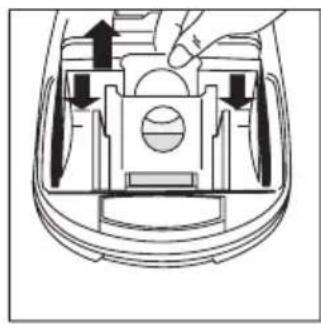

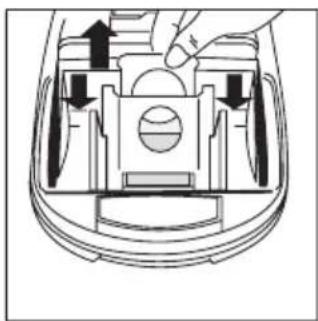

3. Remove the full dust bag from the holder.
4. Insert new dust bag in the holder under the front cover.

Illustration of a hand pressing down on a car interior with arrows indicating motion (no text or symbols)

Diagram of a mechanical device interior showing internal components and directional arrows (no text or symbols)

1. Clean the motor filter twice a year: Open the front cover, remove the filter, wash it with warm water and dry thoroughly before using it again. If the filter is damaged replace it with a new one.
2. Clean the output filter regularly: Open and remove the cover grill of the output filter. Shake to remove the accumulated dust. If the filter is damaged replace it with a new one.
3. Cleaning of the appliance surface: To clean use a soft cloth slightly moistened with a few drops of mild detergent. Never use a solvent or any abrasive scouring cleaners. Never immerse vacuum cleaner in water or any other liquid and do not clean it under running water.

Attention:

You can find replacement filter bags for VP 3163 S vacuum cleaner under the name KOMA ECG VP 3163 S. You can also use universal bags Swirl® Y12® MicroPor® Plus a BASE BA 4090.

^® Swirl, MicroPor ^® Plus a Y 12 are registered trademarks of Melitta Group.

TROUBLESHOOTING

Before referring to a service centre, check the following list of common problems and how to remove them.

Problem Possible cause	Solution
The motor will not start.	The vacuum cleaner is not powered.	Check the power cord and plug.Refer to an authorized service centre if the problems persist.
The suction power is reduced.	Full dust bag, clogged hose or tube or dirty filters.	Replace the dust bag, remove foreign objects from the hose or tube, replace filters.

TECHNICAL INFORMATION

Suction power 200 W

Telescopic metal tube

Rubber coated wheels for easy transport

Automatic rewind

Suction power regulation

Thermostat fuse against motor overheating

Full dust bag indicator

Volume of the dust bag - 3.5 l

Hose 1.5 m

Operating radius 7.5 m

Filters: motor, output

Accessories:

Floor brush for carpets and hard floors (plastic bottom part)

Combined crevice tool and dust brush

GB

Weight: 4.5 kg

Nominal voltage: 230 V\~ 50/60 Hz

Nominal input power: 1200 W

Max. input power: 1400 W

Noise level: < 82 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

SIGURNOSNE UPUTE

Popis dijelova

1. Ručka za nošenje
2. Otvor za crijevo
3. Indikator napunjenosti vrećice za prašinu
4. Prednji poklopac
5. Regulacija snage
6. Tipka za namatanje kabela
7. Stražnji poklopac filtra

8. Kabel za napajanje

9. Utor za spremanje nastavka za usisavanje

10. Tipka ON/OFF
11. Kotači
12. Višenamjenski nastavak za usisavanje
13. Cijev
14. Crijevo
15. Nastavak s četkom

KORIŠTENJE USISAVAČA

Prije sastavljanja, usisavač mora biti isključen i odvojen od izvora električne struje!

Illustration of a hand pressing down on a car interior with arrows indicating motion (no text or symbols)

Diagram of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols present)

HR/BIH

1. Dva puta godišnje očistite filtar motora: Otvorite prednji poklopac, izvadite filtar, operite ga mlakom vodom i potpuno ga osušite prije nego ga ponovo postavite. Ako je filtar oštećen, zamijenite ga.
2. Redovno čistite ispušni filtar: Otvorite i skinite poklopac ispušnog filtra. Otresite filtar da biste ga očistili od skupljene prašine. Ako je filtar oštećen, zamijenite ga.
3. Čišćenje površina usisavača: Za čišćenje se poslužite mekom i blago navlaženom kripicom s nekoliko kapi blagog sredstva za čišćenje. Nikad nemojte koristiti razrijeđivač ili bilo kakvo abrazivno sredstvo za čišćenje. Nikad ne uranjajte usisavač u vodu ili drugu tekućinu niti ga ne postavljajte pod mlaz vode.

Upozorenje:

Rezervne vrećice za usisavač VP 3163 S naći ćete pod nazivom KOMA ECG VP 3163 S. Također možete koristiti univerzalne vrećice Swirl® Y12® MicroPor® Plus i BASE BA 4090.

Illustration of a hand pressing down on a car interior with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device interior showing internal components and directional arrows (no text or symbols)

Illustration of a hand pressing down on a car interior with arrows indicating motion (no text or symbols)

Diagram of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols present)

Illustration of a hand pressing down on a car interior with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device interior showing internal components and directional arrows (no text or symbols)

Lista de partes

Illustration of a hand pressing down on a car interior with arrows indicating motion (no text or symbols)

Diagram of a mechanical device interior showing internal components and directional arrows (no text or symbols)
