USER MANUAL BOP250611 GAGGENAU

Installation instructions....2

Notice de montage ....11

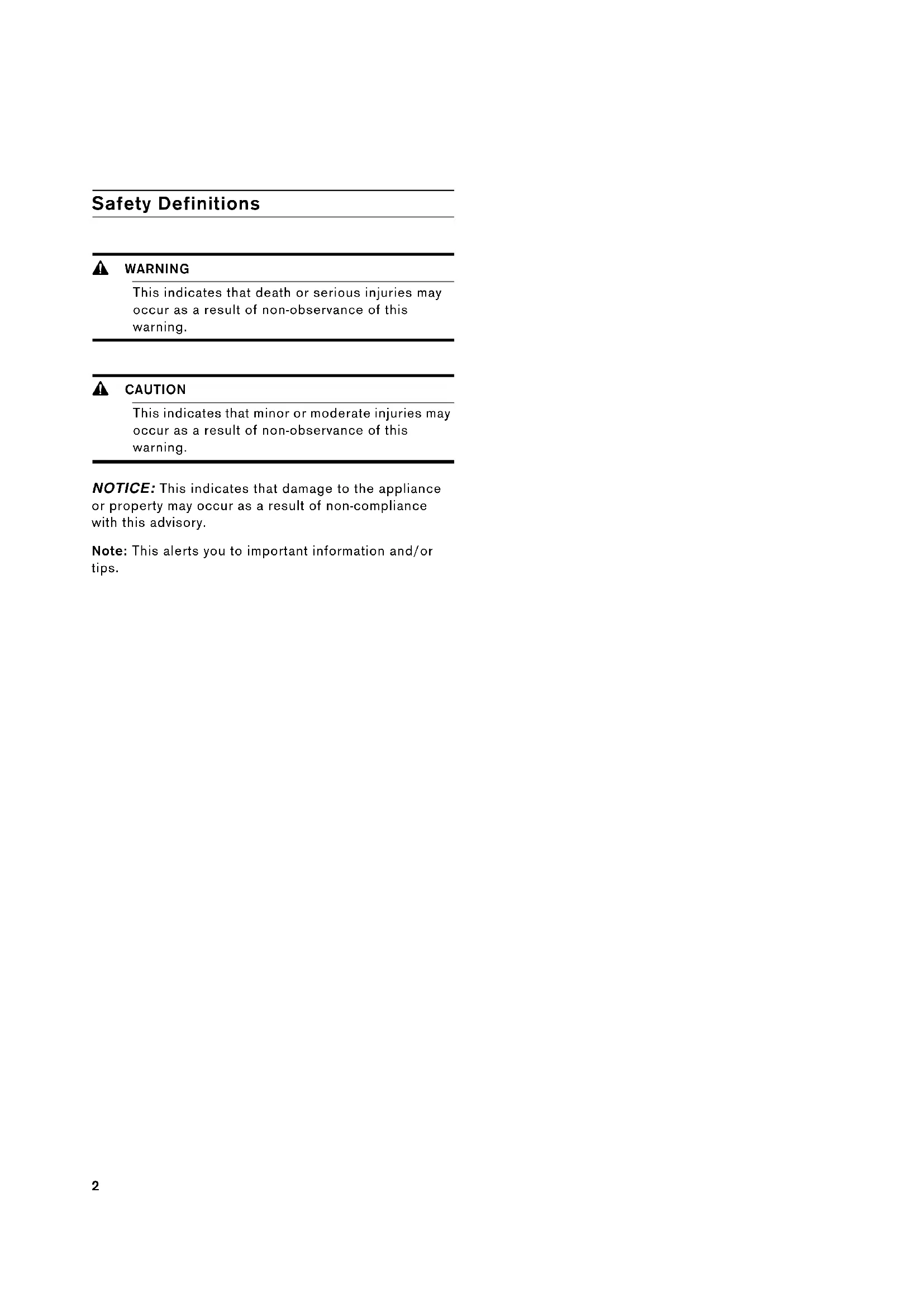

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING

When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.

WARNING

If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury.

WARNING

Do not repair, replace or remove any part of the appliance unless specifically recommended in the manuals. Improper installation, service or maintenance can cause injury or property damage. Refer to this manual for guidance. All other servicing should be done by an authorized servicer.

Appliance Handling Safety

Unit is heavy and requires at least two people or proper equipment to move.

Do not lift appliance by door handle.

Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.

Safety Codes and Standards

This appliance complies with the latest version of one or more of the following standards:

CAN/CSA C22.2 No. 61 - Household Cooking Ranges
UL 858 - Household Electric Ranges
CAN/CSA C22.2 No. 150 - Microwave Ovens
UL 923 - Microwave Cooking Appliances
CSA C22.2 No. 64 - Household Cooking and Liquid-Heating Appliances
- UL 1026 - Electric Household Cooking and Food Serving Appliances

It is the responsibility of the owner and the installer to determine if additional requirements and/or standards apply to specific installations.

Electric Safety

WARNING

Before you plug in an electrical cord or turn on power supply, make sure all controls are in the OFF position.

If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit.

Installer – show the owner the location of the circuit breaker or fuse. Mark it for easy reference.

INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE AFTER INSTALLATION IS COMPLETE.

IMPORTANT: SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.

Before installing, turn power OFF at the service panel. Lock service panel to prevent power from being turned ON accidentally.

Refer to data plate for more information. See "Data Plate" under "Service" for data plate location.

Be sure your appliance is properly installed and grounded by a qualified technician. Installation, electrical connections and grounding must comply with all applicable codes.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Related Equipment Safety

Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material

Never modify or alter the construction of the appliance. For example, do not remove leveling legs, panels, wire covers or anti-tip brackets/screws.

Before starting up the appliance, remove any packaging material and adhesive film from the cooking compartment and the door.

State of California Proposition 65 Warnings

WARNING

This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

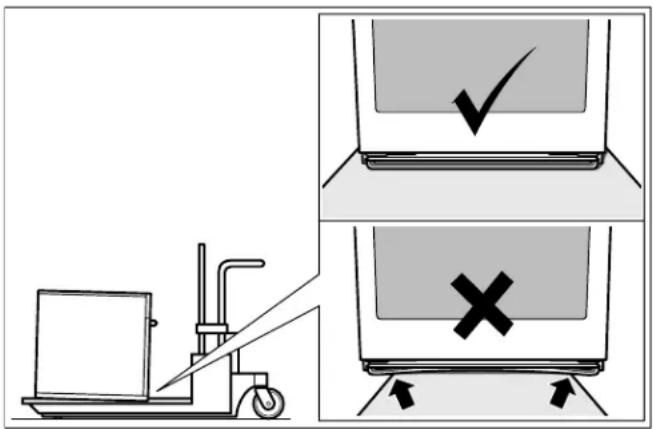

Transport

To avoid damage to the oven vent, use the transport method shown in the picture below.

Diagram illustrating a food storage or cleaning process with a laptop and a tray, showing checkmark and cross symbols.

Before you begin

Tools and parts needed

• Philips head screwdriver
1/8" drill bit and drill
- Measuring tape

Parts included

Built-in oven
3 Torx screws

Power Requirements

The outlet must be properly grounded in accordance with all applicable codes.

Planning notes

Door hinge not interchangeable.

Distance from furniture body to door front ^13/_16 " (21 mm).

Distance from furniture body to outer edge of door handle 2^13/_16 " (72 mm).

Pay attention to the front protrusion for opening drawers at the sides.

When planning a corner solution, pay attention to the door opening angle of at least 110^ .

For installation underneath cooktops: Distance between the underside of the cooktop and the top edge of the oven cavity: min. 916 (15 mm). The planning notes for the cooktops (particularly regarding ventilation, gas/electric connection) must be taken into account.

Preparing kitchen units

Kitchen units must be temperature-resistant up to 195^ F ( 90^ C) and adjoining furniture frontages up to 160^ F ( 70^ C).

Ventilation cut-out in the built-in cupboard's intermediate shelf: at least 0.8 in to 1.65 ft (20 x 500 mm).

The wall socket must be outside the built-in niche.

Cut recesses on the furniture before inserting the appliance. Remove any shavings, as these can affect the operation of electrical components.

Secure unsecured furniture items to the wall using a commercially available bracket.

Only install the appliance so high that accessories can be removed with ease.

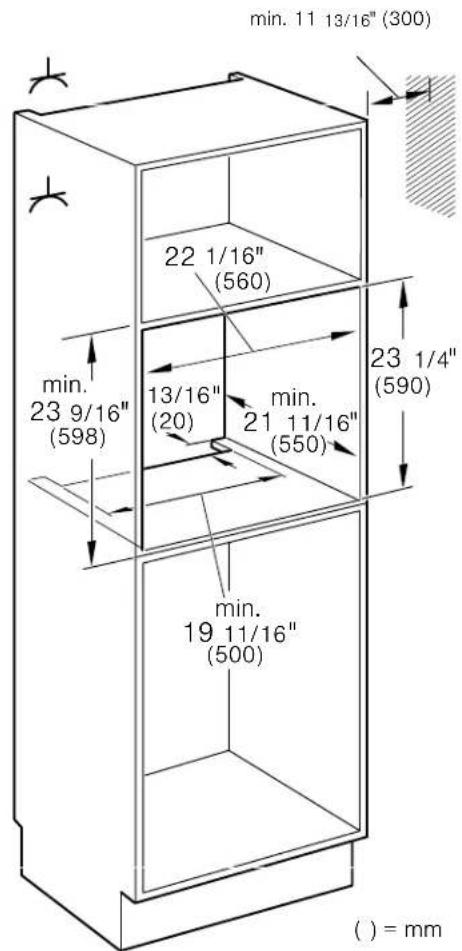

Dimensions and Cabinet Requirements

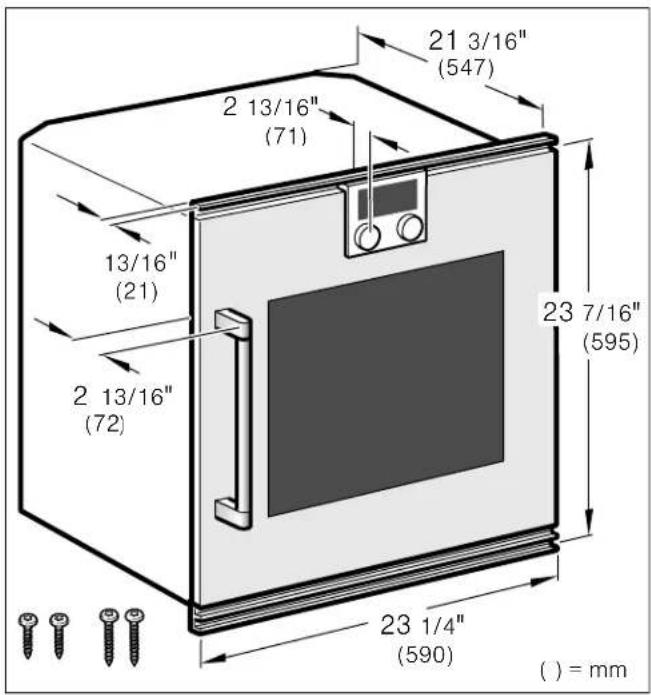

Appliance Dimensions

21 3/16" (547) 2 13/16" (71) 13/16" (21) 2 13/16" (72) 23 7/16" (595) 23 1/4" (590) ( ) = mm

Cabinet Dimensions

min. 11 13/16" (300) 22 1/16" (560) min. 23 9/16" (598) 13/16" (20) min. 21 11/16" (550) 23 1/4" (590) min. 19 11/16" (500) ( ) = mm

NOTICE: The cabinet base must be flat and capable of supporting a weight of at least 142 lbs (64.1 kg).

Removing Packaging

NOTICE: To prevent damage to your floor keep the unit in its packaging base until ready to be placed in the cabinet opening. Do not slide the unit across the flooring.

Different models use different packaging materials. Actual brackets may look differently. Bracket remains in packaging base.

1 Cut straps on outside of box.
2 Remove cardboard box.
3 Remove all top and side cardboard and Styrofoam braces.
4 Place oven in front of cabinets where it is to be installed.

Install Appliance

Note: The appliance is heavy. It is advisable to install it with a second person.

NOTICE: Before installing the appliance, be sure to verify the cabinet dimensions and electrical connections.

Mount to Cabinet

Notes

• When installing two appliances side-by-side, the door handles must be in the center.
• If there is no fitted shelf above the appliance, secure the appliance against tipping over when the door is opened. Fit two standard angles 3/16'' (5 mm) above the appliance at 17^3/4'' (450 mm) depth inside the cabinet.

1 Do not kink or trap the connecting cable, or route it over sharp edges.

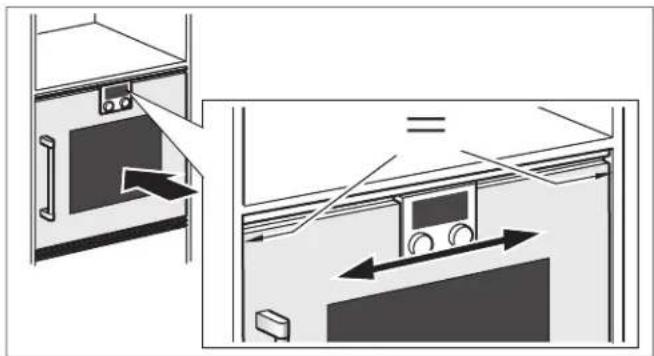

2 Centre the appliance. There must be an air gap of 316 " (5 mm) between the appliance and adjacent cabinets.

Diagram showing airflow or ventilation process between a cabinet and a wall-mounted unit, with directional arrows indicating flow direction.

3 Using a spirit level, adjust the appliance so that it is perfectly level.

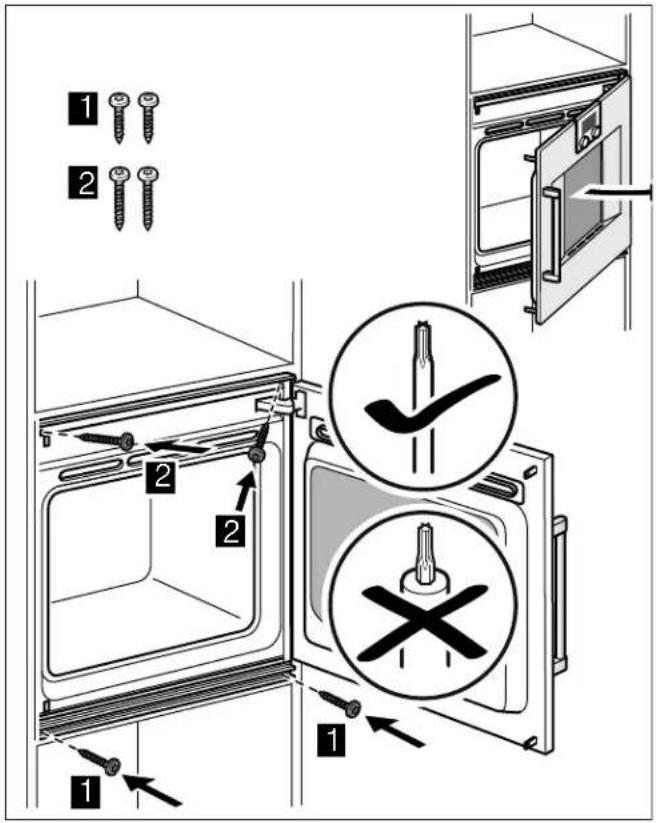

4 Center the appliance and fix to cabinet with lower screws. Then fit both top screws. Remove the transportation lock from the door.

NOTICE: Use a suitable screwdriver. Be careful not to scratch the faceplate!

Diagram illustrating screw installation steps with numbered instructions and safety symbols for cleaning or repair.

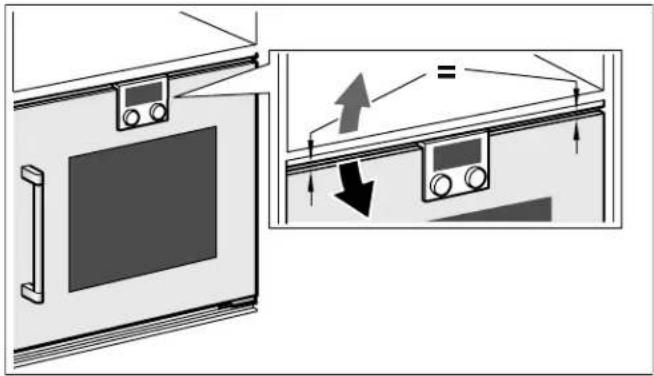

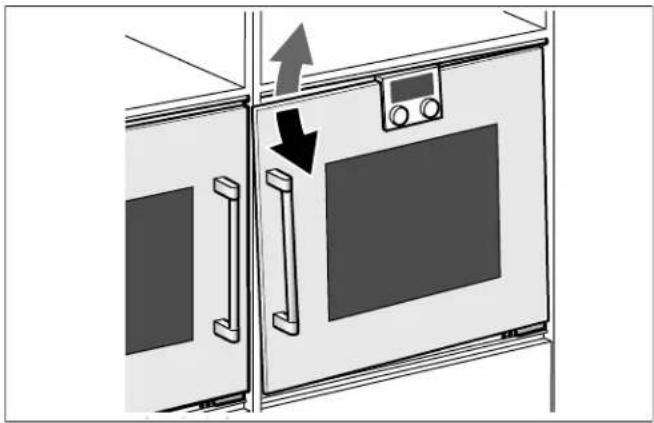

Adjusting the door

For precise alignment, the appliance door can be slightly adjusted.

Diagram showing airflow or ventilation system between a microwave oven and a wall-mounted appliance, with directional arrows indicating flow direction.

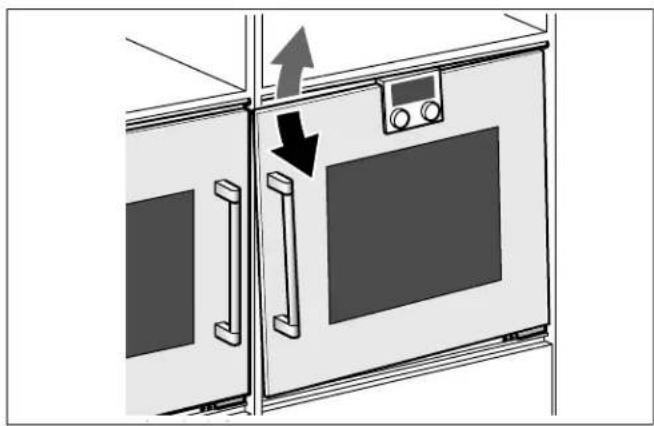

Diagram of a double oven with a door, front panel, and control panel (no text or symbols)

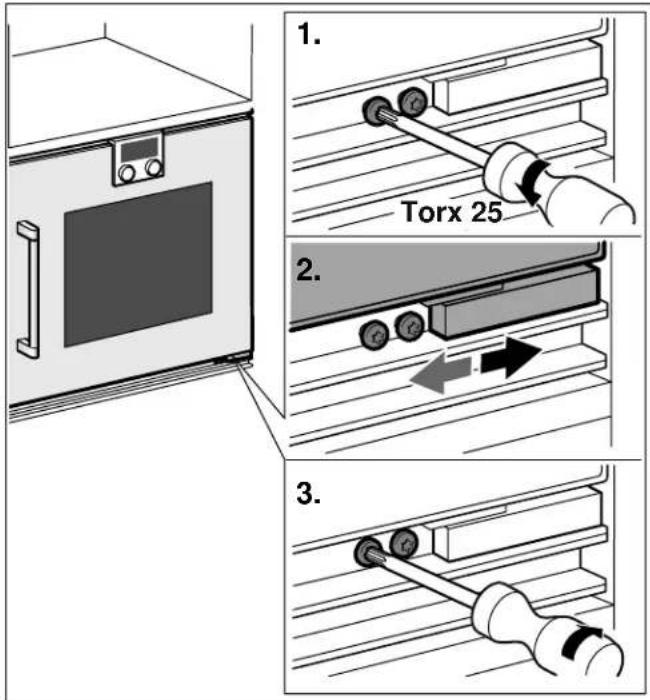

To align the door:

1 Open the door and slightly loosen both screws at the lower door hinge.

2 Align the door.

3 Tighten both screws again.

1. Torx 25 2. 3.

Note: The device door is already aligned when the appliance is delivered. You do not normally need to align the door.

Three wire connection

1 Connect red wire from oven to red electrical supply wire (hot wire).

2 Connect black wire from oven to black electrical supply wire (hot wire).

3 Connect yellow/green ground oven wire to bare ground electrical supply wire.

Attach flexible conduit to the junction box.

To facilitate serviceability, the flex conduit must not be shortened and should be routed to allow for temporary removal of the oven.

Combination with combi-steam oven

Fit the steam oven first. Follow the installation instructions for the steam oven. To achieve the 21^11/_16 inch (550 mm) installation depth, the connecting cable needs to follow the slanted edge on the corner of the housing.

Combination with warming drawer

Fit the warming drawer first. Pay attention to the warming drawer's installation instructions.

Slide the oven onto the warming drawer and into the built-in cabinet. When sliding it in, do not damage the warming drawer's panel.

Check the Installation

WARNING

Before you plug in an electrical cord or turn on power supply, make sure all controls are in the OFF position.

Switch on the circuit breaker.

Verify that elements function properly.

Removal

1 Disconnect the appliance from the power supply.
2 Undo the fastening screws.
3 Raise the appliance slightly and pull it out completely.

Customer service

If your appliance needs repairs, our customer service is there for you. We work hard to help solve problems quickly and without unnecessary service calls, getting your appliance back up and running correctly in the least amount of time possible.

When you call, please indicate the product number (E-Nr.) and serial number (FD-Nr.) so that we can support you in a qualified manner. You will find the type plate with these numbers on the bottom of the appliance. To avoid having to search for a long time when you need it, you can enter your appliance data and the customer support telephone number here.

E-Nr. FD-Nr.

Customer Service

Please read the use and care instructions provided with your appliance. Failure to do so may result in an error in using the appliance. This could result in a service call that instead of fixing a mechanical issue is only needed for customer education. Such calls are not covered by the appliance warranty.

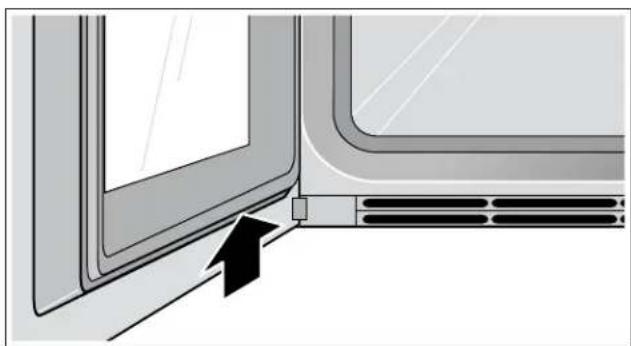

Diagram of a window corner with an arrow pointing to the left side, showing structural details (no text or symbols)

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

USA 877 442 4436

toll-free

CANADA 877 442 4436

toll-free

You can rely on the manufacturer's expertise. Rest assured that the repair will be handled by trained service technicians who have the original replacement parts for your appliance.

Diagram illustrating a mechanical or electrical setup with a forklift and two labeled panels showing check and cross symbols.

Avant de commencer

21 3/16" (547) 2 13/16" (71) 13/16" (21) 2 13/16" (72) 23 7/16" (595) 23 1/4" (590) ( ) = mm

Diagram showing airflow or ventilation system inside a cabinet, with labeled components and directional arrows indicating flow direction.

Diagram illustrating screw installation steps with numbered instructions and safety symbols for cleaning or repair.

Diagram showing a microwave oven mounted on a wall with an inset view of the lid panel and directional arrows indicating motion (no text or symbols present)

Diagram of a double oven with doors and control panel, showing airflow direction (no text or symbols)

Diagram of a window with an arrow pointing to the left side of a panel (no text or symbols present)

Diagram showing a forklift loading a laptop and its corresponding inspection of a laptop with checkmark and cross symbols.

Antes de empezar

21 3/16" (547) 2 13/16" (71) 13/16" (21) 2 13/16" (72) 23 7/16" (595) 23 1/4" (590) ( ) = mm

Diagram showing two views of a cabinet with labeled components and directional arrows indicating movement or flow.

Diagram illustrating screw installation steps with numbered instructions and safety symbols for cleaning or repair.

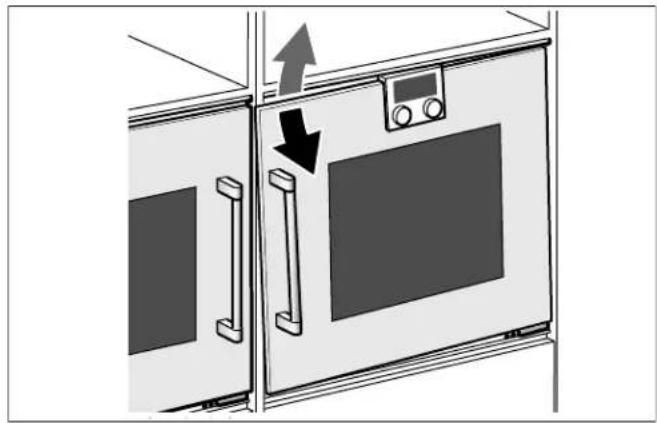

Ajustar la puerta

Diagram showing airflow or ventilation system inside a microwave oven, with labeled components and directional arrows indicating movement.

Diagram of a double oven with a door, front panel, and control panel (no text or symbols)

Diagram of a window with an arrow pointing to the left side of the window (no text or symbols present)
