USER MANUAL WD7101CKW SAMSUNG

Washing Machine user manual

CE

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service,

please register your product at

www.samsung.com/global/register

SAMSUNG

features

1. Air wash

Air wash can remove any bad smells from the laundry or reduce the need for dry cleaning. ✗ Mite sterilization: Sterilizes any bacteria or mites in the bedding where the water-wash is not effective.

2. Silver nano (Ag+) anti-bacteria, sterilization system

Samsung's silver Nano feature uses silver nano particles to sanitize and disinfect your laundry and your machine's drum. Delicates as well as smelly socks will get odor-free from human sweat at temperature as low as 30°C That saves energy and protects color and shape of your clothes.

The lifetime of the silver plates decrease with each use. They can be used for ten (10) years when used three times a week in the Standard course. The silver plates can be replaced by a service technician. Customers will pay a fee when they are replaced.

3. Washing to drying with one button

We can select the drying time manually. The machine features an auto sensor of the optimal dry state that enables you to perform the whole wash cycle including the drying cycle using one button.

4. Child Lock

The Child Lock function keeps curious little hands out of the washer. This safety feature ensures, that children do not toy with the operation of the washer. It also alerts you when it is activated.

5. Energy-Saving

The Economy cycle allows the large washing machine to act like a smaller version and uses less water, detergent and electricity when handling lighter loads.

6. Delay End

This function enables uses to delay the washing machine's starting time for up to 24 hours.

2\_Features

safety information

Throughout this manual, you'll see Warning and Caution notes.

These warnings, cautions, and the important safety instructions that follow do not cover all possible conditions and situations that may occur.

It's your responsibility to use common sense, caution, and care when installing, maintaining, and operation your washer. Samsung is not liable for damages resulting from improper use.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual means:

[G66G]WARNING	Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION	Hazards or unsafe practices that may result in minor personal injury or property damage.
CAUTION	To reduce the risk of fire, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions:

BEFORE USING THE APPLIANCE

Packing materials can be dangerous to children; keep all packing material (plastic bags, polystyrene, etc.) well out of the reach of children.

The appliance is designed for home use only.

Make sure that water and electrical connections are made by qualified technicians, observing the manufacturer's instructions (see "Installing the Washing Machine") and local safety regulations.

All packaging and shipping bolts must be removed before the appliance is used. Serious damage may occur if they are not removed. See “Removing the shipping bolts”.

Before washing clothes for the first time, you must run a complete cycle without clothes. See "Washing for the first time".

SAFETY INSTRUCTIONS

Before cleaning or carrying out maintenance, unplug the appliance from the electrical outlet, or set the Power button to Off.

Make sure that the pockets of all clothing to be washed are empty.

Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.

Always unplug the appliance and turn off the water after use.

Before you open the door of the appliance, check that the water has drained. Do not open the door if you can still see water.

Pets and small children may climb into the appliance. Check the appliance before each use.

Safety information

safety information

The glass door becomes very hot during the washing cycle. Keep children away from the appliance while it is in use.

Do not attempt to repair the appliance yourself. Repairs made by inexperienced or unqualified persons may cause injury and/or make more serious repairs to the appliance necessary.

If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

This appliance should only be serviced by an authorized service center, and only genuine spare parts should be used.

This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.

If this appliance is supplied from a cord extension set or an electrical portable outlet device, the cord extension set or electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture. Additionally, the cord extension set or electrical portable out let device must be of a current rating suitable for the appliance.

This appliance has to be connected to the plug endurable to proper power consumption.

This appliance has to be positioned so that the plug is accessible after installation.

Do not use processed water containing oil, cream or lotion, which is usually found in skin-care shops or massage clinics.

• Otherwise this will cause the packing to be deformed, which causes a malfunction or water leak.
  A stainless washing tube does not usually rust. However if some metal such as a hair pin is left in the tube for an extended time, the tube could rust.
• Do not leave water or bleach containing chlorine in the tube for an extended period of time.
• Do not regularly use or leave water containing iron in the tube for an extended period of time.
• If rust starts appearing on the surface of the tube, apply a cleansing agent (neutral) to the surface and use a sponge or soft cloth to clean it. (Under no circumstances use a metal brush)

For washing machines with ventilation openings in the base, that a carpet must not obstruct the openings.

Use the new hose-sets and old hose-sets should not be reused.

The dryer is not to be used if chemicals have been used for cleaning.

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

4\_Safety information

contents

INSTALLING THE WASHING MACHINE

6

WASHING A LOAD OF LAUNDRY

11

MAINTAINING THE WASHING MACHINE

20

TROUBLESHOOTING

23

PROGRAMME CHART

25

APPENDIX

26

6 Unpacking the Washing Machine
6 Overview of the washing machine
6 Selecting a location
7 Adjusting the leveling feet
7 Removing the shipping bolts
8 Connecting the water supply hose
9 Connecting the water supply hose (Option)
10 Positioning the drain hose

11 Washing for the first time
11 Putting detergent in the washing machine
12 Overview of the control panel
13 For the Silver Wash washing
14 Childlock (button lock function)
14 Washing clothes manually
15 Washing clothes using Fuzzy Logic
16 Using Dry course
16 Using Delay End
17 To Add Laundry
17 Using Clean Tub
18 Performing Air Wash
19 Washing tips and hints
20 Draining the washing machine in an emergency
20 Repairing a frozen washing machine
20 Cleaning the exterior
21 Cleaning the detergent drawer and recess
21 Cleaning the debris filter
22 Cleaning the water hose mesh filter
23 Problems and solutions
24 Understanding error messages
25 Programme chart
26 Fabric care chart
26 Electrical warnings
26 Protecting the environment
27 Declaration of conformity
27 Specification

Contents _5

installing the washing machine

UNPACKING THE WASHING MACHINE

Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during shipping or you do not have all of the items, contact your Samsung dealer immediately.

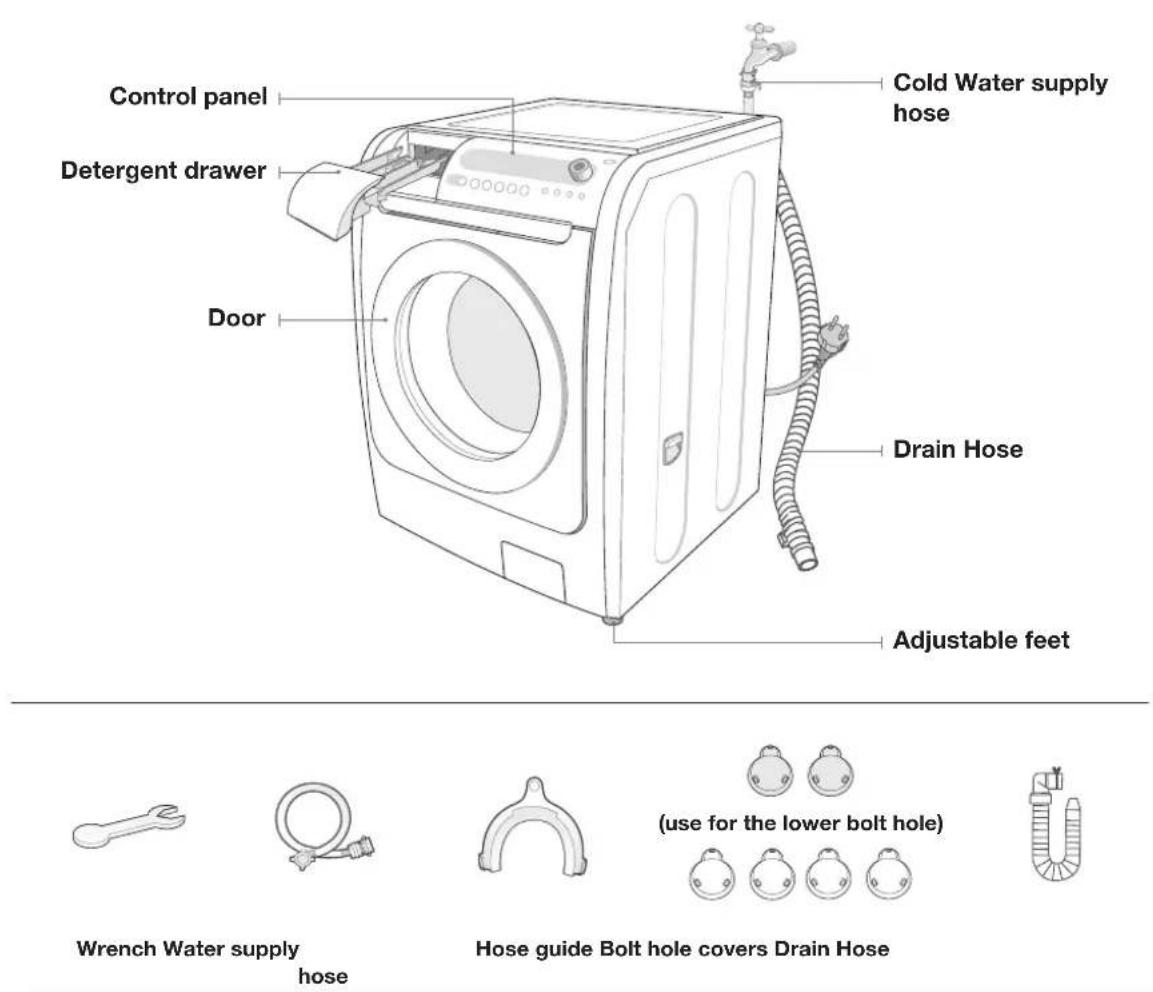

OVERVIEW OF THE WASHING MACHINE

Cold Water supply hose Detergent drawer Door Drain Hose Adjustable feet Wrench Water supply hose Hose guide Bolt hole covers Drain Hose (use for the lower bolt hole)

SELECTING A LOCATION

Before you install the washing machine, select a location with the following characteristics:

• A hard, level surface (if the surface is uneven, see "Adjusting the leveling feet," below)
• Away from direct sunlight.
• Adequate ventilation
  • Room temperature that will not fall below 0^ C
• Away from sources of heat such as coal or gas

Make sure that the washing machine does not stand on its power cord.

Ventilation openings must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.

6\_ Installing the washing machine

If the floor is uneven, adjust the feet (do not insert pieces of wood or any other objects under the feet):

1. Loosen the leg bolt by turning it with your hand until it is at the desired height.

2. Tighten the locking nut by turning it with a (-) screwdriver. If the washer is placed on an uneven or weak surface, noise or vibration occurs.

(Only a l degrees angle is allowed.)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols)

Illustration of a hand using a tool to apply a component to a surface (no text or symbols visible)

REMOVING THE SHIPPING BOLTS

Before installing the washing machine, you must remove the five shipping bolts from the back of the unit.

1. Loosen all the bolts with the supplied wrench.

Hand holding a rotary knob inside a vehicle control panel (no text or symbols visible)

1. Hold the bolt with the spanner and pull it through the wide section of the hole. Repeat for each bolt.

Hand inserting a plug into a circular socket on a door (no text or symbols visible)

1. Fill the holes with the supplied plastic covers.

Hand inserting a button into a device panel with an arrow indicating direction (no text or symbols)

1. Store the shipping bolts away safely in case you have to move the washing machine in the future.

Packaging materials can be dangerous to children; keep all packaging material (plastic bags, polystyrene, etc.) well out of the reach of children.

installing the washing machine

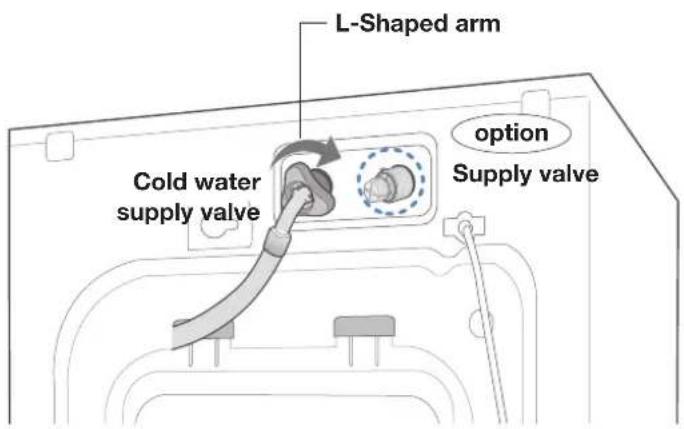

CONNECTING THE WATER SUPPLY HOSE

The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. Do not stretch the water supply hose. If the hose is too short replace the hose with a longer, high pressure hose.

To connect the water supply hose:

1. Take the L-shaped arm fitting for the cold water supply hose and connect to the cold water supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the cold water supply hose to your sink's cold water faucet and tighten it by hand. If necessary, you can reposition the water supply hose at the washing machine end by loosening the fitting, rotating the hose, and retightening the fitting.

L-Shaped arm Cold water supply valve option Supply valve

Option :

1. Take the red L-shaped arm fitting for the hot water supply hose and connect to the red hot water supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the hot water supply hose to your sink's hot water faucet and tighten it by hand.

8_ Installing the washing machine

CONNECTING THE WATER SUPPLY HOSE (OPTION)

1. Remove the adaptor from the water supply hose.

1. First, using a '+' type screw driver, loosen the four screws on the adaptor. Next, take the adaptor and turn part(b) following the arrow until there is a 5mm gap.

1. Connect adaptor to the water tap by tightening the screws firmly. Then, turn part (b) following the arrow and put(a) and (b) together.

1. Connect the water supply hose to the adaptor. Pull down part (c) of the water supply hose. When you release part (c) the hose automatically connects to the adaptor making a 'click' sound.

1. Connect the other end of the water supply hose to the inlet water valve at the top of the washer. Screw the hose clockwise all the way in.

- If the water tap has a screw type faucet, connect the water supply hose to the tap as shown.

• After completing connection, if water leaks from the hose, then repeat the same steps. Use the most conventional type of faucet for water supply. In case the faucet is square or too big, remove the spacing ring before inserting the faucet into the adaptor.
• The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should not be used.

installing the washing machine

POSITIONING THE DRAIN HOSE

The end of the drain hose may be positioned in three ways:

Over the edge of a wash basin

The drain hose must be placed at a height of between 60 and 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the faucet with a piece of string to prevent the drain hose from moving.

Illustration of a faucet on a sink with an inset showing the arc detail (no text or symbols)

In a sink drain pipe branch

The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground.

In a drain pipe

Samsung recommends that you use a 65 cm high vertical pipe; it must be no longer than 90 cm.

10_ Installing the washing machine

washing a load of laundry

WASHING FOR THE FIRST TIME

Before washing clothes for the first time, you must run a complete cycle without clothes.

To do this:

1. Press the Power button.
2. Pour a little detergent into compartment (in the detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Start/Pause button.
5. This will remove any water from the manufacturer's test run remaining in the machine.

A II III I

Dispenser ① Detergent for prewash or starch.

Dispenser Ⓐ Detergent for main wash, water softener, pre-soaking agent, bleach and stain removal product.

Dispenser Ⓞ: Additives, e.g. fabric softener or former (fill no higher than lower edge of insert "A")

PUTTING DETERGENT IN THE WASHING MACHINE

1. Pull out the detergent drawer.
2. Add laundry detergent into compartment (Ⅱ)
3. Add softener into compartment (if you desire).
4. Add prewash detergent into compartment (if you desire).

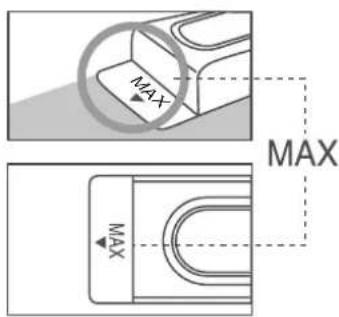

Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overflow from becoming blocked.)

MAX MAX

Washing a load of laundry _11

washing a load of laundry

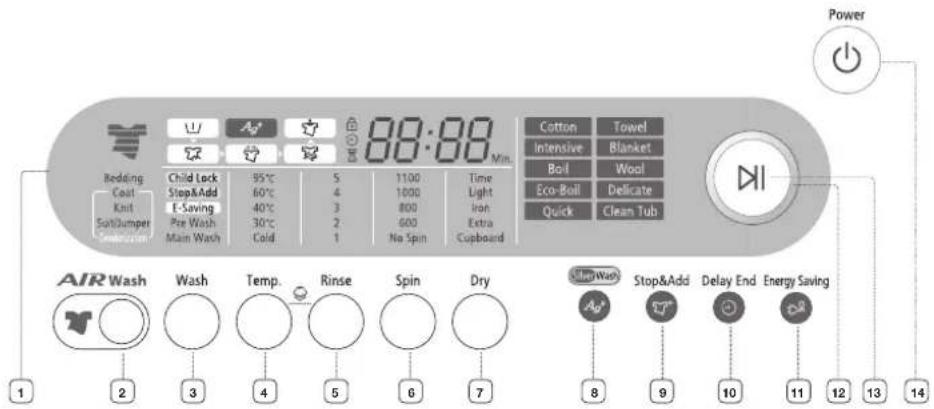

OVERVIEW OF THE CONTROL PANEL

Bedding Coat Knit SoftBumper Osmolizer Child Lock Stop&Add E-Saving Pre Wash Main Wash 95°C 60°C 40°C 30°C 2 Cold 5 1 1100 1000 800 600 1 Time Light Iron Extra No Spin Cupboard 88:88 Min. Cotton Towel Intensive Blanket Boil Wool Eco-Boil Delicate Quick Clean Tub AIR Wash Wash Temp. Rinse Spin Dry Stop Wash Stop&Add Delay End. Energy Saving 1 2 3 4 5 6 7 8 9 10 11 12 13 14

1	Display panel	Displays the remaining wash cycle time, all of washing information and error messages.
2	Air Wash button	Use to remove bad smells.Selected in the sequence: Suit/Jumper → Knit → Coat → Bedding → Cancel
3	Wash selection button	Use this to only perform washing or prewash.Selected in the sequence: Main Wash → Prewash + Main Wash → Main Wash.The washing time cannot be adjusted (for the Cotton course).Prewash can only be selected for Cotton, Intensive, Boil, Eco-Boil, Blanket and Towel.
4	Temperature selection button	Selected in the sequence.: 30°C → 40°C → 60°C → 95°CThe water temperature varies depending on the course.※ Do not allow only hot water to be supplied.
5	Rinse selection button	Select this to add a rinse cycle or only perform the rinse cycle.You can select this up to 5 times.
6	Spin selection button	You can select the spin speed, if necessary.If only the spin cycle is selected and Start/Pause is pressed in the middle of the spin cycle, the machine starts spinning from the beginning.※ The spin speed can vary, depending on the course.※ No Spin means no spinning is performed after the drain.
7	Dry selection button	Selected in the sequence: Cupboard → Extra → Iron → Light → Time (30min → 1:00min → 1:30min → 2:00min → 2:30min) → Cupboard.
8	Silver Wash button	Silver water is supplied in the wash cycle as well as the last rinse, featuring sterilization and antibacterial coating.
9	Stop&Add selection button	Select this to add the laundry amid the process.
10	Delay End selection button	Press the button repeatedly to cycle through the available delayed end options (up to 24 hours maximum in one hour increments).Displayed hours means the time of finished washing-cycle.

12\_Washing a load of laundry

11 Energy Saving	The temperature will be reduced by 10 degrees more than initially specified. The reduced temperature does not deteriorate the washing performance greatly, and saves 25% electricity. This feature is available for at least 40°C.
12 Fuzzy Control dial	Turn the dial to select one of the 10 available wash programs.
13 Start/Pause selection button	Press to pause and restart programs.
14 Power selection button	Press once to turn the washing machine on, press again to turn the washing machine off.If the washing machine power is left on for longer than 10 minutes without any buttons being touched, the power automatically turns off.

FOR THE SILVER WASH WASHING

The Ag+ water is added during the washing, and then a sanitary, sterilizing washing will be performed. During the rinse, the Ag+ water is added at the last time of rinse. It treats clothes with silver antibiotic coating and functions to protect the propagation of bacteria.

1. Open the door, put in the clothes and close the door again.
2. Press Power button.
3. Select a course by turning the course selection dial.
4. Press Silver Wash button.
5. Put suitable amount of detergent and fiber softener in the detergent tray, and close it again. : Put a suitable amount of detergent in the detergent tray for main washing, and put in fiber softener to the lower level than the marked line. For Prewash, put a supplementary detergent in the detergent tray.

Silver Wash: If it is used together with fibre softener, its effect may be decreased.

1. Press Start/Pause button.

: It automatically performs an optimal washing with sensing the weight of clothes.

washing a load of laundry

CHILDLOCK (BUTTON LOCK FUNCTION)

Is a function for children not to handle the washing machine.

Setting/Release

If you want to set up or release that function, press both Temperature and Rinse buttons at the same time in 3sec.

How to Set up:

1. It can be set up during the power-on or operation of the washing machine.

2. If you set up the "CHILDLOCK" function during the laundry operation, no button except for Power button can be controlled until you release that function.

3. The CHILDLOCK lamp will be lighted.

1. In case the power is on again, the "CHILDLOCK" function remains unchanged.
2. In case of releasing that function, follow the way of release mentioned above.
3. When the other buttons, except for the Power button, are not controlled after you turn on the Power, check CHILDLOCK LAMP, please.

WASHING CLOTHES MANUALLY

You can wash clothes manually without using the Fuzzy Logic feature.

To do so:

1. Turn the water supply on.
2. Press the Power button on the washing machine.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling.
5. Close the door.

6. Put the detergent and, if necessary, softener or prewash detergent, in the appropriate compartments.

7. Press the Temperature button to select the temperature. [ Cold, 30°C, 40°C, 60°C, 95° ]

8. Press to Rinse button to select the required number of rinse cycles. Maximum number of rinse cycles is five. The washing duration will be prolonged accordingly.

9. Press the Spin button to select the spin speed.

10. Press the Delay End button repeatedly to cycle through the available delayed end options (up to 24 hours maximum in one hour increments.). Displayed hours means the time of finished washingcycle.

11. Press the Start/Pause button and the machine will begin the cycle.

14_Washing a load of laundry

WASHING CLOTHES USING FUZZY LOGIC

Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Logic" automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed.

To wash clothes using the Fuzzy Logic programs:

1. Turn on your sink's water faucet.
2. Press the Power button.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling.
5. Close the door.
6. Add the detergent, softener, and prewash detergent (if necessary) into the appropriate compartment.

Prewash is only available when washing Towel, Cotton, Boil, Eco-Boil, Intensive, Blanket. It is only necessary if your clothing is heavily soiled.

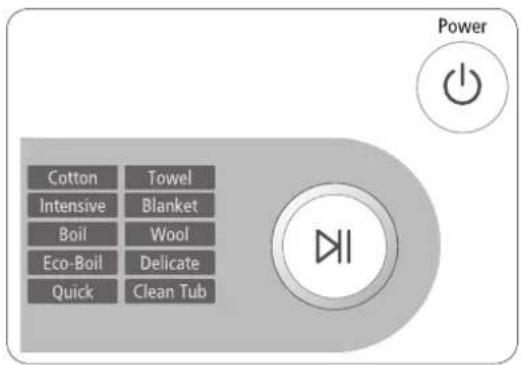

1. Turn the Fuzzy Control dial to select the appropriate program for the type of clothes Cotton, Intensive, Boil, Eco-Boil, Quick, Towel, Blanket, Wool, Delicate, Clean Tub. You will see the indicators light up on the control panel.

Cotton Towel Intensive Blanket Boil Wool Eco-Boil Delicate Quick Clean Tub Power

1. At this time, you can control the wash temperature, rinsing times, spin speed, delay time, silver wash and dry button by pressing the appropriate option button. (delay time, silver wash and dry button can be selected optionally by user.)

2. Press the Start/Pause button on the Fuzzy Control dial and the wash cycle will begin. The process indicator will light up and the remaining time for the cycle will appear in the display.

Pause Option

Until water supply is completed after starting operation, it is possible to put in the laundry or take out.

If push Start/Pause button, the door is unlocked immediately.

In case of too hot or too much water in washer, the door can not be opened.

After closed the door, one more push Start/Pause button to make washing process going on continuously.

When the cycle is finished:

After the total cycle has finished, the power will turn off automatically.

1. Open the door.

The door will not open until the machine stops or the power turns off.

1. Remove laundry.

washing a load of laundry

USING DRY COURSE

Refer to the label of drying capacity and be sure to put in the clothes to the lower level than the marked line for the dried clothe of 5.0kg.

1. Open the door, put in the clothes and close the door again.

2. Press the Power button and then press the Dry button.

: The standard course will be selected automatically. Drying is available only at the courses such as Towel, Cotton, Boil, Eco-Boil, Intensive and Quick.

1. Select Dry button as follows.

: Every press of this button will select drying type repeatedly in the following order: Cupboard → Extra → Iron → Light → Time[30 min → 1:00 min → 1:30 min → 2:00 min → 2:30 min] → Cupboard

- It automatically displays Drying Time by sensing the weight of clothes before drying for increasing the drying effect.

1. Put suitable amount of detergent and fiber softener in the detergent tray and close it again.

2. Press Start/Pause button.

: It automatically performs an optimal function from washing to drying.

• The selected course can't be altered after the start of drying.
• If you select Drying function, the intensity of SPIN will be set up as High in default for increasing the drying effect.
• If cold water is not supplied, drying will not be performed.
• If you do not take out clothes from the tub after the end of drying, a function of wrinkle protection will be performed for about 30 minutes with the display of [End]. In order to take out the clothes: press firstly Start/Pause or Power button and take them out.
  • In case you wish to dry after hand washing, select both Spin and Dry at the same time.

USING DELAY END

You can set the washing machine to finish your wash automatically at a later time, choosing up to 24 hours maximum (in one hour increments). Displayed hours means the time of finished washing-cycle.

To do this:

1. Manually or automatically set your washing machine for the type of clothes you are washing.
2. Press the Delay End button repeatedly until the delay time is set.
3. Press the Start/Pause button. The Delay End indicator will light, and the clock will begin counting down until it reaches your finish time.
4. To cancel "Delay End", press the Power button, then turn the washing machine on again.

16_Washing a load of laundry

TO ADD LAUNDRY

1. Press the Stop&Add button.
2. The washing machine will automatically pause to operate.
3. Wait about 30 seconds and check the Stop&Add button for the lamp state.
4. Blinking: the machine drains water down to the safety level so it can get an additional quantity of laundry (displayed in pause mode)
5. Off: adding the laundry is possible.

The washing machine detects the internal quantity of laundry about 30 seconds before deciding whether it could get more laundry.

1. Add the laundry.

2. Press the Start/Pause Button.

- Avoid adding the laundry when the machine has foamed up or is filled with water. Otherwise, the foam or water may leak out of the door. So check it first before opening the door.

USING CLEAN TUB

Is a course for washing the tub.

1. Press Power button.
2. Select the Clean Tub Course by turning the dial of Course Select.

3. Put an adequate amount of bleaching agent in the detergent tray (or Main Laundry. (See "Washing for the first time".)
   : You'd better use a powder-type detergent for more efficient washing. If you want to wash it lightly: You may wash it just by selecting the 40°C-Water without bleaching agent.

4. Press Start/Pause button.

About one time a month is enough for the tub-washing.

washing a load of laundry

PERFORMING AIR WASH

Air-wash can remove any bad smells from the laundry owing to its powerful airing system. Clothing that can be deodorized includes woolen coats, cotton or down jumpers, sweaters and suits. (Two suits or less)

1. Open the door, place the laundry inside and close the door.
2. Press the Power button.
3. Press the Air Wash button.

- Each time the button is pressed, the operating mode cycles through the following sequence:

Suit/Jumper → Knit → Coat → Bedding → Cancel.

- When one of these is selected, no other button can be selected or run and you can only select the delay end function from between 1:00 – 24:00.

1. Close the door and press the Start/Pause Button.

• If you do not remove the laundry immediately after the Air Wash is performed, the machine performs an additional wrinkle protection process for 30 minutes.
• Press the Start/Pause or Power button to remove the laundry.
• The 'insecticide' process can kill bacteria living in 'unwashable' materials such as blankets, pillows, cushions and needlework dolls.

- Avoid Air Washing the following clothes

• Sensitive clothes made of leather, mink, fur, silk, etc.
• Underwear trimmed with lace, 'glued' doll cushions, and dress suits can loosen their decorations.
• Clothes trimmed with buttons can cause them to break.
• Starchy clothes can become deformed.

- Avoid using the following clothes for the insecticide process

1) Hard bedding such as a wooden pillow (neck-rest)
- Pillows or blankets filled with plastic or starch rather than cotton.
- Electric blankets

2) Furry blankets
3) Bulky blankets

18_Washing a load of laundry

WASHING TIPS AND HINTS

Sorting your laundry: Sort your laundry according to the following characteristics:

• Type of fabric care label symbol: Sort laundry into cottons, mixed fibers, synthetics, silks, wools and rayon.
  • Colour: Divide whites and colours. Wash new, coloured items separately.
  • Size: Placing items of different sizes in the same load will improve the washing action.
• Sensitivity: Wash delicate items separately, using the Wool wash program for pure new wool, curtains and silk articles. Check the labels on the items you are washing or refer to the fabric care chart in the appendix.

Emptying pockets: Coins, safety pins and similar items can damage linen, the washing machine drum, and the water tank.

Securing fasteners: Close zippers and fasten buttons or hooks; loose belts or ribbons should be tied together.

Prewashing cotton: Your new washing machine, combined with modern detergents, will give perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is particularly dirty, use a prewash with a protein-based detergent.

Determining load capacity: Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing.

Fabric Type Load Capacity
Cotton / Intensive	10 kg
Boil / Eco-Boil	7 kg
Towel / Quick / Blanket	1sheet [Within 3kg]
Wool	3 kg
Dry	5 kg

Detergent tips: The type of detergent you should use is based on the type of fabric (otton, synthetic, delicate items, wool) colour, wash temperature, degree and type of soiling.

Always use "low suds" laundry soap, which is designed for automatic washing machines.

Follow the detergent manufacturer's recommendations based upon the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, ask your water authority.

Keep detergents and additives in a safe, dry place out of the reach of children.

maintaining the washing machine

DRAINING THE WASHING MACHINE IN AN EMERGENCY

1. Unplug the washing machine from the power supply.
2. Open the filter-cover by using a coin or a key.

Illustration of two hands holding a small object near a window (no text or symbols)

1. Unscrew the emergency drain cap by turning left. Grip the cap on the end of the emergency drain tube and slowly pull it out about 15 cm.
2. Allow all the water to flow into a bowl.
3. Reinsert the drain tube and screw the cap back on.
4. Replace the filter-cover.

Illustration of a hand pouring liquid into a bowl with a kitchen microwave (no text or symbols)

REPAIRING A FROZEN WASHING MACHINE

If the temperature drops below freezing and your washing machine is frozen:

1. Unplug the washing machine.
2. Pour warm water on the source faucet to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pour warm water into the washing machine drum and let it sit for 10 minutes.
5. Reconnect the water supply hose to the water faucet and check if the water supply and drain operations are normal.

CLEANING THE EXTERIOR

1. Wipe the washing machine surfaces, including the control panel, with a soft cloth and nonabrasive household detergents.
2. Use a soft cloth to dry the surfaces.
3. Do not pour water on the washing machine.

20_ Maintaining the washing machine

CLEANING THE DETERGENT DRAWER AND RECESS

1. Press the release button inside the detergent drawer and pull it out.
2. Clean the drawer recess and wipe off hardened detergent, fiber softener and water inside.
3. Remove any detergent residue inside.
4. Push the drawer back into place.

• Do not use the water hose to spray water inside, as this may cause electric shock or fire.
• Remove any coins or buttons, as these may obstruct the drain hose.

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Hand inserting a small object into a device inside a cabinet (no text or symbols visible)

CLEANING THE DEBRIS FILTER

Clean the debris filter 5 or 6 times a year, or when you see the following error message on the display:

1. Open the filter-cover, see "Draining the washing machine in an emergency".
2. Unscrew emergency drain cap by turning left and drain off all the water.
   See "Draining the washing machine in an emergency".
3. Unscrew the filter cap and take it out.

Illustration of a hand washing a washing machine into a basin with a tool (no text or symbols visible)

1. Wash any dirt or other material from the filter. Make sure the drain pump propeller behind the filter is not blocked. Replace the filter cap.

2. Replace the filter-cover.

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

maintaining the washing machine

CLEANING THE WATER HOSE MESH FILTER

You should clean the water hose mesh filter at least one time per year, or when you see the following error message on the display:

To do this:

1. Turn off the water source to the washing machine.
2. Unscrew the hose from the back of the washing machine.
3. With a pair of pliers, gently pull out the mesh filter from the end of the hose and rinse it under water until clean. Also clean the inside and outside of the threaded connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Turn on the faucet and make sure the connections are watertight.

option

Line drawing of hands holding a small object with a tool, no text or symbols present

option

22_Maintaining the washing machine

troubleshooting

PROBLEMS AND SOLUTIONS

PROBLEM SOLUTION
The washing machine will not start	Make sure the door is firmly closed.Make sure the washing machine is plugged in.Make sure the water source faucet is turned on.Make sure to press the Start/Pause button.
No water or insufficient water supply	Make sure the water source faucet is turned on.Make sure the water source hose is not frozen.Make sure the water intake hose is not bent.Make sure the filter on the water intake hose is not clogged.
Detergent remains in the detergent drawer after the wash program is complete	Make sure the washing machine is running with sufficient water pressure.Put the detergents in the inner parts of the detergent drawer(away from the outside edges).
Washing machine vibrates or is too noisy	Make sure the washing machine is set on a level surface. If the surface is not level, adjust the washing machine feet to level the appliance.Make sure that the shipping bolts are removed.Make sure the washing machine is not touching any other object.Make sure the laundry load is balanced.
The washing machine does not drain and/or spin	Make sure the drain hose is not squashed or bent.Make sure the water hose mesh filter is not clogged.

troubleshooting

UNDERSTANDING ERROR MESSAGES

ERROR CODE SOLUTION
dE	Close the door.
4E	Make sure the source water faucet is turned on.Check the water pressure.
5E	Check if the water in the drain hose is frozen.Press the Start/Pause button to resume operating.
UE	Laundry load is unbalanced; loosen any tangled laundry.If only one item of clothing needs washing, such as a bathrobe or jeans, the final spin result might be unsatisfactory and an “UE” error message will be shown in the display window.
Hot	It appears when the internal temperature of the drum is high.The fan will automatically function, so just wait until “Hot” indication disappeared.
cE	This is when the internal temperature does not go down below a certain degree in washing or dehydrating.Press the Start/Pause button to try again.
3E	Call after-sales service.

Before contacting After-Sales service:

1. Try to remedy the problem (See "Troubleshooting" on this page).
2. Restart the programme to see if the fault is repeated.
3. If the malfunction persists, call after-sales service and describe the problem.

24\_ Troubleshooting

programme chart

PROGRAMME CHART

(● user option)

Program	Max load (kg)	Detergent and additives			Temperature (MAX) °C		Spin rpm (max)	Delay end	Water (l)	Electricity (kWh)
		Pre-wash	Wash	Softener	Default Max
Cotton	10	●	yes	●	60 60	1100(1100)		●	95 1.90
Intensive	10	●	yes	●	40 60	800(1100)		●	100 0.85
Boil	7	●	yes	●	95 95	800(1100)		●	110 2.75
Eco-Boil	7	●	yes	●	95 95	800(1100)		●	100 1.76
Quick	5 yes			●	40 40	800(1100)		●	60 0.67
Towel	5	●	yes	●	40 95	600(800)		●	120 0.86
Blanket	1sheet (Within 3kg)	●	yes	●	Cold 40	800(800)		●	100 0.15
Wool	3 yes			●	40 40	600(600)		●	70 0.70
Delicate	3 yes			●	Cold 40	600(600)		●	68 0.34
Clean Tub			yes 40	40 600(600)	55 0.90

Program Type of wash
Cotton	Average or lightly soiled cottons, bed linen, table linen, underwear, towels, shirts, etc.
Intensive	This course is appropriate to wash underwear we change everyday, strong dirt removal and sterilization is performed simultaneously.
Boil	This course is appropriate to wash underwear we change everyday, strong dirt removal and sterilization is performed simultaneously.
Eco-Boil	Delicate curtains, dresses, skirts, shirts and blouses.
Quick	Lightly soiled cottons or linen blouses, shirts, dark coloured terry cloth, coloured linen articles, jeans, etc.
Towel	This course is appropriate to wash towels effectively.
Blanket	Cotton bedding, bed linen, bed sheet, duvet cover, pillow cover etc.
Wool	Only wash machine washable woolens with pure new wool label.
Delicate	For sensitive laundry that is easily damaged.
Clean Tub	Use this function to maintain wash tub clean and sanitary.

1. Programme with prewash lasts approx. 15 minutes longer.

2. The programme duration data has been measured under the conditions specified in Standard IEC 60456/EN 60456.

3. Consumption in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry.

Programme chart

appendix

FABRIC CARE CHART

[4HCS]	Resistant material Can be ironed at 100°C r	[87AS]
	Delicate fabric Do not iron
	Item may be washed at 95°C Can be dry cl	[DXOW] using any solvent
	Item may be washed at 60°C		Dry clean with perchloride, lighter fuel, pure alcohol or R113 only
	Item may be washed at 40°C		Dry clean with aviation fuel, pure alcohol or R113 only
	Item may be washed at 30°C Do not dry cl
	Item may be hand washed Dry flat
[TW08]	Dry clean only Can be hung to dry	[KZBC]
	Can be bleached in cold water Dry on cloth	anger
	Do not bleach Tumble dry, normal heat
[2C20]	Can be ironed at 200°C max Tumble dry, re	[HX30] and heat
[25H6]	Can be ironed at 150°C max Do not tumble

ELECTRICAL WARNINGS

To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind:

• Operate the appliance only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.
• Use only a grounded or polarized outlet. For your safety, this appliance is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still doesn't fit, contact your electrician to replace your outlet.
• Protect the power cord. Power supply cords should be routed so that they are unlikely to be walked on or pinched by items placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.
• Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock.

PROTECTING THE ENVIRONMENT

• This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.
• Do not exceed the detergent quantities recommended in the detergent manu-facturers' instructions.
• Use stain removal products and bleaches before the wash cycle only when strictly necessary.
• Save water and electricity by only washing full loads (the exact amount depends upon the program used).

26\_ Appendix

DECLARATION OF CONFORMITY

This appliance complies with European safety standards, EC directive 93/68 and EN Standard 60335.

SPECIFICATION

TYPE FRONT LOADING WASHER
DIMENSION		W 650 mm X D 765 mm X H 940 mm
WATER PRESSURE		50 - 780 kPa
WEIGHT		96 kg
WASH and SPIN CAPACITY		10.0 kg [DRY LAUNDRY]
DRY CAPACITY		5.0 kg
POWER CONSUMPTION	WASHING	150 W
	WASHING AND HEATING	2200 W
	DRYING	1900 W
WATER VOLUME		110
SPIN REVOLUTION	MODEL	WD7101CKC / WD7101CKW
	rpm	1100 rpm

The appearance and specifications of the product are subject to change without prior notice for purposes of enhancement.

SAMSUNG

QUESTIONS OR COMMENTS?

Country CALL OR	VISIT US ONLINE AT
AUSTRIA 0810 - SAMSUNG(7267864, € 0.07/min) www.samsung.com/at
SWITZERLAND 0848 - SAMSUNG(7267864, CHF 0.08/min) www.samsung.com/ch

Code No. DC68-02502D-03_EN

WD7101CKC

WD7101CKW

Mechanical assembly diagram showing a lever and handle mechanism (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

СВАЛЯНЕ НА ТРАНСПОРТНИТЕ БОЛТОВЕ

Hand holding a rotary knob inside a vehicle control panel (no text or symbols visible)

Hand inserting a plug into a circular button (no text or symbols visible)

Hand pressing a button on a device panel (no text or symbols visible)

Illustration of a faucet opening a sink with an open arch (no text or symbols)

A II III I

Cotton Towel Intensive Blanket Boil Wool Eco-Boil Delicate Quick Clean Tub Power

Illustration of two hands holding a small object near a window (no text or symbols)

Illustration of a hand washing a bowl with a water bottle being poured into it (no text or symbols)

РЕМОНТИРАНЕ НА ЗАМРЪЗНАЛА ПЕРАЛНА МАШИНА

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Hand inserting a small object into a device panel (no text or symbols visible)

Illustration of a hand washing a washing machine into a basin (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of hands holding a small object with a pen, no text or symbols present

опция

Mechanical assembly diagram showing a lever and handle mechanism (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Hand holding a rotary knob inside a vehicle control panel (no text or symbols visible)

Hand holding a button with a lightning bolt, pointing to a circular component (no text or symbols visible)

Hand inserting a coin into a device with an arrow indicating the insertion point (no text or symbols present)

Illustration of a faucet with an arrow pointing to the drain, showing water level and sink (no text or symbols)

I II III A

Cotton Towel Intensive Blanket Boil Wool Eco-Boil Delicate Quick Clean Tub Power

Illustration of two hands holding a small object with a green dashed circle highlighting the point (no text or symbols)

Illustration of a hand washing a blue liquid in a bowl with a kitchen appliance above (no text or symbols)

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Hand pointing at a window with a small object inside (no text or symbols visible)

FREMDKÖRPERFALLE REINIGEN

Illustration of a hand washing a washing machine into a basin (no text or symbols)

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Line drawing of hands holding a tool near a small object (no text or symbols)

Option:

Mechanical assembly diagram showing a lever and handle mechanism (no text or symbols)

Illustration of a hand using a tool to adjust or install a component on a surface (no text or symbols visible)

Hand holding a rotary knob inside a vehicle control panel (no text or symbols visible)

Hand holding a screwdriver inserted into a circular component, with a downward arrow indicating force or direction (no text or symbols present)

Hand inserting a button into a device panel (no text or symbols visible)

Illustration of a faucet on a sink with an inset showing the arc detail (no text or symbols)

I II III A

Cotton Towel Intensive Blanket Boil Wool Eco-Boil Delicate Quick Clean Tub Power

Illustration of two hands holding a small object with a circular motion indicator (no text or symbols)

Illustration of a hand washing a bowl with a washing machine above it (no text or symbols)

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Hand pointing at a small object inside a transparent container (no text or symbols visible)

Illustration of a person washing dishes in a basin with a washing machine (no text or symbols visible)

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Line drawing of hands holding a small object with a tool, no text or symbols present

επιλογή

Mechanical assembly diagram showing a lever and base with a curved arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to apply a component to a surface (no text or symbols visible)

ENLEVER LES VIS DE TRANSPORT

Hand holding a rotary knob inside a vehicle control panel (no text or symbols visible)

Hand holding a screwdriver inserted into a circular component, no text or symbols visible

Hand holding a circular button with an arrow pointing to it, next to a wall-mounted device (no text or symbols visible)

Illustration of a faucet with arrows indicating direction, showing surface and sink components (no text or symbols)

A II III I

Activation/Désactivation

Cotton Towel Intensive Blanket Boil Wool Eco-Boil Delicate Quick Clean Tub Power

Illustration of two hands holding a small object with a circular motion indicator (no text or symbols)

Illustration of a hand washing a blue liquid in a bowl with a washing machine in the background (no text or symbols)

RÉPARER UN LAVE-LINGE QUI A GELÉ

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand inserting a small object into a device (no text or symbols visible)

Illustration of a person washing dishes in a basin with a microwave oven (no text or symbols)

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

entretenir le lave-linge

NETTOYER LE FILTRE À MAILLE DU TUYAU D'ARRIVÉE D'EAU

Line drawing of hands holding a small object with a tool, no text or symbols present

en option

22_ Entretenir le lave-linge

dépannage

DÉCLARATION DE CONFORMITÉ

Code No. DC68-02502D-03_FR

WD7101CKC

WD7101CKW

Perilica za rublje korisnički priručnik

CE

zamislite mogućnosti

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component on a stand (no text or symbols visible)

UKLANJANJE VIJAKA ZA PRIJEVOZ

Prije korištenja perilice morate sa stražnje strane proizvoda ukloniti četiri vijka za prijevoz. Za uklanjanje vijaka:

Hand holding a rotary knob inside a vehicle door (no text or symbols visible)

Hand holding a rotary knob inside a vehicle control panel (no text or symbols visible)

Hand holding a rotary knob inside a vehicle control panel (no text or symbols visible)

Illustration of a faucet on a sink with an inset showing the arc being inserted (no text or symbols present)

U ogranak odvodne cijevi umivaonika

Ogranak odvodne cijevi umivaonika mora biti iznad sifona umivaonika, tako da je kraj odvodnog crijeva najmanje 60 cm iznad poda.

U odvodnu cijev

Samsung preporučuje upotrebu 65 cm visoke okomite cijevi; duljina ne smije prelaziti 90 cm.

A II III I

Cotton Towel Intensive Blanket Boil Wool Eco-Boil Delicate Quick Clean Tub Power

UPOTREBA PROGRAMA SUŠENJA

Illustration of two hands performing a finger manipulation or adjustment on a surface (no text or symbols)

Illustration of a hand pouring liquid into a bowl with a small object, next to a device (no text or symbols visible)

POPRAVAK ZAMRZNUTE PERILICE ZA RUBLJE

Ako temperatura padne ispod točke smrzavanja i vaša se perilica zamrzne:

1. Perilicu za rublje isključite iz struje.
2. Slavinu dovoda prelijte toplom vodom kako biste olabavili crijevo za dovod vode.
3. Skinite crijevo za dovod vode i namočite ga u toploj vodi.
4. Ulijte toplu vodu u bubanj perilice i ostavite je 10 minuta.
5. Crijevo za dovod vode ponovo priključite na slavinu i provjerite rade li dovod i odvod vode normalno.

ČIŠĆENJE VANJSKIH DIJELOVA PERILICE

1. Površine perilice za rublje, uključujući upravljačku ploču, obrišite mekom tkaninom i neabrazivnim sredstvom za čišćenje.
2. Površine osušite mekom tkaninom.
3. Perilicu za rublje nemojte polijevati vodom.

20_ Održavanje perilice za rublje

ČIŠĆENJE LADICE ZA DETERDŽENT I NJZINOG LEŽIŠTA

1. Pritisnite gumb za otpuštanje u unutrašnjosti ladice i izvucite je.
2. Očistite ležište ladice i obrišite stvrdnuti deterdžent, omekšivač i vodu koji se unutra nalaze.
3. Uklonite ostatke deterdženta iz ladice.
4. Gurnite ladicu natrag na mjesto.

• Ne špricajte unutrašnjost vodom, budući da to može dovesti do strujnog udara ili požara.
• Uklonite kovanice ili gumbe koji se tu možda nalaze jer mogu začepiti odvod.

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Hand inserting a small object into a device inside a transparent enclosure (no text or symbols visible)

ČIŠĆENJE FILTRA ZA NAPLAVINE

Illustration of a hand washing a washing machine into a basin (no text or symbols)

1. Isperite prljavštinu i druge materijale iz filtra. Provjerite je li propeler pumpe iza filtra blokiran. Vratite kapicu filtra na mjesto.

2. Vratite poklopac filtra.

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

održavanje perilice za rublje

ČIŠĆENJE MREŽASTOG FILTRA CRIJEVA ZA VODU

Mrežasti filtar crijeva za vodu treba čistiti najmanje jednom godišnje, ili kada se na zaslonu pojavi sljedeća poruka:

Kako biste to učinili:

Line drawing of hands holding a small object with a tool, no text or symbols present

dodatno

22_ Održavanje perilice za rublje

rješavanje problema

PROBLEMI I RJEŠENJA

PROBLEM RJEŠENJE
Perilica za rublje ne započinje s radom	Provjerite jesu li vrata čvrsto zatvorena.Provjerite je li perilica uključena u struju.Provjerite je li slavina otvorena.Svakako pritisnite gumb Početak/Pauza.
Nema vode ili dotok vode nije dovoljan	Provjerite je li slavina otvorena.Provjerite nije li dovodno crijevo zamrznuto.Provjerite nije li dovodno crijevo savijeno.Provjerite nije li filtar dovodnog crijeva začepljen.
U ladici za deterdžent ostaje deterdženta nakon što se ciklus pranja završi	Provjerite radi li perilica uz odgovarajući pritisak vode.Stavljate deterdžent u unutrašnje dijelove ladice za deterdžent (ne pri vanjskim rubovima).
Perilica za rublje vibrira ili je prebučna	Provjerite stoji li perilica na ravnoj površini. Ako površina nije ravna, podesite nožice perilice za rublje kako biste nivelirali uređaj.Provjerite jesu li uklonjeni vijci za prijevoz.Provjerite dotiče li perilica neki drugi predmet.Provjerite je li količina rublja ujednačena.
Perilica za rublje ne ispušta vodu i/ili ne centrifugira	Provjerite nije li odvodno crijevo zgnječeno ili savijeno.Provjerite nije li mrežasti filtar crijeva za vodu začepljen.

rješavanje problema

RAZUMIJEVANJE PORUKA O POGREŠKAMA

ŠIFRA POGREŠKE RJEŠENJE
dE	Zatvorite vrata.
4E	Provjerite je li slavina otvorena.Provjerite pritisak vode.
5E	Provjerite je li voda u crijevu zamrznuta.Pritisnite gumb Start/Pause (Početak/Pauza) za nastavak rada.
UE	Količina rublja nije ujednačena; otpetljajte zapetljano rublje.Ako je potrebno oprati samo jedan komad odjeće, npr. kućni ogrtač ili traperice, konačan rezultat centrifugiranja može biti nezadovoljavajući i na zaslonu će se prikazati poruka o pogrešci “UE”.
Hot	Poruka se pojavljuje kada je temperatura unutar bubnja previsoka.Ventilator će se uključiti automatski, tako da treba samo pričekati da poruka “Hot” nestane.
cE	To se događa kada se unutarnja temperatura ne spušta ispod određene razine tijekom pranja ili sušenja.Pritisnite gumb Start/Pause (Početak/Pauza) kako biste pokušali ponovo.
3E	Nazovite servis.

Prije obraćanja servisu:

INSTRUCTIUNI PENTRU SIGURANTĂ

Mechanical assembly diagram showing a lever and pivot mechanism (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

ÎNDEPĂRTAREA BOLTURILOR PENTRU TRANSPORT

Hand holding a rotary knob inside a vehicle control panel (no text or symbols visible)

Hand holding a screwdriver inserted into a circular component, with a downward arrow indicating the insertion direction (no text or symbols present)

Hand holding a button with an arrow pointing to the next button (no text or symbols visible)

Illustration of a faucet on a sink with an inset showing the arc being inserted (no text or symbols present)

A II III I

PENTRU SPĂLAREA SILVER WASH

SPĂLAREA MANUALĂ A RUFELOR

Cotton Towel Intensive Blanket Boil Wool Eco-Boil Delicate Quick Clean Tub Power

Cupboard (Garderobă) → Extra → Iron (Călcare) → Light (Uşor) → Time (Timp) [30 min → 1:00 min → 1:30 min → 2:00 min → 2:30 min] → Cupboard (Garderobă)

Illustration of two hands performing a finger manipulation or adjustment on a surface (no text or symbols)

Illustration of a hand washing a blue liquid in a bowl with a kitchen appliance above (no text or symbols)

REPARAREA UNEI MAŞINI DE SPĂLAT İNGHETATE

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Illustration of a hand inserting a small object into a device (no text or symbols visible)

CURĂȚAREA FILTRULUI DE SCAME

Illustration of a hand washing a washing machine into a basin (no text or symbols)

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Line drawing of hands holding a small object with a pen, no text or symbols present

optiune
