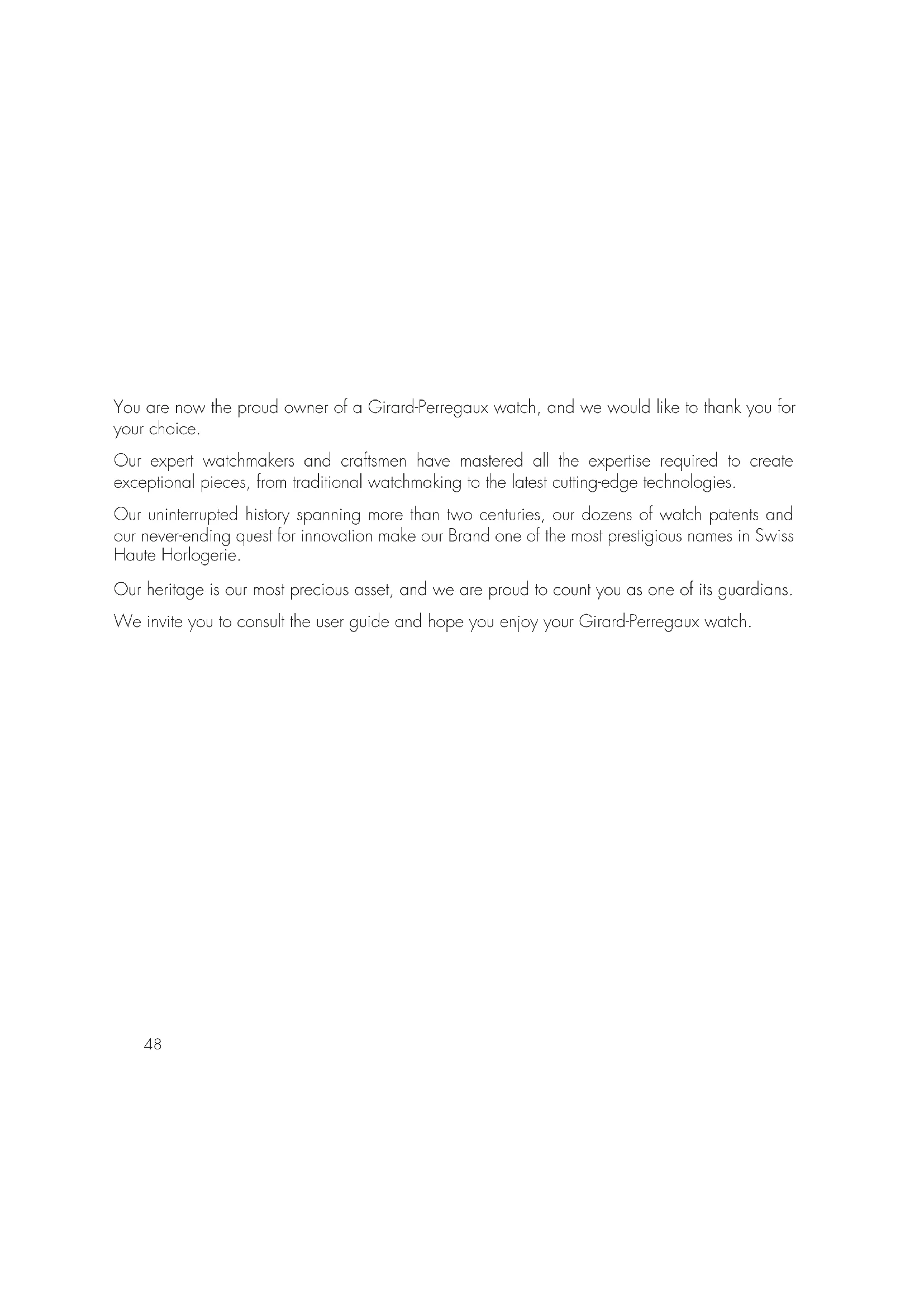

You are now the proud owner of a Girard-Perregaux watch, and we would like to thank you for your choice.

Our expert watchmakers and craftsmen have mastered all the expertise required to create exceptional pieces, from traditional watchmaking to the latest cutting-edge technologies.

Our uninterrupted history spanning more than two centuries, our dozens of watch patents and our never-ending quest for innovation make our Brand one of the most prestigious names in Swiss Haute Horlogerie.

Our heritage is our most precious asset, and we are proud to count you as one of its guardians.

We invite you to consult the user guide and hope you enjoy your Girard-Perregaux watch.

INTERNATIONAL WARRANTY

The international warranty below is applicable to all Girard-Perregaux watches sold by Girard-Perregaux brand authorized dealers and submitted for repair or inspection under warranty in all countries.

Only Girard-Perregaux authorized Repair Centers are authorized to provide the service set out by the international warranty, in accordance with Girard-Perregaux's instructions. Any service, repairs or other operations on your watch not performed by a Girard-Perregaux authorized Repair Center shall render the international warranty void.

We guarantee your watch against any lack of conformity and against any defect due to the materials used for a period of two years from the purchase date. If during this period your timepiece were to exhibit one of these defects, we are committed to repairing it free of charge. Once the warranty period has expired, repairs will be invoiced for parts and labor.

To be entitled to this warranty, you must submit a copy of the warranty certificate, properly completed, dated, stamped and signed by an authorized dealer or distributor. You are therefore advised to keep the Girard-Perregaux international warranty certificate safe, as it is the only document validating the warranty.

If need be, we recommend giving the watch to be inspected or repaired to one of our exclusive distributors or authorized dealers, who will send it to our nearest authorized Repair Center. You can also send your watch directly to one of our authorized Repair Centers.

If posting your watch, we recommend packaging it very carefully and sending by secure mail, to prevent any incident in transit.

Girard-Perregaux can under no circumstances guarantee the authenticity of Girard-Perregaux products acquired outside its official distribution and authorized dealer network.

This warranty entitles you to specific aforementioned rights, which may be supplemented by other rights varying between countries.

The warranty does not cover:

Battery, leather, rubber and fabric straps;
The consequences of wear and normal aging of the watch (in particular scratches, scoring, etc.);
Damage caused deliberately, or resulting from incorrect handling, negligence or an accident;
Damage resulting from abnormal use or misuse (in particular impacts or crushing);
Watches with the identification number or any other identification mark deliberately removed or altered;
Loss and theft;
Damage caused by natural events such as fire, natural catastrophes and acts of war;
Any defect resulting from the addition of one or more accessories not issued from the manufacture Girard-Perregaux will automatically lead to the end of the warranty.

PRECAUTIONS FOR USE AND CARE

Your watch has been manufactured with the greatest care, and will provide years of service if you take the following precautions:

1. Precautions for use and care

• Never activate the crown or push-buttons of your watch in water. If your watch has a screw-down crown, make sure that it never comes into contact with water when its crown is unscrewed;
• Avoid thermal shocks and exposing your watch to extreme temperatures, below 0^ or above 60^ (sauna, baths, etc.);
• Never use corrosive or chemical products to clean your watch;
• Avoid contact with certain chemical substances (petrol, thinners, perfumes, cleaning products, glues, paints, etc.), to prevent any damage to your watch and its leather strap;
• Avoid exposing your watch to a powerful magnetic field (magnets, loudspeaker, etc.);
• Avoid violent impacts;
• Avoid leaving your watch immobile for long periods of time. Only regular wear prevents the oils contained in the movement from congealing;
• Never attempt to open the case of your watch yourself;
• Rinse your watch with fresh water after bathing in the sea; avoid bathing with a leather strap to prevent accelerated wear.

2. Maintenance service

Therefore, to ensure that your watch continues, after years of use, to provide the accuracy you can rightly expect, Girard-Perregaux recommends entrusting your watch to one of its authorized Repair Centers every 2 to 3 years for the necessary inspections.

WATER-RESISTANCE PRECAUTIONS

Your watch has undergone numerous water-resistance tests in our workshops, depending on the required protection level, to ensure you can enjoy the following activities:

ACTIVITIES / DEGREE OF WATER-RESISTANCE	3 atm - 3 bar30 m - 100 ft	5 atm - 5 bar50 m - 165 ft	10 atm - 10 bar100 m - 330 ft	50 atm - 50 bar500 m - 1650 ft
Rain, splashing	yes	yes	yes	yes
Shower, bath, surface water sports	no	yes	yes	yes
Swimming, snorkeling	no	no	yes	yes
Scuba diving	no	no	no	yes

1. Water-resistance precautions

Your watch has been rigorously checked and will retain its water-resistance if you take the following precautions:

• Ensure that the crown and the push-buttons on your watch are in their initial position - position 0 - to prevent any damage to the mechanism. To do this, press the crown against the case.
• If your watch is equipped with a screw-down crown, ensure that it is locked after any adjustment and before use in an aquatic environment. To do this, screw the crown in a clockwise direction, whilst keeping it pressed against the case of your watch.
• Never activate the crown or push-buttons of your watch under water, if the watch is in contact with water or when it is wet.

2. Water-resistance test

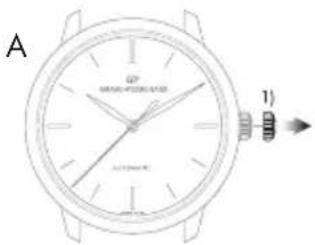

The water-resistance of your watch is ensured by a sophisticated system of seals. These are subject to the damaging effects of a range of external factors (perspiration, changes in temperature, ultraviolet rays, salt or chlorinated water, dust, etc.). For this reason, and to ensure the seals can carry out their role perfectly, Girard-Perregaux recommends entrusting your watch to one of its authorized Girard-Perregaux Repair Centers every 2 to 3 years for the necessary water-resistance inspections.

A MANUFACTURE 1)

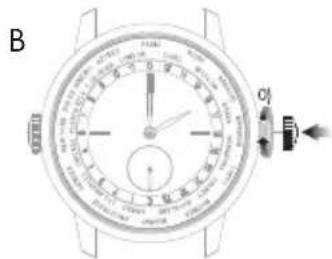

B GATEA PERFORMANCE ATRANTIC

A 0'

Top-down view of a wristwatch with dial and wrist strap (no visible text or symbols)

USER GUIDE

SETTINGS

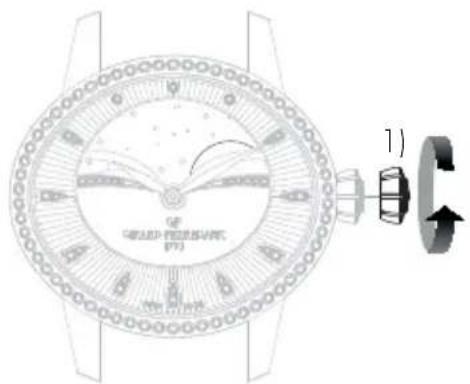

CROWN

Introduction

The crown is a component allowing the adjustment of different watch functions, such as setting the time, manual winding and on certain models, setting the day or the date.

Simple crown

Setting

A. Pull out the crown to go on to different settings.
B. To assure its water-resistance, it is important that the crown is pushed back into position O) once you have finished using it. To do this, press the crown against the case as illustrated opposite.

Screw-down crown

The screw-down crown ensures perfect water-resistance to the depth for which the model was designed.

Setting

A. Unscrew the crown to go on to different settings. To do this, turn the crown counterclockwise.
B. To assure its water-resistance, it is important that the crown is pushed back into position 0) once you have finished using it. To do this, screw the crown in clockwise while pressing it against the case, as illustrated opposite.

WINDING

Introduction

Winding allows the movement to store up the energy necessary for your watch to function well.

Mechanical movements manufactured and produced at the manufacture Girard-Perregaux can be manual or automatic depending on the model of your watch.

Manual winding mechanical movement

This type of movement means that to function normally, your watch needs to be regularly wound. Depending on the model and the power reserve of your watch, it can go between 30 to 60 hours between two windings.

Setting

To wind your watch, turn the crown clockwise when it is in position 0) or 0') when it is a screw-down crown. As soon as it starts to resist, it means the mechanism is sufficiently wound.

Warning: Do not force if the resistance increases, the movement mechanism could be damaged.

GP GERARD STONEGAVER 18 AUTOMATO 0)

Technical diagram of a wristwatch with labeled dials and dial indicators

Automatic mechanical movement

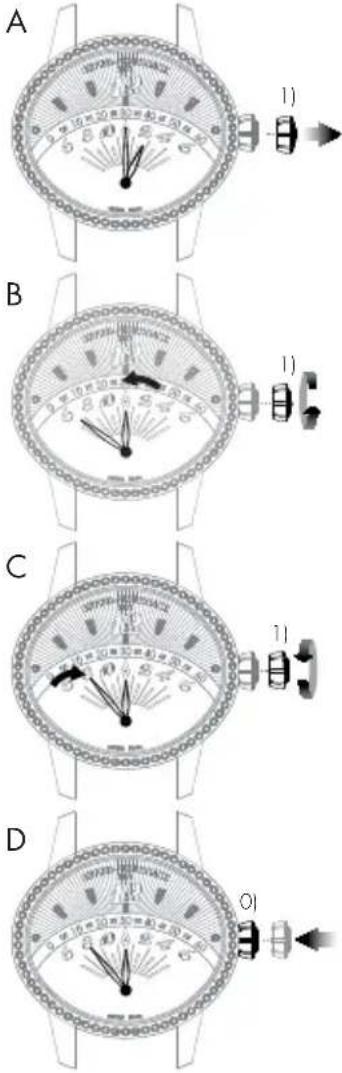

This term means that your watch automatically stores up energy as you wear it on your wrist. Indeed, your daily movement allows the oscillating mass to carry out rotating movements which, thanks to a clockwork system, reproduce an energy to the movement and allows it to automatically wind itself. Daily wear is enough to assure the power reserve necessary for your watch to function well without it being necessary to wind it.

If your watch has not been worn for several consecutive days, it has to be manually wound. To do this, please refer to the paragraph above 'Manual winding mechanical movement'.

Quartz movement

Quartz watches are battery-powered and do not need to be wound. The battery must be replaced periodically, approximately every 2 years. To have the battery replaced, contact an approved Girard-Perregaux Repair Centre.

Recycling

New or spent batteries must not be disposed of with household waste. These components must be taken to a collection point specifically designed for recycling electrical and electronic equipment and batteries. By ensuring that these products are correctly and appropriately disposed of, you are helping to prevent any potentially harmful effects on the environment and on human health. Recycling materials will help protect natural resources.

Part Name	Hazardous Substances
	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent Chromium (Cr (VI))	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
Brass components (main plate and bridges)	X	O		O	O	O

O

PRACTICAL FUNCTIONS

HOUR AND MINUTE

Introduction

Setting the time of your watch is completed via the crown. This could be in two or three positions, depending on the model of your watch.

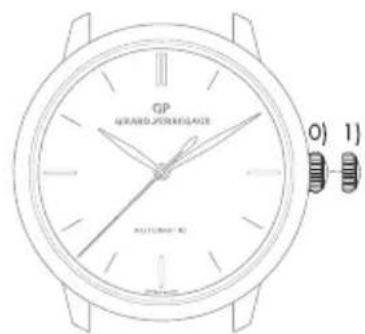

2 position crown

0) Movement manual winding position (crown not pulled out).

1) Time setting position (crown pulled out).

3 position crown

0) Movement manual winding position (crown not pulled out).

1) Date setting position (crown half pulled out).

2) Time setting position (crown fully pulled out).

GP GRIANO JERKEGLANZE AUTOMATRO 0) 1)

GP GRASSER ZUTTERSTOCKEER 13 AUTOMAT 10 0) 1) 2)

A 2)

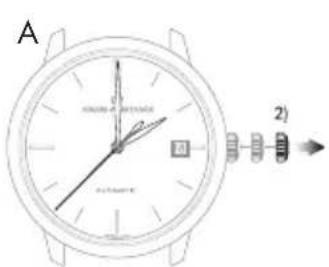

If your watch has a date indicator, make sure that the hands are in the date change position, i.e. at midnight rather than midday. Use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

B 2)

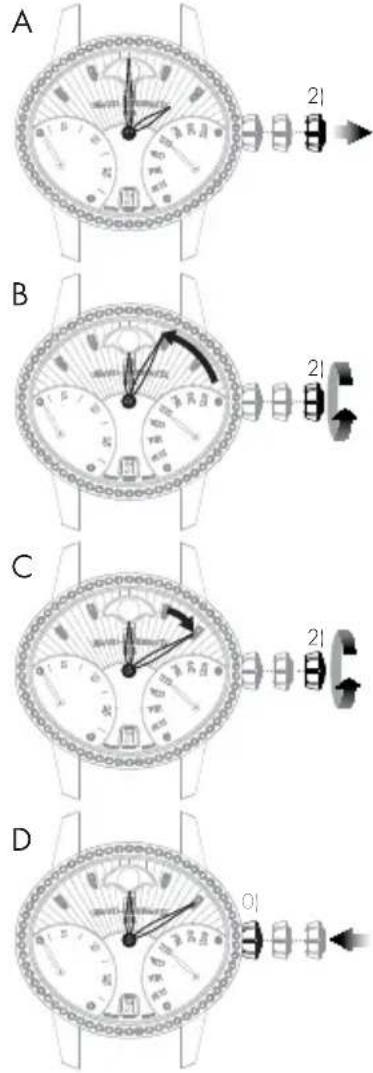

Setting

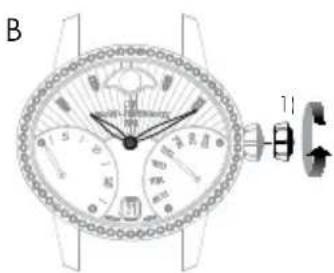

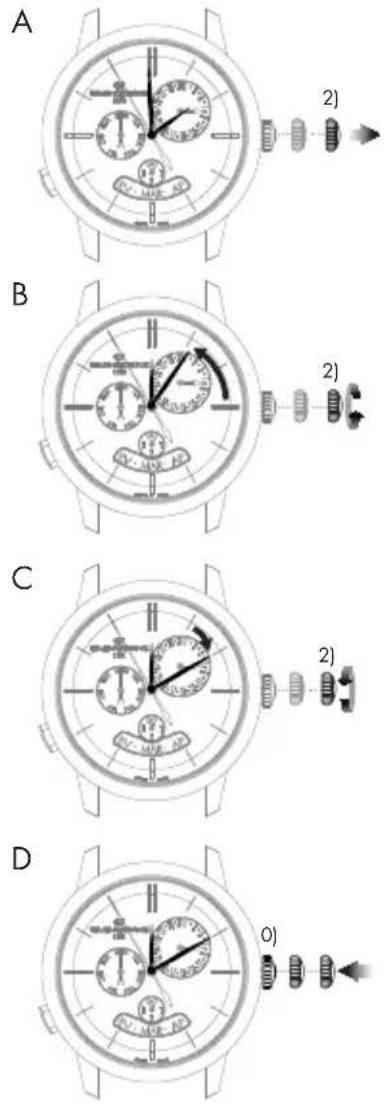

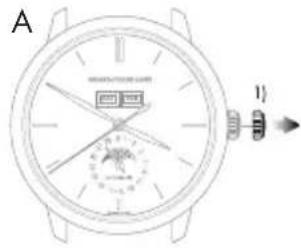

A. Pull your crown out to the time setting position. On watches with a seconds indicator, the seconds hand will stop.
B. Turn your crown clockwise so as to indicate the selected time minus 5 minutes.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.

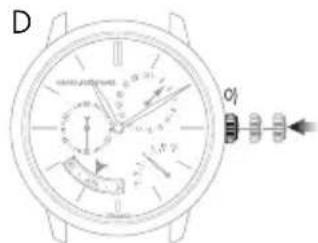

D. At the desired time, push the crown back against the case, in position 0). The watch will restart immediately.

C 21 AUSTONE

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

D 01

Retrograde display

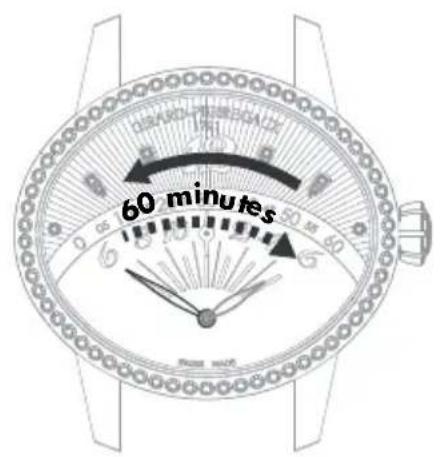

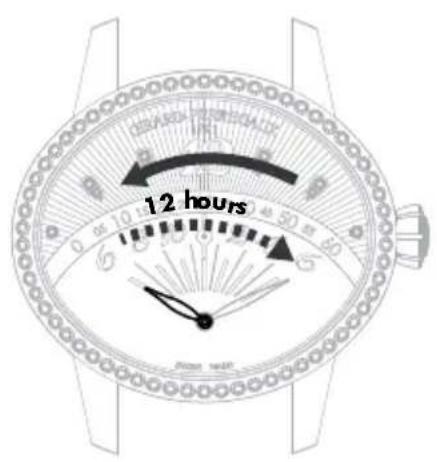

The retrograde hour and minute hands move from 6 to 6 o'clock (left to right) and from 0 to 60 minutes (left to right) respectively, before returning immediately to their starting point and beginning their journey once more.

12 hours

Hour hand Minute hand

60 minutes

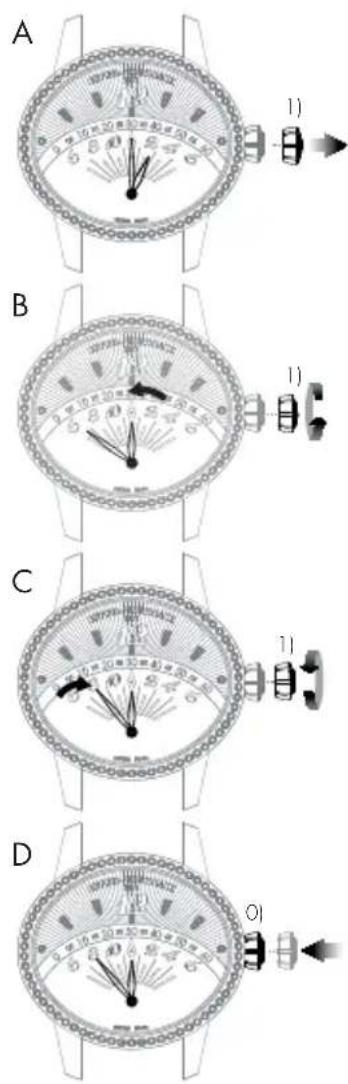

Setting

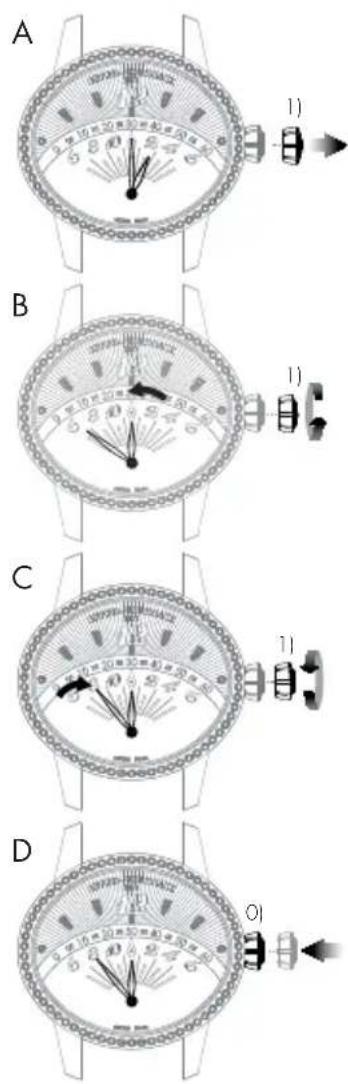

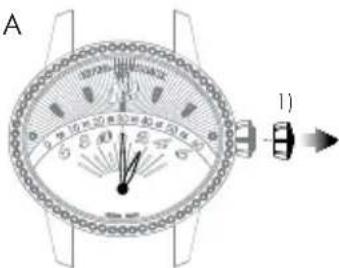

A. Pull your crown out to the time setting position.
B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

DATE

Introduction

The date indication shows the number of the day in the month.

This function enables rapid date setting for your watch without altering the time. The indication of the date is synchronized with the hour and minute hands. In any case, you need to correct the date display for any month not lasting 31 days, for a single date.

Warning: Do not perform this operation between 8 PM and 8 AM as the date change mechanism is engaged, and the mechanism could become damaged.

A EP GEMIEN, PREDISH 11

B GPI GRAV-ASSOCIATION AUTOATE M2 1)

C GP GARSH-CONSENSO 01 W/25/2014

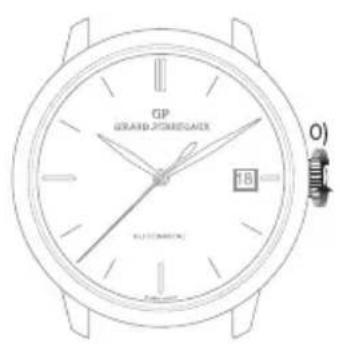

Setting

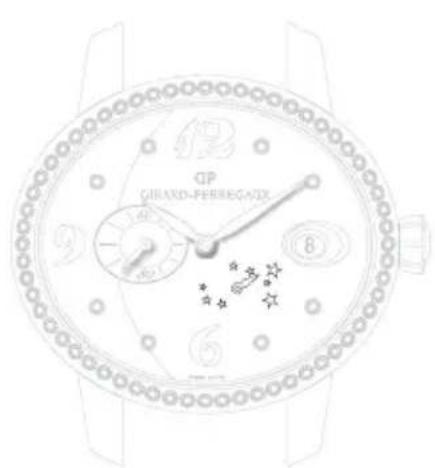

Window display date

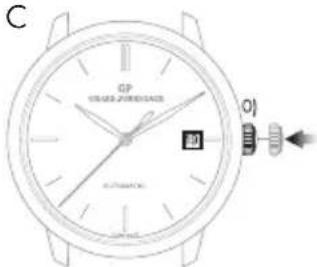

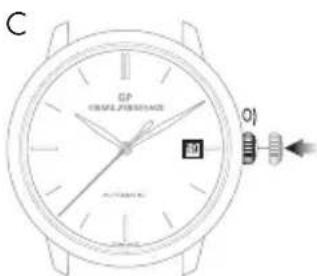

A. Pull out the crown of your watch into the date setting position, in position 1).
B. Turn the crown clockwise until the desired date appears in the window. According to the model, the crown may be turned in the opposite direction.
C. At the desired date, push the crown back against the case, in position 0).

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Hand display date

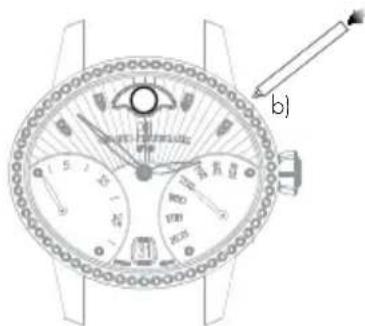

If your watch has a hand display date, you can correct it via the corrector, found on the case of your watch.

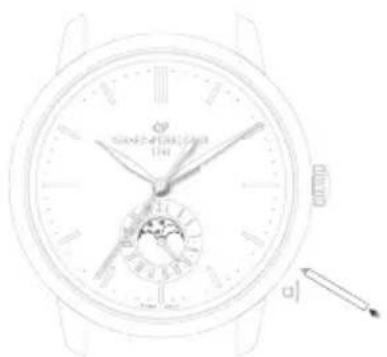

Press on the corrector, with the help of the little tool delivered with your watch, until the date hand indicates the desired date. One press on the corrector corresponds to one day forward.

POWER RESERVE INDICATOR

Introduction

This indicator allows you to know the status of your watch power in real time, or how long your watch can work for before it will need to be wound again.

Reading

The power reserve status of your watch is indicated by a little hand moving along a graded arc.

Setting

The power reserve indicator is synchronized with the movement, so it does not need to be set.

GIRARD-PERREDAUX 8

Stop soon Full

CHARD-PERREGAN 8

SECOND TIME ZONE

Introduction

This function, which is highly valued by travellers, is used to display two time zones simultaneously: The reference time or «home time», and the local time.

Reading

The reference time («home time») is displayed on the central 24-hour graduated disc. As usual, the local time is read on the external graduated scale.

Setting

Reference time («home time») hours and minutes

Line drawing of a wristwatch face showing dial, wrist, and adjustment knob (no text or symbols)

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

Front view of a wristwatch with dial and wrist strap (no visible text or symbols)

Warning: The date hand only follows the local hour hand (set using the push-buttons at 2 o'clock and 4 o'clock).

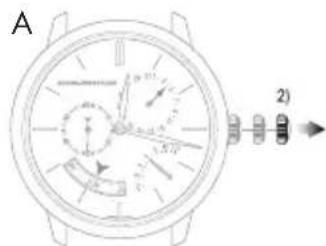

A. Pull the crown of your watch out to the time setting position, in position 1). The seconds hand will stop.
B. Turn the crown clockwise so as to indicate the selected time minus 5 minutes. This setting simultaneously moves the reference («home time») hour and minute hands and the local hour hand.

C. Slowly move the minute hand forward in a clockwise direction, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Date change by hand

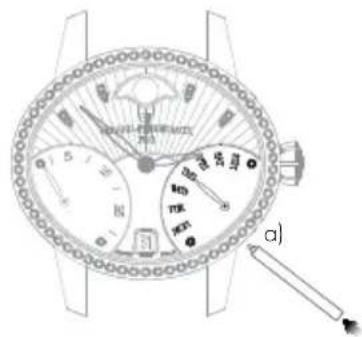

Press on the corrector a) located at 8 o'clock using the small tool supplied with your watch, until the date hand indicates the desired date. One press on the corrector corresponds to one day forward.

Warning: Between 11PM and midnight, a date correction using corrector a) will only enable the date to be moved forward by one day. However, this action will not damage your mechanism.

Second time zone (local time)

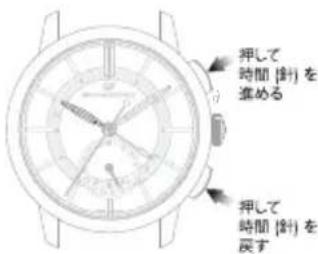

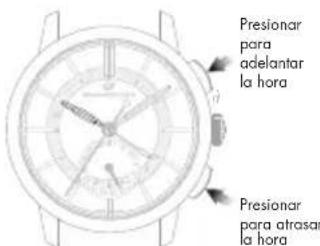

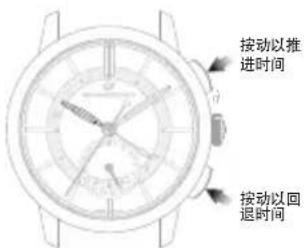

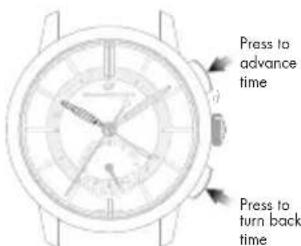

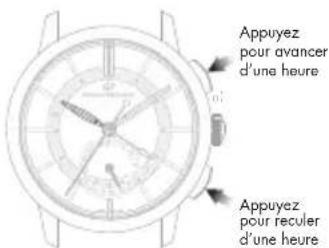

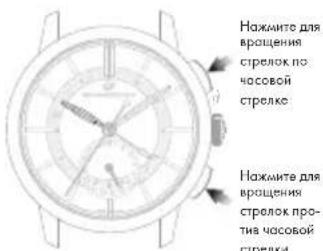

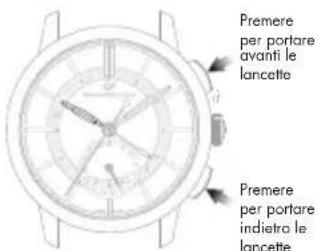

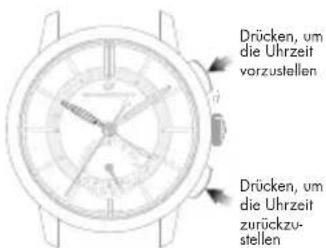

The push-buttons located at 2 o'clock and 4 o'clock can be used to move the second time zone hour hand forwards or backwards (local time). Press once to move the time forwards or backwards one hour.

C

Line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

D

Top-down schematic of a wristwatch face showing dial, wrist, and dial (no text or labels)

Top-down view of a wristwatch with dual dials and a pointer indicating left (no text or symbols visible)

Press to advance time Press to turn back time

WORLD TIME INDICATOR

A

A 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials DIP/SP 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials 120mm Dials MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENi

B

Analog stopwatch with dual dials showing time, seconds, and elapsed minutes

C

Technical diagram of a wristwatch with labeled dial and scale, showing measurement ranges and pointer

D

Technical diagram of a wristwatch with dial, time, and control knob labels

Introduction

This function tells you the local time in 24 of the world's major cities, at the same time as your own. The rim of your watch's dial is equipped with a "24 hour" rotating disc synchronised with the hour hand, and a second rotating disc bearing the names of these cities. The time in each time zone can be read on the 24 hour disc opposite the corresponding reference city.

Setting

Hour and minute

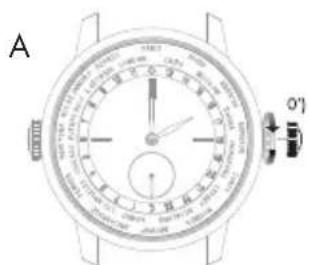

A. Unscrew and pull out the watch crown to the time-setting position, in position 1). The seconds hand will stop.
B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, screw the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always screw the crown back into its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism.

Note that the "24 hour" disc is synchronised with the hour and minute hands. It does not need to be set.

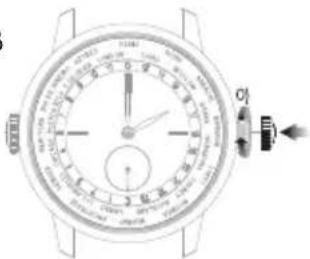

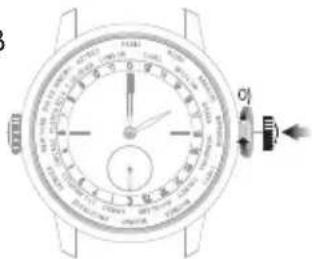

City ring

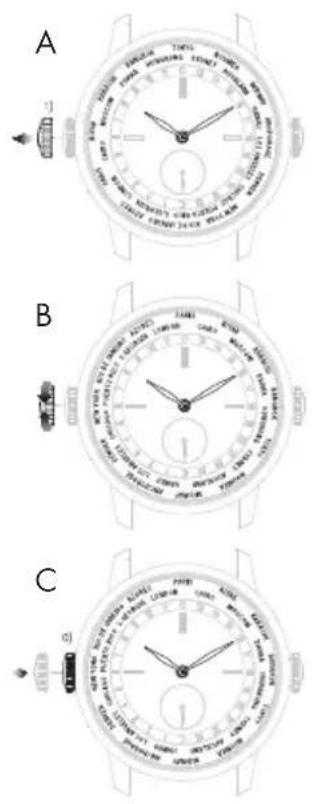

A. Unscrew the crown at 9 o'clock in position 1).
B. Turn the crown to 12 o'clock for the city corresponding to the time zone of your location.
C. When the desired time zone is correctly set to 12 o'clock, screw the crown back against the case, in position 0).

Warning: After making any setting, always screw the crown back into its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism.

Winter time / Summer time

The summer time system was adopted by certain countries for energy saving purposes. It consists of adding one hour to the legal time during the summer months.

The 1966 WW.TC watch does not take the summer time change into account, because it is not adopted by all countries (Japan, China, Taiwan, etc.). So a difference of one hour should be taken into account during this period.

24 time zones

The twenty-four time zones, each covering 15^ longitude (i.e. an hour each) and with the Greenwich Meridian as the origin, form the basis for Universal Time measurement (UT). While the hour indication depends on the time zone, the minute indication, unlike local time, is the same regardless of the zone.

A B C

TACHOMETRIC SCALE

Introduction

This function measures an average speed over a given distance.

Reading

Let us take a road with 2 markers A and B set one kilometer (or mile) apart. Start your chronograph as your car passes marker A, then stop it as it passes marker B. Then read the average speed in kilometers/hour or miles/hour on the tachometer scale at the tip of the chronograph center seconds hand.

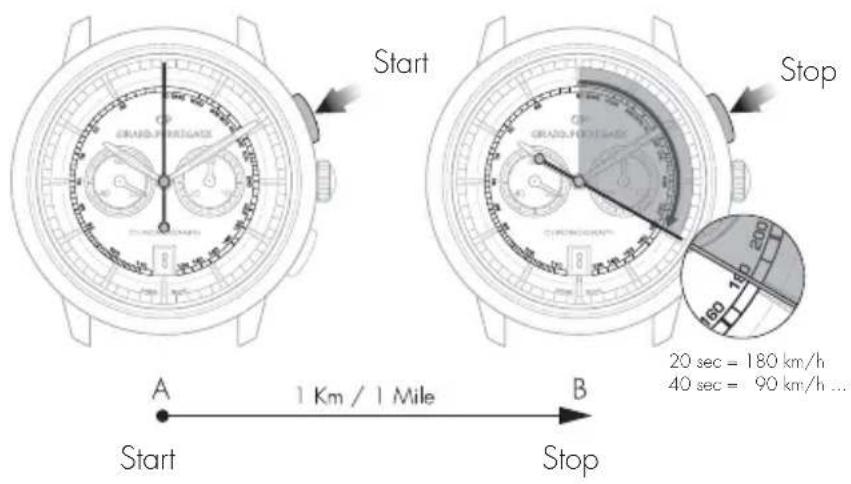

Start GRASSFIREGATEX Stop A 1 Km / 1 Mile B Stop 20 sec = 180 km/h 40 sec = 90 km/h ...

CHRONOGRAPH

Introduction

The chronograph seconds are displayed by a large center hand. The minute, and possibly the hour, are generally displayed by 1 or 2 small counters.

The seconds hand and the counters are interconnected.

On certain models, minute timing may also be indicated by a center hand pointing to the dial's graduated rim.

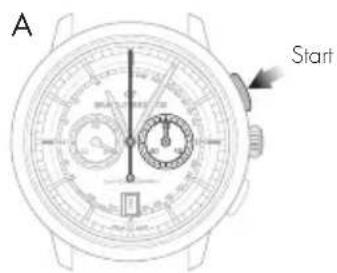

A Start

Setting

A. Press your watch's push button at 2 o'clock: The center seconds hand will start.

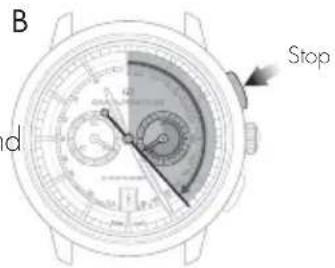

B. Press the same push button at 2 o'clock again: the center seconds hand will stop.

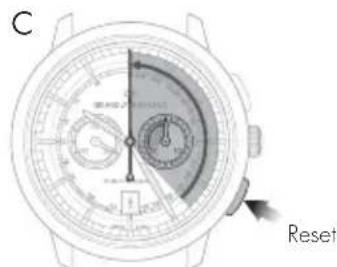

C. Press your watch's push-button at 4 o'clock: The center seconds and the counter hands will return to zero.

B Stop d

Warning: While the second hand is working, never reset to zero to prevent damage to the mechanism. Always check the second hand has stopped before resetting to zero.

C Reset

ASTRONOMIC FUNCTIONS

DAY/NIGHT INDICATOR

Introduction

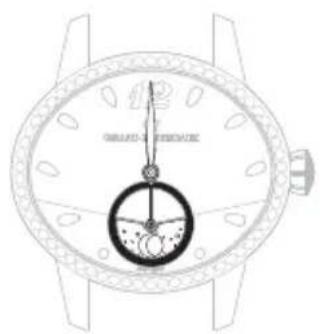

The day/night indicator uses a system of discs representing the sun and moon to indicate whether it is day or night. The special window depicts the night sky, in which the shape of the moon and sun changes as the day advances.

Reading

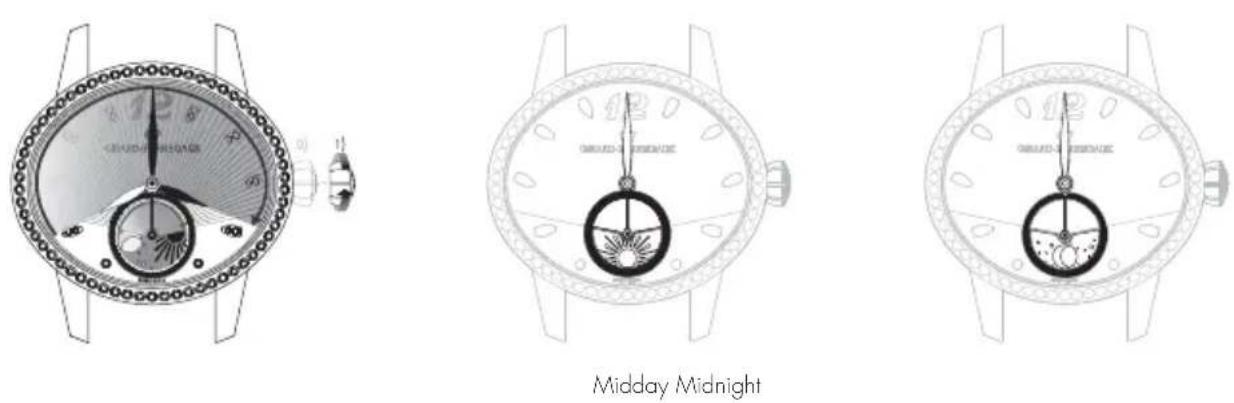

When setting the time, take into account the day/night indication, as this is synchronised with the hour and minute indications. For example, at midnight, the moon should appear at 6 o'clock, while at midday the sun should appear at 6 o'clock.

MOON PHASES INDICATOR

Introduction

Moon phases indication allows the reproduction of the moon cycle (new moon, first quarter, full moon, final quarter) by means of a disc or a window. The moon phases indicator offers a representation of the sky in which the form of the moon is shown at its different stages throughout the lunar month.

Reading

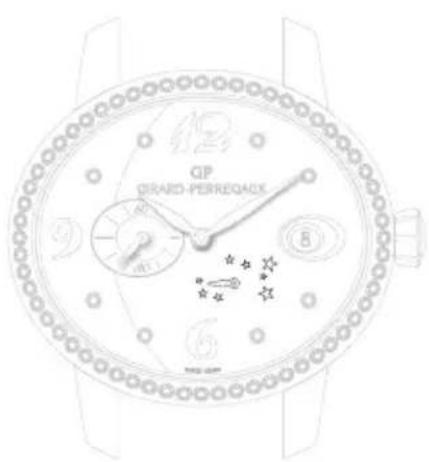

A disc, with two moons placed in a starry sky, turns in a window.

At the start of each moon phase, one of the two moons appears in the left-hand section of the window; it initially appears as a slim crescent, emerging from behind the rounded edge, then gradually grows over the course of the days.

In the middle of the lunar month, the moon appears in the middle of the window in its full form. It then starts to gradually disappear behind the second rounded cover on the right.

New moon First quarter Last quarterFull moon

Setting

For watches with a corrector, press on the corrector a), using the little tool supplied with your watch, until the desired moon phase is displayed. One press on the corrector corresponds to one day forward.

Warning: Do not correct the moon phases indicator when the mechanism changing the date is engaged, between 3 PM and 3 AM, as this could damage the mechanism. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

For watches without a corrector, pull the crown into position 1) and turn it clockwise until the desired moon phase is displayed.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter entitled "Crown".

With corrector Without corrector

GAINZENZENZEN ZEN 1910 d

*Corrector with variable position according to the model

GELEED PETERING (PT) 1)

BI-RETRO

Introduction

The retrograde seconds and day of the week hands move from 0 to 30 (up to down) and from MON to SUN (down to up) respectively before returning immediately to their starting point and beginning their journey once more.

Setting

Hour and minute

A. Pull out the crown of your watch into the hour setting position, in position 2).
B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.

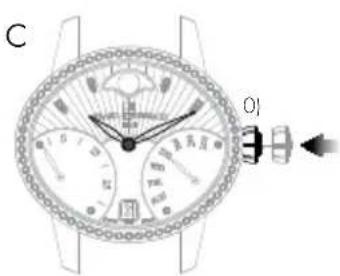

D. At the desired time, push the crown back against the case, in position 0). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

A 21 B 21 C 21 D 01

A 11

B 11

C 01

Date

A. Pull out the crown of your watch into the date setting position, in position 1).
B. Turn the crown clockwise until the desired date appears in the window.
C. At the desired date, push the crown back against the case, in position 0).

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Day of the week

The day can be corrected by pressing on the corrector a), positioned at 4.30, using a small tool delivered with your watch. One press on the corrector corresponds to one day forward.

Warning: Do not change the day of the week between 19:00 and 1:00, when the date-change mechanism is being activated, as this could damage the movement.

a)

Moon phases

Press corrector b), positioned at 14.30, using the small tool supplied with your watch, until the desired moon phase is displayed. One press on the corrector corresponds to one day forward.

Warning: Do not correct the moon phase indicator between 7:00 PM and 1:00 AM, when the date-change mechanism is being activated, as this could damage the movement. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

b)

FULL CALENDAR

Introduction

As well as showing the hours and the minutes, the watchmaking complication "Full calendar" also clearly displays the date, the day of the week, the month and indicates moon phases.

Warning: Do not correct the calendar or the moon phases indicator when the mechanism changing the date is engaged, between 3 PM and 8 PM, as this could damage the mechanism. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

Setting

Hour and minute

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

A. Pull your crown out to the time setting position, in position 1). The seconds hand will stop.
B. Turn your crown clockwise so as to indicate the selected time minus 5 minutes.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

A 1)

Line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

C 1)

D SARAD RUSSEL

Date change by hand

Press on the corrector a) located at 4 o'clock using the small tool supplied with your watch, until the date hand indicates the desired date. One press on the corrector corresponds to one day forward.

Warning: Going from the 31 ^st to the 1 ^st leads to a change in the month indicated (continuing to the next month).

Day of the week

Press on the corrector b) (located at 10 o'clock) using a small tool delivered with your watch, until the desired day of the week appears in the window.

Month

Press on the corrector c) (located at 2 o'clock) using a small tool delivered with your watch, until the desired month appears in the window.

Warning: Do not perform this operation if the date or calendar display is between the 30^th and the 2^nd , as the month change mechanism is engaged, as you risk damaging the mechanism.

Moon phases

Press on the corrector d) (located at 8 o'clock) using a small tool delivered with your watch, until the desired moon phase appears. One press on the corrector corresponds to one day forward.

ANNUAL CALENDAR AND EQUATION OF TIME

Introduction

Unlike a conventional calendar mechanism, your annual calendar only requires date correction for February in non-leap years, i.e. 3 corrections in total in a 4-year cycle.

Setting

Hour and minute

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

A. Pull out the crown of your watch into the hour setting position, in position 2). The seconds hand will stop.
B. Turn your crown clockwise so as to indicate the selected time minus 5 minutes.
C. Slowly move the minute hand forward, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

A 2)

B 2

C

D φ1

Date and month

Warning: Before making any correction, ensure that the time display is between 9:30 AM and 8:30 PM. Outside this range, any rotation of the stem in position 1) will have no effect. Use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

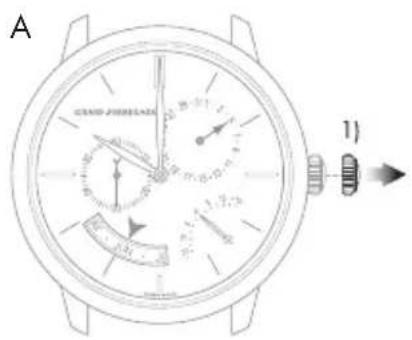

A. Turn the crown of your watch into the date setting position, in position 1).

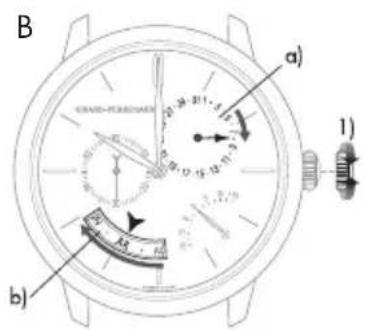

B. Turn the crown until the day hand a) indicates the desired date. The crown can be turned in both directions. The month disc b) is synchronized with the date hand, so it does not need to be changed.
C. At the desired date, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Warning: For months with 30 days, the date takes approximately 4 hours 30 minutes to jump to the first day of the next month, passing through the 31 ^st . For February, the date take approximately 7 hours 30 minutes to jump to the March 1 ^st , passing through the 30 ^th and 31 ^st .

A GRAND PETERLATE 1)

The Earth's orbit around the sun is not perfectly circular. As with most of the celestial bodies in our solar system, its trajectory is elliptical. In addition, the Earth's axis is tilted in relation to the orbit's plane. A consequence of this irregular trajectory is that the length of the solar day – the interval between the times at which the sun twice passes the meridian at a given location – varies according to the season. The 24-hour day used for civil time is calculated using the average duration of the solar day.

Reading

The equation of time function indicates the difference between the mean time and the solar time. This difference is indicated by a little hand which moves along a graduated arc. It can extend to between approximately +14 and -16 minutes for certain dates at the start of February and November respectively.

Setting

The equation of time indicator is synchronized with the calendar readings, and therefore does not require adjustment.

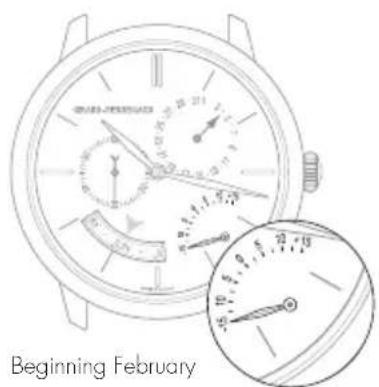

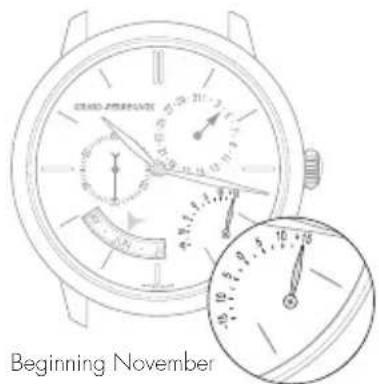

QUARTER Beginning February

GRASS PEREGRATE Beginning November

PERPETUAL CALENDAR

Introduction

The perpetual calendar indicates the date, day and month, taking into account the different lengths of the months in the Gregorian calendar, including leap years. Its "mechanical memory" therefore counts 1461 days, or four years.

Please note that this type of mechanism cannot take non-standard common years into account (years which are not leap years as they can be divided by 100 but not by 400, such as 2100).

Setting

Before making any correction, ensure that the time display is between 1:00 PM and 8:30 PM. Outside this range, any rotation of the stem in position 1) will have no effect. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day. Adjustment outside the hours of 1:00 PM and 8:30 PM will not cause any damage to the mechanism.

Hour and minute

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

A. Pull out the crown of your watch into the hour setting position, in position 2). The seconds hand will stop.
B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

A 1)

A. Pull out the crown of your watch into the date setting position, in position 1).

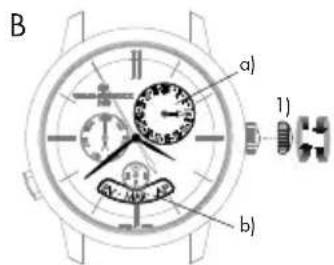

B. Turn the crown until the day hand a) indicates the desired date. The crown can be turned in both directions. The month disc b) is synchronized with the date hand, so it does not need to be changed.
C. At the desired date, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Warning: For months with 30 days, the date takes approximately 4 hours 30 minutes to jump to the first day of the next month, passing through the 31 ^st . For the month of February, the date takes approximately 7 hours 30 minutes to jump to the first of March in a leap year, passing through the 30 ^th and 31 ^st , and approximately 12 hours in a common year, passing through the 29 ^th , 30 ^th and 31 ^st .

Day of the week

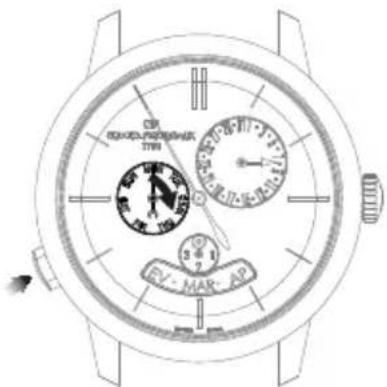

The day of the week is corrected by pressing the push-button at 8 o'clock. One press on the push-button corresponds to one day forward.

Please note that the push-button can be activated at any time of day without any risk of damage.

EV-MAR-AP TNT1

Leap year indicator

The leap year indicator is synchronised with the month disc, which is in turn synchronised with the date hand. It does not need to be set.

DEUTSCH

INHALT

INTERNATIONALE GARANTIE 91

Technical diagram of a wristwatch with dial and rotary dial, showing measurement markings and control buttons

B

Technical diagram of a wristwatch with dial and adjustment knob, showing measurement markings and pointer

BEDIENUNGSANLEITUNG

EINSTELLUNGEN

KRONE

Einführung

Technical diagram of a wristwatch with labeled dials and dial indicators

C 21 AUSTONE

60 minutes

Einstellung

Line drawing of a wristwatch face showing dial, wrist, and wristband (no text or symbols)

Top-down schematic of a wristwatch dial with measurement scale and pointer (no text or labels)

Line drawing of a wristwatch face showing dial, wrist, and hand (no text or symbols)

D

Top-down schematic of a wristwatch face showing dial, wrist, and dial (no text or symbols)

Top-down view of a wristwatch with dual dials and a pointer indicating left (no text or symbols visible)

Analog stopwatch with dual dials showing time, battery, and reading signals

C

Technical diagram of a wristwatch with labeled dial and instrument dial, showing measurement ranges and pointer

D

Technical diagram of a wristwatch with dial, time, and control knob labels

WELTZEITUHR

Einführung

WATER-PATHWARDS 5 40 30 20 10 0 a)

Mondphasen

Line drawing of a wristwatch with dual dials and a dial (no text or symbols)

C 1)

D HARDEN REBEACHS O

Zeigerdatum

GRIED PRINCESS Anfang November

EWIGER KALENDER

Einführung

A MANUFACTURE 1)

B GATEA PERFORMANCE ATRANTIC

A 0'

Top-down view of a wristwatch with dial and wrist strap (no visible text or symbols)

MANUALE D'USO

REGOLAZIONI

CORONA

Introduzione

Technical diagram of a wristwatch with labeled dials and dial indicators

C 21 AUSTONE

60 minutes

Regolazione

Line drawing of a wristwatch with watch face and dials (no readable text or symbols)

Line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

Top-down line drawing of a wristwatch face showing dial, wrist, and wristband (no text or symbols)

Line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

D

Top-down line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

Line drawing of a wristwatch with dial and wrist strap (no text or symbols)

Line drawing of a wristwatch with dual dials and a dial (no text or symbols)

C

D HARSHAI KONKOKU O

Datario a lancetta

GASS FROHS ATTAWICK

A

Technical diagram of a wristwatch with labeled dial and front panel, showing measurement markings and control buttons.

B

Diagram of a wristwatch with dial and adjustment knob, showing measurement markings and pointer

INSTRUCCIONES DE USO

AJUSTES

CORONA

Introducción

Technical diagram of a wristwatch with labeled dials and dial indicators

C 21 AUSTONE

60 minutes

A 1) B 1) C 1) D

Ajuste

B GP GRIESE & FINESE 1)

C GP GARLIC POWER/HEAVES 0 SINNATRIC 00:00:00

Ajuste

Fecha en ventanilla

Line drawing of a wristwatch with star and abstract patterns (no readable text or symbols)

SEGUNDO HUSO HORARIO

Introducción

Line drawing of a wristwatch face showing dial, wrist, and adjustment knob (no text or symbols)

Top-down line drawing of a wristwatch face showing dial, wrist, and wristband (no text or symbols)

Line drawing of a wristwatch face showing dial, wrist, and wristband (no text or symbols)

D

Top-down line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

Line drawing of a wristwatch with dual dials and a pointer indicating the dial (no text or symbols present)

Analog stopwatch with dual dials showing time, battery, and reading signals

C

Technical diagram of a wristwatch with labeled dial and instrument dial, showing measurement ranges and pointer

D

Technical diagram of a wristwatch with dial, showing front and top views and measurement markings

INDICADOR DE LAS HORAS DEL MUNDO

Introducción

Line drawing of a wristwatch with dual dials and a dial, showing no text or symbols

C

D HARDEN ELECTRIC 0

Fecha con aguja

Technical diagram of a wristwatch with labeled dial and front panel, showing measurement markings and control buttons.

B

Diagram of a wristwatch with dial and adjustment knob, showing measurement markings and pointer

Technical diagram of a wristwatch with labeled dials and dial indicators

C 21 AUSTONE

D A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

DESIGNER 12 hours

60 minutes

A

A 1)

Настройка

Top-down view of a wristwatch face showing dial, wrist, and analog dial (no text or symbols visible)

Top-down line drawing of a wristwatch face showing dial, wrist, and wristband (no text or symbols)

Line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

D

Top-down line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

Line drawing of a wristwatch with dial and wrist strap (no text or symbols)

Diagram of a wristwatch with dial and hand pointer, showing time and duration data

C

Technical diagram of a wristwatch with labeled dial and control knob, showing measurement scale and pointer

D

Top-down view of a wristwatch with analog dial and control dial visible

Введение

Technical diagram of a wristwatch with dial and front panel, showing measurement markings and control buttons

B

Technical diagram of a wristwatch with dial and adjustment knob, showing measurement markings and pointer

使用指南

设置

表冠

介绍

Technical diagram of a wristwatch with labeled dials and dial indicators

自动上弦机械机芯

60 minutes

A 1) B 1) C 1) D

设置

Two views of a wristwatch with dial and hand signals, labeled A and B (no text or symbols on the faces themselves)

Line drawing of a wristwatch face showing dial, wrist, and hand signals (no text or symbols)

D

Top-down schematic of a wristwatch face showing dial, wrist, and dial (no text or labels)

Top-down view of a wristwatch with dual dials and a pointer indicating force (no text or symbols visible)

Line drawing of a wristwatch with dial and wrist strap (no text or symbols)

C

D HARDEN RESEARCH O

手动调节日期

Diagram of a wristwatch with labeled parts and directional arrow, showing dial, buttons, and watch face.

日期和月份

Technical diagram of a wristwatch with dial and front lamps, showing measurement markings and control buttons

B

Diagram of a wristwatch with dial and adjustment knob, showing measurement markings and pointer

取扱説明書

操作方法

リューズ

說明

Technical diagram of a wristwatch with labeled dials and dial indicators

機械式自動巻きムーブメント

D 01:24:56 01:24:57 01:24:58 01:24:59 01:24:60 01:24:61 01:24:62 01:24:63 01:24:64 01:24:65 01:24:66 01:24:67 01:24:68 01:24:69 01:24:70 01:24:71 01:24:72 01:24:73 01:24:74 01:24:75 01:24:76 01:24:77 01:24:78 01:24:79 01:24:80 01:24:81 01:24:82 01:24:83 01:24:84 01:24:85 01:24:86 01:24:87 01:24:88 01:24:89 01:24:90 01:24:91 01:24:92 01:24:93 01:24:94 01:24:95 01:24:96 01:24:97 01:24:98 01:24:99 01:24:100

レトログラード式表示

60 minutes

分针

操作方法

Line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

Line drawing of a wristwatch face showing dial, wrist, and hand (no text or symbols)

Line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

D

Top-down line drawing of a wristwatch face showing dial, wrist, and dial (no text or symbols)

Top-down view of a wristwatch with dual dials and a pointer indicating force (no text or symbols visible)

A 1200mm Dial: 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 120

ワールドタイム表示

說明

Hand-drawn analog stopwatch with dial and wrist strap, showing time, seconds, and minute hand signals

調整

時間、分

Diagram of a wristwatch with labeled dial and instrument dial, showing measurement ranges and pointer positions

Top-down diagram of a wristwatch with analog dial and control dial, showing time, speed, and distance measurements.

都市名リング

Line drawing of a wristwatch with a circular dial and wrist strap (no text or symbols)

正午

Line drawing of a wristwatch with no visible text or symbols on the dial (pure technical lines)

真夜中

ムーンフェイズ表示

說明

Line drawing of a wristwatch with dual dials and a small circular dial (no text or symbols)

GEATED FEDERATING (PT) 1)

バイレトロ

說明

Line drawing of a wristwatch with dual dials and a dial (no text or symbols)

C 1)

D GEME OF BEACHU

日付針の設定

Diagram of a wristwatch with labeled parts and directional arrow, showing dial and buttons

曜日設定
