USER MANUAL WVD2000DH Numatic

WV 1500WV 1500
WVD 1500WVD 1500
WV 2000WV 2000
WVD 2000WVD 2000
WV 1500-APWV 1500
WVD 1500-APWVD 1
WV 2000-APV 2000
WVD 200-APWv 2

Numatic

numatic.comnumatic.c

Original Instructions

CAUTION, Read instructions before using the machine.

WV / WVD 2000 WV / WVD 2000 APWV / WVD 2000 DH

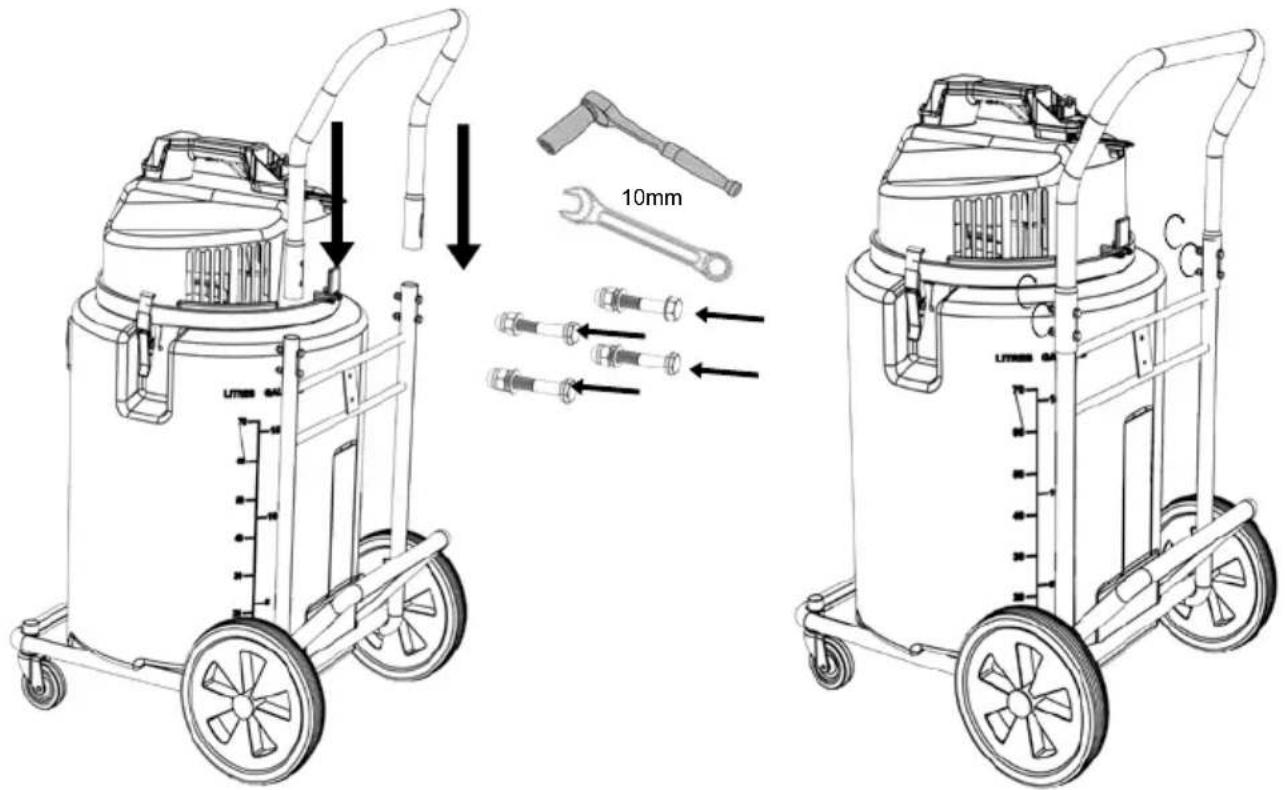

Handle Fitting Instructions - Anbringen des geraden Bügelgriffs - Instructions de montage de la poignée droite - Montage Instructie voor rechte handel - Montar a pega - Gruppo maniglia - Montaje del asa - Montowanie uchwytu - Montera handtag - Työntöaisan kiinnittäminen - Handtagsenhed

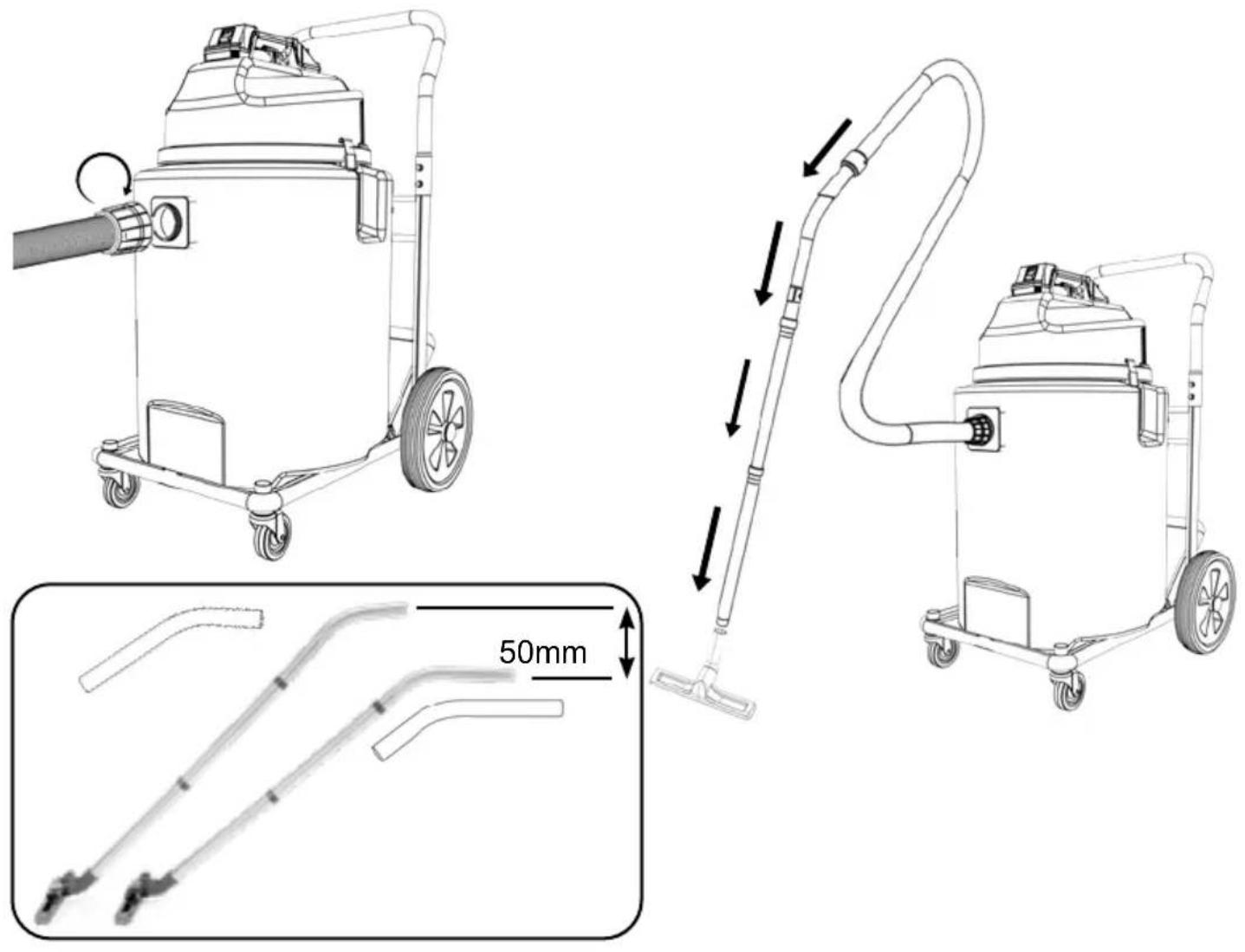

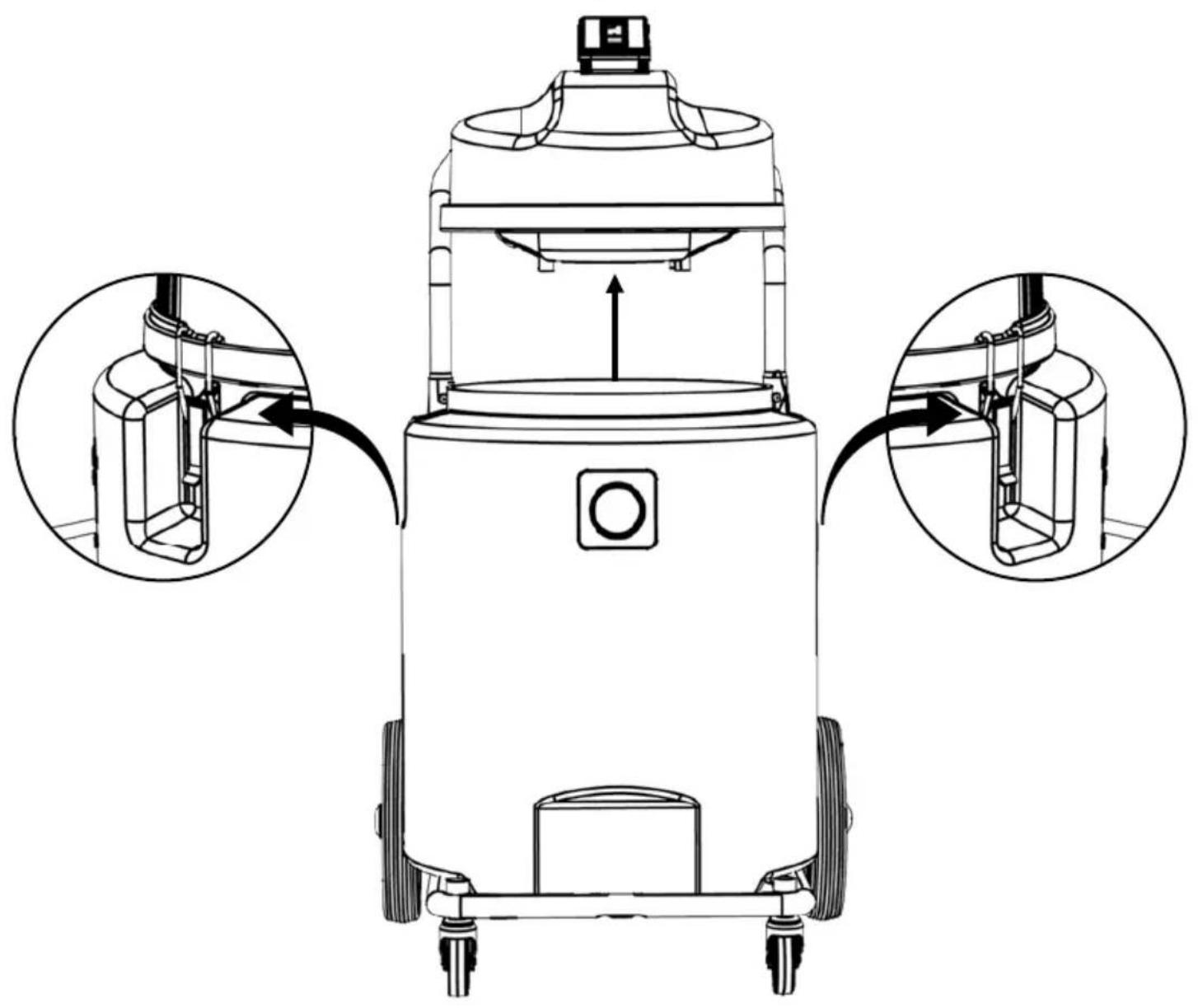

Wet / Assembling the machine for extraction use - Montage der Maschine Montage de la machine - Machine samenstellen / opbouwen - A humido / Montar a这其中 húmido - Umido / Assemblaggio dell'apparecchio per l'uso da umido - HUMEDO: Montaje de la这其中 húmODO - Na mokro / Montaž urzadzenia do uzytku NA MOKRO - Vätt / Montering av maskinen För våtanvändning - Märkä / Koneen käytöönotto MÄRKÄkäytöä varten - Våd / Samling af maskinen til våd brug

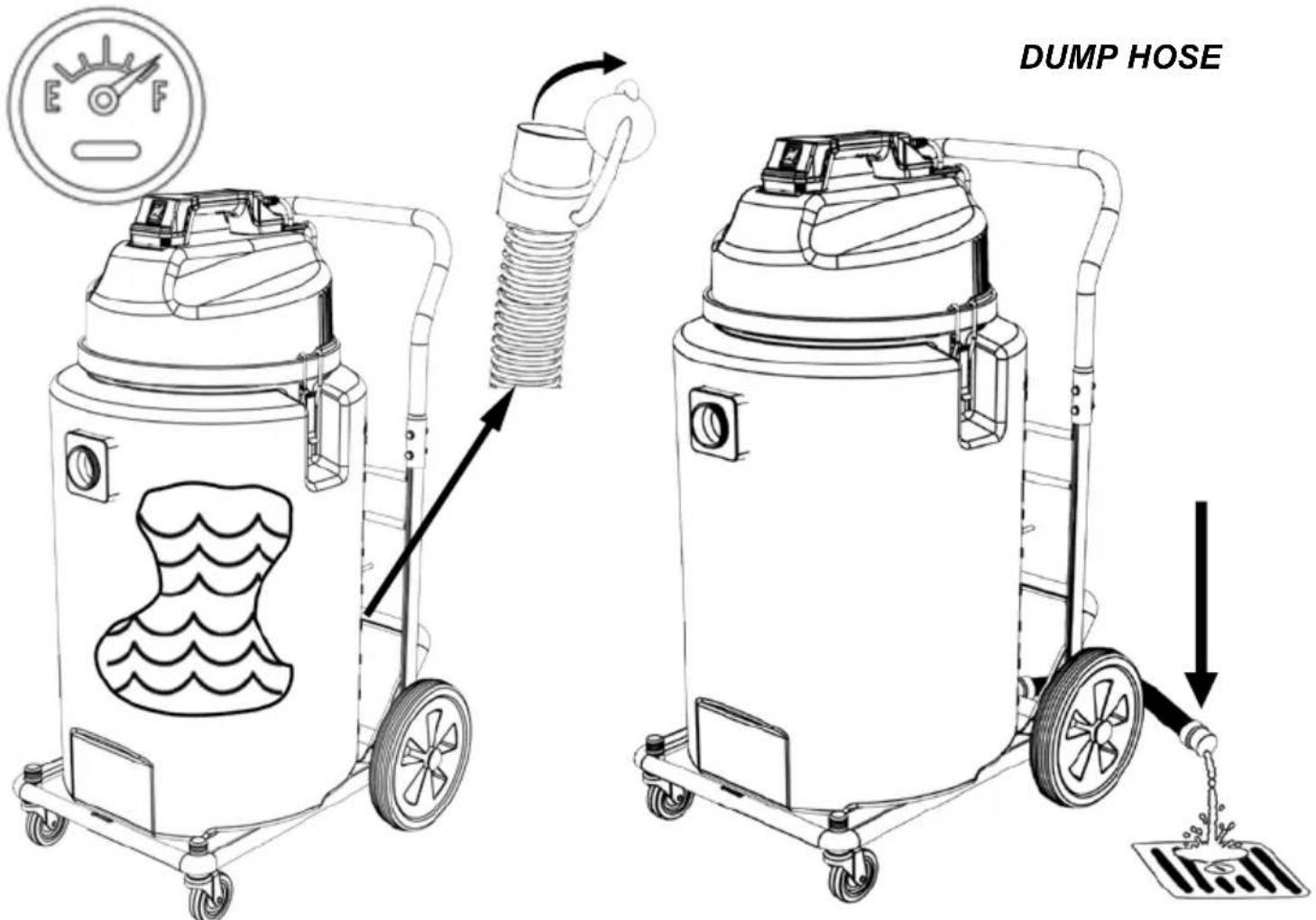

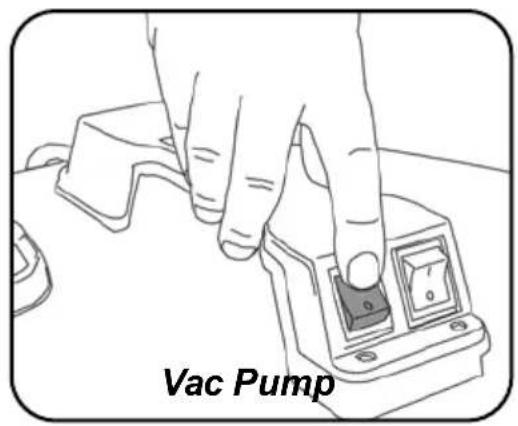

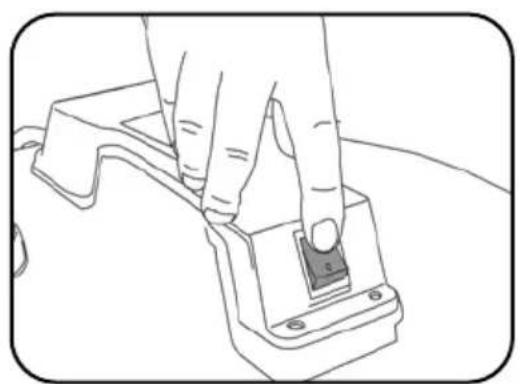

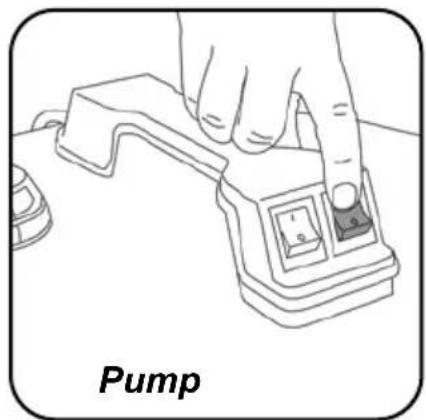

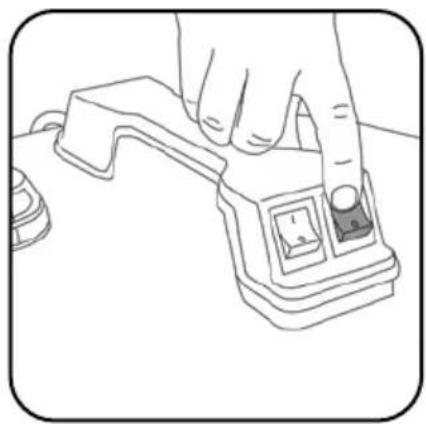

Machine Function - Funktionen des Geräts - Fonction de la machine - Machine Functies - functão da máquina - Funzione macchina - Funcion de la máquina - Funkcja maszyny - Maskinfunktion - Koneen toiminto - Maskinens fonction

WV1500AP

WVD 1500AP

WV 2000AP

WVD 2000AP

WV 1500

WV 1500DH

WVD 1500

WVD 1500DH

WV 2000

WV 2000DH

WVD 2000Vac

WVD 2000DH

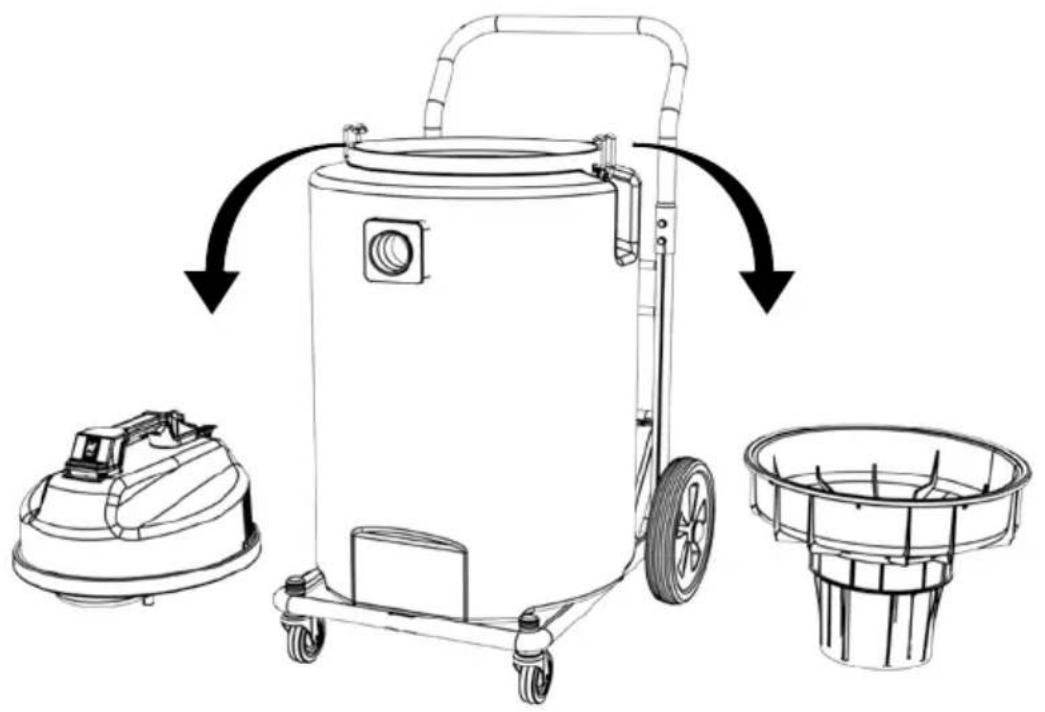

Cleaning the machine - Reinigung der Maschine - Nettoyage de la machine - De machine reinigen - Limpeza daquina - Pulizia apparecchio - Limpieza de laquina - Czyszczenie maszyny - Rengora maskinen - Koneen puhdistus - Rengoring af maskinen

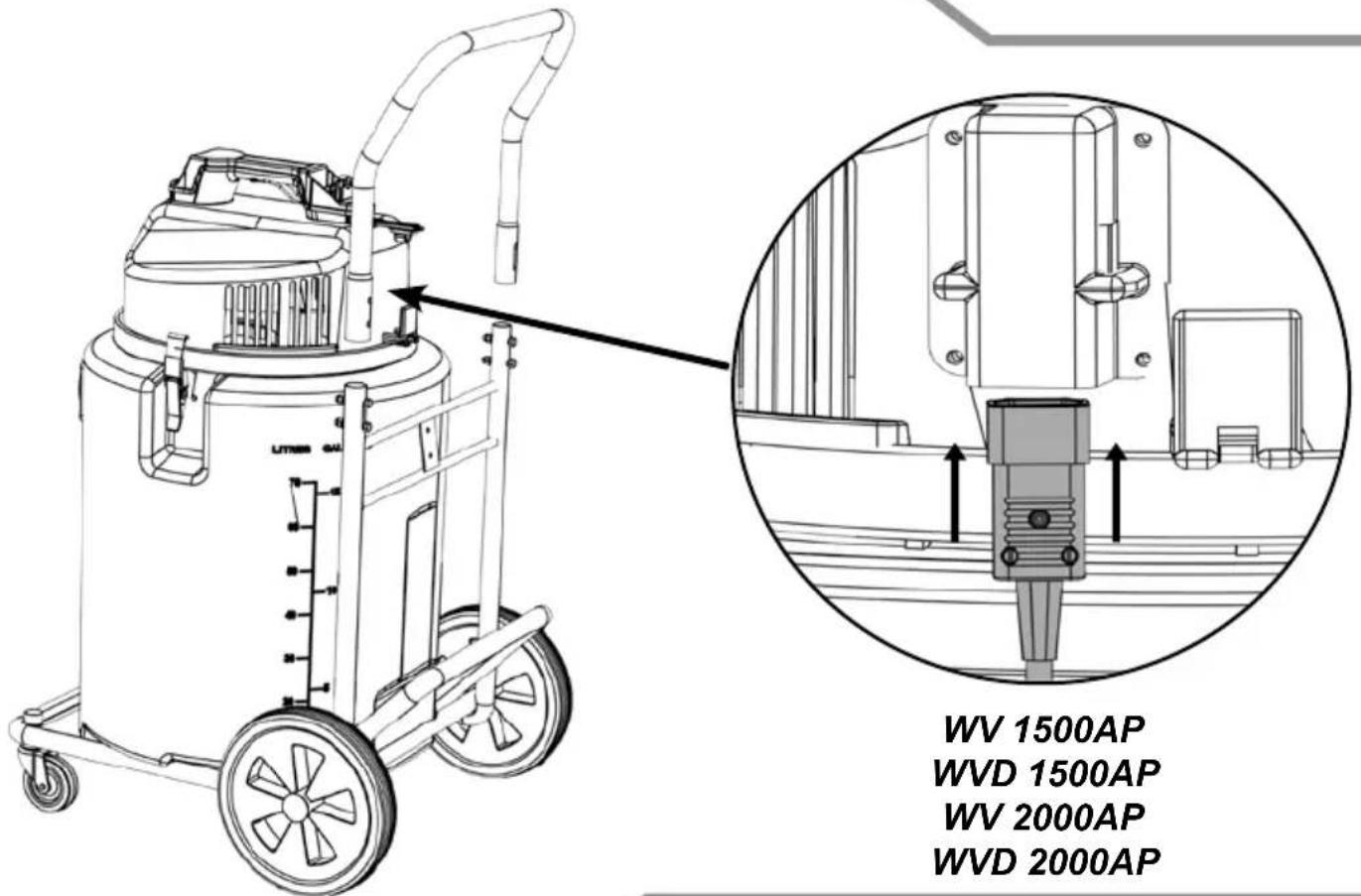

AUTO PUMP

WV 1500AP

WVD 1500AP

WV 2000AP

WVD 2000AP

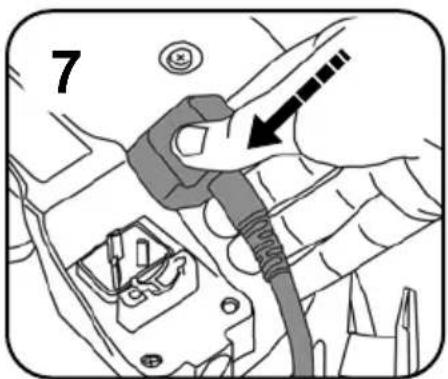

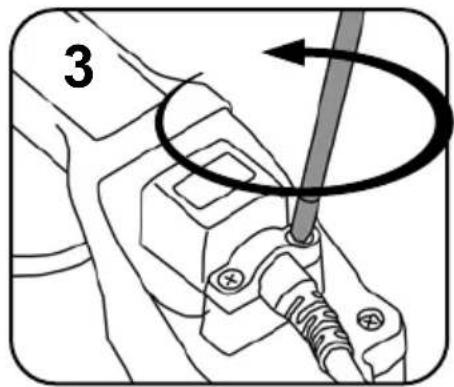

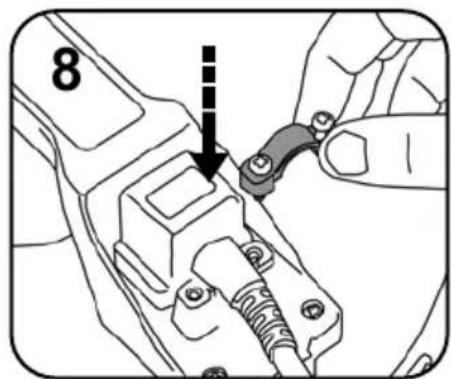

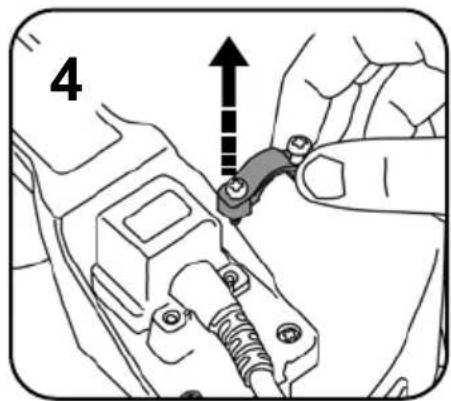

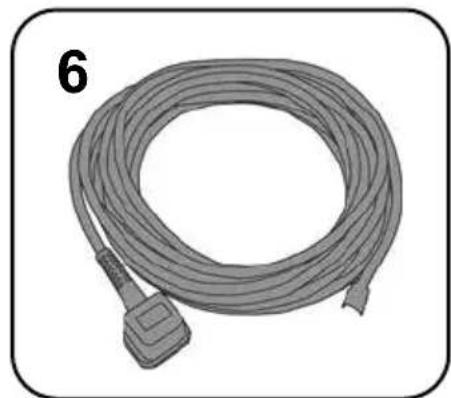

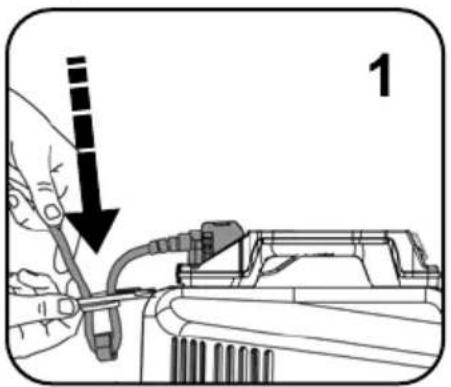

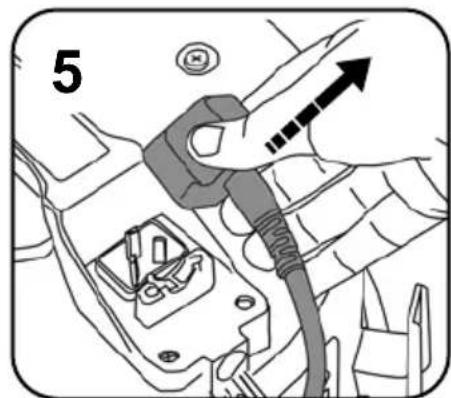

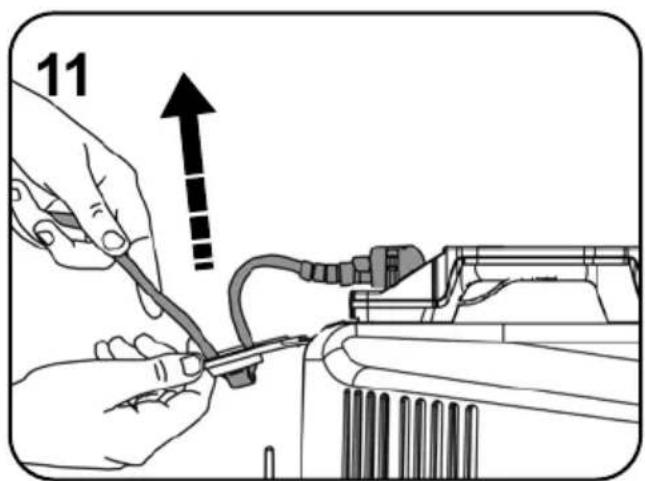

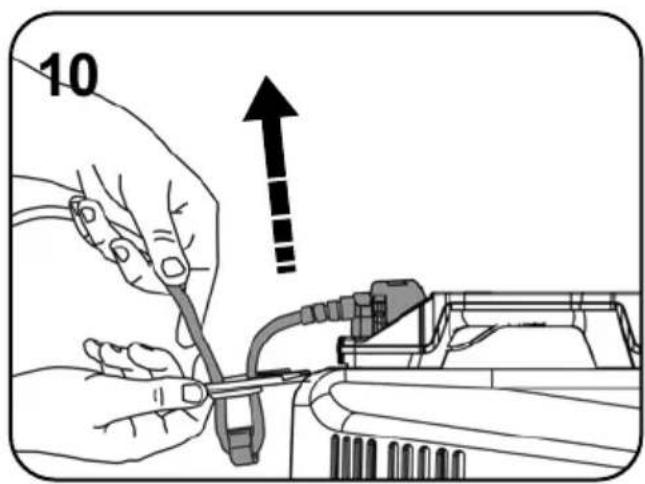

Changing / Replacing Cable - Auswechseln des Kabels - Changement/Remplacement du cable - Vervangen van de kabel - Mudar/substituir cabo - Cambio/sostituzione del cavo - Cambio del cable - Zmiana / Wymiana kabla - Wymiana kabla - Byta sladd - Kaapelin vaihtaminen - Udskiftning af kabel

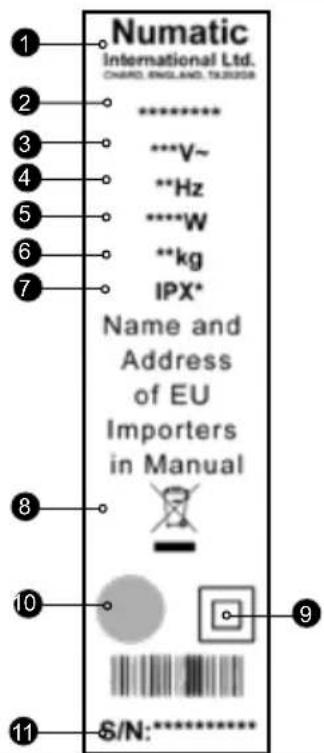

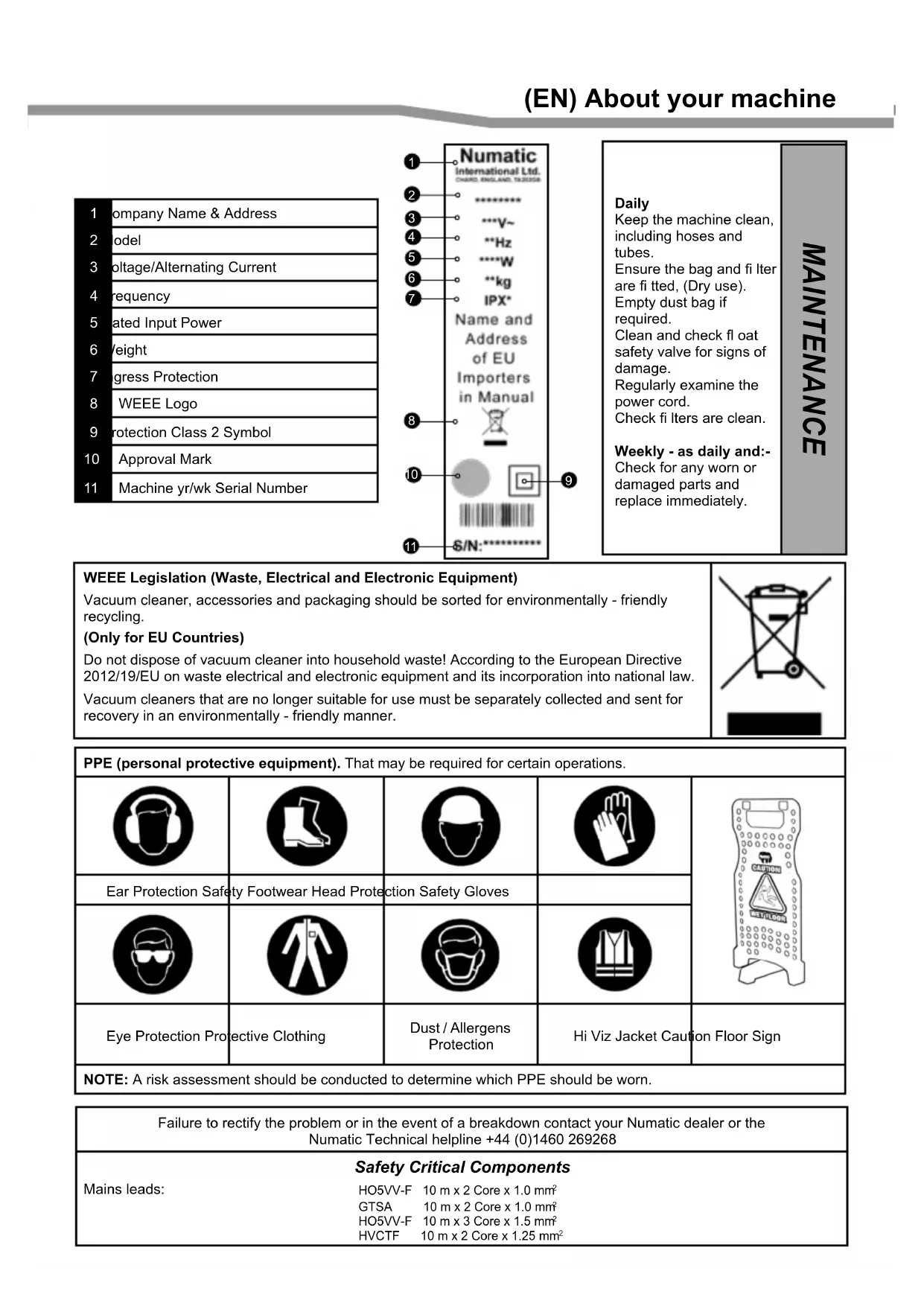

1	company Name & Address
2	odel
3	Voltage/Alternating Current
4	frequency
5	rated Input Power
6	/eight
7	gress Protection
8	WEEE Logo
9	rotection Class 2 Symbol
10	Approval Mark
11	Machine yr/wk Serial Number

Daily

Keep the machine clean, including hoses and tubes.

Ensure the bag and fi iter are fitted, (Dry use).

Empty dust bag if required.

Clean and check fl oat safety valve for signs of damage.

Regularly examine the power cord.

Check fi Iters are clean.

Weekly - as daily and:

Check for any worn or damaged parts and replace immediately.

MAINTENANCE

WEEE Legislation (Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law. Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

PPE (personal protective equipment). That may be required for certain operations.

Ear Protection Safety Footwear Head Protection Safety Gloves
Eye Protection Protective Clothing		Dust / Allergens Protection	Hi Viz Jacket Caution Floor Sign
NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]
Safety Critical Components
Mains leads:	HO5VV-F 10 m x 2 Core x 1.0 mm²
	GTSA 10 m x 2 Core x 1.0 mm²
	HO5VV-F 10 m x 3 Core x 1.5 mm²
	HVCTF 10 m x 2 Core x 1.25 mm²

Warning

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use,

in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

The machine shall be disconnected from the mains power by removing the plug from the power supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.

Children being supervised are NOT to play with the machine.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not a toy.

This machine is not suitable for picking up hazardous or explosive dust. Contact your local distributor if you require a machine capable of performing these tasks.

Caution

If foam/liquid comes out of machine exhaust, switch off immediately.

Allow the accumulated liquid to drain out through the machine exhaust, check the float assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine.

Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will be quickly discharged after which the machine should function normally.

Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

Ensure that the filtration system fitted to the machine is suitable for the material being collected.

This machine is for indoor use only.

This machine shall be stored indoors only.

When moving from one place to another, consider the weight of the machine.

Notes

You must ensure that the filtration system fitted to the machine is suitable for the material being collected.

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.

If the vacuum cleaner stops working, remove the plug from the power supply before investigating where the fault lies.

The vacuum cleaner should be inspected after use for damage.

The power light will illuminate, when your machine is connected to a suitable power supply (where fi tted).

Do

Use a bag and fi Iter at all times when using 'dry'.
- Keep your machine clean.
- Keep filters clean.
Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation.
- Keep hoses and tubes clear.
- Replace any worn or damaged parts immediately.
Regularly examine the power cord, if damage is found, the power cord must be replaced by a special cord available from Numatic or its service agents.

Don't

Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
Immerse in water for cleaning.
- Allow any inexperienced repairs. Call the experts.
Use wet if float valve is not functioning or fitted.
Use to suck up hot ashes, or lighted cigarette ends.
- Run the machine over the power cable during operation as a hazard may occur.
Pull on the cable to unplug the machine from the power supply.
- Walk over-wet carpets, upholstery or fabrics.
- Walk on clean carpets until fully dry.
- Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.

Dry Mode maintenance/fault finding

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies. If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug from the wall, inspect the floor tool, wands and hose for blockages, if no blockages are found, the dust bag may be full if the dust bag is not full the fiiter may be blocked.

Wet mode

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies. If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the wall, has the fl oat valve operated, this will shut off the suction and the pitch of the vacuum motor will change. Remove the power head and empty the liquid out of the container, if the container is empty, check that the floor tool wands and hose are not blocked. Flush the system with clean water after use. After use always inspect the machine for damage.

1	company Name & Address
2	odel
3	Voltage/Alternating Current
4	Frequency
5	rated Input Power
6	/eight
7	gress Protection
8	WEEE Logo
9	rotection Class 2 Symbol
10	Approval Mark
11	Machine yr/wk Serial Number

Päivittäin

You must ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offi ces. If the vacuum cleaner stops working, remove the plug from the power supply before investigating where the fault lies.

The vacuum cleaner should be inspected after use for damage.

The power light will illuminate, when your machine is connected to a suitable power supply (where fi tted).

OIKEIN

Signed: Date: 2ndFebruary 2024

Position: Head of Technology

Numatic International Limited

Chard,

nd February 2024 Somerset, TA20 2GB, UK
