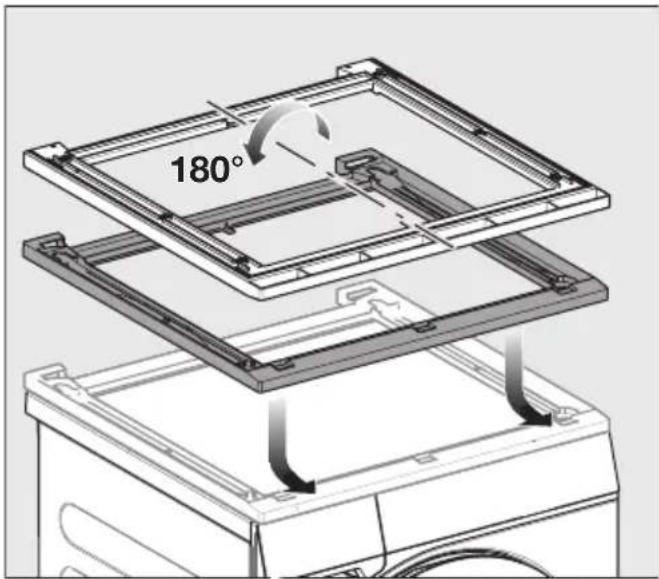

I OndpaBHeTe KOMnJIeKTa 3a Cbbp3Ba-He OTnBAO,OTdACHO N OTnpEi, HapaB-Ho c nepaHra.

ФИКСИРаTe ПОДравнЯ KOMПЛeKT 3a CBbp3BaHe CbC caMOЗаJIeNBaUca ЛЕНТа ВьрXY KaNaka

3aKpenBaHe Ha KOMnIeKTa 3a CBbp3BaHe

3a 3akpeBaNHeTo n3noJ3BaIte npNIOXKeHnTe 6 BnHTa CbC cKpNTa rnaBa.

3aBnHTeTe 3dpaBO KOMJIeKTa 3a CBbp3BaHe BHNMaTeJHo Ha pbKa Bbp-xy KaNaKa Ha nepaHra. Pn TOBa He npEbPtaTe BNHTOBeTe.

IodrotOBka Ha cyuHnHa

3aBbptTeYeTnpTe KpaKa Ha cyuHn-HraTa.

MONTAX Ha cywnHra Ta Bbpxy KOMPJIeKta 3a Cbbp3BaHe Ha nepaHn n cyuHn

IocTaBHe Ha cyuHnHa Ta Bbpy nepaHnHaTa

3a Ta3n CTbPkCa ca Heo6xOdImn DBaMa dYsIn.

IIOBdHHeTe cyuHnHaTa nHaKNoHeTe JeKO Ha3aI npI NoCTaBnHETo.

1 Ibpo NoctaBeTe 3aHnTe KpaKa B KOMJIeKta 3a CbP3BaHe n rN n36y-TaIte n3uJIo Ha3aJ.
CneiTOBa nocTaBeTe npeHnTe KpaKa.

KpaKaTa Ha cyuHnHaTcToT cTa6nHOB KOMnKeTAt 3a Cbbp3BaHe.

Демонох Ha komплекта 3a CBbp3BaHe Ha nepaJIни cy-ш无聊ня

Korato KOMnIeKtBt 3a Cbbp3BaHe Ha nepaJIHn I cyuINJHr Ce DeMOHTnpa, B KaNaKa Ha nepaJIHrTa OCTaBAT OTBOpN.

Iopadn OTBOpNTe B Kanaka nepaJIHraTa Beue He exepMeTnUHa. IepaJIHra Ta He Tp6Ba Da ce n3NoJ3Ba NOBeue.

Bb3MOxHocTn 3a 3aTBapRHe Ha OTBOpNTe:

1. 3aTBOpTe OTBOpTe cbc cnJINKOH.
2. Bb3nojKeTe MOHTaJa Ha HOB KaNaK Ha CneUHaJIInCTn.

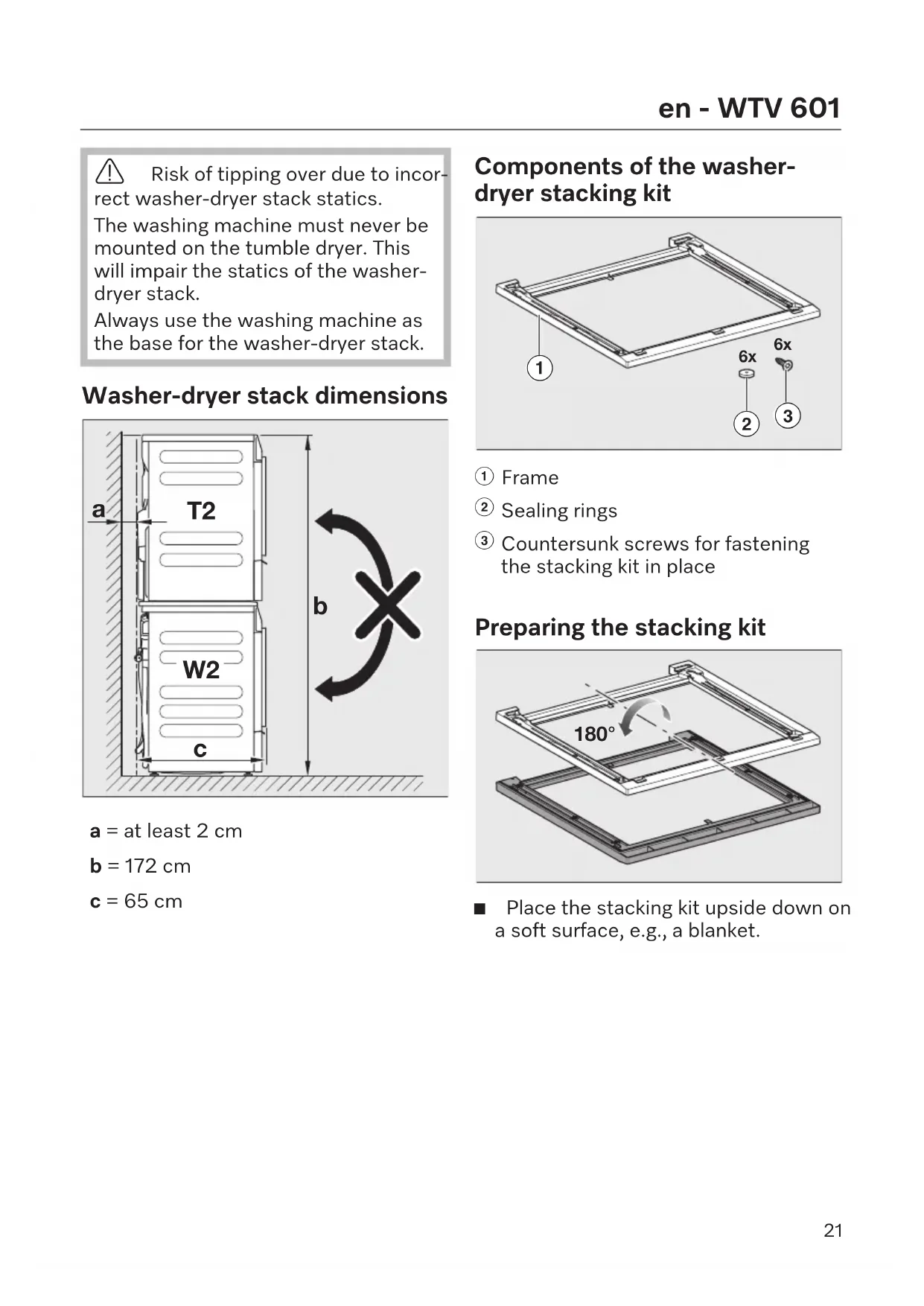

Risk of tipping over due to incorrect washer-dryer stack statics.

The washing machine must never be mounted on the tumble dryer. This will impair the statics of the washer-dryer stack.

Always use the washing machine as the base for the washer-dryer stack.

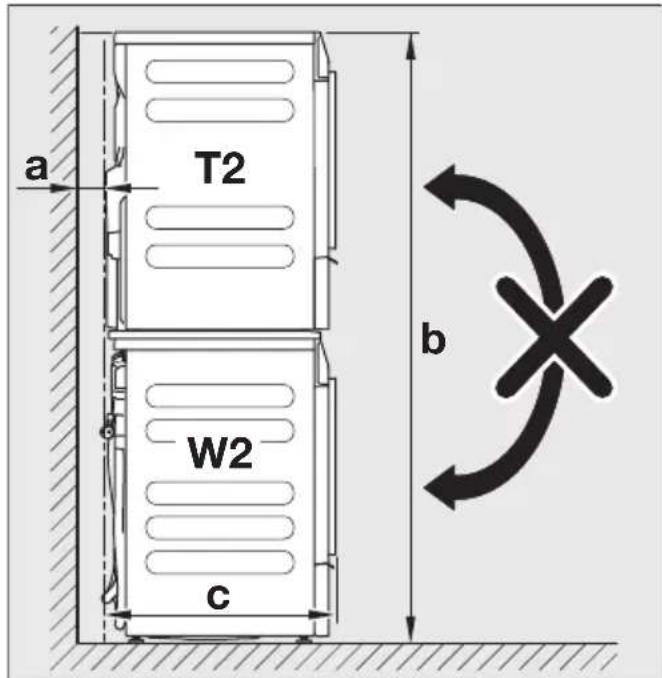

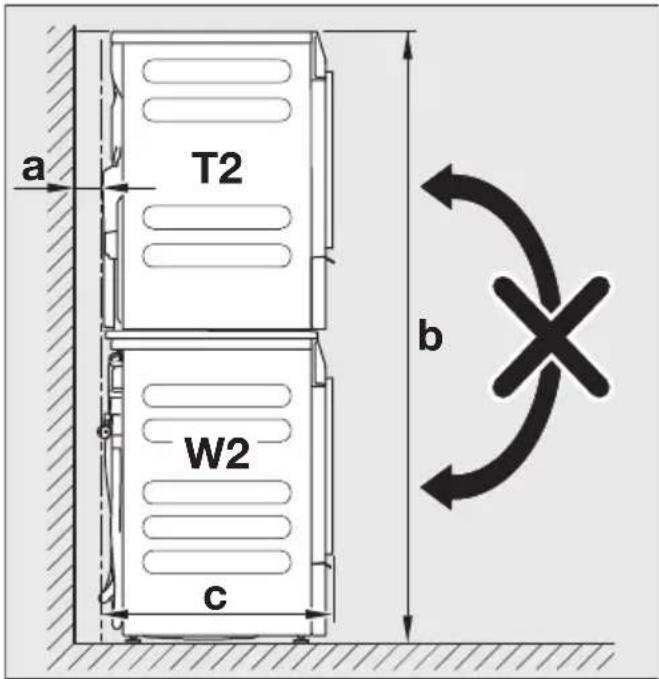

Washer-dryer stack dimensions

a = at least 2cm

b = 172cm

c = 65 ~cm

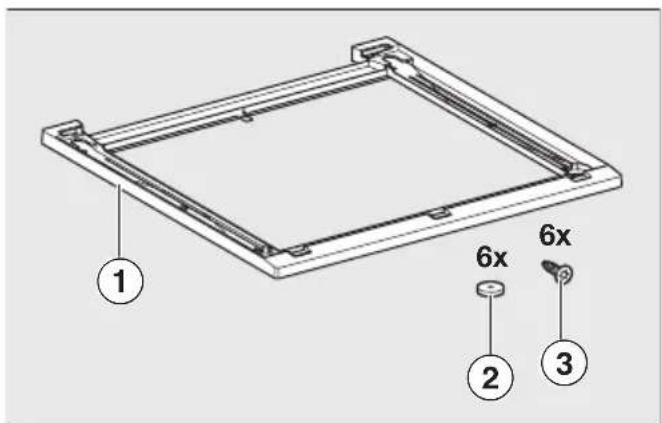

Components of the washer-dryer stacking kit

① Frame
② Sealing rings
③ Countersunk screws for fastening the stacking kit in place

Preparing the stacking kit

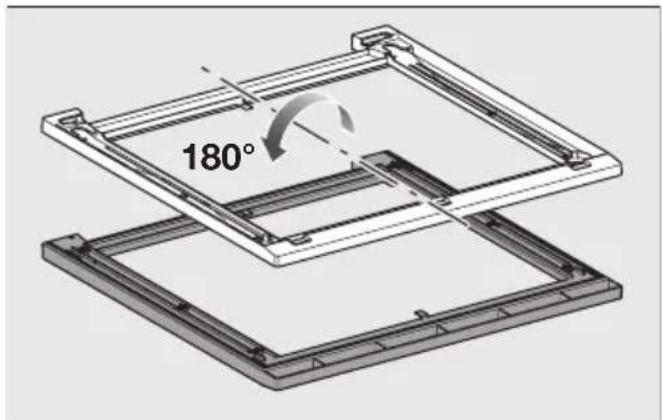

Place the stacking kit upside down on a soft surface, e.g., a blanket.

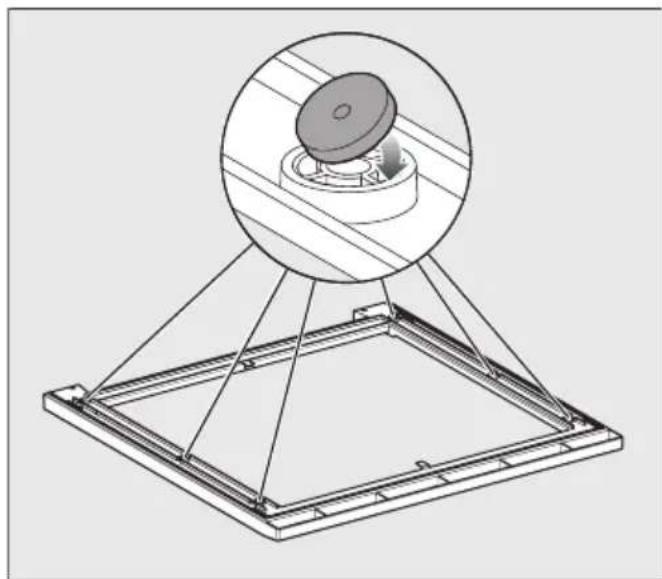

Stick the 6 sealing rings to the underside of the stacking kit.

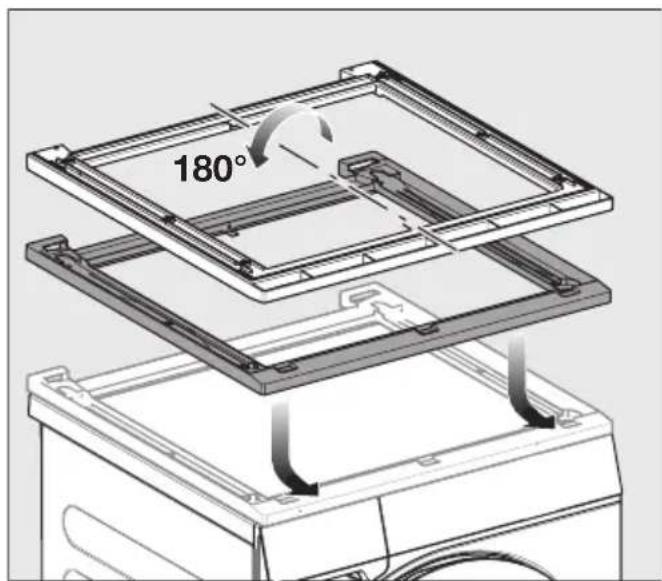

Turn the stacking kit the right way up and place it on the washing machine lid.

Aligning the stacking kit

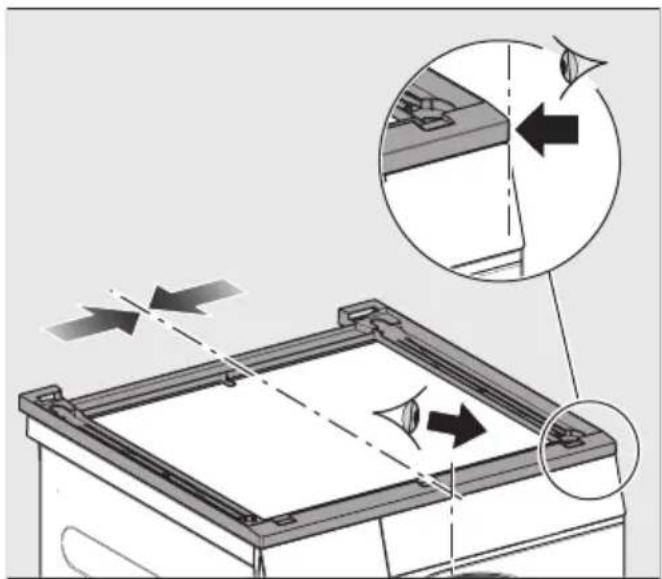

Align the stacking kit flush with the washing machine on the left and right and at the front.

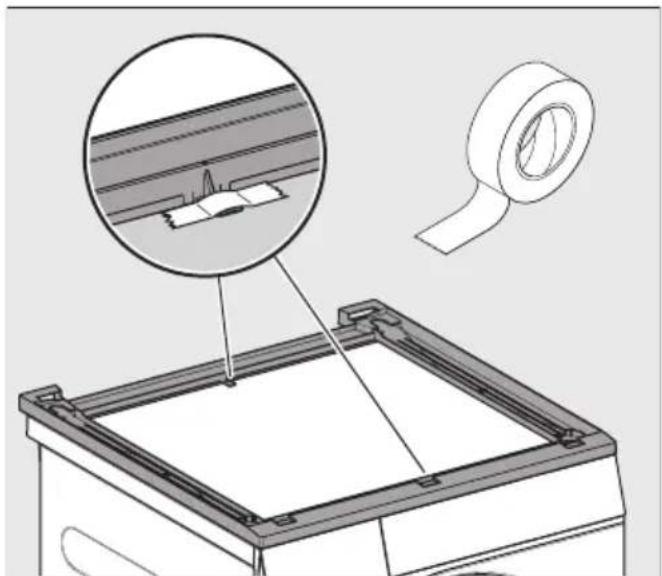

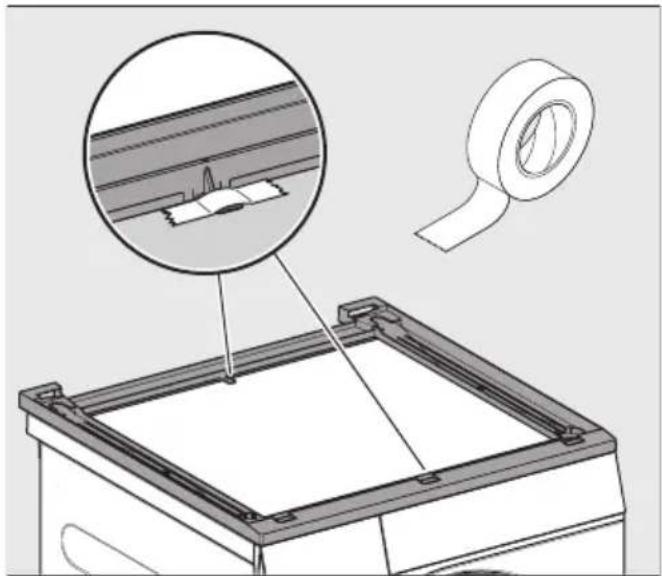

Fix the aligned stacking kit to the lid with adhesive tape.

Fastening the stacking kit in place

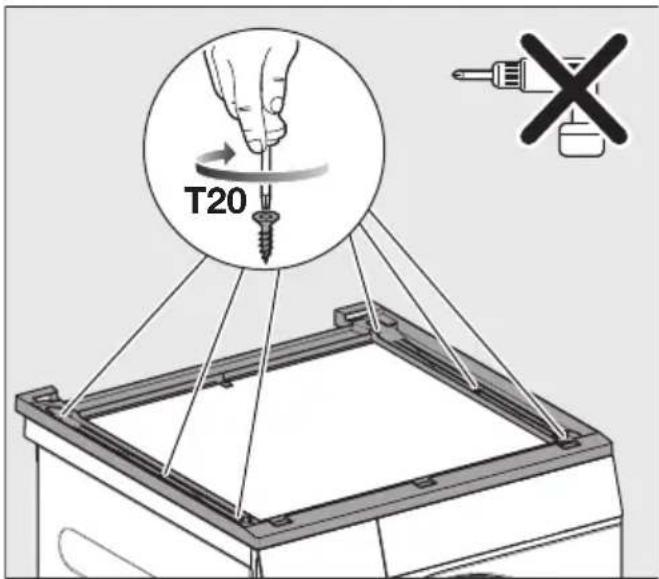

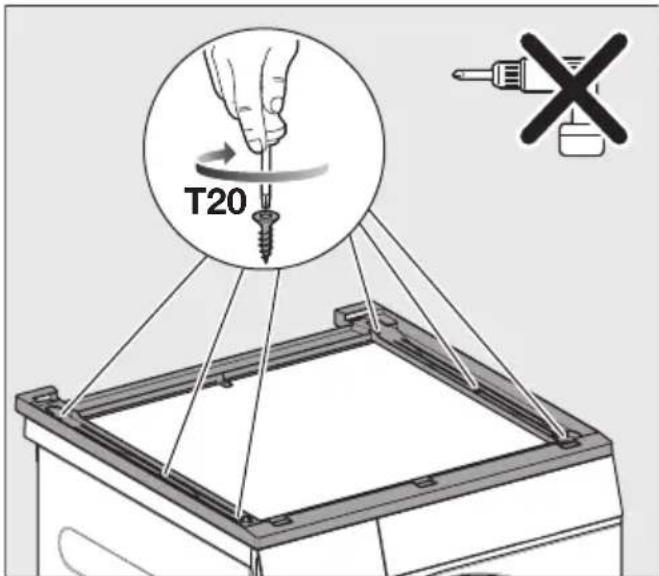

Use the 6 countersunk screws included with the delivery to fasten the stacking kit in place.

Carefully screw the stacking kit onto the washing machine lid by hand. Do not overtighten the screws.

Preparing the tumble dryer

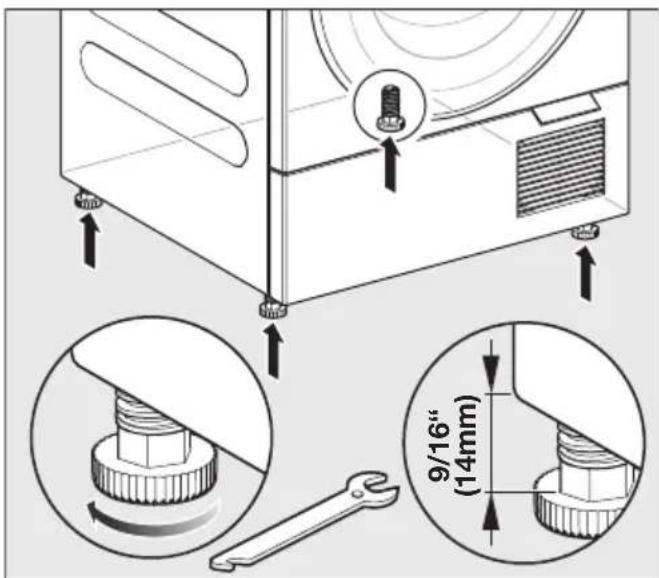

Unscrew the 4 tumble dryer feet.

Mounting the tumble dryer on the washer-dryer stacking kit

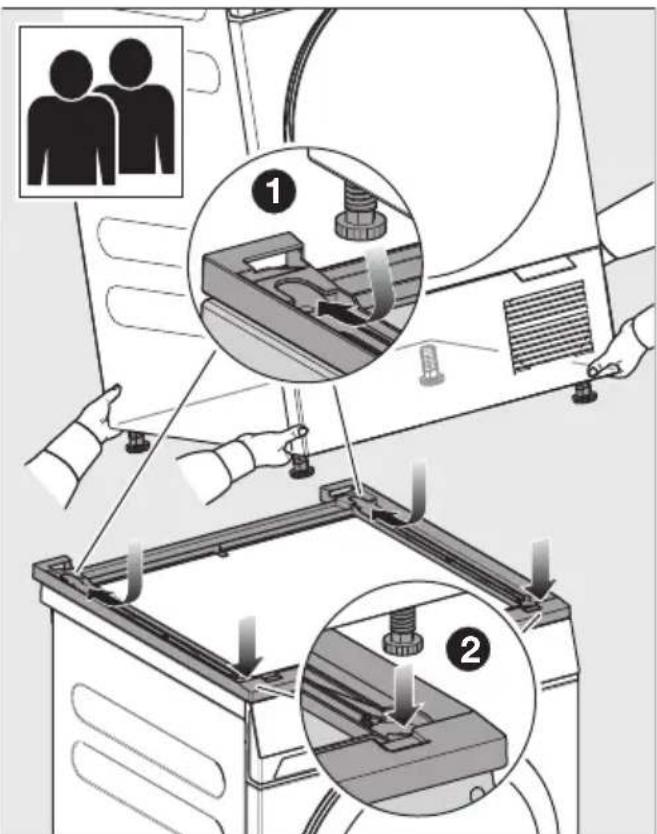

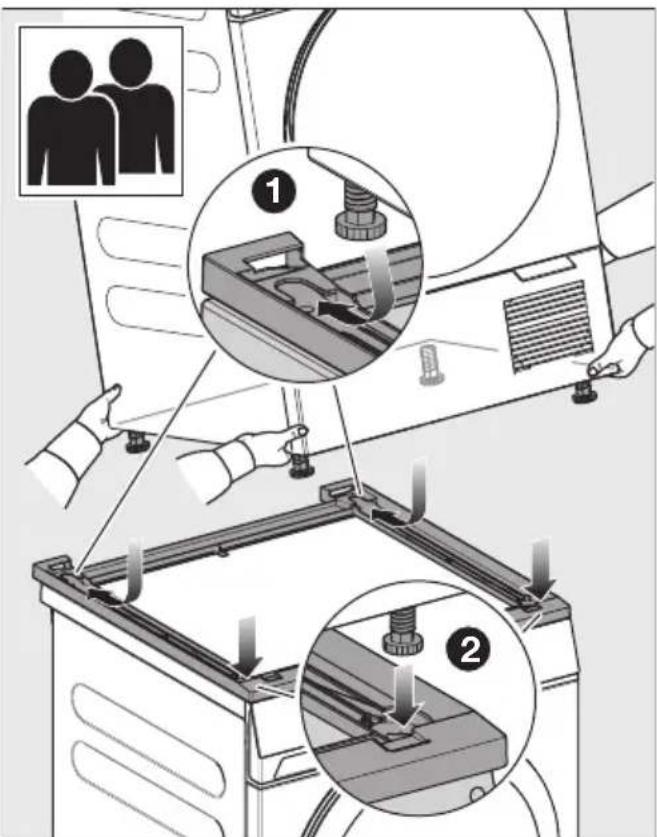

Placing the tumble dryer on the washing machine

This step must be carried out by 2 people.

• Lift the tumble dryer and tilt it back slightly for installation.

Place the rear feet in the stacking kit first and push them all the way back.
Then set down the front feet.

The tumble dryer feet are positioned securely in the stacking kit.

Removing the washer-dryer stacking kit

When the washer-dryer stacking kit is removed, holes remain in the lid of the washing machine. The holes in the lid mean that the washing machine is no longer leak-proof. The washing machine must not be operated.

Options for sealing the holes:

1. Seal the holes with silicone.
2. Have a new lid fitted by a professional.
