Product Type	Stroller
Brand	Ingenuity
Model	3Dmini
Category	Lightweight and compact stroller
Maximum child weight	20.4 kg (45 lb)
Maximum child height	109 cm (43 in)
Maximum storage basket weight	4.5 kg (10 lb)
Maximum compartment weight (pocket, cup holder)	0.45 kg (1 lb) each
Recommended age	From 6 months to approximately 3 years
Harness type	5-point safety harness
Seat recline	Adjustable by pinch and strap at back
Canopy	Removable, attached by buttons and straps
Brake	Rear brake with lever, front brake with lock
Fold	Compact with fold lock
Power	None (manual stroller)
Care and cleaning	Fabric: cold water and mild soap; plastic/metal: soft damp cloth; do not use abrasive cleaners or bleach
Weekly check	Harness, straps, and frame attachment
Technical service number	1-401-671-6551
Assembly	By an adult, no tools required

Frequently Asked Questions - 3Dmini Ingenuity

What is the maximum weight capacity of the Ingenuity 3Dmini stroller?

The maximum child weight is 20.4 kg (45 lb) and maximum height is 109 cm (43 in).

How to fold the 3Dmini stroller?

First, fold the canopy. Remove the locking tab and push the bar upward. Then, fold the stroller down until the fold lock engages.

How to adjust the seat recline?

Squeeze the recline pinch located at the back of the stroller, then pull or push the strap to adjust the seat recline.

How to properly use the safety harness?

The harness is a 5-point system. Adjust the shoulder straps by removing them from the slots and inserting them at the desired position. Pull one strap lightly backward to ensure a secure fit. Always buckle the harness when the child is in the stroller.

Can I carry another child or heavy objects in the stroller?

No, never carry another child in the stroller or in the storage basket. Do not hang items from the handle or canopy to avoid tipping.

How to unlock the front wheels?

For the front wheels, lift the locking device to release it from the frame, then lift the stroller to unfold it.

What is the maximum weight of the storage basket?

The storage basket can hold up to 4.5 kg (10 lb). Do not overload it to prevent tipping.

How to maintain the 3Dmini stroller?

Clean stains on the fabric with cold water and mild soap. Clean plastic or metal surfaces with a soft damp cloth. Do not use abrasive cleaners or bleach. Check weekly that the harness and straps are securely fastened.

Is it safe to take the stroller on an escalator?

No, never carry or roll the stroller on a staircase or escalator with a child in it.

What to do if parts are missing or damaged?

Do not use the stroller if parts are damaged or missing. Contact technical service at 1-401-671-6551 for assistance.

USER MANUAL 3Dmini Ingenuity

Please read the following instructions carefully.

Keep this instruction manual for future reference.

No tools required.

For technical support, contact us at 1-401-671-6551 or

www.ingenuitybaby.com/contact

Keep small parts away from children.

WARNING

Adult assembly required.

Exercise care when unpacking

and assembling product.

3Dmini

Convenience Stroller

INSTRUCTION MANUAL

WARNING

• Read and follow all warnings and instructions. Failure to do so could result in serious injury or death.
  Maximum weight and height of child: 45 lbs. (20.4 kg), 43 in. (109cm)
  NEVER leave child unattended.
• Avoid serious injury from falling or sliding out. ALWAYS use restraint system.
• To avoid injury ensure that the child is kept away when unfolding and folding this product.
• When making adjustments to the product ALWAYS ENSURE that all parts of a child's body are clear of any moving parts of the product.
• Care must be taken when folding and unfolding the product to prevent finger entrapment.
• DO NOT carry additional children, goods or accessories in or on this product except as recommended in the manufacturer's instructions.
• TO AVOID INJURY TO YOUR CHILD, DO NOT USE STORAGE BASKET AS A CHILD CARRIER.
• DO NOT hang items on handle bar or place them on the canopy, as they can tip stroller over and injure child.
• This product may become unstable if a parcel bag, other than the one recommended is used.
  DO NOT OVERLOAD STORAGE BASKET. MAXIMUM 10 lbs. (4,5kg)
• DO NOT overload the storage pocket and cup holder maximum 1lb. each (0.45kg). Excessive weight may cause the stroller to become unstable or tip over.
• DO NOT place hot liquids in the cup holder. Spills can burn your child.
• Do not carry or roll stroller on stairs or escalators with child in it.
• Do not use the stroller if any part is lost or damaged.

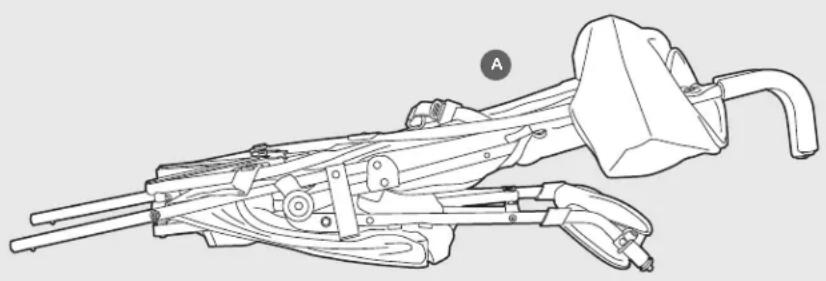

components:

A Stroller frame with seat and storage basket
Canopy

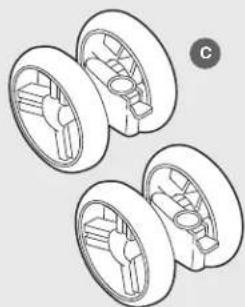

2 front wheel assemblies
D 2 rear wheel assemblies

IMPORTANT! Before assembly, inspect this product for damaged hardware, loose joints or missing parts. Never use if any parts are missing or broken.

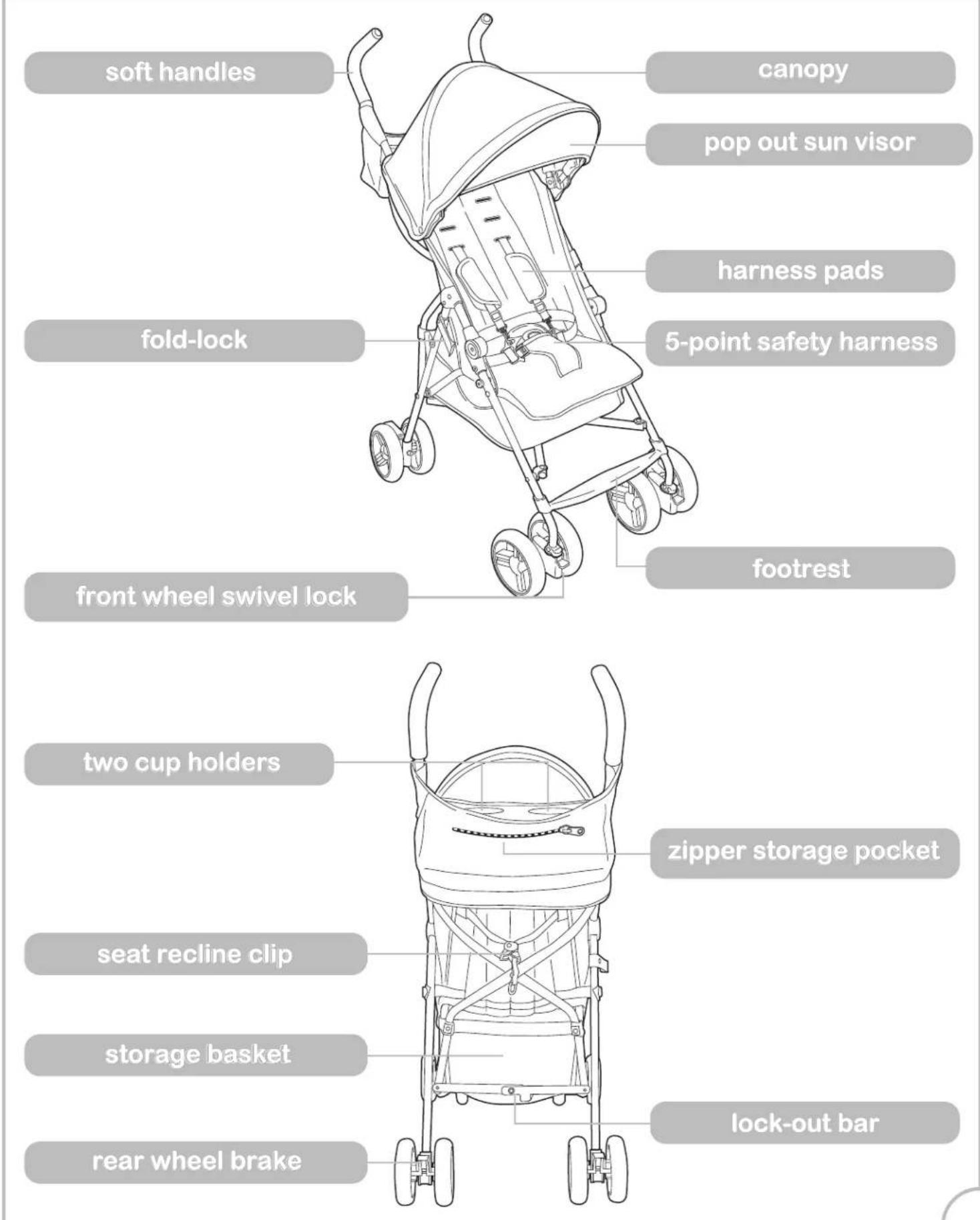

features:

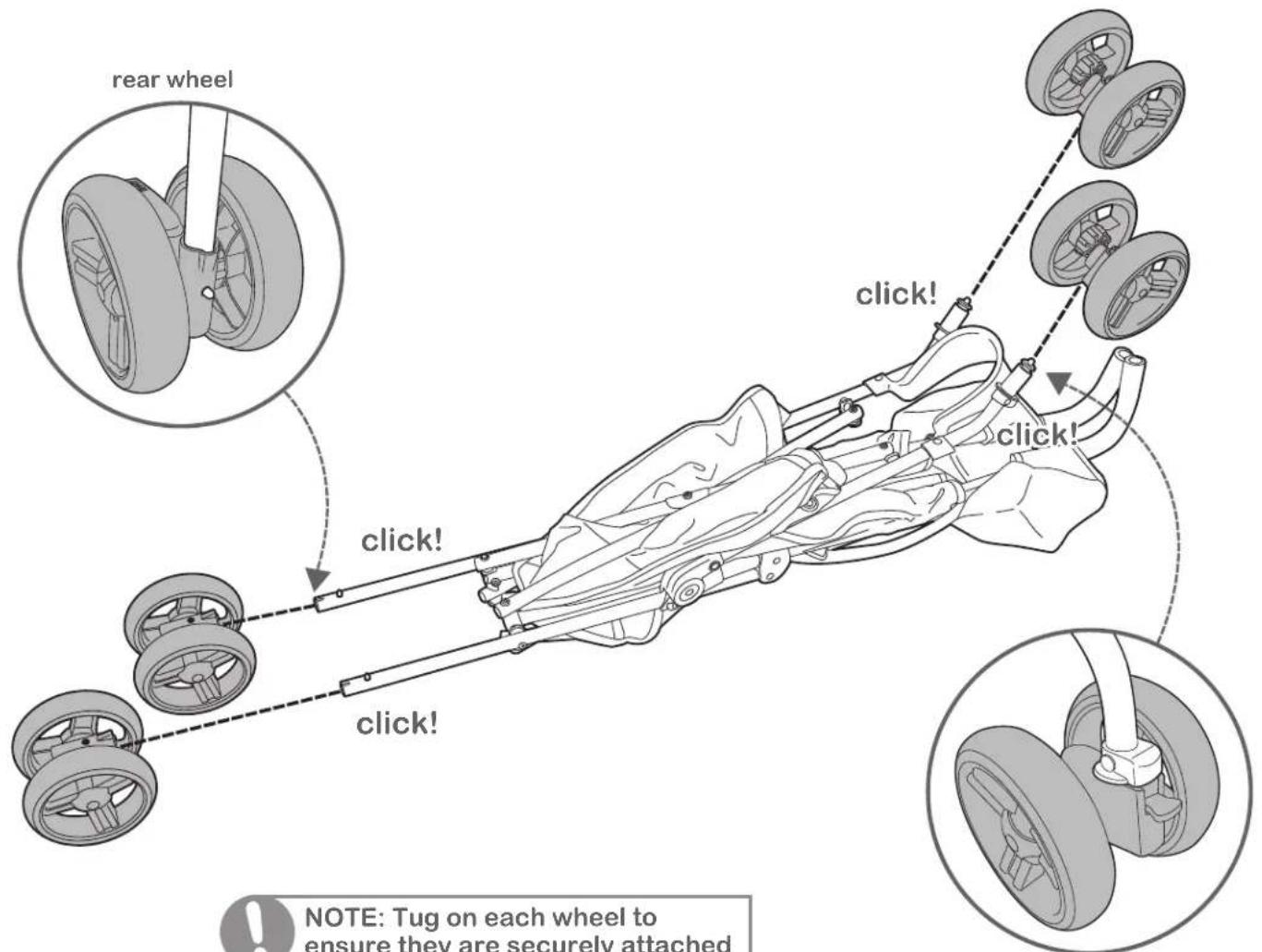

assembly instructions:

Align rear wheels to rear legs and push onto fame. Align front wheels to front legs and push onto fame.

front wheel

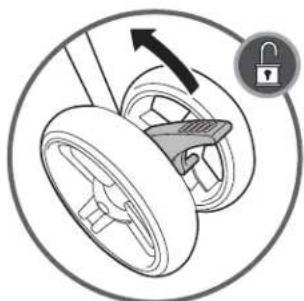

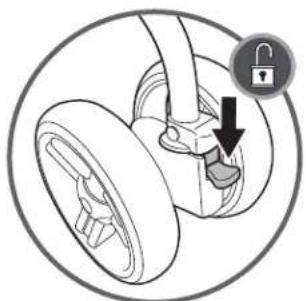

locking & unlocking the wheels:

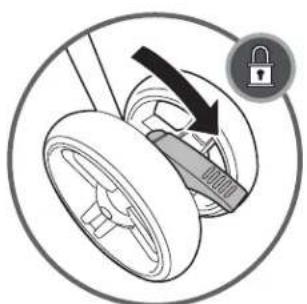

rear wheels - brake
Press lever down to lock brake

brake

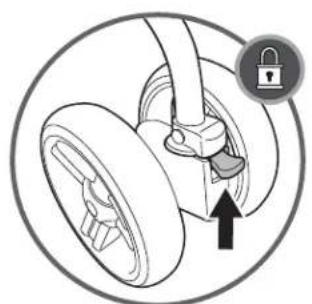

front wheels

Push up to lock swivel Press down to unlock swivelPush lever up

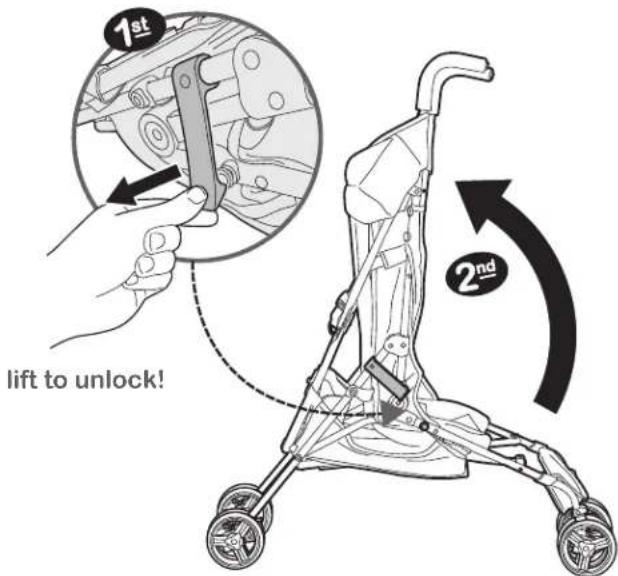

First, lift up fold-lock to release. Second, lift stroller up to unfold.

NOTE: When opening the stroller, ensure that your child, or other children, are at a safe distance.

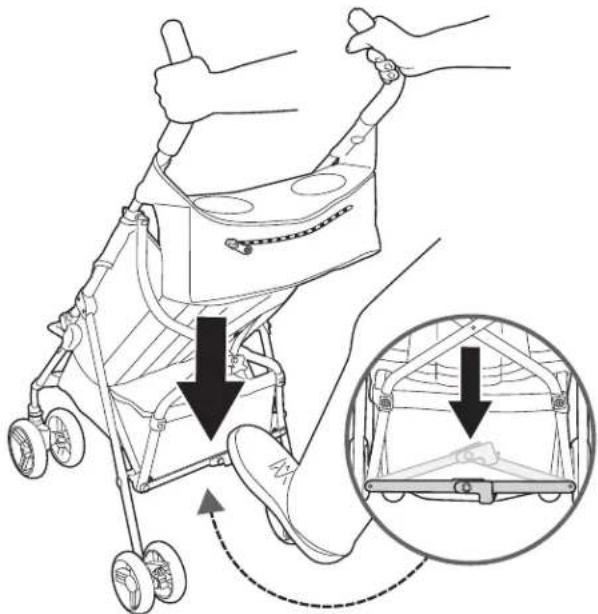

Press the lock bar down with your foot.

NOTE: Before use, ensure that the stroller locking mechanism is secured.

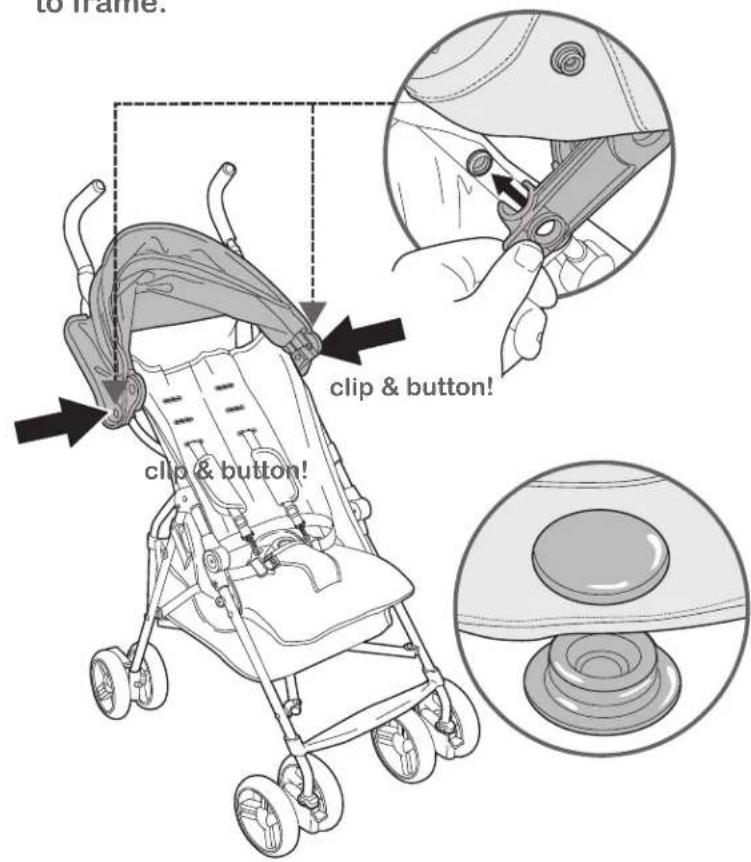

assembly instructions (continued):

Slide buttons on stroller rails through holes in canopy clamps and clip to frame. Button canopy to frame.

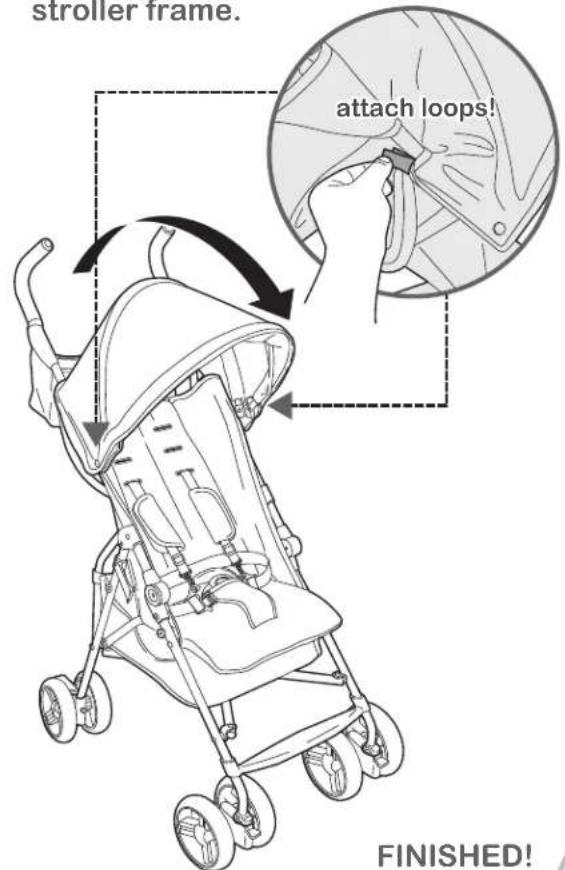

Extend canopy. Attach the loops on both sides of the canopy to the stroller frame.

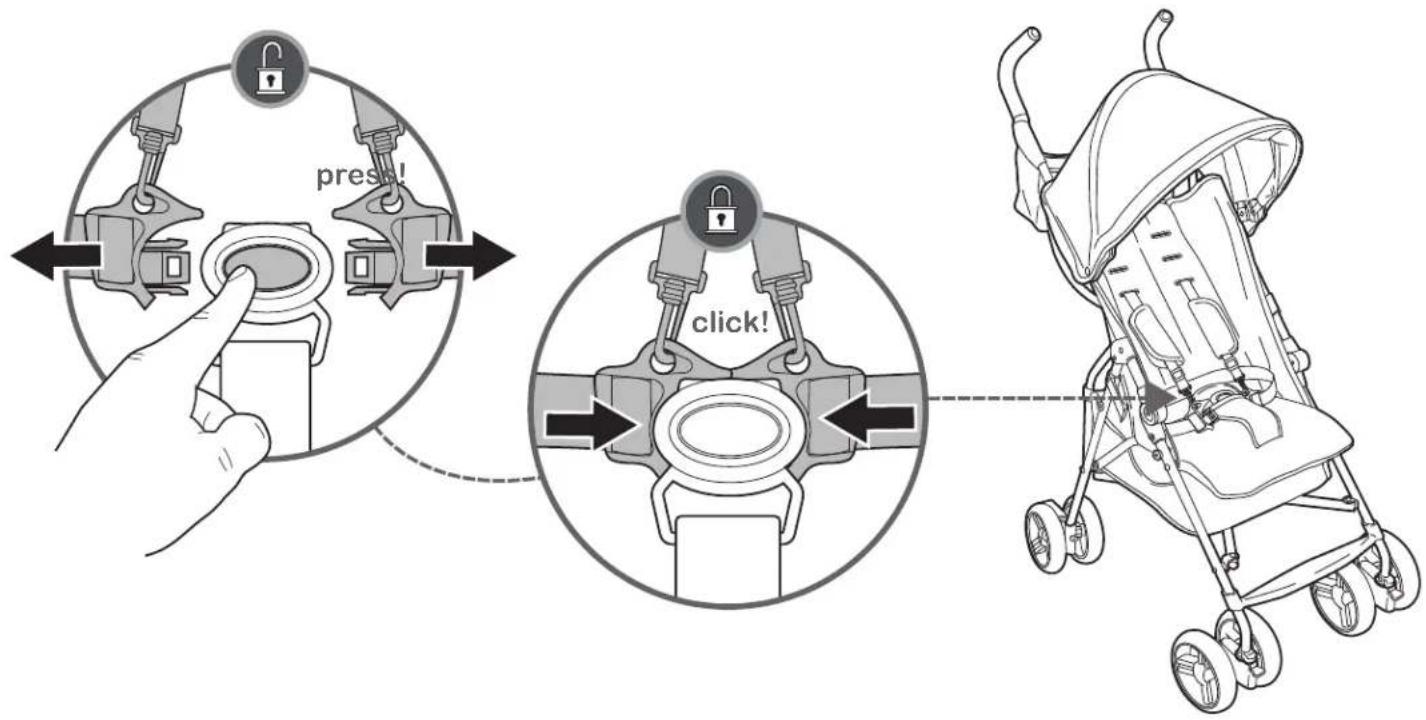

locking and unlocking the child restraint

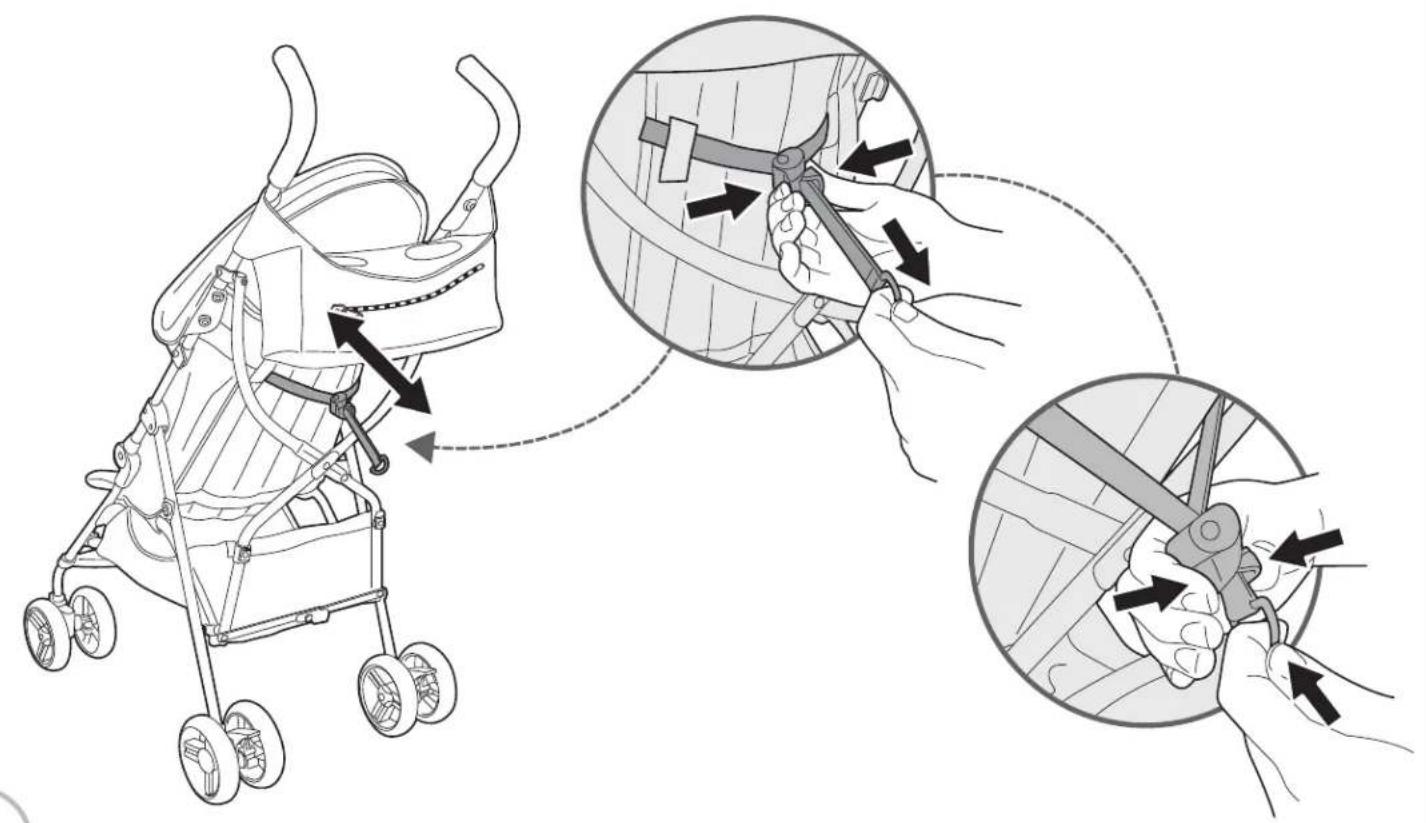

adjusting the seat recline

Squeeze seat recline clip on back of stroller and pull or release webbing to adjust the seat recline.

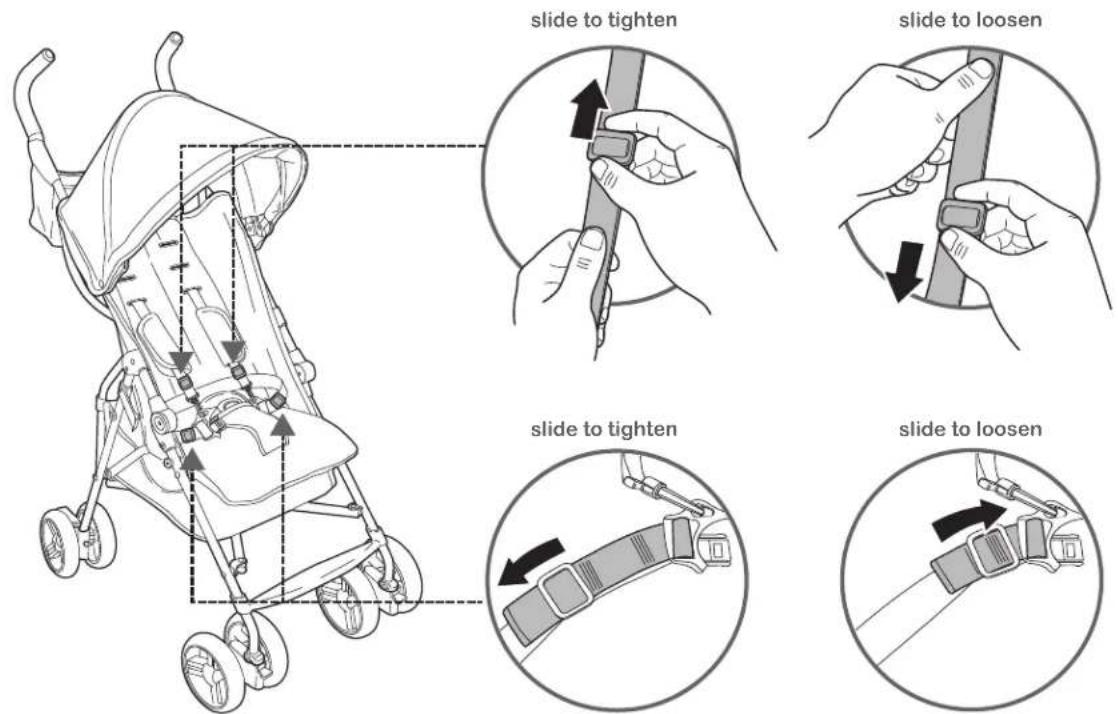

tightening and loosening the child harness:

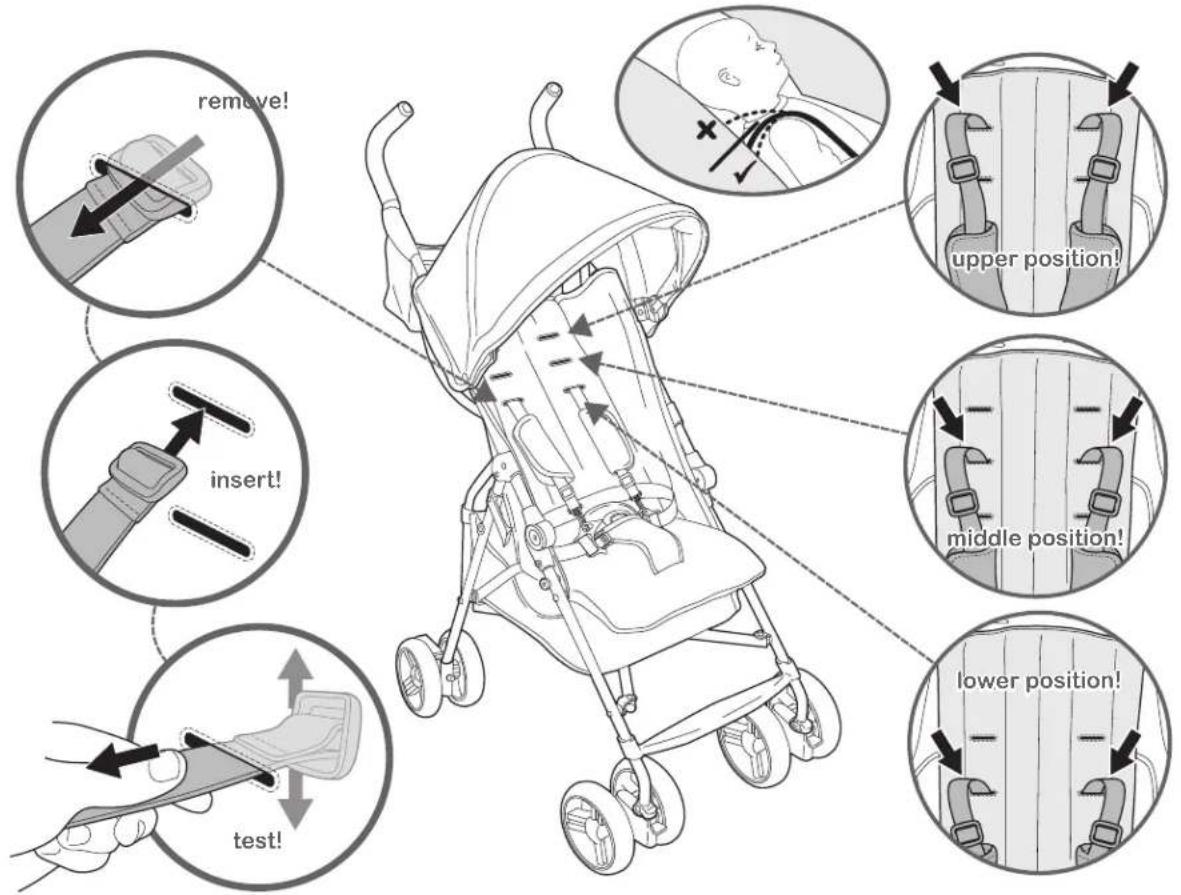

adjusting shoulder harness position:

Adjust the harness by sliding T-buckles back through slots and reinserting them into the desired position. Lightly pull strap back to ensure T-buckle is secure.

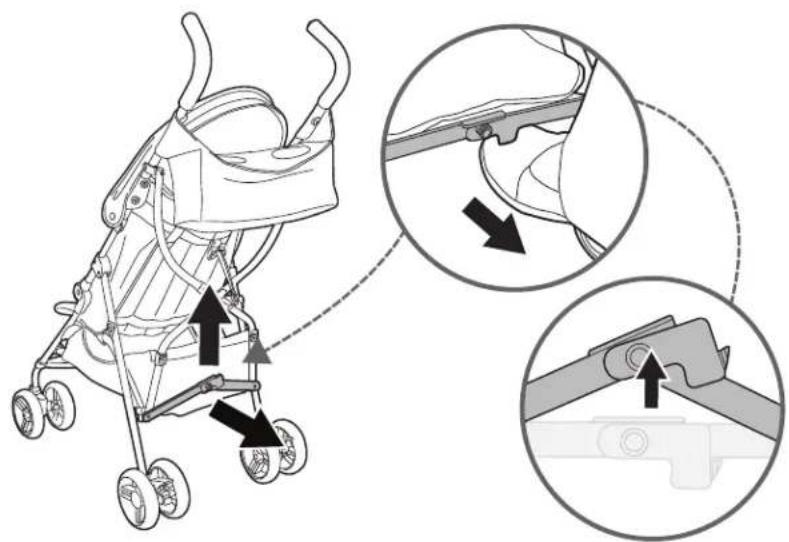

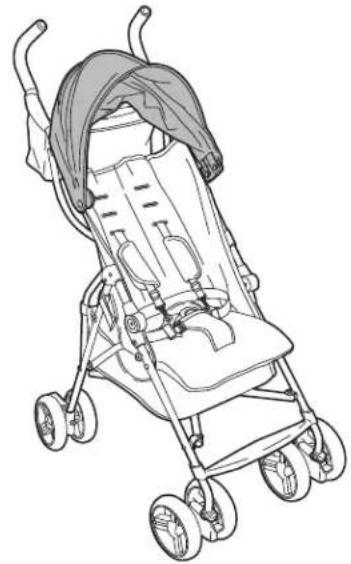

folding the stroller

1 Fold canopy back. Pull back lock-tab and push bar upwards.

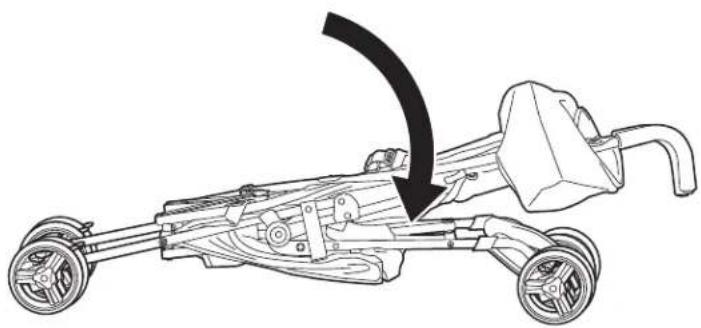

3 Fold stroller downwards.

NOTE: Confirm fold lock is engaged.

care and maintenance

• Clean minor stains on fabric with cold water and mild soap.
• Clean plastic and metal surfaces with a soft damp cloth. Air day. Do not use abrasive cleaners or solvents. Do not use bleach.
• Check seat pad harness and crotch straps weekly to ensure they are properly secured to frame.

ingenuity

www.ingenuitybaby.com/contact

MANUEL D'INSTRUCTION

MISE EN GARDE

Stroller frame with seat and storage basket

Canopy

2 front wheel assemblies

2 rear wheel assemblies
