USER MANUAL MWE FS25G WH TEKA

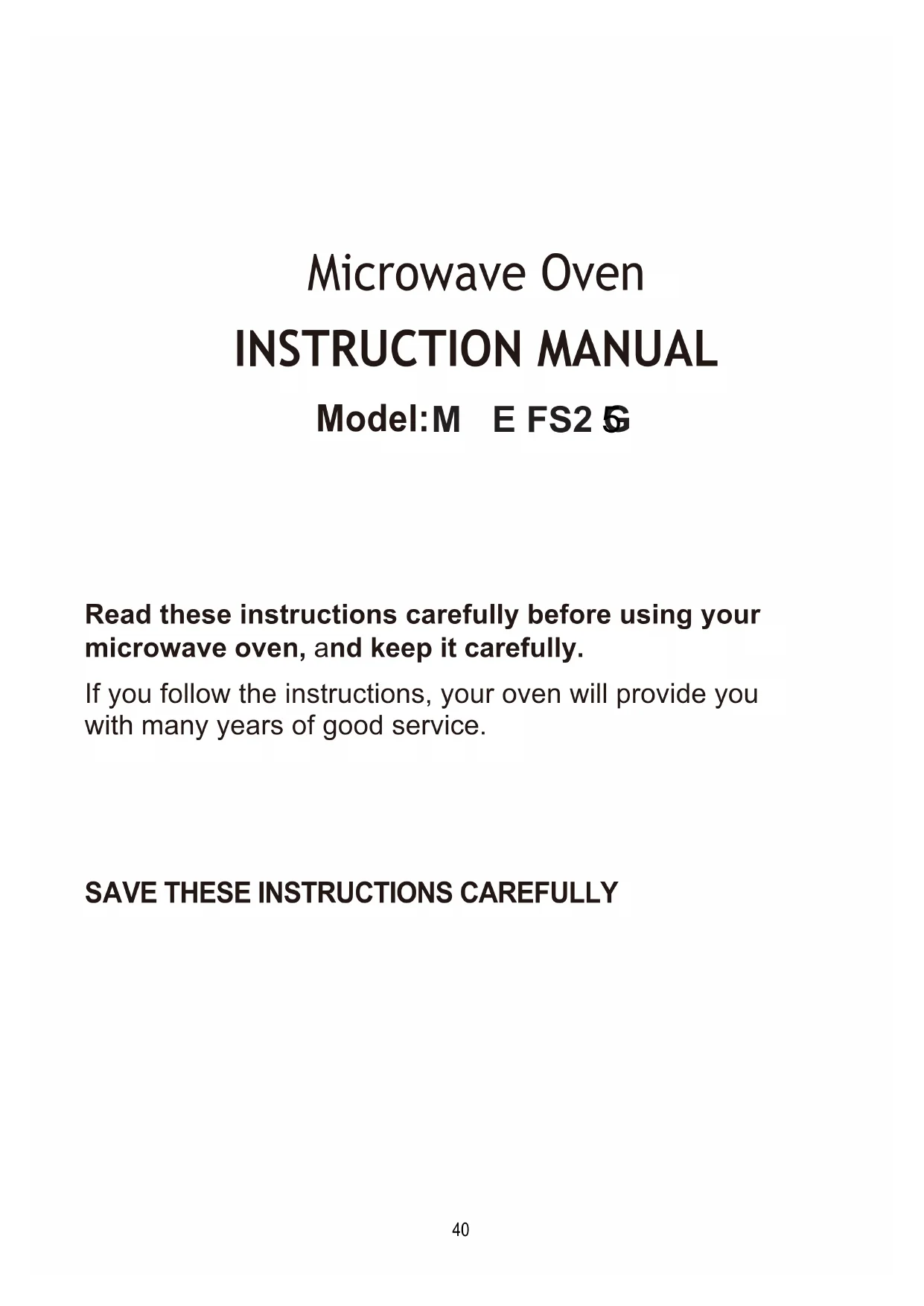

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. Model: Microwave Oven INSTRUCTION MANUAL

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. SPECIFICATIONS Model Rated Voltage/Frequency Microwave Input Microwave Output Grill 230 V~ 50 Hz 1450 W 900 W 1000 W

MWE FS25G WHIMPORTANT SAFETY INSTRUCTIONS

WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID

2. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. Keep the appliance and its cord out of reach of children less

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons

order to avoid a hazard.

5. WARNING: Ensure that the appliance is switched off before

replacing the lamp to avoid the possibility of electric shock.

WARNING: It is hazardous for anyone other than a

competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated

in sealed containers since they are liable to explode.

428. When heating food in plastic or paper containers, keep

an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave

10. If smoke is emitted, switch off or unplug the appliance

and keep the door closed in order to stifle any flames.

11. Microwave heating of beverages can result in delayed

eruptive boiling, therefore care must be taken when handling the container.

12. The contents of feeding bottles and baby food jars shall

be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

13. Eggs in their shell and whole hard-boiled eggs should not

be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. The oven should be cleaned regularly and any food

15. Failure to maintain the oven in a clean condition could

lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. The appliance must not be installed behind a decorative

door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

17. Only use the temperature probe recommended for

this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

18. The microwave oven shall not be placed in a cabinet

unless it has been tested in a cabinet.

19. The microwave oven must be operated with the

43decorative door open. (for ovens with a decorative door.)

20. This appliance is intended to be used in household and

similar applications such as: - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - farm houses; - bed and breakfast type environments.

21. The microwave oven is intended for heating food and

beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

22. Metallic containers for food and beverages are not allowed

during microwave cooking.

23. The appliance shall not be cleaned with a steam cleaner.

24. The appliance is intended to be used freestanding.

25. The rear surface of appliances shall be placed against a

26. The appliances are not intended to be operated by means

of an external timer or separate remote-control system.

27. The temperature of accessible surfaces may be high

when the appliance is operating.

28. WARNING: When the appliance is operated in the

combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE

(NOT FOR COMMERCIAL USE) 44DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks

resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension

cord should be at least as great as the electrical rating of the appliance.

The extension cord must be a grounding-type 3-wire cord.

The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION 45CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must

be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that

the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth. 46UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water

(250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do

not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

47Materials you can use in microwave oven Browning dish Dinnerware Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic Plastic wrap Thermometers Wax paper Use as a cover to prevent splattering and retain moisture. Microwave-safe only ( meat and candy thermometers). Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Use as a cover to prevent splattering or a wrap for steaming. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Utensils Remarks Materials to be avoided in microwave oven Wood Plastic foam Paper bags Metal twist ties Metal or metal- trimmed utensils Food carton with metal handle Aluminum tray Wood will dry out when used in the microwave oven and may split or crack. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. May cause a fire in the oven. May cause arcing and could cause a fire in the oven. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Utensils Remarks 48Instruction Manual Glass Tray Turntable Ring Assembly Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

NAMES OF OVEN PARTS AND ACCESSORIES

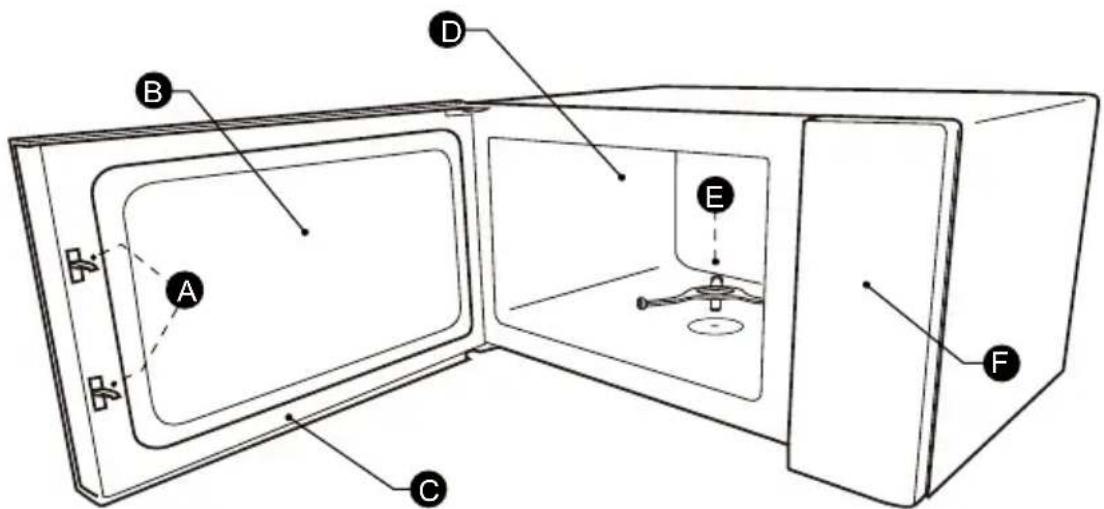

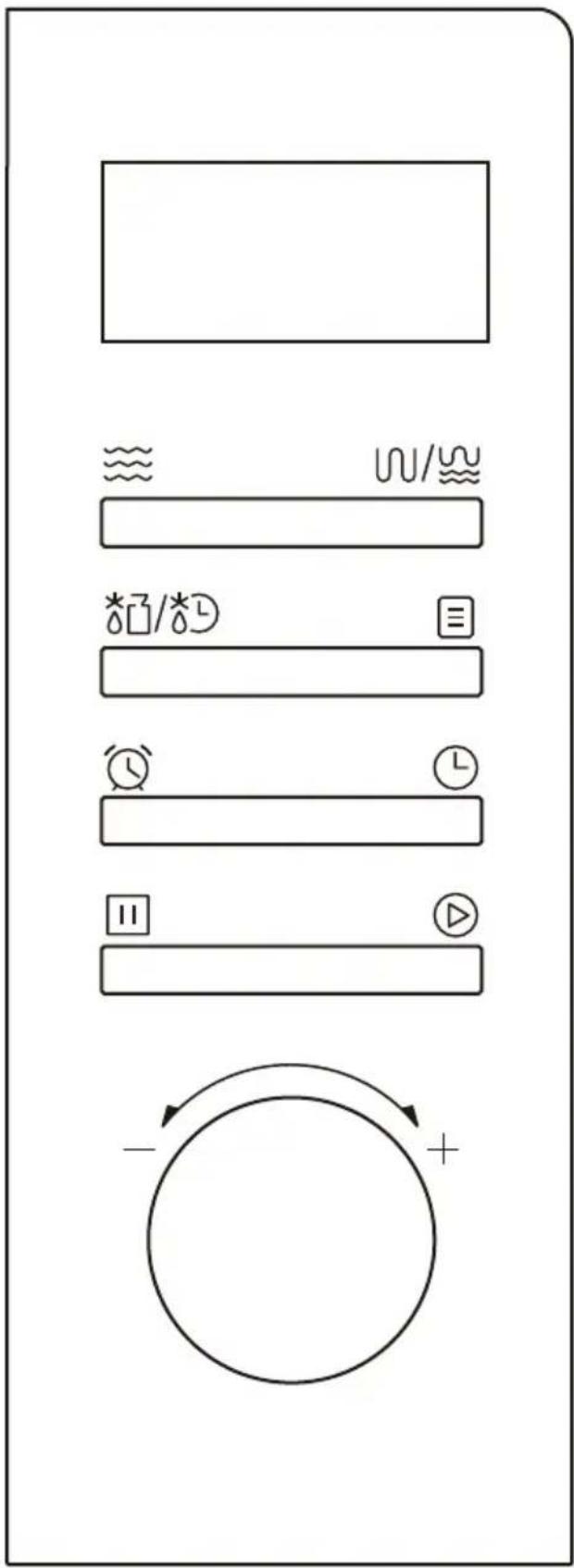

(In case of any differences between the appliance and the pictures in this manual, the product shall prevail.) A) Safety interlock system B) Observation window C) Door assembly D) Oven cavity E) Turntable Ring Assembly F) Control panel

Grill Rack(Can not be used in microwave function and must be placed on the glass tray.)

NAMES OF OVEN PARTS AND ACCESSORIES

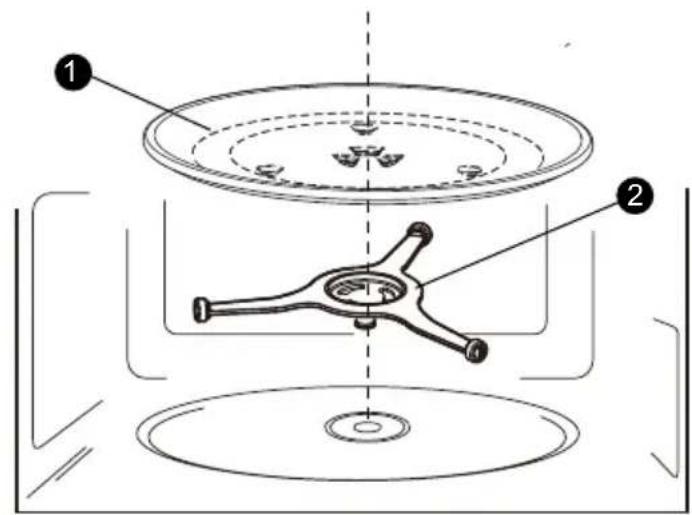

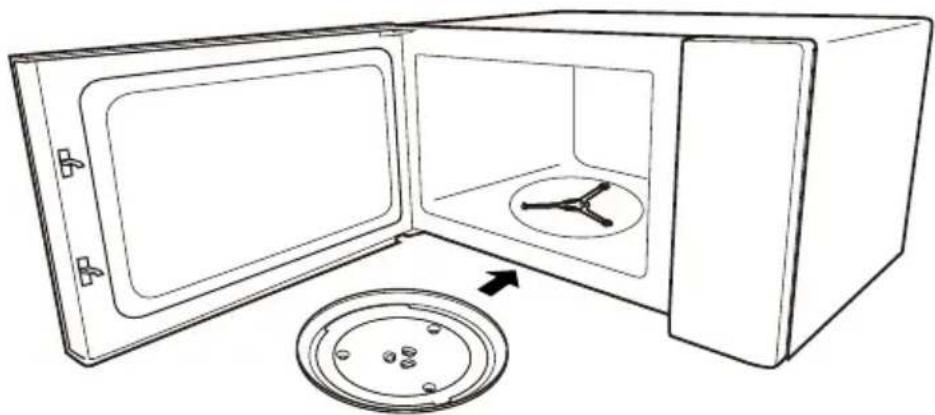

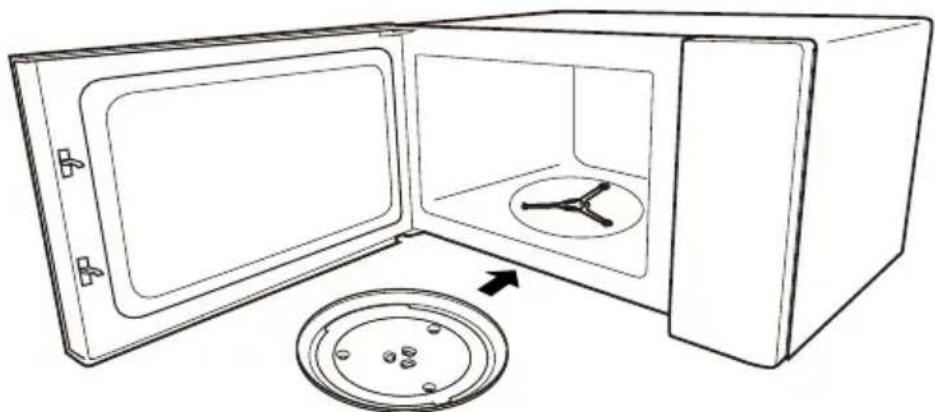

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories. Notes：

1. Never use the appliance without the turntable. Make sure that it is

properly engaged. The turntable can turn clockwise or anti-clockwise.

2. Never place the glass tray upside down. The glass tray should never

3. Both glass tray and turntable ring assembly must always be used

4. All food and containers of food are always placed on the glass tray

5. Never restrict the movement of the turntable.

6. If glass tray or turntable ring assembly cracks or breaks, contact your

nearest authorized service center.

50Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Countertop Installation Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the waveguide cover that is attached to the oven cavity to protect the magnetron. Installation

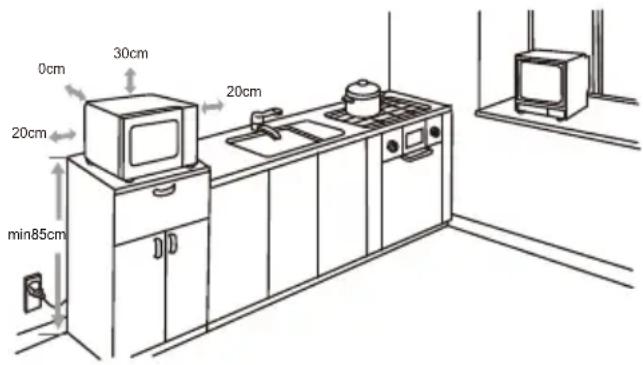

provide enough open space for the intake and/or outlet vents. (1) The minimum installation height is 85cm. (2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls. (3) Do not remove the legs from the bottom of the oven. (4) Blocking the intake and/ or outlet openings can damage the oven. (5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a

standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install

oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. 20cm 30cm 20cm min85cm 0cm The accessible surface may be hot during operation. Select a level surface that 51Microwave Grill/Combi. Timer Clock Weight/ Time Defrost Stop/Cancel Start/+30 Sec. Auto Menu Control Panel 52OPERATION

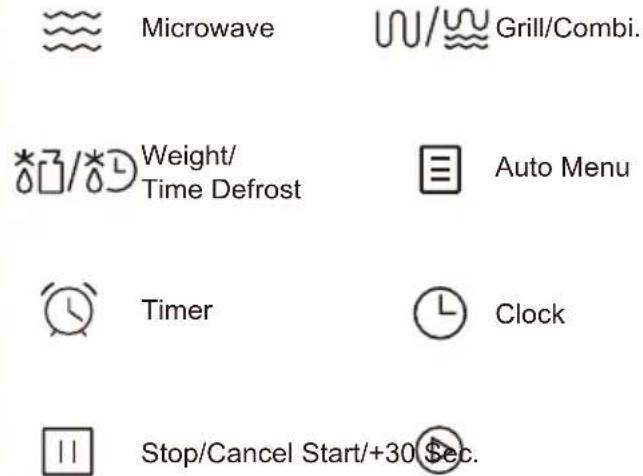

(1) Press “ ” once and then “00:00” will display. (2) Turn the knob to set the hour figures. (3) Press “ ” to confirm. (4) Turn the knob to set the minute figures. (5) Press “ ” to confirm. The clock is set. Notes: (1) The clock is a 24-hour display. If the clock is not set, it will not work when powered. (2) To reset the clock, please repeat step 1 to step 5. (1) Press “ ” once and then “00:00” will display. (2) Turn the knob to set the desired time. The maximum time value is “95:00”. (3) Press “ ” to confirm. The timer starts counting down.

3. Microwave Cooking

(1) Press “ ” once and then “P100” will display. (2) Press “ ” repeatedly or turn the knob to set the power level. The 5 power levels are available. (3) Press “ ” to confirm the power level. (4) Turn the knob to set the cooking time. The maximum time value is “95:00”. (5) Press “ ” to start cooking. Note: Opening the oven door or pressing “ ” during operation will interrupt the current mode. Note: The kitchen timer is a timer.

536. Defrost by Time

(1) Press “ ” once and then the screen will display “dEF1”. (2) Turn the knob to set the weight of the food. The range of weight is 100 to 2000g. (3) Press “ ” to start defrosting. Note: The buzzer will sound to remind you to turn the food over during defrosting. If no operation, the oven will continue working. (1) Press “ ” twice and then the screen will display “dEF2”. (2) Turn the knob to set the desired defrost time. The maximum time value is “95:00”. (3) Press “ ” to start defrosting. Notes: (1) The buzzer will sound to remind you to turn the food over during defrosting. If no operation, the oven will continue working. (2) The default power level is P30 and it cannot be changed.

4. Grill and Combination Cooking

(1) Press “ ” repeatedly and then “G-1”, “C-1”, and “C-2” will display. (2) Press “ ” to confirm the mode. (3) Turn the knob to set the cooking time. The maximum time value is “95:00”. (4) Press “ ” to start cooking. Note: The buzzer will sound to remind you to turn the food over during grill cooking. If no operation, the oven will continue working. Grill and Combination Cooking Chart Function Combi. 1 Grill G-1 Combi. 2 Display C-1 C-2 Microwave Power 55% 64%36% Grill Power 45% 100%0%

547. Multi-Stage Cooking

Notes: (1) Two cooking stages can be set in multi-stage cooking. (2) If you set the defrost function, it will work automatically in the first stage. (3) The kitchen timer, the auto menu and the speedy cooking cannot be set as one of the multi-stage. Example: Defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes. (1) Press “ ” twice and then the screen will display “dEF2”. (2) Turn the knob to set the desired defrost time to 5 minutes. (3) Press “ ” once and then “P100” will display. (4) Press “ ” again or turn the knob to set the power level to P80. (5) Press “ ” to confirm the microwave power. (6) Turn the knob to set the cooking time to 7 minutes. (7) Press “ ” to start cooking.

(1) In standby mode, press “ ” to cook food at 100% power level for 30 seconds. Each press on the same key can increase 30 seconds and the maximum time value is “95:00”. (2) In standby mode, turn the knob left to set a cooking time with 100% power. Continue to turn the knob to adjust the cooking time. Then press “ ” to start cooking. The maximum time value is “95:00”. Note: In the cooking state and defrosting by time state, each more press on " " can increase the cooking time by 30 seconds (except for defrosting by weight, the auto menu, and the first stage of multi-stage cooking). 5510. Auto Menu (1) Press “ ” once and then the screen will display “A-1”. (2) Press “ ” repeatedly or turn the knob to choose the menu you need. The 8 auto menus are available. (3) Press “ ” to confirm. (4) Turn the knob to set the weight of the food. (5) Press “ ” to start cooking. Auto Menu Chart Menu Weight Display Power A-1 200g 400g 250g 350g 450g 250g 350g 450g 200g 300g 400g 50g(with 450g cold water) 100g(with 800g cold water) 200g 300g 400g 50g 100g 200g 400g A-2 A-3 A-4 Auto Reheat Meat Fresh Vegetable Pasta P100 P80

9. Lock Function for Children

You can use this function to prevent children from accidentally turning the oven on. To activate the lock: In standby mode, press and hold “ ” for three seconds. A long beep sounds and the locked icon will display. To deactivate the lock: In a locked state, press and hold “ ” for three seconds. A long beep sounds. 56Menu Weight Display Power A-5 A-6 Potato Fish 2(460g) 3(690g) 1(230g) P100 P80

(1) If the clock has been set, the current time will display for three seconds by pressing “ ” in the cooking state. (2) In the microwave, grill, and combination cooking state, press “ ” or “ ” to inquire about the power level or cooking mode. It will display for three seconds. 57According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. Microwave oven interfering TV reception Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Dim oven light Oven cannot be started. (1) Power cord is not plugged in tightly. Unplug. Then plug again after 10 seconds. Replace fuse or reset circuit breaker (repaired by professional personnel of our company) Test outlet with other electrical appliances. Close door well. (3) Trouble with outlet. (4) Door is not closed well. (2) Fuse blowing or circuit breaker works. Oven does not heat. In low power microwave cooking, oven light may become dim. It is normal. In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal. Steam accumulating on door, hot air out of vents Oven started accidentally with no food in. It is forbidden to run the unit without any food inside. It is very dangerous. Normal Trouble Possible Cause Remedy Trouble shooting 58Four à micro-ondes MANUEL D'UTILISATION Modèle: Lire attentivement ces instructions avant d'utiliser votre four à micro-ondes et conservez-les soigneu- sement. Lire attentivement ces instructions avant d'utiliser votre four à micro-ondes et conservez-les soigneuse- ment.
