Product Type	2-way amplified loudspeaker
Brand	Ecler
Model	eCMP8
RMS Power	150 W at 8 Ω
100 V Line Power	37.5 / 75 / 150 W selectable
70 V Line Power	18.75 / 37.5 / 75 W selectable
Impedance	8 Ω (low impedance)
Dispersion (H x V)	135° x 135°
Max. Sound Pressure Level	119 dB continuous / 125 dB peak
Woofer	8" (20.3 cm)
Tweeter	1.4" (35 mm) coaxial
Protection Rating	IP56 (water and sunlight resistant)
Materials	Polypropylene, aluminum grille, hot-dip galvanized steel bracket
Dimensions (W x H x D)	300 x 302 x 280 mm
Depth with Bracket	334 mm
Weight	Approximately 8 kg (estimate)
Connections	Connection terminal
Included Accessories	Mounting bracket, protective cover, screws, quick start guide, warranty card
Power Supply	Via external amplifier or 70/100 V line
Power Consumption	Not specified, depends on amplifier
Maintenance	Clean with a dry cloth only
Safety	Do not expose to rain or moisture (even if IP56), use a safety sling, disconnect during storms, repair by qualified personnel

Frequently Asked Questions - eCMP8 Ecler

Can I use the eCMP8 outdoors?

Yes, the eCMP8 has an IP56 rating and is resistant to water and sunlight, making it suitable for outdoor use.

How do I connect the speaker to a 70/100 V line?

Use the power selector on the back to choose the appropriate power (e.g., 37.5/75/150 W for 100 V). Ensure the amplifier is properly configured for high-impedance line. Never connect a speaker set to 8 Ω to a 70/100 V line, as this will damage the driver.

Which amplifier should I use with the eCMP8 in low impedance?

Use an amplifier capable of delivering at least 150 W at 8 Ω. If connecting multiple speakers, ensure the total impedance does not drop below 4 Ω.

How do I clean the speaker?

Clean it only with a dry cloth. Do not use water or chemicals, as this could damage the speaker.

What should I do if the power selector is incorrectly set?

If the speaker is accidentally connected to a low-impedance amplifier while the selector is on a 70/100 V position, performance will be degraded but the speaker will not be damaged. Conversely, if connected to a 70/100 V line while set to 8 Ω, the speaker will be severely damaged.

What is the dispersion of the eCMP8?

The dispersion is 135° x 135°, providing wide and precise coverage.

What accessories are included with the speaker?

Included are: a mounting bracket, a protective cover for connections, screws, a quick start guide, and a warranty card.

Is the speaker covered by a warranty?

Yes, all Ecler products are covered by a warranty. Refer to the included warranty card or website www.ecler.com for terms and duration.

Can I mount the speaker on a ceiling or wall?

Yes, it comes with a mounting bracket. Ensure the surface can support the weight of the speaker and always use a safety sling to secure the installation.

How should I maintain the speaker if there is a problem?

Entrust any repairs to a qualified technician. Do not attempt to open the speaker yourself. For technical inquiries, contact your supplier or fill out the form on the website www.ecler.com under Support / Technical requests.

USER MANUAL eCMP8 Ecler

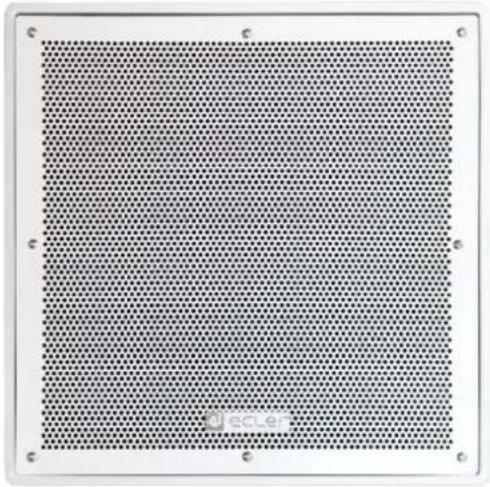

Close-up of a square grid-patterned panel with mounting holes (no text or symbols visible)

Close-up of a perforated metal grid with mounting holes, no text or symbols visible

MODE D'EMPLOI

SOMMAIRE

1. REMARQUE IMPORTANTE .... 3
2. INSTRUCTIONS DE SÉCURITÉ IMPORTANTES....3
3. REMARQUE IMPORTANTE....5
4. INTRODUCTION....5
5. CARACTÉRISTIQUES PRINCIPALES....6
6. CONNEXION DES CÂBLES....7
7. EMPLACEMENT ET MONTAGE....8
8. CARACTÉRISTIQUES TECHNIQUES ...... 9
9. CONTENU DE L'EMBALLAGE ....10

1. REMARQUE IMPORTANTE

WARNING: SHOCK HAZARD - DO NOT OPEN

AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

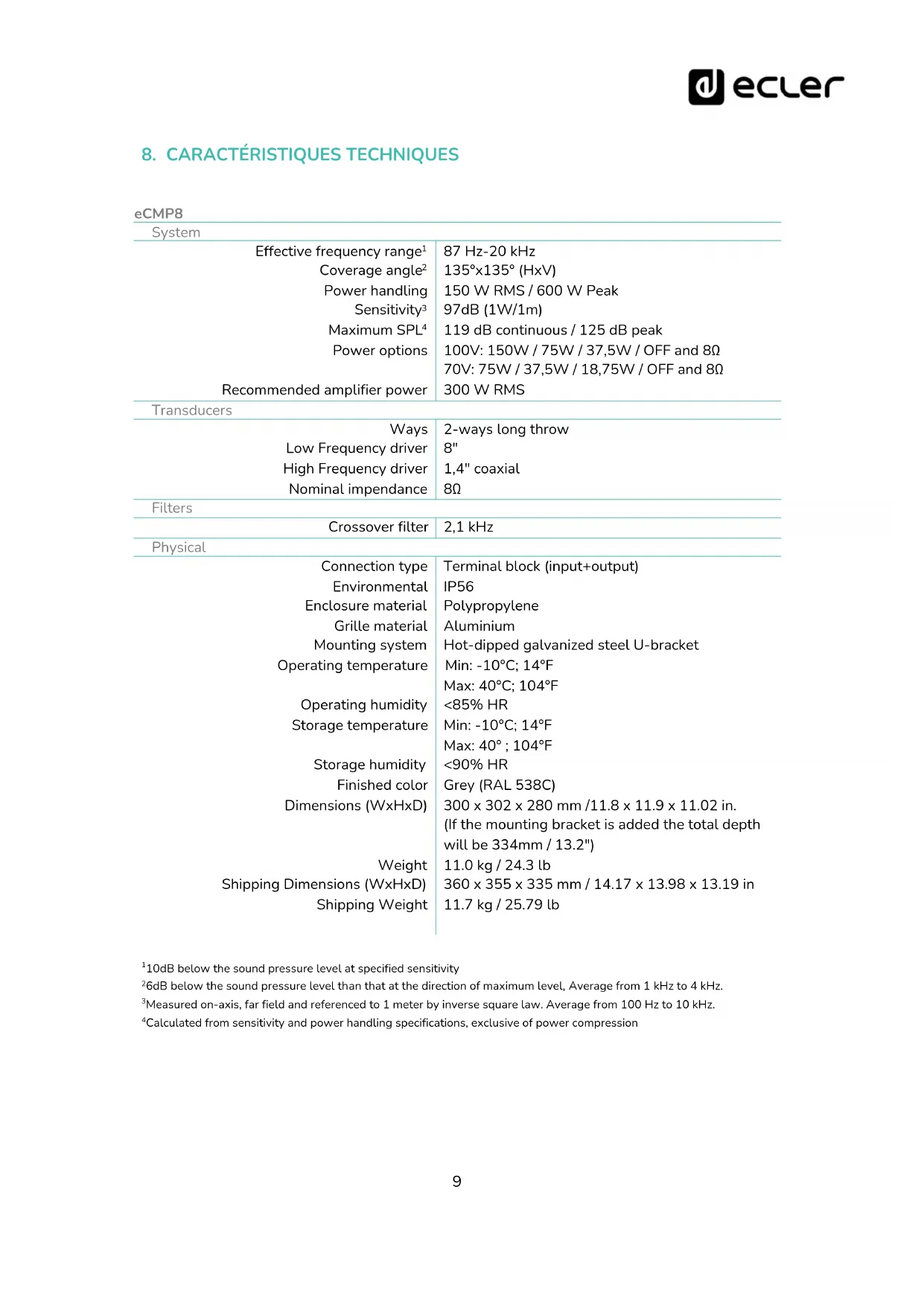

System
Effective frequency range1	87 Hz-20 kHz
Coverage angle2	135°x135° (HxV)
Power handling	150 W RMS / 600 W Peak
Sensitivity3	97dB (1W/1m)
Maximum SPL4	119 dB continuous / 125 dB peak
Power options	100V: 150W / 75W / 37,5W / OFF and 8Ω
	70V: 75W / 37,5W / 18,75W / OFF and 8Ω
Recommended amplifier power	300 W RMS
Transducers
Ways	2-ways long throw
Low Frequency driver	8"
High Frequency driver	1,4" coaxial
Nominal impedance	8Ω
Filters
Crossover filter	2,1 kHz
Physical
Connection type	Terminal block (input+output)
Environmental	IP56
Enclosure material	Polypropylene
Grille material	Aluminium
Mounting system	Hot-dipped galvanized steel U-bracket
Operating temperature	Min: -10°C; 14°F
	Max: 40°C; 104°F
Operating humidity	<85% HR
Storage temperature	Min: -10°C; 14°F
	Max: 40°; 104°F
Storage humidity	<90% HR
Finished color	Grey (RAL 538C)
Dimensions (WxHxD)	300 x 302 x 280 mm /11.8 x 11.9 x 11.02 in.(If the mounting bracket is added the total depth will be 334mm / 13.2")
Weight	11.0 kg / 24.3 lb
Shipping Dimensions (WxHxD)	360 x 355 x 335 mm / 14.17 x 13.98 x 13.19 in
Shipping Weight	11.7 kg / 25.79 lb

^1 10dB below the sound pressure level at specified sensitivity
^2 6dB below the sound pressure level than that at the direction of maximum level, Average from 1 kHz to 4 kHz.
^3 Measured on-axis, far field and referenced to 1 meter by inverse square law. Average from 100 Hz to 10 kHz.
^4 Calculated from sensitivity and power handling specifications, exclusive of power compression

eCMP12

System
Effective frequency range1	91 Hz-20 kHz (-10dB)
Coverage angle2	107°x107°
Power handling	300 W RMS / 1200 W Peak
Sensitivity3	100 dB (1W/1m)
Maximum SPL4	125 dB continuous / 131 dB peak
Power options	100V: 50/100/200W/OFF and 8 Ω
	70V: 25/50/100W/OFF and 8 Ω
Recommended amplifier power	600 W RMS
Transducers
Ways	2-ways long throw
Low Frequency driver	12"
High Frequency driver	1,7" coaxial
Nominal impedance	8Ω
Filters
Crossover filter	2,1 kHz
Physical
Connection type	Terminal block (input+output)
Environmental	IP56 rated
Enclosure material	Polypropylene
Grille material	Aluminium
Mounting system	Hot-dipped galvanized steel U-bracket
Operating temperature	Min: -10°C; 14°F
	Max: 40°C; 104°F
Operating humidity	<85% HR
Storage temperature	Min: -10°C; 14°F
	Max: 40°; 104°F
Storage humidity	<90% HR
Finished color	Grey (RAL 538C)
Dimensions (WxHxD)	407 x 410 x 378 mm / 16.0 x 16.1 x 14.9 in.(If the mounting bracket is added the total depth will be 443mm / 17.45")
Weight	20.0 kg / 44.1 lb
Shipping Dimensions (WxHxD)	475 x 490 x 445 mm / 18.7 x 19.29 x 17.52 in.
Shipping Weight	21.3 kg / 46.96 lb

^1 10dB below the sound pressure level at specified sensitivity
^2 6dB below the sound pressure level than that at the direction of maximum level, Average from 1 kHz to 4 kHz.
^3 Measured on-axis, far field and referenced to 1 meter by inverse square law. Average from 100 Hz to 10 kHz.
^4 Calculated from sensitivity and power handling specifications, exclusive of power compression
