USER MANUAL IGLICEND40SS Igloo

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2022 Nostalgia Products LLC.

IGLOO and the Igloo dome design are trademarks of Igloo Products Corp. All rights reserved.

www.nostalgiaproducts.com

(rev. 04/25/22 IP)

Exterior view of a modern ice cream maker with control buttons and ventilation grille (no readable text or symbols)

Automatic Dispensing Nugget Ice Maker Máquina de Bolitas de Hielo con Dispensador Automático Machine à glaçons à distribution automatique

Instruction Manual Manual de instrucciones Manuel d'instructions

PRODUCT REGISTRATION

WELCOME TO THE NOSTALGIA PARTY!

Do you love our product?

Give us your REVIEW, REGISTER your product and get entered to WIN PRIZES! You can also gain access to exclusive discounts, fresh new recipes, monthly specials & more!

To leave a review:

• Visit the site you purchased the product from
• Go to the product page
• Leave a 5-star review!

To register your product:

• Scan the QR Code below or go to nostalgiaproducts.com/pages/warranty-information
• Enter your product name, purchase date, and email to subscribe for prizes!

QR code image containing encoded data, no visible human-readable text

If you aren't happy, please give us a chance to cure it!

Customer service:

[phone] or visit our online contact form: https://nostalgiaproducts.com/pages/support

CONTENTS

SAFETY 2

IMPORTANT SAFEGUARDS 3

ADDITIONAL IMPORTANT SAFEGUARDS 3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE 6

HELPFUL TIPS 8

CLEANING & MAINTENANCE 8

RETURNS & WARRANTY 9

SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can cause serious injury to you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

110 - 120 Volts, 60 Hz

167 Watts, 2.8 Amps

Refrigerant R600A

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

Refer to www.nostalgiaproducts.com/user-manuals/ for the most updated manual.

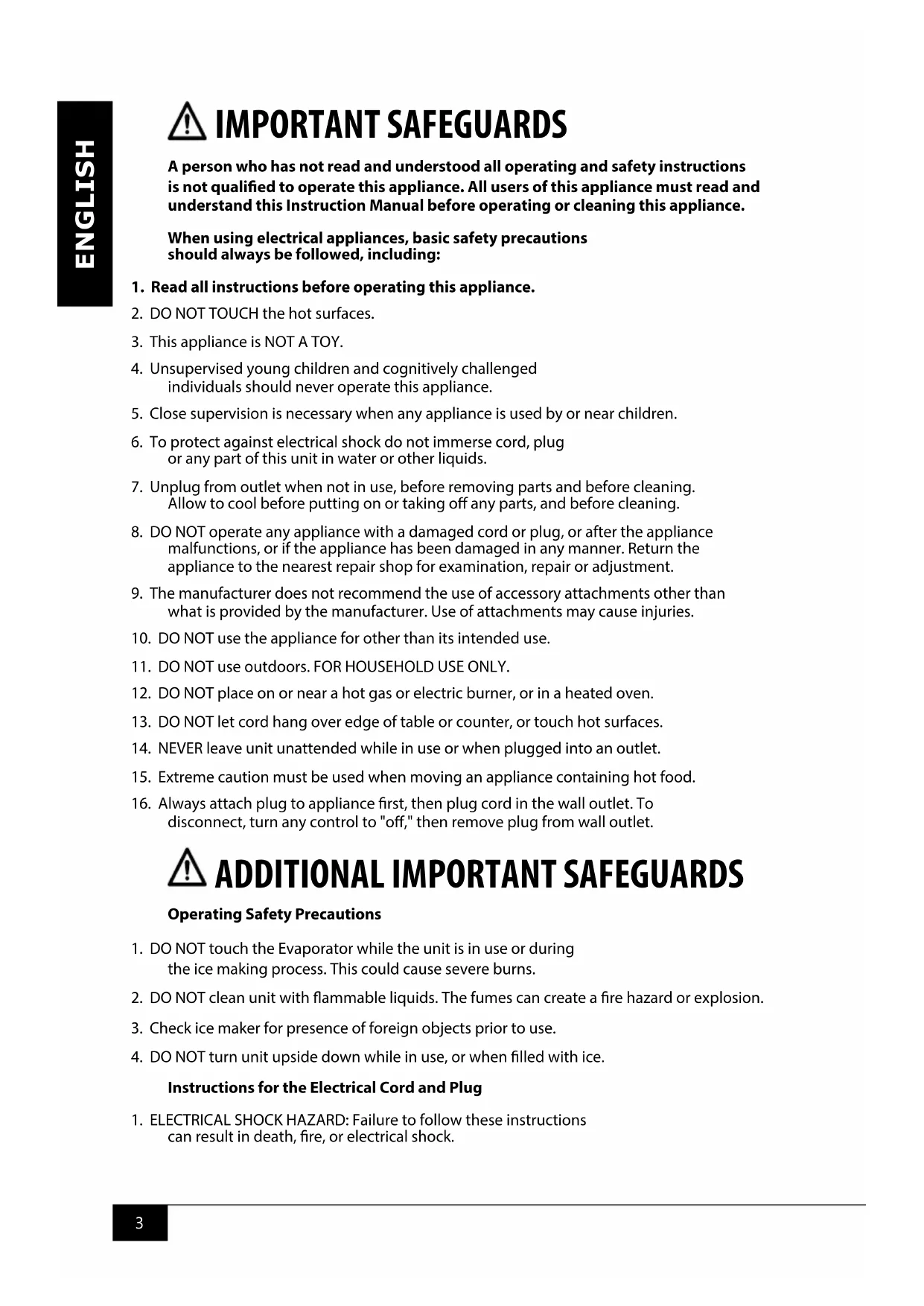

IMPORTANT SAFEGUARDS

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces.
3. This appliance is NOT A TOY.
4. Unsupervised young children and cognitively challenged individuals should never operate this appliance.
5. Close supervision is necessary when any appliance is used by or near children.
6. To protect against electrical shock do not immerse cord, plug or any part of this unit in water or other liquids.
7. Unplug from outlet when not in use, before removing parts and before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning.
8. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair or adjustment.
9. The manufacturer does not recommend the use of accessory attachments other than what is provided by the manufacturer. Use of attachments may cause injuries.
10. DO NOT use the appliance for other than its intended use.
11. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
12. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
13. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
14. NEVER leave unit unattended while in use or when plugged into an outlet.
15. Extreme caution must be used when moving an appliance containing hot food.
16. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.

ADDITIONAL IMPORTANT SAFEGUARDS

Operating Safety Precautions

1. DO NOT touch the Evaporator while the unit is in use or during the ice making process. This could cause severe burns.
2. DO NOT clean unit with flammable liquids. The fumes can create a fire hazard or explosion.
3. Check ice maker for presence of foreign objects prior to use.
4. DO NOT turn unit upside down while in use, or when filled with ice.

Instructions for the Electrical Cord and Plug

1. ELECTRICAL SHOCK HAZARD: Failure to follow these instructions can result in death, fire, or electrical shock.

2. Plug into a grounded 3 prong outlet.
   • DO NOT remove ground prong.
   • DO NOT use an adapter.
   • DO NOT use an extension cord.

3. This unit MUST be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This unit is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

4. WARNING: Improper use of the grounding plug can result in a risk of electric shock. If the plug does not fit fully into the outlet, contact a qualified electrician. Do not attempt to modify the plug in any way.
5. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.
6. The manufacturer does not recommend using this machine in countries that do not support 120V AC even if a voltage adapter, transformer, or converter is in use.
7. If the power cord is damaged, please call our customer service department.

REFRIGERANT GAS WARNING

1. Use the ice maker with caution especially when moving the ice maker to avoid damaging the refrigerant tubing or increasing the risk of leak.
2. Servicing should only be done by factory or authorized service personnel.
3. Do not install ice maker in corridors or hallways of public buildings.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

Congratulations! You are now the proud owner of the AUTOMATIC DISPENSING NUGGET ICE MAKER from Igloo®! This stylish and portable ice maker allows you to make ice accessible virtually anywhere. With its intuitive, easy-to-use design, you'll be making nugget ice soon after you plug in your new appliance. Perfect for the kitchen, RVs, club houses, home bars, and more!

Features:

• Quickly makes nugget ice in only 6 minutes
• Makes up to 40 lbs. of ice per day
• Small nugget ice pellets are perfect chilling and chewing
• Elegant stainless steel and black tabletop design
• Dispenses nugget shaped ice pellets
  • Water tank capacity: 3 quarts
• Ice bin capacity: 3 pounds
  • Automatic cleaning function
  • Control panel with LED indicator lights
• Refrigerant: R600A

PARTS & ASSEMBLY

Before first use, be sure to remove all interior and exterior packaging, and follow the steps under CLEANING & MAINTENANCE to properly clean your unit.

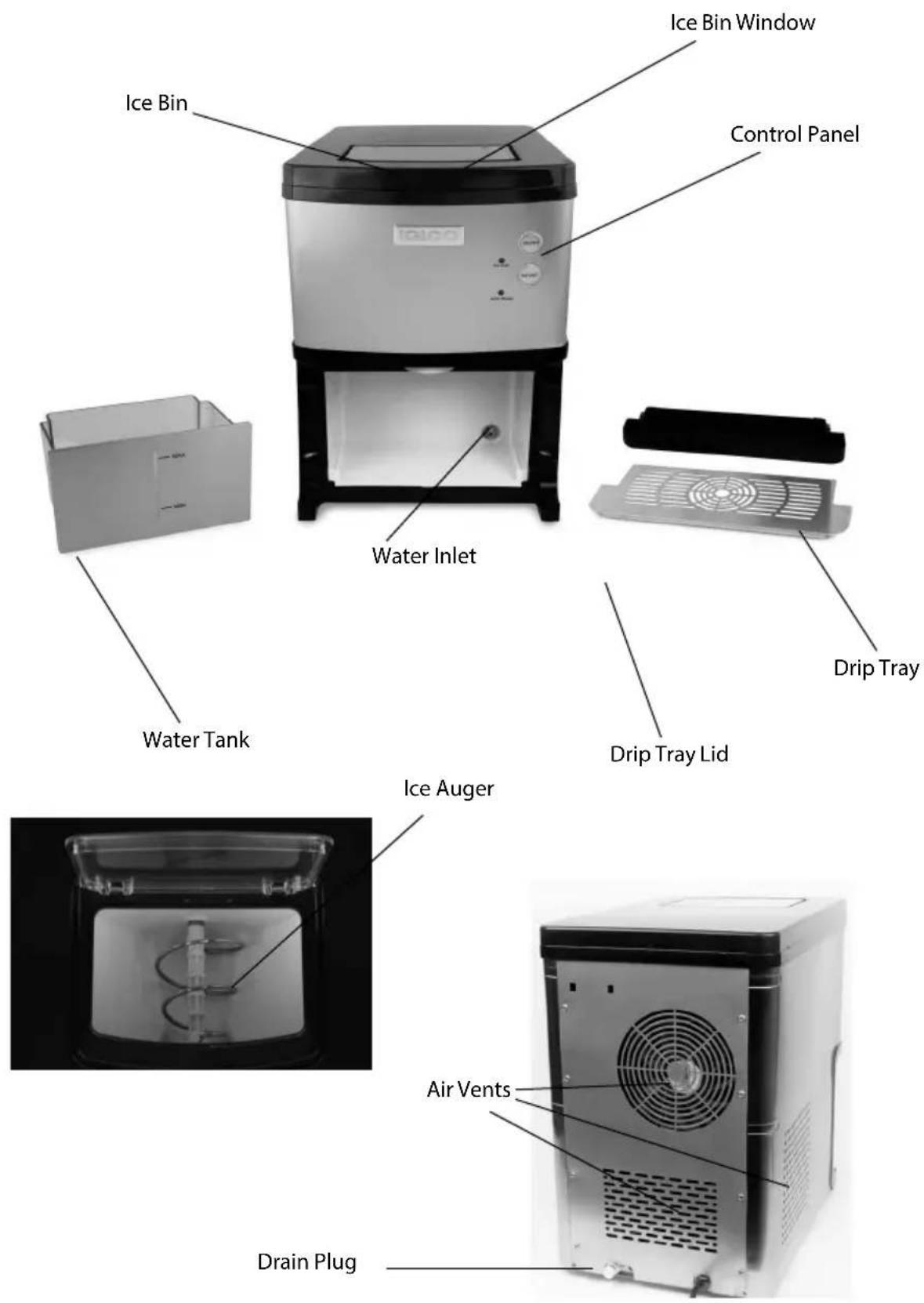

Ice Bin Window Control Panel Water Inlet Drip Tray Water Tank Drip Tray Lid Ice Auger Drain Plug Air Vents

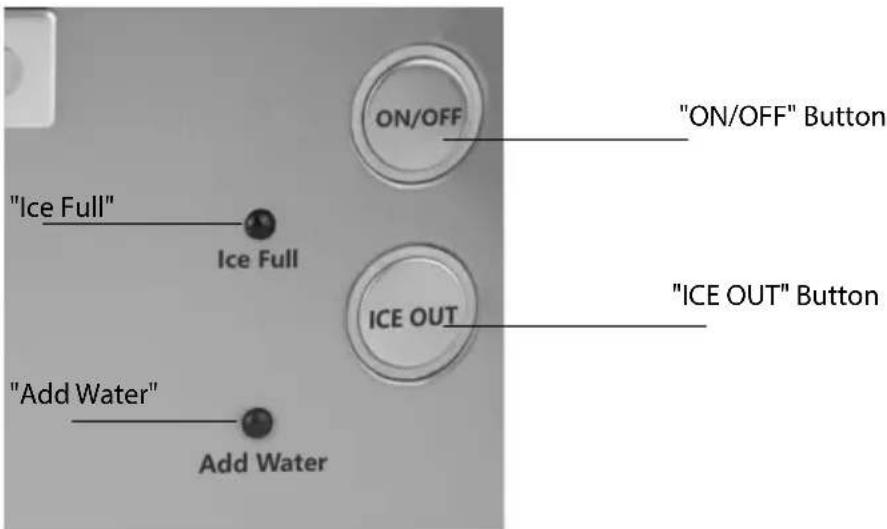

"ON/OFF" Button "Ice Full" Ice Full ICE OUT "ICE OUT" Button "Add Water" Add Water

CONTROLS AND INDICATOR LIGHTS

• Standby Mode: Red rings around power and "ICE OUT" buttons indicates Standby Mode. When you first plug in your ice maker, it will be in Standby Mode.
• "ON/OFF" Button: Press the "ON/OFF" Button once to turn on your ice maker. Once you turn your ice maker on, the rings around the "ON/OFF" Button will be blue and "ICE OUT" button will be red. To put your ice maker back into Standby Mode, hold down the "ON/OFF" Button for 3 seconds.
• "ICE OUT" button: Press the "ICE OUT" button and hold to dispense ice.
• Ice Full: An infrared sensor in the ice basket helps detect when it is full of ice. When the "ice full" indicator light is on, it means that ice has filled the ice basket. To restart production, empty ice from the basket, and the machine will restart automatically.
• Add Water: When the "Add Water" indicator lights on, the machine will stop making ice. Remove the water tank, add more water, replace the water tank, and press the "ON/OFF" Button once to restart ice production.
• Auto Clean Mode: When the ring around the "ON/OFF" Button is purple and the ring around the "ICE OUT" button is red, the machine is in Auto Clean Mode. See below for instruction on how to use auto clean mode.

HOW TO OPERATE

BEFORE FIRST USE

1. Remove all interior and exterior packaging. If any part or accessory is missing, please call our customer service department.
2. Follow the steps under CLEANING & MAINTENANCE before using this unit.
3. Place the unit on a flat, level surface in a location that is protected from direct sunlight and other sources of heat (i.e. stove, furnace, radiator). Ensure there is at least six inches of empty space on all sides of the unit.
4. Allow one hour for the refrigerant fluid to settle before plugging the cord into an electrical outlet for the first time.

USING YOUR NUGGET ICE MAKER

1. Make sure that the rear drain is firmly plugged before beginning operation.
2. Pull out water tank to fill with water. Then put water tank back into the machine.
   CAUTION: Do not surpass the maximum water level on the MIN/MAX markings.
   NOTE: Distilled water is best to fill the water tank.
3. After plugging in the ice maker machine, press the "ON/OFF" Button and it will turn on.

4. Ice machine will begin making ice nuggets. Check water level periodically.
   NOTE: If water tank is near empty, the ice maker will stop automatically and the "ADD WATER" indicator light will turn on. Press the "ON/OFF" Button, fill up to the water level mark, and press the "ON/OFF" Button again.
   NOTE: Nugget ice size will be relatively small for first use. This is a normal part of operation.

5. The ice maker will stop automatically once the machine is full and the "ICE FULL" indicator will turn on.

6. To ICE OUT from the machine, hold your container (cup, water bottle, etc.) below the ice dispenser and press the "ICE OUT" button.

NOTE: Do not leave water in water tank for more than 24 hours to ensure that clean water is used to make ice.

NOTE: Noises such as clicking, gurgling, or knocking are normal when operating.

IMPORTANT NOTE: In the event that the power is disconnected during the ice making cycle or that the LED lights on the Control Panel are blinking, press the "ON/OFF" Button to stop the ice making cycle. Unplug the unit from the electrical outlet. Allow the unit to sit for a few minutes. Empty the Water Tray and wait three minutes before restarting the unit.

HELPFUL TIPS

ADD WATER INDICATOR

If the "ADD WATER" Indicator turns on, try the following:

• Turn off the unit, add water, and press the "ON/OFF" Button again to restart the unit.
• There may be too much ice. Turn off the ice maker, remove some ice from the ice basket.
• Check and clean the water inlet with a straw brush

ICE FULL INDICATOR

If the "ICE FULL" Indicator comes on, try the following:

• Remove all the ice from the basket and press the "ON/OFF" Button to restart the unit.
• Remove any ice that may be blocking the ice chute with a small spoon.

NUGGET ICE STICK TOGETHER

• The ice cycle may be too long. Stop the ice maker, then restart it when the ice cubes melt.
• The water temperature in the water tank may be too low. Change the water in the water tank. The room temperature should be set between 45^ - 90^ .
• Press the "ICE OUT" button for 3 seconds, then release. After releasing the "ICE OUT" button, the auger will reverse its spin for about 1 second, which may help break up nugget ice clusters.
• Gently tap nugget ice with a fork or spoon to break up clusters.

ICE IS FULL BUT INDICATOR LIGHT IS NOT ON

- Move the ice maker in a darker location so the infrared detection inside the ice maker can work properly.

ICE MAKER NOT WORKING

If the ice-making cycle seems to be running properly, but no ice is being made, try the following:

• The water temperature in water tank may be too high. Try pouring colder water (between 45^ - 80^ ) into the water tank.
• Make sure you are using the ice maker in a room with an ambient temperature between 68^ to 74^ or lower
• If changing the water or allowing the unit to cool does not work, there may be a leakage of the refrigerant fluid, or a pipe in the cooling system may be blocked. Please take your ice maker to a qualified technician for repair.

CLEANING & MAINTENANCE

Your DISPENSING NUGGET ICE MAKER should be cleaned before first time use and before storing. Following these steps will help to maintain the unit and add to longevity.

1. Unplug the unit from the electrical outlet.
2. Dispense all ice from the machine.
3. Remove water tank drip tray.
4. Drain water by turning the drain cap on the button of the unit.
5. Clean the interior and exterior with lukewarm water and a soft cloth.
6. Clean the water inlet with a straw brush
7. Dry the interior and exterior with a soft, non-abrasive cloth.
8. Close the drain cap.
9. If the unit has not been in use for a long time, always open the Water Drain Plug and completely drain the water from the Water Reservoir.

AUTO CLEAN

1. Add a solution of about half water and half white vinegar or lemon juice to the water tank up to the max fill line.
2. Plug the ice maker into the wall outlet.
3. Make sure the ice maker is in standby mode, then press then hold button the "ON/OFF" Button for 3 seconds. The ring around the power button will turn purple, indicating that the ice maker is in auto cleaning mode. This will take approximately 8 minutes.
4. Unplug the drain in the back of the ice maker to drain all liquids.
5. Fill the water tank with water up to max fill line.
6. Repeat steps 1-4.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

AUTOMATIC DISPENSING NUGGET ICE MAKER / IGLICEND40SS

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 9:00 AM and 4:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

CONTENTO

SEGURIDAD....10

PROTECCIONES IMPORTANTES 11

IMPORTANTES SALVAGUARDAS ADICIONALES. . . . . . . . . . . . . . . . . . 11

Appliance Specifications:

110 - 120 Volts, 60 Hz

167 Watts, 2.8 Amps

Refrigerant R600A

ESTE PRODUCTO SÓLO DEBE USARSE CON UN TOMACORRIENTE DE 120 V CA.
