USER MANUAL IWCTL352CHWH Igloo

HELPFUL TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 CLEANING & MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 RETURNS & WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 SAFETY Appliance Specications: 115 Volts, 60 Hz, 580 Watts THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY. Refer to www.nostalgiaproducts.com/user-manuals/ for the most updated manual. Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can cause serious injury to you and others. All safety messages will follow the safety alert symbol. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.ENGLISH

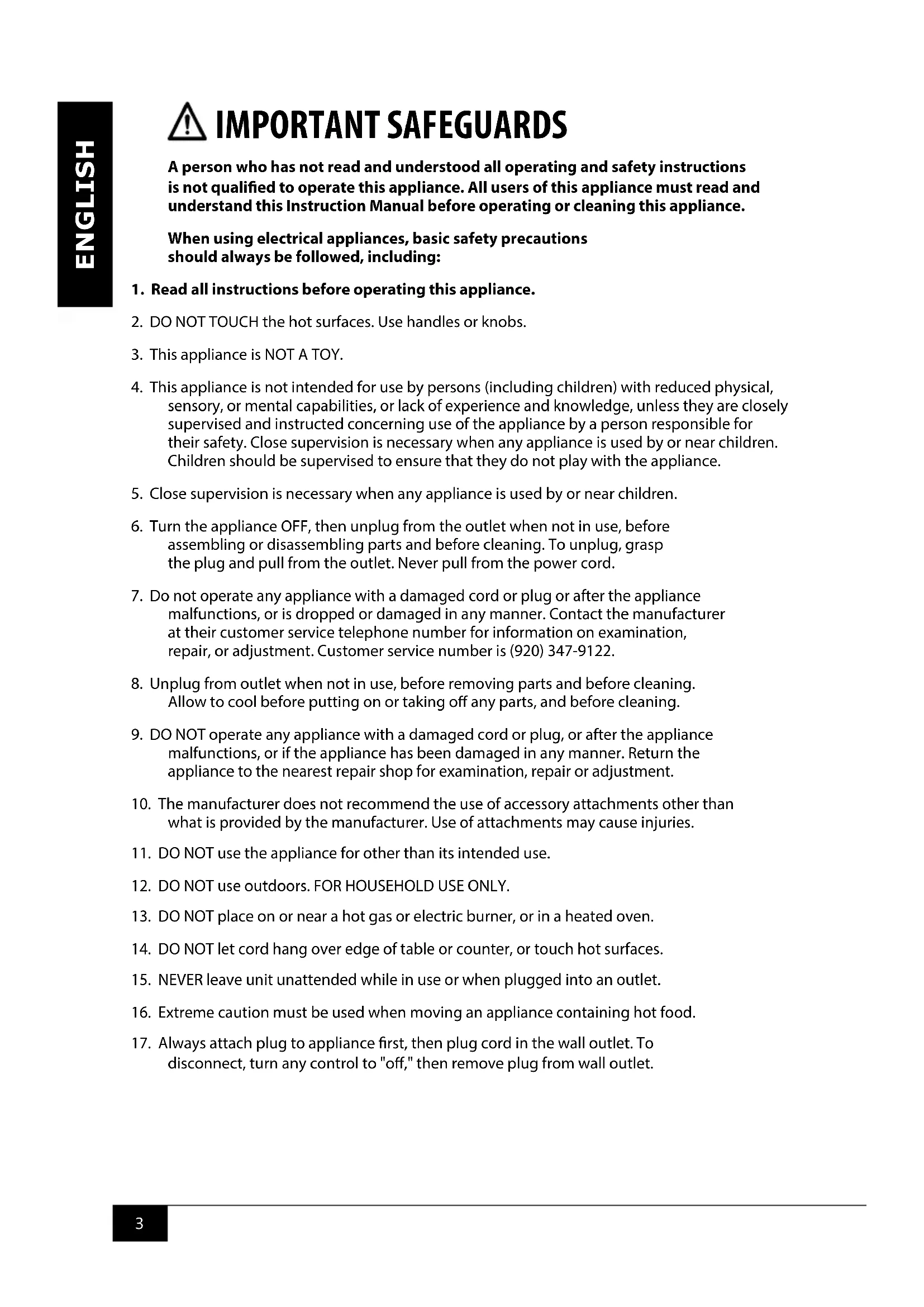

IMPORTANT SAFEGUARDS A person who has not read and understood all operating and safety instructions is not qualied to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance. When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.

2. DO NOT TOUCH the hot surfaces. Use handles or knobs.

3. This appliance is NOT A TOY.

4. This appliance is not intended for use by persons (including children) with reduced physical,

sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.

5. Close supervision is necessary when any appliance is used by or near children.

6. Turn the appliance OFF, then unplug from the outlet when not in use, before

assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

7. Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment. Customer service number is (920) 347-9122.

8. Unplug from outlet when not in use, before removing parts and before cleaning.

Allow to cool before putting on or taking o any parts, and before cleaning.

9. DO NOT operate any appliance with a damaged cord or plug, or after the appliance

malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair or adjustment.

10. The manufacturer does not recommend the use of accessory attachments other than

what is provided by the manufacturer. Use of attachments may cause injuries.

11. DO NOT use the appliance for other than its intended use.

12. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.

13. DO NOT place on or near a hot gas or electric burner, or in a heated oven.

14. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.

15. NEVER leave unit unattended while in use or when plugged into an outlet.

16. Extreme caution must be used when moving an appliance containing hot food.

17. Always attach plug to appliance rst, then plug cord in the wall outlet. To

disconnect, turn any control to "o," then remove plug from wall outlet.ENGLISH

Operating Safety Precautions

1. Prior to use, this dispenser must be properly assembled

and installed in accordance with this manual.

2. This dispenser is intended only for water dispensing. Do NOT use other liquids.

Do NOT use for other purposes. Never use other liquids in the dispenser other than known and microbiologically safe bottled water. Warranty is void if used with any other liquids, such as coee, tea, juices, beer or wine.

1. Instructions for the Electrical Cord and Plug

1. ELECTRICAL SHOCK HAZARD: Failure to follow these instructions can result in death, re, or

• Plug into a grounded 3 prong outlet.

• DO NOT remove ground prong.

2. This unit MUST be grounded. In the event of an electrical short circuit, grounding reduces

the risk of electric shock by providing an escape wire for the electric current. This unit is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

3. WARNING: Improper use of the grounding plug can result in a risk of electric shock. If the

plug does not t fully into the outlet, contact a qualied electrician. Do not attempt to modify the plug in any way.

4. A short power supply cord is provided to reduce the risk resulting from becoming entangled

or tripping over a long cord. The manufacturer does not recommend using this machine in countries that do not support 120V AC even if a voltage adapter, transformer, or converter is in use. SAVE THESE INSTRUCTIONS! INTRODUCTION Thank you for purchasing the HOT & COLD WATER TOP LOAD WATER COOLER from IGLOO! With the Igloo Hot & Cold Top Load Water Cooler, ease is at your ngertips! This top-loader gives you ice-cold and hot water in just seconds! This water cooler allows you to load 3 or 5 gallon bottles with no plumbing required! There is a child safety lock for the hot button so there are no accidents. Satisfy your thirst with cool water or relax with a hot beverage using the brand you can trust!

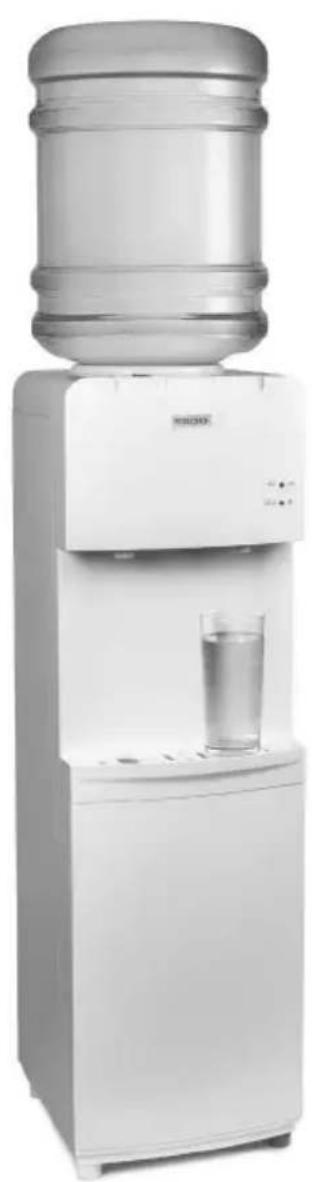

• Top loading cooler for hot and cold water

• Uses standard 3 and 5 gallon bottles (not included)

• Adjustable front leveling legs

• Hot and cold dispensers with a hot-button safety lock

• Over heating protection for hot tank

• Removable drip tray for easy clean up

• Dispensing area suitable for up to 8.5” bottle

• Hot water tank capacity: 1L/ Cold water tank capacity: 3.2L

• Water temperature: Hot 203°F/ Cold 40°F

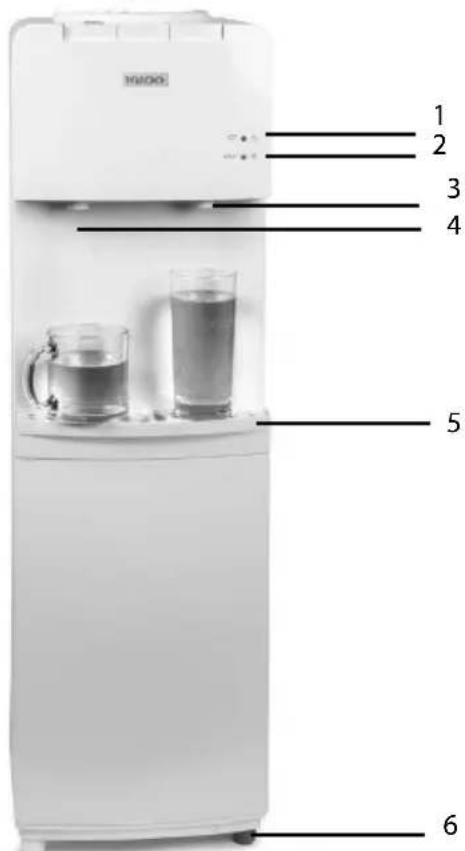

• Hot and Cold On/O switches PARTS & ASSEMBLY PARTS

5- Removable Drip Tray

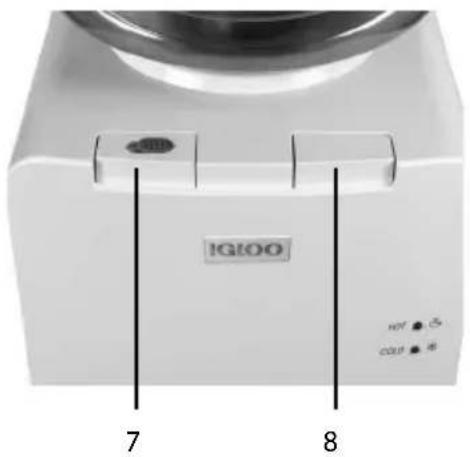

7- Hot Water Push Button Dispenser/Safety Lock

8- Cold Water Push Button Dispenser

9- Cold Water On/O Switch

10- Hot Water On/O Switch

11- Water Guard Base

ASSEMBLY Use EXTREME CAUTION when handling the appliance. When taking out of package, it is recommended to lay the box safely on its side. For the most part, the HOT & COLD WATER TOP LOAD WATER COOLER is assembled. Once unpacked and standing up right, the drip tray will need to be inserted. Location Requirements:

1. Install in the area where it is protected from the elements including direct sun.

2. Install and use only on a hard, at and level surface.

3. Do NOT place the dispenser inside an enclosed space or cabinet.

4. Position the dispenser no closer than 4 inches from the wall with at

least 4 inches clearance on the sides to permit free airow.

5. Service should only be performed by a certied technician.

WATER COOLERS It is very easy to replace 3 or 5 gallon coolers (not included). NOTE: Excessive weight hazard - It is recommended to use two or more people to move and install bottles. Failure to do so can result in injury. With reusable cap:

• If your water bottle has a reusable cap on the end with a plug, safely place the 3 or 5 gallon bottle onto the bottle probe and the nozzle should t securely onto the base. Once secure, you will begin to see water owing from the bottle to the tank. If there is no reusable cap:

1. Stand with your feet shoulder-width apart and

bend down to grab the new water bottle.

2. Lift the bottle up and slowly tip it to a 45-degree angle

to allow water to begin dripping into the cooler.

3. Place the bottle into an upright position as the ow

of water into the cooler begins to increase, and then secure it onto the base. Once secure, you will begin to see water owing from the bottle to the tank.

WARNING: This unit is intended for water dispensing only. Do NOT use

other liquids. Do NOT use for other purposes. Warranty is void if used with any other liquids such as coee, tea, juices, beer or wine. This dispenser has been designed to use water bottles with a 3 or 5 gallon capacity. Do NOT use alternative bottles. Initial Set Up To avoid damage to the compressor, allow the unit to sit upright for at least 4 hours prior to operation. NOTE: Make sure that switches are ON. Each the Hot and Cold switches are located in the back of the water cooler.

1. Remove the tamper seal from bottle cap. Do not remove plastic cap.ENGLISH

2. Lift the bottle safely (see assembly above) and place

bottle until it's secure and bottle is seated.

3. Plug the cord into a properly grounded wall outlet. WARNING: Always

make sure that the cord is away from a water source. Dispensing Cold Water After setup, it will take up to 6 hours to get the water to its maximum cold temperature. When it reaches max temperature, the green light will turn o.

1. Place bottle, glass, or pitcher below the cold water tap.

2. Press the cold water button downward

to start dispensing water.

3. Release the button once the desired ll

level is achieved. Dispensing Hot Water After setup, it will not take long to reach maximum hottest temperature. When it reaches hottest temperature, the red light will turn o. NOTE: For safety, there is a lock on the dispensing button.

1. Place bottle, glass, pitcher, pot below the hot water tap.

2. Release child-safety lock by sliding the red button

and press the hot water button downward at the same time to start dispensing water.

3. Release the button once desired ll level is achieved.

NOTE: Be careful when dispensing hot water as temperature can reach 203 °F. Replacing An Empty Bottle Replace the bottle as soon as you notice that it is empty.

1. Lift the bottle straight up to disengage it from the bottle probe.

2. Remove the tamper seal from the bottle cap of the NEW

bottle. DO NOT remove the plastic cap.

3. Lift the bottle and insert it (assembly directions above). Apply slight pressure

until the plug inside the cap pushes in and the bottle is secure. HELPFUL TIPS

DISPENSER IS NOT WORKING

• Make sure that the power cord is properly connected to a working outlet.

• Replace water bottle. Most common cause is a cracked bottle.

NO WATER IS COMING OUT

• Make sure bottle is not empty. If so, replace it.

• Make sure that you fully press the water control buttons.

WATER DISPENSER IS NOT COLD

• Make sure cold switch is ON. Switch is located in the back of the water cooler.ENGLISH

• It can take up to six hours after setup to dispense coldest water.

• Make sure back of the dispenser is at least 4 inches from a wall and that air is free to ow on all four sides of dispenser.

WATER DISPENSER IS NOT HOT

• Make sure cold switch is ON. Switch is located in the back of the water cooler.

• It can take up to 30 minutes after setup to dispense hottest water. Each time hot water is dispensed, it needs time to heat up again.

• Make sure back of the dispenser is at least 4 inches from a wall and that air is free to ow on all four sides of dispenser.

• Make sure that the dispenser is positioned on a level surface. CLEANING & MAINTENANCE General Cleaning General cleaning should be performed as needed and only takes ve minutes or less.

1. Clean the cabinet surfaces using a soft cloth and warm, soapy water. Rinse.

2. Wipe dust in the back of the water cooler to improve eciency.

3. Remove drip tray cover and hand wash. Take a cloth and warm,

soapy water to rinse the inside of the drip tray. Rinse.

4. Reattach drip tray.

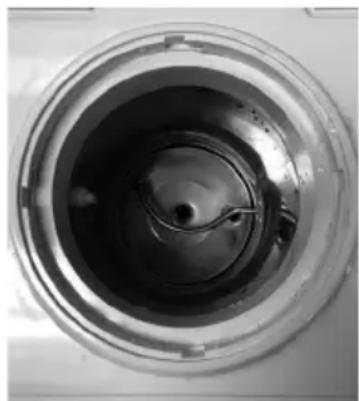

Cleaning Water Lines & Cold Reservoir Cleaning the water lines and reservoirs is recommended to happen once every three months. NOTE: Recommended to do before loading a new 3 or 5 gallon jug.

1. Unplug power cord from outlet.

2. Remove water cooler bottle.

3. Remove the plastic water guard and clean

with warm, soapy water. Rinse.

4. Fill stainless steel reservoir with a mixture of

water and bleach and let it sit for 30 minutes.

5. Remove cleaning mixture by dispensing it

from both taps into a bowl or pitcher.

6. Wipe inside of reservoir with a soft cloth and ll with water.

7. Dispense water from both taps into a bowl or pitcher.

8. Repeat rinsing cycle if chlorine taste persists.

9. Install a new bottle of water and plug in the power cord into grounded outlet.ENGLISH

RETURNS & WARRANTY SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY. HOT & COLD TOP LOAD WATER DISPENSER / IWCTL352CHWH Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time. Distributed by: Nostalgia Products LLC 1471 Partnership Dr. Green Bay, WI 54304-5685 Customer Service Phone: (920) 347-9122 Web: www.nostalgiaproducts.com Customer Service Inquiry To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and ll out the Customer Service Inquiry form and click the Submit button. A representative will contact you as soon as possible. Product Warranty Terms Nostalgia Products LLC (the “Company”) hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benets. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by lling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada. This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and tness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you. This warranty does not apply to re-manufactured merchandise. Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty. For more information, visit us online at www.nostalgiaproducts.com. Like us on Facebook at www.facebook.com/NostalgiaElectrics. Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx. Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.10 ESPAÑOL
