USER MANUAL TS604W Brentwood

©2023 Brentwood Appliances, Inc.

Operating and Safety Instructions

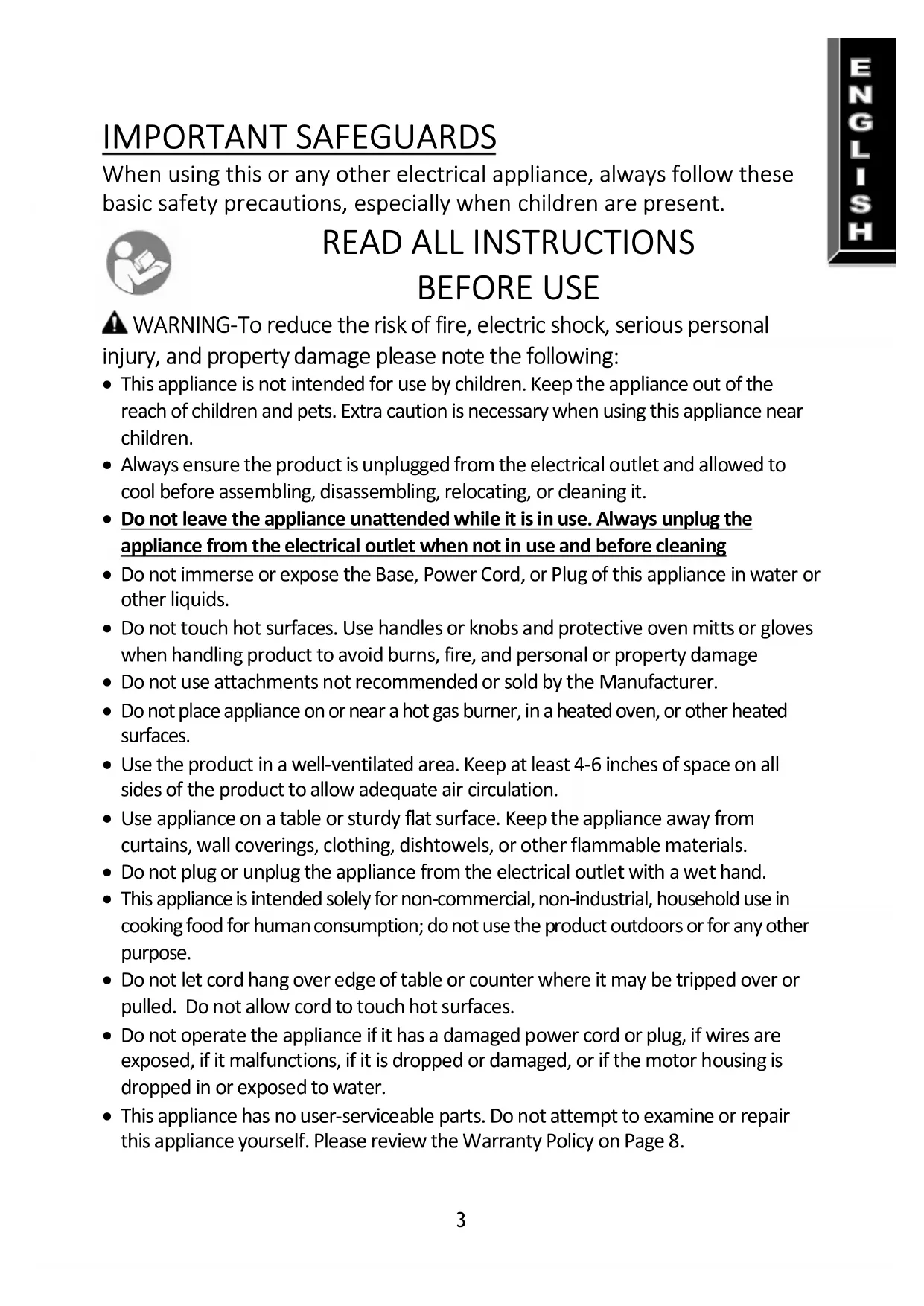

IMPORTANT SAFEGUARDS When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS

BEFORE USE WARNING-To reduce the risk of fire, electric shock, serious personal injury, and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.

• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use and before cleaning

• Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.

• Do not touch hot surfaces. Use handles or knobs and protective oven mitts or gloves when handling product to avoid burns, fire, and personal or property damage

• Do not use attachments not recommended or sold by the Manufacturer.

• Do not place appliance on or near a hot gas burner, in a heated oven, or other heated surfaces.

• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

• Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

• Do not plug or unplug the appliance from the electrical outlet with a wet hand.

• This appliance is intended solely for non-commercial, non-industrial, household use in cooking food for human consumption; do not use the product outdoors or for any other purpose.

• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.

• This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 8.4

• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break. SPECIAL INSTRUCTIONS: Extreme caution should be exercised when using containers constructed of other material other than metal or glass. A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used: − The marked electrical rating must be at least as great as that of the product. − Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

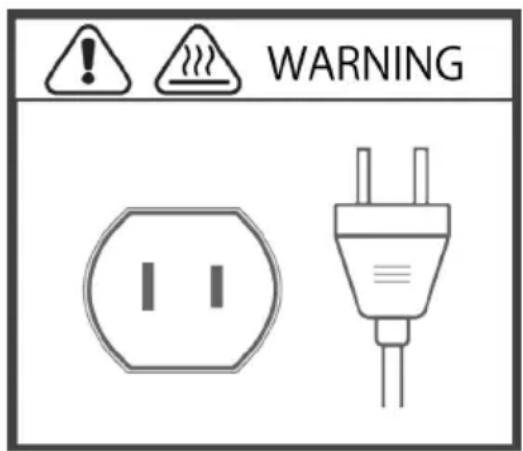

WARNING: This product is equipped with a polarized plug (one blade is wider than the

other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

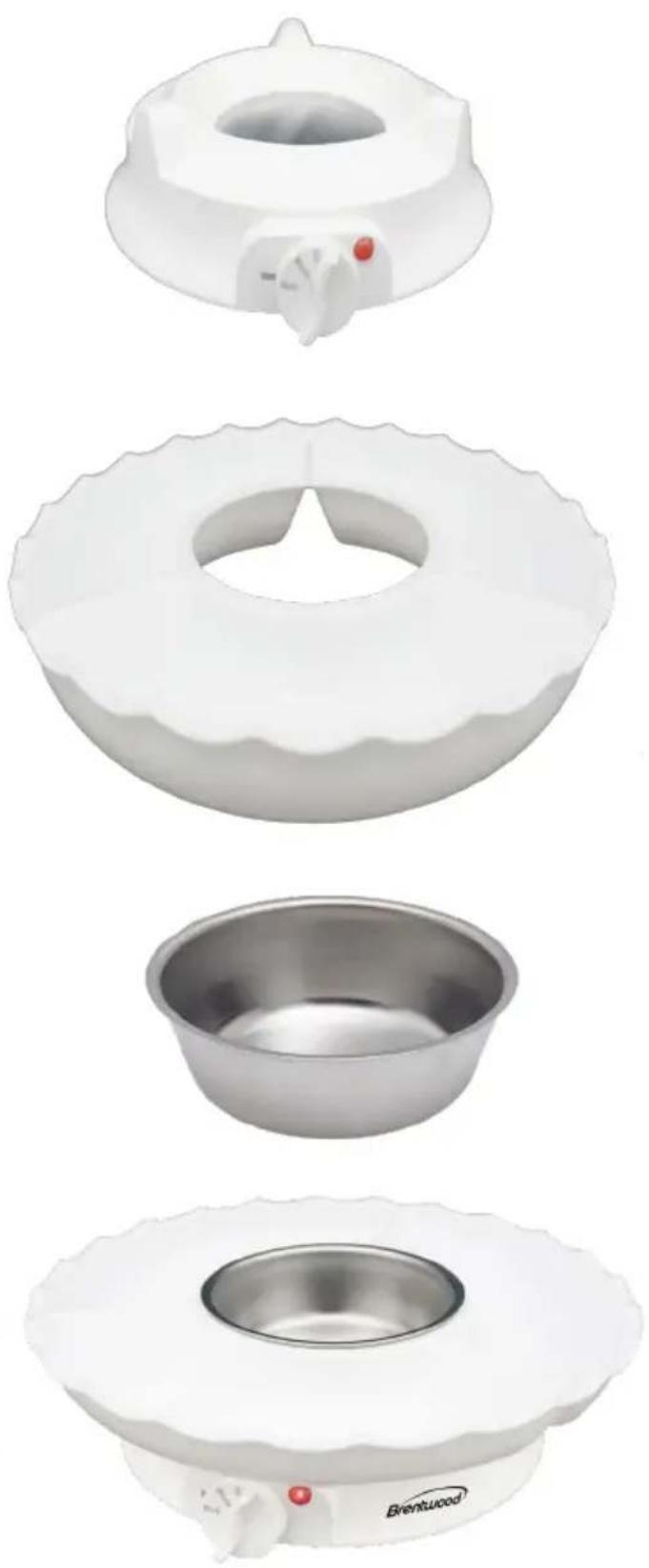

Parts and Assembly Steps:

Heating Base with Power Dial Place on a level counter. Serving Tray Place tray on top of the Heating Base and Power Dial. H ea ti ng B owl Place the stainless-steel bowl in the center of the Serving Tray. 4 S ta i nl ess S teel Dipping F or ks I ncluded Specs: 120V~60 Hz, 25 Watts6 Before First Use IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

1. Wipe all pieces with a damp cloth prior to use and dry well before assembling. (Do

not place any parts of this appliance in the dishwasher.)

2. Before plugging in, check to see that the electric circuit is not overloaded with

3. Be certain that your unit is resting on a level flat countertop.

4. Follow the ‘Parts and Assembly’ Easy Steps section in this manual to properly set

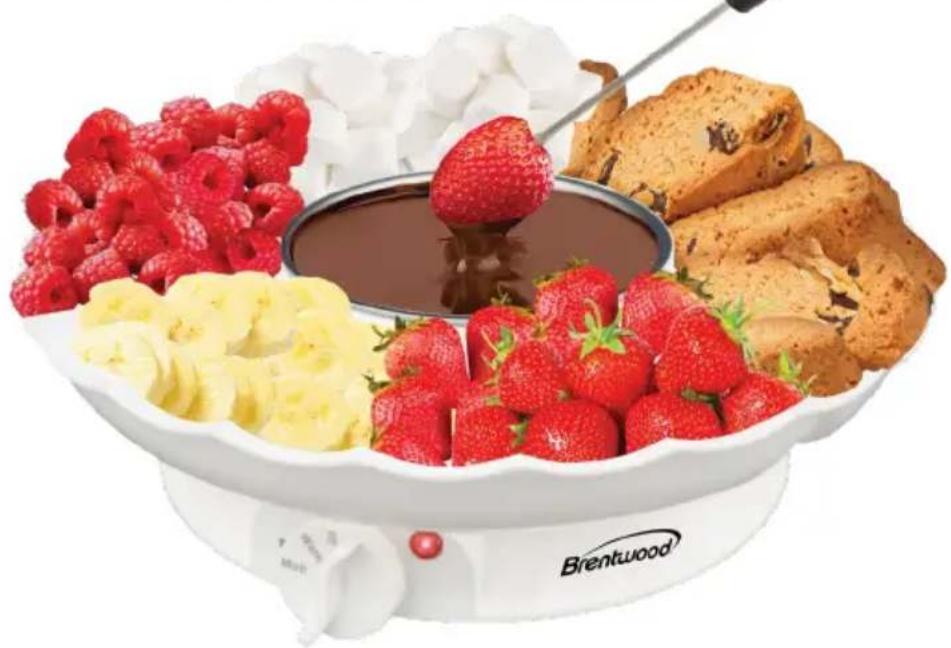

up for use. Introduction: You can use a variety of foods, chocolates, and sauces with your new Fondue machine to create any flavor you desire. Chocolate Fondue: You can use milk chocolate, dark chocolate, or white chocolate with any type of fruit to dip in. Some popular items are strawberries, marshmallows, apple wedges, cookies, ice cream balls, peanuts, graham crackers etc. For a nice kick you may add liqueurs for specific flavors. Cheese Fondue: The most used cheeses are Gruyère, Emmental, Vacherin Fribourgeois and Vacherin Mont D'or. However, any of your favorite local cheeses, cream cheeses and spreads will do. Pair that up with your favorite dipping items such as: grapes, apples, breads, crackers, pretzels, etc. BBQ Sauces: Bar-B-Q sauces work well too! Use your favorite sauce and have chicken cubes, pork cubes, rib tips and a variety of Salame to dip. Use wine, liquor, or other liquids to dilute the sauce if they are too thick. Using Your Fondue Maker: Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. Avoid contact with hot parts. Always use it on a sturdy table or counter.

1. After you have assembled your Fondue Maker according to the Easy Steps on Page

5, check that the Power Dial is on the ‘OFF’ position prior to plugging in the machine to an electrical outlet.

2. Plug the appliance into an electrical outlet and turn the Power Dial to the ‘MELT’

position. The Power Indicator Light will light up letting you know it is heating.7

3. Place your desired fondue dipping sauce into the ‘Heating Bowl’ first. The Heating

Bowl should be placed in the center of the ‘Serving Tray’. Allow the dipping sauce to heat and melt (about 15-20 minutes, this time will vary depending on the dipping sauce ingredients) the dipping sauce should reach 140°F (60℃) before changing the Power Dial to warm.

4. While dipping sauce of your choice is heating, gather your favorite dipping

ingredients to the side on the counter.

5. If you notice your Fondue is not melting fast enough or does not have a fluid

texture, you may need to add butter or oil to obtain a fluid texture. Note: do not overheat the dipping sauce to where it gets dry. If so, turn the Power Dial to ‘Warm’ immediately and add a fat-based ingredient to help liquify.

6. Once your dipping sauce is ready, move the ‘Power Dial’ to ‘Warm’ and place your

dipping ingredients onto the ‘Serving Tray’. These dipping ingredients would be best if they are bite size and pair nicely with your dipping choice.

7. Once ready, have everyone gather around the Fondue Maker and with the

‘Roasting Forks’ included, push the bite size food ingredient into the fork and dip into the dipping sauce and enjoy!

8. Once dipping sauce is finished, turn ‘Power Dial’ to the "OFF" position and unplug

from electrical outlet. Cleaning Your Fondue Maker:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

NOTICE: Never immerse the Heating Base or cord in water or any other liquid.

• Turn Power Switch to "OFF" position, unplug unit from the electrical socket before cleaning.

• Allow the unit to cool for at least 10 minutes before cleaning. Check that the Heating Bowl is not hot to the touch.

• If any bite size food items are still on the Serving Tray, please remove and store for further use.

• Raise the Serving Tray so it separates from the ‘Heating Base’ and slightly tip to one side so the Heating Bowl will tip forward.

• Wash stainless steel Heating Bowl and Dipping Forks in warm soapy water and a soft spung. Serving Tray can also be washed under running water. If needed, wipe Heating Base with a warm damp cloth. NOTE: We do not recommend placing any part of this item in a dishwasher.

• Dry completely before storing in a cool dry environment and store out of reach of children.

• Never use harsh abrasives or steel wool pads on any part of the unit.8

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it. CUSTOMER RECORD Date of Purchase______________ Store/Dealer___________________________ Model/Item No: _______________________________ THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace it with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.
