USER MANUAL HPS-3172W Brentwood

© 2024 Brentwood Appliances, Inc.

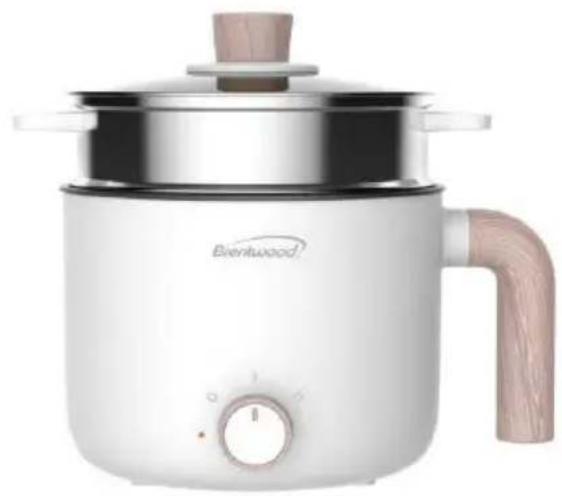

MULTI-FUNCTION HOT POT

White cooking pot with wooden handle and lid, no visible text or symbols on the device itself

White cooking pot with a wooden handle and lid, no visible text or symbols on the device itself.

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.
• Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.
• This appliance generates heat and steam during use, do not touch hot surfaces. Use handles or knobs when handling product. Use protective oven mitts to avoid burns or personal injury.
• Do not use attachments not recommended or sold by the Manufacturer as it may cause fire, electric shock or injury.
• Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing food or liquids.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the appliance from the electrical outlet with a wet hand.
• This appliance is intended solely for non-commercial, non-industrial, household use for the preparation of food or beverages for human consumption; do not use the product outdoors of for any other purpose.
• Do not operate the appliance empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.
• This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 8.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.
• If the Glass Lid has a chip or a crack, discontinue use.

Parts:

Lid Steamer Pot Power Switch Indicator Light Handle

Lid Handle Pot Power Switch Indicator Light

This electric hot pot is designed to Boil, Braise, Fry, Sauté, and Deep Fry. It features adjustable heating power (I=300w, II=600W) and a non-stick inner pot for easy cleaning.

BEFORE FIRST USE

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

- Before your first use, clean the inner pot (and stainless steel steamer if included) with a damp cloth with non-abrasive soap. Do not submerge the unit under water. Make sure to dry all parts thoroughly.

- The Lid (and steamer tray for model HPS-3172W) can be washed under running water also using a non-abrasive sponge and soap. Make sure to dry all parts thoroughly before using the appliance.

- Before first use, add water to the maximum water level line, then boil the water and pour it out. This will clean the product and make it ready for use.

Using Your Hot Pot

Attention: During the first use the heating element undergoes a minor chemical reaction that may result in a slight odor and/or minor smoking. It quickly goes away.

NOTE: Boil-dry protection automatically switches off the heating element when there is no water left or no food cooking in the Hot Pot during use.

1. Place the Hot Pot on a sturdy flat and dry surface.
2. Insert the power cord firmly into the socket and make sure it is securely in place.
3. Plug the Hot Pot into the nearest Electric Outlet.
4. Press on the desired Heating Speed 'I' for Low Power or 'II' High Power (faster heating). CAUTION: Do not overfill the appliance above the 'MAX' line.
5. Add your ingredients to the Hot Pot and gently stir using only plastic or wood utensils (not included) during cooking, as metal can scratch and damage the stainless steel.
6. Once cooking is completed, turn the Control Switch to 'O' for Off, unplug the appliance and disconnect the power cord from the Hot Pot.
7. Let stand and cool before cleaning (15 minutes).

NOTE: When there is no water in the Hot Pot or if the water runs out (or no food is on hot pot) during use, the boil-dry protection automatically switches off the heating element. Should this happen, turn the power switch off, unplug the unit, and disconnect the power cord, and allow it to cool before continuing to use or storing.

Using as a Steamer (Model HPS-3172W):

1. Place the Hot Pot on a sturdy, flat, and dry surface.
2. Insert the power cord firmly into the socket and ensure it is securely in place.
3. Plug the Hot Pot into the nearest electrical outlet.
4. Add 3 cups of water (or additional cups as needed) to the Hot Pot.
5. Place the food to be steamed in the steam tray, then place the tray on top of the Hot Pot. Ensure that the steam tray is securely seated on top of the Hot Pot.
6. Place the lid securely on top of the steam tray.
7. Press the desired heating setting: 'I' for Low Power or 'II' for High Power (faster heating).

Note: Ensure there is enough room inside the steam tray and under the lid for adequate steaming. To prevent overcooking, remove the steamed food immediately once it is cooked. Wear protective, heat-resistant gloves to prevent injury, as the steam tray will be hot.

1. Once cooking is completed, turn the control switch to 'O' for Off, unplug the appliance, and disconnect the power cord from the Hot Pot.

2. Allow the Hot Pot to stand and cool for 15 minutes before cleaning.

Cleaning Your Hot Pot:

Warning: Always unplug the appliance and allow it to cool before cleaning or storing.

Notice: Never immerse the unit, plug, or cord in water or any other liquid.

• Wash the Hot Pot by hand using non-abrasive cleaners and pads with warm water.
• To prolong the life of your hot pot we recommend not submerging the appliance. Use a water recipient to pour water in and carefully discard.

- Do not use steel wool pads as they can damage the surface. You can use stainless steel cleaning agents.

- The glass lid can be washed under running water with mild dish soap.

- Rinse all parts thoroughly and dry. Reassemble and store in a cool, dry place. Away from the reach of children.

Descaling:

Descaling is the removal of mineral deposits from stainless steel. All water contains minerals including purified and filtered water. After your hot pots first use, you may see the first signs of deposits which may be white to reddish brown in color. These stains are not rust nor are they toxic.

To descale your Hot Pot, fill it full of water, add a small amount of white vinegar, and boil.

Unplug the Hot Pot and allow the solution to sit for an hour. For darker stains leave overnight. This will remove most deposits that have been built up from normal use. Rinse out solution, add fresh water, and boil again. Allow to cool, follow with thorough cleaning, and dry before next use.

RECIPE IDEAS

Beef and Vegetable Hot Pot:

Ingredients:Thinly sliced beefSliced mushrooms (shiitake, enoki, or button mushrooms)Napa cabbage, chopped Carrots, thinly slicedBok choy, halvedTofu, cubedGlass noodlesBeef broth or vegetable brothSoy sauceMinced garlic

Directions:Pour the beef broth or vegetable broth into the electric hot pot and set it to heat.Once the broth is simmering, add the thinly slice beef and cook until it's no longer pink.Add the sliced mushrooms, chopped Napa cabbage, thinly sliced carrots, halved bok choy, cubed tofu to the hot pot.Allow the vegetables to cook until they're tender stirring occasionally.Add the glass noodles to the hot pot and cook ur

Sliced green onionsSesame oil

they're softened.6. Season the hot pot with soy sauce, minced garlic sliced green onions, and sesame oil to taste.7. Serve the hot pot hot and enjoy!

Seafood Hot Pot:

Ingredients:Assorted seafood (shrimp, scallops, squid, mussels, fish fillets)Crab or lobster claws (optiona Fish balls or fish cakesTofu, cubedBaby bok choyChinese cabbageSnow peasEnoki mushroomsSeaweed (kombu)Sliced gingerGreen onions, chopped Seafood or chicken brothSoy sauceMinced garlicSesame oil

Directions:Pour the seafood or chicken broth into the electr hot pot and set it to heat.Once the broth is simmering, add the assorted seafood, crab or lobster claws (if using), fish ba fish cakes, cubed tofu, baby bok choy, Chinese cabbage, snow peas, enoki mushrooms, sliced ginger, and chopped green onions to the hot po3. Allow the seafood and vegetables to cook until they're cooked through, stirring occasionally.Season the hot pot with soy sauce, minced garlic and sesame oil to taste.Serve the seafood hot pot hot and enjoy!

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online: www.brentwoodus.com
