USER MANUAL HP-3011W Brentwood

Brentwood® Appliances

© 2022 Brentwood Appliances, Inc.

HOT POT

OLLA CALIENTE ELÉCTRICA

ITEM NO.: HP-3011W (WHITE)

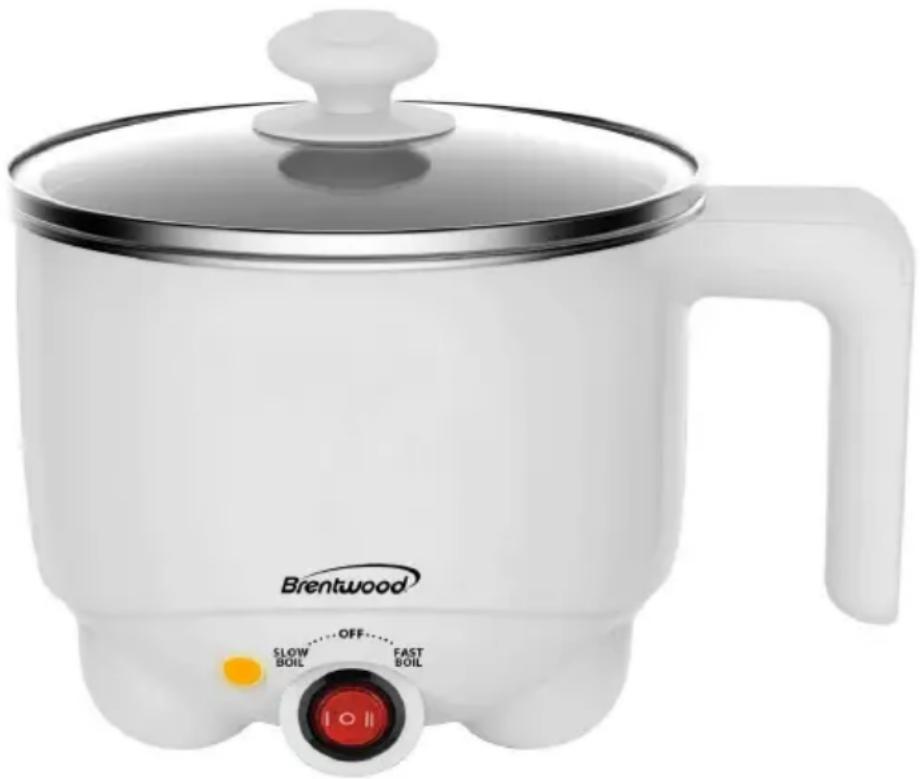

White Brentwood electric cooker with control buttons and a yellow indicator light (no text or symbols on the device itself)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE!

ENGLISH

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury, and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the appliance is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.

- Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.

- Do not touch hot surfaces. Use handles or knobs and protective oven mitts or gloves when handling product to avoid burns or personal injury.

- Do not touch the stainless-steel shell or the glass cover while in use, to prevent burns.

- This appliance generates heat and steam during use. Please take the proper precautions to avoid burns, fire, and personal or property damage.

- Do not use any parts that are not delivered with the original hot pot; this might cause danger. Do not place in or on other appliances.

- Do not fill with water while appliance is in use.

- Do not add water higher than the maximum water level, to prevent water splashing out and scalding.

- Do not use empty or with little water. Water should be higher than the lowest water level, to avoid overheating the hot pot.

- Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing food or liquids.

- Use the appliance in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the appliance from the electrical outlet with a wet hand.

- This appliance is intended solely for non-commercial, non-industrial, indoor household use in cooking of food for human consumption.

- Do not operate the appliance empty.

• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 9.
• Do not overload wall outlet or extension cords as this can result in a fire or electric shock.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.
• If the Glass Lid has a chip or a crack, discontinue use.

SHORT CORD INSTRUCTIONS:

• A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available and may be used if care is exercised in their use.
• If a long detachable power-supply cord or extension cord is used:

A. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.
B. If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord; and
C. The longer cord should be arranged so that it does not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

WARNING: This product is equipped with a 3-prong grounding type. This is a safety feature. The plug will fit into an outlet one way ONLY. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord and the extension cord must be a grounding-type 3 wire cord. DO NOT attempt to defeat the safety purpose of the plug.

WARNING

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

BEFORE FIRST USE

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

• Before your first use, clean the stainless-steel with a damp cloth with non-abrasive soap. Do not submerge the unit under water. Make sure to dry all parts thoroughly.
• The Lid can be washed under running water also using a non-abrasive sponge and soap. Make sure to dry all parts thoroughly before using the appliance.
• Before first use, add water to the maximum water level line, then boil the water and pour it out. This will clean the product and make it ready for use.

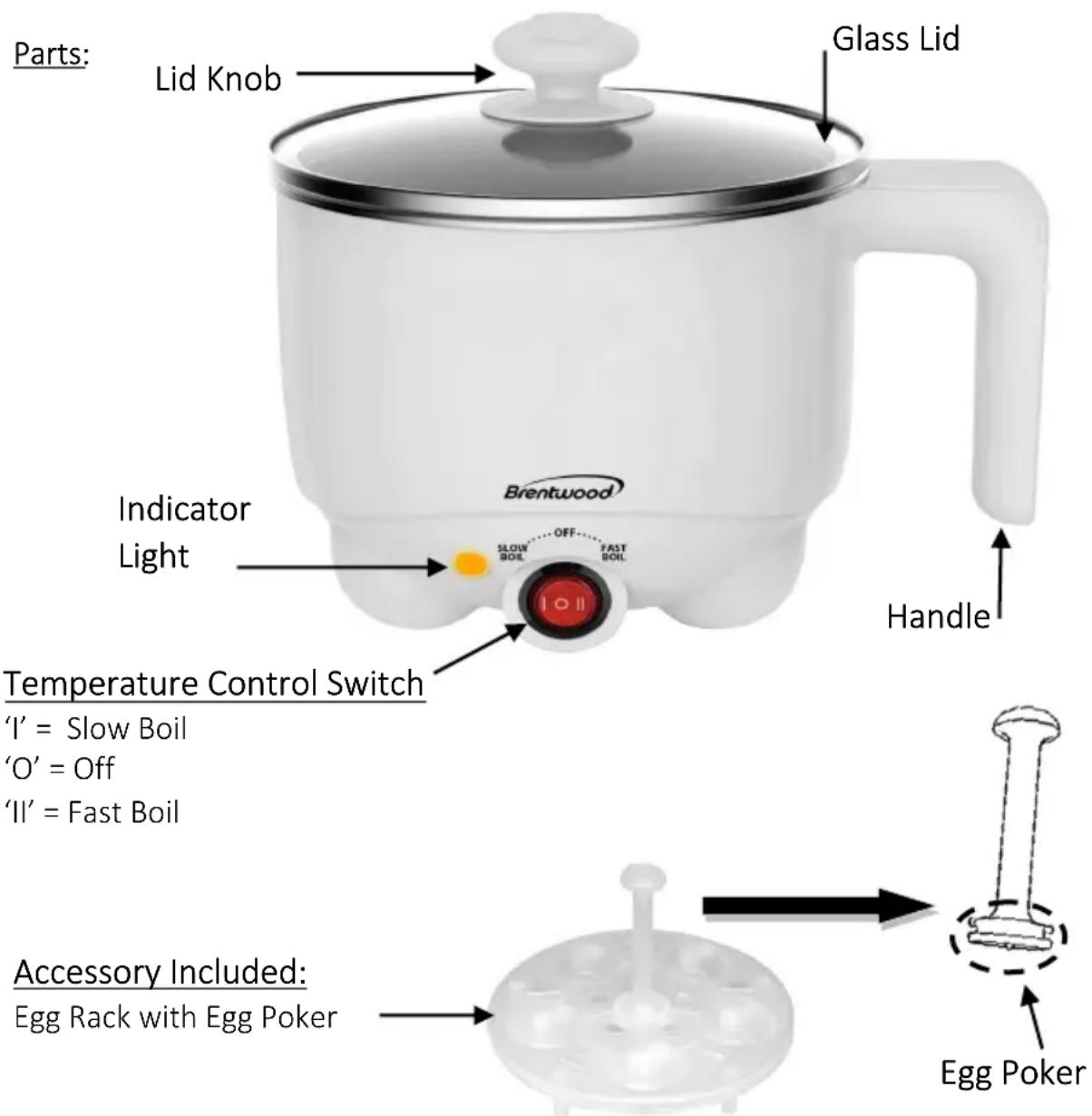

Parts: Lid Knob Glass Lid Brentwood Indicator Light SLOW BOIL OFF FAST BOIL Handle Temperature Control Switch 'I' = Slow Boil 'O' = Off 'II' = Fast Boil Accessory Included: Egg Rack with Egg Poker Egg Poker

Using Your Hot Pot

Attention: During the first use the heating element undergoes a minor chemical reaction that may result in a slight odor and/or minor smoking. It quickly goes away. NOTE: Boil-dry protection automatically switches off the heating element when there is no water left in the Hot Pot during use.

NOTE: When max temperature is reached, indicator light will turn off and heating will stop. Indicator light will go back on to maintain temperature. This cycle will continue to maintain the optimal temperature during use until power is turned off or there is no water left in the pot.

1. Place the Hot Pot on a sturdy flat and dry surface.
2. Insert the power cord firmly into the socket and make sure it is securely in place.
3. Plug the Hot Pot into the nearest Electric Outlet.

4. Press on the desired Temperature Control 'I' for Slow Boil or 'II' Fast Boil. CAUTION: Do not overfill the appliance above the 'MAX' line.

5. Add your ingredients to the Hot Pot and gently stir using only plastic or wood utensils (not included) during cooking, as metal can scratch and damage the stainless steel.

6. Once cooking is completed, turn the Temperature Control Switch to 'O' for Off, unplug the appliance and disconnect the power cord from the Hot Pot.

7. Let stand and cool before cleaning (15 minutes).

NOTE: When there is no water in the Hot Pot or if the water runs out during use, the boil-dry protection automatically switches off the heating element. Should this happen, turn the power switch off, unplug the unit, and disconnect the power cord, and allow it to cool before continuing to use or storing.

Common Usage:

Boiling Water

1. Remove glass lid, add water lower than the 'MAX' level. Then cover with glass lid. Insert the power plug cord to the hot pot and plug to an electrical outlet. Press the temperature control switch to 'II', indicator light will go on and hot pot will start heating.
2. Approximately 10 minutes later, the water will begin to boil, turn the temperature control switch to 'O', hot pot will stop heating and indicator light will go off. When no longer in use, always remember to unplug your appliance from the power source.

Noodles

1. Remove glass lid, add water lower than the 'MAX' level. Then cover with glass lid. Insert the power plug cord to the hot pot and plug to an electrical outlet. Press the temperature control switch to 'II', indicator light will go on and hot pot will start heating.
2. Approximately 10 minutes later, the water will begin to boil, remove the glass lid place noodles into the pan and cover.
3. When water returns to a boil add some seasoning and mix. Turn the temperature control switch to 'O', hot pot will stop heating and indicator light will go off. When no longer in use, always remember to unplug your appliance from the power source.

Hot Pot

1. Remove glass lid, add water but less than the 'MAX' level. Then cover with glass lid. Insert the power plug cord to the hot pot and plug to an electrical outlet. Press the temperature control switch to 'II', indicator light will go on and hot pot will start heating.
2. Approximately 10 minutes later, the water will begin to boil, place the food into the pan and enjoy the food after it is fully cooked.
3. If you want to reduce the temperature, switch by pressing the 'I', the pot will go on 'Slow Boil' mode which will keep food warm as the temperature will take a longer time to return to a boil. When you are done and no longer need to heat your food, press the control switch to 'O' this will turn 'OFF' the appliance completely. When no longer in use, always remember to unplug your appliance from the power source.

Steamed Eggs

1. Remove glass lid, add about an inch of water. NOTE: use no more than 1-inch of water to steam. For steamed eggs (soft to hard) increase in boiling time from 4 minutes to 9 minutes. If cooking for a longer period, more water may be necessary.

CAUTION: Do not fill Hot Pot above Egg Rack Poker handle as water will be at a boiling temperature and will cause burns.

Place eggs onto the Egg Rack and place Egg Rack into the pot. Then cover with glass lid. Insert the power plug cord into the hot pot and plug to an electrical outlet. Press the temperature control switch to either 'I' or 'II', depending on the type of steamed eggs desired. Indicator light will go on and hot pot will start heating.

1. Approximately 4-10 minutes later, the water will begin to boil.

2. Press the control knob to 'O' to turn 'OFF' the appliance. When no longer in use, always remember to unplug your appliance from the power source.

Cleaning Your Hot Pot:

Warning: Always unplug the appliance and allow it to cool before cleaning or storing.

Notice: Never immerse the unit, plug, or cord in water or any other liquid.

• Wash the Hot Pot by hand using non-abrasive cleaners and pads with warm water.
• To prolong the life of your hot pot we recommend not submerging the appliance. Use a water recipient to pour water in and carefully discard.
• Do not use steel wool pads as they can damage the surface. You can use stainless steel cleaning agents.
• The glass lid can be washed under running water with mild dish soap.
• Rinse all parts thoroughly and dry. Reassemble and store in a cool, dry place. Away from reach of children.

Descaling:

Descaling is the removal of mineral deposits from stainless steel. All water contains minerals including purified and filtered water. After your hot pots first use, you may see the first signs of deposits which may be white to reddish brown in color. These stains are not rust nor are they toxic.

To descale your Hot Pot, fill it full of water, add a small amount of white vinegar, and boil. Unplug the Hot Pot and allow the solution to sit for an hour. For darker stains leave overnight. This will remove most deposits that have built up from normal use. Rinse out solution, add fresh water, and boil again. Allow to cool, follow with thorough cleaning, and dry before next use.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
