USER MANUAL O2I412 IFM

Operating instructions Multicode Reader

0214xx

Contents

1 Preliminary note 3

1.1 Symbols used 3
1.2 Warnings.... 3
1.3 Legal and copyright information 3
1.4 Open source information.... 3

2 Safety instructions.... 4

2.1 Safety symbols on the unit 4
2.2 Photobiological safety 4

2.2.1 O2I400, O2I402 4
2.2.2 O2I404 5
2.2.3 O2I41x 5
2.2.4 O2l42x 5

2.3 Cyber security.... 6

3 Intended use....7

3.1 Application area 7

4 Function 8

4.1 Overview of device functions.... 8
4.2 IO-Link 8
4.3 Web front end 9
4.4 Triggering image captures. 9

4.4.1 External triggering....9
4.4.2 Internal debouncing.... 10

4.5 Switching outputs 10
4.6 Internal illumination.... 11

4.6.1 O2I40x 11
4.6.2 O2I41x 11
4.6.3 O2I42x 12

5 Mounting.... 13

5.1 Installation instructions 13

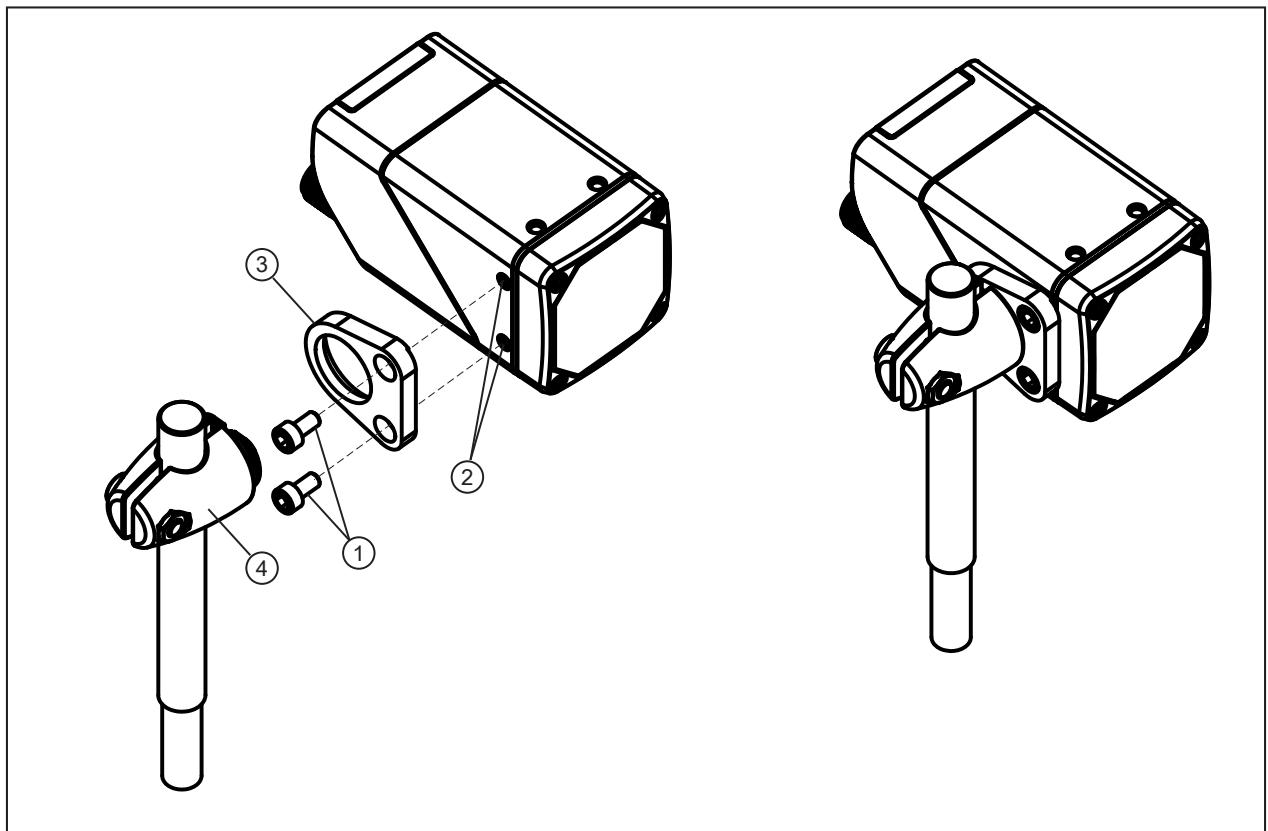

5.2 Mounting with clamp 14
5.3 Mounting with dome illumination 15

6 Electrical connection.... 16

6.1 Wiring 17
6.1.1 PNP/NPN selection.... 17

6.2 Maximum current consumption 17

6.3 Connecting the IO-Link master 18
6.4 Wiring example 18
6.5 External illumination 19

7 Installation.... 20

7.1 Update firmware 20

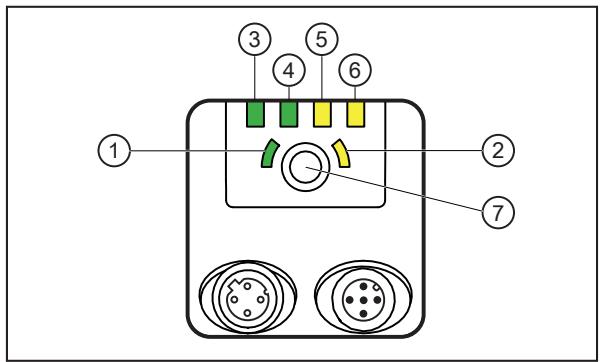

8 Operating and display elements 21

8.1 Signal indications 21

9 Set-up 23

Parameter setting 24

10.1 Teach code with teach button 24
10.2 Visual localisation 24

11 Operation 25

11.1 Over temperature protection 25

12 Troubleshooting 26

13 Maintenance, repair and disposal 27

13.1 Replacing the unit 28

1 Preliminary note

You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at documentation.ifm.com.

1.1 Symbols used

√ Requirement
Instructions
Reaction, result

[...] Designation of keys, buttons or indications

→ Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note

1.2 Warnings

Warnings indicate the possibility of personal injury and damage to property. This enables safe product handling. Warnings are graded as follows:

WARNING

Warning of serious personal injury

▷ If the warning is not observed, fatal and serious injuries are possible.

CAUTION

Warning of minor to moderate personal injury

▷ If the warning is not observed, minor to moderate injuries are possible.

ATTENTION

Warning of damage to property

▷ If the warning is not observed, damage to property is possible.

1.3 Legal and copyright information

© All rights reserved by ifm electronic gmbh. No part of these instructions may be reproduced and used without the consent of ifm electronic gmbh.

All product names, pictures, companies or other brands used on our pages are the property of the respective rights owners.

1.4 Open source information

For more open source information see: documentation.ifm.com.

2 Safety instructions

- The unit described is a subcomponent for integration into a system.

• The system architect is responsible for the safety of the system.

• The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. This documentation must contain all necessary information and safety instructions for the operator, the user and, if applicable, for any service personnel authorised by the architect of the system.

• Read this document before setting up the product and keep it during the entire service life.

• The product must be suitable for the corresponding applications and environmental conditions without any restrictions.
• Only use the product for its intended purpose (→ Intended use).
• If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.
• The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the product must be carried out by qualified personnel authorised by the machine operator.
• Protect units and cables against damage.

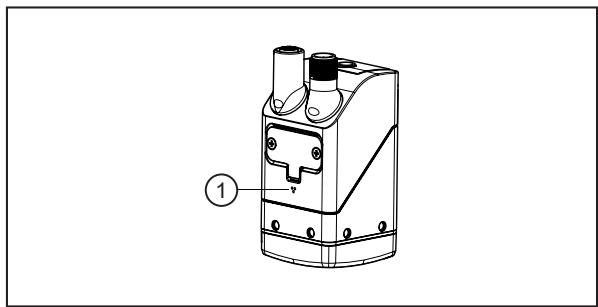

2.1 Safety symbols on the unit

The following symbols are used on the device. Observe the instructions in order to avoid hazards:

• Electric supply must correspond to IEC 61010-1, chapter 9.4 - Limited-energy circuit. (→ Electrical connection ☐ 16)
• The photobiological safety of devices with Risk Group 2 must be taken into consideration. (→ Photobiological safety ☐ 4)
• Device of protection class III. Only for operation in PELV circuits. (→ Electrical connection ☐ 16)

2.2 Photobiological safety

The device classification according to EN 62471 is based on a distance of the viewer from the light source of 200 mm for the most unfavourable device configuration (colour, exposure time, frame rate). Under application-specific conditions, the risk for the viewer may differ depending on the installation situation and the device settings.

The system architect/operator is required to carry out a hazard analysis and to take appropriate measures for the protection of persons. In particular national regulations also have to be adhered to. Possible protective measures may include screens, guaranteed minimum distances of a viewer, access controls, safety glasses and user training.

It is generally recommended not to look directly into the switched-on light source. Glare or irritation can also occur in Risk Group 0 (Exempt Group). Ideally, the device is installed in such a way as to prevent eye exposure to the light source.

2.2.1 O2I400, O2I402

The colour of the illumination LEDs can be switched between red (625 nm), green (525 nm), blue (453 nm) and white. The colour selection applies to all LEDs at the same time.

The unit complies with Risk Group 1 according to EN 62471:2008.

Reducing the risk for the viewer to equal that of the Exempt Group (RG 0):

▶ When selecting the blue and white LEDs, observe the distances between the light source and the eye specified in the following table.

	LED red	LED green	LED blue	LED white
Risk Group (RG)	0	0	0	0
Hazard distance	---	---	0.35 m	0.30 m

Tab. 1: Risk group-related hazard distances according to DIN EN 62471, Supplement 1

2.2.2 O2I404

The colour of the illumination LEDs can be switched between red (625 nm), green (525 nm), blue (453 nm) and white. The colour selection applies to all LEDs at the same time.

The lighting is highly focused.

The unit complies with Risk Group 2 according to EN 62471:2008.

RISK GROUP 2

CAUTION: Possibly hazardous optical radiation emitted from this product. Do not stare at operating lamp. May be harmful to the eyes.

Fig. 1: Indication on the device for risk group 2

CAUTION

Risk Group 2 light source

▷ Possible damage to the eyes when looking into the LED light source for a longer period of time.
▶ Avoid looking into the light source for any length of time.
▶ Carry out a hazard analysis and, if necessary, take appropriate measures for the protection of persons.
Reducing the risk for the viewer to equal that of Risk Group 1 or the Exempt Group (RG 0):
▶ When selecting the blue and white LEDs, observe the distances between the light source and the eye specified in the following table.

	LED red	LED green	LED blue		LED white
Risk Group RG	0	0	1	0	1	0
Hazard distance	---	---	0.35 m	0.55 m	0.30 m	0.4 m

Tab. 2: Risk group-related hazard distances according to DIN EN 62471, Supplement 1

2.2.3 O2I41x

The illumination LEDs emit visible light with a wavelength of 617 nm. The device complies with the Exempt Group according to EN 62471:2008.

2.2.4 O2l42x

The illumination LEDs emit invisible infrared light with a wavelength of 850 nm. The device complies with the Exempt Group according to EN 62471:2008.

2.3 Cyber security

ATTENTION

Unprotected network environment.

The device does not include IT security measures according to IEC 62443.

▷ Unauthorised read or write access to data is possible.
▷ Unauthorised manipulation of the device function is possible.
▶ Check and restrict access options to the device.

3 Intended use

The device decodes labelled and directly marked 2D codes and 1D bar codes and detects fonts (OCR).

3.1 Application area

The device safety is rated for use under the following operating conditions according to EN IEC 61010-2-201:

• indoor use
  • altitudes up to 4000 m
  • relative air humidity up to max. 90 %, non condensing
• pollution degree 3

Electromagnetic compatibility (EMC):

The unit is designed for use in industrial environments.

This product may cause radio interference in domestic areas.

▶ If required, take appropriate EMC screening measures.

The IP rating has not been evaluated by UL® Underwriters Laboratories®.

The focus setting is designed for a life cycle of 200,000 changes.

The teach button has a calculated operation of over 100,000 button pushes.

4 Function

The device checks and monitors code content, code properties and code quality and detects fonts (OCR). To do this, it creates image captures with set applications.

The device can output the results via the IO-Link process interface.

Switching outputs

The device provides the following switching outputs for controlling external devices:

• 1 switching output when using IO-Link,
• 2 switching outputs in SIO mode.

The SIO mode is activated via the IO-Link master.

4.1 Overview of device functions

• Integrated, configurable code evaluation and detection of fonts (OCR)
• Reading different code types with one application
• Process interface: IO-Link
  • Parameter setting interface: Ethernet TCP/IP
  • Control of the switching outputs by the active application
  • Automatic setting of focus, illumination and code parameters during the configuration
• Internal illumination
  • Control of external illumination units
  • Internal and external triggering of image captures
  • Data processing with function blocks and logical links in the device

4.2 IO-Link

IO-Link is a communication system for connecting intelligent sensors and actuators to automation systems. IO-Link is regulated in the IEC 61131-9 standard.

The device uses IO-Link as a data output interface. The data output interface is enabled by default.

The device parameters are set via the teach button or the ifm Vision Assistant software. Parameter setting via IO-Link is not supported.

Some commands such as trigger, application switchover and teach via button can be executed via the IO-Link interface. See the programming manual at documentation.ifm.com.

The parameter sets of the device are larger than average. If the device is replaced, the configuration of the device cannot be transferred with the IO-Link master. Transfer the device configuration using one of the following methods:

• ifm Vision Assistant software
• ifm mass storage device

General information about IO-Link can be found at io-link.ifm.

The Input Output Device Description (IODD) with all parameters, process data and detailed descriptions of the device can be found at documentation.ifm.com.

The ifm mass storage device is planned as an accessory: ifm.com, article no.: E2D504

4.3 Web front end

The device has a web front end via which the following information can be retrieved:

• Licences
  • Device configuration (the ifm mass storage device is required for saving)
• Error images (the ifm mass storage device is required for saving)

The ifm mass storage device is planned as an accessory: ifm.com, article no.: E2D504

Calling up the web front end

▶ Enter the IP address of the device in a web browser. Example: http://192.168.0.69

4.4 Triggering image captures

1...5 parameter sets can be defined for image captures.

Image captures are triggered by an internal or external trigger signal. Depending on the selected trigger mode, the images are then captured accordingly.

• Internal triggering
  – Images are captured continuously with a fixed frame rate.
• The settings are made via the ifm Vision Assistant software.
• External triggering
• Image capture activated by external trigger source (switching signal of a connected sensor) via the trigger input.
  – Image capture activated by process interface command (PLC).

If an internal or external illumination unit is used, it will be switched on with each triggering.

4.4.1 External triggering

For external triggering of image captures, different trigger modes can be used ( → software manual at documentation.ifm.com):

• Negative edge
• Positive edge
  • Negative and positive edge
• Gated trigger
• Burst trigger

During an active trigger process, no new trigger can be activated. A trigger signal that occurs too early will be discarded and treated as a “Trigger overrun” error. The ready signal “Ready for trigger” can be output to a switching output.

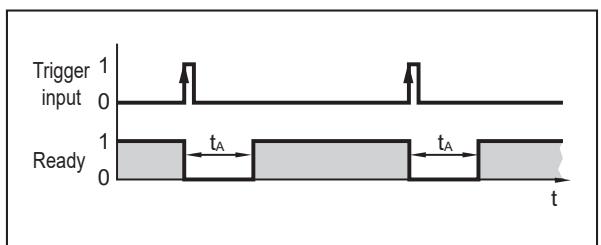

Fig. 2: Ready signal ("Ready for trigger")

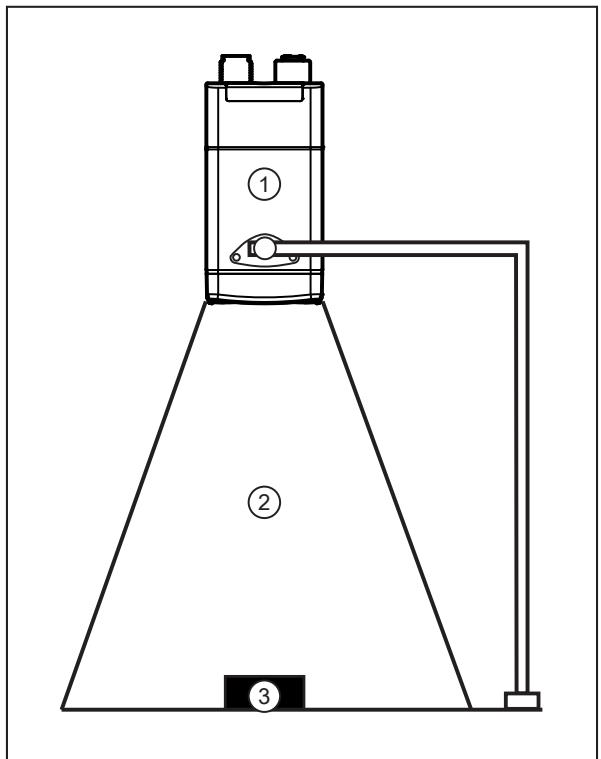

Example: A diffuse reflection sensor as an external trigger source triggers the unit on a positive edge ( t_A = evaluation time).

4.4.2 Internal debouncing

Fig. 3: Internal debouncing

1: trigger input

2: image capture

The trigger input can be debounced internally (preset: internal debouncing deactivated). Internal debouncing prevents several short pulses from triggering. The pulse must be at least 4 ms long to be recognised as a trigger.

Depending on the electrical installation, debouncing is not necessary.

A trigger delay can be set.

4.5 Switching outputs

The switching outputs OUT1 and OUT2 are configurable. If an external illumination is connected, only OUT1 is still available for the application.

Switching output OUT1 is used for IO-Link. Optionally, OUT1 can be used as a switching output when the SIO mode is activated.

The SIO mode is activated via the IO-Link master.

The configuration can be done individually for each application using the ifm Vision Assistant software. The table below shows the standard configuration.

Output	Standard	External illumination	Process interface
OUT1	For applications via the ifm Vision Assistant:Ready signal (“Ready for trigger”)0: device busy1: device ready for trigger signal		Selectable via command
	When using the teach button:evaluation successful (pass/fail)
	IO-Link
OUT2	For applications via the ifm Vision Assistant:code evaluation0: code evaluation not successful1: code evaluation successful	Trigger output
	When using the teach button:OUT2 not used

Tab. 3: Standard configuration of the switching outputs

The switching output switches as soon as one of the following device states has occurred:

• "Ready for trigger"
  The device signals that a new image can be captured. Only with this device status are trigger operations processed. For the continuous image capture the status “Ready for trigger” is not output.
  • "Image capture finished"
  The device signals that the image capture is finished. The device status can be used for cascading devices in order to prevent mutual interference during image capture.
• "Error"
  The device signals an internal error. Detailed information about errors can be requested via Ethernet.
• "Controlled via process interface" (e.g. by PLC)
  The device is controlled via the command "O" ( → Programmer's Guide).

- "User-defined states"

The user-defined states are changed with the processing of codes (e.g. code found, code matches the reference, code quality outside the threshold level, etc.).

4.6 Internal illumination

The activated internal illumination can improve object recognition. The 4 illumination LEDs can be activated separately.

The internal illumination is set via the ifm Vision Assistant software.

Fig. 4: Illumination LEDs

1 Top of the device (with type label)

2 Illumination LEDs

3 Crossed illumination LEDs

▶ Observe the safety instructions for photobiological safety.

The internal and external lighting is switched on 500 µ s before the image is taken. Switching on prematurely does not affect the brightness of the captured image.

▷ Example: With an integration time of 100 μs, the lighting is switched on for 600 μs.

4.6.1 O2I40x

The device has RGBW lighting, which can be switched between the lighting colours red, green, blue and white. Only one colour can be activated at a time, which applies to all internal lighting LEDs.

The optics of the device and the LEDs are equipped with polarisation filters. The two lower LEDs are cross-polarised.

▶ Use two lower LEDs to avoid direct reflection.

Depending on the illumination colour a different focus setting may be necessary.

When switching the application to a different illumination colour, the device can trigger a focus move.

The focus setting is designed for a life cycle of 200,000 changes.

4.6.2 O2I41x

The device features a red light illumination.

The optics of the device and the LEDs are equipped with polarisation filters. The two lower LEDs are cross-polarised.

▶ Use two lower LEDs to avoid direct reflection.

4.6.3 O2I42x

The device features an infrared illumination.

The device does not feature a polarisation filter.

5 Mounting

Depending on the application and surface of the object to be monitored, the unit can be installed in front of or above the object.

▶ Fasten the unit to a bracket via the two threaded holes present on the unit.

▷ Tightening torque max. 2.1 Nm.

Information about available accessories at www.ifm.com

5.1 Installation instructions

Storage at high humidity can lead to fogging of the front glass after switch-on, which can affect the functioning of the unit.

▶ Do not exceed the following limits:

Temperature	Maximum recommended relative humidity
25 °C	75%
30 °C	72%
35 °C	70%
40 °C	67%

▶ Avoid back light, scattered light and changing light conditions. Sunlight hitting the lens or the scene to be monitored may cause interference.
▶ Ensure mechanical decoupling when installing the device to prevent the sensor from vibrating.
▶ Avoid installation in heavily polluting areas of the machine.

Units mounted side by side can interfere with each other when exposed to active lighting simultaneously.

▶ Ensure constant external illumination or trigger the units one after the other.

▶ Make sure that the pressure compensation element on the bottom side of the unit is not covered.

1: pressure compensation element
Fig. 5: pressure compensation element

ATTENTION

Laser beams can destroy the image sensor

▷ High-energy lasers (class 3 and above) could destroy the image sensor if they impinge on the lens.
▶ Do not position the device in the immediate vicinity of high-energy lasers (e.g. laser labelling systems).

5.2 Mounting with clamp

Fig. 6: Installation using the mounting set E2D500

1: M4 screws

2: threaded M4 holes (depth 7 mm)

3: bracket

4: clamp

▶ Fasten the bracket to the threaded M4 holes of the unit using two M4 screws. Tightening torque max. 2.1 Nm.
▶ Fix the clamp to the bracket.

5.3 Mounting with dome illumination

Fig. 7: Installation using the mounting set E2D501

1: M4 screws

2: threaded M4 holes (depth 7 mm)

3: bracket

4: clamp

5: dome illumination

▶ Fasten the bracket to the threaded M4 holes of the unit using two M4 screws. Tightening torque max. 2.1 Nm.
▶ Fasten the bracket to the dome illumination using four screws.
▶ Fix the clamp to the bracket.

6 Electrical connection

The device must be connected by a qualified electrician.

▶ Disconnect power before connecting the device.

Protection class III device (IEC 61010-2-201 chap. 6.5.2.101.4).

The electrical supply must

• be provided only by PELV circuits (IEC 61010-2-201 chap. 3.111),
• not exceed 35 V DC during operation,
• not exceed 60 V DC in the event of a single fault and
• not exceed the permitted operating voltage of the device (see data sheet).

The separation of external circuits must comply with IEC 61010-2-201, Figure 102.

WARNING

Unsuitable power supply

▷ Electric shock may cause serious injury or death.
▶ Use a PELV power supply within the specified voltage range.

▶ Use energy-limited circuits for the electrical supply (IEC 61010-1 chap. 9.4). The energy of the circuit can be limited at an operating voltage of 24 V by an overcurrent protection device. The overcurrent protection device must switch off a current of 8.3 A in maximum 120 s. Observe the specific tripping characteristic. Possible overcurrent protection devices:

• fuse or
  • non-adjustable and non-self-reclosing electromechanical device.

Separate the circuit from other, non-energy-limited circuits by at least basic insulation.

ATTENTION

No suitable energy limitation of the circuit

▷ Fire hazard in case of a malfunction.
▶ Use energy-limited circuit according to IEC 61010-1 chap. 9.4.

The device may only be connected to internal Ethernet networks that do not leave the building. It must not be connected to TNV circuits.

ATTENTION

Use an additional protection against surge voltages according to IEC 61000-4-5 if the connection cable is longer than 30 m.

The IO-Link cables must not exceed 20 m.

ATTENTION

The unit can be damaged by insufficiently tightened M12 connectors.

▷ The IP rating indicated in the data sheet is only guaranteed if the M12 connectors are firmly screwed.
▶ Firmly screw the M12 connectors to the unit.
▶ Cover the unused sockets with protective caps (E73004). Tightening torque: 0.6...0.8Nm.
▶ Use strain reliefs for cables connected to the unit.

If the device is permanently used in wet areas, the nut of the M12 industrial Ethernet connection cable (e.g. E11898) may corrode.

▶ Use a connection cable with a high-grade stainless steel nut.

For the scope of validity cULus:

Minimum temperature rating of the cable to be connected to the field wiring terminals: 70 °C.

6.1 Wiring

1 Ethernet (parameter setting interface, process interface)M12 socket, D-coded, 4 poles
	1: TD+2: RD+3: TD-4: RD-S: Shield
2 Power supply and process outputsM12 connector, A-coded, 5 poles
	1: U+2: trigger input3: GND4: switching output OUT1 – ready / IO-Link5: switching output OUT2

6.1.1 PNP/NPN selection

Pins 2, 4 and 5 can be switched between PNP and NPN logic. In this context, the following applies:

• The logic set always applies to all pins. The logic cannot be changed just for one single pin.
• Pin 4 Switching output OUT1 - ready / IO-Link follows the IO-Link logic for an IO-Link connection. After disconnecting the IO-Link connection, the set PNP or NPN logic applies.
• Pin 2 trigger input and pin 5 switching output OUT2 always follow the set PNP or NPN logic, regardless of an IO-Link connection.

6.2 Maximum current consumption

The maximum current consumption of the device is specified in the data sheet in accordance with IEC 61010-2-201:

The maximum current consumption corresponds to the average current consumption for the most unfavourable supply voltage and the maximum device load (exposure time, frame rate, internal lighting, storage device switched on, maximum load on the switching outputs, etc.).

The application-dependent average current consumption can be significantly lower.

The maximum current consumption is increased during exposure of the image with the internal lighting: max. 15 ms by approx. 150-200 mA above the average current consumption.

▶ Select the power supply of the device taking into account the maximum current consumption.

6.3 Connecting the IO-Link master

Observe the current rating of the IO-Link master.

▷ The current consumption of the devices is specified in the data sheet: www.ifm.com

Port class A

The device is compatible with IO-Link port class A.

Port class B

The device is not compatible with IO-Link port class B. Pin 2 (Trigger IN) and pin 5 (OUT2) are used for manufacturer-specific functions. That means that the main supply voltage of the device and the auxiliary voltage supply (port class B on pins 2/5) are not electrically isolated. For operation with IO-Link port class B, use 3-wire connection cables.

WARNING

Impairment of electrical safety

Risk of fire

Device damage

Malfunctions

▷ 4/5 pole connectors are problematic for the connection to the port class B connections of the IO-Link master.
▶ Only use 3-wire connection cables to connect the device to port class B connections of the IO-Link master.

6.4 Wiring example

External triggering of the unit is possible via:

• IO-Link
  • External switching signal via trigger input

In the wiring example, the image capture is triggered with a proximity sensor via the trigger input.

Fig. 8: Wiring example of a trigger circuit

1: device
2: notebook for parameter setting
3: industrial PC for evaluation and triggering
4: proximity switch
5: IO-Link master

An adapter cable (Y cable) is available for external trigger sensors: → Accessories at www.ifm.com.

6.5 External illumination

An external illumination can be connected to facilitate object recognition. For example, the O2D9xx illumination unit is suitable.

The illumination unit is connected to switching output OUT2 of the unit. The illumination unit is active as long as OUT2 is in the state "high".

An adapter cable (Y cable) is available for external illuminations: → Accessories at www.ifm.com.

7 Installation

To be able to make full use of the unit's functions, the ifm Vision Assistant software is required for parameter setting.

▶ Download the software ifm Vision Assistant via the download area of the unit: documentation.ifm.com

The operation of the ifm Vision Assistant software is described in the software manual. → Software manual at documentation.ifm.com

7.1 Update firmware

▶ Download the software ifm Vision Assistant via the download area of the unit: documentation.ifm.com

▶ Connect the device to the ifm Vision Assistant software.

▶ Update the firmware of the device.

▷ Updating the firmware deletes the configuration stored on the device. The configuration of the device can be backed up before updating and then restored.

8 Operating and display elements

Fig. 9: LEDs and button

1: teach LED (green)
2: teach LED (yellow)
3: Ethernet LED (green)
4: Power LED (green)
5: OUT1-LED (yellow)
6: OUT2-LED (yellow)
7: teach button

8.1 Signal indications

Green teach LED	Yellow teach LED	Description
On	---	Alignment mode active
On	Flashes at 1 Hz	Set-up mode active
Flashes at 2 Hz	---	Configuration is saved
On for 2 s	---	Configuration successfully saved
Flashes at 8 Hz	Flashes at 8 Hz	Active mode for configuration transfer from ifm storage device via teach button
---	Flashes at 8 Hz	Error: lock button is active
---	Flashes at 8 Hz	Error: configuration failed
Flashes at 2 Hz	Flashes at 2 Hz	Visual localisation is active (→ Visual localisation ☐ 24)

Tab. 4: Teach LED (green, yellow)

Ethernet LED	Power LED	OUT1-LED	OUT2-LED	Description
---	On	---	---	Unit is ready for operation.
---	Flashes at 0.5 Hz	---	---	No parameters set or parameter setting was not loaded into the unit. On Off
---	Flashes 2x at 0.5 Hz	---	---	Unit is in parameter setting mode. On Off
---	On	On	---	OUT1 is switched.
---	On	Flashes at 8 Hz	---	OUT1 has a short circuit.
---	On	---	On	OUT2 is switched.
---	On	---	Flashes at 8 Hz	OUT2 has a short circuit.
On	On	---	---	Unit is ready for operation, Ether-net is connected.
flashes	On	---	---	Ethernet transmitting data.
Off	---	---	---	Ethernet not connected.
---	---	Flashes at 8 Hz	Flashes at 8 Hz	Unit signals internal error.
---	---	Flashes at 2 Hz	Flashes at 2 Hz	Unit signals correctable error. The error information can be read via Ethernet.
---	Running light ⇒			Unit booting.
---	Running light <=			Unit carrying out firmware update.

Tab. 5: Ethernet LED, Power LED, OUT1 LED, OUT2 LED

9 Set-up

Error during set-up

▷ The unit may cause errors if it is put into operation below 0\ °C .

▶ Put the unit into operation above 0° C.

▷ After being put into operation, the unit can be used below 0 °C. The possible ambient temperatures are specified in the data sheet.

After power on, the device is put into operation.

After approx. 30 seconds, the unit is in the evaluation mode where saved applications are executed.

The indicators signal the current operating status.

On delivery, no applications are set up and the unit does not perform any function.

▶ Set the device using one of the following methods:

- Configure the device via the ifm Vision Assistant.

- Teach the code using the teach button on the device.

Python sample code is available on the web to program the device: documentation.ifm.com

10 Parameter setting

The device parameters can be set in two ways:

- ifm Vision Assistant software (→ see software manual at www.ifm.com):

• parameter setting of up to 32 applications with multiple codes and image captures.
• configure process interface and switching outputs.

• IO-Link interface:

- configure process interface and switching outputs.

- Code teaching via the teach button (→ Teach code with teach button ☐ 24):

• automatic teaching of a simple application with a code in an image.
  – preconfigured process interface and switching outputs.

• Transfer the configuration from the ifm storage device.

The ifm mass storage device is planned as an accessory: ifm.com, article no.: E2D504

The focus setting is designed for a life cycle of 200,000 changes.

The ifm Vision Assistant software and the software manual are available on the Internet: www.ifm.com

10.1 Teach code with teach button

The code must be of high quality and of high contrast. The device focusses the code better if the background looks uninteresting. Several codes in the marked zone make the teaching process of a certain code more difficult.

▶ Observe the notes on how to install the unit.

▶ Aligning the unit and object.
▶ Press the teach button for 3 seconds.

▷ The green teach LED is permanently on.

▶ Align the object to the centre of the sensor's optical axis.
▶ Press the teach button for 1 second within 2 minutes (timeout).

▷ The yellow teach LED flashes while the unit automatically sets exposure time and focus and then teaches the code.

▷ The code is taught if the green the led teach flashes briefly and is then on for 2 seconds.
▷ The code is not taught if the yellow teach led flashes briefly.

The teach button has a calculated operation of over 100,000 button pushes.

10.2 Visual localisation

The device can be located remotely in the system via IO-Link.

The green and yellow multi-function LEDs flash when using the command. (→ Signal indications ☐ 21)

11 Operation

1: Device
2: Field of view
3: Object

Fig. 10: Detect object

The following recommendations increase the recognition rate:

▶ Place the object (3) in the field of view (2).
▶ Remove other objects from the field of view.
▶ For objects with shiny surface:

• slightly tilt the device (1) or
- use the polarisation filter (only available in the O2I40x and O2I41x).
▶ Clean the front pane of the unit (1).
▶ Observe the notes on installation.

11.1 Over temperature protection

To protect the hardware, the unit is equipped with over temperature protection.

This may become active in the case of:

• a high ambient temperature
- a high frame rate
- a long exposure time

If the over temperature protection is active, no images will be captured. The over temperature protection will be deactivated as soon as the internal temperature of the device has decreased.

12 Troubleshooting

If the device behaves unexpectedly or incorrectly:

▶ Download and install the latest firmware and ifm Vision Assistant versions. Download at documentation.ifm.com.
▶ Read out error messages via IO-Link.

Additional diagnostic functions are available via IO-Link → IO-Link interface description at documentation.ifm.com.

If the problems persist:

▶ Contact the ifm support. Contact at www.ifm.com.

13 Maintenance, repair and disposal

If used correctly, the unit is maintenance-free.

Soiling reduces the contrast and the recognition performance.

▶ Keep the front pane free from soiling.
▶ Use glass cleaner as cleaning agent. Cleaners containing solvents can damage the front pane.

The front pane is made of plastic and can be easily scratched when cleaning.

▶ Clean the front pane with a microfibre cloth using light pressure.

Only the manufacturer is allowed to repair the unit.

Only the manufacturer is allowed to open the unit. To replace the unit, the service lid may be opened by the user.

▶ After use, dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations.

13.1 Replacing the unit

When replacing the device, the saved configuration can be copied to the new device. The ifm mass storage device is required for copying to the new device.

The configuration is copied from the old device to the ifm mass storage device. Then, the configuration is copied from the ifm mass storage device to the new device.

ifm mass storage device

The ifm mass storage device is planned as an accessory: ifm.com, article no.: E2D504

The ifm mass storage device has a data retention time of 3 years at a maximum storage temperature of 55 °C. If this time is exceeded, data loss is possible. During operation, the stored data is refreshed periodically.

The service lid may only be opened for the transfer of the configuration.

▶ Only open the service lid in a clean and dry environment (pollution degree 2).

The ifm mass storage device must only be used for the O2x4xx and O2x5xx devices.

▶ Do not use the ifm mass storage device with a PC, notebook, etc.

Service lid

1: service lid

Fig. 11: Replace the device.

Copying the configuration from the old device

▶ Disconnect the old device from the power supply.
▶ Remove the cables connected to the old device.
▶ Loosen the screws of the service lid.
▶ Remove the service lid.

The sealing rubber on the inside of the service lid must not be damaged.

▶ Insert the ifm mass storage device in the old device.
▶ Reattach the service lid. Tighten the screws applying max. 0.2 Nm.

▶ Connect the old device to the power supply.
▶ Download the software ifm Vision Assistant via the download area of the unit: documentation.ifm.com
▶ Copy the configuration to the ifm mass storage device with the ifm Vision Assistant in the [Device setup] area.

Copy configuration to the new device

▶ Remove the cables connected to the new device.
▶ Disconnect the new device from the power supply.
▶ Loosen the screws of the service lid.
▶ Remove the service lid.

The sealing rubber on the inside of the service lid must not be damaged.

▶ Insert the ifm mass storage device in the new device.
▶ Reattach the service lid. Tighten the screws applying max. 0.2 Nm.
▶ Connect the new device to the voltage supply.
▶ While the teach LEDs (green) and (yellow) are flashing, press the teach button.
▷ The configuration is transferred from the ifm mass storage device to the new device.
