USER MANUAL KDL-32V2000 SONY

LCD Digital Colour TV

1

SRS(●)®

TruSurround XT

BBE®

DIGITAL

http://www.sony.net/

KDL-46V2000

KDL-40V2000

KDL-32V2000

268053921

2-680-539-21(2)

Operating Instructions

GB

⚠️ Before operating the TV, please read the “Safety information” section of this manual. Retain this manual for future reference.

Bedienungsanleitung

DE

http://www.sony-europe.com/myproduct

KDL-46V2000

KDL-40V2000

KDL-32V2000

BRAVIA

WARNING

• To prevent the risk of electric shock, if the mains lead or plug is damaged, do not insert the plug into the mains socket outlet. This plug cannot be used and should be destroyed.
• To prevent the risk of fire or electric shock, do not expose the TV set to rain or moisture.
• Dangerously high voltages are present inside the TV set. Do not open the cabinet. Refer servicing to qualified personnel only.

Notice for Digital TV function

• Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive a DVB-T signal where you live.
• Although this TV set follows DVB-T specifications, compatibility with future DVB-T digital terrestrial broadcasts cannot be guaranteed.
• Some Digital TV functions may not be available in some countries.

Introduction

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Trademark information

• DVB is a registered trademark of the DVB Project
- Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
- TruSurround XT, SRS and (●) symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

• HDMI HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

- The illustrations used in this manual are of the KDL-32V2000 unless otherwise state.

Table of Contents

Start-up Guide 4

Safety information 7

Precautions 10

Overview of the remote 11

Overview of the TV buttons and indicators....12

Watching TV

Watching TV....13

Checking the Digital Electronic Programme Guide (EPG) DVB 15

Using the Favourite list DV3 17

Viewing pictures from connected equipment 18

Using MENU Functions

Navigating through menus 19

Picture menu....20

Sound menu....22

Screen menu....24

Set-up menu....25

PC Settings menu 27

Analogue Set-up menu (Analogue mode only) 28

Digital Set-up menu DV3 31

Using Optional Equipment

Connecting optional equipment....33

Additional Information

Specifications 36

Troubleshooting 38

Index 40

DV3 : for digital channels only

1: Checking the accessories

Remote RM-ED005 (1)

Size AA batteries (R6 type) (2)

Mains lead (Type C-6) (1)

Line drawing of a straight electrical plug with a coiled cable (no text or symbols)

Coaxial cable (1)

Cable holder (1)

Support belt (1) and screws (2)

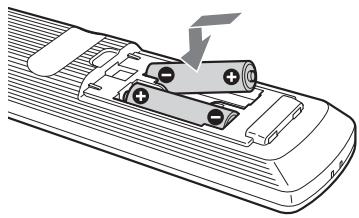

To insert batteries into the remote

Diagram of a remote car showing battery charging mechanism with no text or symbols

Notes

• Observe the correct polarity when inserting batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate disposal of the battery. Please consult your local authority.
• Do not use different types of batteries together or mix old and new batteries.
• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote in a location near a heat source, or in a place subject to direct sunlight, or in a damp room.

2: Connecting an aerial/VCR

Connecting an aerial only

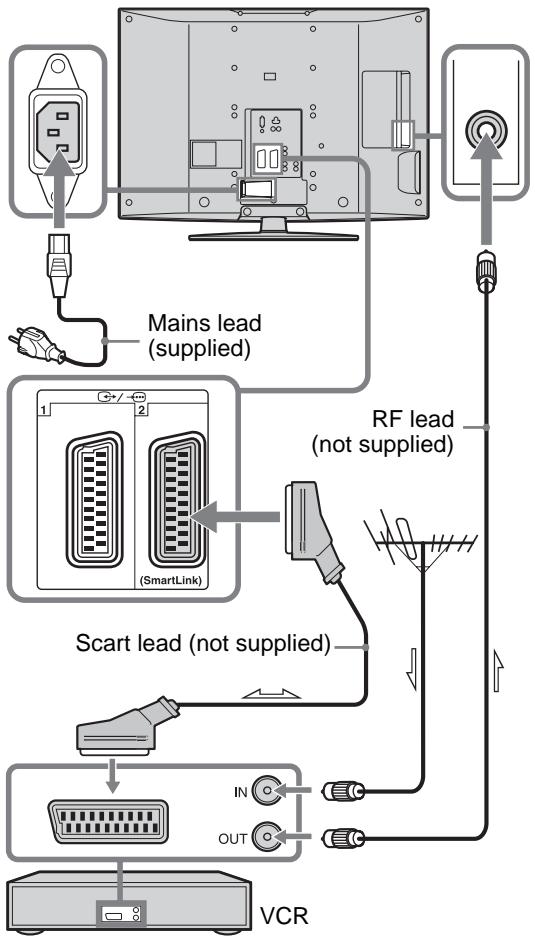

Connecting an aerial only Coaxial cable (supplied) Mains lead (supplied)

Connecting an aerial and VCR

3: Bundling the cables

Diagram illustrating cable connection steps with labeled components and cable routing instructions

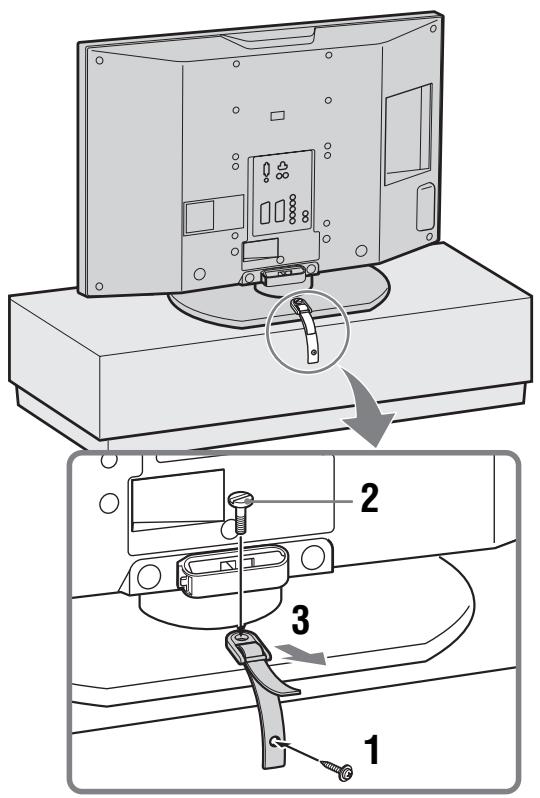

4: Preventing the TV from toppling over

Technical diagram showing a device with labeled parts including a switch, lock, and cable attachment mechanism.

5: Selecting the language and country/region

Diagram showing a device connected to a computer monitor with labeled parts and a hand gesture pointing to a plug.

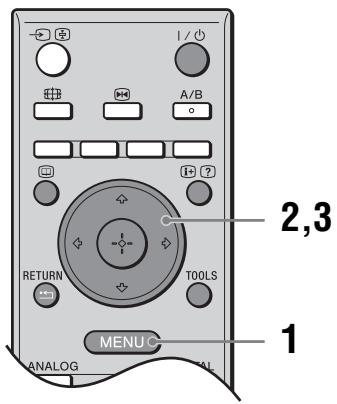

1 / 2 A/B + ? RETURN TOOLS 3,4 3,4

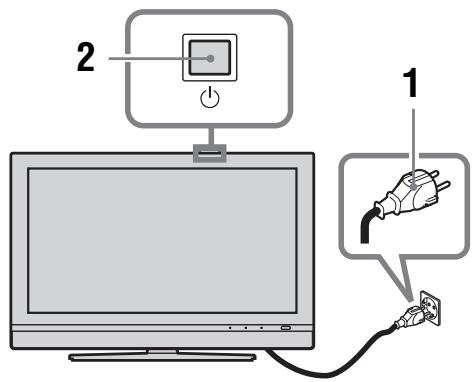

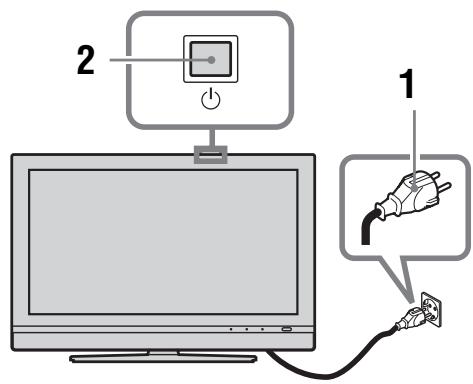

1 Connect the TV to your mains socket (220-240V AC, 50Hz).
2 Press ⏻ on the TV (top side).

When you switch on the TV for the first time, the Language menu appears on the screen.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV (front) is red), press ⚠/⏻ on the remote to switch on the TV.

3 Press ⬆/⇨ to select the language displayed on the menu screens, then press ⊕.

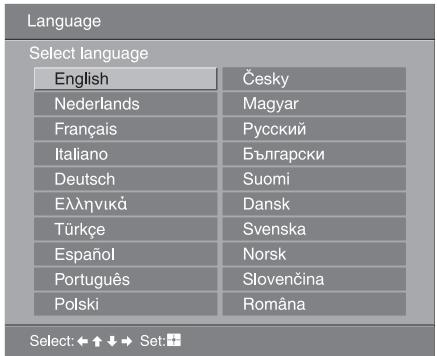

Language Select language English Česky Nederlands Magyar Français Rусский Italiano Български Deutsch Suomi Еллэнνικά Dansk Türkçe Svenska Español Norsk Português Slovenčina Polski Româna Select:←↑↓→ Set:<

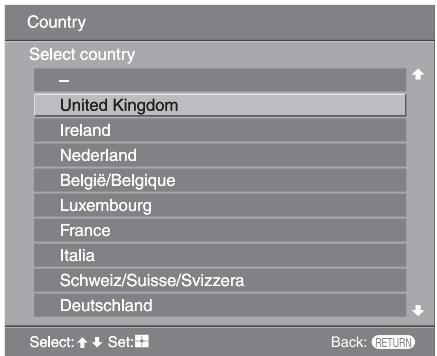

4 Press ⬆/⇨ to select the country/region in which you will operate the TV, then press ⊕.

Country Select country - United Kingdom Ireland Nederland België/Belgique Luxembourg France Italia Schweiz/Suisse/Svizzera Deutschland Select: ↑ ↓ Set: + Back: RETURN

If the country/region in which you want to use the TV does not appear in the list, select “-” instead of a country/region.

The message confirming the TV start auto-tuning appears on the screen, then go to “6: Auto-tuning the TV”.

6: Auto-tuning the TV

The TV will now search for and store all available TV channels.

1 / A/B RETURN TOOLS MENU ANALOG 2 4

1 Before you start auto-tuning the TV, insert a pre-recorded tape into the VCR connected to the TV (page 4) and start play back.

The video channel will be located and stored on the TV during auto-tuning.

If no VCR is connected to the TV, this procedure is not required. Go to step 2.

2 Select "OK", then press ⊕.

Auto Tuning Do you want to start Auto Tuning? OK Cancel Back: RETURN

The TV starts searching for all available digital channels, followed by all available analogue channels. This may take some time, please be patient and do not press any buttons on the TV or remote.

If a message appears for you to confirm the aerial connections

No digital or analogue channels were found.

Check all the aerial connections and press ⭕ to start auto-tuning again.

3 When the Programme Sorting menu appears on the screen, follow the steps of "Programme Sorting" (page 28).

If you do not wish to change the order in which the analogue channels are stored on the TV, go to step 4.

4 Press MENU to exit.

The TV has now tuned in all the available channels.

Safety information

Mains lead

- Unplug the mains lead when moving the TV set. Do not move the TV set with the mains lead plugged in. It may damage the mains lead and result in fire or elec

Illustration of two people pulling a large computer monitor with a power cord (no text or symbols)

- If you damage the mains lead, it may result in fire or electric shock.

• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken, causing a short-circuit, which may cause fire or electric shock.
• Do not modify or damage the mains lead.
• Do not put anything heavy on the mains lead. Do not pull the mains lead.
• Keep the mains lead away from heat sources.

• Be sure to grasp the plug when disconnecting the mains lead.

• If the mains lead is damaged, stop using it and ask your dealer or Sony service centre to exchange it.

• Do not use the supplied mains lead on any other equipment.
• Use only an original Sony mains lead, not other brands.

Mains lead/cable protection

Pull out the mains lead/cable by the plug. Do not pull on the mains lead/cable itself.

Diagram showing two hands connecting electrical socket to a terminal, with a checkmark indicating the correct installation.

Mains

Do not use a poor fitting mains socket. Insert the plug fully into the mains socket. A poor fit may cause arcing and result in fire. Contact your electrician to have the mains socket changed.

For the TV set with a three-wire grounding type AC mains plug

This TV set must be connected to an AC mains socket with a protective earthing connection.

Optional accessories

Observe the following when installing the TV set using a wall-mount bracket. If you do not do so, the TV set may fall and cause serious injury.

- It is strongly recommended that you use Sony accessories for safety reasons:

- KDL-46V2000/KDL-40V2000:

Wall-mount bracket SU-WL51

- KDL-32V2000:

Wall-mount bracket SU-WL31

• It is strongly recommended that you use the official Sony wall-mount bracket to allow adequate air circulation and to avoid dust build up around the TV, wall and ceiling.
• Secure the TV set properly, following the instructions supplied with your wall-mount bracket when installing the TV set.

Installation

- If the TV set is to be installed on a wall, have the installation carried out by qualified service men. Improper installation may render the TV set unsafe.

Illustration of three people: two in hard hats, one holding a child, and a man holding a baby (no text or symbols present)

- The TV should be installed near an easily accessible mains socket.

Medical institutions

Do not place this TV set in a place where medical equipment is in use. It may cause malfunction of medical instruments.

Line drawing of a person in bed watching a television screen (no text or symbols)

Carrying

• Before carrying the TV set, disconnect all the cables from the TV set.
• When you carry the TV set by hand, hold the TV set as illustrated on the right. If you do not do so, the TV set may fall and be damaged or cause serious injury. If the TV set has been dropped or damaged, have it checked immediately by qualified service personnel.

- When transporting it, do not subject the TV set to jolts or excessive vibration. The TV set may fall and be damaged or cause serious injury.

• When you carry the TV set in for repair or when you move it, pack it using the original carton and packing material.
• Carrying the TV set requires two or more people.

Ventilation

- Never cover the ventilation holes in the cabinet. It may cause overheating and result in fire.

- Unless proper ventilation is provided, the TV set may gather dust and get dirty. For proper ventilation, observe the following:

• Do not install the TV set turned backwards or sideways.
• Do not install the TV set turned over or upside down.
• Do not install the TV set on a shelf or in a closet.
• Do not place the TV set on a rug or bed.
• Do not cover the TV set with cloth, such as curtains, or items such as newspapers, etc.

- Leave some space around the TV set. Otherwise, air-circulation may be inadequate and cause overheating, which may cause fire or damage to the TV set.

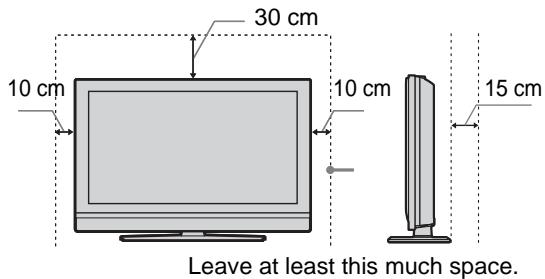

30 cm 10 cm 10 cm 15 cm Leave at least this much space.

• When installing the TV set on the wall, leave at least 10 cm space from the bottom, and at least 5.5 cm between the back of the TV set and the wall.

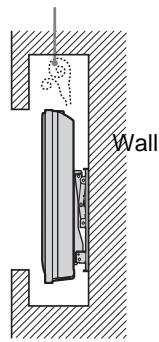

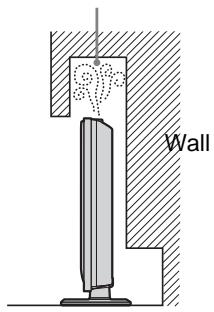

• Never install the TV set as follows:

Air circulation is blocked.

Wall

Air circulation is blocked.

Wall

Ventilation holes

Do not insert anything in the ventilation holes. If metal or liquid is inserted in these holes, it may result in fire or electric shock.

Placement

• Never place the TV set in hot, humid or excessively dusty places.
• Do not install the TV set where insects may enter.
• Do not install the TV set where it may be exposed to mechanical vibration.
• Place the TV set on a stable, level surface. Otherwise, the TV set may fall and cause injury.
• Do not install the TV set in a location where it may protrude, such as on or behind a pillar, or where you might bump your head on it. Otherwise, it may result in injury.

Water and moisture

- Do not use this TV set near water – for example, near a bathtub or shower room. Also do not expose to rain, moisture or smoke. This may result in fire or electric shock.

- Do not touch the mains lead and the TV set with wet hands. Doing so may cause electric shock or damage to the TV set.

Moisture and flammable objects

- Do not let this TV set get wet. Never spill liquid of any kind on the TV set. If any liquid or solid object does fall through openings in the cabinet, do not operate the TV set. It may result in electric shock or damage to the TV set. Have it checked immediately by qualified service personnel.

Illustration of a candle on a computer monitor with a hand watering a plant (no text or symbols)

- To prevent fire, keep flammable objects (candles, etc.) and electric bulbs away from the TV set.

Oils

Do not install this TV set in restaurants that use oil. Dust absorbing oil may enter and damage the TV set.

Fall

Place the TV set on a secure, stable stand. Do not hang anything on the TV set. If you do, the TV set may fall from the stand or wall-mount bracket, causing damage or serious injury.

Do not allow children to climb on the TV set.

Vehicle or ceiling

Do not install this TV set in a vehicle. The motion of the vehicle may cause the TV set to fall down and cause injury. Do not hang this TV set from the ceiling.

Simple line drawing of a person sitting on a couch watching a TV (no text or symbols present)

Ships and other vessels

Do not install this TV set on a ship or other vessel. If the TV set is exposed to seawater, it may cause fire or damage the TV set.

Line drawing of a person standing on a boat with a monitor and waves, no text or symbols present

Outdoor use

• Do not expose the TV set to direct sunlight. The TV set may heat up and this may result in damage to the TV set.
• Do not install this TV set outdoors.

Illustration of a person watching a soccer game on a TV under the sun (no text or symbols)

Wiring

• Unplug the mains lead when wiring cables. When hooking up, be sure to unplug the mains lead for your safety.
• Take care not to catch your feet on the cables. It may damage the TV set.

Cleaning

• Unplug the mains lead when cleaning the mains plug and this TV set. If you do not, it may result in electric shock.
• Clean the mains plug regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate and result in fire.

Lightning storms

For your own safety, do not touch any part of the TV set, mains lead, or aerial lead during lightning storms.

Damage requiring service

If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise electric shock may result.

Servicing

Do not open the cabinet. Entrust the TV set to qualified service personnel only.

Small accessories removal and fittable

Keep accessories out of children's reach. If they are swallowed, choking or suffocation may occur. Call a doctor immediately.

Broken pieces

Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

When not in use

For environmental and safety reasons, it is recommended that the TV set is not left in standby when unused. Disconnect from the mains. However, some TV

sets may have features which need the TV set to be left in standby to work correctly. The instructions in this manual will inform you if this applies.

Viewing the TV

• To view the TV comfortably, the recommended viewing position is from four to seven times the screen's vertical length away from the TV set.
• View the TV in moderate light, as viewing the TV in poor light strains your eyes. Watching the screen continuously for long periods of time can also strain your eyes.
• If the angle of the TV set is to be adjusted, steady the base of the stand with your hand to prevent the TV set from becoming separated from the stand. Be careful not to get your fingers caught between the TV set and the stand.

Volume adjustment

• Adjust the volume so as not to trouble your neighbours. Sound carries very easily at night time. Therefore, closing the windows or using headphones is suggested.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

Overloading

This TV set is designed to operate on a 220–240 V AC supply only. Take care not to connect too many appliances to the same mains socket as this could result in fire or electric shock.

Heat

Do not touch the surface of the TV set. It remains hot, even after the TV set has been turned off for some time.

Corrosion

If you use this TV set near the seashore, salt may corrode metal parts of the TV set and cause internal damage or fire. It may also shorten the life of the TV set. Steps should be taken to reduce the humidity and moderate the temperature of the area where the TV set is located.

Handling

- When lifting the TV set or moving the panel of the TV set, hold it firmly from the bottom.

- For the KDL-46V2000 when lifting or moving the TV, be sure to hold the panel firmly as illustrated. Place your palm directly under the panel, from the rear of the TV.

Diagram illustrating finger movement and alignment process with magnified views showing X and ✓ symbols

Precautions

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.
• Do not expose the LCD screen surface to the sun. Doing so may damage the screen surface.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD panel may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD contains a small amount of liquid crystal and mercury. The fluorescent tube used in this TV set also contains mercury. Follow your local ordinances and regulations for disposal.

Fluorescent lamp

This TV set uses a special fluorescent lamp as its light source. If the screen image becomes dark, flickers, or does not appear, the fluorescent lamp has worn out and the LCD screen should be replaced. For replacement, consult qualified service personnel.

Installing the TV set

• Do not install the TV set in places subject to extreme temperature, for example in direct sunlight, or near a radiator, or heating vent. If the TV set is exposed to extreme temperature, the TV set may overheat and cause deformation of the casing or cause the TV set to malfunction.
• The TV set is not disconnected from the mains when the TV set is switched off. To disconnect the TV set completely, pull the plug from the mains.
• To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. If possible, use spot lighting directed down from the ceiling.
• Do not install optional components too close to the TV set. Keep optional components at least 30 cm away from the TV set. If a VCR is installed in front of the TV set or beside the TV set, the picture may become distorted.
• Picture distortion and/or noisy sound may occur if the TV set is positioned in close proximity to any equipment emitting electromagnetic radiation.

Handling and cleaning the screen surface/cabinet of the TV set

To avoid material degradation or screen coating degradation, observe the following precautions.

• Do not push on the screen, scratch it with a hard object, or throw anything at it. The screen may be damaged.
• Do not touch the display panel after operating the TV set continuously for a long period as the display panel becomes hot.
• We recommend that the screen surface be touched as little as possible.
• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• The ventilation holes can accumulate dust over time. To ensure proper ventilation, we recommend removing the dust periodically (once a month) using a vacuum cleaner.

Disposal of the TV set

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling

of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Overview of the remote

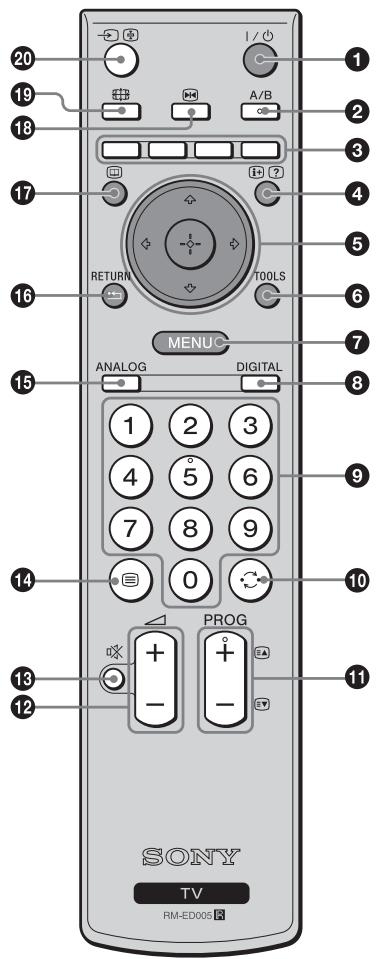

20 19 18 17 16 RETURN TOOLS 15 ANALOG DIGITAL 1 2 3 4 5 6 7 8 9 10 14 0 PROG + - + - 11 12 SONY TV RM-ED005®

① I/⏻ - TV standby

Switches off the TV temporarily and on from standby mode.

② A/B – Dual Sound (page 23)

③ Coloured buttons

Selects the options at the bottom of the Favourite and EPG digital menus.

4 i+/? - Info / Text reveal

• In digital mode: Displays brief details of the programme currently being watched.
• In analogue mode: Displays information such as current channel number and screen mode.
• In Text mode (page 14): Reveals hidden information (e.g., answers to a quiz).

⑤ ↩/▽/◁/⇨/⊕ (page 13, 19)

⑥ TOOLS (page 14, 18, 35)

Enables you to access various viewing options and change/make adjustments according to the source and screen mode.

⑦ MENU (page 19)
⑧ DIGITAL – Digital mode (page 13)
9 Number buttons

- In TV mode: Selects channels. For channel numbers 10 and above, enter the second digit within two seconds.

- In Text mode: Enters the three digit page number to select the page.

10 - Previous channel

Returns to the previous channel watched (for more than five seconds).

⑪ PROG +/- (page 13)

• In TV mode: Selects the next (+) or previous (-) channel.
• In Text mode: Selects the next (+) or previous (-) page.

12 ∠+/- - Volume

13 ☐ - Mute (page 13)

14 - Text (page 14)

15 ANALOG – Analogue mode (page 13)

16 / RETURN

Returns to the previous screen of any displayed menu.

17 – EPG (Digital Electronic Programme Guide) (page 15)

18 – Picture freeze (page 14)

Freezes the TV picture.

19 - Screen mode (page 14)

20 →/÷ - Input select / Text hold

• In TV mode (page 18): Selects the input source from equipment connected to the TV sockets.
• In Text mode (page 14): Holds the current page.

Tip

The A/B, PROG + and number 5 buttons have tactile dots. Use the tactile dots as references when operating the TV.

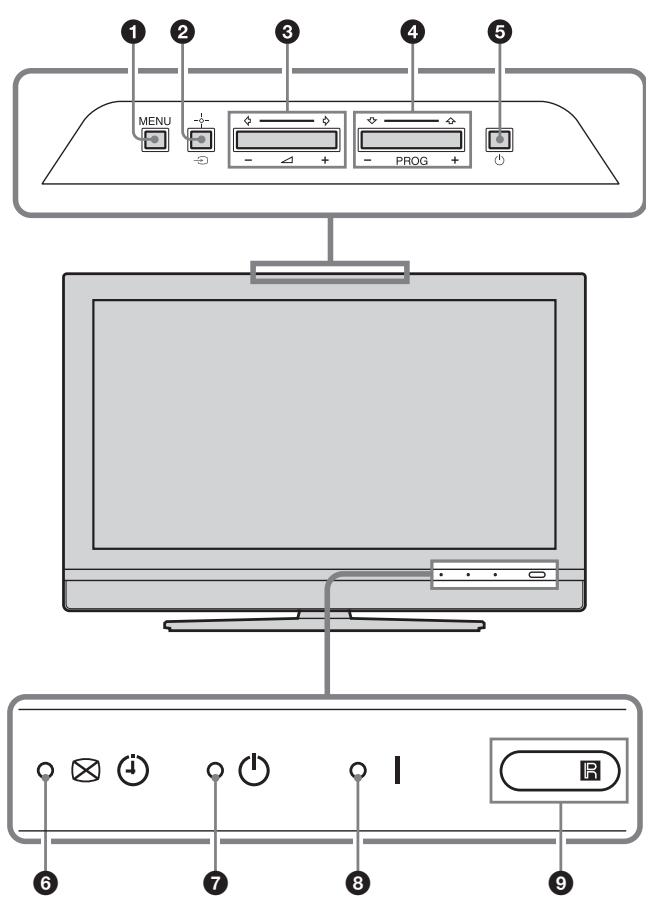

Overview of the TV buttons and indicators

MENU PROG I

① MENU (page 19)
② →/→ - Input select/OK

• In TV mode (page 18): Selects the input source from equipment connected to the TV sockets.
• In TV menu: Selects the menu or option, and confirm the setting.

③ ∠+/-/←/→

• Increases (+) or decreases (-) the volume.
• In TV menu: Moves through the options left (◀) or right (→).

4 PROG +/-/↑/↓

• In TV mode: Selects the next (+) or previous (-) channel.
• In TV menu: Moves through the options up (↑) or down (↓).

5 ⏻ - Power

Switches the TV on or off.

6 📧 ⏻ – Picture Off/Timer indicator

• Lights up in green when the picture is switched off (page 26).
• Lights up in orange when the timer is set (page 25).

⑦ ⏻ – Standby indicator

Lights up in red when the TV is in standby mode.

⑧ I – Power indicator
Lights up in green when the TV is switched on.
9 Remote control sensor

Note

Make sure that the TV is completely switched off before unplugging the mains lead. Unplugging the mains lead while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

Watching TV

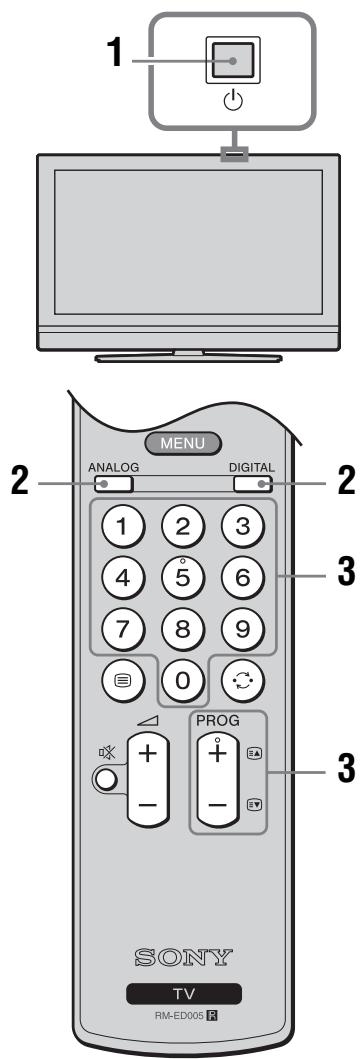

1 2 MENU ANALOG DIGITAL 1 2 3 4 5 6 7 8 9 0 PROG - + - + RM-ED005 R SONY TV

1 Press ⏻ on the TV (top side) to switch on the TV.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV (front) is red), press ⚠/⏻ on the remote to switch on the TV.

2 Press DIGITAL to switch to digital mode or ANALOG to switch to analogue mode.

The channels available vary depending on the mode.

3 Press the number buttons or PROG +/- to select a TV channel.

To select channel numbers 10 and above using the number buttons, enter the second and third digits within two seconds.

To select a digital channel using the Digital Electronic Programme Guide (EPG), see page 15.

In digital mode

An information banner appears briefly. The following icons may be indicated on the banner.

Radio service

: Scrambled/Subscription service

: Multiple audio languages available

: Subtitles available

☐: Subtitles available for the hearing impaired

⑱: Recommended minimum age for current programme (from 4 to 18 years)

: Parental Lock

: Current programme is being recorded

Additional operations

To	Do this
Turn off the TV temporarily (Standby mode)	Press I/↓.
Turn on the TV from Standby mode without sound	Press ☐. Press △+/- to set the volume level.
Turn off the TV completely	Press ↓ on the TV (top side).
Adjust the volume	Press △ + (increase)/- (decrease).
Mute the sound	Press ☐. Press again to restore.
Access the Programme index table (in analogue mode only)	Press ⊕. To select an analogue channel, press ⬇/↓, then press ⊕. To access the Input signal index table, see page 18.

To access Text

Press ☐. Each time you press ☐, the display changes cyclically as follows:

Text → Text over the TV picture (mix mode) → No Text (exit the Text service)

To select a page, press the number buttons or PROG +/-.

To hold a page, press →/÷.

To reveal hidden information, press ⓘ+/? .

Tips

- Ensure that the TV is receiving a good signal, or some text errors may occur.

- Most TV channels broadcast a Text service. For information on the use of the service, select the index page.

- When four coloured items appear at the bottom of the Text page, Fastext is available. Fastext allows you to access pages quickly and easily. Press the corresponding coloured button to access the page.

Picture Freeze

Freezes the TV picture (e.g. to make a note of a telephone number or recipe).

1 Press 🏠 on the remote control.
2 Press ↩/↙/↙/→ to adjust the position of the window.
3 Press ▶ to remove the window.
4 Press 🏠 again to return to normal TV mode.

To change the screen mode manually to suit the broadcast

Press ⬆ to display current screen mode.

Press repeatedly to select Smart, 4:3, Wide, Zoom, or 14:9.

Smart\*

Front view illustration of a classic 19th-century PGA Tour car (no text or symbols visible)

Displays conventional 4:3 broadcasts with an imitation wide screen effect. The 4:3 picture is stretched to fill the screen.

4:3

Front view line drawing of a modern PGA Tour car (no text or symbols)

Displays conventional 4:3 broadcasts (e.g., non-wide screen TV) in the correct proportions.

Wide

Black and white illustration of a classic 19th-century sports car (no text or symbols)

Displays wide screen (16:9) broadcasts in the correct proportions.

Zoom\*

Front view illustration of a classic 19th-century sports car (no text or symbols)

Displays cinemascopic (letter box format) broadcasts in the correct proportions.

14:9\*

Black and white illustration of a classic 19th-century sports car (no text or symbols visible)

Displays 14:9 broadcasts in the correct proportions. As a result, black border areas are visible on the screen.

* Parts of the top and bottom of the picture may be cut off.

Tips

• Alternatively, you can set “Auto Format” to “On”. The TV will automatically select the best mode to suit the broadcast (page 24).
• You can adjust the position of the picture when selecting 14:9 or Zoom. Press / to move up or down (e.g., to read subtitles).
• Some characters and/or letters at the top and the bottom of the picture may not be visible in Smart mode. In such a case, you can select “Vertical Size” using the “Screen” menu and adjust vertical size to make it visible.

Using the Tools menu

Press TOOLS to display the following options when viewing the TV programme.

Options	Description
Power Saving	See page 26.
Subtitle Setting (in digital mode only)	See page 32.
Digital Favourites (in digital mode only)	See page 17.
Picture Mode	See page 20.
Sound Mode	See page 22.
Auto Clock Set (in analogue mode only)	Allows you to switch to digital mode and obtain the time.
Sleep Timer	See page 25.
Volume	See page 23.

Checking the Digital Electronic Programme Guide (EPG) DVB\*

ALL Categorie Fri 4 Nov 15:30 Today 15:30 - 16:00 - 16:30 - 17:00 001 BBC ONE 002 BBC TWO 003 ITV 004 Channel 4 005 five 006 ITV2 007 BBC THREE 009 Tafetext 010 BBC FOUR 011 Sky Travel 012 UKTV History 013 More 4 Previous Next 30 min view Category Select: Action List +/- 1 day on/off;

Digital Electronic Programme Guide (EPG)

1 In digital mode, press 📄 to display the Digital Electronic Programme Guide (EPG).
2 Perform the desired operation, as shown in the following table.

Note

Programme information will only be displayed if the TV station is transmitting it.

Tip
You can also display the Digital Electronic Programme Guide (EPG) by selecting “Digital EPG” in the “MENU” (page 19).
* Please note that this function may not be available in some countries.

To	Do this
Turn off the EPG	Press [IMAGE].
Move through the EPG	Press /// .
Watch a current programme	Press ⊕ while the current programme is selected.
Sort the programme information by category – Category list	1 Press the blue button.2 Press /// to select a category. The category name is displayed on the side.The categories available include:“Favourite”: Contains all the channels that have been stored in the Favourite list (page 17).“All Categories”: Contains all available channels.“News”: Contains all news channels.3 Press ⊕ .The Digital Electronic Programme Guide (EPG) now only displays the current programmes from the category selected.
Set a programme to be recorded – Timer REC	1 Press /// to select the future programme you want to record.2 Press ⊕ .3 Press / to select “Timer REC”.4 Press ⊕ to set the TV and your VCR timers.A [IMAGE] symbol appears by that programme’s information. The ⏻ indicator on the TV (front) lights up.NotesYou can set VCR timer recording on the TV only for Smartlink compatible VCRs. If your VCR is not Smartlink compatible, a message will be displayed to remind you to set your VCR timer.Once a recording has begun, you can switch the TV to standby mode, but do not switch off the TV completely or the recording may be cancelled.If an age restriction for programmes has been selected, a message asking for pin code will appear on the screen. For more details refer to “Parental Lock” on page 32.
Set a programme to be displayed automatically on the screen when it starts – Reminder	1 Press ⇧/⇨/⇨/⇨ to select the future programme you want to display.2 Press ⊕.3 Press ⇧/⇨ to select “Reminder”.4 Press ⊕ to automatically display the selected programme when the programme starts.A ➕ symbol appears by that programme’s information.NoteIf you switch the TV to standby mode, it will automatically turn itself on when the programme is about to start.
Set the time and date of a programme you want to record – Manual timer REC	1 Press ⊕.2 Press ⇧/⇨ to select “Manual timer REC”, then press ⊕.3 Press ⇧/⇨ to select the date, then press ➕.4 Set the start and stop time in the same way as in step 3.5 Press ⇧/⇨ to select the programme, then press ⊕ to set the TV and your VCR timers.A ➕ symbol appears by that programme’s information. The ➕ indicator on the TV (front) lights up.NotesYou can set VCR timer recording on the TV only for Smartlink compatible VCRs. If your VCR is not Smartlink compatible, a message will be displayed to remind you to set your VCR timer.Once a recording has begun, you can switch the TV to standby mode, but do not switch off the TV completely or the recording may be cancelled.If an age restriction for programmes has been selected, a message asking for pin code will appear on the screen. For more details refer to “Parental Lock” on page 32.
Cancel a recording/reminder – Timer list	1 Press ⊕.2 Press ⇧/⇨ to select “Timer list”.3 Press ⇧/⇨ to select the programme you want to cancel, then press ⊕.4 Press ➕ to select “Yes”, then press ⊕ to confirm.

Using the Favourite list DVB\*

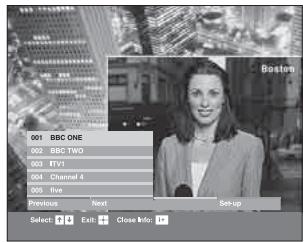

001 BBC ONE 002 BBC TWO 003 RTY 004 Channel 4 005 five Previous Next Set-up Select: Exit: Close Info: 1x

The Favourite feature allows you to select programs from a list of up to 8 channels you specify. To display the Favourite list, see “Navigating through menus” (page 19).

Favourite list

* Please note that this function may not be available in some countries.

To	Do this
Create your Favourite list for the first time	A message appears asking if you want to add channels to the Favourite list when you select “Digital Favourites” in the “MENU” for the first time.1 Press ⊕ to select “Yes”.2 Press ↩/▽ to select the channel you want to add.If you know the channel number, you can use the number buttons to directly select a channel.3 Press ⊕.Channels that are stored in the Favourite list are indicated by a ♥ symbol.
Turn off the Favourite list	Press RETURN.
See brief details on current programmes	Press (+) while selecting a channel. Press again to cancel.
Watch a channel	Press ⊕ while selecting a channel.
Add or remove channels in the Favourite list	1 Press the blue button.Channels that are stored in the Favourite list are indicated by a ♥ symbol.2 Press ↩/▽ to select the channel you want to add or remove.If you know the channel number, you can use the number buttons to directly select a channel.3 Press ⊕.4 Press the blue button to return to the Favourite list.
Remove all channels from the Favourite list	1 Press the blue button.2 Press the yellow button.A display appears to confirm that you want to delete all channels from the Favourite list.3 Press ← to select “Yes”, then press ⊕ to confirm.

Viewing pictures from connected equipment

Switch on the connected equipment, then perform one of the following operation.

For equipment connected to the scart sockets using a fully-wired 21-pin scart lead

Start playback on the connected equipment.

The picture from the connected equipment appears on the screen.

For an auto-tuned VCR (page 6)

In analogue mode, press PROG +/-, or the number buttons, to select the video channel.

For other connected equipment

Press / 12 repeatedly until the correct input symbol (see below) appears on the screen.

→AV1/→…AV1, →AV2/→…AV2:

Audio/video or RGB input signal through the scart socket /·s1 or 2. ·s appears only if an RGB source has been connected.

→...AV3:

Component input signal through the Y, P_B/C_B , P_R/C_R sockets →○/→○3, and audio input signal through the L, R sockets →○/→○3.

→...AV4:

Digital audio/video signal is input through the HDMI IN 4 socket. Audio input signal is analogue only if the equipment has been connected using the DVI and audio out socket.

→AV5/S→OV5:

Video input signal through the video socket 5 , and audio input signal through the L (MONO), R audio sockets 5 . S- appears only if the equipment is connected to the S video socket S- instead of the video socket 5 , and S video input signal is input through the S video socket S- 5.

Additional operations

To	Do this
Return to the normal TV operation	Press DIGITAL or ANALOG.
Access the Input signal index table	Press ⊕ to access the Input signal index table. (Then, only in analogue mode, press ➔.) To select an input source, press ⬆/▽, then press ⊕.

Using the Tools menu

Press TOOLS to display the following options when viewing pictures from connected equipment other than PC.

Options	Description
Power Saving	See page 26.
Picture Mode	See page 20.
Sound Mode	See page 22.
Auto Clock Set (in analogue mode only)	Allows you to switch to digital mode and obtain the time.
Sleep Timer	See page 25.
Volume	See page 23.

Navigating through menus

“MENU” allows you to enjoy various convenient features of this TV. You can easily select channels or external inputs with the remote. Also, settings for your TV can be changed easily using “MENU”.

1 2,3 RETURN TOOLS MENU ANALOG

1 Press MENU to display the menu.

MENU Digital Favourites Analogue Digital Digital EPG External Inputs Settings Show your Favourite list Select: ↑ ↓ Set: + Exit: MENU

2 Press ↩/▽ to select an option.
3 Press ⨁ to confirm a selected option. To exit the menu, press MENU.

Menu		Description
	Digital Favourites(only in areas with digital broadcasting)	Launches the Favourite list. For details about settings, see page 17.
	Programme List(only in areas with analogue broadcasting)	Allows you to select TV programs from a list of channel labels.To watch the desired channel, select the channel, then press⊕.To assign a label to a program, see page 28.
	Analogue(only in areas with digital broadcasting)	Returns to the last viewed analogue channel.
	Digital(only in areas with digital broadcasting)	Returns to the last viewed digital channel.
	Digital EPG(only in areas with digital broadcasting)	Launches the Digital Electronic Programme Guide (EPG).For details about settings, see page 15.
	External Inputs	Selects equipment connected to your TV.To watch the desired external input, select the input source, then press⊕.To assign a label to an external input, see page 25.
	Settings	Opens the Settings menu screen where most of advanced settings and adjustments are performed. Select a menu icon, select an option and make the desired change or adjustment using ⇧/ ⇧/ ⇧/ ⇧.For details about settings, see page 20 to 32.

Picture menu

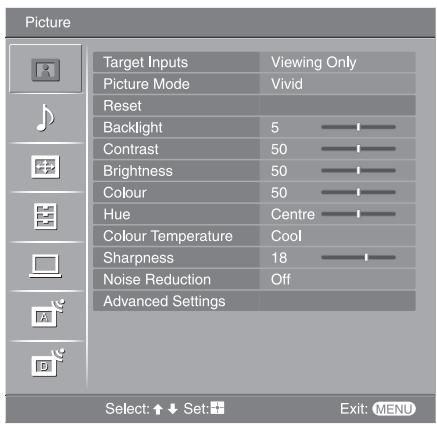

Picture Target Inputs Viewing Only Picture Mode Vivid Reset Backlight 5 Contrast 50 Brightness 50 Colour 50 Hue Centre Colour Temperature Cool Sharpness 18 Noise Reduction Off Advanced Settings Select: ↑↓ Set: Exit: MENU

You can select the options listed below on the Picture menu. To select options in “Settings”, see “Navigating through menus” (page 19).

Target Inputs	Selects whether to apply settings made in the Picture menu to all inputs, or only to the input currently being watched.“All”: Applies settings to all inputs.“Viewing Only”: Applies settings only to the current input.
Picture Mode	Selects the picture mode.“Vivid”: For enhanced picture contrast and sharpness.“Standard”: For standard picture. Recommended for home entertainment.“Custom”: Allows you to store your preferred settings.
Reset	Resets all picture settings except "Picture Mode" and "Target Inputs" to the factory settings.
Backlight	Adjusts the brightness of the backlight.
Contrast	Increases or decreases picture contrast.
Brightness	Brightens or darkens the picture.
Colour	Increases or decreases colour intensity.
Hue	Increases or decreases the green tones.Tip“Hue” can only be adjusted for an NTSC colour signal (e.g., U.S.A. video tapes).
Colour Temperature	Adjusts the whiteness of the picture.“Cool”: Gives the white colours a blue tint.“Neutral”: Gives the white colours a neutral tint.“Warm1”/“Warm2”: Gives the white colours a red tint. “Warm2” gives a redder tint than “Warm1”.Tip“Warm1” and “Warm2” can only be selected when you set “Picture Mode” to “Custom”.
Sharpness	Sharpens or softens the picture.
Noise Reduction	Reduces the picture noise (snowy picture) in a weak broadcast signal.“Auto”: Automatically reduces the picture noise (Analogue mode only).“High”/“Medium”/“Low”: Modifies the effect of the noise reduction.“Off”: Turns off the Noise Reduction feature.
Advanced Settings	Customizes the Picture function in more detail. When you set “Picture Mode” to “Custom”, you can set/change these settings.“Reset”: Resets all the advanced video settings to the factory settings.“Black Corrector”: Enhances black areas of the picture for stronger contrast.“Contrast Enhancer”: Automatically adjusts “Contrast” to the most suitable settings judging from the brightness of the screen. This setting is especially effective for dark images, increasing vibrancy in the picture.“Gamma”: Adjusts the balance between bright and dark areas of the picture.“Clear White”: Emphasizes white colours.“Live Colour”: Makes colours more vivid and reproduces clear skin tones.TipThis function is only available when "Colour Space" is set to "Wide".“Colour Space”: Changes colour range.“MPEG Noise Reduction”: Reduces the picture noise in MPEG-compressed video (in digital mode only).

Sound menu

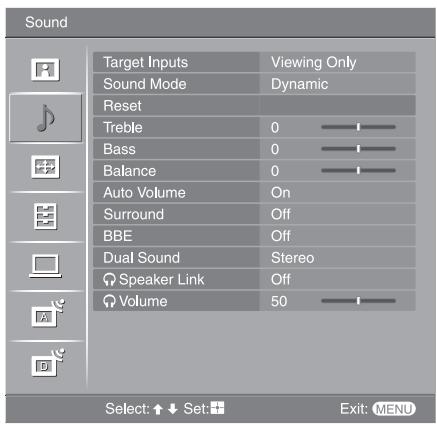

Sound Target Inputs Viewing Only Sound Mode Dynamic Reset Treble 0 Bass 0 Balance 0 Auto Volume On Surround Off BBE Off Dual Sound Stereo Speaker Link Off Volume 50 Select: ↑↓ Set: Exit: MENU

You can select the options listed below on the Sound menu. To select options in “Settings”, see “Navigating through menus” (page 19).

Target Inputs	Selects whether to apply settings made in the Sound menu to all inputs, or only to the input currently being watched.“All”: Applies settings to all inputs.“Viewing Only”: Applies settings only to the current input.
Sound Mode	Selects the sound mode.“Dynamic”: Enhances treble and bass.“Standard”: For standard sound. Recommended for home entertainment.“Custom”: Flat response. Also allows you to store your preferred settings.
Reset	Resets the sound settings except “Sound Mode”, “Dual Sound”, “ speaker Link” and “ Volume” to the factory settings.
Treble	Adjusts higher-pitched sounds.
Bass	Adjusts lower-pitched sounds.
Balance	Emphasizes left or right speaker balance.
Auto Volume	Keeps a constant volume level even when volume level gaps occur (e.g., adverts tend to be louder than programmes).
Surround	Selects the surround mode.“TruSurround XT”: For surround sound (for stereo programmes only).“Simulated Stereo”: Adds a surround-like effect to mono programs.“Off”: For normal stereo or mono reception.
BBE	Gives sound more impact by compensating for phase effects in speakers using the “BBE High Definition Sound System”.
Dual Sound	Selects the sound from the speaker for a stereo or bilingual broadcast.“Stereo”, “Mono”: For a stereo broadcast.“A”/“B”/“Mono”: For a bilingual broadcast, select “A” for sound channel 1, “B” for sound channel 2, or “Mono” for a mono channel, if available.TipIf you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A” or “B”.
Speaker Link(headphone speaker link)	Switches on/off the TV’s internal speakers when headphones are connected.
Volume(headphone volume)	Adjusts the volume of the headphones.

Tip

“Treble”, “Bass”, “Balance”, “Auto Volume”, “Surround” and “BBE” cannot be used for headphones and audio output sockets.

Screen menu

Screen Target Inputs Viewing Only Screen Format Smart Auto Format On 4:3 Default Smart Display Area Normal Horizontal Shift 0 Vertical Shift 0 Vertical Size 0 Select: ↑↓ Set: Exit: MENU

You can select the options listed below on the Screen menu. To select options in “Settings”, see “Navigating through menus” (page 19).

Target Inputs	Selects whether to apply settings made in the Screen menu to all inputs, or only to the input currently being watched.“All”: Applies settings to all inputs.“Viewing Only”: Applies settings only to the current input.
Screen Format	For details about the screen format, see “To change the screen mode manually to suit the broadcast” (page 14).
Auto Format	Automatically changes the screen format according to the broadcast signal. To keep your setting, select “Off”.TipsEven if you have selected “On” or “Off” in “Auto Format”, you can always modify the format of the screen by pressing repeatedly.“Auto Format” is available for PAL and SECAM signals only.
4:3 Default	Selects the default screen mode for use with 4:3 broadcasts.“Smart”: Displays conventional 4:3 broadcasts with an imitation wide screen effect.“4:3”: Displays conventional 4:3 broadcasts in the correct proportions.“Off”: Keeps the current “Screen Format” setting when the channel or input is changed.TipThis option is available only if “Auto Format” is set to “On”.
Display Area	Adjusts the screen area displaying the picture.“Normal”: Displays the picture in the original size.“-1”/“-2”: Enlarges the picture to hide the edge of the picture.
Horizontal Shift	Adjusts the horizontal position of the picture for each screen format.
Vertical Shift	Adjusts the vertical position of the picture when the screen format is set to Zoom or 14:9.
Vertical Size	Adjusts the vertical size of the picture when the screen format is set to Smart, Zoom or 14:9.

Set-up menu

Set-up Auto Start-up Language English AV Preset Auto S Video On Timer Settings Power Saving Off Light Sensor Off AV2 Output Auto Quiet Power On Off Speaker Off Colour System Auto Information All Reset Select: ↑↓ Set: Exit: MENU

You can select the options listed below on the Set-up menu. To select options in “Settings”, see “Navigating through menus” (page 19).

Auto Start-up	Starts the “first time operation menu” to select the language and country/region, and tune in all available digital and analogue channels. Usually, you do not need to do this operation because the language and country/region will have been selected and channels already tuned when the TV was first installed (page 5, 6). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).
Language	Selects the language in which the menus are displayed.
AV Preset	Assigns a name to any equipment connected to the side and rear sockets. The name will be displayed briefly on the screen when the equipment is selected. You can skip an input source that is not connected to any equipment.1 Press ↩/▽ to select the desired input source, then press ⊕.2 Press ↩/▽ to select the desired option below, then press ⊕.Equipment labels: Uses one of the preset labels to assign a name to connected equipment.“Edit”: Creates your own label. Follow steps 2 to 4 of “Programme Labels” (page 28).“Skip”: Skips an input source that is not connected to any equipment when you press → to select the input source.
Auto S Video	Selects the input signal from S video sockets S→○○5 when S→○○/→5 sockets are both connected.
Timer Settings	Sets the timer to turn on/off the TV.Sleep TimerSets a period of time after which the TV automatically switches itself into standby mode.When the Sleep Timer is activated, the ⏻ (Timer) indicator on the TV (front) lights up in orange.TipsIf you switch off the TV and switch it on again, “Sleep Timer” is reset to “Off”.“TV will soon turn off by sleep timer.” appears on the screen one minute before the TV switches to standby mode.

Continued

	On TimerSets the timer to turn on the TV.“Day”: Selects the day on which you want to activate the On Timer.“Time”: Sets the time to turn on the TV.“Duration”: Selects the time period after which the TV automatically switches to standby mode again.“Volume Set-up”: Sets the volume for when the timer turns on the TV.Clock SetAllows you to adjust the clock manually. When the TV is receiving digital channels, the clock cannot be adjusted manually since it is set to the time code of the broadcasted signal.
Power Saving	Selects the power saving mode to reduce the power consumption of the TV.When “Picture Off” is selected, the picture is switched off and the (Picture Off) indicator on the TV (front) lights up in green. The sound remains unchanged.
Light Sensor	Automatically optimizes the picture settings according to the ambient light in the room.
AV2 Output	Sets a signal to be output through the socket labelled / 2 on the rear of the TV. If you connect a VCR or other recording equipment to the / 2 socket, you can then record from the equipment connected to other sockets of the TV.“TV”: Outputs a broadcast.“AV1”: Outputs signals from equipment connected to the / 1 socket.“AV5”: Outputs signals from equipment connected to the S 0/ 5 socket.“Auto”: Outputs whatever is being viewed on the screen (except signals from the 3 / 3 and HDMI IN 4 sockets).
Quiet Power On	Sets the volume control at a low level when the TV is first turned on, gradually increasing the sound to a preset level.
Speaker	Switches on/off the TV’s internal speakers.“On”: The TV speakers are turned on in order to listen to the TV’s sound through TV’s speakers.“Off”: The TV speakers are turned off in order to listen to the TV’s sound only through your external audio equipment connected to the audio output sockets.
Colour System	Selects the colour system (“Auto”, “PAL”, “SECAM”, “NTSC3.58”, “NTSC4.43”, or “PAL60”) according to the input signal from the input source.
Information	Displays your TV’s system information.
All Reset	Resets all the Set-up settings to the factory settings and then launches the Auto Start-up screen.

PC Settings menu

PC Settings Screen Format Normal Reset Auto Adjustment Phase 0 Pitch 0 Horizontal Shift 0 Vertical Shift 0 Power Management On Select: ↑↓ Set: Exit: MENU

You can select the options listed below on the PC Settings menu. To select options in “Settings”, see “Navigating through menus” (page 19).

Screen Format	Selects a screen mode for displaying input from your PC.“Normal”: Displays the picture in its original size.“Full1”: Enlarges the picture to fill the display area, keeping its original horizontal-to-vertical aspect ratio.“Full2”: Enlarges the picture to fill the display area.
Reset	Resets the PC settings except “Screen Format” and “Power Management” to the factory settings.
Auto Adjustment	Automatically adjusts the display position and phase of the picture when the TV receives an input signal from the connected PC.TipAuto Adjustment may not work well with certain input signals. In such cases, manually adjust “Phase”, “Pitch”, “Horizontal Shift” and “Vertical Shift”.
Phase	Adjusts the phase when the screen flickers.
Pitch	Adjusts the pitch when the picture has unwanted vertical stripes.
Horizontal Shift	Adjusts the horizontal position of the picture for each screen format.
Vertical Shift	Adjusts the vertical position of the picture for each screen format.
Power Management	Switches the TV to standby mode if no signal is received for 30 seconds.

Analogue Set-up menu (Analogue mode only)

1 Digit Direct	When “1 Digit Direct” is set to “On”, you can select an analogue channel using one preset number button (0 - 9) on the remote.NoteWhen “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above entering two digits using the remote.
Auto Tuning	Tunes in all the available analogue channels.Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 5, 6). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).
Programme Sorting	Changes the order in which the analogue channels are stored on the TV.1 Press ⇧/⇨ to select the channel you want to move to a new position, then press ⊕.2 Press ⇧/⇨ to select the new position for your channel, then press ⊕.
Programme Labels	Assigns a channel name of your choice up to five letters or numbers. The name will be displayed briefly on the screen when the channel is selected. (Names for channels are usually taken automatically from Text (if available).)1 Press ⇧/⇨ to select the channel you want to name, then press ⊕.2 Press ⇧/⇨ to select the desired letter or number (“_” for a blank space), then press ➔.If you input a wrong characterPress ⇧/⇨ to select the wrong character. Then, press ⇧/⇨ to select the correct character.To delete all the charactersSelect “Reset”, then press ⊕.3 Repeat the procedure in step 2 until the name is complete.4 Select “OK”, then press ⊕.

Manual Programme Preset

Before selecting “Label”/“AFT”/“Audio Filter”/“Skip”/“Decoder”, press PROG +/- to select the programme number with the channel. You cannot select a programme number that is set to skip (page 30).

Programme/System/Channel

Presets programme channels manually.

1 Press ↩/▽ to select "Programme", then press ⊕.
2 Press ↩/▽ to select the programme number you want to manually tune (if tuning a VCR, select channel 00), then press RETURN.
3 Press ↩/▽ to select "System", then press ⊕.
4 Press / to select one of the following TV broadcast systems, then press .
B/G: For western European countries/regions
D/K: For eastern European countries/regions
L: For France
I: For the United Kingdom

5 Press ↑/↓ to select "Channel", then press ⊕.

6 Press ↩/▽ to select "S" (for cable channels) or "C" (for terrestrial channels), then press ↗.

7 Tune the channels as follows:

If you do not know the channel number (frequency)

Press / to search for the next available channel. When a channel has been found, the search will stop. To continue searching, press / .

If you know the channel number (frequency)

Press the number buttons to enter the channel number of the broadcast you want or your VCR channel number.

8 Press ⊕ to jump to "Confirm", then press ⊕.

9 Press ↓ to select "OK", then press ⊕.

Repeat the procedure above to preset other channels manually.

Label

Assigns a name of your choice, up to five letters or numbers, to the selected channel. This name will be displayed briefly on the screen when the channel is selected. To input characters, follow steps 2 to 4 of “Programme Labels” (page 28).

AFT

Allows you to fine-tune the selected programme number manually if you feel that a slight tuning adjustment will improve the picture quality.

You can adjust the fine tuning over a range of -15 to +15. When “On” is selected, the fine tuning is performed automatically.

Audio Filter

Improves the sound for individual channels in the case of distortion in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting when watching mono programmes.

If you do not experience any sound distortion, we recommend that you leave this option set to the factory setting “Off”.

Notes

• You cannot receive stereo or dual sound when “Low” or “High” is selected.
• “Audio Filter” is not available when “System” is set to “L”.

Skip

Skips unused analogue channels when you press PROG +/- to select channels. (You can still select a skipped channel using the number buttons.)

Decoder

Views and records the scrambled channel selected when using a decoder connected directly to scart connector / 1 , or to scart connector / 2 via a VCR.

Note

Depending on the country/region selected for “Country” (page 6), this option may not be available.

Confirm

Saves changes made to the “Manual Programme Preset” settings.

Digital Set-up menu DVB

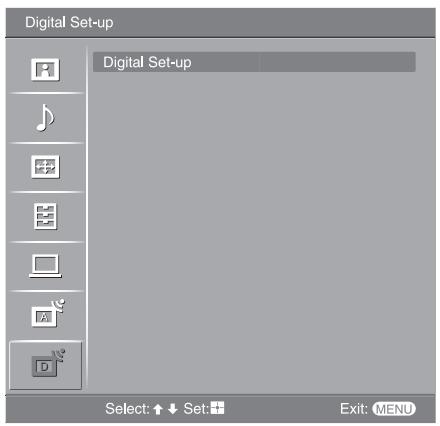

Digital Set-up Digital Set-up Select: ↑ ↓ Set: + Exit: MENU

You can change/set the digital settings using the Digital Set-up menu. Select “Digital Set-up” and press to display the following menus. To select options in “Settings”, see “Navigating through menus” (page 19).

Digital Tuning

Displays the “Digital Tuning” menu.

Digital Auto Tuning

Tunes in all the available digital channels.

Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 6). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).

Programme List Edit

Removes any unwanted digital channels stored on the TV, and changes the order of the digital channels stored on the TV.

1 Press ↩/▽ to select the channel you want to remove or move to a new position.
If you know the programme number (frequency)
Press the number buttons to enter the three-digit programme number of the broadcast you want.
2 Remove or change the order of the digital channels as follows:
To remove the digital channel
Press ⊕. A message that confirms whether the selected digital channel is to be deleted appears. Press ⇔ to select “Yes”, then press ⊕.
To change the order of the digital channels
Press , then press / to select the new position for the channel and press . Repeat the procedure in steps 1 and 2 to move other channels if required.

3 Press RETURN.

Digital Manual Tuning

Tunes the digital channels manually.

1 Press the number button to select the channel number you want to manually tune, then press ☑/☐ to tune the channel.
2 When the available channels are found, press ⬇/✉ to select the channel you want to store, then press ⊕.
3 Press ☑/☑ to select the programme number where you want to store the new channel, then press ⊕.

Repeat the procedure above to tune other channels manually.

Digital Set-up

Displays the “Digital Set-up” menu.

Subtitle Setting\*

Displays digital subtitles on the screen.

When “For Hard Of Hearing” is selected, some visual aids may also be displayed with the subtitles (if TV channels broadcast such information).

Subtitle Language\*

Selects which language subtitles are displayed in.

Audio Language\*

Selects the language used for a programme. Some digital channels may broadcast several audio languages for a programme.

Audio Type\*

Increases the sound level when “For Hard Of Hearing” is selected.

Parental Lock\*

Sets an age restriction for programmes. Any programme that exceeds the age restriction can only be watched after a PIN Code is entered correctly.

1 Press the number buttons to enter your existing PIN code.
If you have not previously set a PIN, a PIN code entry screen appears. Follow the instruction of “PIN Code” below.
2 Press ⬇/▽ to select the age restriction or "None" (for unrestricted watching), then press ⊕.
3 Press RETURN.

PIN Code\*

Sets a PIN code for the first time, or allows you to change your PIN code.

1 Enter a PIN as follows:

If you have previously set a PIN

Press the number buttons to enter your existing PIN.

If you have not set a PIN

Press the number buttons to enter the factory setting PIN of 9999.

2 Press the number buttons to enter the new PIN code.

A message appears to inform you that the new PIN has been accepted.

3 Press RETURN.

Tip

PIN code 9999 is always accepted.

Technical Set-up

Displays the Technical Set-up menu.

“Auto Service Update”: Enables the TV to detect and store new digital services as they become available.

“Software Download”: Enables the TV to automatically receive software updates, free through your existing aerial (when issued). Sony recommends that this option is set to “On” at all times. If you do not want your software to be updated, set this option to “Off”.

“System Information”: Displays the current software version and the signal level.

“Time Zone”: Allows you to manually select the time zone you are in, if it is not the same as the default time zone setting for your country.

CA Module Set-up

Allows you to access a Pay Per View service once you obtain a Conditional Access Module (CAM) and a view card. See page 33 for the location of the ☐ (PCMCIA) socket.

Connecting optional equipment

You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied.

Connecting to the TV (side)

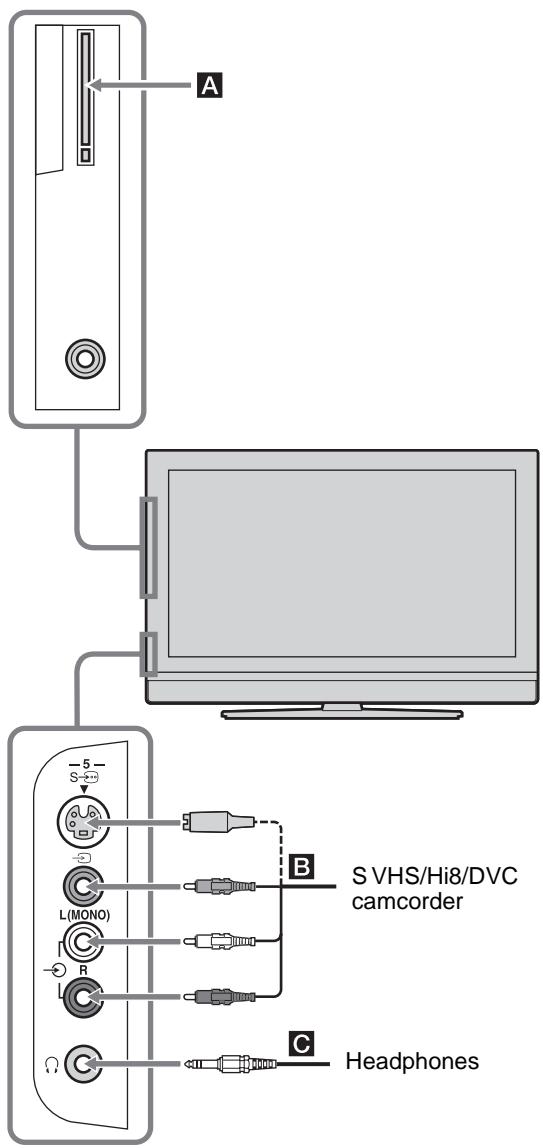

A S VHS/Hi8/DVC camcorder B C Headphones

To connect	Do this
Conditional Access Module (CAM) A	To use Pay Per View services. For details, refer to the instruction manual supplied with your CAM. To use the CAM, remove the rubber cover from the CAM slot. Switch off the TV when inserting your CAM into the CAM slot. When you do not use the CAM, we recommend that you replace the cover on the CAM slot.NoteCAM is not supported in all countries. Please check with your authorized dealer.
S VHS/Hi8/DVC camcorder B	Connect to the S video socket S→5 or the video socket →5, and the audio sockets →5. To avoid picture noise, do not connect the camcorder to the video socket →5 and the S video socket S→5 at the same time. If you connect mono equipment, connect to the L socket →5.
Headphones C	Connect to the ⏻ socket to listen to sound from the TV on headphones.

Continued

Connecting to the TV (rear)

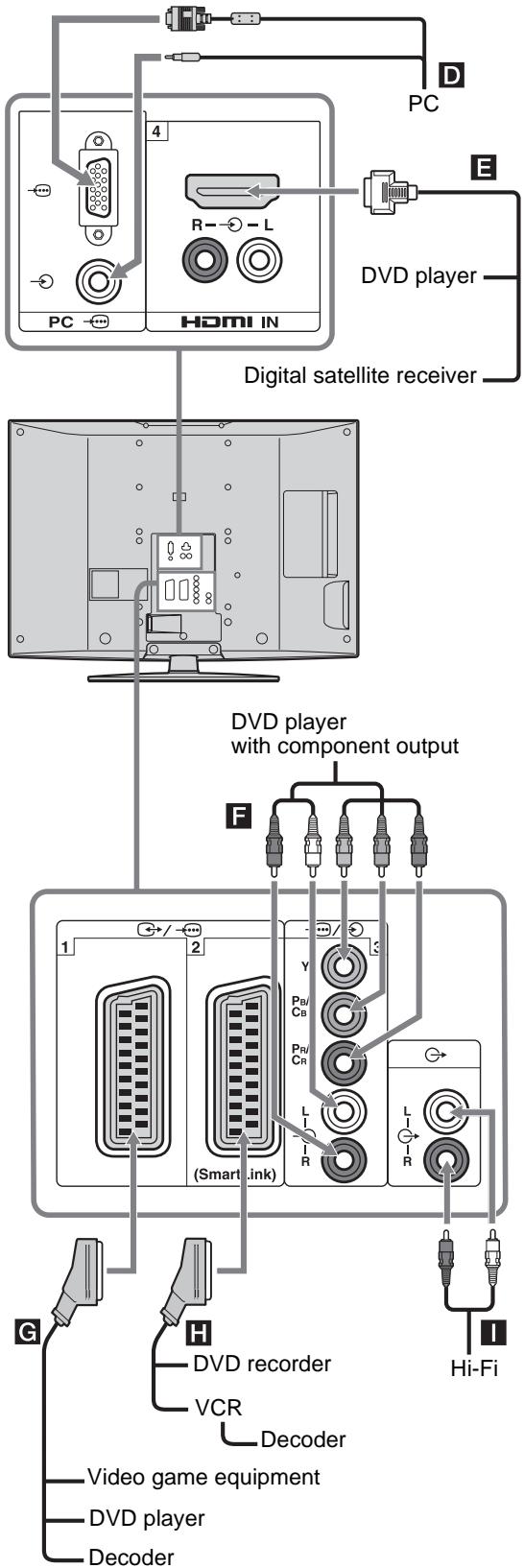

PC HDMI IN 4 R - L D E DVD player Digital satellite receiver F DVD player with component output 1 2 (Smart link) Y Pb/Cb Pr/Cr L R G H DVD recorder VCR Decoder Video game equipment DVD player Decoder I Hi-Fi

To connect	Do this
PC D	Connect to the PC →/→ sockets. It is recommended to use a PC cable with ferrites.
Digital satellite receiver or DVD player E	Connect to the HDMI IN 4 socket if the equipment has a HDMI socket. The digital video and audio signals are input from the equipment. If the equipment has a DVI socket, connect the DVI socket to the HDMI IN 4 socket through a DVI - HDMI adaptor interface (not supplied), and connect the equipment's audio out sockets to the audio in HDMI IN 4 sockets.NoteThe HDMI sockets only support the following video inputs: 480i, 480p, 576i, 576p, 720p and 1080i. To connect a PC, please use the PC input socket.
DVD player with component output F	Connect to the component sockets and the audio sockets →/→3.
Video game equipment, DVD player or decoder G	Connect to the scart socket →/→1. When you connect the decoder, the scrambled signal from the TV tuner is output to the decoder, then the unscrambled signal is output from the decoder.
DVD recorder or VCR that supports SmartLink H	Connect to the scart socket →/→2. SmartLink is a direct link between the TV and a VCR/DVD recorder.
Hi-Fi audio equipment I	Connect to the audio output sockets → to listen to the sound from the TV on Hi-Fi audio equipment.

Using the Tools menu in PC input mode

Press TOOLS to display the following options when viewing pictures input from the connected PC.

Options	Description
Power Saving	See page 26.
Picture Mode	See page 20.
Sound Mode	See page 22.
Auto Adjustment	See page 27.
Horizontal Shift	See page 27.
Vertical Shift	See page 27.
Auto Clock Set (in analogue mode only)	Allows you to switch to digital mode and obtain the time.
Volume	See page 23.

Specifications

Display Unit

Power Requirements:

220–240 V AC, 50 Hz

Screen Size:

KDL-46V2000:

46 inches (Approx. 116.9 cm measured diagonally)

KDL-40V2000:

40 inches (Approx. 101.6 cm measured diagonally)

KDL-32V2000:

32 inches (Approx. 80.1 cm measured diagonally)

Display Resolution:

1,366 dots (horizontal) × 768 lines (vertical)

Power Consumption:

KDL-46V2000: 249 W

KDL-40V2000: 180 W

KDL-32V2000: 145 W

Standby Power Consumption:

0.3 W

Dimensions (w × h × d):

KDL-46V2000:

Approx. 1,126 × 805 × 334 mm (with stand)

Approx. 1,126 × 755 × 116 mm (without stand)

KDL-40V2000:

Approx. 988 × 716 × 334 mm (with stand)

Approx. 988 × 664 × 103 mm (without stand)

KDL-32V2000:

Approx. 792 × 593 × 219 mm (with stand)

Approx. 792 × 546 × 99 mm (without stand)

Mass:

KDL-46V2000:

Approx. 34 kg (with stand)

Approx. 28 kg (without stand)

KDL-40V2000:

Approx. 27 kg (with stand)

Approx. 21 kg (without stand)

KDL-32V2000:

Approx. 17 kg (with stand)

Approx. 15 kg (without stand)

Panel System

LCD (Liquid Crystal Display) Panel

TV System

Analogue: Depending on your country/region selection: B/G/H, D/K, L, I

Digital: DVB-T

Colour/Video System

Analogue: PAL, SECAM

NTSC 3.58, 4.43 (only Video In)

Digital: MPEG-2 MP@ML

Aerial

75 ohm external terminal for VHF/UHF

Channel Coverage

Analogue: VHF: E2–E12

UHF: E21–E69

CATV: S1-S20

HYPER: S21–S41

D/K: R1-R12, R21-R69

L: F2–F10, B–Q, F21–F69

I: UHF B21-B69

Digital: VHF/UHF

Terminals

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input, and TV audio/video output.

↔ /→⋯2 (SmartLink)

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input, selectable audio/video output, and SmartLink interface.

Supported formats: 1080i, 720p, 576p, 576i, 480p, 480i

Y: 1 Vp-p, 75 ohms, 0.3V negative sync

P_B / C_B : 0.7 Vp-p, 75 ohms

Pr / Cr : 0.7 Vp-p, 75 ohms

Audio input (phono jacks)

500 mVrms

Impedance: 47 kilo ohms

HDMI IN 4

Video: 1080i, 720p, 576p, 576i, 480p, 480i

Audio: Two channel linear PCM

32, 44.1 and 48 kHz, 16, 20 and 24 bits, or analogue audio input (phono jacks)

Audio output (Left/Right) (phono jacks)

PC → ⬙ PC Input (15 Dsub) (see page 37)

G: 0.7 Vp-p, 75 ohms, non Sync on Green

B: 0.7 Vp-p, 75 ohms, non Sync on Green

R: 0.7 Vp-p, 75 ohms, non Sync on Green

HD: 1-5 Vp-p

VD: 1-5 Vp-p

→ PC audio input (minijack)

Headphones jack

CAM (Conditional Access Module) slot

Sound Output

10 W + 10 W

Supplied Accessories

Refer to "1: Checking the accessories" on page 4.

Optional Accessories

• Wall-Mount Bracket

SU-WL51 (for KDL-46V2000/KDL-40V2000)

SU-WL31 (for KDL-32V2000)

Design and specifications are subject to change without notice.

PC Input Signal Reference Chart

Signals	Horizontal (Pixel)	Vertical (Line)	Horizontal frequency (kHz)	Vertical frequency (Hz)	Standard
VGA	640	480	31.5	60	VGA
	640	480	37.5	75	VESA
	720	400	31.5	70	VGA-T
SVGA	800	600	37.9	60	VESA Guidelines
	800	600	46.9	75	VESA
XGA	1024	768	48.4	60	VESA Guidelines
	1024	768	56.5	70	VESA
	1024	768	60	75	VESA
WXGA	1280	768	47.4	60	VESA
	1280	768	47.8	60	VESA
	1360	768	47.7	60	VESA

- This TV's PC input does not support Sync on Green or Composite Sync.

- This TV's PC input does not support interlaced signals.

- This TV's PC input supports the boldfaced signals in the above chart with a 60 Hz vertical frequency.

- For the best picture quality, it is recommended to use signals with a 60 Hz vertical frequency from a personal computer. In plug and play, signals with a 60 Hz vertical frequency will be selected automatically.

Troubleshooting

Check whether the ⏻ (standby) indicator is flashing in red.

When it is flashing

The self-diagnosis function is activated.

1 Measure how long the ⏻ (standby) indicator flashes and stops flashing.
For example, the indicator flashes for two seconds, stops flashing for one second, and flashes for two seconds.
2 Press ⏻ on the TV (top side) to switch it off, disconnect the mains lead, and inform your dealer or Sony service centre of how the indicator flashes (duration and interval).

When it is not flashing

1 Check the items in the tables below.
2 If the problem still persists, have your TV serviced by qualified service personnel.


Problem	Cause/Remedy
No picture (screen is dark) and no sound	Check the aerial connection.Connect the TV to the mains, and press ⏻ on the TV (top side).If the ⏻ (standby) indicator lights up in red, press ⏻/⋯.
No picture or no menu information from equipment connected to the scart connector	Check that the optional equipment is on and press →/→ repeatedly until the correct input symbol is displayed on the screen.Check the connection between the optional equipment and the TV.
Double images or ghosting	Check aerial/cable connections.Check the aerial location and direction.
Only snow and noise appear on the screen	Check if the aerial is broken or bent.Check if the aerial has reached the end of its serviceable life (three to five years in normal use, one to two years at the seaside).
Distorted picture (dotted lines or stripes)	Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers or optical equipment.When installing optional equipment, leave some space between the optional equipment and the TV.Make sure that the aerial is connected using the supplied coaxial cable.Keep the aerial cable away from other connecting cables.
Picture noise when viewing a TV channel	Select “Manual Programme Preset” in the “Analogue Set-up” menu and adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception (page 29).
Some tiny black points and/or bright points on the screen	The picture of a display unit is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.
No colour on programmes	Select “Reset” in the “Picture” menu to return to the factory settings (page 20).
No colour or irregular colour when viewing a signal from the Y, PB/CB, PR/CR jacks of →3	Check the connection of the Y, PB/CB, PR/CR jacks of →3. Make sure that the Y, PB/CB, PR/CR jacks of →3 are firmly seated in their respective sockets.

Sound

Problem	Cause/Remedy
No sound, but good picture	Press ∠+/- or ☑ (Mute).Check that “Speaker” is set to “On” in the “Set-up” menu (page 26).
Noisy sound	See the “Picture noise” causes/remedies on page 38.

Channels

Problem	Cause/Remedy
The desired channel cannot be selected	Switch between digital and analogue mode and select the desired digital/ analogue channel.
Some channels are blank	Scrambled/Subscription only channel. Subscribe to the Pay Per View service.Channel is used only for data (no picture or sound).Contact the broadcaster for transmission details.
Digital channel is not displayed	Contact a local installer to find out if digital transmissions are provided in your area.Upgrade to a higher gain aerial.

General

Problem	Cause/Remedy
The TV turns off automatically (the TV enters standby mode)	Check if the “Sleep Timer” is activated, or confirm the “Duration” setting of “On Timer” (page 25).If no signal is received and no operation is performed in the TV mode for 10 minutes, the TV automatically switches to standby mode.
The TV turns on automatically	Check if the “On Timer” is activated (page 26).
Some input sources cannot be selected	Select “AV Preset” in the “Set-up” menu and cancel “Skip” of the input source (page 25).
The remote does not function	Replace the batteries.

Index

Numerics

1 Digit Direct 28

14:9 14

4:3 Default 24

4:3 14

A

Advanced Settings 21

Aerial, connecting 4

AFT 29

All Reset 26

Analogue Set-up menu 28

Audio Filter 29

Audio Language 32

Audio Type 32

Auto Adjustment 27

Auto Clock Set 14, 18, 35

Auto Format 24

Auto S Video 25

Auto Start-up 25

Auto Tuning analogue and digital channels 6 analogue channels only 28 digital channels only 31

Auto Volume 22

AV Preset 25

AV2 Output 26

B

Backlight 20

Balance 22

Bass 22

Batteries, inserting into the remote 4

BBE 22

Black Corrector 21

Brightness 20

C

CA Module Set-up 32

Category list 15

Channels auto-tuning 6 selecting 13 Skip 30

Clear White 21

Clock Set 26

Colour 20

Colour System 26

Colour Temperature 20

Confirm 30

Connecting an aerial/VCR 4 optional equipment 33

Contrast Enhancer 21

Contrast 20

Country 5

D

Digital Auto Tuning 31

Digital Manual Tuning 31

Digital Set-up 32

Digital Set-up menu 31

Digital Tuning 31

Display Area 24

Dual Sound 23

E

EPG (Digital Electronic Programme

Guide) 15

Equipment labels 25

F

Fastext 14

Favourite list 17

G

Gamma 21

H

Headphones

connecting 33

Speaker Link 23

Volume 23

Horizontal Shift 24, 27

Hue 20

|

Information 26

Input signal index table 18

L

Label 29

Language 5, 25

Light Sensor 26

Live Colour 21

M

Manual Programme Preset 29

Manual timer REC 16

MENU 19

MPEG Noise Reduction 21

N

Noise Reduction 21

0

On Timer 26

P

Parental Lock 32

PC Settings menu 27

Phase 27

Picture menu 20

Picture Mode 20

Picture Off (☒) indicator 12

PIN Code 32

Pitch 27

Power (I) indicator 12

Power (⏻) switch 12

Power Management 27

Power Saving 26

Programme index table 13

Programme Labels 28

Programme List Edit 31

Programme Sorting 28

Q

Quiet Power On 26

R

Reminder 16

Remote control inserting batteries 4 overview 11 sensor 12

Reset

PC settings 27

picture 20

sound 22

S

Screen Format 24, 27

Screen menu 24

Screen mode 14

Set-up menu 25

Sharpness 20

Skip 25, 30

Sleep Timer 25

Smart 14

Sound menu 22

Sound Mode 22

Speaker 26

Specifications 36

Standby (⏻) indicator 12

Subtitle Language 32

Subtitle Setting 32

Surround 22

T

Target Inputs

picture 20

screen 24

sound 22

Technical Set-up 32

Text 14

Timer (💡) indicator 12

Timer list 16

Timer REC 15

Timer Settings 25

Tools 14, 18, 35

Treble 22

V

VCR

connecting 4

recording 15

Vertical Shift 24, 27

Vertical Size 24

W

Wide 14

Z

Zoom 14

ACHTUNG

Line drawing of a straight electrical plug with a coiled cable (no text or symbols)

Koaxialkabel (1)

Kabelhalter (1)

Diagram of a car's battery pack with two batteries and an open rear panel, showing internal components (no text or symbols)

Hinweise

Diagram illustrating cable installation steps with labeled components and cable routing instructions

Diagram showing a device with labeled parts including a switch, lock, and cable attachment mechanism.

Two people pulling a large computer monitor with a power cord (no text or symbols visible)

Diagram showing two hands holding electrical plugs, one with a checkmark indicating the correct position.

Netzstrom

Line drawing of a person in bed watching a soccer ball on a TV, with no visible text or symbols

Illustration of a hand watering a candle on a computer monitor (no text or symbols)

Öl und Fett

Simple line drawing of a person sitting on a couch watching a TV (no text or symbols)

Line drawing of a person sitting on a boat with a monitor, sailing on water (no text or symbols)

Nutzung im Freien

Illustration of a person watching a soccer game on a TV under the sun (no text or symbols)

Verkabelung

Diagram illustrating hand gesture states with check and cross icons, showing a device interacting with a clip.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Front view line drawing of a classic 19th-century PGA Tour car (no text or symbols)

Front view of a classic 19th-century PGA Tour car (no visible text or symbols)

Black and white illustration of a classic 19th-century PGA Tour car (no text or symbols)

Front view illustration of a modern sports car (no text or symbols visible)

Black and white illustration of a classic 19th-century sports car (no text or symbols visible)

Abmessungen (B × H × T):

KDL-46V2000:

Line drawing of a straight electrical plug with a coiled cable (no text or symbols)

Coaxkabel (1)

Kabelbinder (1)

Bevestigingsriem (1) en schroeven (2)

Diagram of a remote car showing battery charging mechanism with no text or symbols

Opmerkingen

Diagram illustrating cable installation steps with numbered instructions for connecting to a device panel

Technical diagram showing a device with labeled parts including a switch, lock, and cable attachment mechanism.

Diagram showing a computer setup with labeled components and a hand holding a probe, illustrating electrical connections.

1 / 2 A/B 3,4 3,4 RETURN TOOLS

Two people pulling a large computer monitor with a power cord (no text or symbols visible)

Illustration of three people: two on a scale and one holding a child, with no visible text or symbols.

Illustration of a person lying in bed watching a soccer ball on a TV (no text or symbols present)

Vervoer

Simple line drawing of a person sitting on a couch watching a TV (no text or symbols)

Gebruik buitenshuis

Line drawing of a person sitting on a boat with a computer monitor, waves crashing below (no text or symbols)

Illustration of a person watching a soccer ball on a TV under the sun (no text or symbols)

Reiniging

Diagram illustrating a hand holding a piece with selection handles, showing 'X' and '✓' states for two different states.

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

MENU PROG I

① MENU (pagina 21)
② →/→ - Ingangskeuze/OK

Black and white illustration of a classic 19th-century sports car (no text or symbols visible)

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Black and white illustration of a classic 19th-century sports car (no text or symbols)

Black and white illustration of a classic 19th-century sports car (no text or symbols)

Black and white illustration of a classic 19th-century sports car (no text or symbols visible)

L: F2–F10, B–Q, F21–F69

I: UHF B21-B69

Digitaal: VHF/UHF

Aansluitingen

antenne/videorecorder 4

Line drawing of a straight electrical plug with a coiled cable (no text or symbols)

Cabo coaxial (1)

Suporte do cabo (1)

Diagram of a remote car showing battery charging mechanism with no text or symbols

Notas

Diagram illustrating cable connection steps with labeled components and cable routing instructions

4: Impedir que o televisor se vire

Technical diagram showing a device with labeled parts including a switch, lock, and cable attachment mechanism.

Diagram showing a computer setup with labeled components and a hand holding a cable, illustrating electrical connections.

1 / 2 A/B 3,4 3,4 RETURN TOOLS

Two people pulling a large computer monitor with motion lines indicating speed (no text or symbols)

Illustration of three people: two on a scale and one holding a child, with no visible text or symbols.

Illustration of a person in bed watching a video on a TV (no text or symbols present)

Transporte

Simple line drawing of a bus with a person watching a screen (no text or symbols)

Line drawing of a person standing on a boat with waves crashing, no text or symbols present

Illustration of a person watching a soccer TV under the sun (no text or symbols)

Ligar os fios

Diagram illustrating a hand holding a cable with a magnified view showing the correct and incorrect states of the cable.

Precauções

Ecrã LCD

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or elimination (no text or labels present)

MENU PROG I

Black and white line drawing of a classic 19th-century sports car (no text or symbols)

Front view line drawing of a classic 19th-century sports car (no text or symbols)

Front view illustration of a modern sports car (no text or symbols visible)

Black and white illustration of a classic 19th-century sports car (no text or symbols)

Black and white illustration of a classic 19th-century sports car (no text or symbols)

L: F2–F10, B–Q, F21–F69

I: UHF B21-B69

Digital: VHF/UHF

Terminais

Line drawing of a straight electrical outlet with a power plug and cord (no text or symbols)

Koaksialkabel (1)

Kabelholder (1)

Diagram of a car's rear panel with battery pack and charging mechanism (no text or symbols)

Merknader

Diagram illustrating cable connection steps with labeled components and cable routing instructions

4: Hindre

Diagram showing a device with labeled parts including a cable switch, lock, and cable attachment mechanism.

5: Velge språk og land/region

Diagram showing a computer monitor connected to an electrical plug, with labeled parts 1 and 2 indicating components.

1 / 2 A/B 3,4 3,4 RETURN TOOLS

1 Koble TV-apparatet til stikkontakten (220-240 V AC, 50 Hz).
2 Trykk på ⏻ på oversiden av TV-apparatet. Når du slår på TV-apparatet første gang, får du fram språkmenyen på skjermen.
Når TV-en er i standby-modus (indikatoren ⏻ (standby) på forsiden av TV-en lyser rødt), kan du slå på TV-en ved å trykke på ⚠/⏻ på fjernkontrollen.

Two people pulling a large computer monitor with a power cord (no text or symbols visible)

Diagram showing two hands connecting electrical outlets to a plug, with a checkmark indicating the correct installation.

Nett

Line drawing of a person lying in bed watching a television screen (no text or symbols present)

Bæring

Simple line drawing of a person sitting on a couch watching a television (no text or symbols)

Line drawing of a person sitting on a boat with a monitor, sailing on water (no text or symbols)

Bruk utendørs

Illustration of a person watching a soccer ball on a TV under the sun (no text or symbols)

Kabling

Diagram illustrating a hand holding a piece with selection handles and confirmation steps

Forholdsregler

LCD-skjerm

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

⑤ ↗/↓/↔/→/⊕ (side 13, 19)

⑥ TOOLS (side 14, 18, 35)

MENU PROG I R

① MENU (side 19)
② →/→ - Velge inngang/OK

• I TV-modus (side 18): Velger inngangskilde fra utstyret tilkoblet kontaktene på TV-apparatet.
• I TV-menyen: Velger menyen eller alternativet, og bekrefter innstillingen.

③ ∠+/-/←/→

⑧ I – Strømindikator

Black and white illustration of a classic 19th-century sports car (no text or symbols visible)

Front view illustration of a modern PGA Tour car (no text or symbols visible)

Front view illustration of a modern sports car (no text or symbols visible)

Black and white illustration of a classic 19th-century PGA Tour car (no text or symbols)

Black and white illustration of a classic 19th-century sports car (no text or symbols visible)

L: F2–F10, B–Q, F21–F69

I: UHF B21-B69

Digital: VHF/UHF

Terminaler

21-pinners scart-kontakt (CENELEC-standard)

Strøm-indikator (I) 12

Strømsparing 26, 27

Støyreduksjon 21

Surround 22

T

Teknisk innstilling 32

Tekst-TV 14

Tidsinnstillingsliste 16

Tidsinnstilt opptak 15

Tidsstyringsinnst. 26

Tilbakestill

bilde 20

lyd 22

PC Innstillinger 27

Tilgangskontroll 32

Tilkobling
