Product type	Wireless flood detector
Brand	Chuango
Model	WI210
Power supply	2 AAA / LR03 1.5 V batteries (included)
Standby time	12 months
Static current	< 29 μA
Alarm current	< 23 mA
Transmission range	< 80 m (in open area)
Radio frequency	433.92 MHz
Housing material	ABS plastic
Operating temperature	-20 °C to +55 °C
Operating humidity	< 80 % (non-condensing)
Detector dimensions (L x W x H)	54 x 14.5 x 107 mm
Probe dimensions (L x W x H)	35 x 30 x 15 mm
Weight (estimated with batteries)	Approximately 100 g
Main function	Flood detection by liquid conductivity
Alarm type	Wireless signal to the control panel
LED indicator	Flashing according to status
Tamper contact	Yes
Maintenance	Battery replacement, probe cleaning
Mounting	Screws for the probe, double-sided adhesive tape for the transceiver

Frequently Asked Questions - WI210 Chuango

How to install the WI210 flood detector?

Remove the battery insulating tab, then fix the probe horizontally with screws at the location where a leak could occur. Fix the transceiver with double-sided adhesive tape at a height where liquid does not normally reach, and raise the antenna.

How to pair the detector with the control panel?

Put the control panel in learning mode, then simulate an alarm by putting the probe in contact with water. A beep confirms successful connection.

What is the range of the wireless signal?

The transmission distance is less than 80 meters in open area.

How to replace the detector batteries?

Open the back cover with a screwdriver, replace the batteries with two new AAA/LR03 batteries respecting the polarities. Close the cover.

What does the flashing of the LED indicator mean?

One flash indicates liquid detection and signal transmission. A flash every 2 seconds means the batteries are almost depleted.

Can the detector be used outdoors?

It is designed for indoor use. The operating temperature is -20°C to +55°C, but humidity must not exceed 80% non-condensing.

Is the detector waterproof?

The detector housing is not waterproof. Only the probe comes into contact with water to detect flooding. The transceiver must be placed out of reach of liquids.

What to do if the detector does not pair with the panel?

Check that the batteries are correctly inserted and that the panel is in learning mode. Make sure the probe is in good contact with water. If the problem persists, contact technical support.

What radio frequency is used?

The detector uses a frequency of 433.92 MHz.

How to clean the detector?

Clean the probes with a soft dry cloth if residues accumulate. Do not use chemical products. Replace the batteries if necessary.

USER MANUAL WI210 Chuango

Line drawing of two electronic devices: a small rectangular device and a cylindrical device with a handle (no text or symbols)

WI-210

Wireless Water Detector

ENEN

Introduction

This is a contact wireless water detector, which works based on the theory of liquid conductivity. The performance is reliable and the installation is easy. When the liquid reaches to the two probes of the detector, it will send wireless signal to the control panel. It can be widely used in computer rooms, warehouses and any places need to be protected from water. Two pieces of AAA 1.5V LR03 batteries are included in the detector, which enables 12 months standby.

Product Overview

LED Indicator Transmitter Probe

LED Indication

Flash once: Liquid is detected, sending wireless signal to the control panel.

Flash once every two seconds: Low battery. Please replace the battery immediately.

PCB Layout

Tamper Switch AAA 1.5V LR03 AAA 1.5V LR03

Connect to the Control Panel

Make sure the control panel is under learning status, then simulate an alarm case by touching the probe of detector with the water. When an alarm signal is received by panel, one beep is heard, indicating a successful connection.

ENEN

Installation

1. Remove the insulated strip, the detector will enter working mode.
2. Use screw to fix the probe horizontally on the detection site.
3. Use double-sided adhesive tape to fix the transmitter on the place where the liquid is normally unable to reach, and keep the antenna upward.

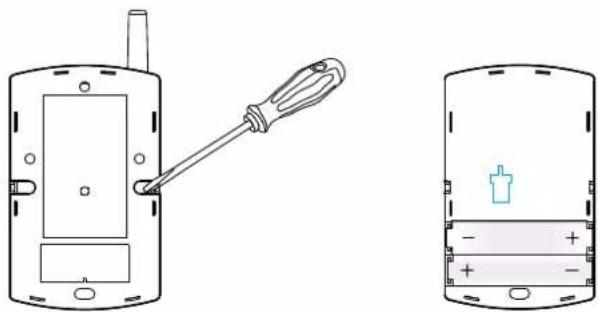

Change Batteries

Open the back case with screwdriver, and replace the batteries with new ones according to the positive and negative marks.

Technical line drawing of a mobile phone showing front and side views with a screwdriver (no text or symbols)

Specifications

Power supply: DC 3 V (AAA 1.5 V LR03 x 2 PCS)

Static current: < 29 uA

Alarm current: < 23 mA

Transmitting distance: < 80 m (in open area)

Radio frequency: 433.92 MHz

Housing material: ABS plastic

Operating condition:

Temperature: -20 °C \~ +55 °C

Relative humidity: < 80% (non-condensing)

Detector dimensions (L x W x H): 54 x 14.5 x 107 mm

Probe dimensions (L x W x H): 35 x 30 x 15 mm

Einleitung

Diagram showing a smartphone with a screwdriver inserted into its screen, and its battery inside a rounded rectangle (no text or symbols)

Technische Daten

Stromversorgung: DC 3 V (AAA 1,5 V LR03 x 2 St.)

Technical line drawing of a mobile phone showing front and side views with a screwdriver inserted (no text or symbols)

Spécifications

Diagram showing a smartphone with a screwdriver inserted into its screen, and its battery inside a display case (no text or symbols)

Specifications

Technical line drawing of a mobile phone showing front and side views with a screwdriver (no text or symbols)

Especificaciones

Technical line drawing of a mobile phone showing front and side views with a screwdriver (no text or symbols)

Especificações

Technical line drawing of a mobile phone with a screwdriver inserted, showing front and side views (no text or symbols)
