Product type	Grill plate
Brand	Emerio
Model	BG115597.3
Supply voltage	220-240 V ~ 50/60 Hz
Power	1250 W
Water tank capacity	0.3 L (min) - 0.8 L (max)
Control type	Control box with safety switch
Main function	Grilling food with steam cooking via water tray
Usage	Indoor use only
Assembly required	Yes, attachment of legs and control box base
Cleaning	Clean with a damp cloth and mild detergent; do not immerse the heating element or control box
Safety	Do not touch hot surfaces; do not move during use; do not use charcoal
Warranty	2 years
Light indicator	Heating indicator light
Grid type	Metal grid
Domestic use	Yes
Included accessories	Grill, drip tray, legs, heating element, control box
Recycling	Compliant with directive 2012/19/EU

Frequently Asked Questions - BG115597.3 Emerio

How to assemble the device?

Attach the control box base to the main housing with the provided long screw. Turn the device over and screw the three legs with the short screws. Place the drip tray into the main housing, then the heating element with the control box, making sure to insert the vertical bar into the lower hole to activate the safety switch. Finally, place the grid on the drip tray, aligning the supports.

How much water should I put in the tray?

Fill the drip tray with cold water. The level should be between 0.3 L minimum and 0.8 L maximum. During use, water evaporates, so it must be topped up regularly to avoid overheating.

What to do if the device does not turn on?

Check that the control box is correctly positioned on its base: the vertical bar of the base must be inserted into the lower hole of the box to activate the safety switch. If not, the device cannot turn on. Also make sure the plug is properly inserted and the socket works.

How to clean the grid and drip tray?

Before cleaning, unplug the device and wait for it to cool down completely. The grid, drip tray and other parts can be washed with a mixture of hot water and mild detergent. Do not use sharp utensils or abrasive products. Never immerse the heating element or control box; clean them with a clean, dry cloth.

Can I use charcoal with this device?

No, it is strictly forbidden to use charcoal or any similar fuel. This device operates only on electricity. Using charcoal poses a risk of fire and burns.

Can children use this device?

The device can be used by children aged 8 years and older, under supervision and after receiving instructions on safe use. Children must not play with the device. Cleaning and maintenance must not be performed by children under 8 without supervision.

How to turn off the device?

To turn off the device, simply disconnect the power cord from the electrical outlet. Wait for the device to cool down completely before removing the grid, heating element or control box.

Can I cook frozen food?

Yes, but frozen food must be fully thawed before being placed on the grid for even cooking. Do not place frozen food directly on the grid.

What to do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid any hazard. Do not use the device with a damaged cord.

Does the device heat up quickly?

Yes, the indicator light turns on to show that the heating element is heating. The device quickly reaches cooking temperature. Be careful as surfaces become very hot. Never touch the surface during use.

USER MANUAL BG115597.3 Emerio

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "cleaning and maintenance" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
11. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
12. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
13. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
14. Do not touch the appliance if it falls into water. Remove the plug from its socket, and send it to an authorized service center for repair.
15. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
16. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
17. Never leave the appliance unattended during use.
18. This appliance is not designed for commercial use.
19. Do not use the appliance for other than intended use.
20. Do not wind the cord around the appliance and do not bend it.
21. WARNING: Charcoal or similar combustible fuels must not be used with this appliance.
22. Danger! Nominal voltage is still present in the appliance as long as the appliance is connected to the mains socket.
23. Before use, the appliance must be placed on a firm, flat surface and at least 50~cm away from the nearest wall or any flammable objects.

24. Attention! The appliance becomes very hot! It must cool down completely, before its surface can be touched. Removing and cleaning of the barbecue grill, the control unit and the drip tray may only be done after the appliance has cooled down completely.

25. Burn hazard! Be careful when handling hot oil and fat. Beware of spitting oil and hot steam!

26. Do not move the appliance during use.
27. Due to safety reasons, if the control unit is removed from the body of the appliance, the barbecue must not be switched on.

1. The maximum Water capacity is 0.8L

and the minimum water capacity is 0.3L.

1. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

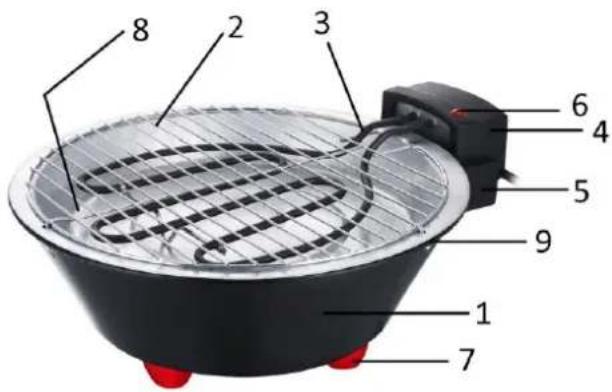

PARTS DESCRIPTION

1. Main body
2. Barbecue grill
3. Heating element
4. Control box
5. Control box base
6. Indicator light
7. Feet
8. Drip tray
9. Fixed support

BEFORE FIRST USE

1. Remove all packaging.
2. Clean the appliance, as described in Cleaning and Maintenance.
3. Switch the barbecue on for 5 minutes without food on it before first use, so that possible production residues are removed. During that time, a smell might occur but this is not a defect of the appliance.

ASSEMBLY:

1. Take the long screw (a), control box base, short screws (b) and feet out from the plastic bag provided.
2. Use the long screw (a) to fix the control box base to the main body. (Fig. A)
3. Turn the main body upside down, use 3 short screws (b) to fix the three feet to the main body. (Fig B)

OPERATION

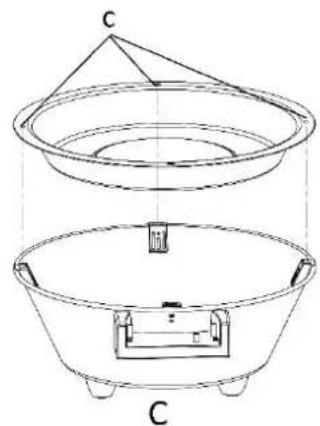

1. Place the drip tray to the main body. Three holes (c) of the drip tray shall be align with three fixed supports. (Fig C).

2. Fill the drip tray with cold water. Add water between MIN 0.3L and MAX 0.8L.
   During use the water in the drip tray will evaporate and should be refilled. Otherwise the product will get too hot.
   Note: Make sure you do not drip water on to the element.

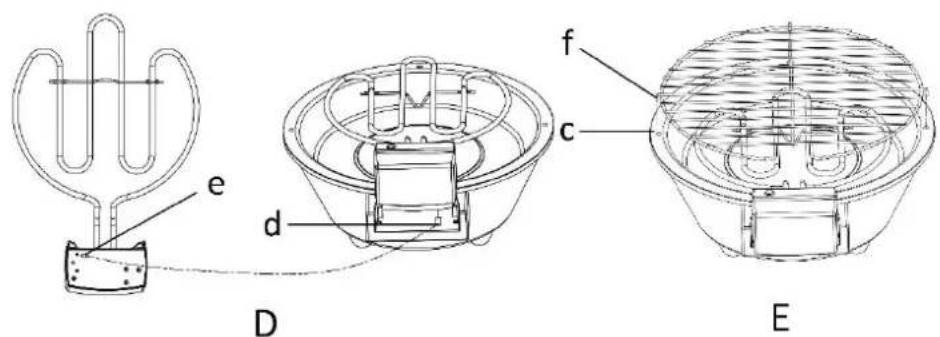

3. Place the heating element with the control box onto the drip tray and locate on the control box base. Make sure the vertical bar (d) in the control box base is inserted into the bottom hole (e) of the control box, so that the safety switch is activated (Fig. D). Otherwise, the appliance cannot be switched on.
4. Place the barbecue grill onto the drip tray. Three grill stands (f) shall be inserted into three holes (c) of the drip tray, together with three fixed supports. (Fig. E) Attention! The barbecue grill must not touch the heating element under any circumstances.
5. Connect the power plug into a suitable outlet.
6. The indicator light will illuminate to indicate the heating element is heating up.
7. Place your food on the barbecue grill for grilling. Deep frozen food should be defrosted completely before barbecuing.
8. To grill food evenly, it should be turned several times during the barbecue. The barbecuing time depends on the food to be grilled.
9. Caution! To avoid a heat accumulation, do not place aluminum foil or other barbecue accessories on the barbecue grill.
10. During use the water in the drip tray will evaporate and should be refilled. Otherwise the product will get too hot.

Note: Make sure you do not drip water on to the element.

1. To turn off the appliance, unplug the power cord from outlet.
2. The barbecue grill, the heating element and the control box and other parts must be removed only after the appliance has cooled down completely.

CLEANING AND MAINTENANCE

• Before cleaning, unplug and allow the appliance to cool down.
• Never immerse the heating element and the control box into water or other liquid. Clean them with a clean dry cloth only.
  The other barbecue components can be cleaned with warm water and mild detergent.
• Let the appliance dry completely before it is reconnected to the supply.
• Use no sharp or abrasive cleaning agents.

TECHNICAL DATA

Operating voltage: 220 - 240V 50 / 60Hz

Power consumption: 1250W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such

case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Manufactured by: Emerio Deutschland GmbH
