Product type	Professional refrigerator
Brand	Scancool
Model	GUR700X
Climate class	4 (max ambient temperature 38°C, relative humidity 60%)
Temperature ranges	Refrigeration: +8 to -2°C; Fish: -6 to +2°C; Freezing: -18 to -22°C
Power supply	220V 60Hz or 115V 60Hz (depending on version)
Required electrical protection	Grounded outlet, thermal-magnetic circuit breaker and 30mA residual current device
Plug type	Schuko (type F, CEE 7/4)
Interior lighting	LED, energy efficiency class F
Intended use	Professional, storage of beverages and food
Installation	By authorized technician; spacing: 50 mm rear, 30 mm sides, 500 mm above
Leveling	Adjustable feet (turn right to lower, left to raise)
Cleaning	Non-abrasive, non-corrosive, chlorine-free products; disconnect power before
Condenser cleaning	Important: do not bend the aluminum fins; frequency depends on environment
Defrost	Automatic (water directed to an evaporation tray)
Drainage	Present for cleaning and liquids; removable cap
Maximum drawer load	40 kg per drawer, evenly distributed
Safety	Do not sit on drawers; do not use barefoot or with wet hands in case of failure
Repairs	Only by authorized technical service; use original spare parts
Warranty	Void if instructions not followed or improper use
Recycling	Packaging recyclable; appliance subject to WEEE directive (separate collection)

Frequently Asked Questions - GUR700X Scancool

What is the recommended operating temperature for the GUR700X refrigerator?

The GUR700X can be set for three ranges: refrigeration from +8 to -2°C, fish from -6 to +2°C and freezing from -18 to -22°C. Use the thermostat to select the desired temperature.

How to correctly install the Scancool GUR700X refrigerator?

Installation must be carried out by an authorized technician. Place the appliance with a spacing of 50 mm at the rear, 30 mm on the sides and 500 mm above. Level it using the adjustable feet. Ensure the plug is Schuko type with grounding and protected by a 30mA residual current device.

What to do if the refrigerator does not cool sufficiently?

First check the power supply and the main switch. Ensure no heat source is nearby and the ambient temperature does not exceed 38°C. Check the thermostat setting (refrigeration: near 0°C, freezing: -20°C). Clean the condenser if necessary and verify that the load does not block the air outlets.

How to clean the condenser of the GUR700X?

Unplug the appliance before any cleaning. Use a soft brush or vacuum cleaner to remove dust, avoiding bending the aluminum fins. Frequency depends on the environment. If you cannot do it yourself, contact technical service.

What to do in case of abnormal noises?

Check that the appliance is level and that the doors close properly. Make sure no object is rubbing against moving parts (fan, compressor). If the noise persists, contact technical service.

Can I use an extension cord for the power supply?

No, it is forbidden to extend the power cable for safety reasons. The cable is Schuko type with an appropriate section. If the cable is damaged, have it replaced by the manufacturer or a qualified professional.

How to proceed in case of prolonged absence?

Thoroughly clean the interior of the appliance, then disconnect the main switch or unplug it. Leave the doors slightly ajar to prevent mold.

What is the maximum allowed load in the drawers?

The maximum load per drawer is 40 kg, evenly distributed. Open only one drawer at a time to prevent the unit from tipping.

Is the GUR700X refrigerator suitable for domestic use?

No, this appliance is intended for professional use and must be used by qualified personnel. It is not designed for standard domestic use.

What to do if the temperature display does not change?

At first power-on, the display shows the ambient temperature. After a few minutes of operation with doors closed, the temperature will drop to the set value. If the display does not change or remains fixed, check the thermostat operation and contact technical service if necessary.

User questions about GUR700X Scancool

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Fridge in PDF format for free! Find your manual GUR700X - Scancool and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GUR700X by Scancool.

USER MANUAL GUR700X Scancool

Elektrisk og elektronisk udstyr (EEE)并不代表 the quality of the work. The work is based on a combination of the skills of the individual and the skills of the professional.

7. RECICLAJE DEL PRODUCTO

Scancool GUR700X - RECICLAJE DEL PRODUCTO - 1

INDEX 16
GENERAL INFORMATION AND WARNINGS 17
3.PRODUCT DETAILS 18

3.1 General characteristics 18

INSTALLATION INSTRUCTIONS 19

4.1 Removal of packaging 19
4.2 Positioning and levelling 19
4.3 Electrical connection 20
4.4 Drainage connection 20
4.5 Recycling 20

USE AND MAINTENANCE INSTRUCTIONS 21

5.1 Operation 21

5.1.1 Control panel symbols 21
5.1.2 Switching on the machine 21
5.1.3 Performance of the machine 21
5.1.4 Switch off the machine 22

5.2 Useful tips 22

5.2.1 Maintenance 22
5.2.2 Prolonged non use 22

FAULTS, ALARMS AND BREAKDOWNS 23
RECYCLING THE PRODUCT 23

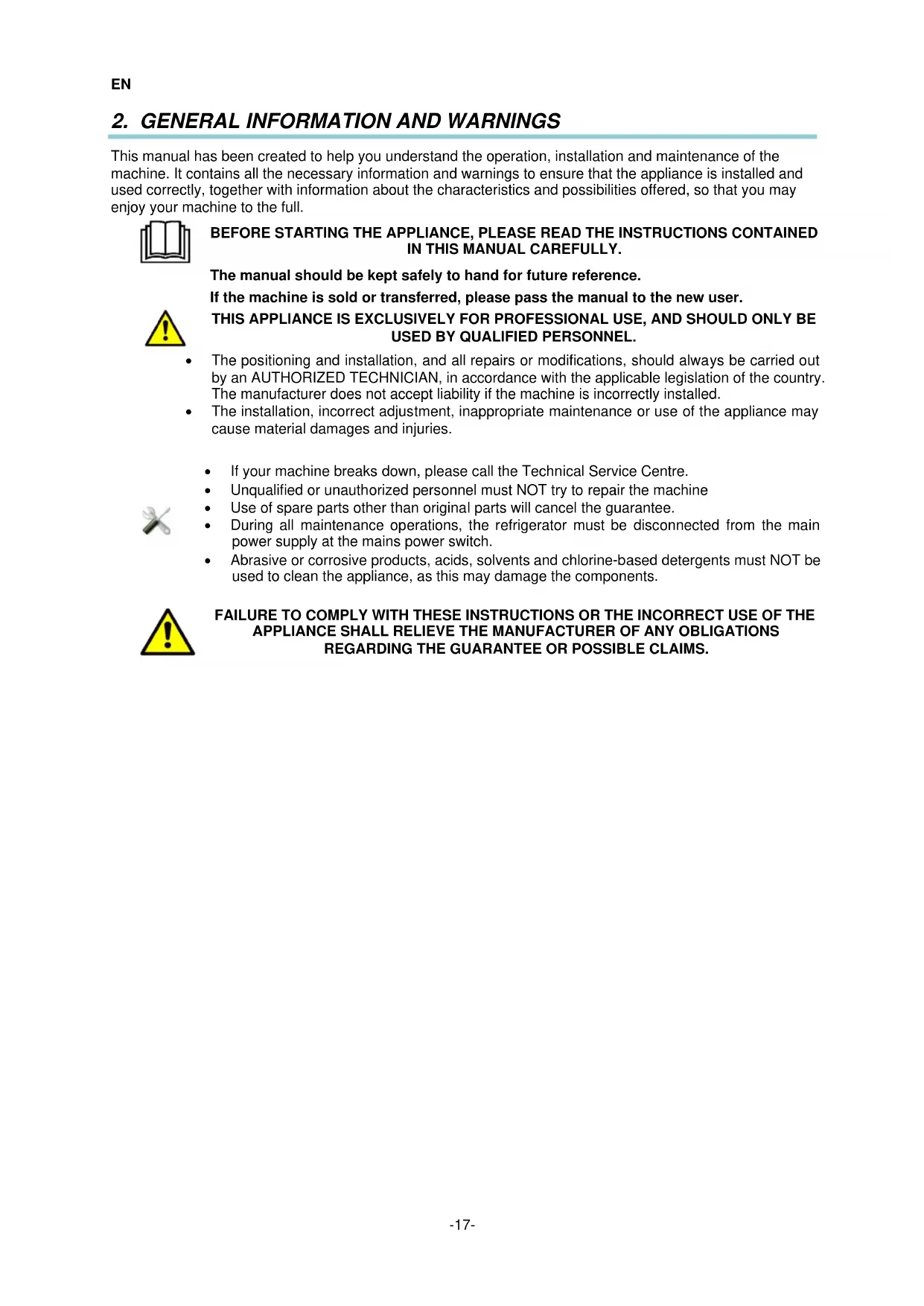

2. GENERAL INFORMATION AND WARNINGS

This manual has been created to help you understand the operation, installation and maintenance of the machine. It contains all the necessary information and warnings to ensure that the appliance is installed and used correctly, together with information about the characteristics and possibilities offered, so that you may enjoy your machine to the full.

Scancool GUR700X - GENERAL INFORMATION AND WARNINGS - 1

BEFORE STARTING THE APPLIANCE, PLEASE READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL CAREFULLY.

The manual should be kept safely to hand for future reference.

Scancool GUR700X - BEFORE STARTING THE APPLIANCE, PLEASE READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL CAREFULLY. - 1

If the machine is sold or transferred, please pass the manual to the new user.

THIS APPLIANCE IS EXCLUSIVELY FOR PROFESSIONAL USE, AND SHOULD ONLY BE USED BY QUALIFIED PERSONNEL.

The positioning and installation, and all repairs or modifications, should always be carried out by an AUTHORIZED TECHNICIAN, in accordance with the applicable legislation of the country. The manufacturer does not accept liability if the machine is incorrectly installed.
The installation, incorrect adjustment, inappropriate maintenance or use of the appliance may cause material damages and injuries.

If your machine breaks down, please call the Technical Service Centre.
- Unqualified or unauthorized personnel must NOT try to repair the machine
- Use of spare parts other than original parts will cancel the guarantee.
- During all maintenance operations, the refrigerator must be disconnected from the main power supply at the mains power switch.
- Abrasive or corrosive products, acids, solvents and chlorine-based detergents must NOT be used to clean the appliance, as this may damage the components.

Scancool GUR700X - THIS APPLIANCE IS EXCLUSIVELY FOR PROFESSIONAL USE, AND SHOULD ONLY BE USED BY QUALIFIED PERSONNEL. - 1

Scancool GUR700X - THIS APPLIANCE IS EXCLUSIVELY FOR PROFESSIONAL USE, AND SHOULD ONLY BE USED BY QUALIFIED PERSONNEL. - 2

FAILURE TO COMPLY WITH THESE INSTRUCTIONS OR THE INCORRECT USE OF THE APPLIANCE SHALL RELIEVE THE MANUFACTURER OF ANY OBLIGATIONS REGARDING THE GUARANTEE OR POSSIBLE CLAIMS.

3.PRODUCT DETAILS

All the appliances have a specification plate which identifies it and indicates its technical characteristics; it is located on one side of the machine. Don't remove the specifications plate from the unit. Brief introduction to the plate sticked to the machine:

Scancool GUR700X - 3.PRODUCT DETAILS - 1

NUMBER	DESCRIPTION
1	MANUFACTURER
2	MODEL
3	SERIAL NUMBER
4	VOLTAGE
5	FREQUENCY
6	CURRENT
7	REFRIGERATION POWER (W)
8	CLIMATIC CLASS (N=4)
9	WORKING TEMPERATURE
10	GAS TYPE
11	GAS (gr)
12	NORMATIVE

Note: This plate is an example; reality might differ slightly from it. These details should be given when the technical service is called.

3.1 General characteristics

Acquired device is designed to preserve drinks and food.

We recommend to avoid putting hot food or containers, chemical, corrosive products or medicines inside the refrigerator, and avoiding the incorrect use of the unit.

Depending on the temperature that machine performs, it can be classified into the following families:

CHILLER(+8 to -2°C)	Machines to keep fresh or previously cooked food for short periods. Also used to chill drinks
FISH DEPARTMENT(-6 to 2°C)	For keeping fish covered in ice fresh for short periods of time.
FREEZER(-18 a -22°C)	Machines to keep food frozen for long periods. (up to 6 months)

The machine is designed to work under climate class 4 that consist of following conditions:

Environmental conditions	Limits
Dry bulb temperature (°C)	+38°C
Condensing temperature	+54°C
Relative Humidity (%)	60%

The versions with interior LED light contain a light source of energy efficiency class F. The light source of this product may only be replaced by a professional.

Check Figure 1 to 16 to know the dimensions of the machine and table 1 for the general characteristics.

4. INSTALLATION INSTRUCTIONS

Scancool GUR700X - INSTALLATION INSTRUCTIONS - 1

The location and installation, as well as all kind of repairs and transformation, always must be carried out by an AUTHORIZED TECHNICIAN, according to the regulation in force in each country

Installation, incorrect adjustment, service or unappropriated maintenance of the device, as well as a wrong handling of it, may cause both material damages and injuries.

4.1 Removal of packaging

Remove packaging from the machine and check if any damage during transportation. If any damage is observed, immediately notify the supplier and the transport company. In the event of doubt, do not use the machine until the problem has been assessed.

Scancool GUR700X - Removal of packaging - 1

Packaging (plastic, expanded polyurethane, staples, etc...) must not be left in the reach of children, they are a potential hazard.

The cabinet should not be overturned. If necessary, some cabinets can be overturned by the side that is indicated on the packaging. If not indicated, it cannot be overturned. Wait at least 2 hours to turn the machine on since the machine is placed in the right location.

The machine should be moved using a fork-lift truck or similar to avoid damage to the structure.

Transport the machine to the installation location and then remove packaging.

All the packaging can be recycled. Dispose of packaging correctly.

4.2 Positioning and levelling

Make sure the place to store the machine is free and clean, avoiding the fan absorbing the dust nearby which might block the condenser reducing the efficiency of the machine.

Remove the pallet carefully, avoiding any scratch to the machine. Level the machine by using the adjustable feet. Once the machine is levelled, pill the protective film off by using a no sharp knife to avoid scratches in the stainless steel.

Scancool GUR700X - Positioning and levelling - 1

A:BODY OF THE FEET

B: THREAD:

Rotate clock wise to lower down the machine.

Rotate counter- clock wise to elevate the machine.

The cabinet, once it is located definitively, backside must be placed 50mm from the wall, 30mm from sides lateral and 500mm from the ceiling as it is indicated in Fig.17.

If the machine is provided with castors, make sure the floor is totally flat.

In the commissioning make sure there is no any heat source nearby.

For an optimum performance of the equipment, it is really important that all air intakes, both in the fan located inside the chamber and in the condenser, are not clogged.

Do not install the device outdoors.

Do not introduce any element from the fan protector or in the refrigeration equipment area.

4.3 Electrical connection

Electrical connection must be carried out by an AUTHORISED TECHNICIAN

The legal standards in force in each country regarding connection to the mains should be taken into account.

Scancool GUR700X - Electrical connection - 1

Check that the mains voltage corresponds to that indicated on the nameplate.
It is essential that the electrical installation where the cabinet is going to be connected has an EARTHING SOCKET, in addition to the appropriate magneto-thermal switch and differential protection (we recommend 30mA )
The appliance must be earthed using a differential protector. The manufacturer will not be held liable for damage originated by failure to observe this requirement.
The cross-section of the power cable must be suitable for the rated current of the machine.
The plug should be Schuko type with grounding and terminals of 4.8mm (F type). It is forbidden to enlarge the plug for your safety. As optional, the equipment can be supplied with British type plugs (H type) or American type plugs (B type).
If any faults are observed during the installation, the supplier should be notified immediately.

Scancool GUR700X - Electrical connection - 2

The manufacturer will not be held liable for any personal or material damage to the machine resulting from incorrect installation or failure to comply with the manufacturer's specifications.

The electric specifications of the machine are shown in the specification plate. Section 3. There are 220V60Hz and 115v60Hz versions, with the currents on the nameplate

4.4 Drainage connection

In fish storage cabinet, drainage hose of the cabinet should be connected to the water drainage network. Check figures 1 - 16 to see the position of the drainage.

4.5 Recycling

The product packaging consists of:

A wooden pallet.
Cardboard.
A polypropylene band.
Expanded polyethylene.

Scancool GUR700X - Recycling - 1

All the packaging used around the machine can be recycled; The correct disposal of these products will help to protect the environment. For further information regarding the recycling of these products, please refer to the relevant office of the local body. Dispos of these materials in accordance with current legislation.

Scancool GUR700X - Recycling - 2

Scancool GUR700X - Recycling - 3

BEFORE STARTING THE APPLIANCE, PLEASE READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL CAREFULLY.

THE APPLIANCE IS EXCLUSIVELY FOR PROFESSIONAL USE, AND SHOULD ONLY BE USED BY QUALIFIED PERSONNEL.

5.1 Operation

The steps required to optimize the operation of your machine are shown below, with all the available options.

5.1.1 Control panel symbols

The control panel has an On/ Off switch and one thermostat. In the Figure 18 and 19 you can see them in detail.

5.1.2 Switching on the machine

Once the machine is clean, connect the machine to the energy supply and turn the switch into ON position. The light will on.
The thermostat displays the temperature inside the cabinet.
Three minutes after switching ON the machine, the signal (Fig.19) of the compressor will light on until the device reaches set point temperature.
In the beginning the temperature of the displayed will be ambient one. After some time, if the doors are closed, the temperture will descend till the set temperature.
In freezer cabinets the machine is set to make defrosting two hours after the start up.
It is recommended to reach the set temperature before loading the cabinet.

5.1.3 Performance of the machine

This machine is dessigned for an optimum preservation of beverage and food. Therefore follow below advises:

1) In order to reach a proper performance, do not store warm products as well as beverage whose container is not correctly closed.
2) Avoid storage of chemical products, corrosive staff or drugs.
3) Protect the food and the smells with a sealed package. Store the product allowing and optimum air circulation.
4) Do not store unprotected/ unpacked food to avoid rust in the device.
5) As far as possible, avoid continuous opening of the doors and above all do not leave them open.
6) Do not load the device above the marked level.

Scancool GUR700X - Performance of the machine - 1

7) Momentary power interruption. If the interruption does not exceed 20 minutes, no need to take any precautions, avoid opening the doors only to the extent possible, in order to avoid loss of temperature. If the interruption lasts more than 20 minutes, check that food does not exceed the critical temperature, check that they are not altered and avoid opening the door. Maximum temperatures so that food are not deteriorated are as follows:

Type of equipment	Maximum Ta of the device
Chiller	+ 10°C
Fish	+ 2°C
Freezer	- 15°C

8) The water of the defrost is directed by a pipe to the evaporation tray in the back side of the container, where water is evaporated with the heat of the condenser.

EN

Precautions:

1) Stability is guaranteed, even with open doors, but it is forbidden to stand on them.
2) Is not recommended to load Internal grids and trays over 40kg . The load must be evenly distributed.
3) It is complete forbidden to sit or lean over the drawers.
4) In case of breakdown, it is not allowed to approach the refrigerator barefoot, wet soil or wet hands.

5.1.4 Switch off the machine

Put the switch in OFF or in O position to switch off the machine, the light will off.

5.2 Useful tips

Read carefully the below advices so as to reach the full potential of the refrigeration cabinet.

5.2.1 Maintenance

Carry out necessary cleaning operation in order to enlarge the service life of the machine.

Remove any waste from the machine at the end of each day. Before cleaning the machine, unplug the machine from the electricity supply and put the switch in OFF or O position. The cabinets include a drainage in the bottom of refrigerated chamber, to help the cleaning operation, as well as the eventual output of liquids from food. During the cleaning operation it is essential to remove the drain plug and clean it, to prevent clogging by solid elements. It prevents accumulated liquids from stagnating.
Do not use abrasive, corrosive or acid products, chlorine-based detergents, solvents or petrol derivatives to clean the machine.
Do not use pressurized water to clean the machine.
Take precautions before accessing to the unit condenser zone, due to the high temperatures there might be risk of burns
Cleaning the condenser: During cleaning, avoid any bending of the condenser aluminum fins. It could affect on the condenser air circulation, causing serious damage to the equipment, being the repair out of warranty in that case.
Check that the doors close perfectly.
If any change of wires is needed, do not change for a lower section one
The assembly of the electrical installation cover in the control panel is important. If disassembling is needed, it must be tightened back as it was.
Twice a year call the technical service to carry out the relevant revisions:

Review of the status of the joints.
Review of the state of the components.
- If the wire is damaged, it should be replaced by the manufacturer, its after sales service department or by an autorized technical to avoid any personal or equipment damage.

5.2.2 Prolonged non use

If the machine is kept out of service for a long period of time (holidays, temporary closure...), please observe the following:

Clean the equipment carefully.
Switch off the mains power supply.

EN

6. FAULTS, ALARMS AND BREAKDOWNS

The steps to be followed in the event of a fault or operating error are described below. The possible causes and possible solutions are listed in the following table. In the event of doubt, or if you are unable to resolve the problem, please contact the technical service.

Scancool GUR700X - FAULTS, ALARMS AND BREAKDOWNS - 1

Do not handle electrical components, as there is a risk of death as the components are under network voltage

FAULT	POSSIBLE CAUSE	SOLUTION
The machine does not work	There is no power supply.	Check whether the circuit breaker has been triggered. If there is light in the switch the machine is powered.
Insufficient temperature	Location of the equipment	Check there is not a heat source nearby
	Thermostat parameters	Check the set temperature of the thermostat is around 0°C in refrigerators and -20 °C in freezers. Push "set" button to check it.
	Ambient temperature	Check that ambient temperature is below +32°C in freezer cabinets and +38 °C in refrigeratios and fish storage cabinets. These are devices guaranteed maximum working temperature
	Door closing	Check that the doors close correctly
	Food distribution inside the machine	Check that food does not block the air ventilation and the time elapsed from the time the food is stored inside the cabinet is enough for cooling the products.
	Cleaning of the condenser	Check that the condenser is clean. Consider that the cleaner the refrigerator is the more energy will be saved. The cleaning frequency will depend on the conditions of the location. In case the condenser is dirty call after sales service.
Strange or loud noise	Incorrect levelling and bad closing of the doors.	Check the levelling and good closing of the doors.
Strange or loud noise	Friction in the movable zones	Check there is nothing in touch with the movable elements of the refrigerator.

Scancool GUR700X - FAULTS, ALARMS AND BREAKDOWNS - 2

NOTE: If a fault occurs and is not listed in the above table, please call the technical service. The manufacturer reserves the right to modify the technical characteristics with prior warning.

Together with this manual, it is supplied the instructions of the thermostat.

7. RECYCLING THE PRODUCT

Scancool GUR700X - RECYCLING THE PRODUCT - 1

The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For more information, relating to the correct disposal of household appliances, owners should contact their local authorities or appliance dealer.

FR

1. SOMMAIRE

SOMMAIRE 24
INFORMATIONS ET AVERTISSEMENTS GENÉRAUX 25
CARACTERISTIQUES DU PRODUIT 26

3. CARACTERISTIQUES DU PRODUIT

7. RECYCLAGE DU PRODUIT

Scancool GUR700X - RECYCLAGE DU PRODUIT - 1

INHOUDSOPGAVE 56
ALGEMENE INFORMATIE EN WAARSCHUWINGEN 57
3.PRODUCTBESCHRIJVING 58

2. ALGEMENE INFORMATIE EN WAARSCHUWINGEN

3.PRODUCTBESCHRIJVING

The versions of this product with LED interior lighting contain a light source of energy efficiency class F. The light source of this product may only be replaced by a professional.

The product packaging consists of:

5.1.2 Switching on the machine

4.1 Fjernelse at emballage

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: GUF700X

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	1220547
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.
