Copper Radiance AC5700 - Hair dryer REMINGTON - Free user manual and instructions

Brand	Remington
Model	Copper Radiance AC5700
Product type	Hair dryer
Power supply	Mains
Voltage	220-240 V
Power	2000 W
Temperature settings	3 levels (low, medium, high)
Speed settings	2 levels (low, high)
Cold air function	Cool shot button
Included accessories	Styling concentrator, diffuser
Inlet grill	Removable for cleaning
Overheat protection	Automatic shut-off in case of overheating or blockage
Safety	Do not use near water, keep out of reach of children
Maintenance	Clean the filter grill regularly
Hanging ring	Yes
Use	Drying and styling hair
Color	Copper
Customer service	Contact the authorized Remington consumer service

Frequently Asked Questions - Copper Radiance AC5700 REMINGTON

How to use the cold air function?

To set your hairstyle, press the cool shot button while styling, then release it to reactivate the heat.

How to clean the filter grill?

Remove the inlet grill as shown in the manual (FIG A), clean it with a cloth or soft brush, then put it back. This ensures optimal performance.

What to do if the device suddenly stops or blows cold air?

This indicates overheating often due to a blocked grill/filter. Unplug immediately, clean the grill and let it cool down. If the problem persists, contact customer service.

Can I use the hair dryer in the bathroom?

Yes, but with caution. Do not use it near a bathtub, shower, or sink filled with water. Unplug it after use, as proximity to water is dangerous even when off.

How to attach the accessories (concentrator or diffuser)?

Attach the accessory to the front of the hair dryer, then rotate it clockwise to lock it. Note: the accessories can become hot.

How to create volume at the roots with the diffuser?

Keep your head upright, place the diffuser against the top of the head and gently rotate the hair dryer to massage the scalp. Use a low temperature to avoid burning.

Which settings to use for quick drying?

Use the highest temperature and speed (high temperature, high speed) for quick drying.

Can I use the diffuser with the highest temperature?

No, do not use the diffuser with the highest temperature setting (high). Prefer a low or medium temperature to protect your hair.

How to store the hair dryer after use?

First let the device cool down completely. Clean the grill if necessary, then store it in a dry place, using the hanging ring to hang it.

What to do if the power cord is damaged?

Stop using the device immediately. Send it to the authorized Remington consumer service for repair or replacement to avoid any risk.

USER MANUAL Copper Radiance AC5700 REMINGTON

Black Remington hair dryer with a pointed tip and cord, shown against a white background (no text or symbols on the device body)

Copper Radiance AC Hairdryer AC5700

A

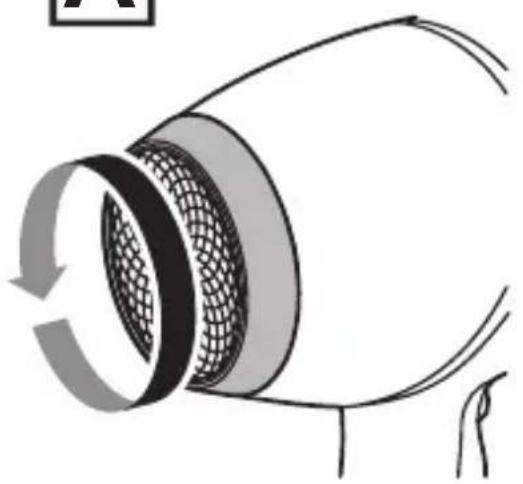

Diagram of a cylindrical device with internal mesh structure and circular arrow indicating rotation (no text or symbols)

Diagram of a fan assembly with a circular head and internal blades, showing airflow direction (no text or symbols)

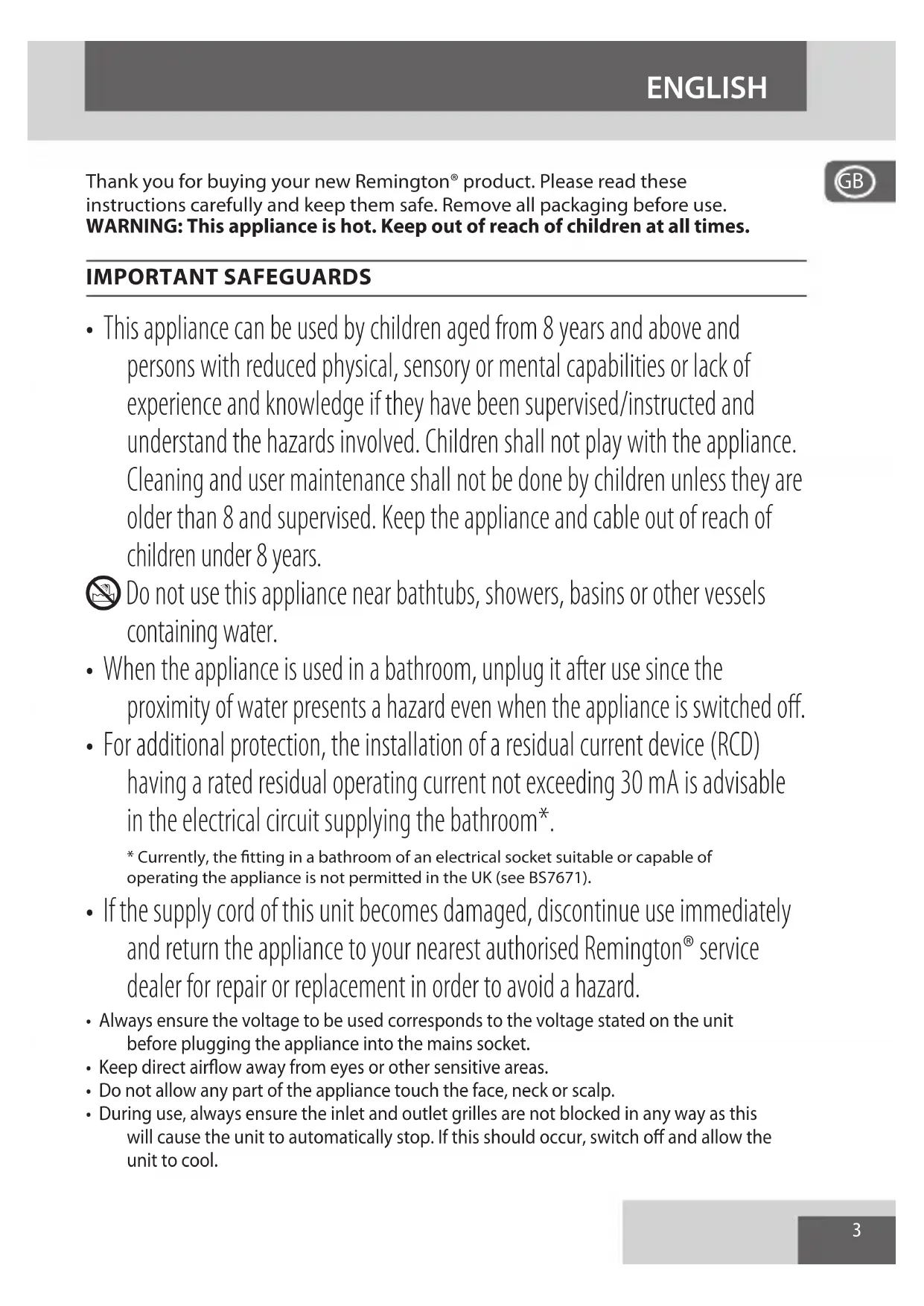

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

WARNING: This appliance is hot. Keep out of reach of children at all times.

IMPORTANT SAFEGUARDS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom*.

* Currently, the fitting in a bathroom of an electrical socket suitable or capable of operating the appliance is not permitted in the UK (see BS7671).

- If the supply cord of this unit becomes damaged, discontinue use immediately and return the appliance to your nearest authorised Remington® service dealer for repair or replacement in order to avoid a hazard.

- Always ensure the voltage to be used corresponds to the voltage stated on the unit before plugging the appliance into the mains socket.

- Keep direct airflow away from eyes or other sensitive areas.

- Do not allow any part of the appliance touch the face, neck or scalp.

- During use, always ensure the inlet and outlet grilles are not blocked in any way as this will cause the unit to automatically stop. If this should occur, switch off and allow the unit to cool.

• Keep the power plug and cord away from heated surfaces.
• Do not leave the appliance unattended while plugged in.
• Do not place the appliance on any soft furnishings.
• Do not use attachments other than those we supply.
• Do not set the appliance down while still on.
• Do not twist or kink the cable, or wrap it round the appliance.
• Do not use the appliance if it is damaged or malfunctions.
• Check the cord regularly for any sign damage.
• This appliance is not intended for commercial or salon use.

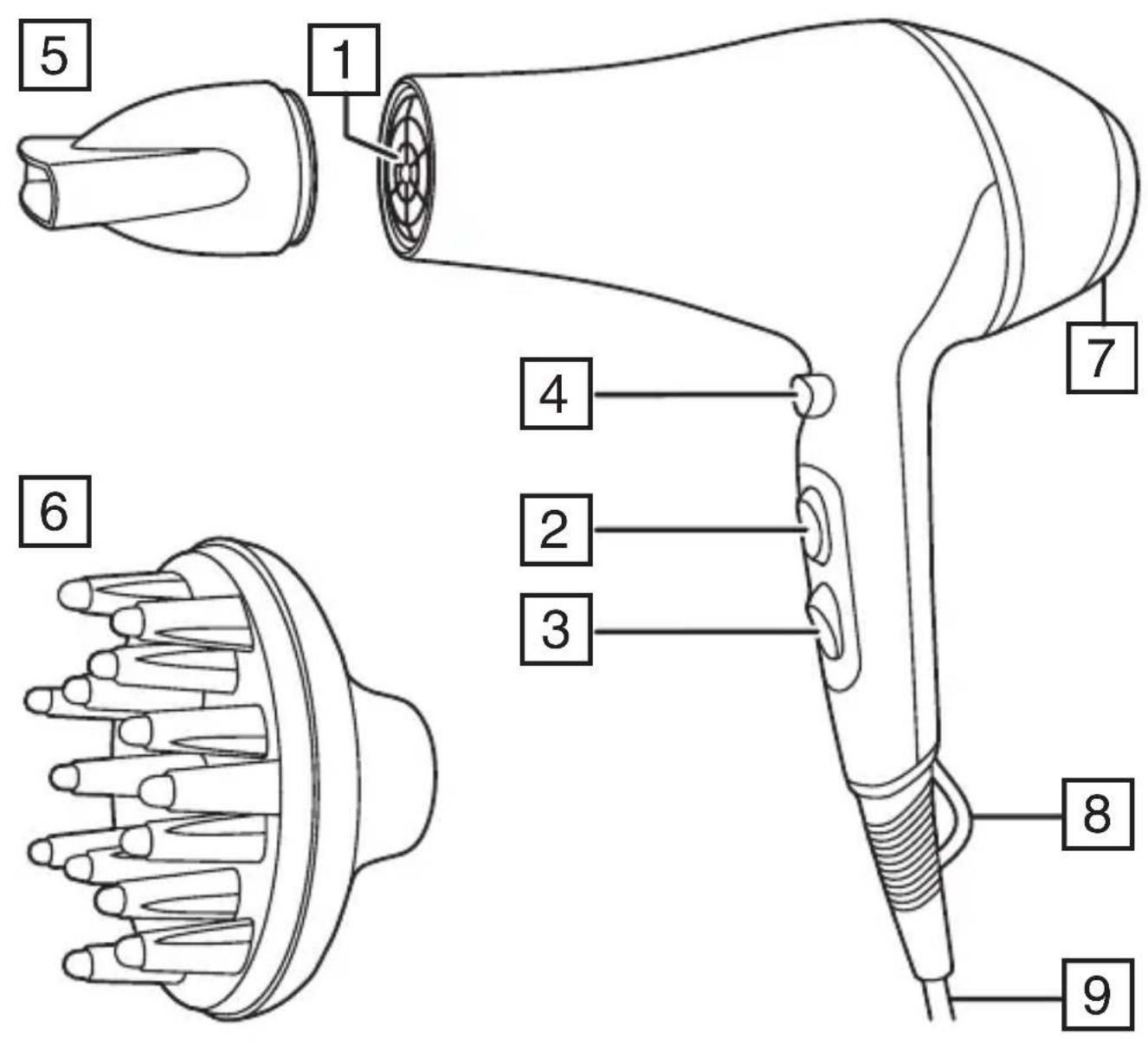

PARTS

1. Grille
2. Diffuser attachment
3. Heat selector switch ( , , )
4. Removable easy clean rear grille
5. Speed selector switch (0, x, x)
6. Hang up loop
7. Cool shot ()
8. Cord
9. Styling concentrator attachment

INSTRUCTIONS FOR USE

• Wash and condition your hair as normal.
• Squeeze out excess moisture with a towel and comb through.
• Hairsprays contain flammable material – do not use while using this product.
• Fit accessory attachments to the front of the hairdryer then twist clockwise to lock in place. Take care when you do this because the attachments can become hot during use.
• Plug the product into the mains power supply.
• Switch your hairdryer on and select the desired speed setting (low ✗ or high ✗) using the speed selector switch.
• Select the desired heat setting (low , medium or high ) using the heat selector switch.
• After use, turn the appliance off and unplug it.
• Let the appliance cool down before cleaning or storing away.

TIPS

• For fast drying use the high heat / high speed function.
• To create smooth styles use the concentrator and a round hair brush (not included) whilst drying.

• To enhance natural curls and waves, attach the diffuser to the dryer. Turn your head upside down and gently place your hair into the diffuser bowl slightly rotating the dryer as you style.

• To create extra volume at the roots of the hair, keep your head upright and place the diffuser against the top of the head. Gently rotate the hairdryer allowing the diffuser fingers to gently massage the scalp being careful not to burn the scalp. Dry gently on a medium heat / low speed setting.
  Caution: Do not use the diffuser on the highest heat setting (###).

• To set your style, press the cool shot button () whilst styling then release it to reactivate the heat.

STORAGE, CLEANING AND MAINTENANCE

Let the appliance cool down before cleaning and storing away.

• To maintain peak product performance and to prolong motor life, it is important to regularly remove any dust and dirt from the inlet grille.

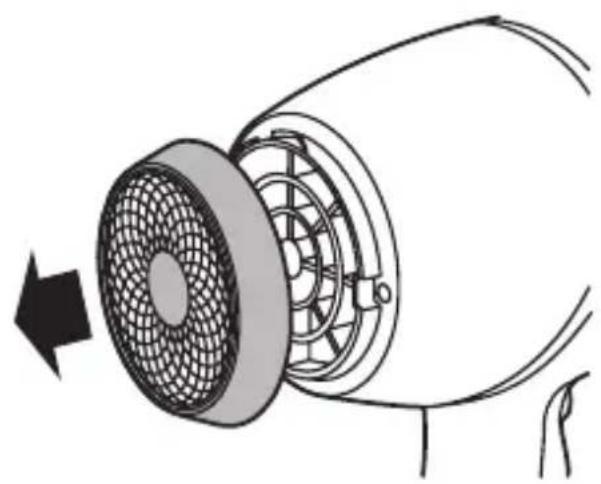

• Remove the grille as shown (FIG A), clean with a cloth or soft brush, then replace it.

OVERHEAT PROTECTION

In the event of overheating, the appliance may either stop unexpectedly or start to blow cold air. Overheating is usually caused by a blocked grille/filter. If this happens, immediately unplug the appliance and refer to STORAGE, CLEANING AND MAINTENANCE to clean the grille/filter. If, after doing this overheating continues to happen, stop using the appliance and contact Customer Service.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

Remington ^® is a Registered Trade Mark of Spectrum Brands, Inc.,

or one of its subsidiaries

Russell Hobbs Deutschland GmbH, Am Unisyspark 1, 65843 Sulzbach, Germany remington-europe.com
