USER MANUAL Power Scrub Elite FH50251 HOOVER

Exterior view of a modern vacuum cleaner with red handle and gray body (no text or symbols visible)

User manual

IMPORTANT: Read carefully before assembly and use.

Welcome to Hoover ownership.

Get cleaning confidence for up to 2 years with the Hoover limited warranty.

Your Guide:

Safety Instructions 1

Carton Contents 3

How to assemble your Power Scrub Elite™ 4

Features 5

Tools 7

Before you begin Cleaning 8

Getting started with your Power Scrub Elite™ 9

Using your Power Scrub Elite™ 13

Tools and Accessories 15

Maintenance 21

Hoover Cleaning Solution Guide 23

Troubleshooting 26

Warranty 27

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIALLY WARRANTY IS VOID.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, DAMAGE OR INJURY:

• Fully assemble before operating.
- Operate cleaner only at voltage specified on data plate on lower back of cleaner.
- Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.
- Use indoors only.
- Do not immerse. Use only on carpet moistened by cleaning process.
- Use only HOOVER cleaning products intended for use with this machine.
- Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.
- Use only as described in this manual. Use only manufacturer's recommended attachments and products.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal injury or damage and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood sandings, or use in areas where they may be present.
• Connect to a properly grounded outlet only. See Grounding Instructions.
• Unplug before connecting SpinScrub ^* powered hand tool.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters and tanks in place.
• Do not clean over floor electrical outlets.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or reproductive harm. WASH HANDS AFTER HANDLING.

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor (C) and grounding plug (A). The plug must be inserted into an appropriate outlet (B) that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in the risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug (A) illustrated in Fig. 1. A temporary adapter (D) may be used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not available (Fig. 2). The temporary adapter should be used only until a properly grounded outlet (B) can be installed by a qualified electrician (Fig. 1). The green colored rigid ear, lug, or the like (F) extending from the adapter must be connected to a permanent ground (G) such as a properly grounded outlet box cover (Fig. 2). Whenever the adapter is used, it must be held in place by a metal screw. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

CAUTION: TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.
• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.
• Do not use sharp objects to clean out hose as they can cause damage.
• To assist in reducing drying time, be certain the area is well ventilated when using detergents and other cleaners with this machine.
• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.
• Do not store extractor with solution in tanks.
• With brushes and brush roll on, do not allow cleaner to sit in one location for an extended period of time, as damage to the floor can result.
• Do not use this extractor on hard floors. Using this machine on hard floors may scratch or damage your floor.
• Water will drip from the brushes and underside of the product after use and may puddle. To avoid damage to wood and laminate flooring and to avoid potential slip hazard, after use (a) do not leave the product on wood and laminate surfaces and remove to a hard surface and (b) place unit on absorbent material (such as a towel) to soak up drips.

Carton Contents:

A

Technical line drawing of a mechanical component with no visible text or symbols

B.C.

D.
1

E.

F.G.

H. I.J.

K.L.

CARTON CONTENTS

A. Carpet Cleaner

B. Water/Solution Tank

C. Upper Handle

D. Handle Screws

E. SpinScrub® Brush Assembly

F. Mesh Tool Storage Bag

G. Accessory Hose

H. Upholstery Tool*

I. Stair Tool*

J. Crevice Tool*

K. 2-in-1 Antimicrobial Tool*

L. Sample Bottle of Cleaning Solution

*Tools vary per model.

Accessories not included with your model may be purchased separately by visiting Hoover.com

How to assemble your Power Scrub Elite™:

Diagram of a vacuum cleaner with a red downward arrow indicating motion (no text or symbols present)

1234 Insert the Handle into the base.

Mechanical component diagram showing a lever and handle assembly with a red arrow indicating direction (no text or symbols present)

Insert both screws and tighten with a screwdriver.

Diagram of a mechanical device with a red arrow indicating rotation or movement (no text or symbols present)

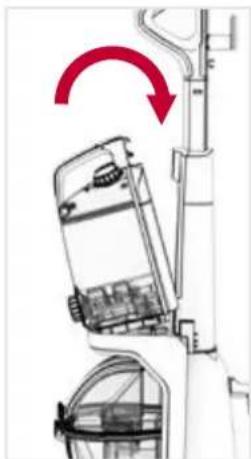

Angle the Solution/Clean Water tank above the Dirty Water Recovery Tank and click it into place.

Technical line drawing of a mechanical component with two red arrows pointing to features (no text or symbols)

Wrap the power cord around the cord hooks for convenient storage.

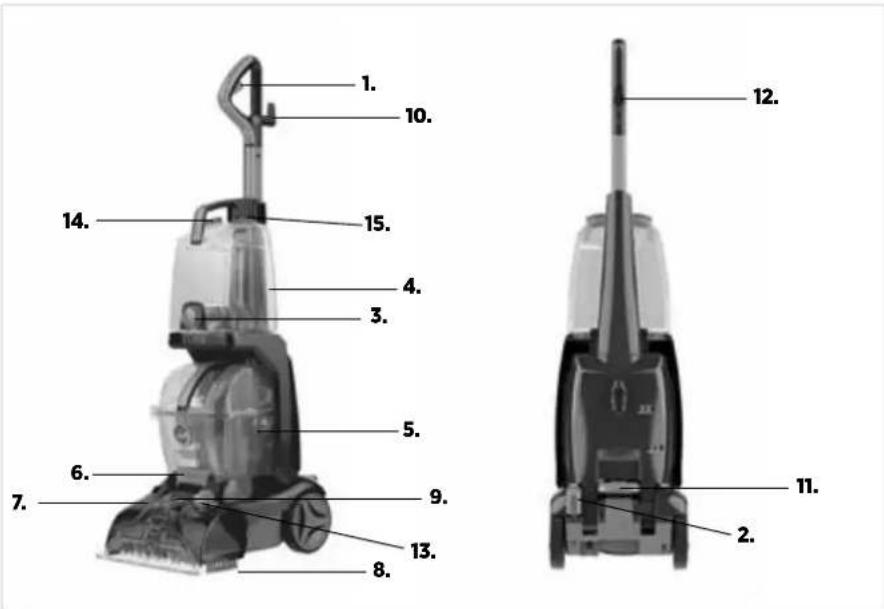

Features:

1. Water & Solution Trigger: Press to release
2. ON/OFF Pedal
3. Wash/Rinse Mode Selector
4. Clean Water/Solution Tank
5. Dirty Water Recovery Tank
6. Dirty Water Recovery Tank Latch
7. Solution Connection Port for Hose
8. Nozzle
9. Hose Connection Port
10. Cord Storage Hook
11. Handle Release Pedal
12. Cord Clip
13. Cleaning Mode Dial
14. Clean Water Fill Port
15. Solution Fill Port

Features:

Cleaning Modes:

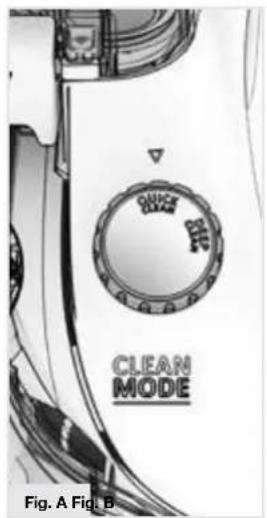

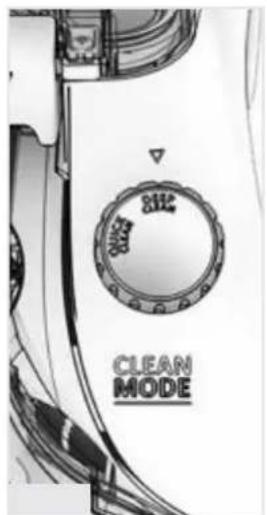

1. Turn the cleaning mode selection dial on the base of the unit to choose your preferred cleaning mode. Align arrow to preferred mode.

a. Quick Clean Mode: Best for a quick, surface clean because carpets dry in less than 1 hour.
b. Deep Clean Mode: Best overall results for a thorough, deep clean.

RIVER POLL CLEAN MODE Fig. A Fig. B

CLEAN MODE

Tools:

A.B.

C.D.

A. Stair Tool*: 6 inches wide with 2 built-in rows of bristles for cleaning carpeted stairs.
B. Upholstery Tool*: 1 row of bristles for effectively cleaning upholstery.
C. Crevice Tool*: Great for use around baseboards and hard to reach areas.
D. 2-in-1 Antimicrobial Tool*: Allows you to choose between two inserts. The rubber nub insert is for unpleasant stain removal and hygienic clean-ups. The bristle insert is for tough scrubbing power.

*Tools vary per model. Accessories not included with your model may be purchased separately by visiting Hoover.com

Before you begin Cleaning:

Vacuum carpet and upholstery thoroughly with a Hoover vacuum before use.

Don't use the carpet cleaner as a traditional vacuum cleaner.

Use your Hoover carpet cleaner only if upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Don't clean fabric marked "S" ("solvent/dry" clean only).

Test for colorfastness in a small, hidden area. Gently rub surface with a dampened white cloth. Wait ten minutes and check for color removal or bleed with a white paper towel.

Move furniture out of area to be cleaned. Place aluminum foil or wax paper under legs of furniture too heavy to move to prevent wood finishes from staining carpet. Pin up furniture skirts and draperies.

Pretreat spots and heavy traffic areas with a Hoover® Cleaning Solution*. See the “Cleaning Solutions” section.

*Available at additional cost if not included with your model.

Pretreating:

For best results, pretreat stains with a Hoover spot treatment (see Hoover Cleaning Solution Guide, pg. 23) to help loosen and remove even the most stubborn stains.

NOTE: To prevent staining, use plastic or aluminum foil to protect wood or metal surfaces from possible water spray.

NOTE: To avoid damage to wood floors underneath area rugs or carpet, place waterproof material (ex: plastic) underneath them before cleaning.

Getting started with your Power Scrub Elite™:

To fill the Clean Water/Solution Tank:

Mechanical assembly diagram showing a piston and cylinder with a red arrow indicating force direction (no text or symbols)

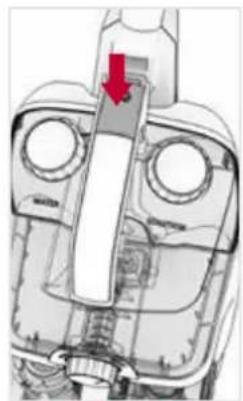

1423 Press down on top latch of clean water tank and pull to remove.

Mechanical diagram showing a rotating component with red arrows indicating rotational direction (no text or symbols)

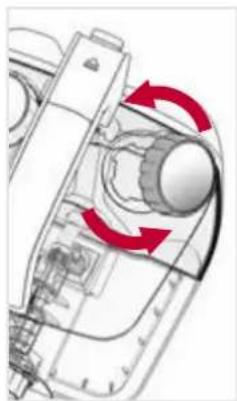

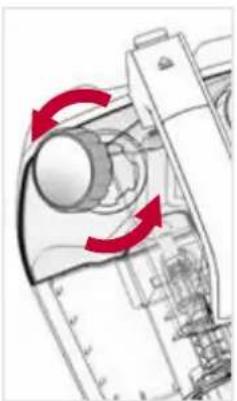

Twist off the clean water cap on the top of the clean water tank. Add warm water to fill line and replace cap. - DO NOT BOIL OR MICROWAVE WATER (Do not fill with water above 140^ (60°C)

Mechanical component diagram showing directional arrows indicating rotational motion (no text or symbols)

Twist off the solution cap on the top of the clean water tank and pour cleaning solution into tank. Replace cap.

Cross-sectional diagram of a mechanical device with internal components (no visible text or labels)

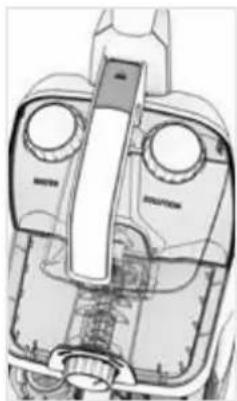

Angle the Solution/Clean Water tank back on the base and click it into place.

Getting started with your Power Scrub Elite™:

How to empty:Cord:

Electrical outlet switch with a red arrow indicating left motion (no text or symbols)

Unwrap the power cord and plug unit in an electrical outlet.

Diagram of a car interior showing a lock and warning symbol (no text or labels present)

1 Turn the cleaner off and unplug from electrical outlet.

T. TINH RELA 7 OPEN

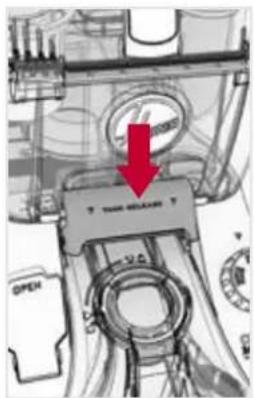

2 Release Dirty Water Tank Latch.

Technical line drawing of a mechanical component with a red arrow pointing to a component (no text or symbols present)

3 Grab the Dirty Water Tank handle and remove from carpet cleaner base.

Getting started with your Power Scrub Elite™:

Diagram of a bicycle with a red arrow indicating direction, no text or symbols present

4 Place on a flat surface and unlatch Dirty Water Tank lid located below the Quick Spout Pour cap.

Line drawing of a vehicle chassis with attached components (no text or symbols)

5 Empty tank, rinse and allow to air dry.

IMPORTANT!

Be sure to replace the Quick Spout Pour Cap to ensure proper suction.

IMPORTANT!

Regarding Dirty Water Tank Lid: For full suction it is important that the Dirty Water Tank Lid is securely in place. If misplaced, poor to no suction will result (see Figs. E,F, G).

IMPORTANT!

For full suction, it is important that the Dirty Water Tank is properly secured before cleaning.

Continue using dry strokes until little water is visible passing through the nozzle.

For best results, Hoover recommends rinsing carpet with water only. This removes residual carpet cleaning solution. Fill Solution Tank with water and repeat. For heavily soiled areas, repeat. Avoid saturating carpet.

NOTE: Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see "Automatic shut-off"). You will also see the float rise and shut off suction at the same time.

NOTE: It is best to alternate wet and dry strokes as described above. See cleaning modes section to choose best cleaning mode for desired results.

CAUTION

Do not clean over floor electrical outlets. Water will drip from the brushes and underside of the product after use and may puddle. To avoid damage to wood and laminate flooring and to avoid potential slip hazard, after use (a) do not leave the product on wood and laminate surfaces and move to a hard surface and (b) place unit on an absorbent material (such as a towel) to soak up drips.

Using your Power Scrub Elite™:

CLEAM MODE

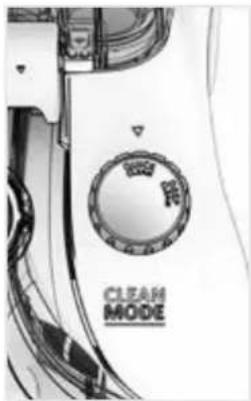

1 Choose cleaning mode by turning the dial on the base to "Quick Clean" or "Deep Clean" mode.

EAST MATH POWER SCRUB ELITE

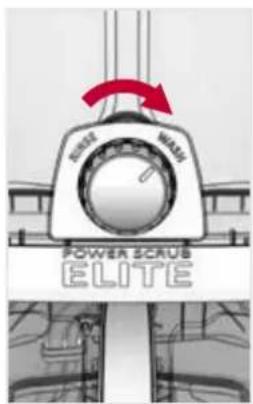

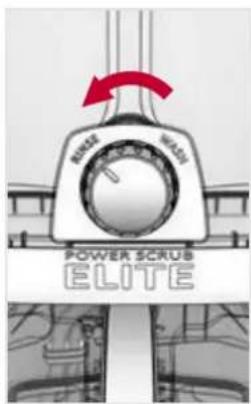

2 Ensure Wash/Rinse dial on the Clean Water Tank is turned to "Wash".

Line drawing of a car interior with a warning symbol and a red circle highlighting the door (no text or labels present)

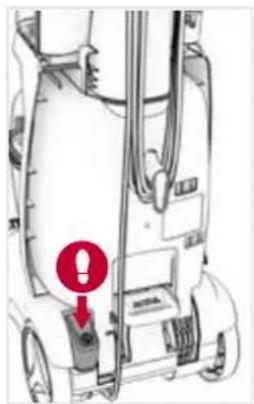

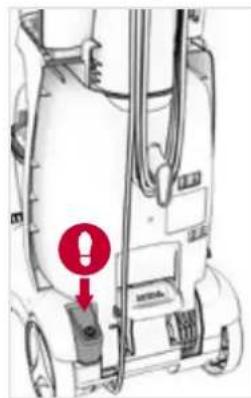

3 Plug into electrical outlet. Step on the Power Pedal to turn ON.

Diagram of a vehicle's rearview and side view with warning symbol and labeled components

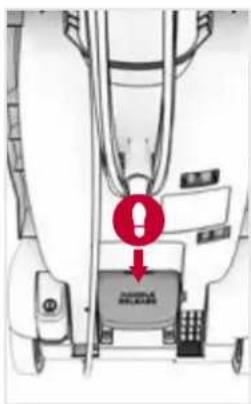

4 Step on the Handle Release Pedal to recline the unit for cleaning position.

NOTE: See cleaning mode descriptions on page 6

Using your Power Scrub Elite™:

Diagram of a mechanical lever mechanism with a red arrow indicating direction (no text or symbols present)

5 Squeeze trigger to apply water and cleaning solution. Slowly push forward then backwards while squeezing the trigger.

Diagram of a mechanical lever mechanism with a red arrow indicating direction (no text or symbols present)

6 Release the trigger and slowly push forward. Then slowly pull back toward you without squeezing the trigger. Continue pushing forward and back without squeezing the trigger until little water is visible passing through the nozzle.

EIGHT EAST POWER SCRUB ELITE

7 For Best Results, Hoover recommends rinsing the carpet with clean water only. This will remove residual carpet cleaning solution from your carpets. To Rinse with clean water only, set the wash/ rinse dial to Rinse and then repeat steps 5 and 6.

Tools and Accessories:

How to Attach Hose:

Read "Before You Begin Cleaning" instructions. Be sure to check Hoover Cleaning Guide on page 23 and the cleaning code on your upholstery. Use your cleaner only on upholstery marked "W" or "W/S".

CAUTION

To reduce risk of injury from moving parts – Unplug before servicing.

Mechanical assembly diagram showing hoses and components (no visible text or labels)

Mechanical assembly diagram showing a coiled spring and shaft with red directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing internal components with a red arrow indicating direction (no text or labels)

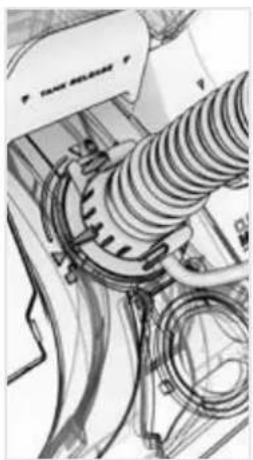

1 Attach hose to the unit by opening the Hose Connection Port on the nozzle. Insert hose end, aligning the indicator with the unlock arrows.

2 Rotate clockwise to lock position.

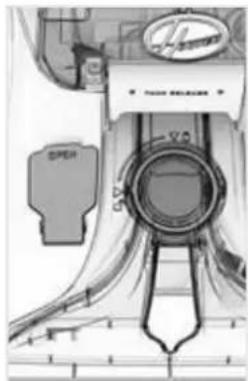

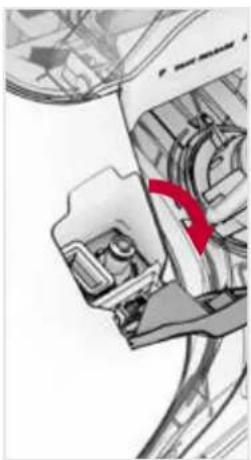

3 Hold open the Hose Solution Port door.

Tools and Accessories:

How to Attach Hose:

Mechanical assembly diagram showing a shaft and housing with a red arrow indicating a downward motion (no text or symbols present)

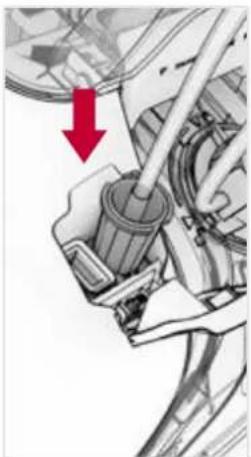

4 Plug the Hose Solution Tube connector firmly into the Hose Solution Port.

If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again.

Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see "Automatic Shut-off").

When finished cleaning, follow "After Cleaning" and "After Using Tool" instructions on page 19.

Tools and Accessories:

How to Remove Hose:

Mechanical assembly diagram showing a red arrow pointing to a component (no text or symbols present)

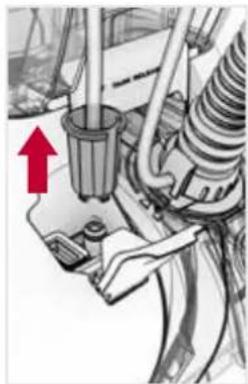

1 Disconnect close Solution Tubersrom Hose Solution Port by pulling up firmly. Do not pull on tube, this may cause damage. Port door will automatically close.

T. DAS-PEEASE 1

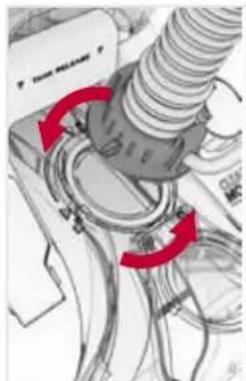

Rotate hose end counterclockwise from the locked position to the unlocked position and remove by pulling out.

Technical diagram of a mechanical device with labeled components and control buttons

Snap the Hose Port Door on the Nozzle back into place. Make sure to snap it firmly back into place to ensure proper suction.

Tool and Accessories:

How to Attach Tools:

Line drawing of a vacuum cleaner with a mounted device (no text or symbols)

To ensure maximum performance and to protect your carpet, be sure to place the handle in the upright position while using the hose. Placing the handle in the upright position shuts off the SpinScrub® brushes.

Pure mechanical component diagram without any text, numbers, or symbols

2 Connect tool to hose by sliding it onto the connector until it securely locks into place.

Mechanical component diagram showing a lever with a red upward arrow indicating motion (no text or symbols)

3 Using your thumb, push forward and up on the latch to remove tool.

NOTE: Do not place unit at top of stairway to avoid falling down stairs.

Place unit at bottom of stairs and work up.

Tools and Accessories:

After Using Tools:

Illustration of a hand washing a sink with a pipe, no text or symbols present

1234 Drainhosees removing the solution tank and turning the cleaner ON. Aim hose in a downward angle and press trigger to remove excess water.

Mechanical assembly diagram showing a piston and wheel with a red upward arrow indicating motion (no text or symbols)

Turn OFF cleaner. Disconnect the hose and solution tube from cleaner.

Illustration of a hand cleaning a sink with a tool (no text or symbols)

Drain solution tube by placing the round end in the sink and placing the tool in sink. Press the trigger to release air and fluid.

Simple line drawing of a birdcage with a hook and circular opening (no text or symbols)

Replace hose and tools in the Mesh Tool Storage Bag.
CAUTION
Always turn off appliance before connecting or disconnecting hose.

Tools and Accessories:

Cleaning Carpeted Stairs:

1. Read "Before You Begin Cleaning" instructions on page 8.
2. Attach hose and solution tube as instructed (page 15).
3. Place handle in upright position. SpinScrub* brushes will not rotate while handle is in upright position.
4. Fill Clean Water Tank according to instructions.
5. Fill Solution Tank with HOOVER solution according to instructions.
6. Attach tool to end of hose.
7. Dry hands and plug cleaner into a properly grounded outlet.
8. Set Wash/Rinse Selection to WASH. Turn cleaner ON.
9. Pre-spray the carpeted stair by holding the tool about one inch above the carpet and push it forward while pressing the trigger (Fig. C).
10. Position tool against the riser and slightly press it into carpet pile. Press the trigger and pull the tool slowly over the carpet. Release trigger at end of stroke.
11. Lift tool, and position it against riser. Pull tool slowly over carpet without pressing trigger (Fig. D).
12. Overlap strokes by 1/2 inch to help prevent streaking.
13. It is best to alternate wet and dry strokes as described in steps

CAUTION

Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.

9-12. End with more dry strokes to aid in faster drying of carpet.
14. To avoid saturating carpet, do not use more than 4 wet strokes over any one area. Always end with dry strokes.
15. If additional cleaning is necessary, wait until the carpet is completely dry before using the tool again.
16. Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction. You will also see the float rise and shut off suction at the same time.
17. When finished cleaning, follow "After Cleaning" and "After Using Tool" instructions.

3D rendered robotic hand interacting with a surface, labeled Fig. C and Fig. D (no text or symbols on the diagram itself)

Close-up of a mechanical component with a red double-headed arrow indicating direction (no text or symbols)

Maintenance:

NOZZLE: HOW TO CLEAN AND STORE

1. To prevent possible leaking, remove and empty Clean Water Tank and Dirty Water Tank.
2. With handle in upright position, tilt carpet cleaner back so that handle rests on the floor.

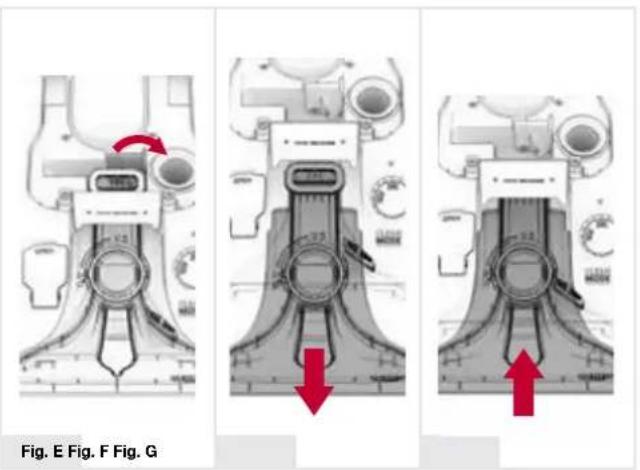

3. Rotate Nozzle latch to unlock position (Fig. E).
4. Pull up on Nozzle slightly to unsnap Nozzle from foot of carpet cleaner.
5. Pull Nozzle forward to remove from carpet cleaner. Be sure the Nozzle does not get caught on Recovery Tank Latch (Fig. F).
6. Rinse debris from Nozzle.
7. Position Nozzle onto foot, making sure to align the tabs at the bottom of the Nozzle with the notches on the foot (Fig. G).
8. Snap Nozzle to foot.
9. Rotate Nozzle latch to lock position.

CAUTION

To reduce the risk of injury from moving parts - Unplug before connecting SpinScrub* Hand Tool. Not to be used for grooming pets.

CAUTION

IMPORTANT

The nozzle must be in the proper position in order for the Dirty Water Tank to go on properly and for the unit to have proper suction.

Maintenance:

BRUSHES: HOW TO CHANGE AND CLEAN

How to Remove

1. To prevent possible leaking, remove Clean Water Tank and Dirty Water Tank.
2. With handle in upright position, tilt cleaner back until handle rests on the floor.

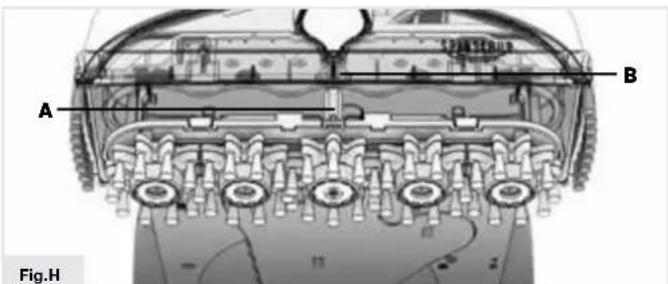

3. Grab brush assembly and pull firmly (Fig. H).
4. The brushes can be cleaned under running water.

How to Replace

1. Align black posts on both ends of brush assembly with the slots on the bottom of the cleaner.
2. Make sure that the hexagonal post (A) also aligns with the hexagonal hole (B). Turn brushes slightly until post fits easily into hole.
3. Press brush assembly firmly to snap into place.

CAUTION

To reduce the risk of injury from moving parts - Unplug before connecting SpinScrub® Hand Tool. Not to be used for grooming pets.

A B Fig.H

Storage

Before storing: Empty Clean Water Tank and let air dry. Replace on cleaner. Empty Dirty Water Tank, rinse tank and lid thoroughly with clean water and let air dry.

Allow brushes and underside of carpet cleaner to air dry thoroughly before storing carpet cleaner on a carpeted or wood surface.

Lubrication

The motor is equipped with bearings that contain sufficient lubrication for the life of the motor.

The addition of lubricant could cause damage. Therefore, do not add lubricant to motor bearings.

Hoover® Cleaning Solution Guide

Use only Hoover cleaning solutions to prevent potential harm to your carpet cleaner and keep your warranty.

For best results, use your Carpet Cleaner + Spot Treatment + Solutions.

Hoover has a full line of Detergents and Spot Treatments to complement your Hoover carpet cleaner and the specific condition of your carpet. To prevent project interruption, keep Detergent on hand and store with your carpet cleaner. Spot Treatment may be used as a pretreatment immediately before you clean your carpets, or as an independent treatment between cleaning your carpets.

EXPERT CARPET SOLUTIONS: PROFESSIONAL GRADE

Expert Clean™ Carpet Washer Detergent

Powerful, professional strength cleaner lifts dirt and removes allergens for our deepest, extreme clean.

Expert Clean™ Spot Treatment Gel

Professional grade targeted gel removes tough stains like ground-in dirt, allergens, chocolate and wine.

Expert Pet™ Carpet Washer Detergent

Powerful, professional strength enzymes break down biological stains, dirt and odor for a truly deep clean.

Expert Pet™ Spot Treatment Spray

Professional grade targeted enzyme spray removes tough stains like dirt, oils, urine and residual odor.

PLUS CARPET SOLUTIONS

Clean Plus™ Carpet Washer Detergent Powerful cleaner for everyday dirt and grime.

Clean Plus™ Spot Spray Powerful spot spray for everyday dirt and grime.

Pet Plus™ Carpet Washer Detergent Powerful cleaner enhanced with enzymes to tackle pet messes and eliminate odor.

Pet Plus™ Spot Spray Powerful spot spray enhanced with enzymes to tackle pet messes and eliminate odor.

Pro Plus™ Carpet Washer Detergent Professional strength carpet & upholstery solution removes stubborn stains and odors.

HARD FLOOR SOLUTIONS

Multi-Floor Plus™ Hard Floor Solution Powerful hard floor cleaning solution removes everyday dirt and grime.

Tile & Grout Plus™ Hard Floor Solution Powerful hard floor cleaning solution cleans and revitalizes tile and grout surfaces.

Steam Plus™ Hard Floor Solution Powerful hard floor cleaning solution combines with steam to safely wash hard floors.

Need Help?

If you need further assistance:

If your product needs servicing within the warranty period, please contact Customer Service at 1-800-944-9200; Mon-Fri 7am-6pm EST. Always identify your carpet washer by the complete model number when requesting information or ordering parts. (The model number of the carpet washer is located on the data plate).

PLEASE DO NOT RETURN THIS CLEANER TO THE STORE.

WARNING

To reduce risk of fire and electric shock due to internal component damage, use only Hoover cleaning products intended for use with the appliance as noted below.

QUESTIONS OR CONCERNS?

Contact Us:

1-800-944-9200

If you have any questions, visit Hoover.com

or connect with us:

Twitter: @HooverUSA

Facebook: facebook.com/hoover

Do not return to store. See back of product for model number.

Troubleshooting:

Any other servicing should be done by an authorized service representative.

USE TROUBLESHOOTING GUIDE AS A FIRST STEP TO RESOLVE ANY PROBLEMS YOU MAY BE EXPERIENCING.

If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call Customer Service at 1-800-944-9200 for further instruction before continuing use.

WARNING

To reduce the risk of personal injury - Unplug before cleaning or servicing.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

Cleaner won't run	1. Not firmly plugged in2. No voltage in wall plug3. Blown fuse or tripped breaker4. Fuse in cleaner blown	1. Plug unit in firmly2. Check fuse or breaker in home3. Replace fuse or reset breaker in home4. Take to service center
Low suction	1. Dirty Water Tank full/automatic shut off engaged2. Blockage in tool on end of hose 2. Remove tool and clear blockage3. Dirty Water Tank lid not on correctly4. Dirty Water Tank Debris Filter Clogged5. Blockage in nozzle6. Recovery Tank not properly secured	1. Remove and empty Dirty Water Tank. See "How to Empty" page 103. Make sure lid is on securely See "How to Use: page 13 & 144. See "How to Clean" page 215. See "How to Clean" page 226. Replace Recovery Tank and secure recovery tank latch.
Hose nozzle stops spraying liquid during use	1. Clean Water Tank or Degergent Container is empty2. Loose connection to solution port on foot of cleaner	1. Turn off cleaner and fill Clean Water Tank and Detergent Container2. Check for secure connection to solution port on foot of cleaner
Hose nozzle will not spray after filling the Clean Water Tank or Detergent Container	1. Air is trapped in the pump and hose2. Hold trigger to floor and squeeze trigger	1. Turn on the cleaner. If hose does not spray, prime the pump by lowering the hose down to the floor and hold the trigger for up to 1 minute2. Aim downward and squeeze trigger
Hose will not spray after priming pump	1. Pump is defective2. Not connected properly	1. Call for service: 1-800-944-92002. Check connection
Clean water won't dispense	1. Clean Water Tank not firmly in place2. Clean Water Tank or solution container empty	1. Make sure tank is securely locked in position2. Refill container according to cleaning instructions
Solution won't dispense	1. Mode knob is in "Rinse Mode" 1. Turn knob to "Wash"
Brushes won't rotate during floor cleaning	1. Please check the screen on the front of the unit behind the nozzle, the filter may be dirty	1. Shut off unit and clean filter in upright position. SpinScrub* will not rotate in upright position

SERVICE & WARRANTY

SERVICE INFORMATION

ANY SERVICING SHOULD BE DONE BY AN AUTHORIZED SERVICE REPRESENTATIVE Call 1-800-944-9200 USA & Canada

In the event that further assistance is required, visit an authorized service center. Find one nearest you by visiting our website at www.hoover.com. Costs of any transportation to and from any place of repair are to be paid by the owner. Always identify your product by the model number and manufacturing code when requesting information or ordering replacement parts.(The model number and manufacturing code are on the back of the product).

LIMITED TWO YEAR WARRANTY (DOMESTIC USE)

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner's Manual, your HOOVER ^® product is warranted against original defects in material and workmanship for a full two years from date of purchase (the "Warranty Period"). During the Warranty Period, Hoover ^® will provide labor and parts at no cost to you to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is warranted, take or send the product to either a Hoover ^ Sales and Service Center or Hoover ^ Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Hoover ^ online at www.hoover.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, call the Hoover ^ Consumer Response Center, Phone [phone], Mon-Fri 8am-7pm EST. In Canada, contact Hoover ^ Canada, Carson Building, 100 Carson St., Etobicoke, Ontario M8W 3R9, Phone: [phone], Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Hoover ^® , owner's acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls, however, if you mail your product to a Hoover ^® Sales and Service Center for warranty service, cost of shipping will be paid one way.

This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Hoover ^9 products.

OTHER IMPORTANT TERMS

This warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty.

THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY HOOVER®. ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL HOOVER® BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

BUSE: Comment nettoyer

Expert Clean™ Spot Treatment Gel

Tile & Grout Plus™ Hard Floor Solution

Facebook : facebook.com/hoover

Expert Clean™ Spot Treatment Gel
