USER MANUAL the Quick Touch Crisp BMO700 BREVILLE

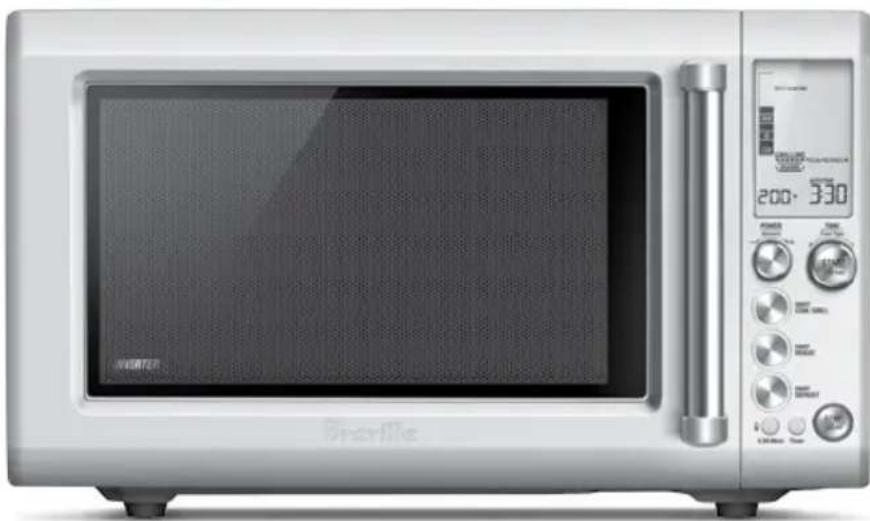

the Quick Touch™ Crisp

Instruction Book - BMO700

Contents

2 Breville recommends safety first

15 Components
16 Assembly
18 Functions
- Setting the clock 18

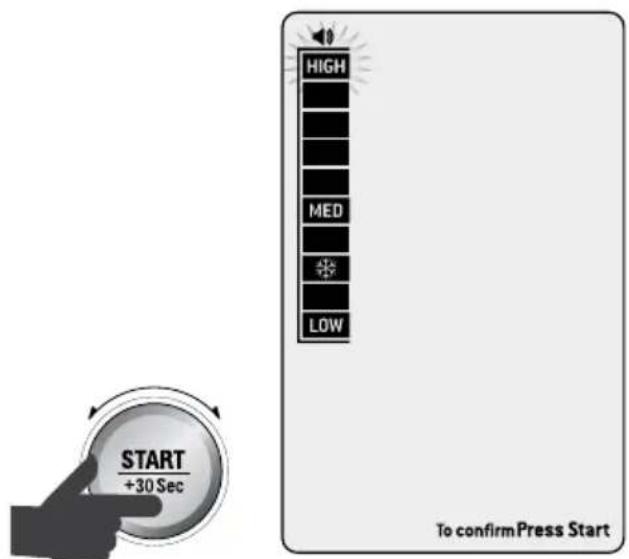

- Setting the beep volume 19
- Setting the unit of weight 19
- Setting the child lock 20
- Setting the timer 20

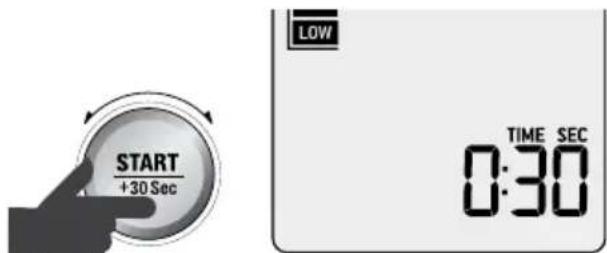

-Instant Start/+30 sec 21
-A Bit More 21
- Stop/Clear 22
- When cooking is finished 23
- Cooling fan 23
- Time & power level adjustment 23
-SMART SETTINGS24

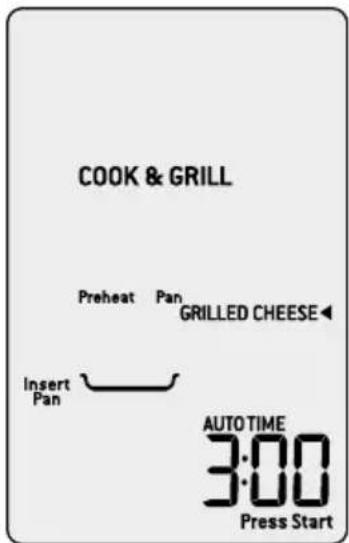

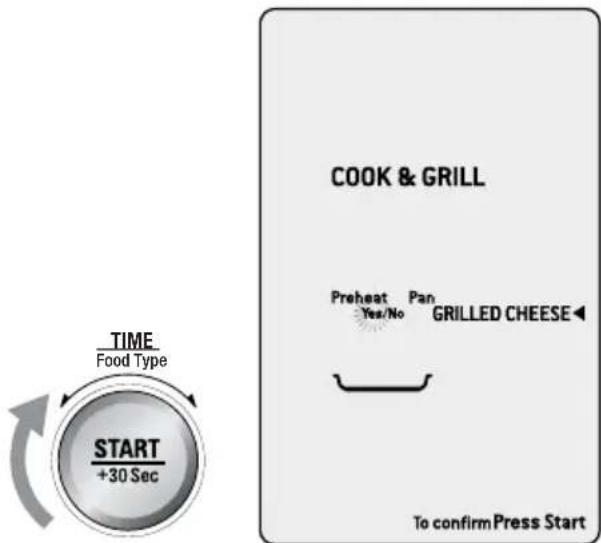

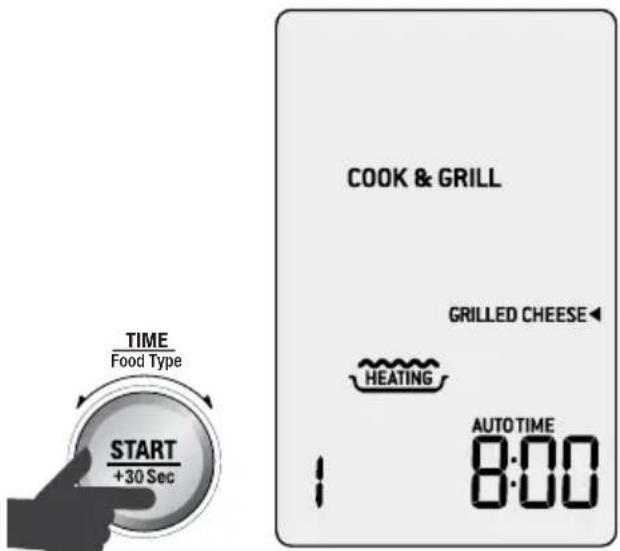

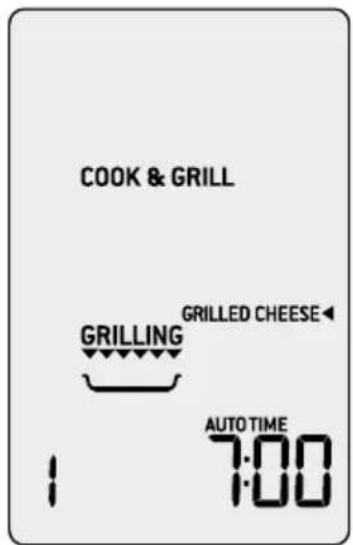

-SMARTCOOK|GRILL 24

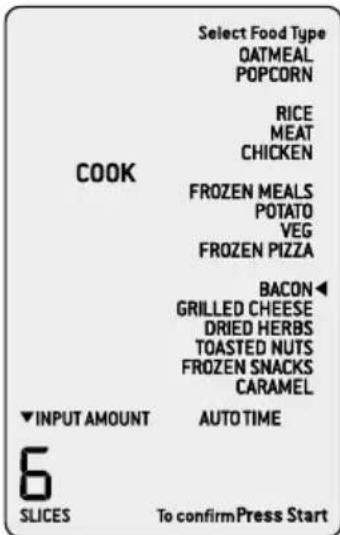

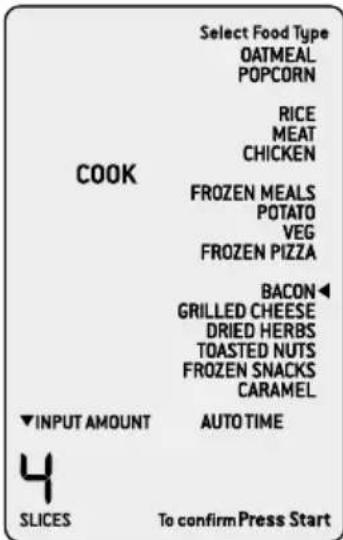

-SMARTCOOK FOODTYPES 27
-SMART COOK & GRILL FOOD TYPES 31

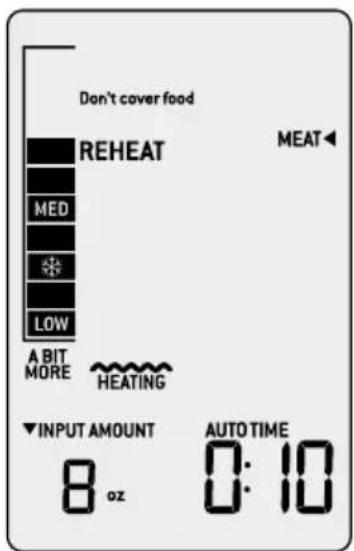

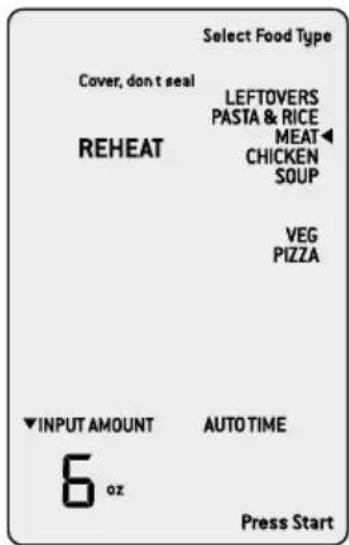

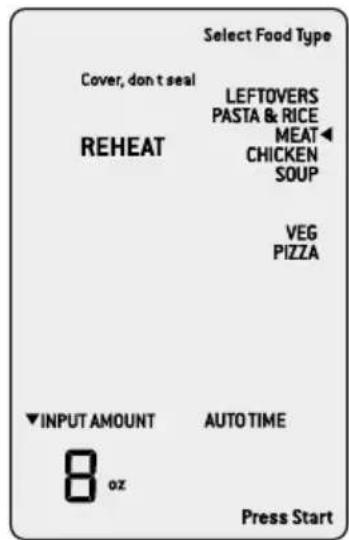

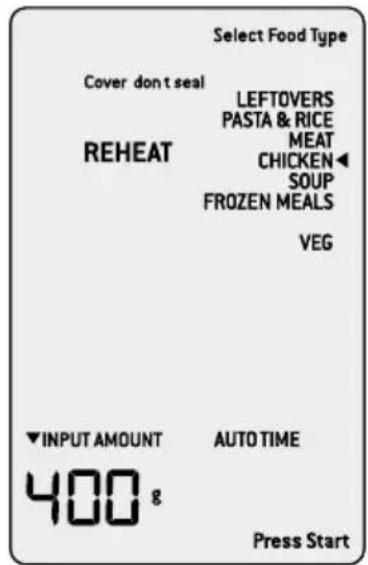

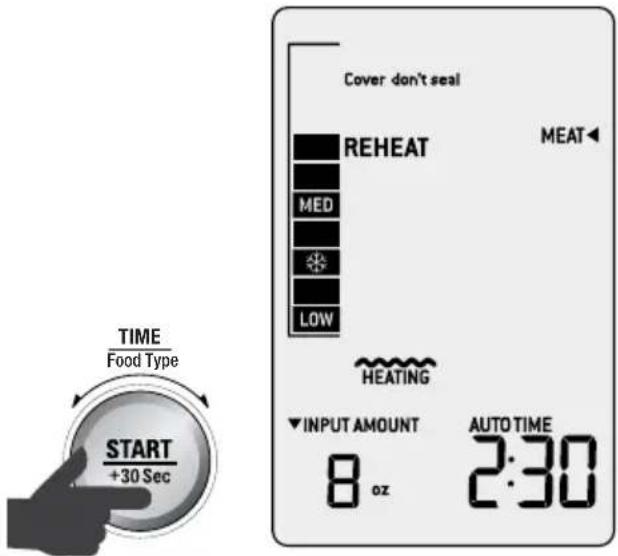

- SMART REHEAT 32
-SMARTDEFROST 35

• SHORTCUTS 37

-Favorite 37
-Beverage 37
-Meltchocolate 37
- Soften butter 37

39 Care & Cleaning
41 Troubleshooting
43 French

BREVILLE cUL US RECOMMENDS SAFETY FIRST

At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING

To reduce the risk of burns, explosion, electric shock, or to prevent damage to property, personal injury, or loss of life, or exposure to excessive microwave energy:

READ ALL INSTRUCTIONS CAREFULLY BEFORE USE AND SAVE FOR FUTURE REFERENCE

• Remove and safely discard any packaging material and promotional labels before using the Breville microwave oven for the first time.
• Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 10.
• This appliance must be grounded. Connect only to properly grounded outlet. See "Grounding Instructions" found on page 13.
• Microwave oven is not intended to be mounted below a height of 3ft (914mm) above the floor level.
• Install and locate this appliance only in accordance with the supplied installation instructions on page 16.

• Some products such as whole eggs and sealed containers (for example, closed glass jars), have the potential to explode and shall not be heated in this oven.

• Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

• As with any appliance, close supervision is required when used by children.
• Regularly inspect the power cord. Do not operate this appliance if it has a damaged cord or plug, when it is not working properly, or when it has been damaged or dropped. Immediately stop using the appliance and contact Breville Consumer Support.
• This appliance shall be serviced only by qualified personnel. Contact Breville Consumer Support or the nearest Breville Authorized Servicer for examination, repair or adjustment.
• Do not cover or block any openings on the appliance.

• Do not store this appliance outdoors.

• Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.

• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter, touch hot surfaces or become knotted.
• To reduce the risk of fire in the oven cavity:

i) Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
ii) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
iii) In the event materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
iv) Do not use the cavity for storage purpose. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

• To eliminate a choking hazard, remove and safely discard the protective cover that is fitted to the power plug of the Breville microwave oven.
• Always operate the microwave oven on a heat-resistant surface. Do not use on a cloth-covered surface, near curtains or other flammable materials.
• Do not use the oven without the turntable roller and glass turntable in place. Ensure the glass turntable is positioned correctly into the indents on the turntable roller.
• Never use the microwave oven without food or water in the oven cavity. Operating the microwave oven when empty could cause damage to the appliance.
• Do not leave the microwave oven unattended when in use.

• Do not touch hot surfaces. Allow the microwave oven to cool entirely before moving or cleaning any parts.

• Always turn the microwave off by pressing the STOP/CLEAR button and unplug the power plug from the wall outlet before:

• The appliance is to be left unattended.
  -If not in use.
• Before moving or assembly.
• When storing the appliance.
  -Cleaning per page 39.
• Keep the appliance clean. Follow the cleaning instructions provided in this book (page 39).
• Do not operate this appliance when it has a damaged cord or plug, when it is not working properly, or when it has been damaged or dropped.
• When cleaning surfaces of door and oven that come together on closing the door, use only mild, non-abrasive soaps, or detergents applied with a sponge or soft cloth. The use of corrosive chemicals in cleaning will damage the appliance and may result in radiation leaks.

• Do not place the microwave oven near the edge of a bench or table during operation. Ensure all surfaces are level, clean and free of water or any other substances.

• Do not place the microwave oven on or near a hot gas or electric burner, or where it could touch a heated oven.

• When using the microwave oven, provide adequate air space above and on all sides for air circulation (see page 16, Installation point 2).
• Microwave oven is to be used as free standing unit. Do not build in or enclose microwave oven in a cabinet or confined space as it will cause overheating. (Refer to Installation section on page 16).
• Do not use the microwave oven on a metal surface, for example a sink drain board.
• The microwave oven is not intended to be operated by means of external timer or separate remote control system.
• Never use the microwave oven without food or water in the oven cavity. Operating the microwave oven when empty could cause damage to the appliance.
• Do not leave the microwave oven unattended when in use.

IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

• This appliance is for household use only. Do not use the appliance for anything other than its intended purposes as described in this manual. Do not use outdoors. Do not use in moving vehicles, boats or planes.
• Fully unwind the power cord before use.
• We recommend a separate circuit dedicated to serving only this microwave oven.
• A short power cord is supplied to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
• Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

• To protect against electric shock do not immerse the power cord, power plug or appliance in water or any other liquid.

• Do not disconnect or tamper with the power cord or the power outlet while the unit is operating.

• When storing the microwave oven, loosely wind the cord. Do not wrap the cord around the microwave oven.
• The glass window has been specially treated to make it stronger, more durable and safer than ordinary glass, however it is not unbreakable. If dropped or struck extremely hard, it may break or weaken, and could at a later time shatter into many small pieces without apparent cause.
• Regularly inspect the power cord and actual appliance for any damage. Do not operate if damaged in any way, or if it is not working properly, or if it has been dropped. Immediately stop using the appliance, unplug or disconnect power and call Breville Consumer Support.

• For any maintenance other than cleaning, contact Breville Consumer Support.

• Position the appliance at a minimum distance 4 inches away from side walls and 8 inches from top, curtains and other heat or steam sensitive materials and provide adequate space above and on all sides for air circulation.

• Do not disconnect the microwave oven from the power supply by pulling on the cord to unplug from the power outlet.

SPECIAL SAFETY INSTRUCTIONS FOR YOUR MICROWAVE OVEN

• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloths and similar may lead to risk of injury, ignition or fire.

• Ensure all food containers and/or plates are suitable for use in the microwave oven. This should be done prior to preparing food for heating or cooking in the microwave oven. Monitor foods and liquids heating or cooking in the microwave oven at all times due to the possibility of containers igniting.

• All suitable glass or plastic food containers should be used in strict compliance with the cookware manufacturer's recommendations.

• Containers or plates suitable for use in the microwave oven should not exceed the width of the glass turntable as this may impede the rotation of the turntable and result in food being unevenly cooked.
• Food and/or liquids should not be heated or cooked directly on the glass turntable. Food and/or liquids must be placed into a suitable microwave-proof container before placing onto the glass turntable.
• Food and/or liquids should not be heated or cooked in plastic or paper containers or bags, unless specified as suitable for use by the manufacturer, due to the possibility of containers exploding or igniting.
• Metal clips or twist ties should be removed from the packaging as these could cause sparking and/or fire.

• Do not use recycled paper or paper towels when cooking. Recycled paper may contain small metal or other impurities which could cause sparking and/or fire.

• Do not use metal containers or utensils in the microwave oven as these could cause sparking and/or fire.

• Food grade foil should not be used in the microwave oven as this could cause sparking and/or fire.
• Ensure that lids and caps covering containers are removed prior to placing liquids and/or foods into the microwave oven.

• Feeding bottles and baby food jars should have lids and caps removed before warming or heating in the microwave oven. To avoid burns or scalding after heating, the contents should be stirred or shaken and the temperature checked before serving.
  Always ensure the temperature of food or drink which has been heated or cooked in the microwave oven has been tested before eating, drinking or serving.

• Some containers and/or plates may appear suitable for use in the microwave oven but may be coated in a glaze that will absorb the microwave energy, overheat and cause the container to crack. The glaze may also prevent the food from heating/cooking.

• Utensils should be checked to ensure that they are suitable for use in microwave ovens.
• Allow proper cool down time for heated food or drink before handling or serving from the microwave oven. Always test before eating, drinking or serving to others, especially children, disabled or elderly.
• If cooking meat, poultry or fish, always make sure they are cooked thoroughly and measured with an appropriate temperature registering device to help protect against foodborne illness.

• Do not heat popcorn in the microwave oven unless it has been commercially packaged for microwave oven use. There may be a number of un-popped kernels that may overcook and burn when popping popcorn.

• Do not cook any food surrounded by a membrane (such as potatoes, chicken liver, egg yolks, oysters, etc) without first piercing the membrane several times with a fork or similar utensil.

• "Boilable" cooking pouches, bags or containers should always be slit, pierced or vented as directed by the package. If they are not, plastic or packaging could burst resulting in burns and injury.
• Always allow items to cool down before opening or handling. Use caution when opening or handling. Use caution when opening bags, pouches, lids or containers as hot steam, food or liquid can escape causing burns or injury.

• Eggs in the shell and whole hard boiled eggs should not be cooked or heated in the microwave oven as they may explode during cooking, at the end of cooking or after removing from microwave oven.

• Caution should be taken when toasting and grilling high oil content foods, such as pine nuts and walnuts. They may catch fire. If this occurs, please keep the oven door closed and switch off and unplug oven until flame has extinguished.

• Do not heat oil or fat in the microwave oven. Doing so may cause the microwave oven and/or the oil to overheat and/or ignite.
• If smoke is observed, switch off and unplug the microwave oven at the power outlet. Keep the door closed to stifle any flames.
• If you see any sparks, arcing or flashing within the microwave oven, press the STOP/CLEAR button and correct the problem or contact Breville Consumer Support for assistance.

• Wipe the oven cavity with a soft, damp cloth after each use. Leaving food residue, grease or fat in the cavity could cause the microwave oven cavity to overheat and may cause the microwave oven to smoke or catch fire.

• The microwave oven should be cleaned regularly and any food splattering inside the cavity should be removed. Failure to maintain the microwave oven in a clean condition could lead to deterioration of the surface, adversely affecting the life of the microwave oven and possibly resulting in a hazardous situation.

• Do no attempt to operate the microwave oven by any method other than those described in this instruction book.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

WARNING

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

COMBINATION MICROWAVE OVENS:

• Oversized food or oversized metal utensils should not be inserted in a microwave oven as they may create fire or risk of electric shock.

• Do not store any materials, other than manufacturer's recommended accessories, in this microwave oven when not in use.

• Do not cover racks or any other part of the oven with metal foil. This will cause overheating of the microwave oven.
• Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock.
• Do not use paper products when appliance is operated in combination mode.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

• If the door or door seals are damaged, the oven must not be operated. Immediately cease use and call Breville Consumer Support for examination, repair or adjustment. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces.

• Do not put any foreign material between the door and door jamb of the microwave oven.
• The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

SUPERHEATED LIQUIDS

To reduce this risk of injury to persons:

• Liquids, such as water, coffee or tea can become heated above their boiling points without the appearance of boiling or bubbling. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER OR LIQUID SURFACE IS DISTURBED OR WHEN A SPOON OR UTENSIL IS INSERTED INTO THE LIQUID.

• Do not overheat the liquid.

• Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks.
  After heating, allow the container to stand in the microwave oven for a short time before removing the container.
• Use extreme care when inserting a spoon or other utensil into the container.

RADIO INTERFERENCE

• Operation of the microwave oven may cause interference to your radio, TV or similar equipment.

• When there is interference, it may be reduced or eliminated by taking following measures:

• Clean door and sealing surface of the oven.
  -Reorient the receiving antenna of radio or television.

• Relocate the microwave oven with respect to the receiver.
  -Move the microwave oven away from the receiver.

• Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

• This equipment has been tested and found to comply with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

NOTE

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that which the receiver is connected. Consult the dealer or an experience radio/TV technician for help.

GROUNDING INSTRUCTIONS

WARNING

Improper use of the grounding can result in a risk of electric shock.

• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire and grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
• Do not use extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

NOTE

Do not use an adapter plug with this appliance. (Adapter plugs are not permitted in Canada.)

CALIFORNIA PROPOSITION 65:

(Applicable to California residents only). This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

SHORT CORD INSTRUCTIONS

Your Breville appliance is fitted with a short power supply cord to reduce personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord.

SPECIFICATIONS

POWER SOURCE	120V~ 60Hz 1450W
GRILL INPUT POWER	1000W
MICROWAVE OUTPUT	900W
POWER
OUTSIDE	12 in. (306mm) (H)
	20 in. (513mm) (W)
DIMENSIONS	17.5 in. (443mm) (D) with handle
	15.5 in. (397mm) (D) without handle
TURNTABLE DIAMETER	12.4 inches (315mm)
CRISPER PAN DIAMETER	12 inches (300mm)
NET WEIGHT	Approximately 33 lbs (15 kg)
OVEN CAPACITY	0.9 cu. ft. (25 liters)

*These specifications may change without notice.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

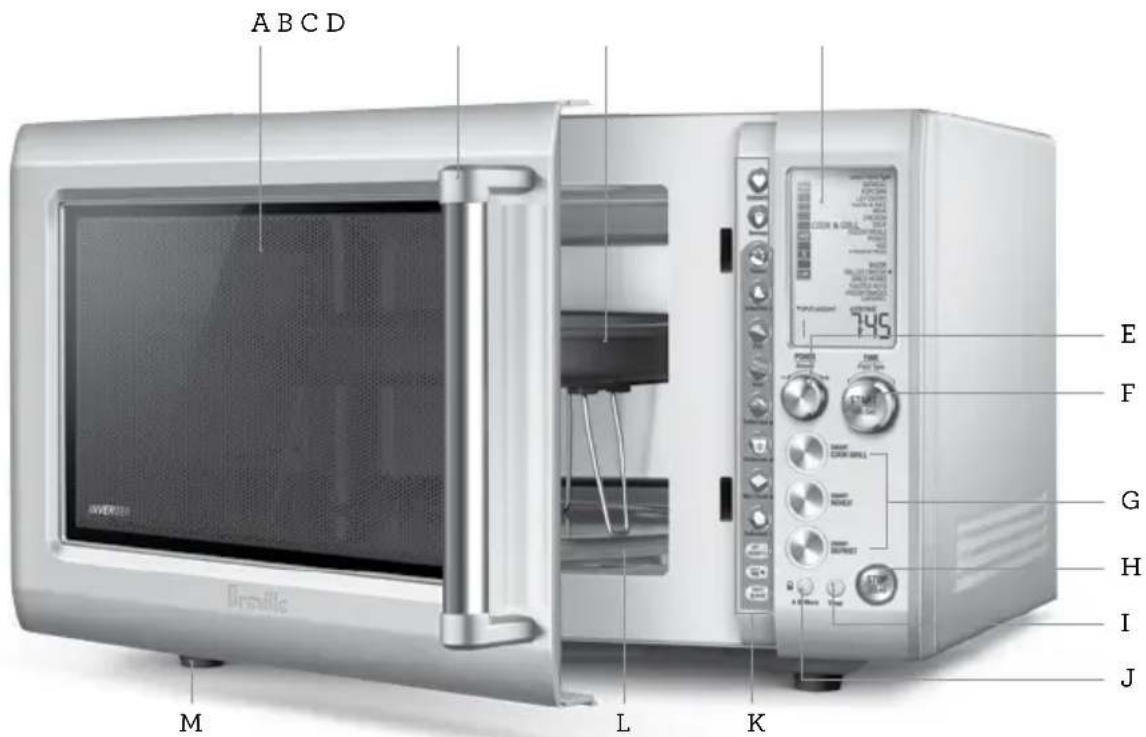

Components

A. Viewing window
B. Door handle

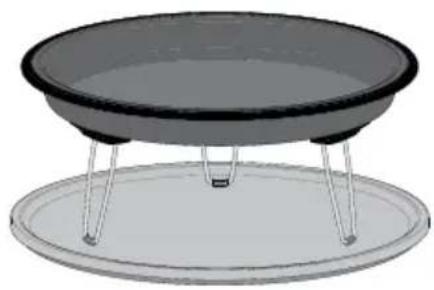

C. Crisper pan Use with COOK & GRILL functions to crisp and brown foods.
D. LCD screen
E. POWER/AMOUNT dial Turn dial to adjust the power level and select the weight or quantity for a selected food type.

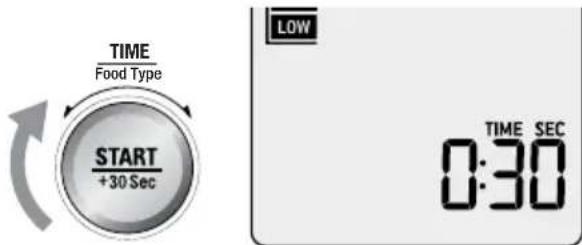

F. +30 SEC & START button, TIME/FOOD TYPE dial Press button to add 30 seconds of cooking time or start cooking. Turn dial to change cooking time or select food type.
G. SMART COOK | GRILL, SMART REHEAT & SMART DEFROST buttons Select from a range of food types with predetermined microwave and grill, reheat and defrost.

H. STOP/CLEAR button Press once to pause without cancelling the current program. Press twice to clear the display.
I. TIMER button Convenient and easy to read kitchen timer.
J. A BIT MORE button & CHILD LOCK Press once to add cooking time at the end of a cycle. Press and hold to lock microwave.
K. Shortcuts panel
L. Turntable
M. Non-slip feet

Assembly

BEFORE FIRST USE

Before first use, remove all promotional stickers and packing material.

Carefully unpack the microwave oven and keep all the packing material until all the parts of the microwave oven have been found and the appliance has been assembled.

It is recommended to keep all the packing material in a safe place in case you wish to repack the product for shipping purposes.

To remove any dust that may have accumulated during packing, wash the turntable roller, glass turntable and crisper pan in warm soapy water, rinse in clean water then dry thoroughly. Wipe the interior and exterior of the microwave oven with a soft, damp cloth then dry thoroughly.

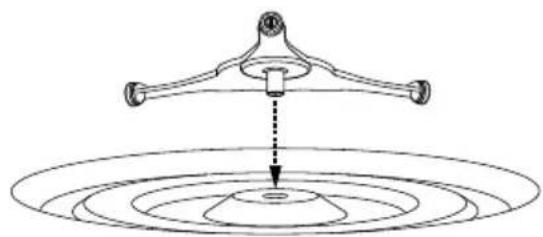

ASSEMBLING THE GLASS TURNTABLE

1. Insert the turntable roller into position in the opening in the oven cavity base.
2. Place the glass turntable on top of the turntable roller, ensuring it is properly centered.

1. Place the unit on a clean, dry and level surface that provides enough open space for the intake and/or outlet vents. Blocking the intake and/or outlet openings can damage the microwave.
2. The rear surface of the appliance should be placed against a wall. A minimum clearance of 4 inches (10cm) is required between the microwave and any adjacent walls.

Leave a minimum clearance of 8 inches (20cm) above the microwave.

NOTE

To ensure proper airflow and operation, never remove or modify the legs of the microwave, and do not build the microwave into an enclosure or recessed area.

1. Place the microwave as far from TV's and other electronics to avoid interference during use.
2. Blocking the intake and/or outlet openings can damage the microwave oven.
3. Operation of microwave oven may cause interference to your radio or TV reception.
4. Plug your microwave oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.
5. The microwave oven must not be placed in a cabinet.

The crisper pan is ideal for crisping up items that can become soggy in the microwave, such as pizza, chicken nuggets and fries.

The crisper pan can be used in either the upper or lower position depending on the size of the food or how much browning is desired.

To reduce the risk of injury or causing damage to the microwave oven, always place the crisper pan securely in the center of the turntable. Do not place plates or dishes of any kind on the crisper pan as they may overheat and become damaged.

CAUTION

The crisper pan surfaces and legs are hot during and after operation. This accessory is only to be used with the BMO700.

WARNING

• To avoid an electrical circuit overload, it is recommended that no other appliances are plugged into the same circuit as your microwave oven (or other products) when it is in use.
• Do not install oven over a range cooktop or other heat-producing appliances. If installed near or over a heat source, the oven could be damaged and the warranty would be void.
• Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact a Breville service center.
• Do not immerse the microwave oven, power cord or plug in water or any other liquid.

Functions

SETTING THE CLOCK

Press SET CLOCK SET ② on the

shortcuts panel. The default clock mode is 12hr. The selected mode will flash, indicating it can be changed.

Turn the TIME dial to change between 12hr and 24hr clock mode. Press START to confirm selection.

Setting The Clock - 12 Hour Clock Display

The default time is 1:00AM. The hour digits will flash, indicating they can be changed.

Turn the TIME dial to adjust the hour and AM/PM. Press START to confirm.

The minute digits will flash, indicating they can be changed. Turn the TIME dial to adjust the minutes and press START to confirm.

The screen will return to the default display. When in standby mode, the screen will now display the 12hr time.

Setting The Clock - 24 Hour Clock Display

The default time is 1:00. The hour digits will flash, indicating they can be changed.

Turn the TIME dial to adjust the hour. Press START to confirm.

The minute digits will flash, indicating they can be changed. Turn the TIME dial to adjust the minutes and press START to confirm.

The screen will return to the default display. When in standby mode, the screen will now display the 24hr time.

NOTE

To show the clock before standby mode is activated, press STOP/CLEAR.

SETTING THE BEEP VOLUME

Press BEEP VOL on shortcuts panel.

The default beep volume is LOW.

Turn the POWER dial to toggle between LOW, MED and HIGH beep volume. Select desired beep volume and press START to confirm.

SETTING THE UNIT OF WEIGHT

Press UNITS on the shortcuts panel.

The selected unit will flash, indicating it can be changed. Turn the POWER dial to toggle between ounces (oz) and grams (g). Press START to confirm.

Unit Conversion During Operation

When a weight is displayed on the screen, as seen below in the 'SMART REHEAT CHICKEN' setting, press UNITS to convert from ounces (oz) to grams (g) and vice versa.

SETTING THE CHILD LOCK

Activate the child lock to prevent accidental usage of the microwave. To enable the child lock, press and hold the A BIT MORE button for 3 seconds.

The CHILD LOCK symbol will display on the LCD screen, as well as the clock if it has been set.

To unlock the microwave, press and hold the A BIT MORE button for 3 seconds.

The CHILD LOCK symbol will disappear from the LCD screen and the microwave will have full functionality.

SETTING THE TIMER

The kitchen timer can be used to count up to or down from a maximum of 95 minutes. It can be used only when the microwave is not in use.

Setting the count down timer

Press TIMER on the control panel. The default time is 00:00.

Turn the START dial to set your desired time in minutes and seconds. Press the START button to begin counting down.

Press STOP/CLEAR once to pause the timer. Press START to resume counting down or press STOP/CLEAR a second time to clear the timer and return to the default screen.

At the end of the timer function, the microwave will beep 3 times and 'End' will flash on the screen.

Setting the count up timer

Press TIMER on the control panel. The default time is 00:00.

Press START to start counting up.

Press STOP/CLEAR once to pause the timer. Press START to resume counting up or press STOP/CLEAR a second time to clear the timer and return to the default screen.

If the maximum of 95 minutes is reached in count up mode, the microwave will beep 3 times and 'End' will flash on the screen.

NOTE

'End' will stay on the screen for 1 minute before the display goes back to the default screen.

INSTANT START/+30 SEC

Press START/+30 SEC to begin cooking instantly for 30 seconds with 100% microwave power. Each additional press will increase the cooking time by 30 seconds.

Press START/+30 SEC during any cooking cycle to add 30 seconds of cooking time at the current power level.

ABITMOREBUTTON

Use A BIT MORE if your food is not quite cooked or hot enough at the end of a cooking cycle. One simple

A Bit More

press of the A BIT MORE button will add a little extra cooking time. The cooking time and power is automatically calculated based on the cycle that just ended.

The A BIT MORE button can be used after any SMART COOK | GRILL, SMART REHEAT, SMART DEFROST or shortcut setting, as well as after any manual setting.

If A BIT MORE is pressed and there is no previous cooking cycle, the microwave will add extra time at 100% power.

For example

User presses the SMART REHEAT button.

SMART REHEAT

Using the TIME/FOOD TYPE dial, select 'MEAT'.

Using the AMOUNT dial, select '8oz'.

Press START to begin reheating.

Reheat process ends.

Open the microwave door, check food, and if A Bit More reheating time is required, close the door.

Press the A BIT MORE button to add A BIT MORE reheating time. The timer will start to count down.

STOP/CLEAR

Press STOP/CLEAR once to pause the current function. Press twice to clear and return to the default screen.

When in the default screen, press STOP/CLEAR once to display the clock.

If the clock has not been set, 'SET CLOCK' will be displayed. To set the clock, follow the instructions on page 18.

To return to the default screen, press any button, turn any dial or open the door.

WHEN COOKING IS FINISHED

At the end of any cooking cycle, the microwave will beep 3 times and 'End' will flash on the screen for 5 minutes or until the door is opened.

COOLING FAN

At the end of the cooking cycle, the fan may rotate to cool the electrical components. When this occurs the words 'Cooling Fan' will flash at the top of the LCD screen. This is normal behavior and you can remove food from the microwave or start another cooking cycle while the fan is operating.

Heating Cooling Fan

TIME & POWER LEVEL ADJUSTMENT

Select different times and microwave power levels by turning the TIME and POWER dials.

Turning the TIME Dial

Use the TIME dial to set cooking times up to 95 minutes (95:00). The default time is 30 seconds. Turn the TIME dial clockwise to increase the time or counterclockwise to decrease the time.

Turning the POWER Dial

Use the POWER dial to select from 10 different power levels, 10% - 100% . Turn the POWER dial clockwise to increase the power level or counterclockwise to decrease the power level.

The power bar will reflect the cooking power level including programs where variable power levels are used.

It is normal in these programs to see the power bar change during the cooking cycle.

NOTE

When the POWER dial is turned, 'MELT' and 'SOFTEN' will temporarily display on the LCD screen then disappear.

STANDBY MODE

When the microwave has been idle for 1 minute, Standby mode will be activated. The LCD backlight will turn off and the buttons will no longer be illuminated. If the clock has not been set, 'Standby' and 'SET CLOCK' will be displayed.

Stand-by mode when the clock is not set.

If the clock has been set, only the current time will be displayed.

Stand-by mode when the clock is set.

To wake up the microwave press any button, turn any dial or open the door.

SMART SETTINGS

When using the SMART settings, the microwave will automatically set the power level and time for the selected food and quantity.

Choose from SMART COOK | GRILL, SMART REHEAT and SMART DEFROST.

SMART COOKIGRILL

SMART REHEAT

SMART DEFBOST

SMART COOK | GRILL

The SMART COOK | GRILL setting uses predetermined microwave and grill times to take the guesswork out of cooking your favorite foods.

Press the SMART COOK | GRILL button to display the food menu.

Turn the TIME/FOOD TYPE dial to scroll through the available food types. The arrow on the right indicates which food type is selected.

SMART COOKI GRILL

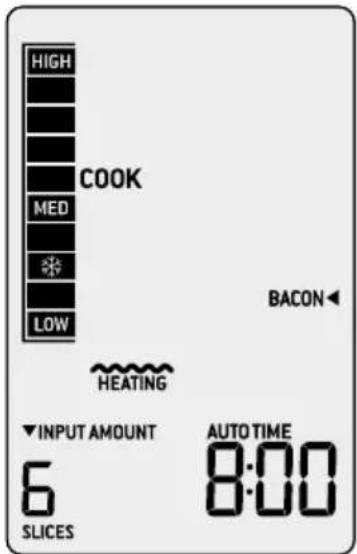

Setting a COOK setting

If the selected food type uses only microwave functionality, 'COOK' will be displayed on the LCD screen.

After selecting a food type, turn the AMOUNT dial to adjust the quantity or weight.

Press START to begin the cook cycle. The TIME appears and begins to count down.

NOTE

While the microwave is cooking, both the power and time can be increased or decreased. Adjusting the cooking time does not change the selected weight or quantity.

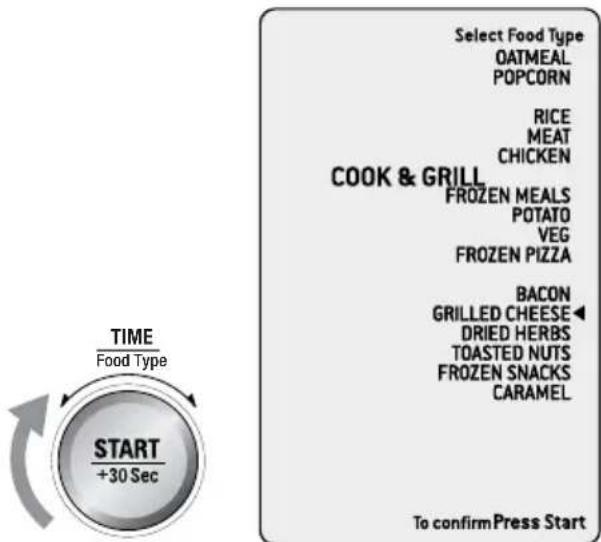

Selecting a COOK & GRILL setting

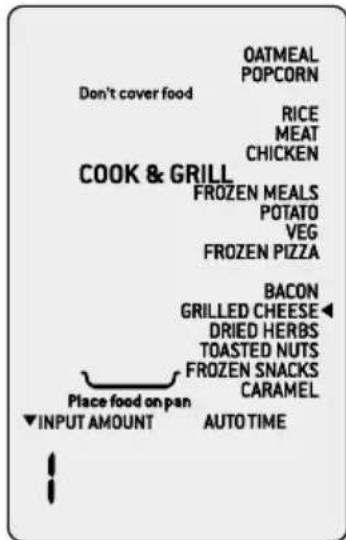

If the selected food type uses microwave and grill functionality, 'COOK & GRILL' will be displayed on the LCD screen.

The COOK & GRILL settings have been optimized to work in conjunction with the crisper pan and are ideal for crisping up items that can become soggy from microwave heating.

Press START to confirm your selection.

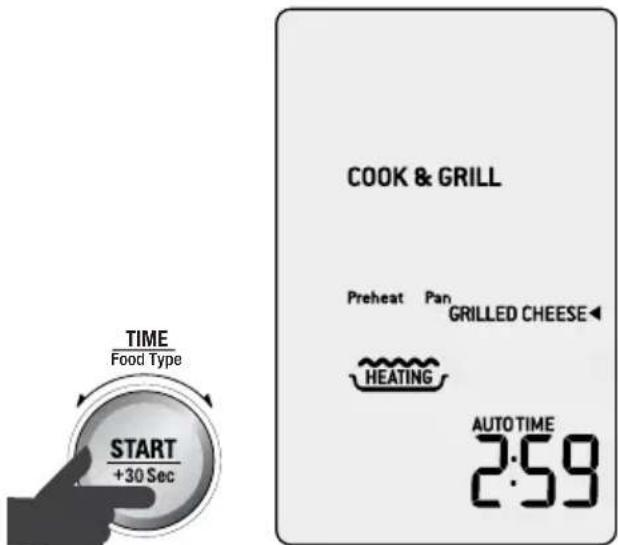

The 'Preheat Pan' option will appear. Turn the TIME/FOOD TYPE dial to toggle between 'Yes' or 'No'. Press START to confirm your selection.

If you choose to preheat the risper pan, the microwave will prompt you to insert the empty risper pan.

Insert the crisper pan in the upper position and press START to begin preheating. The TIME will begin to count down.

The default preheat time is 3 minutes. This time can be decreased by turning the TIME dial counterclockwise, however it is recommended to preheat the pan for the full 3 minutes for the best results.

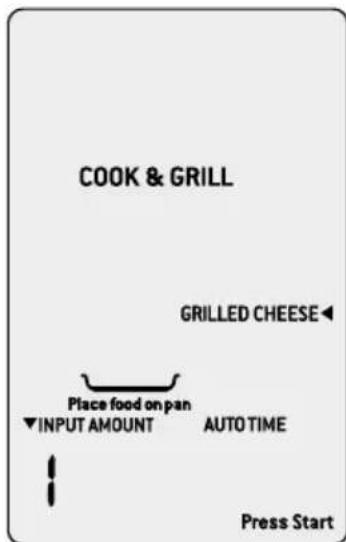

Once the pan has completed preheating, or if the preheating phase is skipped, the microwave will prompt you to place your food on the pan.

Turn the AMOUNT dial to adjust the quantity or weight.

Press START to begin the cook cycle. The TIME appears and begins to count down.

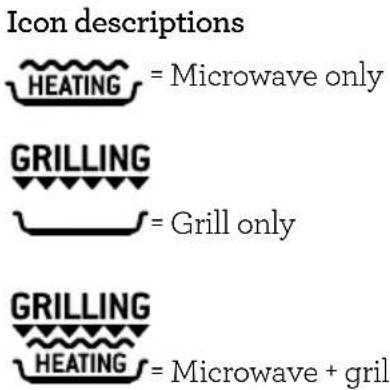

Microwave, grill or combination icons will display as the cooking cycle progresses.

SMART COOK FOOD TYPES

Oatmeal

The SMART COOK - OATMEAL setting uses 2 power levels, first 100% to activate the starches and then 50% to gently cook the oats to tender. The setting is suitable for rolled oats.

For best results, use 1 cup of water for every 12 cup of oats.

Measure oats accurately and place into a deep microwave safe bowl. Add corresponding water amount and stir to combine. Do not cover.

Halfway through the program, the oven will beep and flash 'Stir/Turn food'. Pause and stir the oats then press START to continue.

At the end of the cooking cycle, let stand for 5 minutes to allow oats to thicken.

Stir through milk, yogurt or cream and top as desired.

Popcorn

The SMART COOK -POPCORN setting is designed to pop the maximum amount of kernels in each bag.

Preset weights are based on common bag sizes. If your bag is between settings, use the higher setting and monitor popping carefully.

Never leave microwave unattended. If popping slows to 2 to 3 seconds between pops, stop the microwave. Overcooking can cause fire.

Allow popped corn to sit unopened 2-3 minutes before opening bag.

Rice

The SMART COOK - RICE setting uses 2 power levels, first 100% to boil the water and then 50% to gently simmer the rice until tender.

The rice setting is suitable for white rice such as long grain rice, jasmine and basmati.

Measure dry rice accurately and rinse well with cold water until it runs clear. Place into a microwave safe bowl.

Add corresponding water amount. For best results, use 1 12 cups water for every 1 cup of rice.

Cover bowl with a vented microwave safe lid or vented microwave safe plastic wrap but do not seal.

At the end of the cooking cycle, stand for 5 minutes before removing the lid. Fluff and serve.

Frozen Meals

The SMART COOK - FROZEN MEALS setting is suitable for heating store bought and homemade frozen dinners to serving temperatures.

Cook times are based on frozen meals directly from the freezer (approx. 0^ / -18^

Remove frozen meal from packaging and, if necessary, transfer to a microwave safe container or plate. Cover container with a vented microwave safe lid or vented microwave safe plastic wrap but do not seal.

Halfway through the reheat program, the oven will beep and flash 'Stir/Turn food'. Pause and stir food, from the outside to the center. Recover and press START to continue.

At the end of the cooking cycle, allow meal to stand for 5 minutes before serving.

Potato-Whole

The SMART COOK - WHOLE POTATO setting is suitable for cooking large whole baking potatoes.

Cook times are based on room temperature potatoes about 10-11oz (300g) in weight.

Wash potatoes to remove any dirt. Dry well and prick each potato 4-5 times with a fork.

Arrange potatoes around the outer edge of the crisper pan or microwave safe plate.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and turn the potatoes and press START to continue.

At the end of the cooking cycle, allow potatoes to stand for 5 minutes before removing and serving.

Potato-Cut

The SMART COOK - CUT POTATO setting is suitable for all types of potatoes.

Cook times are based on potatoes at room temperature.

Peel (if desired) and cut potatoes into 112 - 2'' (3-5cm) pieces and place in a microwave safe bowl. Add 1-2 tablespoons of water.

Cover bowl with a vented microwave safe lid or vented microwave safe plastic wrap but do not seal.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and stir potatoes, recover and press START to continue.

At the end of the cooking cycle, allow potatoes to stand for 5 minutes before serving.

Veg-Fresh

The SMART COOK - FRESH VEG setting is suitable for all types of vegetables such as carrots, beans, broccoli and cauliflower.

Cook times are based on vegetables directly from the refrigerator (approx. 40^ / 5^

Cut vegetables into even sized pieces and place in a microwave safe bowl.

Add 1-2 tablespoons of water.

Cover bowl with a vented microwave safe lid or vented microwave safe plastic wrap but do not seal.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'.

Pause and stir vegetables, recover and press START to continue.

At the end of the cooking cycle,

allow vegetables to stand for 5 minutes before serving.

Veg-Frozen

The SMART COOK - FROZEN VEG setting is suitable for all types of frozen vegetables, including packaged vegetable medleys.

Cook times are based on vegetables directly from the freezer (approx. 0^ / -18^

Place vegetables in a microwave safe bowl.

Cover bowl with a vented microwave safe lid or vented microwave safe plastic wrap but do not seal.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and stir vegetables, recover and press START to continue.

At the end of the cooking cycle, allow vegetables to stand for 5 minutes before serving.

Bacon

The SMART COOK - BACON setting is designed to cook bacon slices until crisp.

Line the crisper pan or other microwave safe plate with 2 layers of paper towels.

Arrange bacon slices in a single layer on the paper towels. Cover with 2 more layers of paper towels.

Cook up to 8 slices of bacon in two layers.

Halfway through the cook program, the oven will beep and flash 'Stir/turn food'. Turn bacon over, recover with paper towels and press START to continue.

At the end of the cooking cycle, allow bacon slices to stand for 5 minutes before removing and serving.

Dried - Herbs

The SMART COOK - DRIED HERBS setting heats fresh herbs so they become dry and crisp in texture. Herbs dried this way retain more color, fragrance and flavor than store-bought dried herbs.

For best results use hard herbs such as thyme, rosemary, sage and oregano.

Pick leaves off fresh herbs and discard the stems. Wash gently and dry well with paper towels.

Line the risper pan or other microwave safe plate with 2 layers of paper towels and place herbs on top in a single layer.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and gently stir herbs then press START to continue.

At the end of the cooking cycle, if herbs are dried enough, remove to a cold plate.

If herbs require more heating, remove paper towel and allow herbs to stand for 5-10 minutes in the crisper pan, stirring once or twice during this time.

Store dried herbs in an airtight container in a cool, dark spot for 6-12 months.

Toasted Nuts

The SMART COOK - TOASTED NUTS setting is suitable for toasting whole raw nuts such as walnuts, cashews, almonds and pine nuts so they are golden and crisp.

Measure or weigh nuts and place in a single layer on the crisper pan or other microwave safe plate.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and stir nuts then press START to continue.

At the end of the cooking cycle, if nuts are to your desired color and crispness, remove to a cold plate.

If nuts require more heating, allow nuts to stand for 5-10 minutes in the crisper pan, stirring once or twice during this time.

Caramel

The SMART COOK-CARAMEL setting is ideal for caramelizing sugar and water to make caramel sauce, toffee and other caramel based sweets.

The CARAMEL setting uses 2 power levels, first 100% to evaporate the water and melt the sugar and then 80% to color the sugar without burning.

Choose a clear Pyrex bowl that is large enough to contain the hot sugar mixture when boiling.

Wash the bowl well to remove any residue or debris that can cause the caramel to crystallize.

Place sugar and water into the bowl and mix well with a metal spoon.

Wash down any stray sugar from the side of the bowl using a pastry brush dipped in water. This helps prevent crystallization.

During the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and carefully remove the cooking bowl from the microwave using oven proof mitts. Swirl the bowl gently to dissolve any remaining sugar. Wash down any stray sugar from the side of the bowl using a pastry brush dipped in water. Return bowl to the microwave and press START to continue.

At the end of the cooking cycle, if caramel is not dark enough, add additional time by pressing the A BIT MORE button.

Always remove caramel before it gets to desired color as it will continue to darken upon standing after cooking.

When caramel is to your desired color, carefully remove the cooking bowl from the microwave using oven proof mitts.

CAUTION

Melted sugar is extremely hot and will burn if it comes into contact with the skin.

Always practice extreme caution when cooking caramel.

Caramel Table

AMOUNT SUGAR WATER CHECK

			EVERY1 MINAFTER
1 cup 1 cup	(200g)	1/2 cup(120ml)	10 mins
2 cups 2 cups	(400g)	1 cup(240ml)	20 mins

SMART COOK & GRILL FOOD TYPES

Meat

The SMART COOK & GRILL - MEAT setting is suitable for smaller cuts, e.g. steaks and chops of beef, lamb and pork.

Cook times are based on meat directly from the refrigerator (approx. 40^ / 5^

Arrange meat on the preheated crispper pan, making sure thicker ends are positioned towards the outer edges of the pan.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and turn meat over, then press START to continue.

At the end of the cooking cycle, allow meat to stand for 5 minutes before removing and serving.

Chicken

The SMART COOK & GRILL - CHICKEN setting is suitable for cooking chicken pieces such as drumsticks, wings, thighs and breasts, with or without skin.

Cook times are based on chicken directly from the refrigerator (approx. 40^ / 5^ ).

Arrange chicken pieces on the preheated crisper pan, making sure thicker ends are positioned towards the outer edges of the pan.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and turn chicken pieces over, then press START to continue.

At the end of the cooking cycle, allow chicken to stand for 5 minutes before removing and serving.

Potato - Roasted

The SMART COOK & GRILL - ROASTED POTATO setting is suitable for cooking cut potatoes, small new potatoes or cut sweet potatoes so that they are brown and crispy on the outside while remaining soft and tender on the inside.

Cook times are based on potatoes at room temperature.

Cut potatoes, if necessary, into even 1.5-2" (2-3cm) pieces and toss in oil. Place in a single layer on the preheated crisper pan.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and stir or turn the potatoes over then press START to continue.

At the end of the cooking cycle, allow potatoes to stand for 5 minutes before removing and serving.

Veg - Roasted

The SMART COOK & GRILL - ROASTED VEG setting is suitable for cooking vegetables such as broccoli, cauliflower and Brussels sprouts so that they are brown and crisp.

Cook times are based on vegetables directly from the refrigerator (approx. 40^ / 5^

Cut vegetables into even 1.5-2" (2-3cm) pieces and toss in oil. Place in a single layer on the preheated crisp per pan.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and stir or turn the vegetables over then press START to continue.

At the end of the cooking cycle, allow vegetables to stand for 5 minutes before removing and serving.

Frozen Pizza

The SMART COOK & GRILL - FROZEN
PIZZA setting is ideal for cooking frozen pizzas so the crust gets crispy and the cheese is melted and golden brown.

Cook times are based on pizza directly from the freezer (approx. 0^ / -18^ ).

At the end of the cooking cycle, allow pizza to stand for 5 minutes before removing and serving.

Grilled Cheese

The SMART COOK & GRILL - GRILLED CHEESE setting is ideal for cooking grilled cheese sandwiches or open-faced melts so that the bread is crisp and golden and the cheese is melted and gooey.

This setting is suitable for all types of bread. For grilled cheese sandwiches, butter the outsides of the bread slices and fill with cheese and other desired ingredients. For best results, the filling should be no more than 12 (1cm) thick.

Place sandwich on the preheated crisp per pan. Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and turn sandwich over then press START to continue.

Open-faced melts, for open-faced melts, place buttered bread slices on the crisper pan without any toppings.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and turn bread slices over, add cheese and any other toppings then press START to continue.

At the end of the cooking cycle, remove and serve immediately.

Frozen Snacks

The SMART COOK & GRILL - FROZEN SNACKS setting is ideal for reheating frozen snacks such as chicken nuggets, French fries, onion rings and fish sticks.

Cook times are based on snacks directly from the freezer (approx. 0^ / -18^ ).

Arrange snacks on the preheated crisp pan, allowing 12 - 1 (1-2cm) gaps between pieces.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and rearrange food so that the food in the center of the pan is moved to the outside and vice versa. Turn food over if necessary then press START to continue.

At the end of the cooking cycle, allow snacks to stand for 5 minutes before removing and serving.

SMART REHEAT

The SMART REHEAT setting uses lower power levels to gently reheat food without overcooking or drying it out.

This setting will heat your food to perfect serving temperatures.

Press the SMART REHEAT button to display the food menu.

SMART REHEAT

Turn the TIME/Food Type dial to scroll through the available food types. The arrow on the right indicates which food type is selected.

After selecting a food type, turn the AMOUNT dial to adjust the quantity or weight.

Press START to begin the reheat cycle. The TIME appears and begins to count down.

Reheat times are based on food directly from the refrigerator (approx. 40^ / 5^ ).

NOTE

While the microwave is reheating, time can be increased or decreased. Adjusting the reheating time does not affect the selected weight or quantity.

Leftovers

The SMART REHEAT-LEFTOVERS

setting is suitable for reheating a single plate of leftovers (approx. 10oz/300g) or larger quantities of casseroles, stew or other meals.

For even reheating, place food on a microwave safe plate or in a shallow microwave safe dish or bowl.

Cover food with a vented microwave safe lid or vented microwave safe plastic wrap.

Halfway through the reheat program, the oven will beep and flash 'Stir/Turn food'.

Pause and stir food, from the outside to the center. Recover and press START to continue.

At the end of the reheating cycle, allow food to stand for 5 minutes before removing and serving.

Pasta & Rice

The SMART REHEAT - PASTA & RICE setting is suitable for reheating already cooked pasta and rice, with or without sauce.

Place food in a microwave safe bowl.

Add 1-2 tablespoons of water or extra sauce.

Cover bowl with a vented microwave safe lid or vented microwave safe plastic wrap but do not seal.

Halfway through the reheat program, the oven will beep and flash 'Stir/Turn food'. Pause and stir food from the outside to the center.

Recover and press START to continue.

At the end of the reheating cycle, allow food to stand for 5 minutes before removing and serving.

Meat

The SMART REHEAT - MEAT setting is suitable for reheating already cooked steaks, chops and other small cuts of meat.

Place meat in a single layer on a microwave safe plate, making sure thicker ends are positioned towards the outer edges.

Cover with a vented microwave safe lid or vented microwave safe plastic wrap but do not seal.

Halfway through the reheat program, the oven will beep and flash 'Stir/Turn food'. Turn the meat over then press START to continue.

At the end of the reheating cycle, allow meat to stand for 5 minutes before removing and serving.

Chicken

The SMART REHEAT - CHICKEN setting is designed to gently reheat chicken pieces without overcooking or drying them out. It is not suitable for reheating a whole chicken.

Place chicken pieces in a single layer on a microwave safe plate, making sure thicker ends are positioned towards the outer edges.

Halfway through the reheat program, the oven will beep and flash 'Stir/Turn food'. Pause and turn chicken pieces over then press START to continue.

For larger amounts over 2lb (1kg), turn chicken twice during the reheat cycle.

At the end of the reheating cycle, allow chicken to stand for 5 minutes before removing and serving.

Soup

The SMART REHEAT-SOUP setting is designed for reheating canned soups at room temperature.

Place soup into a microwave safe bowl and cover with a vented microwave safe lid or vented microwave safe plastic wrap.

Halfway through the reheat program, the oven will beep and flash 'Stir/Turn food'.

Pause and stir soup from the outside to the center. Recover and press START to continue.

When reheating cold soups from the refrigerator (approx. 40^ / 5^ ), add an extra 1-2 minutes to the reheat time.

At the end of the reheating cycle, allow soup to stand for 5 minutes before removing and serving.

Veg

The SMART REHEAT - VEG setting is suitable for reheating already cooked vegetables such as potatoes, broccoli, cauliflower, beans and zucchini.

Place vegetables in a microwave safe bowl and cover with a vented microwave safe lid vented microwave safe plastic wrap but do not seal.

Halfway through the cook program, the oven will beep and flash 'Stir/Turn food'. Pause and stir vegetables, recover and press START to continue.

At the end of the reheating cycle, allow vegetables to stand for 5 minutes before removing and serving.

Pizza

The SMART REHEAT -PIZZA setting is ideal for reheating leftover cooked pizza slices so the crust is crisp and the cheese is melted.

Preheat the crisper pan in the upper position by following the prompts in the SMART REHEAT -PIZZA setting.Once the pan has completed preheating, carefully remove it from the microwave using ovenproof mitts.

Arrange pizza slices on the pan making sure thicker ends are positioned towards the outer edges of the crisp pan. Place crisp pan in the center of the turntable in the upper position.

At the end of the reheating cycle, allow pizza to stand for 5 minutes before moving and serving.

SMART DEFROST

The SMART DEFROST setting is designed to gently defrost foods without overheating it or drying out the edges.

Press the SMART DEFROST

button to display the food menu

SMART DEFROST

Turn the TIME/Food Type dial

to scroll through the available food types.

The arrow on the right indicates which food type is selected.

After selecting a food type, turn the Amount dial to adjust the quantity or weight.

Press START to begin the defrost cycle.

The TIME appears and begins to count down.

Defrost times are designed for thoroughly frozen food that has been in the freezer for at least 24 hours and maintained at temperatures of 0^ (-18^) or lower.

For best results, freeze meat and chicken pieces in a single layer no thicker than 2^ (5cm)

Meat

The SMART DEFROST - MEAT setting is suitable for defrosting whole pieces of meat such as steaks and chops, as we'll as frozen blocks of ground meat.

Remove any packaging, foam trays and absorbent pads from the meat.

Place meat in a single layer on a microwave safe plate and do not cover. Position thicker ends towards the outside of the turntable.

Halfway through the defrost program, the oven will beep and flash 'Stir/Turn food'. Turn the frozen meat over then press START to continue. For ground meat, gently break apart any thawed pieces.

At the end of the defrost cycle, remove meat and let stand 5-15 minutes to thaw completely.

Chicken

The SMART DEFROST - CHICKEN setting is suitable for defrosting chicken pieces or a whole chicken.

For chicken pieces, position the pieces in a single layer on a microwave safe plate and do not cover.

Arrange thicker ends around the outside of the turntable.

Halfway through the defrost program, the oven will beep and flash 'Stir/Turn food'. Pause and turn the chicken pieces then press START to continue.

At the end of the defrost cycle, remove chicken and let stand 5-15 minutes to thaw completely.

For a whole chicken, remove chicken from any packaging. Rinse frozen chicken under cold water and pat dry.

Place chicken, breast side down, on a microwave safe plate lined with a paper towel.

Halfway through the defrost program, the oven will beep and flash 'Stir/Turn food'. Pause and turn chicken over. Press START to continue.

At the end of the defrost cycle, remove chicken from microwave and rinse under cold water, making sure to wash the cavity well to loosen any remaining ice.

Place onto a clean plate and pat dry. Cover with plastic wrap and refrigerate until completely thawed.

Soup

The SMART DEFROST - SOUP setting is suitable for defrosting frozen homemade or store bought soups.

Remove soup from any packaging and place into a microwave safe bowl. Cover with a vented microwave safe lid or vented microwave safe plastic wrap but do not seal.

Halfway through the defrost program, the oven will beep and flash 'Stir/Turn food'. Pause and stir soup from the outside towards the center, breaking up any icy chunks, then press START to continue.

At the end of the defrost cycle, the soup will be ready for reheating to serving temperatures.

Frozen meals

The SMART DEFROST - FROZEN MEALS setting is suitable for defrosting frozen casseroles, curries and meat sauces directly from the freezer.

Remove frozen meal from any packaging and place into a microwave safe container.

Cover with a vented microwave safe lid or vented microwave safe plastic wrap but do not seal.

Halfway through the reheat program, the oven will beep and flash 'Stir/Turn food'. Pause and stir food from the outside to the center. For meals containing large pieces of meat such as chicken pieces, carefully break up any thawed parts, turn over and stir. Press START to continue.

After the defrost cycle has ended, the food will be ready for reheating to serving temperatures.

SHORTCUTS

Use the Shortcuts panel inside the door to perform common cooking tasks at the push of a button.

FAVORITE

The FAVORITE shortcut can be used to save your most used cook, reheat, defrost or shortcut setting. You can then easily duplicate your favorite program at the push of a button.

To program the FAVORITE shortcut:

1. Set the microwave to your desired time and temperature. Do this manually or choose from any of the SMART COOK, SMART REHEAT, SMART DEFROST or Shortcuts settings.
2. Press and hold the FAVORITE button for 2 seconds. 'FAVORITE' will be displayed on the LCD screen.
3. Press START to begin your favorite setting. The microwave will automatically save it for future use.
4. Press the FAVORITE button at a later time to display your saved setting on the LCD screen.
5. To change your FAVORITE setting at any time, repeat steps 1 and 2.

Beverage

The Beverage shortcut is suitable for reheating hot drinks such as coffee and tea. This setting will warm a room temperature drink to approximately 140 - 150^ (60 - 65^) which is suitable to drink right away.

1. Position the cup or cups around the outside of the turntable.
2. Press BEVERAGE and turn the AMOUNT dial to select the number of cups.
3. Press START to begin reheating.
4. At the end of the reheat cycle, stir drinks and allow to stand for 1-2 minutes before consuming. Be aware, that overheated drinks may scald or burn.

Melt chocolate

The Melt Chocolate shortcut is designed to melt chocolate without overheating or seizing of the chocolate. This setting was designed for melting dark chocolate; if using other types of chocolate, check at short intervals to prevent possible seizing.

1. If necessary, cut chocolate into small pieces.
2. Place chocolate in a microwave-safe bowl and do not cover.
3. Press MELT CHOCOLATE and turn the AMOUNT dial to select the weight.
4. Press START to begin melting.
5. Halfway through the program, the microwave will beep and flash 'Stir/Turn food'. Stir the chocolate then press START to continue melting.

NOTE

At the end of the cycle, some of the chocolate may still hold its shape. Stir until completely melted and smooth.

Soften butter

The Soften Butter shortcut is designed to soften butter taken directly from the refrigerator (approx. 40^ / 5^ ).

Butter will be softened but not melted, making it ideal for immediate use in baking or other recipes.

1. Place butter on a microwave-safe plate or bowl and do not cover. For best results, butter should be cut into a single piece.
2. Press SOFTEN BUTTER and turn the Amount dial to select the weight.
3. Press START to begin softening.

SOME IMPORTANT TIPS FOR MICROWAVE COOKING

1. Choose cooking dishes that are shallow and preferably have straight sides. Shallow dishes enable the food to cook faster and straight edges prevent the edges from being overcooked.
2. Use round shaped microwave dishes. Round shapes cook more evenly than square or rectangle dishes which absorb most of the energy in the corners causing food to overcook and toughen.
3. Cover dishes during cooking to hold in the heat and steam to speed up cooking time. Use a microwave safe lid or plastic wrap that has been vented by turning back one edge at the side of the dish to release excess steam.
4. Arrange foods with varying size ends, such as chicken drumsticks and broccoli, with the thicker or tougher part positioned to the outside of the dish. This ensures the parts that require more cooking will receive more energy, so the food will cook evenly.
5. Arrange individual items such as ramekins or whole potatoes around the outside of the turntable. Make sure to leave space between items so the energy can penetrate from all sides.

6. Stir foods from the outside to the center of the dish once or twice during cooking to equalize heat and speed heating.

7. Turn medium to large food items over twice during microwaving. This enables even exposure to microwaves.

8. Heatbread or fried food on the crisper pan or a paper towel-lined plate to keep food crisp. Cover foods with paper towel to prevent splatters.
9. The internal temperature of food will continue to rise and food will keep cooking even after it has been removed from the microwave.
10. Containers, plates, dishes, etc used in the microwave oven should always be microwave-safe. Check product packaging or contact the manufacturer.
11. Microwave-safe cookware will not become hot from microwave energy, but it will become hot from contact with hot food. When the food becomes hot, some of this heat is transferred to the dish. Always use oven mitts or dry cloths to remove hot dishes from the microwave.
12. Metal containers and utensils should not be used in the microwave oven unless provided with the BMO700 microwave oven.

Care & Cleaning

• Remove the plug from the power outlet before cleaning.
• Keep the inside of the microwave oven clean. Wipe off food splatters or spills with a damp cloth.
• Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock.
• When cleaning surfaces of door and oven that come together on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth. The use of corrosive chemicals in cleaning will damage the appliance and may result in radiation leaks.
• Wipe the oven cavity with a soft, damp cloth after each use. Leaving food residue, grease or fat in the cavity could cause the microwave oven cavity to overheat and may cause the microwave oven to smoke or catch fire.
• The microwave oven should be cleaned regularly and any food splattering inside the cavity should be removed. Failure to maintain the microwave oven in a clean condition could lead to deterioration of the surface, adversely affecting the life of the microwave oven and possibly resulting in a hazardous situation.
• Mild detergent may be used if the cavity gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
• The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the microwave oven cavity, water should not be allowed to seep into the ventilation openings.

• Wipe the door and window on both sides of the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use an abrasive cleaner.

• Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the microwave oven door open to prevent it from accidentally turning on.

• If steam accumulates inside or around the outside of the oven door, wipe with a soft dry cloth. This may occur when coo king foods high in moisture or if the microwave oven is operated under high humidity conditions. This is normal.
• It is occasionally necessary to remove the glass turntable for cleaning. Wash the turntable in warm soapy water, rinse in clean water and dry thoroughly.
• The turntable roller and microwave oven floor should be cleaned regularly to ensure the glass turntable rotates correctly and avoids making excessive noise. Simply wipe the bottom surface of the microwave with a soft damp cloth. Wash the turntable roller in mild soapy water, rinse in clean water and dry thoroughly. After cleaning the turntable roller, be sure to replace it in the proper position.
• Wash the crisper pan on the top rack of the dishwasher. Alternatively, wash in warm soapy water, rinse with clean water and dry thoroughly. If required, remove legs by pinching inwards and pulling away from the leg housing.

• Remove odors from your microwave oven by combining 1 cup of water with the juice of one lemon in a deep microwave-safe bowl and microwave on HIGH for 5 minutes. Wipe the microwave oven cavity thoroughly and dry with a soft cloth.

• If it becomes necessary to replace the oven light, please consult Breville Consumer Support to have it replaced.

• If storing the microwave oven, press the STOP/CLEAR button, then unplug the power cord. Ensure the microwave oven is completely cool, clean and dry. Secure the roller ring and glass turntable and close the door. Do not place heavy objects on top. Store the microwave oven upright.

BEFORE YOU CALL FOR SERVICE

Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the power outlet, wait 10 seconds and plug it in again securely.

Check for a blown circuit fuse or a tripped circuit breaker. If these seem to be operating properly, test the power outlet with another appliance.

Check to ensure that the door is securely closed and engaging the door safety lock system. Otherwise, the door safety lock system will prevent the microwave from switching on.

NOTE

If none of the above rectify the situation, then contact Breville Consumer Support. Do not try to adjust or repair the oven yourself.

Troubleshooting

POSSIBLE PROBLEM EASY SOLUTION

Microwave oven interfering with radio, TV or similar equipment.	·Clean door and sealing surface of the oven. ·Reorient the receiving antenna of radio or television. ·Relocate the microwave oven with respect to the receiver. ·Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.
Dim microwave oven light.	·When operating on low power levels, the microwave oven light may be dimmer.
Steam accumulating on door and hot air coming out from vents.	·During operation, steam may be produced. Most will exit through the vents, however some may accumulate around the oven door.
House lights dim when in use.	·The outlet or wiring to the outlet may be underrated or the appliance may be operating on a shared circuit. Ensure the appliance is connected to a dedicated circuit.

POSSIBLE PROBLEM POSSIBLE REASON EASY SOLUTION

Microwave oven will not start.	• Power cord not plugged in properly or switched on. • Fuse blown or circuit breaker problem. • Trouble with outlet.	• Unplug, put the plug in again and switch on. • Replace the fuse or reset circuit breaker. • Have a professional check that the outlet is not faulty.
Frozen snacks or other foods are not getting crisp or brown.	• Crisper pan is not hot enough. • Too much food is being cooked at one time. • Thicker or denser pieces of food may take longer to heat through and dry enough for adequate browning.	• Preheat crisper pan for full 3 minutes. • Ensure that food is in a single layer and all pieces are touching the surface of the crisper pan. • Choose a higher AMOUNT when programming a cooking cycle.
When defrosting meat or chicken pieces, the edges are overcooking.	• Food is being overheated.	• Remove food from microwave oven when still slightly frozen in the center. Allow to rest at room temperature or in the refrigerator until completely thawed.

POSSIBLE PROBLEM POSSIBLE REASON EASY SOLUTION

When reheating food, it's not getting hot all the way through.	·A large amount of food is being reheated. ·Large/thick pieces of food are being reheated.	·Pause the reheat cycle and stir large quantities of food 2 or more times, ensuring that the hot edges get stirred into the cold center. ·Flip thick steaks, bone-in chicken breasts and other large foods 2 or more times during reheating.
Microwave oven does not heat.	·Door not closed properly.	·Ensure door is shut properly. ·Ensure the power level setting are correct. Refer to the "TIME AND POWER LEVEL ADJUSTMENT" section on page 23. ·Make sure the Child Lock is not set. Refer to the "SETTING THE CHILD LOCK" section on page 20.
Microwave oven does not heat enough.		·Ensure the power level setting are correct. Refer to the "TIME AND POWER LEVEL ADJUSTMENT" section on page 23.
Glass turntable makes noise during operation.	·Turntable roller not inserted properly or needs to be cleaned.	·Reset and clean if necessary.

If you continue to have any concerns or questions, contact Breville Consumer Support.

Our contact details are on the back cover of this book.

the Quick Touch Crisp

The default beep volume is LOW.

Mets surgelés (Frozen Meals)

1 tasse 1 tasse	(200 g)	1/2 tasse (120 ml)	10 mins
2 tasses 2 tasses	(400 g)	1 tasse (240 ml)	20 mins

TYPES D'ALIMENTS POUR CUISSON & GRILLAGE INTELLIGENTS

Viande (Meat)

Collations congeles (Frozen Snacks)

Mets surgelés (Frozen Meals)

PROBLEPOSSIBLECAUSEPOSSIBLESOLUTIONFACILE

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION FACILE

Breville Consumer Support

USA

Mail: Breville USA 19400 S. Western Ave Torrance CA 90501-1119

Phone: [phone]
1-866-BREVILLE

Email: [e-mail]

Canada

Mail: Breville Canada 3595 boulevard Cote-Vertu, Saint-Laurent, Quebec H4R1R2

Phone: [phone]

Email: [e-mail]

Web: www.breville.ca/supportWeb: www.l

Breville

Thought for food

Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98000 092 928.

Copyright Breville Pty. Ltd. 2015.

Due to continued product improvement, the products illustrated/photographed

in this booklet may vary slightly from the actual product.
