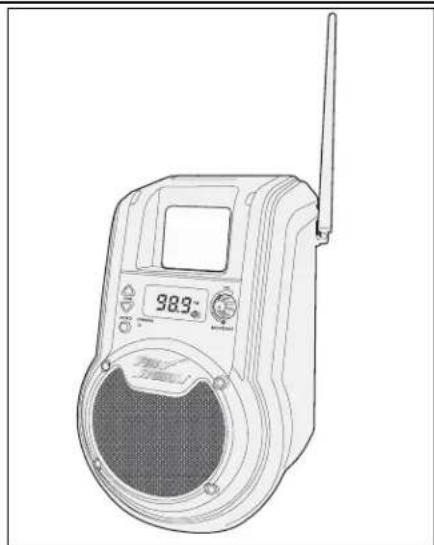

USER MANUAL FS18CH BLACK & DECKER

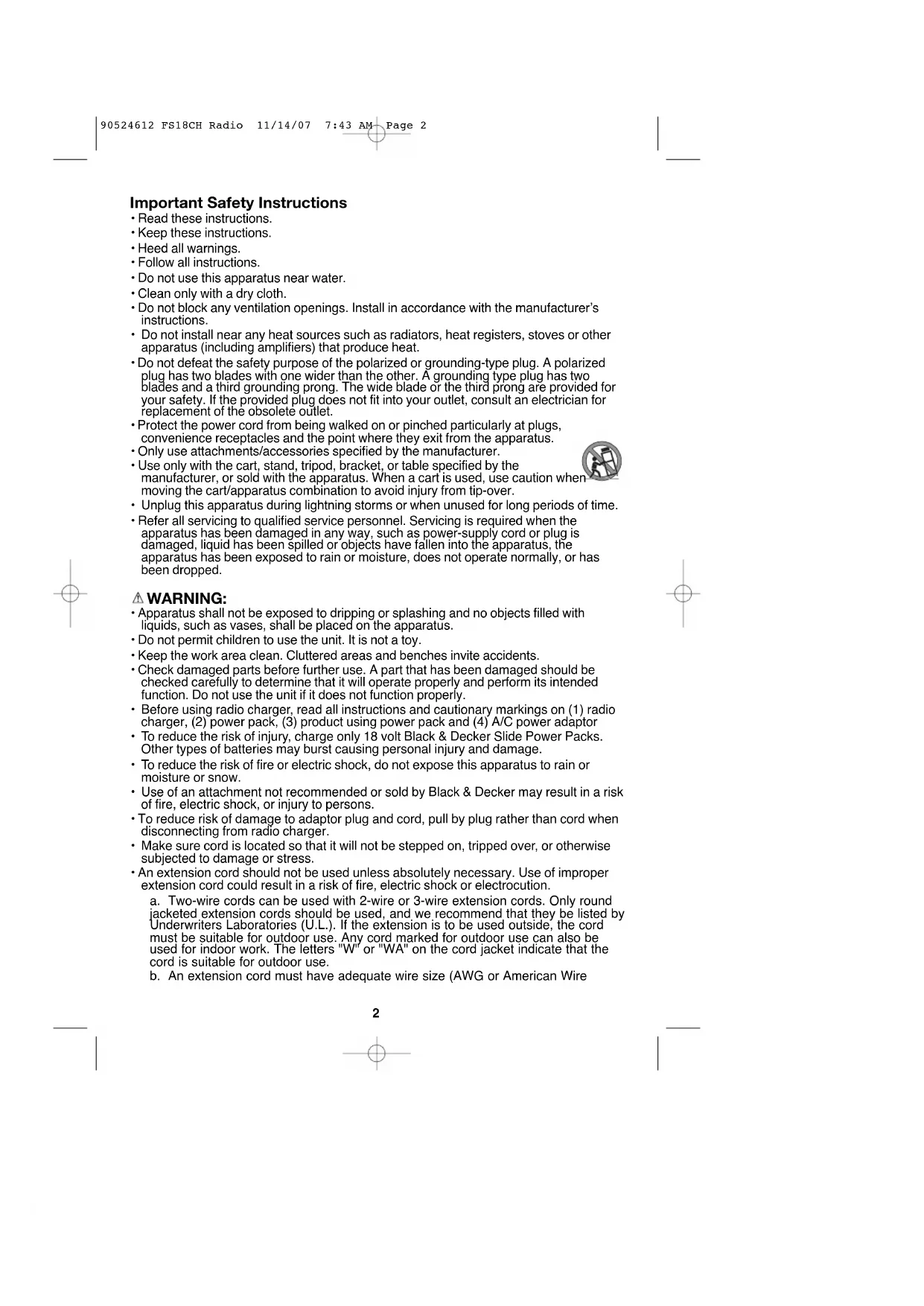

• Read these instructions.

• Keep these instructions.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

• Do not permit children to use the unit. It is not a toy.

• Keep the work area clean. Cluttered areas and benches invite accidents.

• Check damaged parts before further use. A part that has been damaged should be checked carefully to determine that it will operate properly and perform its intended function. Do not use the unit if it does not function properly.

• Before using radio charger, read all instructions and cautionary markings on (1) radio charger, (2) power pack, (3) product using power pack and (4) A/C power adaptor

• To reduce the risk of injury, charge only 18 volt Black & Decker Slide Power Packs. Other types of batteries may burst causing personal injury and damage.

• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture or snow.

• Use of an attachment not recommended or sold by Black & Decker may result in a risk of fire, electric shock, or injury to persons.

• To reduce risk of damage to adaptor plug and cord, pull by plug rather than cord when disconnecting from radio charger.

• Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

• An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire, electric shock or electrocution. a. Two-wire cords can be used with 2-wire or 3-wire extension cords. Only round jacketed extension cords should be used, and we recommend that they be listed by Underwriters Laboratories (U.L.). If the extension is to be used outside, the cord must be suitable for outdoor use. Any cord marked for outdoor use can also be used for indoor work. The letters "W" or "WA" on the cord jacket indicate that the cord is suitable for outdoor use. b. An extension cord must have adequate wire size (AWG or American Wire 90524612 FS18CH Radio 11/14/07 7:43 AM Page 23 Gauge) for safety, and to prevent loss of power and overheating. The smaller the gauge number of the wire, the greater the capacity of the cable; that is, 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each extension contains at least the minimum wire size.

• DO NOT incinerate power packs even if they are severely damaged or completely worn out. The batteries can explode in a fire.

• A small leakage of liquid from the battery cells may occur under extreme usage, charging or temperature conditions. This does not indicate a failure. However, if the outer seal is broken and this leakage gets on your skin: a. Wash quickly with soap and water. b. Neutralize with a mild acid such as lemon juice or vinegar. c. If the battery liquid gets in your eyes, flush them with clean water for a minimum of 10 minutes and seek immediate medical attention. MEDICAL NOTE: The liquid is a 25-35% solution of potassium hydroxide.

• The label on your radio charger may include the following symbols. The symbols and their definitions are as follows: V ..........................volts A..........................amperes Hz ........................hertz W ........................watts min ........................minutes ......................alternating current ......................direct current

earthing terminal ..........................shock hazard symbol AC ......................alternating current DC ........................direct current The lightning flash with arrow head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons. The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance. The double insulation symbol (a square within a square) is intended to alert qualified service personnel to use only identical replacement parts in this apparatus. Terminals are hazardous live and the external wiring connected to the terminals requires installation by an instructed person or the use of ready-made leads or cords.

WARNING: Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference Recommended Minimum Wire Size for Extension Cords Total Length of Cord 25 ft. 50 ft. 75 ft. 100 ft. 125 ft. 150 ft. 175 ft.

90524612 FS18CH Radio 11/14/07 7:43 AM Page 34 to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and the receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help.

WARNING: Battery shall not be exposed to excessive heat such as sunshine, fire or

• The following labels are located on the FS18CH Radio Charger. 90524612 FS18CH Radio 11/14/07 7:43 AM Page 45 90524612 FS18CH Radio 11/14/07 7:43 AM Page 56 FUNCTIONAL DESCRIPTION - Figure A

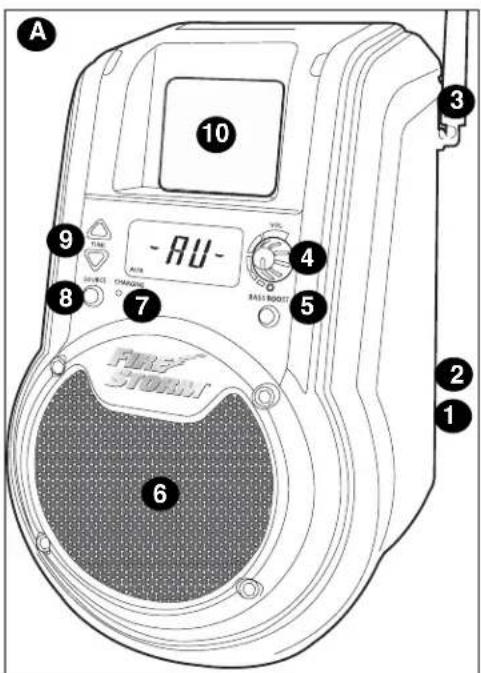

2. Charging Port (back side of unit)

13. Station Frequency

AC Power Adaptor (not shown) Battery Pack (not included)

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage. powered byAM KHzFMMHz AUX

Battery Cap Information Battery storage and carrying caps are provided for use whenever the battery is out of the tool or charger. Remove cap before placing battery in charger or tool.

WARNING: Do not store or carry battery so that metal objects can contact exposed

battery terminals. For example, do not place battery in aprons, pockets, tool boxes, product kit boxes, drawers, etc. with loose nails, screws, keys, etc. without battery cap. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes (i.e. packed in suitcases and carryon luggage) UNLESS they are properly protected from short circuits. So when transporting individual batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit.

SAVE THESE INSTRUCTIONS

Charging the Power Pack

WARNING: Battery shall not be exposed to excessive heat such as sunshine, fire or

the like. The radio charger is designed to use standard household 120 volt 60 Hz power.

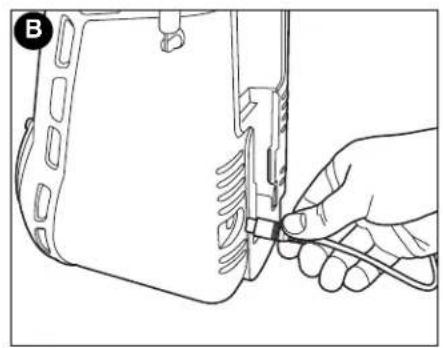

1. Insert the plug of the power adaptor into the radio charger as shown in Figure B.

Insure that the charger plug is correctly aligned with the radio socket before pushing to full depth.

2. Plug the power adaptor into any standard 120 Volt 60 Hz electrical outlet. NOTE:

Do not charge by means of an engine generator or DC power source. Use only 120V AC.

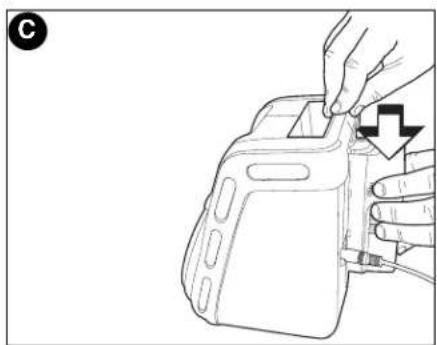

3. Slide the power pack into the back of the unit as shown in Figure C. Make sure the

power pack is fully seated in the port and let the pack charge initially for 9 hours. After the initial charge, under normal usage, your power pack should be fully charged in 3 to 6 hours.

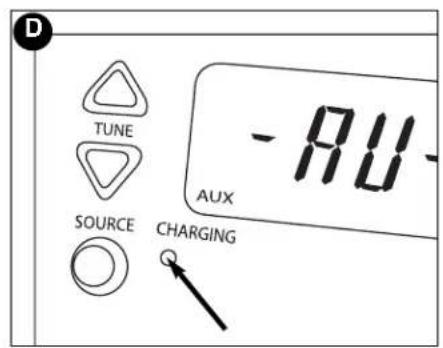

4. The amber charger light on the radio face (Figure D) will light indicating that the

charging process has started. Important Charging Notes

1. After normal usage, your power pack should be fully charged in 3 to 6 hours. If the

pack is run-down completely, it may take up to 9 hours to become fully charged. Your power pack was sent from the factory in an uncharged condition. Before attempting to use it, it must be charged for at least 9 hours.

2. DO NOT charge the power pack in an air temperature below 40°F (4,5 °C) or

above 105°F (+40,5 °C). This is important and will prevent serious damage to the power pack. Longest life and best performance can be obtained if power packs are charged when air temperature is about 75°F.

3. While charging, the charger may hum and become warm to touch. This is a normal

condition and does not indicate a problem.

4. If the power pack does not charge properly—(1) Check current at receptacle by

plugging in a lamp or other appliance. (2) Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights. (3) Move charger and battery pack to a surrounding air temperature of 40°F (4,5 °C) to 105°F (40,5 °C). (4) Check to see that the amber charging indicator light is lit on the face of the unit. (5) If the receptacle, surrounding temperature and charging indicator light are OK, and you do not get proper charging, take or send the power pack and radio charger to your local Black & Decker service center. See Tools Electric in yellow pages.

5. The power pack should be recharged when it fails to produce sufficient power on

jobs which were easily done previously. DO NOT CONTINUE using pack in a depleted condition.

6. The power pack will reach optimum performance after being cycled 5 times during

normal usage. There is no need to run the pack down completely before recharging. Normal usage is the best method of discharging and recharging.

7. The exposed charging contacts of the radio charger can be accidentally shorted by

foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from radio charger cavities. Unplug radio charger before attempting to clean it. Maintenance Stage The trickle charge feature of the radio charger allows the power pack to remain in the charger and ready for use. With the power adaptor connected to standard household current, the amber charging indicator light will glow constantly. The radio charger will keep the power pack fully charged. A power pack will slowly lose its charge when kept out of the charger. Using the Radio (Figures A & E) The radio can be used with the power adaptor connected to standard household current or a fully charged power pack inserted into the charging port. On/Off/Volume

• Turn the On/Off/Volume Control knob (4) clockwise to turn the power on. - The LCD screen will illuminate. Adjust volume by turning knob to desired level. The LCD screen will turn off after 10 seconds if no additional buttons are pressed. Mode Selection

• Press the AM/FM/AUX Selector button (8) to select an AM or FM station. Rotate the antenna upward if the radio is tuned to an FM station. If reception is poor, rotate antenna in all directions until reception improves. For AM stations try rotating the radio. Radio Tuning

• Press the Station Selector buttons (9) up or down to change station frequency.

• Press and hold the Station Selector buttons (9) up or down to scan frequencies. It will lock the channel automatically as the receiving signal becomes strong enough. Bass Boost

• Press the BASS BOOST button (5) while the unit is on to activate the BASS function. Press again to cancel this function. When this function is activated, the Bass Boost icon (12) on the LCD screen will illuminate. Low Battery Indicator

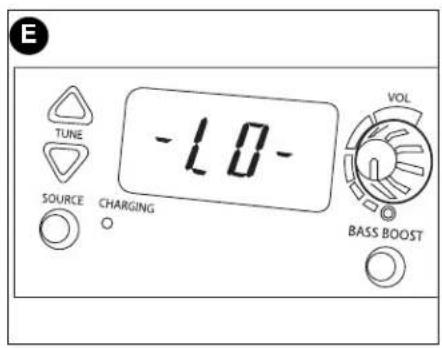

• When battery power is fully discharged, radio will automatically turn off and “LO” will appear on the screen as shown in Figure E. Either replace discharged battery with fully charged unit or plug radio into wall outlet. Important Radio Notes

• The FS18CH radio charger is an 18 volt only product and will not accept power packs of different voltages.

• Reception will vary depending on location and strength of radio signal.

• AM reception may be clearer when powered by a battery. Using the AUX feature (Figures F,G,H,I,&J) With the power adaptor connected to standard household current or a fully charged 90524612 FS18CH Radio 11/14/07 7:43 AM Page 910 power pack inserted into the charging port of the radio charger:

• Turn the On/Off Volume Control knob (4) clockwise to turn the power on.

• Press the AM/FM/AUX Selector button (8) until the “AUX” icon appears on the display.

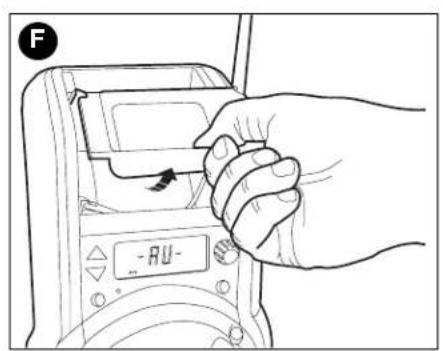

• Open the MP3 player door (10) (See figure F). CAUTION: Compartment not water tight.

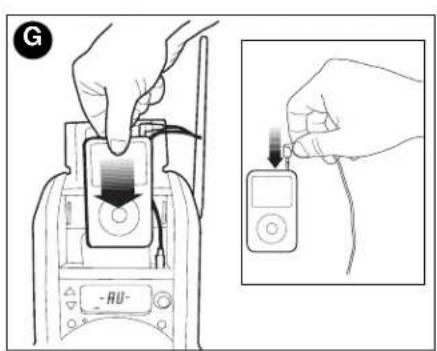

• Connect the jack plug located inside the door to the MP3 player as shown in Figure G. The device can be used in three different ways:

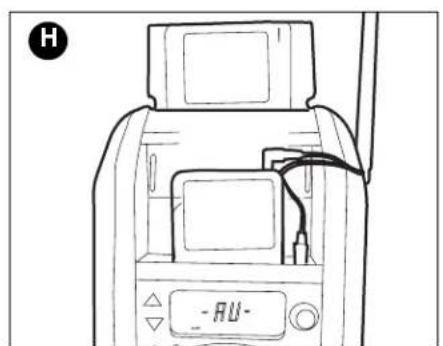

• Stored inside the foam compartment with the door open or closed (Figure H),

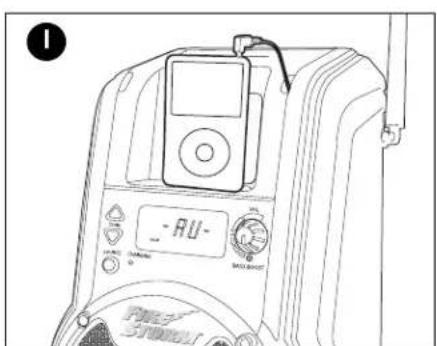

• Seated on the ledge with the door closed (Figure I)

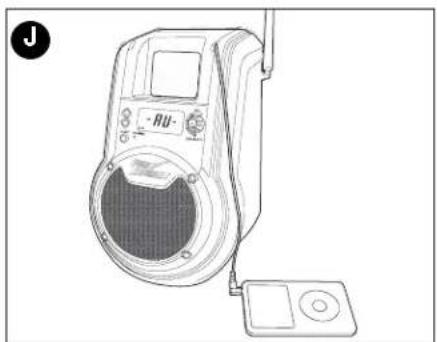

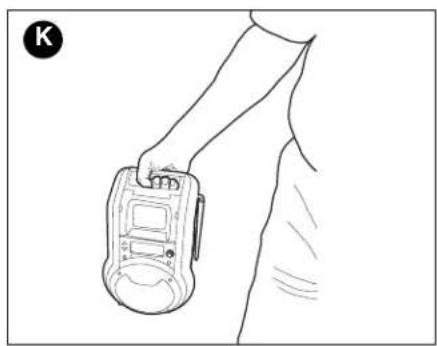

• Seated on a table or hard surface with the door closed (Figure J) Carrying the Radio Charger Figure K shows the recommended way to carry the radio charger. Storing the Power Adaptor The power adaptor can be stored in the cavity in the back of the unit and held in place by the attached bungee cord. TROUBLESHOOTING Problem Possible Cause Possible Solution

• Unit will not start. • Battery pack not installed properly. • Check battery pack installation.

• Battery pack not charged. • Check battery pack charging requirements.

• A/C power adaptor not plugged in.

• Battery pack will not charge. • Battery pack not inserted into charger. • Insert battery pack into charger until amber LED appears.

• Charger not plugged in. • Plug charger into a working outlet. Refer to “Important Charging Notes” for more details.

• Check current at receptacle by plugging in a lamp or other appliance.

• Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.

• Surrounding air temperature • Move charger and battery to a surrounding air temperature of above 40 degrees F (4,5°C) or below 105 degrees F (+40,5°C).

• Radio speaker has sound • Music sound levels are exceed- • Turn off Bass Boost feature. distortion when played at ing capacity of the speaker. • Turn volume down slightly. higher volumes. For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK & DECKER help line at 1-800-544-6986. MAINTENANCE Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service personnel, always using identical replacement parts. 90524612 FS18CH Radio 11/14/07 7:43 AM Page 1011 ACCESSORIES Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory not recommended for use with this tool could

be hazardous. SERVICE INFORMATION All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under "Tools—Electric" or call: 1-800-544-6986 or visit www.blackanddecker.com

FULL TWO-YEAR HOME USE WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways. The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges. The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required.Black & Decker owned and authorized Service Centers are listed under "Tools-Electric" in the yellow pages of the phone directory. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement. Special Warranty Note to Contractors: FIRESTORM

branded products are offered as high end consumer home use tools and carry a HOME USE WARRANTY. These tools are designed, manufactured and tested to meet or exceed the needs of the do-it-yourselfer in the execution of projects and repairs in and around the home. With proper use they will provide the home owner with step up power and performance well beyond their two year warranty. However, if you use tools for a living and use FIRESTORM
